LG TM9040W.CW1EGSE

Model: TM9040W.CW1EGSE

Save Part Not Listed?
product name

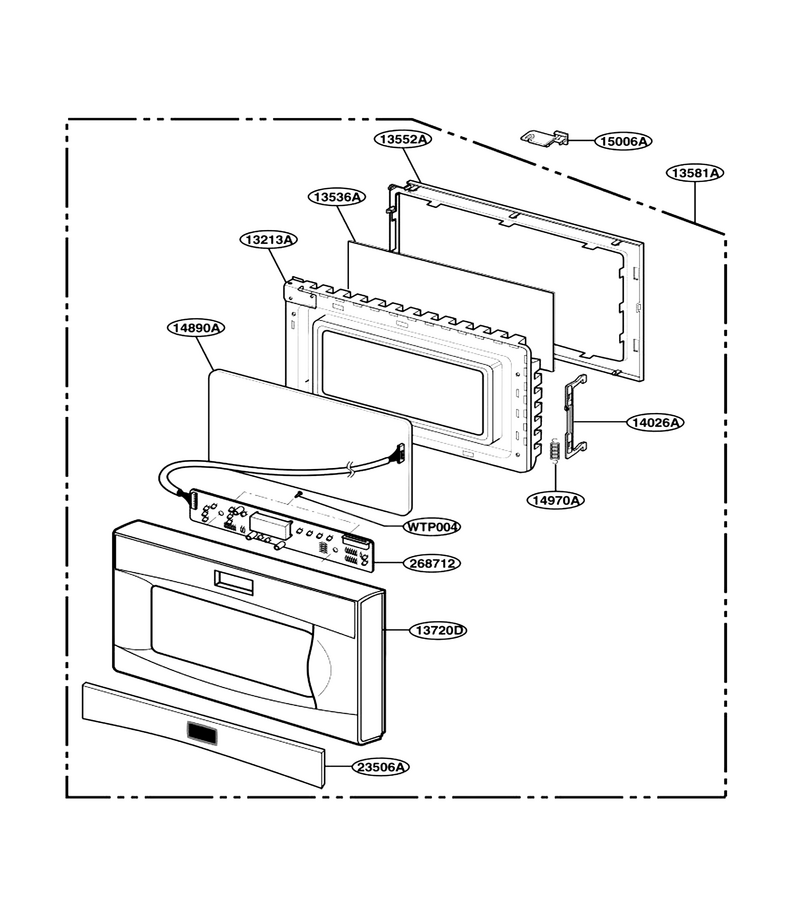

Door Parts

...
...
WTP004
Screw L-G-1TPL0302418
...
13213A
Door Frame L-G-3213W1A034J
...
13536A
Seal Tape L-G-3536WRA001W
...
13552A
Cover,choke L-G-3552W1A047A
...
13581A
Door Assembly L-G-3581W0A039K
...
13720D
Panel,door L-G-3720W0D265H
...
14026A
Microwave Door Latch L-G-4026W2A019A
...
14890A
Window,glass L-G-4890W1A010X
...
14970A
Spring L-G-4970WRA001B
...
15006A
Transformer L-G-5006W3A012A
...
23506A
Membrane L-G-3506W1A466A
...
268712
Pcb Assembly,sub L-G-6871W1S132D

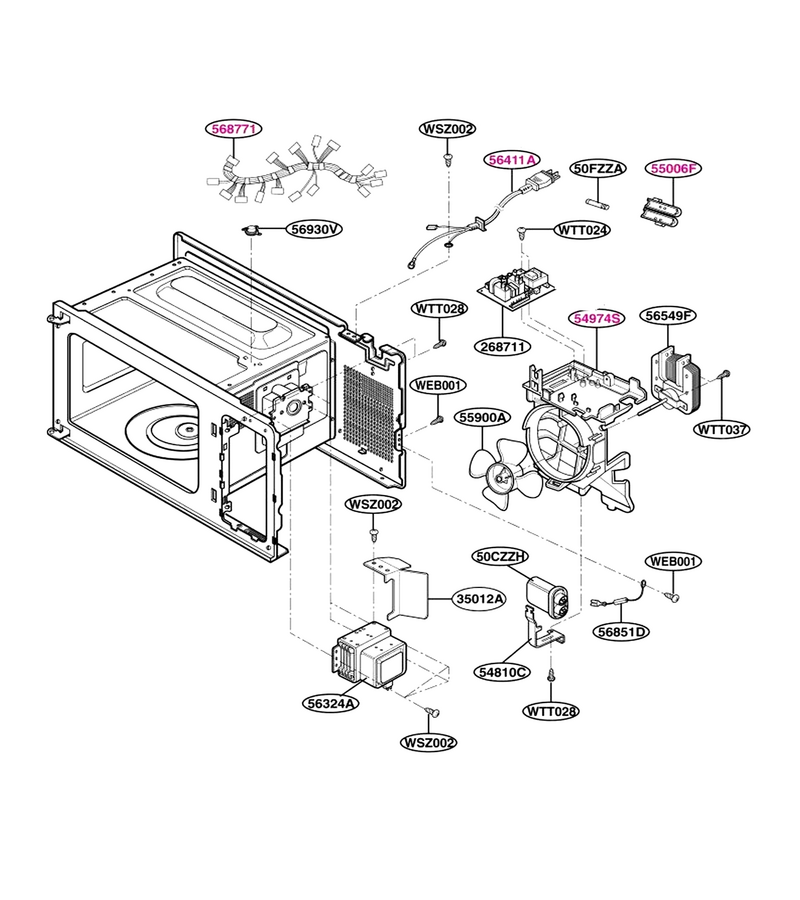

Oven Cavity Parts

...
...
WEB001
Screw L-G-1EBF0402494
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT024
Microwave Screw L-G-1TTL0402618
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004K
...
50FZZA
Fuse,time Delay L-G-3B74133P
...
35012A
Insulator L-G-5012W3A012B
...
54810C
Microwave High-Voltage Capacitor L-G-4810W3C004A
...
54974S
Guide,suction L-G-4974W0A016A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56201A
Filter Assembly,noise L-G-6201W1A014A
...
56324A
Microwave Magnetron L-G-2B71732B
...
56411A
Power Cord Assembly L-G-6411W1A031M
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005P
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001R
...
56930V
Microwave Thermostat L-G-6930W1A003B
...
268711
Pcb Assembly,sub L-G-6871W1S133D
...
568771
Harness,single L-G-6877W1A589E

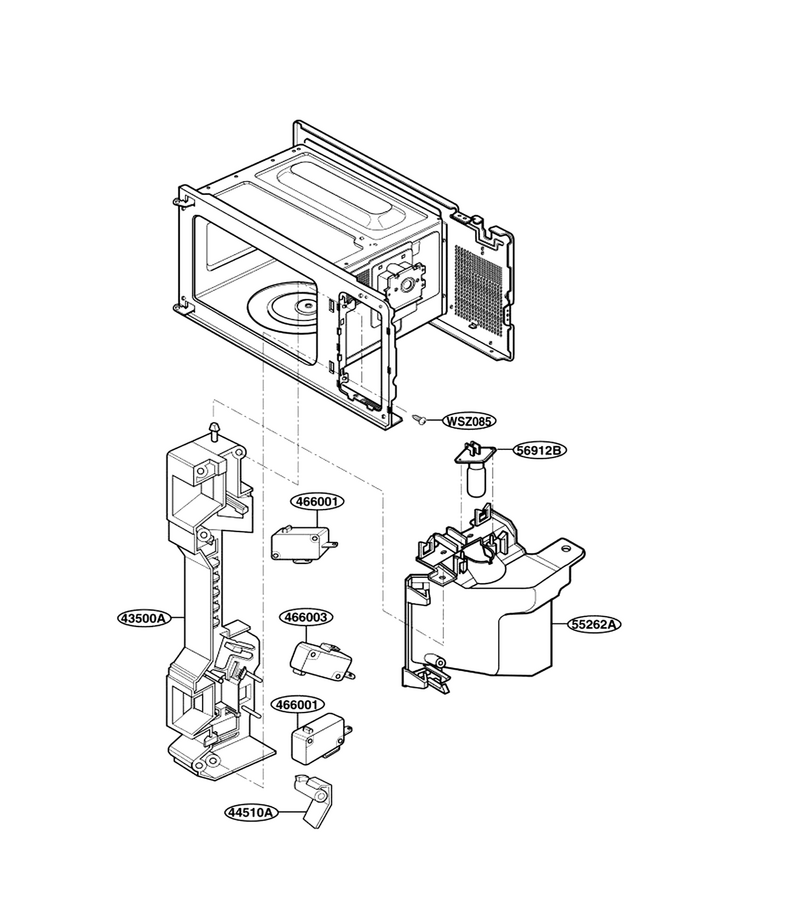

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Body L-G-3500W1A028B
...
44510A
Lever L-G-4510W3A012B
...
55262A
Duct L-G-5208W1A041A
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
466001
Switch,micro L-G-6600W1K003D
...
466003
Microwave Door Interlock Switch L-G-6600W1K001C

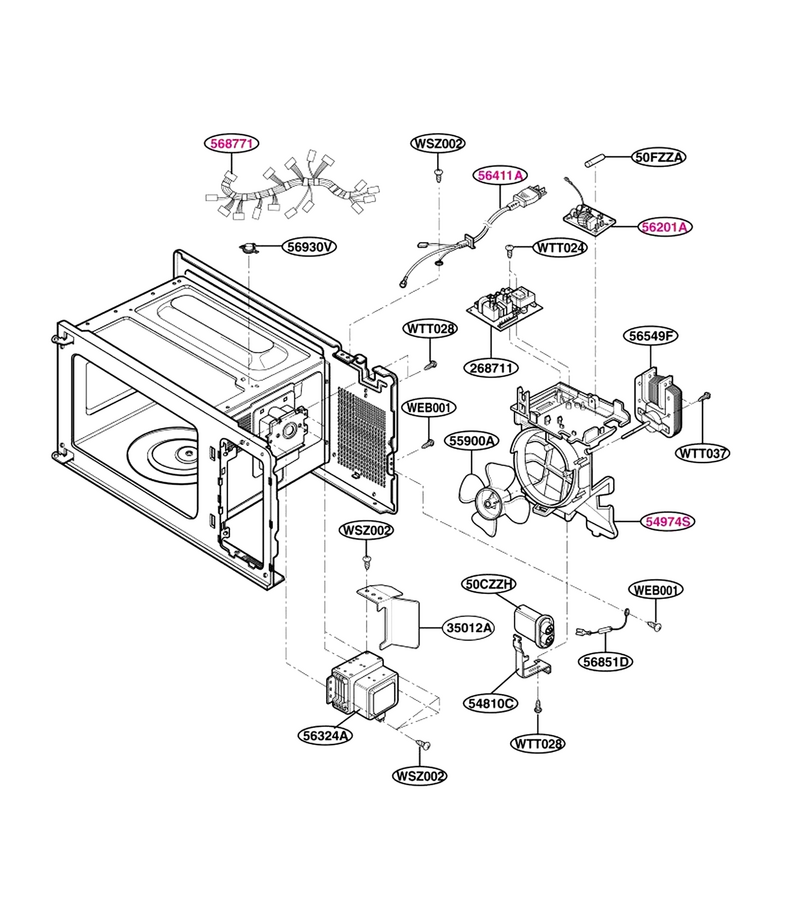

Oven Interior Parts (i)

...
...
WEB001
Screw L-G-1EBF0402494
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT024
Microwave Screw L-G-1TTL0402618
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004K
...
50FZZA
Fuse,time Delay L-G-3B74133P
...
35012A
Insulator L-G-5012W3A012B
...
54810C
Microwave High-Voltage Capacitor L-G-4810W3C004A
...
54974S
Guide,suction L-G-4974W0A016A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Microwave Magnetron L-G-2B71732B
...
56411A
Power Cord Assembly L-G-6411W1A031M
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005P
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001R
...
56930V
Microwave Thermostat L-G-6930W1A003B
...
268711
Pcb Assembly,sub L-G-6871W1S133D
...
568771
Harness,single L-G-6877W1A589E

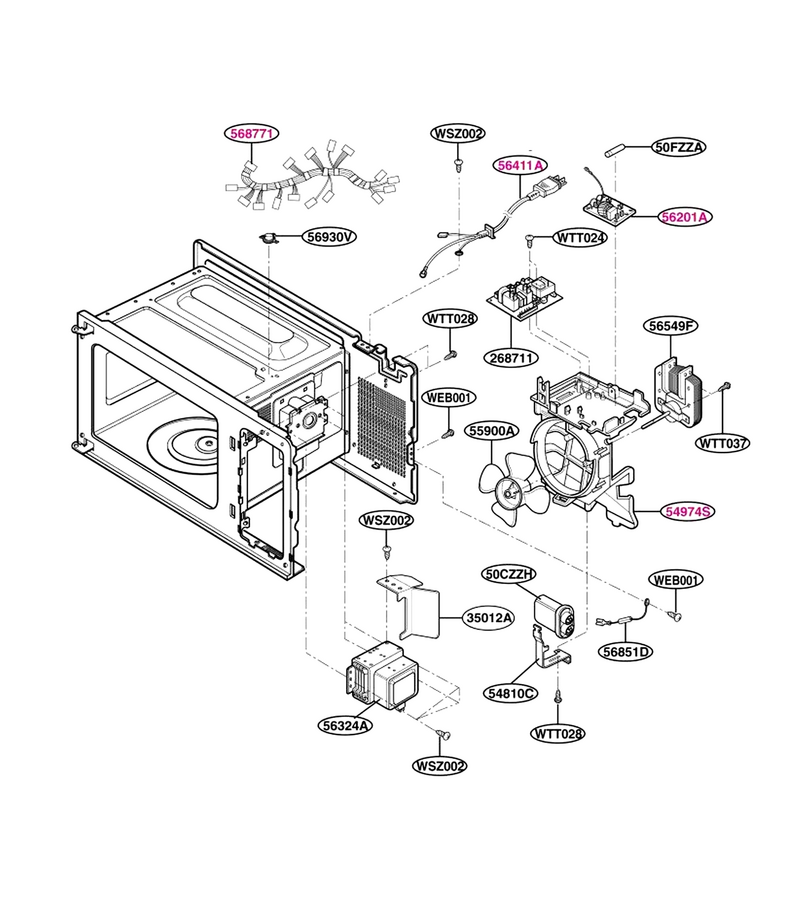

Oven Interior Parts (ii)

...
...
WEB001
Screw L-G-1EBF0402494
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT024
Microwave Screw L-G-1TTL0402618
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004K
...
50FZZA
Fuse,time Delay L-G-3B74133P
...
35012A
Insulator L-G-5012W3A012B
...
54810C
Microwave High-Voltage Capacitor L-G-4810W3C004A
...
54974S
Guide,suction L-G-4974W0A016A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56201A
Filter Assembly,noise L-G-6201W1A014A
...
56324A
Microwave Magnetron L-G-2B71732B
...
56411A
Power Cord Assembly L-G-6411W1A031M
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005P
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001R
...
56930V
Microwave Thermostat L-G-6930W1A003B
...
268711
Pcb Assembly,sub L-G-6871W1S133D
...
568771
Harness,single L-G-6877W1A589E

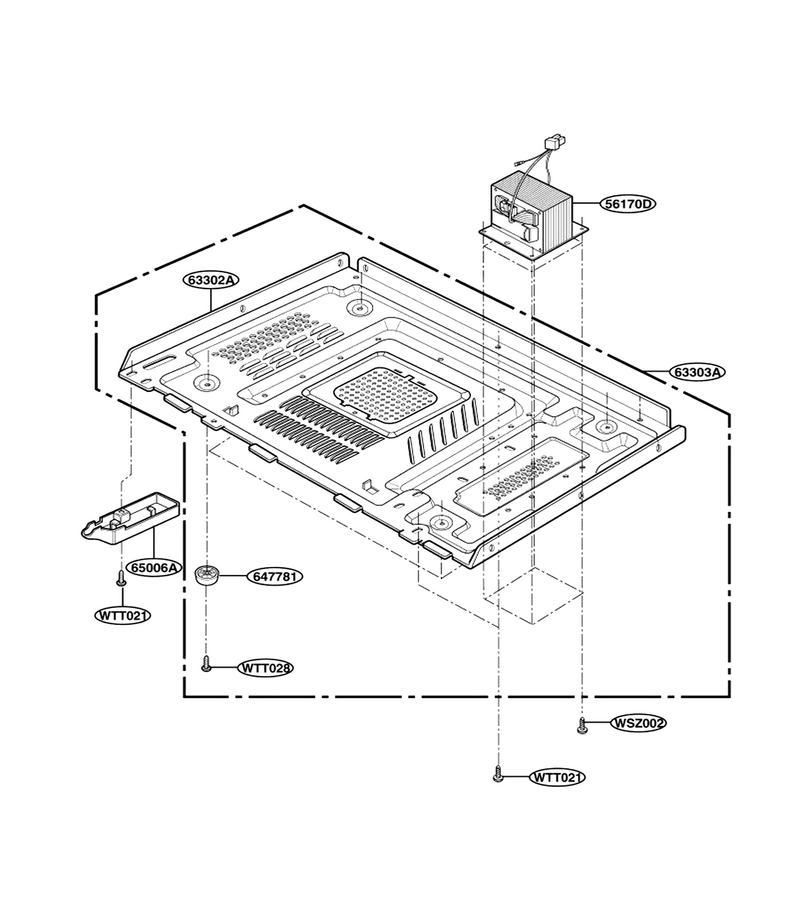

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
56170D
Transformer,high Voltage L-G-6170W1D075C
...
63302A
Plate,base L-G-3302W0A057A
...
63303A
Plate Assembly,base L-G-3303W0A020D
...
65006A
Protector L-G-5006W1A012A
...
647781
Leg L-G-4778W3A002A

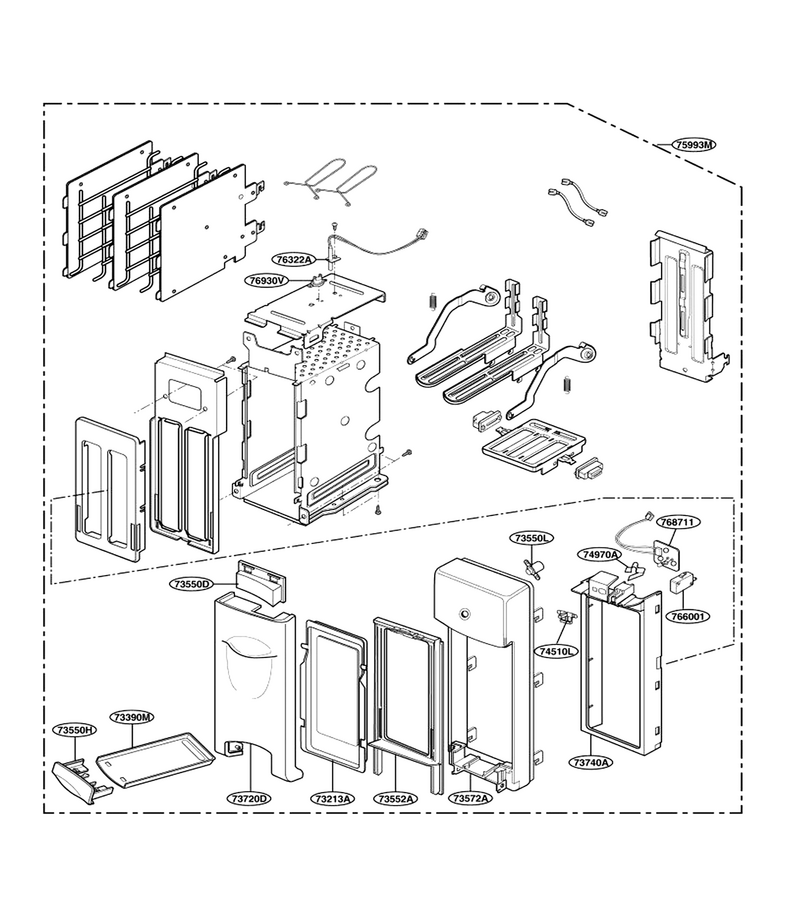

Toaster Parts

...
...
73213A
Heater Cover L-G-3212W1A042A
...
73390M
Tray,metal L-G-3390W1A016A
...
73550D
Cover,door Panel L-G-3550W1A147C
...
73550H
Cover,inner L-G-3550W1A148F
...
73550L
Lamp Cover L-G-3550W1A297A
...
73552A
Cover,choke L-G-3552W1A059B
...
73572A
Panel,control L-G-3720W0C062G
...
73720D
Panel,door L-G-3720W1D104C
...
73740A
Supporter L-G-3740W1A012B
...
74510L
Lever L-G-4510W1A020A
...
74970A
Spring L-G-4970W1A011A
...
75993M
Toaster Assembly,main L-G-5993W1M003R
...
76322A
Thermistor L-G-2B72827L
...
76930V
Dishwasher Thermostat L-G-6930W1A003K
...
766001
Switch,micro L-G-6600W1K001D
...
768711
Pcb Assembly,sub L-G-6871W1S146B
