LG TCD1870QGS.ASSEELC

Model: TCD1870QGS.ASSEELC

Save Part Not Listed?
product name

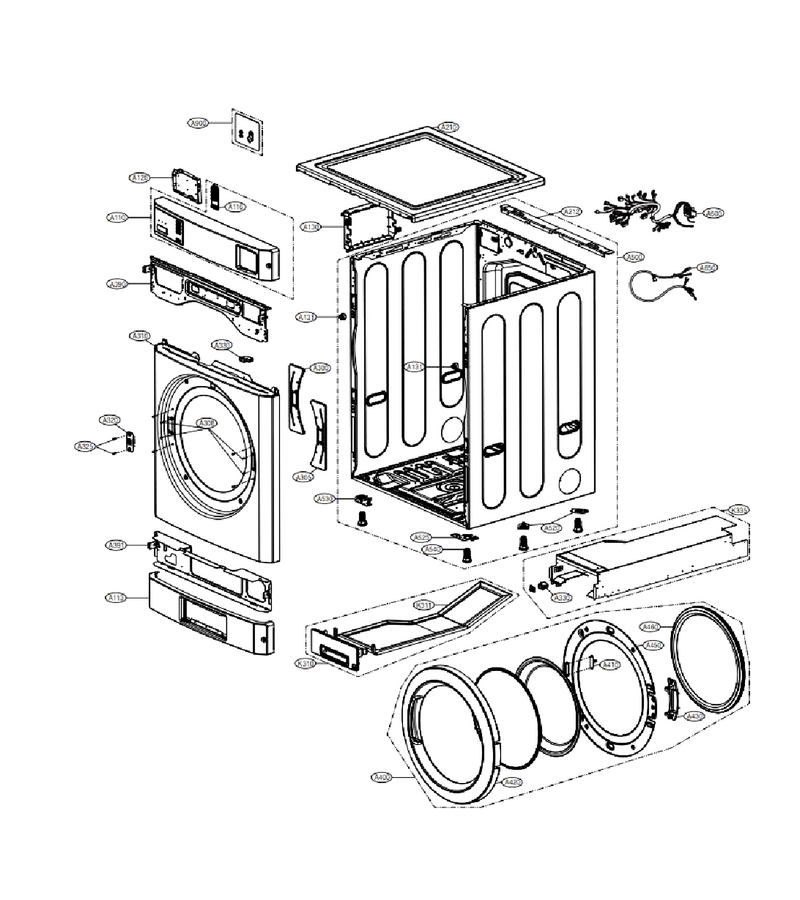

Control Panel & Cabinet & Cabinet Cover Assembly -

...
...
A530
Bracket,base L-G-4810EL3009F
...
A400
Dryer Door Assembly L-G-ADC72301101
...
A410
Hook Locker L-G-4026EL3007B
...
A420
Dryer Door Outer Frame L-G-MDQ58083001
...
A430
Hinge L-G-4774EL2001D
...
A450
Frame Assembly L-G-MDQ58083301
...
A500
Cabinet Assembly L-G-ABJ73568809
...
A520
Base Bracket L-G-4810EL3001B
...
A525
Bracket,base L-G-4810EL3009E
...
A110
Control Panel Assembly L-G-AGL74078505
...
A540
Dryer Leveling Leg L-G-4778EL3001B
...
A650
Harness,multi L-G-EAD62503101
...
A900
Accessory Assembly L-G-AAA75887101
...
K310
Filter Assembly,lint L-G-ADQ73734401
...
K311
Filter Assembly,mesh L-G-ADQ73773401
...
K335
Duct Assembly L-G-ADJ73813001
...
A330
Dryer Door Switch L-G-6601EL3001A
...
A113
Panel Assembly,control L-G-AGL74078507
...
A116
Button,control L-G-MBG62329502
...
A120
Pcb Assembly,display L-G-EBR76556901
...
A130
Pcb Assembly,main L-G-EBR76992201
...
A131
Washer Cabinet Clip L-G-AEJ33026601
...
A210
Top Plate Assembly L-G-AGU73729904
...
A212
Holder L-G-4930EL1005A
...
A305
Bracket,hinge L-G-MAZ47156205
...
A308
Dryer Screw L-G-1APF0402608
...
A310
Cover Assembly,cabinet L-G-ACQ86415101
...
A320
Dryer Door Latch Kit L-G-4027EL1001B
...
A325
Dryer Screw L-G-1MTC0402632
...
A390
Frame Assembly L-G-ADV74166903
...
A300
Bracket,hinge L-G-MAZ47156204

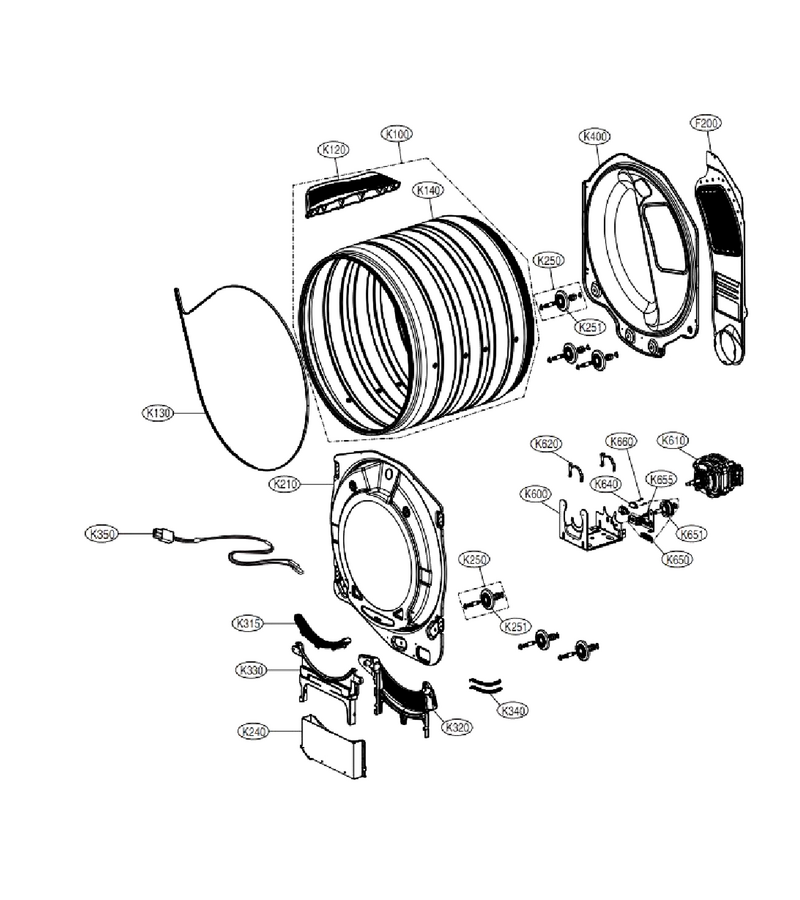

Drum & Motor Assembly

...
...
K350
Single Harness L-G-6631EL3003F
...
K330
Filter Guide L-G-MEA62790801
...
K600
Bracket,motor L-G-MAZ66065301
...
K610
Dryer Motor Assembly L-G-4681EL1008G
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
K640
Dryer Belt Switch L-G-EBF61734701
...
K650
Dryer Idler Assembly L-G-4561EL3002B
...
K651
Dryer Idler Pulley L-G-4560EL3001A
...
K655
Screw L-G-1SZZEL3001A
...
K660
Screw L-G-1TPL0303218
...
K320
Guide Cover L-G-MEA62770801
...
K315
Grille L-G-MDX62932901
...
K250
Roller Assembly L-G-4581EL2002H
...
K140
Gasket L-G-4036EL3001B
...
K130
Dryer Drum Belt L-G-4400EL2001D
...
K120
Lifter L-G-MFE61921001
...
K100
Tub Assembly,drum L-G-AJQ73274302
...
K340
Pressure Sensor L-G-EBD50964602

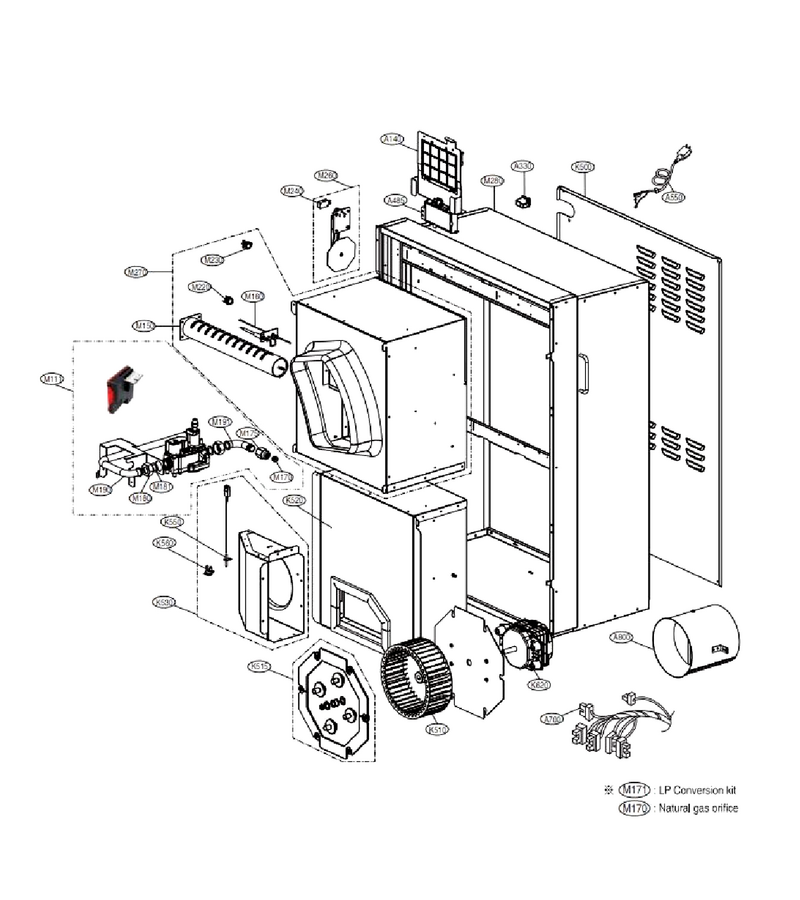

Case Assembly

...
...
M160
Igniter L-G-MEQ61881101
...
M280
Case Assembly L-G-ABQ74272901
...
M170
Orifice L-G-MFX62442001
...
M171
Parts Assembly L-G-383EEL3002G
...
M175
Connector,nozzle L-G-MCD62747501
...
M180
Nut,customized L-G-FAD31312601
...
M181
Gasket L-G-MDS64279001
...
M190
Pipe L-G-MGE62891101
...
M191
Pipe L-G-MGE62991001
...
M220
Thermostat L-G-6931EL3002F
...
M230
Thermostat L-G-6931EL3002C
...
M240
Dishwasher Micro Switch L-G-3W40025P
...
M260
Switch Assembly,safety L-G-EBF62015201
...
M270
Burner Assembly L-G-ABF73169901
...
M150
Burner Assembly L-G-ABF73169801
...
M111
Burner Assembly L-G-ABF73170001
...
K620
Dryer Motor Clamp L-G-4860EL3001A
...
K560
Dryer Blower Thermostat L-G-6931EL3002M
...
K550
Dryer Thermistor L-G-6323EL2001B
...
K520
Housing Assembly,blower L-G-AEN73572701
...
K515
Parts Assembly L-G-383EEL9001X
...
K500
Cover,rear L-G-MCK67730501
...
A800
Accessory Assembly L-G-AAA75064801
...
A700
Harness,multi L-G-EAD62503001
...
A550
Washer Power Cord L-G-6411ER1006V
...
A485
Dishwasher Noise Filter L-G-6201EC1006L
...
A330
Dryer Door Switch L-G-6601EL3001A
...
A140
Pcb Assembly L-G-EBR77096901
