LG SV12A10A.AWYAFRD

Model: SV12A10A.AWYAFRD

Save Part Not Listed?
product name

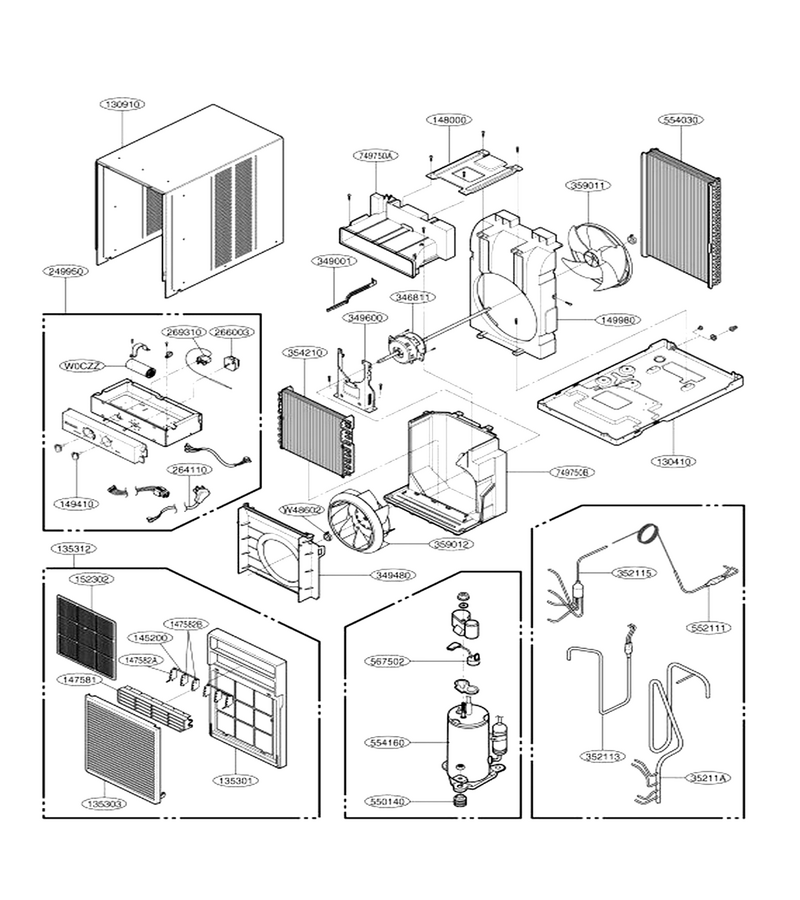

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001N
...
35211A
Tube Assembly, Suction Single L-G-5211A20579F
...
130410
Pan Base L-G-3041A20033N
...
130910
Cabinet L-G-3091A20014A
...
135301
Air Conditioner Grille Front L-G-3530A20055A
...
135303
Inlet Grille L-G-3530A20056A
...
135312
Grille Assembly L-G-3531A20123A
...
145200
Link L-G-4520A30036A
...
147581
Louver L-G-4758A20032A
...
147582A
Louvr Vert L-G-4758A20017A
...
147582B
Louvr Vert L-G-4758A20017B
...
148000
Brace L-G-4800A20001A
...
149410
Knob Assembly L-G-4941A30017A
...
149980
Shroud L-G-4998A10017A
...
152302
Room Air Conditioner Air Filter L-G-5231A20012A
...
249950
Case Assembly,control L-G-4995A20041D
...
264110
Room Air Conditioner Power Cord L-G-6411A20048F
...
266003
Rotary Switch L-G-2H00598E
...
269310
Thermostat Assembly L-G-2H01109Q
...
346811
Room Air Conditioner Fan Motor L-G-4681A20069C
...
349001
Damper L-G-4900A20006A
...
349480
Orifice L-G-4948A20012A
...
349600
Motor Mount L-G-4960A20034A
...
352113
Tube Assembly,discharge L-G-5211A20558J
...
352115
Tube Assembly,evaporator(in) L-G-5211A20559R
...
354210
Evaporator L-G-5421A20115D
...
359011
Axial Fan L-G-5900A20026A
...
359012
Turbo Fan L-G-5900A20019A
...
550140
Bushing L-G-4830AR4335A
...
552111
Tube Assembly,capillary L-G-5211A20557M
...
554030
Condenser Assembly,first L-G-5403A20082A
...
554160
Compressor L-G-2520UKGC2BA
...
567502
Overload Protector L-G-6750U-L029A
...
749750A
Air Guide L-G-5239A20007A
...
749750B
Guide Assembly,air L-G-5239A20008D
