product name

LG SV08A10.AWYAFRD

Model: SV08A10.AWYAFRD

Save Part Not Listed?
product name

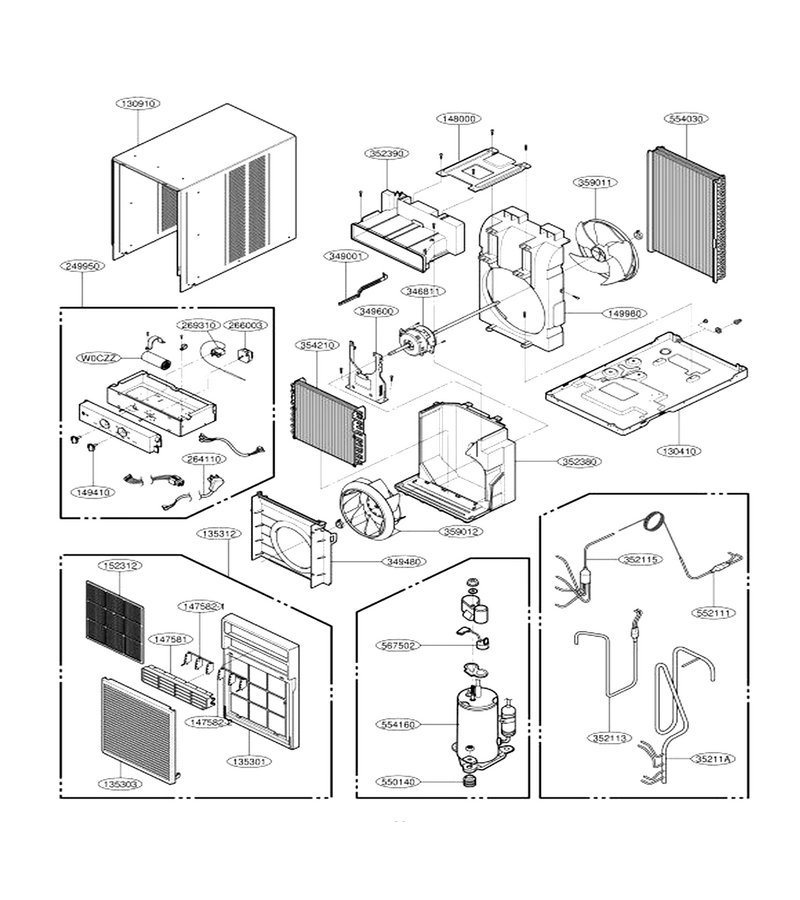

Main

...
...
35211A
Tube Assembly,suction L-G-5211A20555D
...
130410
Pan Base L-G-3041A20033J
...
130910
Cabinet L-G-3091A20014A
...
135301
Air Conditioner Grille Front L-G-3530A20055A
...
135303
Inlet Grille L-G-3530A20056A
...
135312
Grille Assembly L-G-3531A20123A
...
147581
Louver L-G-4758A20032A
...
147582-1
Louvr Vert L-G-4758A20017A
...
147582-2
Louvr Vert L-G-4758A20017B
...
148000
Brace L-G-4800A20001A
...
149410
Knob Assembly L-G-4941A30017A
...
149980
Shroud L-G-4998A10017A
...
152312
Room Air Conditioner Air Filter L-G-5231A20012A
...
249950
Case Assembly,control L-G-4995A20227W
...
264110
Power Cord L-G-6411A20011L
...
266003
Rotary Switch L-G-2H00598E
...
269310
Thermostat Assembly L-G-2H01109Q
...
346811
Motor Assembly L-G-4681A20069A
...
349001
Damper L-G-4900A20006A
...
349480
Orifice L-G-4948A20012A
...
349600
Motor Mount L-G-4960A20034A
...
352113
Tube Assembly,discharge L-G-5211A20558E
...
352115
Evaporator L-G-5211A20559A
...
352380
Air Guide L-G-5238A20015A
...
352390
Air Guide L-G-5238A20016A
...
354210
Evaporator L-G-5421A20115B
...
359011
Axial Fan L-G-5900A20026A
...
359012
Turbo Fan L-G-5900A20019A
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552111
Tube Assembly,capillary L-G-5211A20557A
...
554030
Condenser L-G-5403A20082B
...
554160
Compressor L-G-5416A90007D
...
567502
O.l.p L-G-6750A30001N
