LG SKSWD2401S.CBKQSGE

Model: SKSWD2401S.CBKQSGE

Save Part Not Listed?
product name

Drawer Parts

...
...
5023
Microwave Thermostat L-G-6930W1A003J
...
83112D
Case Assembly,sub L-G-3112W1U044E
...
83550B
Plate,flat(lower) L-G-MGJ66702501
...
83550D
Cover,top L-G-3550W0A102B
...
83550G
Plate,front L-G-MGJ66702301
...
83550L
Plate,inner L-G-MGJ66702201
...
83550R
Plate,inner L-G-MGJ66702401
...
83550W
Window Assembly L-G-AJX75025001
...
83581E
Parts Assembly L-G-AGM76971601
...
83721E
Parts Assembly L-G-AGM76971701
...
84810A
Bracket,lamp L-G-MAZ66373301
...
84940D
Knob L-G-MEY63613703
...
84974A
Guide,air L-G-MEA66070201
...
85290D
Insulator L-G-5290W1A009A
...
85300D
Heater,sheath L-G-5300W1S020D
...
86410D
Power Cord L-G-6410W1A015E
...
86620D
Jack,dc Power L-G-6620K00004A
...
86877D
Harness,single L-G-6877W1A513E
...
86912D
Lamp,neon L-G-6912JR3003A
...
866011
Switch Assembly L-G-6601W1A001A
...
869301
Thermostat L-G-6930W1A008A

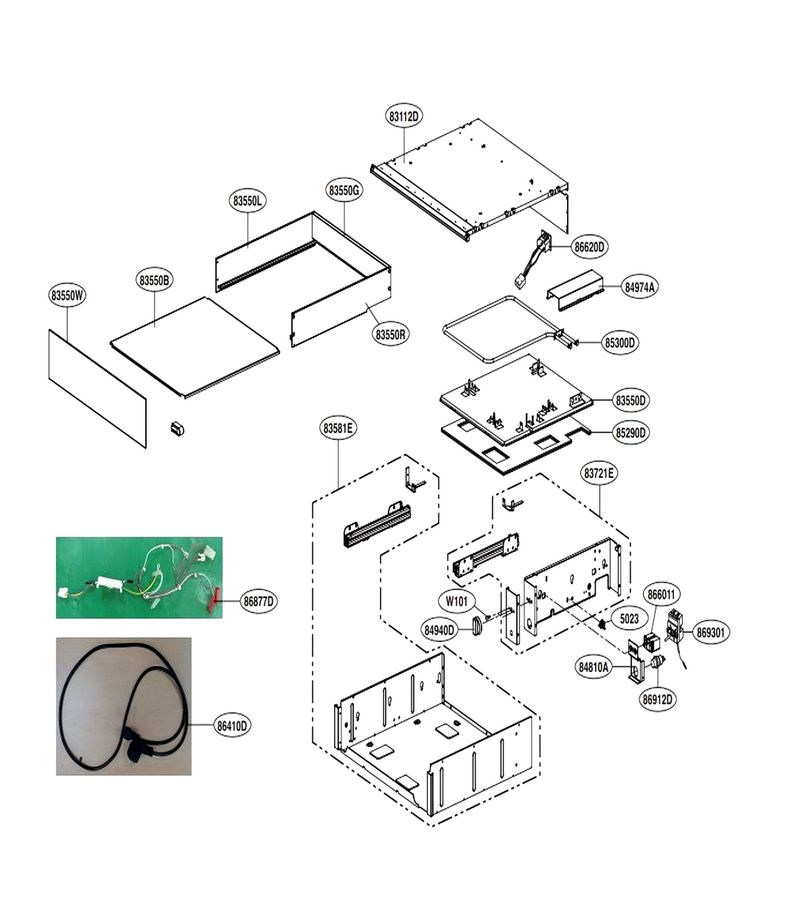

Schematic Image Zoomed
