LG SKSUW2401P.ASTCNA0

Model: SKSUW2401P.ASTCNA0

Save Part Not Listed?
product name

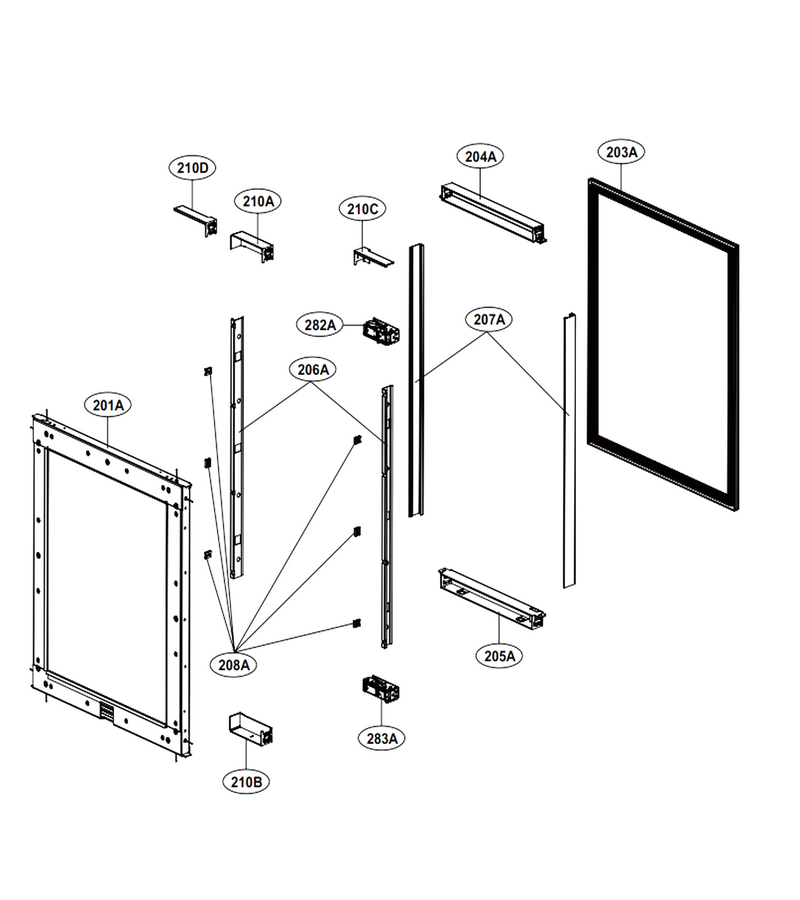

Door Part

...
...
201A
Door Foam Assembly L-G-ADD76424001
...
203A
Door Gasket Assembly L-G-ADX62356453
...
204A
Decor Cap Assembly L-G-ABN76530001
...
205A
Decor Cap Assembly L-G-ABN76530002
...
206A
Rail Connector L-G-MCD65155301
...
207A
Door Decor L-G-MCR68421101
...
208A
Holder,rail L-G-MEG65500901
...
210A
Door Cap L-G-MBL68693901
...
210B
Door Cap L-G-MBL68693902
...
210C
Hinge Cover L-G-MCK71530801
...
210D
Hinge Cover L-G-MCK71530802
...
282A
Hinge Assembly L-G-AEH76176101
...
283A
Hinge Assembly L-G-AEH76176102

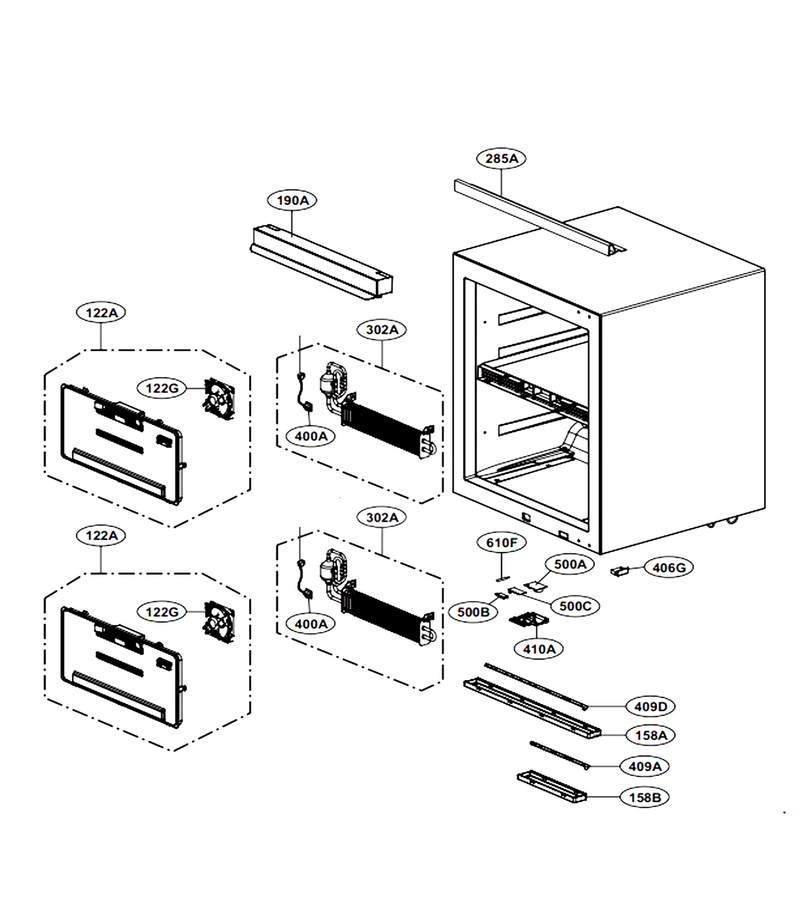

Case Part

...
...
122A
Fan Grille Assembly L-G-AEB76284402
...
122G
Dc Motor L-G-EAU63425004
...
158A
Lamp Cover L-G-MCK70864305
...
158B
Cover,lamp L-G-MCK70864302
...
190A
Display Cover Assembly L-G-ACQ30002002
...
285A
Top Cover L-G-MCK71549301
...
302A
Evaporator Assembly L-G-ADL76681201
...
400A
Sensor Assembly L-G-EBD61246726
...
406G
Magnet Switch L-G-EBF61314818
...
409A
Led Assembly L-G-EAV64632123
...
409D
Led Assembly L-G-EAV64632101
...
410A
Sensor Cover L-G-MCK71400602
...
500A
Refrigerator Dispenser Control Board L-G-EBR64730408
...
500B
Pcb Assembly L-G-EBR71326804
...
500C
Pcb Assembly,module L-G-EBR83227508
...
610F
Temperature Sensor L-G-EBD32915803

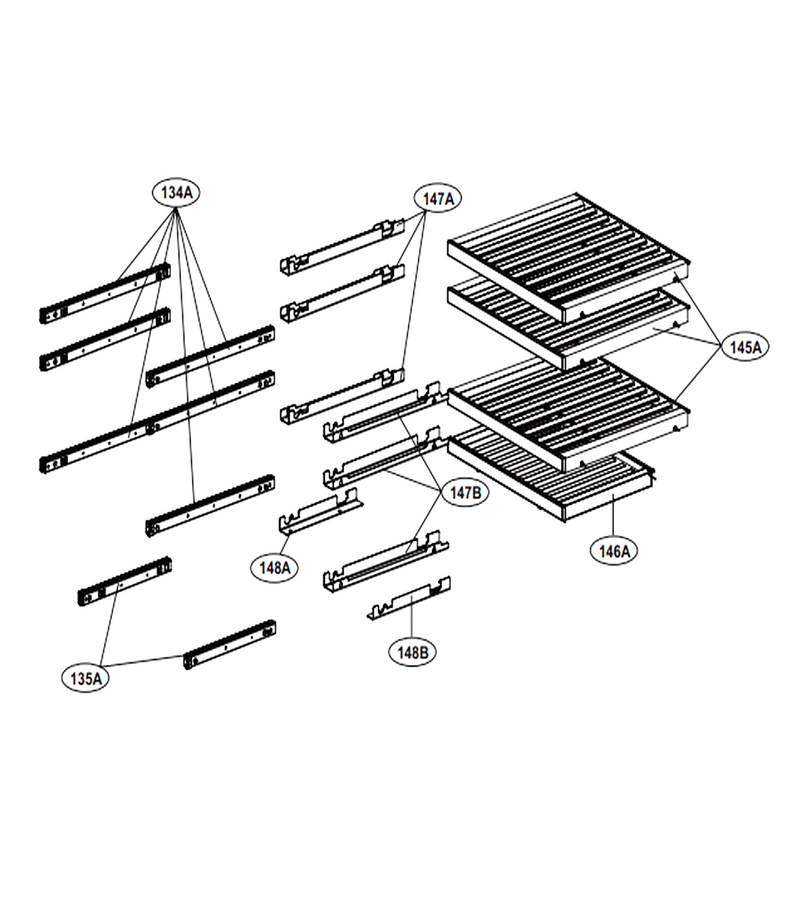

Movable Part

...
...
134A
Slide Rail L-G-MGT62884703
...
135A
Slide Rail L-G-MGT63124903
...
145A
Refrigerator Shelf Assembly L-G-AHT75034009
...
146A
Refrigerator Shelf Assembly L-G-AHT75333701
...
147B
Rail Holder L-G-MEG66638902
...
147A
Rail Holder L-G-MEG66638901
...
148A
Rail Holder L-G-MEG66639001
...
148B
Rail Holder L-G-MEG66639002

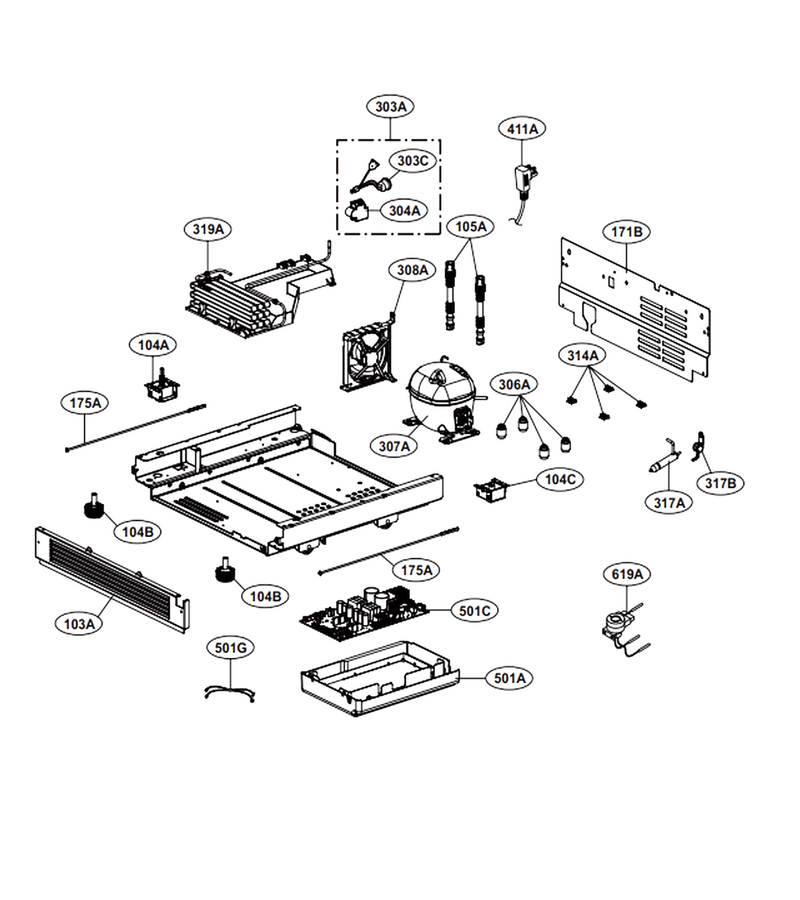

Machine Room Part

...
...
103A
Lower Cover L-G-MCK71550603
...
104A
Leg Assembly,adjust L-G-AFC73849602
...
104B
Refrigerator Leveling Leg L-G-AFC72909201
...
104C
Leg Assembly,adjust L-G-AFC73849603
...
105A
Tube Assembly,drain L-G-5251JA3003K
...
171B
Machinery (rear) Cover L-G-MCK71365203
...
175A
Bar L-G-MAK64307001
...
303A
Ptc Thermistor Assembly L-G-EBG60663281
...
303C
Overload Protect L-G-6750C-0002C
...
304A
Cover,ptc L-G-MCK69300903
...
306A
Compressor Damper L-G-5040JA3074B
...
307A
Set Assembly Compressor L-G-TCA36671605
...
308A
Fan Guide L-G-MEA66330201
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
317A
Drier Assembly L-G-ADH73590306
...
317B
Drier Holder L-G-4930JA3034C
...
319A
Drip Tray Assembly L-G-AJP76394801
...
411A
Power Cord Assembly L-G-EAD64489312
...
501A
Pcb Case L-G-MBN66227901
...
501C
Main Pcb Assembly L-G-EBR86835404
...
501G
Harness Assembly L-G-EAD65574702
...
619A
Gas Valve Assembly L-G-AJU74012405

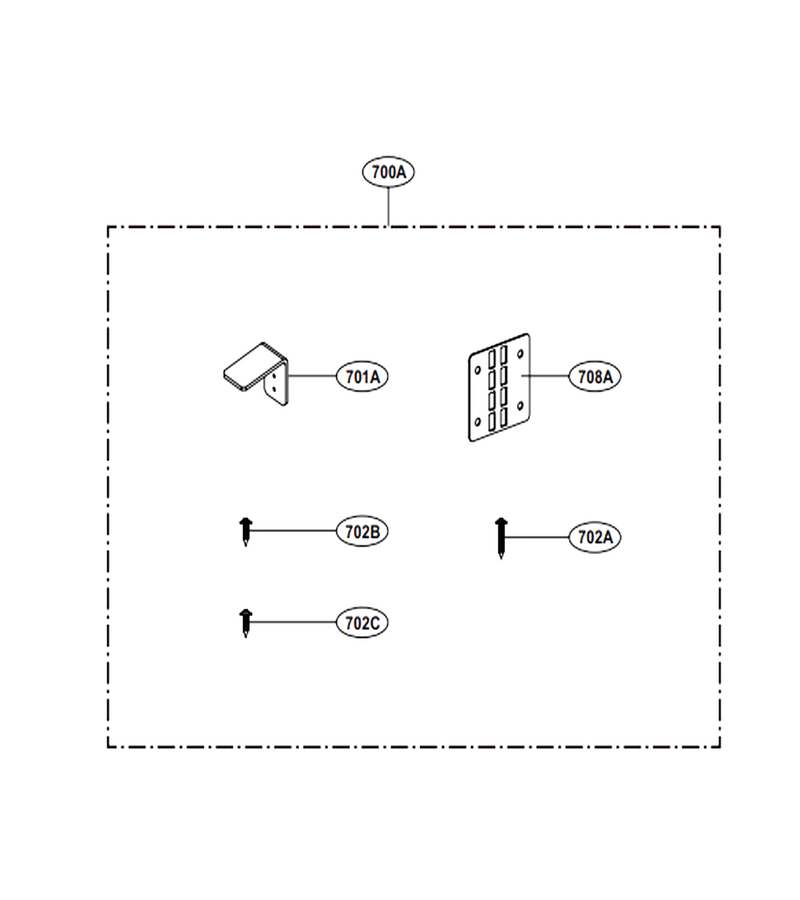

Installation Part

...
...
700A
Installation Package Assembly L-G-AGF76410869
...
701A
Case Bracket L-G-MAZ66103202
...
702A
Refrigerator Screw L-G-1SZZJA3009A
...
702B
Screw,customized L-G-1SBZJA3004N
...
702C
Laundry Appliance Screw L-G-FAB30025701
...
708A
Case Decor L-G-MCR67247302
