LG SKSSV3001S.ASTLSGN

Model: SKSSV3001S.ASTLSGN

Save Part Not Listed?
product name

Main

...
...
5080
Range Oven Meat Probe Sensor L-G-EBD51431001
...
9504
Accessory Assembly L-G-AAA77169702
...
9506
Accessory Assembly L-G-AAA74970602

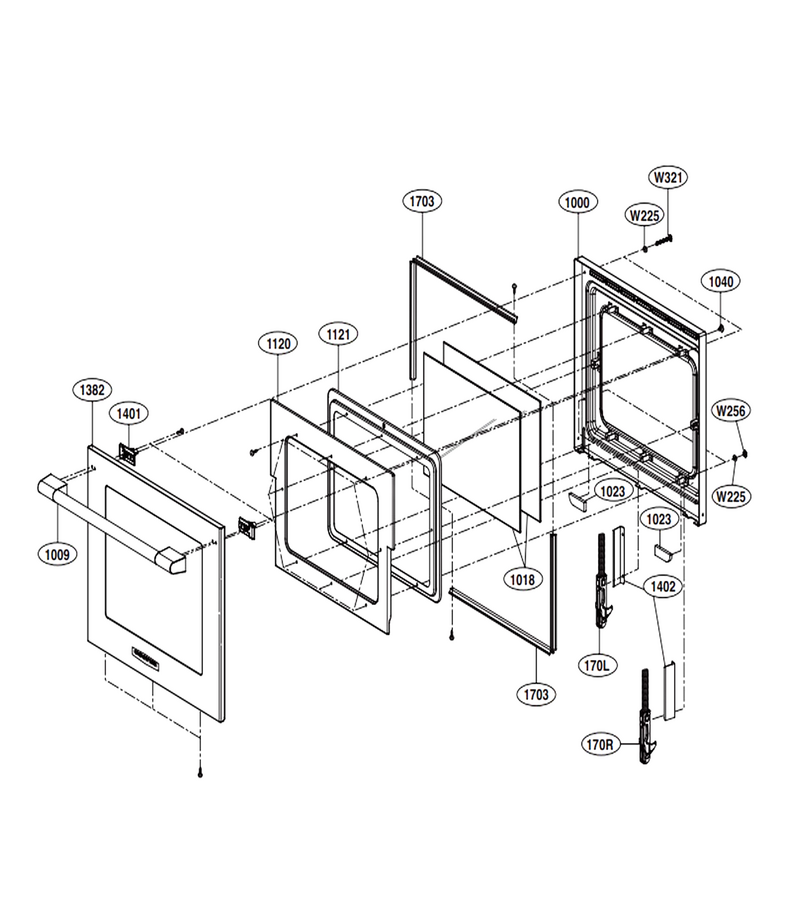

Door Parts

...
...
W225
Washer L-G-1WZZW3Z003B
...
W256
Screw L-G-1SZZW5N001F
...
W321
Screw L-G-1SZZW5N001D
...
170L
Hinge Assembly L-G-AEH74876309
...
170R
Hinge Assembly L-G-AEH74876310
...
1000
Frame Assembly,door L-G-ADV34868803
...
1009
Handle,door L-G-MEB63654002
...
1018
Range Oven Door Inner Glass L-G-4890W1N005A
...
1023
Insulator L-G-MEV63330702
...
1040
Oven Protector Cap L-G-5006841001A
...
1120
Inner Cover L-G-MCK40417601
...
1121
Inner Cover L-G-MCK47161201
...
1382
Parts Assembly L-G-AGM76049701
...
1401
Supporter,handle L-G-MJH65513101
...
1402
Supporter L-G-MJH55321601
...
1703
Bracket,mount L-G-MAZ65804301

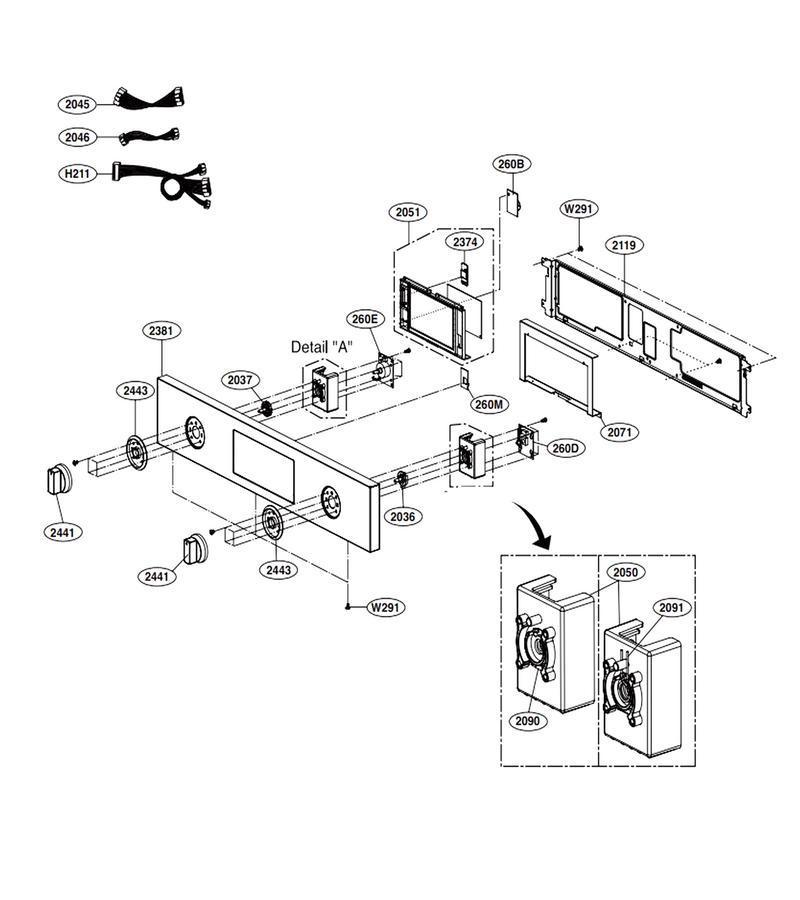

Controller Parts

...
...
H211
Harness,single L-G-EAD64568602
...
W291
Screw L-G-1SZZW2A004E
...
260B
Sub,pcb Assm L-G-EBR76332902
...
260D
Pcb Assembly,sub L-G-EBR80595801
...
260E
Pcb Assembly,option L-G-EBR80327002
...
260M
Pcb Assembly,option L-G-EBR84439701
...
2036
Supporter L-G-MJH63756901
...
2037
Supporter,led L-G-MJH64734601
...
2045
Single Harness L-G-EAD62349807
...
2046
Harness,single L-G-EAD63009007
...
2050
Supporter,pcb L-G-MJH64734701
...
2051
Pcb Supporter Assembly L-G-AJJ75678709
...
2071
Mount Bracket L-G-MAZ67171601
...
2091
Spring,coil L-G-MHY64864201
...
2119
Bracket,control Panel L-G-MAZ41753503
...
2374
Supporter Assembly,pcb L-G-AJJ75678710
...
2381
Sub Controller Assembly L-G-ACM76038802
...
2441
Knob Assembly L-G-AEZ74113401
...
2443
Control Knob L-G-MEY63473803

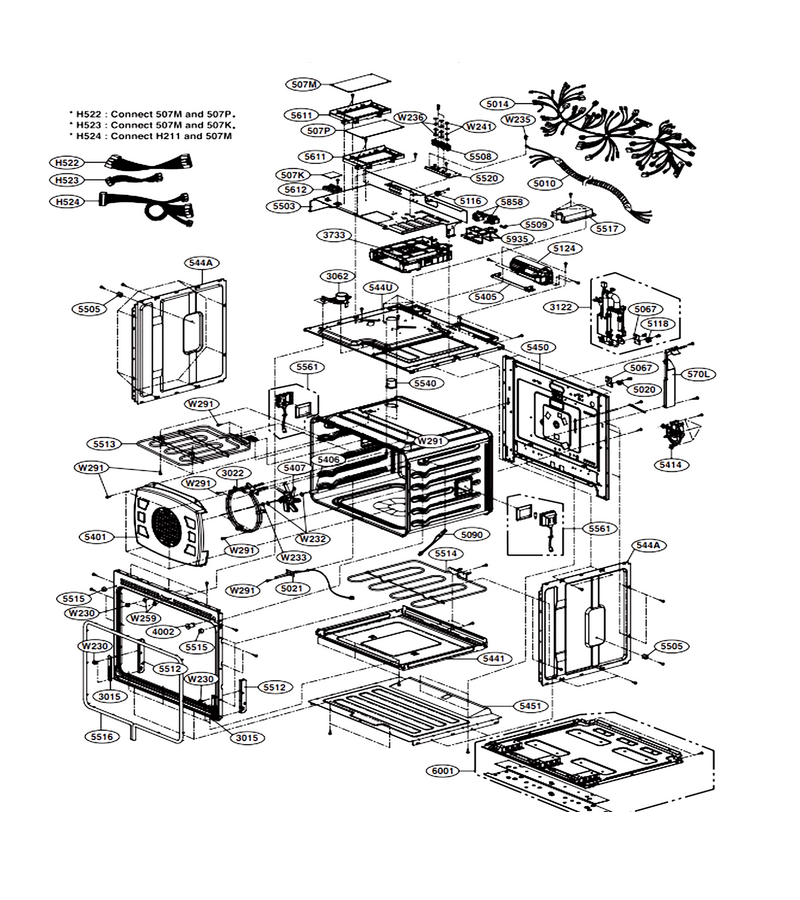

Cavity Parts

...
...
H522
Harness,single L-G-EAD63009007
...
H523
Harness,single L-G-EAD34822965
...
H524
Single Harness L-G-EAD64565317
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W235
Screw L-G-1ATF0502610
...
W236
Washer,common L-G-4H00056C
...
W241
Nut L-G-1NZZW1N002A
...
W259
Washer L-G-1WZZW3Z003C
...
W291
Screw L-G-1SZZW2A004E
...
507K
Sub Pcb Assembly L-G-EBR89265801
...
507M
Main Pcb Assembly L-G-EBR30056102
...
507P
Sub Pcb Assembly L-G-EBR89829202
...
544A
Insulator L-G-MEV42726401
...
544U
Insulator L-G-MEV40416110
...
570L
Barrier L-G-MAL48432602
...
3015
Bracket,hinge L-G-MAZ64603204
...
3022
Heater Assembly L-G-AEG74229801
...
3062
Motor L-G-EAU43957801
...
3122
Heater Assembly L-G-AEG74450001
...
3733
Housing Assembly,water L-G-AEN74551401
...
4002
Switch L-G-EBF60663403
...
5010
Power Cord L-G-EAD42825102
...
5014
Single Harness L-G-EAD51439108
...
5020
Microwave Thermal Cut-Off L-G-6930W1A003R
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5067
Bracket,thermostat L-G-MAZ65705201
...
5090
Jack, Power L-G-EAG43128001
...
5116
Microwave Thermostat L-G-6930W1A003D
...
5118
Dishwasher Thermostat L-G-6930W1A003K
...
5124
Fan Assembly L-G-5901W1E002G
...
5401
Cover,heater L-G-MCK68473108
...
5405
Motor Bracket L-G-4810W1N060B
...
5406
Ring L-G-MGZ63607001
...
5407
Convection Fan L-G-MDG62882901
...
5414
Motor Housing L-G-4681W1N002B
...
5441
Chamber L-G-MBR40415301
...
5450
Insulator L-G-MEV40415801
...
5451
Insulator L-G-MEV66191301
...
5503
Pcb Supporter L-G-MJH66094401
...
5505
Supporter L-G-4980W1N013A
...
5508
Connector,terminal Block L-G-EAG32629305
...
5509
Hose Connector L-G-MCD64466901
...
5512
Hinge Bracket L-G-MAZ48427301
...
5513
Heater,sheath L-G-MEE62306504
...
5514
Heater,sheath L-G-MEE41716502
...
5515
Packing,gasket L-G-MFZ65551602
...
5516
Packing Gasket L-G-MFZ40418402
...
5517
Vent Assembly L-G-AJV56083902
...
5520
Terminal Block L-G-MAV62761901
...
5540
Duct Assembly L-G-ADJ52698705
...
5561
Lamp,halogen L-G-EAQ43128703
...
5611
Pcb Support L-G-MJH41754001
...
5612
Supporter,pcb L-G-MJH65153301
...
5858
Pump L-G-MGQ62341901
...
5935
Tube L-G-MJU65727804
...
6001
Base Plate Assembly L-G-AGU30002402

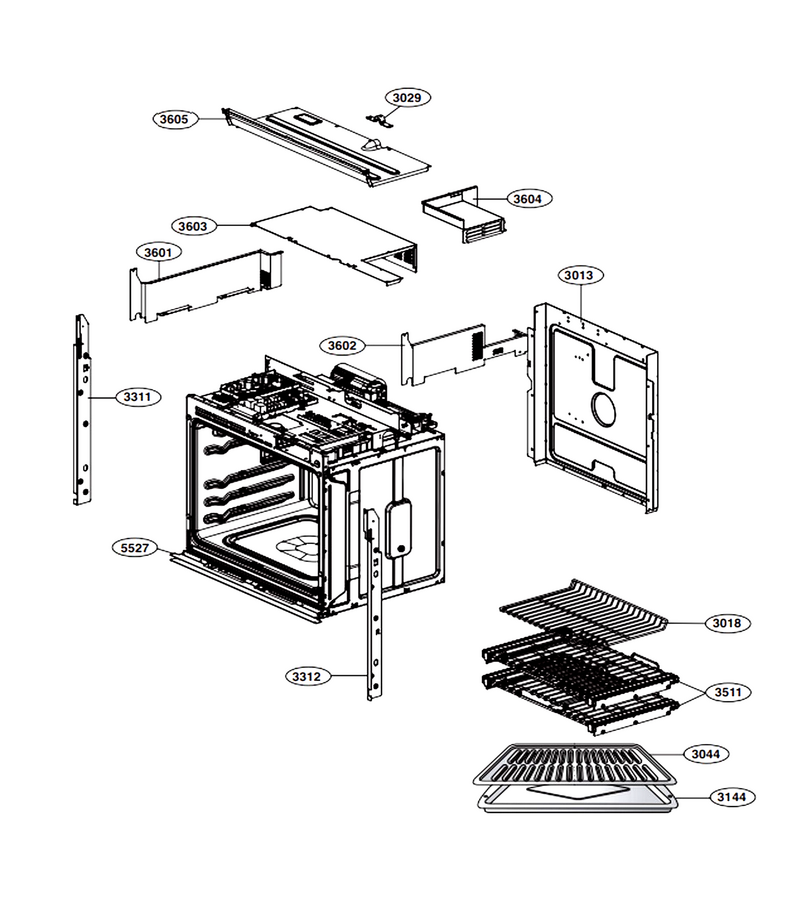

Assembly

...
...
3013
Cover,rear L-G-MCK69646701
...
3018
Wall Oven Rack L-G-MHL49207701
...
3029
Mounting Bracket L-G-MAZ47162501
...
3044
Tray,metal L-G-MJS61849903
...
3144
Tray,metal L-G-MJS61850003
...
3311
Grille L-G-MDX64372003
...
3312
Grille L-G-MDX40418604
...
3511
Shelf Assembly L-G-AHT74673901
...
3601
Cover L-G-MCK40423001
...
3602
Oven Cover L-G-MCK41754101
...
3603
Cover L-G-MCK41753701
...
3604
Top Cover L-G-MCK71155802
...
3605
Oven Cover L-G-MCK40423201
...
5527
Vent L-G-MJZ63081802
