product name

LG SKSRT360SIS.ASTESGN

Model: SKSRT360SIS.ASTESGN

Save Part Not Listed?
product name

Main

...
...
9384
Nozzle Accessory Assembly L-G-AAA75946019

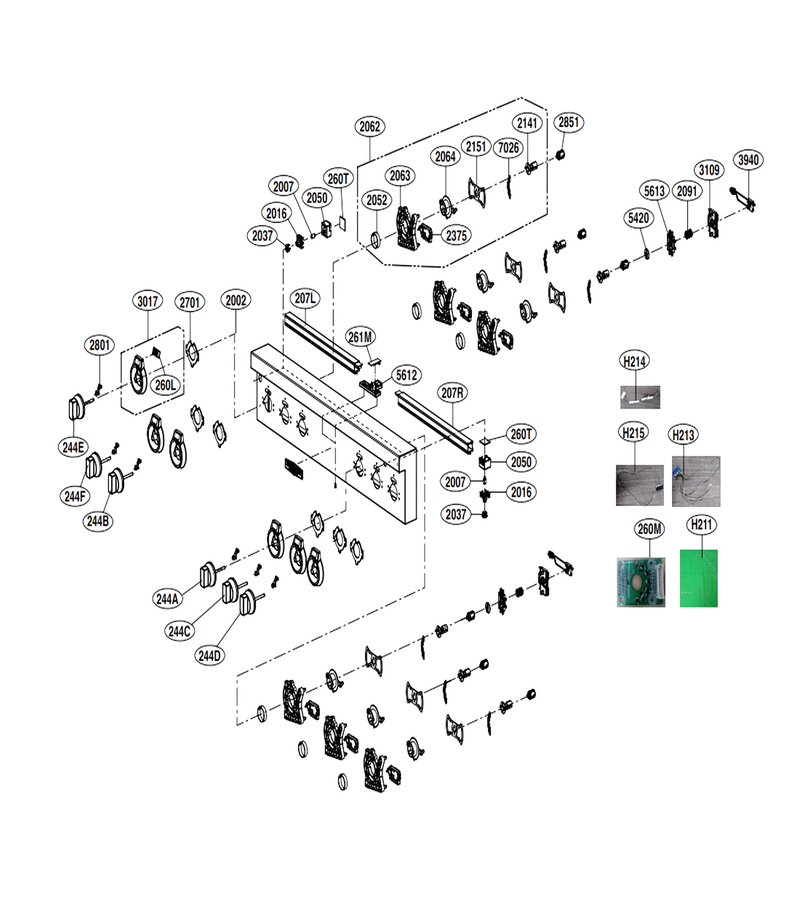

Controller Parts

...
...
H211
Single Harness L-G-EAD64568604
...
H213
Single Harness L-G-EAD64565321
...
H214
Harness,single L-G-EAD64565315
...
H215
Single Harness L-G-EAD64565320
...
207L
Bracket Assembly L-G-ABA76569005
...
207R
Bracket Assembly L-G-ABA76569006
...
244A
Knob Assembly L-G-AEZ74953401
...
244B
Knob Assembly L-G-AEZ74953402
...
244C
Knob Assembly L-G-AEZ74953403
...
244D
Knob Assembly L-G-AEZ74953404
...
244E
Knob Assembly L-G-AEZ74953405
...
244F
Knob Assembly L-G-AEZ74953406
...
260L
Pcb Assembly,option L-G-EBR84439601
...
260M
Pcb Assembly,option L-G-EBR84439701
...
260T
Pcb Assembly,option L-G-EBR84764001
...
261M
Pcb Assembly,module L-G-EBR83227508
...
2002
Control Panel Assembly L-G-AGL30020202
...
2007
Button L-G-5020W1N003A
...
2016
Button Assembly L-G-502181N001A
...
2037
Supporter,led L-G-MJH64734601
...
2050
Supporter,pcb L-G-MJH64734701
...
2052
Ring,guide L-G-MGZ64347001
...
2062
Guide Assembly,selector L-G-AEC74957401
...
2063
Holder Assembly L-G-AEJ75180501
...
2064
Holder Assembly L-G-AEJ75180401
...
2091
Spring,coil L-G-MHY64864201
...
2141
Supporter,holder L-G-MJH64794101
...
2151
Frame,fixing L-G-MDQ65336301
...
2375
Supporter Assembly,pcb L-G-AJJ75518601
...
2701
Plate,guide L-G-MGJ65663002
...
2801
Locker,guard Ring L-G-MFG64238601
...
2851
Shaft Assembly L-G-AHR73829701
...
3017
Ring Assembly L-G-AHH73129101
...
3109
Supporter,holder L-G-MJH64793701
...
3940
Switch Assembly L-G-EBF63434701
...
5420
Holder Assembly L-G-AEJ75180301
...
5612
Pcb Supporter L-G-MJH66235501
...
5613
Supporter,pcb L-G-MJH64793801
...
7026
Spring,coil L-G-MHY64864001

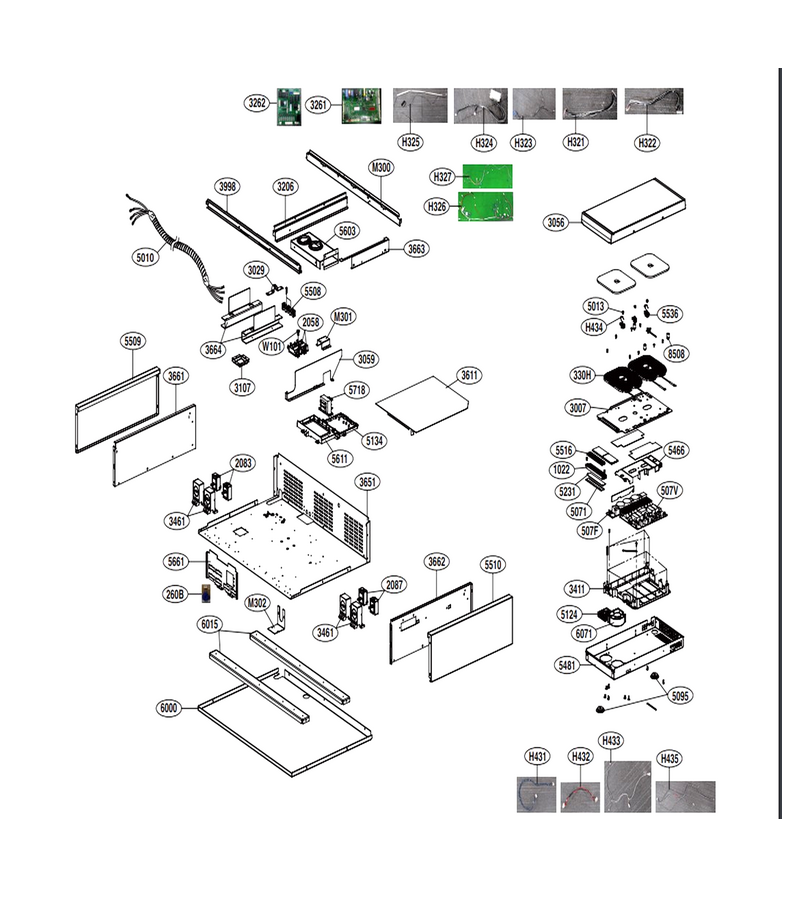

Cooktop Parts I

...
...
H321
Harness,single L-G-EAD60833515
...
H322
Harness,single L-G-EAD60833516
...
H323
Harness,single L-G-EAD64565303
...
H324
Harness,single L-G-EAD64565316
...
H325
Single Harness L-G-EAD64565319
...
H326
Single Harness L-G-EAD64488005
...
H327
Single Harness L-G-EAD64488006
...
H431
Harness,single L-G-EAD64488501
...
H432
Harness,single L-G-EAD64488601
...
H433
Harness,single L-G-EAD34822983
...
H434
Harness,single L-G-EAD63894301
...
H435
Harness,single L-G-EAD62349815
...
M300
Mount Bracket L-G-MAZ67413001
...
M301
Mount Bracket L-G-MAZ67412901
...
M302
Idle Bracket L-G-MAZ67417301
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
260B
Sub,pcb Assm L-G-EBR76332902
...
330H
Heater,working Coil L-G-MEE63565003
...
507F
Pcb Assembly,filter L-G-EBR89399201
...
507V
Pcb Assembly,inverter L-G-EBR83852203
...
1022
Cover,led L-G-MCK69628901
...
2058
Transformer,power L-G-EBJ63450301
...
2083
Switch,rotary L-G-EBF63054502
...
2087
Switch,rotary L-G-EBF63054501
...
3007
Insulator L-G-MEV66172801
...
3029
Mounting Bracket L-G-MAZ47162501
...
3056
Plate Assembly,upper L-G-AGU75849602
...
3059
Barrier L-G-MAL63623801
...
3107
Insulator L-G-MEV66191401
...
3206
Bracket,mount L-G-MAZ66003801
...
3261
Main Pcb Assembly L-G-EBR84439314
...
3262
Pcb Assembly,sub L-G-EBR89757901
...
3411
Supporter,pcb L-G-MJH64694401
...
3461
Housing,case L-G-MEK64026701
...
3611
Cover,safety L-G-MCK69967602
...
3651
Base Plate L-G-MGJ67176701
...
3661
Mount Plate L-G-MGJ67177101
...
3662
Mount Plate L-G-MGJ67177201
...
3663
Bracket,mount L-G-MAZ66003901
...
3664
Bracket,mount L-G-MAZ66004101
...
3998
Pipe,bending L-G-MGE65932201
...
5010
Power Cord L-G-EAD42825102
...
5013
Cable,assembly L-G-EAD63892004
...
5071
Pcb Assembly,option L-G-EBR88690801
...
5095
Cover,hole L-G-MCK69050901
...
5124
Fan Assembly,blower L-G-ADP74734001
...
5134
Supporter,pcb L-G-MJH64494201
...
5231
Cover,display L-G-MCK69628801
...
5466
Cover,guide L-G-MCK69629001
...
5481
Case,body L-G-MBN64805001
...
5508
Terminal L-G-6640000045A
...
5509
Side Panel L-G-MGC66355102
...
5510
Side Panel L-G-MGC66355101
...
5516
Packing,gasket L-G-MFZ65234601
...
5536
Packing,gasket L-G-MFZ65297001
...
5603
Suction Guide Assembly L-G-AEC74917501
...
5611
Pcb Support L-G-MJH41754001
...
5661
Insulator L-G-MEV66470901
...
5718
Power Transformer L-G-EBJ42409101
...
6000
Base Plate L-G-MGJ67176901
...
6015
Mount Bracket L-G-MAZ67413201
...
6071
Fan Module L-G-5901W1N002A
...
8508
Foot L-G-MDP63567001

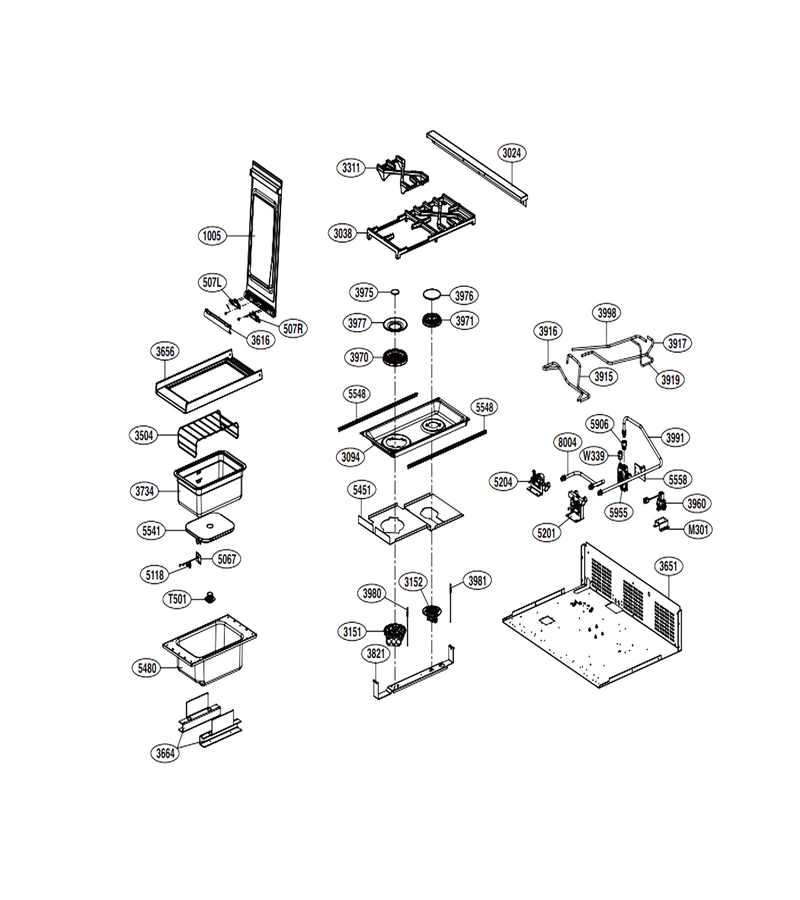

Cooktop Parts Ii

...
...
M301
Mount Bracket L-G-MAZ67412901
...
T501
Thermistor,ntc L-G-EBG63245701
...
W339
Nut,customized L-G-FAD32951101
...
507L
Hinge Assembly L-G-AEH75456301
...
507R
Hinge Assembly L-G-AEH75456401
...
1005
Door Assembly,full L-G-ADC76105501
...
3024
Vent Grille L-G-MDX65453402
...
3038
Grille Assembly L-G-AEB75304604
...
3094
Plate,top L-G-MGJ65539902
...
3151
Burner Assembly L-G-ABF74049703
...
3152
Burner Assembly L-G-ABF74049702
...
3311
Grille L-G-MDX64372004
...
3504
Shelf L-G-MHL64191501
...
3616
Cover,spring L-G-MCK69631001
...
3651
Base Plate L-G-MGJ67176701
...
3656
Plate,top L-G-MGJ65540104
...
3664
Bracket,mount L-G-MAZ66004101
...
3734
Tank,water L-G-MJM63424701
...
3821
Bracket,mount L-G-MAZ65723601
...
3915
Pipe,bending L-G-MGE65932301
...
3916
Pipe,bending L-G-MGE65932401
...
3917
Pipe,bending L-G-MGE65932101
...
3919
Pipe,bending L-G-MGE64933301
...
3960
Valve Assembly,gas L-G-AJU75072401
...
3970
Burner L-G-MBE62162902
...
3971
Burner L-G-MBE62183001
...
3975
Cap,burner L-G-MBL67297301
...
3976
Cap,burner L-G-MBL67297401
...
3977
Cap,burner L-G-MBL67316901
...
3980
Assembly Cable L-G-EAD64245603
...
3981
Assembly Cable L-G-EAD64245604
...
3991
Bending Pipe L-G-MGE66118301
...
3998
Pipe,bending L-G-MGE65932201
...
5067
Bracket,?m L-G-4810W3G135A
...
5118
Dishwasher Thermostat L-G-6930W1A003K
...
5201
Pipe Assembly,metal L-G-AGR76857301
...
5204
Pipe Assembly,metal L-G-AGR76857201
...
5451
Insulator L-G-MEV66191301
...
5480
Case,body L-G-MBN64805602
...
5541
Heater,sheath L-G-MEE63604901
...
5548
Bracket,idle L-G-MAZ65723801
...
5558
Idle Bracket L-G-MAZ67417201
...
5906
Pipe,connector L-G-MGE65033501
...
5955
Governor L-G-MDW61961101
...
8004
Bending Pipe L-G-MGE66118401
