LG SKSRT360S.ASTESGN

Model: SKSRT360S.ASTESGN

Save Part Not Listed?
product name

Main

...
...
9384
Nozzle Accessory Assembly L-G-AAA75946015

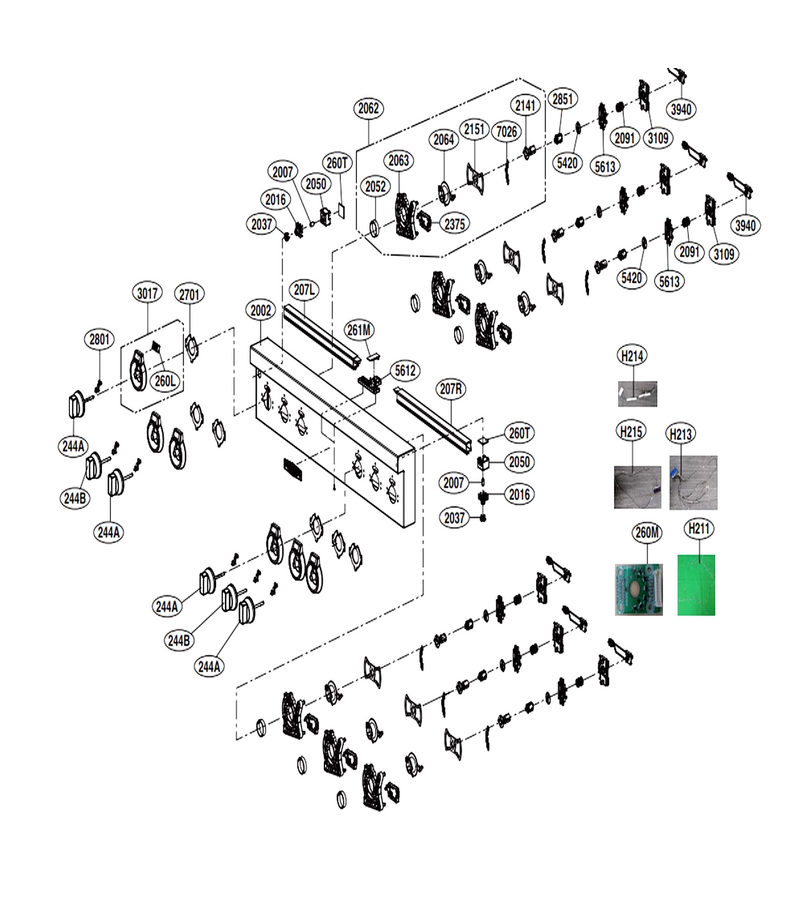

Controller Parts

...
...
H211
Single Harness L-G-EAD64568604
...
H213
Single Harness L-G-EAD64565322
...
H214
Harness,single L-G-EAD64565315
...
H215
Single Harness L-G-EAD64565320
...
207L
Bracket Assembly L-G-ABA76569005
...
207R
Bracket Assembly L-G-ABA76569006
...
244A
Knob Assembly L-G-AEZ74953401
...
244B
Knob Assembly L-G-AEZ74953402
...
260L
Pcb Assembly,option L-G-EBR84439601
...
260M
Pcb Assembly,option L-G-EBR84439701
...
260T
Pcb Assembly,option L-G-EBR84764001
...
261M
Pcb Assembly,module L-G-EBR85871801
...
2002
Control Panel Assembly L-G-AGL30020204
...
2007
Button L-G-5020W1N003A
...
2016
Button Assembly L-G-502181N001A
...
2037
Supporter,led L-G-MJH64734601
...
2050
Supporter,pcb L-G-MJH64734701
...
2052
Ring,guide L-G-MGZ64347001
...
2062
Guide Assembly,selector L-G-AEC74957401
...
2063
Holder Assembly L-G-AEJ75180501
...
2064
Holder Assembly L-G-AEJ75180401
...
2091
Spring,coil L-G-MHY64864201
...
2141
Supporter,holder L-G-MJH64794101
...
2151
Frame,fixing L-G-MDQ65336301
...
2375
Supporter Assembly,pcb L-G-AJJ75518601
...
2701
Plate,guide L-G-MGJ65663002
...
2801
Locker,guard Ring L-G-MFG64238601
...
2851
Shaft Assembly L-G-AHR73829701
...
3017
Ring Assembly L-G-AHH73129101
...
3109
Supporter,holder L-G-MJH64793701
...
3940
Switch Assembly L-G-EBF63434701
...
5420
Holder Assembly L-G-AEJ75180301
...
5612
Pcb Supporter L-G-MJH66235501
...
5613
Supporter,pcb L-G-MJH64793801
...
7026
Spring,coil L-G-MHY64864001

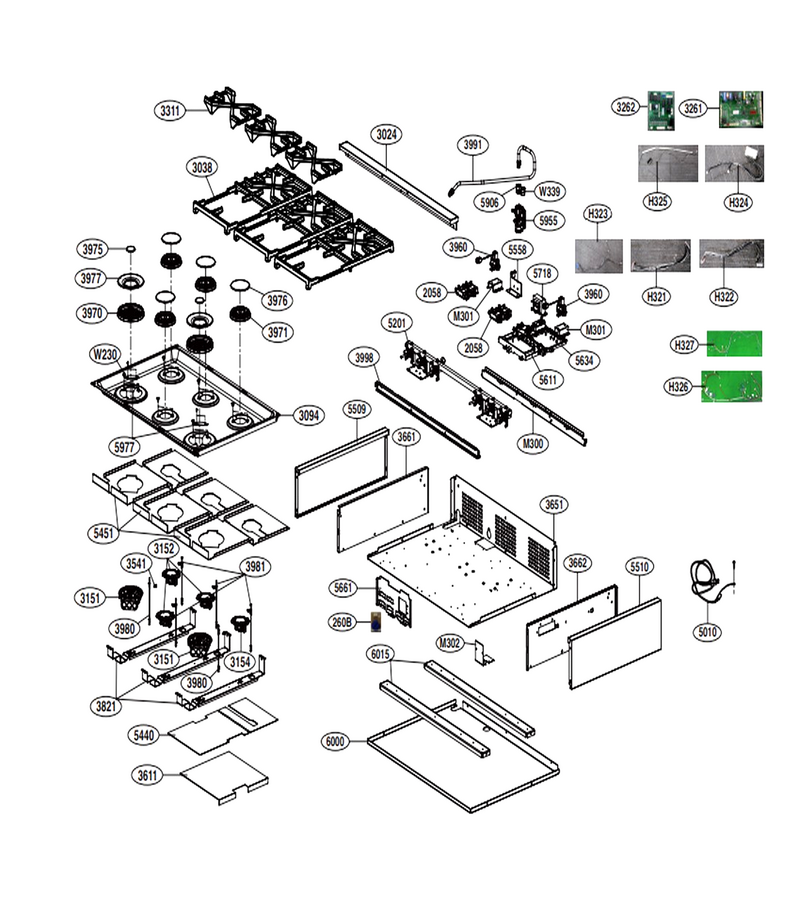

Cooktop Parts (i)

...
...
H321
Harness,single L-G-EAD60833515
...
H322
Harness,single L-G-EAD60833516
...
H323
Harness,single L-G-EAD64565303
...
H324
Harness,single L-G-EAD64565316
...
H325
Single Harness L-G-EAD64565319
...
H326
Single Harness L-G-EAD64488019
...
H327
Single Harness L-G-EAD64488013
...
M300
Mount Bracket L-G-MAZ67413001
...
M301
Mount Bracket L-G-MAZ67412901
...
M302
Idle Bracket L-G-MAZ67417302
...
W230
Screw L-G-1TPL0402018
...
W339
Nut,customized L-G-FAD32951101
...
260B
Sub,pcb Assm L-G-EBR76332902
...
2058
Power Transformer Assembly L-G-EBJ64463801
...
3024
Vent Grille L-G-MDX65453402
...
3038
Grille Assembly L-G-AEB75304603
...
3094
Top Plate L-G-MGJ67220402
...
3151
Burner Assembly L-G-ABF74049701
...
3152
Burner Assembly L-G-ABF74049702
...
3154
Burner Assembly L-G-ABF74049705
...
3261
Main Pcb Assembly L-G-EBR84439317
...
3262
Pcb Assembly,sub L-G-EBR89757902
...
3311
Grille L-G-MDX64372003
...
3541
Fixing Holder L-G-MEG64739001
...
3611
Cover,safety L-G-MCK69967602
...
3651
Base Plate L-G-MGJ67176702
...
3661
Mount Plate L-G-MGJ67177101
...
3662
Mount Plate L-G-MGJ67177201
...
3821
Bracket,mount L-G-MAZ65723601
...
3960
Valve Assembly,gas L-G-AJU75072401
...
3970
Burner L-G-MBE62162901
...
3971
Burner L-G-MBE62183001
...
3975
Cap,burner L-G-MBL67297301
...
3976
Cap,burner L-G-MBL67297401
...
3977
Cap,burner L-G-MBL67316901
...
3980
Assembly Cable L-G-EAD64245603
...
3981
Assembly Cable L-G-EAD64245604
...
3991
Bending Pipe L-G-MGE66166601
...
3998
Bracket,mount L-G-MAZ65723501
...
5010
Power Cord Assembly L-G-EAD60700408
...
5201
Metal Pipe Assembly L-G-AGR30042501
...
5440
Insulator L-G-MEV66810701
...
5451
Insulator L-G-MEV66191301
...
5509
Side Panel L-G-MGC66355102
...
5510
Side Panel L-G-MGC66355202
...
5558
Idle Bracket L-G-MAZ67417202
...
5611
Pcb Support L-G-MJH41754001
...
5661
Insulator L-G-MEV66470901
...
5718
Power Transformer L-G-EBJ42409101
...
5906
Pipe,connector L-G-MGE65033501
...
5955
Governor L-G-MDW61961101
...
5977
Nozzle Cover L-G-MCK71496701
...
6000
Base Plate L-G-MGJ67176902
...
6015
Mount Bracket L-G-MAZ67413201

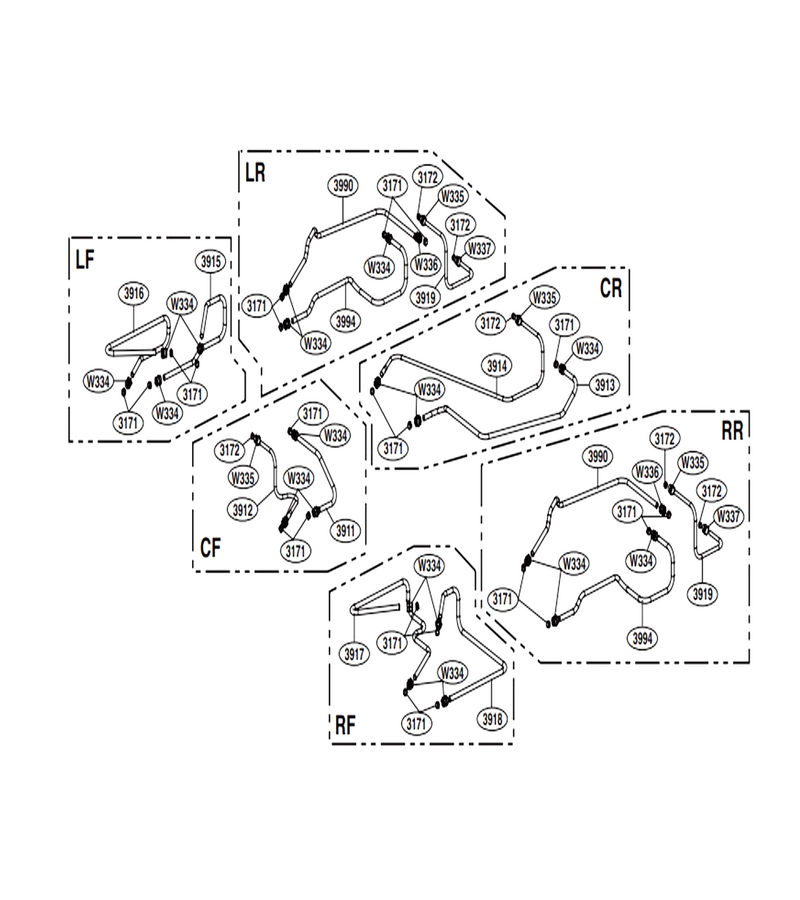

Cooktop Parts (ii)

...
...
W334
Customized Nut L-G-FAD32310601
...
W335
Customized Nut L-G-FAD32310602
...
W336
Customized Nut L-G-FAD32310603
...
W337
Customized Nut L-G-FAD32310604
...
3171
Connector Ring L-G-MGZ63906901
...
3172
Connector Ring L-G-MGZ63906902
...
3911
Bending Pipe L-G-MGE66149101
...
3912
Bending Pipe L-G-MGE66149301
...
3913
Pipe,bending L-G-MGE65932101
...
3914
Bending Pipe L-G-MGE66149201
...
3915
Pipe,bending L-G-MGE64932301
...
3916
Pipe,bending L-G-MGE64932401
...
3917
Pipe,bending L-G-MGE64933001
...
3918
Pipe,bending L-G-MGE64932901
...
3919
Pipe,bending L-G-MGE64933301
...
3990
Pipe,bending L-G-MGE64933201
...
3994
Pipe,bending L-G-MGE64933101
