LG SKSMD2401S.FSTESNA

Model: SKSMD2401S.FSTESNA

Save Part Not Listed?
product name

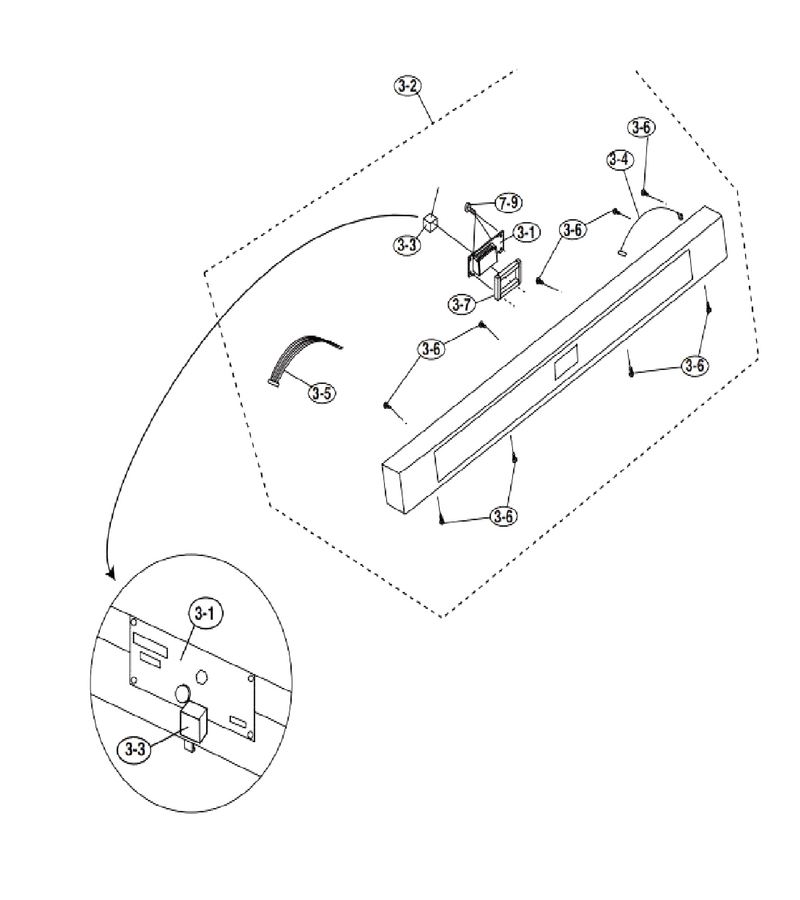

Control Panel

...
...
3-1
Pcb Assembly,part L-G-EBZ64488625
...
3-2
Frame Assembly,part L-G-EBZ64488626
...
3-3
Damper,part L-G-EBZ64488627
...
3-4
Cable & Wire,part L-G-EBZ64488629
...
3-5
Cable,part L-G-EBZ64488630
...
3-6
Screw,part L-G-EBZ64488631
...
3-7
Damper,part L-G-EBZ64492103

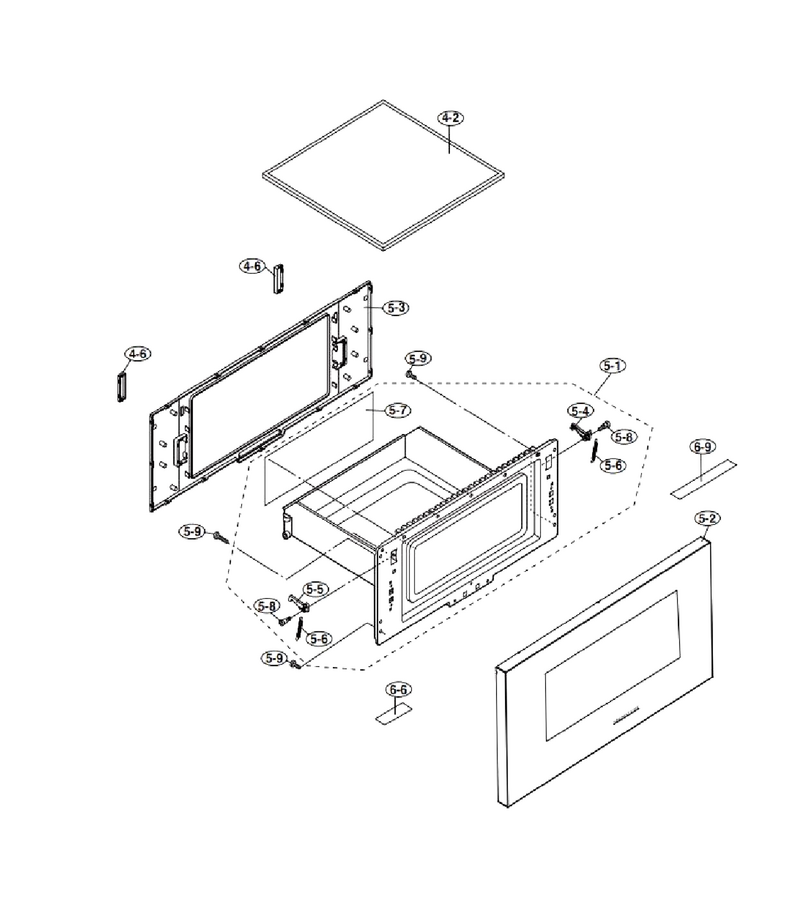

Drawer

...
...
4-2
Tray Assembly,part L-G-EBZ64488633
...
4-6
Cover,part L-G-EBZ64488636
...
5-1
Panel Assembly,part L-G-EBZ64488665
...
5-2
Frame Assembly,part L-G-EBZ64488666
...
5-3
Cover,part L-G-EBZ64488667
...
5-4
Head,part L-G-EBZ64488668
...
5-5
Head,part L-G-EBZ64488669
...
5-6
Spring,part L-G-EBZ64488670
...
5-7
Diffusion Film Front,part L-G-EBZ64488671
...
5-8
Screw,part L-G-EBZ64488672
...
5-9
Screw,part L-G-EBZ64488673
...
6-9
Label,part L-G-EBZ64488682

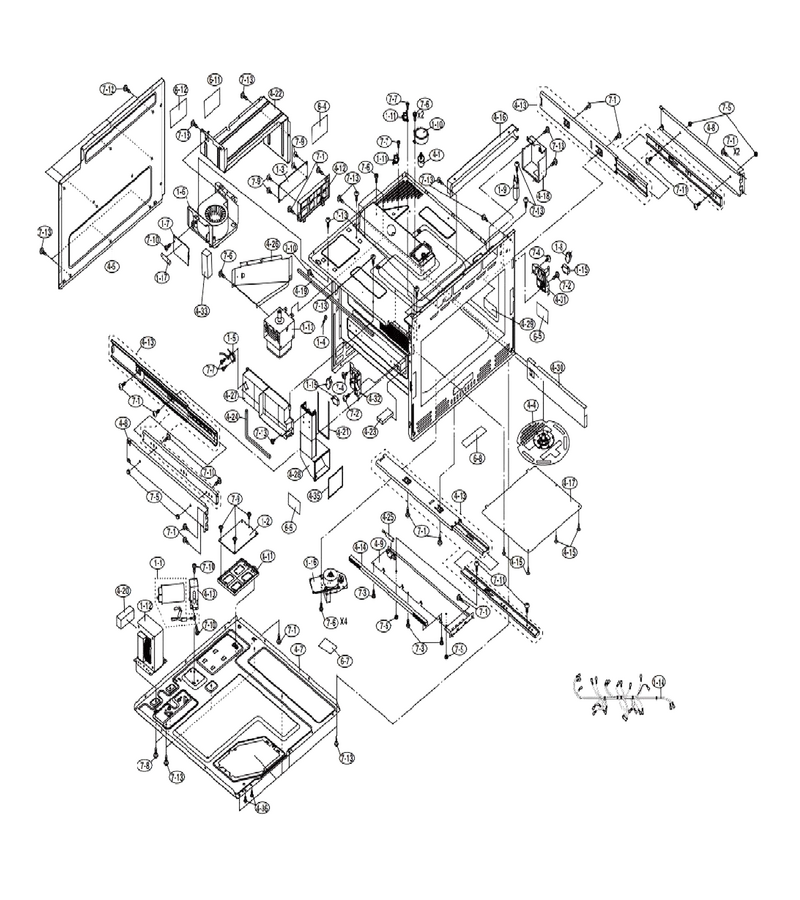

Drawer Cavity

...
...
1-1
Capacitor Assembly,part L-G-EBZ64488607
...
1-2
Pcb Assembly,part L-G-EBZ64488602
...
1-3
Pcb Assembly,part L-G-EBZ64488603
...
1-4
Power Cord,part L-G-EBZ64488604
...
1-5
Sensor Assembly,part L-G-EBZ64488605
...
1-6
Fan Assembly,part L-G-EBZ64488606
...
1-7
Filter,part L-G-EBZ64488601
...
1-8
Fuse,part L-G-EBZ64488608
...
1-9
Lamp Socket,part L-G-EBZ64488609
...
1-10
Motor,part L-G-EBZ64488610
...
1-11
Thermal Fuse,part L-G-EBZ64488611
...
1-12
Transformer,part L-G-EBZ64488612
...
1-13
Magnetron,part L-G-EBZ64488613
...
1-14
Harness,part L-G-EBZ64488614
...
1-15
Sensor,part L-G-EBZ64488615
...
1-16
Gear Assembly,part L-G-EBZ64488616
...
1-17
Fuse,part L-G-EBZ64488617
...
4-1
Shaft,part L-G-EBZ64488632
...
4-4
Antenna Assembly,part L-G-EBZ64488634
...
4-6
Cover,part L-G-EBZ64488636
...
4-7
Plate,part L-G-EBZ64488637
...
4-8
Angle,part L-G-EBZ64488638
...
4-9
Angle,part L-G-EBZ64488639
...
4-10
Band,part L-G-EBZ64488640
...
4-11
Holder,part L-G-EBZ64488641
...
4-12
Holder,part L-G-EBZ64488642
...
4-13
Rail,part L-G-EBZ64488643
...
4-14
Gear,part L-G-EBZ64488644
...
4-15
Clip,part L-G-EBZ64488645
...
4-16
Cover,part L-G-EBZ64488646
...
4-17
Cover,part L-G-EBZ64488647
...
4-18
Cover,part L-G-EBZ64488648
...
4-19
Damper,part L-G-EBZ64488649
...
4-20
Damper,part L-G-EBZ64488650
...
4-21
Damper,part L-G-EBZ64488651
...
4-22
Plate,part L-G-EBZ64488652
...
4-23
Damper,part L-G-EBZ64488653
...
4-24
Damper,part L-G-EBZ64488654
...
4-25
Damper,part L-G-EBZ64488655
...
4-26
Duct,part L-G-EBZ64488656
...
4-27
Duct,part L-G-EBZ64488657
...
4-28
Duct,part L-G-EBZ64488658
...
4-29
Filter,part L-G-EBZ64488659
...
4-30
Plate,part L-G-EBZ64488660
...
4-31
Hook Switch,part L-G-EBZ64488661
...
4-32
Hook Switch,part L-G-EBZ64488662
...
4-33
Damper,part L-G-EBZ64488663
...
4-35
Damper,part L-G-EBZ64492104
...
6-4
Label,caution,part L-G-EBZ64488677
...
6-5
Label,caution,part L-G-EBZ64488678
...
6-7
Label,caution,part L-G-EBZ64488680
...
6-8
Label,part L-G-EBZ64488681
...
6-11
Label,caution,part L-G-EBZ64488684
...
6-12
Label,caution,part L-G-EBZ64488685
...
7-1
Screw,part L-G-EBZ64488686
...
7-2
Screw,part L-G-EBZ64488687
...
7-3
Screw,part L-G-EBZ64488688
...
7-4
Screw,part L-G-EBZ64488689
...
7-5
Nut,part L-G-EBZ64488690
...
7-6
Screw,part L-G-EBZ64488691
...
7-7
Screw,part L-G-EBZ64488692
...
7-8
Screw,part L-G-EBZ64488693
...
7-10
Screw,part L-G-EBZ64488694
...
7-11
Screw,part L-G-EBZ64488695
...
7-12
Screw,part L-G-EBZ64488696
...
7-13
Screw,part L-G-EBZ64488697

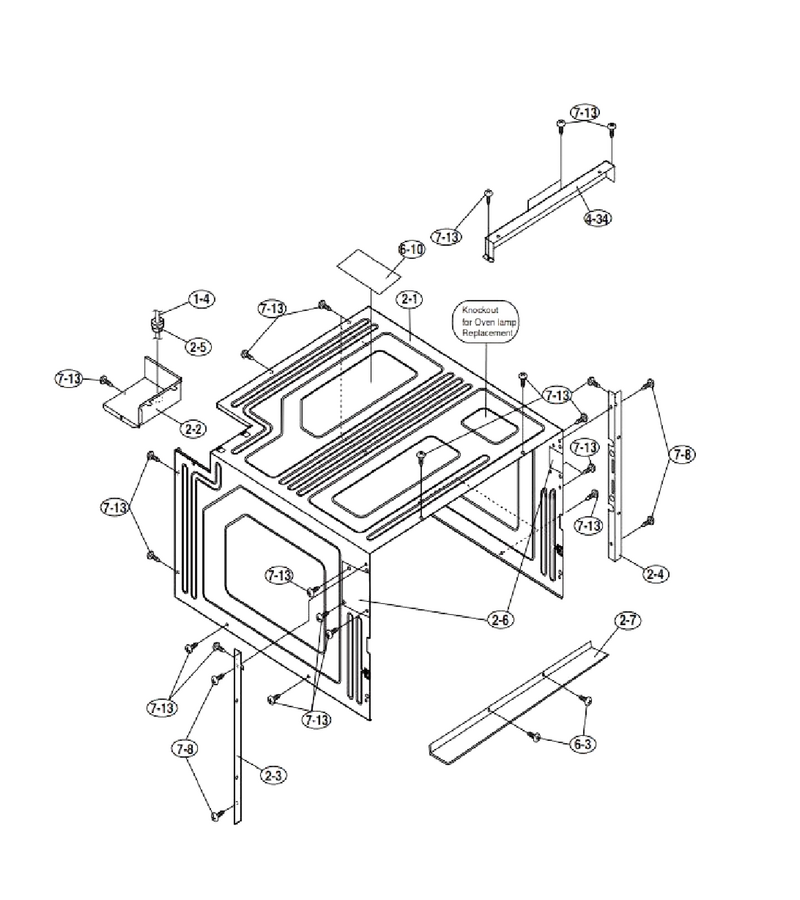

Drawer Cabinet

...
...
1-4
Power Cord,part L-G-EBZ64488604
...
2-1
Case,part L-G-EBZ64488618
...
2-2
Angle,part L-G-EBZ64488621
...
2-3
Angle,part L-G-EBZ64488621
...
2-4
Angle,part L-G-EBZ64488621
...
2-5
Bushing,part L-G-EBZ64488622
...
2-6
Cover,part L-G-EBZ64488623
...
2-7
Vent,part L-G-EBZ64488624
...
4-34
Cover,part L-G-EBZ64488664
...
6-3
Screw,part L-G-EBZ64488697
...
6-10
Label,part L-G-EBZ64488683
...
7-8
Screw,part L-G-EBZ64488697
...
7-13
Screw,part L-G-EBZ64488697

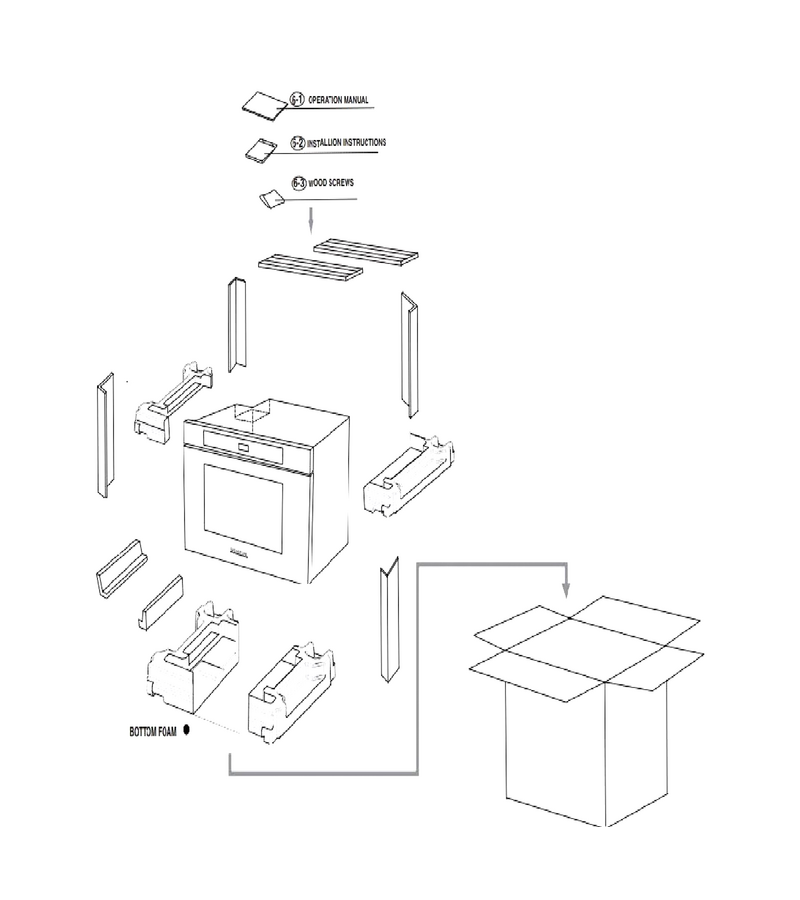

Packing Parts

...
...
6-1
Manual,part L-G-EBZ64488674
...
6-2
Manual,part L-G-EBZ64488675
...
6-3
Screw,part L-G-EBZ64488676
