LG SKSIT3601G.ABK6SNA

Model: SKSIT3601G.ABK6SNA

Save Part Not Listed?
product name

Main

...
...
H211
Harness,single L-G-EAD65827601
...
W167
Special Screw L-G-4E55432A
...
H216
Harness,single L-G-EAD64867312
...
H215
Harness,single L-G-EAD64867311
...
H213
Harness,single L-G-EAD65651201
...
H212
Harness,single L-G-EAD65827701
...
H214
Harness,single L-G-EAD65685401
...
200F
Pcb Assembly,filter L-G-EBR89209601
...
200M
Pcb Assembly,main L-G-EBR89209401
...
200P
Pcb Assembly,power L-G-EBR89209501
...
330H
Heater,working Coil L-G-MEE63784901
...
330M
Heater,working Coil L-G-MEE63565002
...
330S
Heater,working Coil L-G-MEE63565003
...
501W
Cable,assembly L-G-EAD63892005
...
502L
Pcb Assembly,option L-G-EBR88690801
...
502R
Pcb Assembly,option L-G-EBR88690802
...
507V
Pcb Assembly,inverter L-G-EBR89209701
...
508V
Pcb Assembly,inverter L-G-EBR89209801
...
1022
Cover,led L-G-MCK69254301
...
1400
Supporter L-G-MJH65753101
...
1501
Window Assembly L-G-AJX75024901
...
1728
Spring,contact L-G-MHY64663901
...
2374
Supporter Assembly,pcb L-G-AJJ75678703
...
3101
Holder,wire L-G-4930W1N002A
...
3106
Holder L-G-4B72944B
...
3108
Insulator L-G-MEV65897609
...
3109
Insulator L-G-MEV65897610
...
3206
Bracket L-G-4810W1N010A
...
5010
Power Cord L-G-EAD39575703
...
5018
Cable,assembly L-G-EAD65831101
...
5025
Pcb Assembly,option L-G-EBR88690704
...
5045
Cover,led L-G-MCK69628901
...
5102
Guide,air L-G-MEA66095001
...
5409
Cover,insulator L-G-MCK70407717
...
5410
Cover,insulator L-G-MCK70407720
...
5449
Cover,insulator L-G-MCK70407719
...
5450
Cover,insulator L-G-MCK70407721
...
5508
Connector,terminal Block L-G-EAG32629307
...
5516
Packing,gasket L-G-MFZ67172501
...
5519
Clamp,cord L-G-4930W4B006A
...
6042
Cover,insulator L-G-MCK70407716
...
6043
Cover,insulator L-G-MCK70407718
...
6071
Fan Module L-G-EAL62540801
...
9501
Accessory Assembly L-G-AAA77250701
...
9502
Accessory Assembly,outsourced L-G-AAA35649101

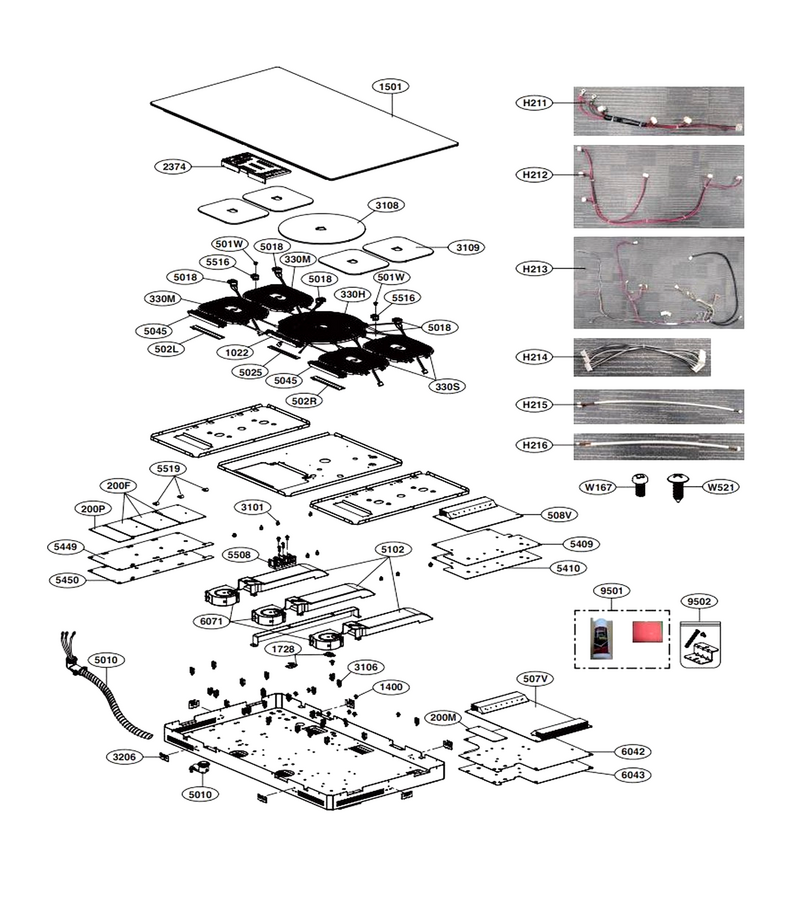

Schematic Image Zoomed
