LG SKSGR480GS.ASTESGN

Model: SKSGR480GS.ASTESGN

Save Part Not Listed?
product name

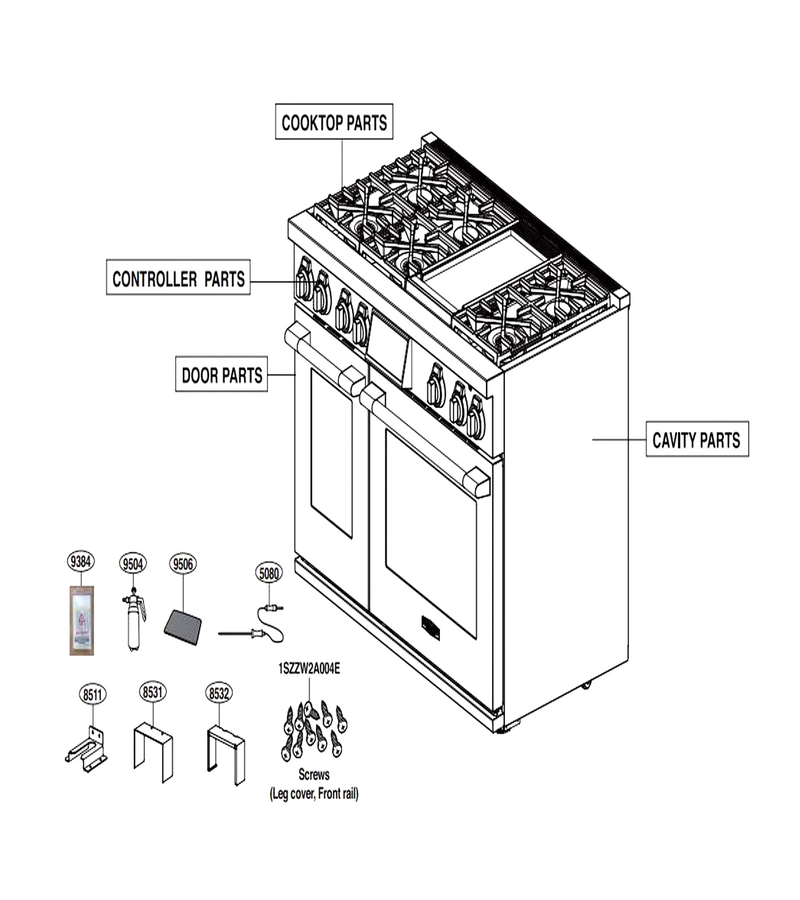

Main

...
...
5080
Range Oven Meat Probe Sensor L-G-EBD51431001
...
8511
Bracket,idle L-G-MAZ65844601
...
8531
Bracket,idle L-G-MAZ65783801
...
8532
Decor,guard L-G-MCR66986401
...
9384
Accessory Assembly,nozzle L-G-AAA75946010
...
9504
Accessory Assembly L-G-AAA77169702
...
9506
Accessory Assembly L-G-AAA74970602

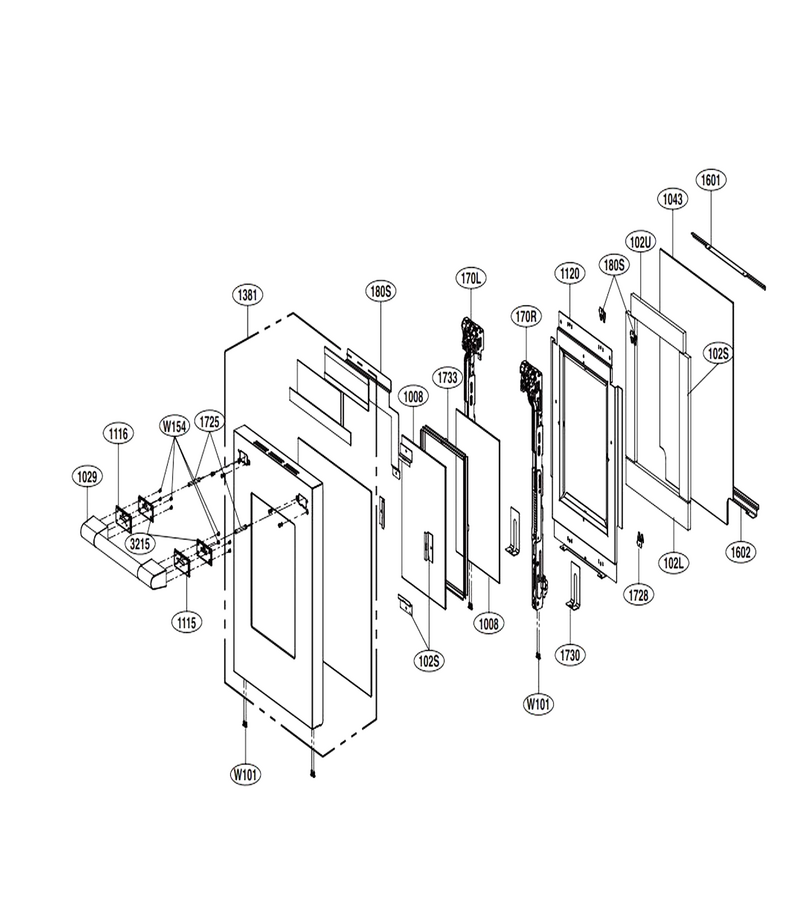

18" Door Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W154
Screw,machine L-G-1MFC0402416
...
102L
Insulator L-G-MEV66271308
...
102S
Insulator L-G-MEV66271307
...
102U
Insulator L-G-MEV66271306
...
170L
Hinge Assembly L-G-AEH74876305
...
170R
Hinge Assembly L-G-AEH74876306
...
180S
Plate,shield L-G-MGJ65830103
...
1008
Window,glass L-G-MKC66599201
...
1029
Handle,door L-G-MEB63654003
...
1043
Window,glass L-G-MKC66399506
...
1115
Decor L-G-MCR65828401
...
1116
Decor L-G-MCR65828402
...
1120
Cover,inner L-G-MCK70004501
...
1381
Parts Assembly L-G-AGM76049901
...
1601
Holder,display L-G-MEG65459002
...
1602
Holder,display L-G-MEG65459102
...
1725
Damper Assembly L-G-ACV73910001
...
1728
Spring,contact L-G-MHY64663901
...
1730
Cover,bracket L-G-MCK69746502
...
1733
Bracket,mount L-G-MAZ66023301
...
3215
Packing,gasket L-G-MFZ64812601

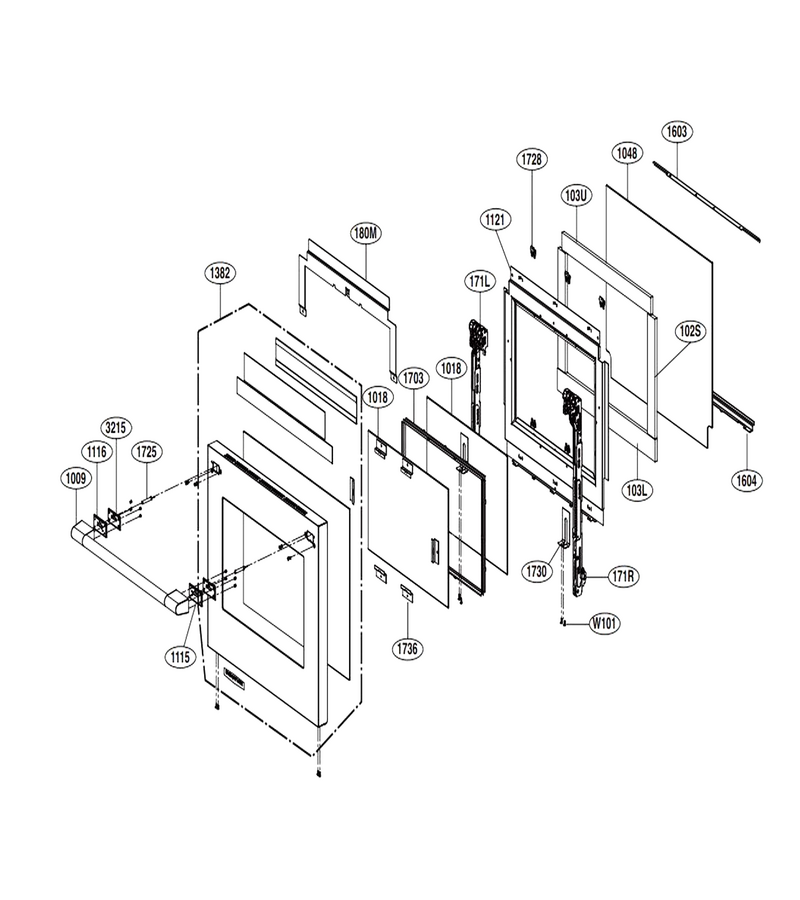

30" Door Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
102S
Insulator L-G-MEV66271307
...
103L
Insulator L-G-MEV66271305
...
103U
Insulator L-G-MEV66271304
...
171L
Hinge Assembly L-G-AEH74876307
...
171R
Hinge Assembly L-G-AEH74876308
...
180M
Plate,shield L-G-MGJ65830102
...
1009
Handle,door L-G-MEB63654001
...
1018
Range Oven Door Inner Glass L-G-4890W1N005A
...
1048
Window,glass L-G-MKC66399505
...
1115
Decor L-G-MCR65828401
...
1116
Decor L-G-MCR65828402
...
1121
Cover,inner L-G-MCK70004401
...
1382
Parts Assembly L-G-AGM76049801
...
1603
Holder,display L-G-MEG65458702
...
1604
Holder,display L-G-MEG65458902
...
1703
Bracket,mount L-G-MAZ65804301
...
1725
Damper Assembly L-G-ACV73910001
...
1728
Spring,contact L-G-MHY64663901
...
1730
Cover,bracket L-G-MCK69746502
...
1736
Bracket,idle L-G-MAZ65804501
...
3215
Packing,gasket L-G-MFZ64812601

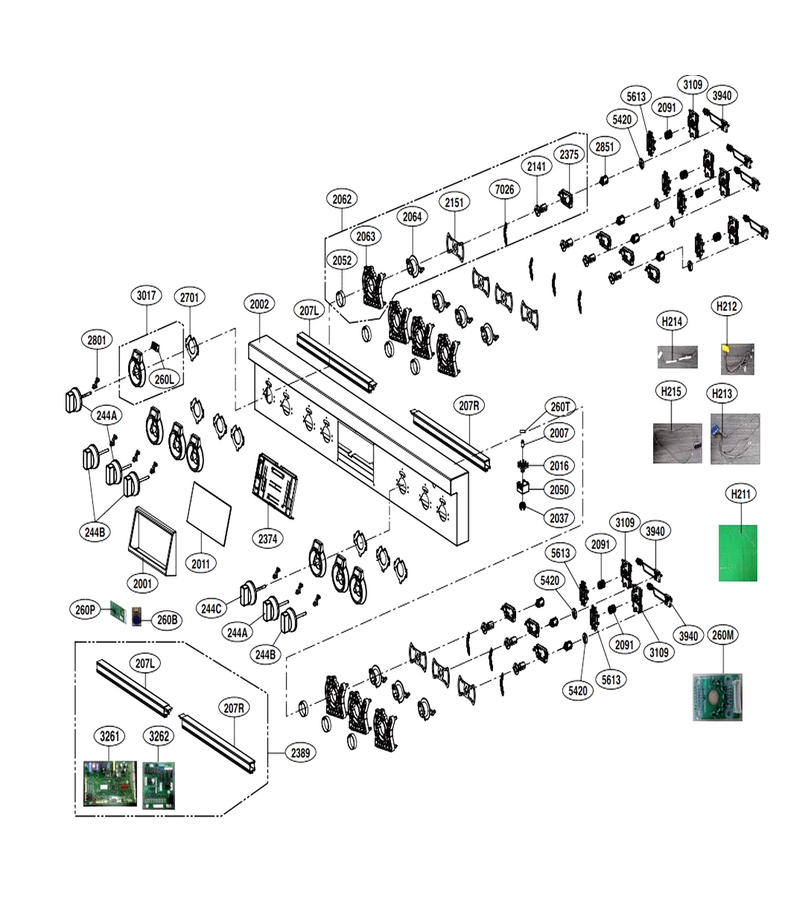

Controller Parts

...
...
H211
Harness,single L-G-EAD64568603
...
H212
Harness,single L-G-EAD64565302
...
H213
Harness,single L-G-EAD64565304
...
H214
Harness,single L-G-EAD64565311
...
H215
Harness,single L-G-EAD64565308
...
207L
Bracket Assembly L-G-ABA76569007
...
207R
Bracket Assembly L-G-ABA76569008
...
244A
Knob Assembly L-G-AEZ74953401
...
244B
Knob Assembly L-G-AEZ74953402
...
244C
Knob Assembly L-G-AEZ74953407
...
244D
Knob Assembly L-G-AEZ74953404
...
244E
Knob Assembly L-G-AEZ74953405
...
244F
Knob Assembly L-G-AEZ74953406
...
260B
Sub,pcb Assm L-G-EBR76332902
...
260L
Pcb Assembly,option L-G-EBR84439601
...
260M
Pcb Assembly,option L-G-EBR84439701
...
260P
Pcb Assembly,option L-G-EBR84439901
...
260T
Pcb Assembly,option L-G-EBR84764001
...
2001
Cover,display L-G-MCK69593402
...
2002
Panel,control L-G-MGC64800104
...
2007
Button L-G-5020W1N003A
...
2011
Window Assembly L-G-AJX74385101
...
2016
Button Assembly L-G-502181N001A
...
2037
Supporter,led L-G-MJH64734601
...
2050
Supporter,pcb L-G-MJH64734701
...
2052
Ring,guide L-G-MGZ64347001
...
2062
Guide Assembly,selector L-G-AEC74957401
...
2063
Holder Assembly L-G-AEJ75180501
...
2064
Holder Assembly L-G-AEJ75180401
...
2091
Spring,coil L-G-MHY64864201
...
2141
Supporter,holder L-G-MJH64794101
...
2151
Frame,fixing L-G-MDQ65336301
...
2374
Supporter Assembly,pcb L-G-AJJ75678704
...
2375
Supporter Assembly,pcb L-G-AJJ75518601
...
2389
Parts Assembly L-G-AGM76989704
...
2701
Plate,guide L-G-MGJ65663001
...
2801
Locker,guard Ring L-G-MFG64238601
...
2851
Shaft Assembly L-G-AHR73829701
...
3017
Ring Assembly L-G-AHH73129101
...
3109
Supporter,holder L-G-MJH64793701
...
3261
Pcb Assembly,main L-G-EBR84439309
...
3262
Pcb Assembly,sub L-G-EBR89757902
...
3940
Switch Assembly L-G-EBF63434701
...
5420
Holder Assembly L-G-AEJ75180301
...
5613
Supporter,pcb L-G-MJH64793801
...
7026
Spring,coil L-G-MHY64864001

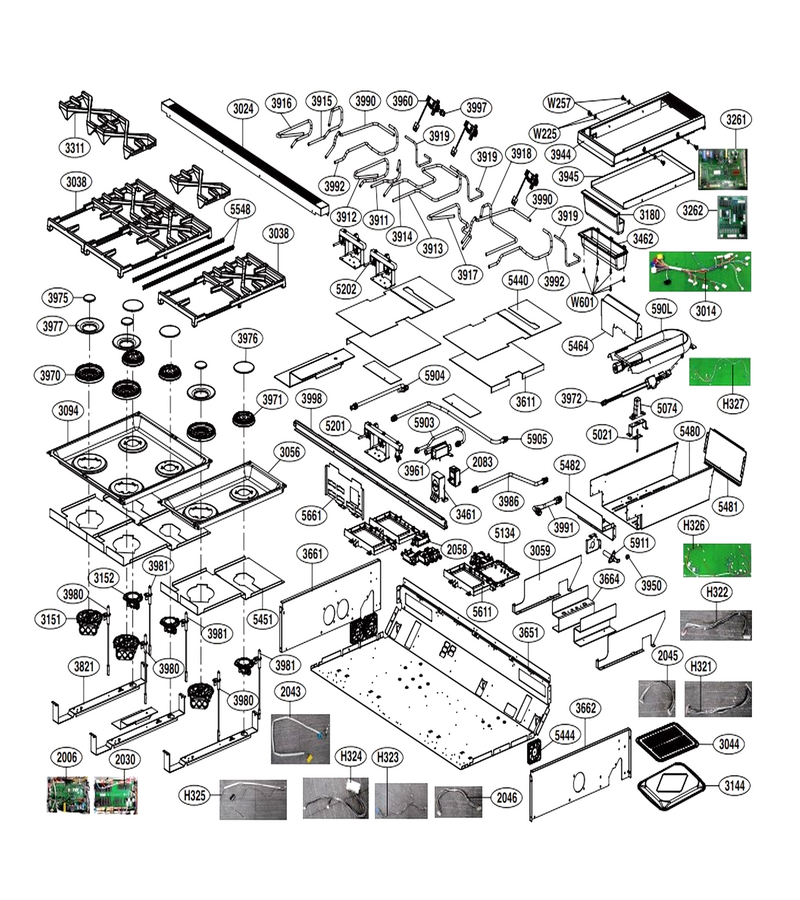

Cooktop Parts

...
...
H321
Harness,single L-G-EAD60833515
...
H322
Harness,single L-G-EAD60833516
...
H323
Harness,single L-G-EAD64565303
...
H324
Harness,single L-G-EAD64565312
...
H325
Harness,single L-G-EAD64565313
...
H326
Harness,single L-G-EAD64488403
...
H327
Harness,single L-G-EAD64488404
...
H431
Harness,single L-G-EAD64488501
...
H432
Harness,single L-G-EAD64488601
...
H433
Harness,single L-G-EAD34822983
...
H434
Harness,single L-G-EAD63894301
...
H435
Harness,single L-G-EAD62349815
...
T501
Thermistor,ntc L-G-EBG63245701
...
W225
Washer L-G-1WZZW3Z003B
...
W257
Screw,customized L-G-1SZZW5N001R
...
W601
Screw,customized L-G-3E55114A
...
330H
Heater,working Coil L-G-MEE63565001
...
507F
Pcb Assembly,filter L-G-EBR89399201
...
507L
Hinge Assembly L-G-AEH75456301
...
507R
Hinge Assembly L-G-AEH75456401
...
507V
Pcb Assembly,inverter L-G-EBR83852202
...
590L
Heater,plain L-G-MEE61841403
...
1005
Door Assembly,full L-G-ADC76105501
...
1022
Cover,led L-G-MCK69628901
...
1383
Parts Assembly L-G-AGM76989701
...
2043
Harness,single L-G-EAD64565314
...
2045
Harness,single L-G-EAD63009006
...
2046
Harness,single L-G-EAD63009007
...
2058
Transformer,power L-G-EBJ63450301
...
2083
Switch,rotary L-G-EBF63054502
...
2087
Switch,rotary L-G-EBF63054501
...
3007
Insulator L-G-MEV66172801
...
3030
Bracket Assembly L-G-ABA76368201
...
3038
Grille Assembly L-G-AEB75304603
...
3044
Tray,metal L-G-MJS61849903
...
3056
Plate Assembly,upper L-G-AGU75849602
...
3059
Barrier L-G-MAL63623801
...
3094
Plate,top L-G-MGJ65539902
...
3107
Insulator L-G-MEV66191401
...
3144
Tray,metal L-G-MJS61850003
...
3151
Burner Assembly L-G-ABF74049701
...
3152
Burner Assembly L-G-ABF74049702
...
3180
Cover Assembly,body L-G-ACQ89962501
...
3205
Bracket Assembly L-G-ABA76368302
...
3206
Bracket,mount L-G-MAZ66003801
...
3311
Grille L-G-MDX64372003
...
3411
Supporter,pcb L-G-MJH64694401
...
3461
Housing,case L-G-MEK64026701
...
3462
Housing,case L-G-MEK64086503
...
3504
Shelf L-G-MHL64191501
...
3611
Cover,safety L-G-MCK69967601
...
3616
Cover,spring L-G-MCK69631001
...
3651
Plate,base L-G-MGJ65823603
...
3656
Plate,top L-G-MGJ65540103
...
3661
Plate,mount L-G-MGJ65842302
...
3662
Plate,mount L-G-MGJ65842203
...
3663
Bracket,mount L-G-MAZ66003901
...
3664
Bracket,idle L-G-MAZ66003401
...
3734
Tank,water L-G-MJM63424701
...
3821
Bracket,mount L-G-MAZ65723601
...
3911
Pipe,bending L-G-MGE64931101
...
3912
Pipe,bending L-G-MGE64931201
...
3913
Pipe,bending L-G-MGE64931301
...
3914
Pipe,bending L-G-MGE64931401
...
3915
Pipe,bending L-G-MGE64932301
...
3916
Pipe,bending L-G-MGE64932401
...
3917
Pipe,bending L-G-MGE64933001
...
3918
Pipe,bending L-G-MGE64932901
...
3919
Pipe,bending L-G-MGE64933301
...
3924
Cover,motor L-G-MCK69952301
...
3944
Tray,metal L-G-MJS64271803
...
3945
Grille Assembly L-G-AEB75384501
...
3947
Tray,metal L-G-MJS64371801
...
3950
Nozzle L-G-MFV61841414
...
3960
Valve Assembly,gas L-G-AJU75072401
...
3961
Valve Assembly,gas L-G-AJU75112401
...
3970
Burner L-G-MBE62162901
...
3971
Burner L-G-MBE62183001
...
3972
Burner L-G-MBE62182901
...
3975
Cap,burner L-G-MBL67297301
...
3976
Cap,burner L-G-MBL67297401
...
3977
Cap,burner L-G-MBL67316901
...
3980
Cable,assembly L-G-EAD64245601
...
3981
Cable,assembly L-G-EAD64245602
...
3990
Pipe,bending L-G-MGE64933201
...
3991
Pipe,bending L-G-MGE65033601
...
3992
Pipe,bending L-G-MGE64950901
...
3994
Pipe,bending L-G-MGE64933101
...
3997
Pipe,connector L-G-MGE64936001
...
3998
Bracket,mount L-G-MAZ66004001
...
5013
Cable,assembly L-G-EAD63892004
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5067
Bracket,?m L-G-4810W3G135A
...
5071
Pcb Assembly,option L-G-EBR88690801
...
5074
Cover,sensor L-G-MCK69706501
...
5118
Dishwasher Thermostat L-G-6930W1A003K
...
5134
Supporter,pcb L-G-MJH64494201
...
5201
Pipe Assembly,metal L-G-AGR76274401
...
5202
Pipe Assembly,metal L-G-AGR76016301
...
5440
Insulator L-G-MEV66810701
...
5444
Fan Assembly,blower L-G-ADP74734001
...
5451
Insulator L-G-MEV66191301
...
5464
Bracket,pipe L-G-MAZ65705301
...
5466
Cover,guide L-G-MCK69629001
...
5480
Case,body L-G-MBN64943301
...
5481
Case,body L-G-MBN65283701
...
5482
Case,body L-G-MBN65283901
...
5536
Packing Gasket L-G-MFZ64774501
...
5541
Heater,sheath L-G-MEE63604901
...
5549
Bracket,idle L-G-MAZ65723801
...
5611
Pcb Support L-G-MJH41754001
...
5903
Pipe,bending L-G-MGE65232701
...
5904
Pipe,bending L-G-MGE65233201
...
5905
Pipe,bending L-G-MGE65233301
...
5958
Cover,heater L-G-MCK69824802
...
6071
Fan Module L-G-5901W1N002A
...
8508
Foot L-G-MDP63567001

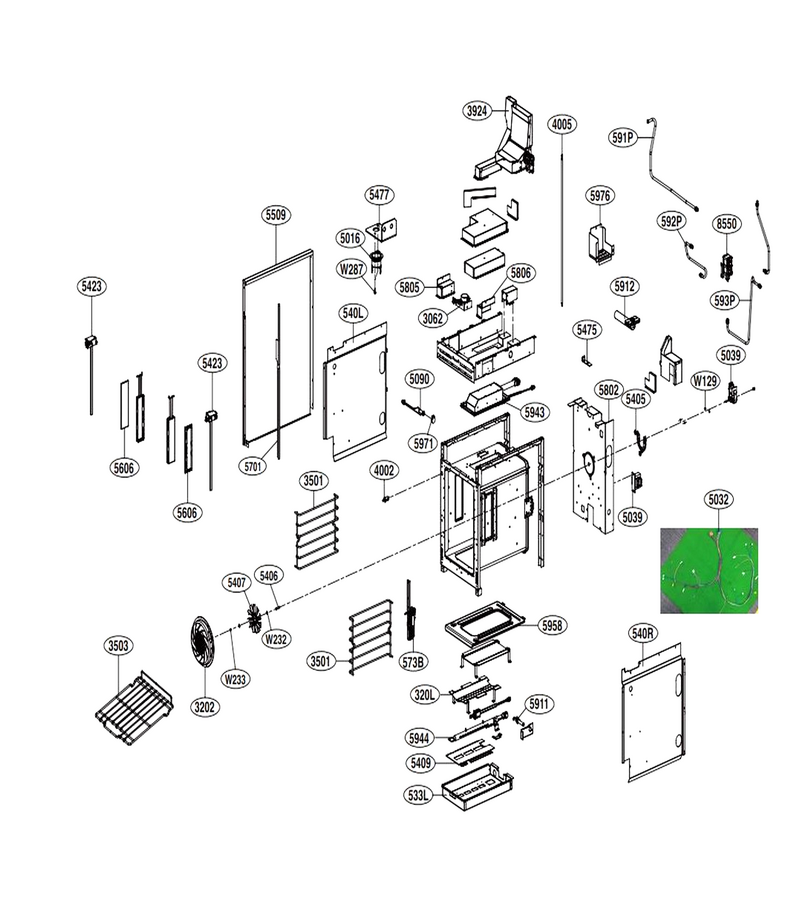

18" Cavity Parts

...
...
W129
Nut L-G-1NHA0400018
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W287
Screw,customized L-G-FAB30162501
...
320L
Guide,burner L-G-MEA65050001
...
533L
Case,lower L-G-MBN65363301
...
540L
Insulator L-G-MEV66252503
...
540R
Insulator L-G-MEV66252504
...
573B
Damper Assembly L-G-ACV74350102
...
591P
Pipe,bending L-G-MGE65232901
...
592P
Pipe,bending L-G-MGE65232101
...
593P
Pipe,bending L-G-MGE65232301
...
3062
Motor L-G-EAU43957801
...
3202
Cover,heater L-G-MCK32134215
...
3501
Shelf L-G-MHL64071801
...
3503
Shelf L-G-MHL64251403
...
3924
Cover,motor L-G-MCK69952301
...
4002
Switch L-G-EBF60663403
...
4005
Bar L-G-MAK64227201
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5032
Harness,single L-G-EAD64488202
...
5039
Range Convection Fan Motor L-G-EAU62343001
...
5090
Jack, Power L-G-EAG43128001
...
5405
Motor Bracket L-G-4810W1N060B
...
5406
Ring L-G-MGZ63607001
...
5407
Convection Fan L-G-MDG62882901
...
5409
Insulator L-G-MEV66631101
...
5423
Holder Assembly,lamp L-G-AEJ75140101
...
5475
Bracket,idle L-G-MAZ65844901
...
5477
Bracket,idle L-G-MAZ65844802
...
5509
Panel,side L-G-MGC64979102
...
5606
Window,led L-G-MKC66140102
...
5701
Barrier L-G-MAL63644101
...
5802
Plate,rear L-G-MGJ65563702
...
5805
Cover,led L-G-MCK69708401
...
5806
Cover,led L-G-MCK69708501
...
5911
Nozzle Holder L-G-MEG62479803
...
5912
Holder,nozzle L-G-MEG65218801
...
5943
Burner Assembly L-G-ABF74089901
...
5944
Burner Assembly L-G-ABF73569702
...
5958
Cover,heater L-G-MCK69824802
...
5971
Cover,connector L-G-MCK70170701
...
5976
Cover,rear L-G-MCK70488201
...
8550
Valve L-G-MJX62571702

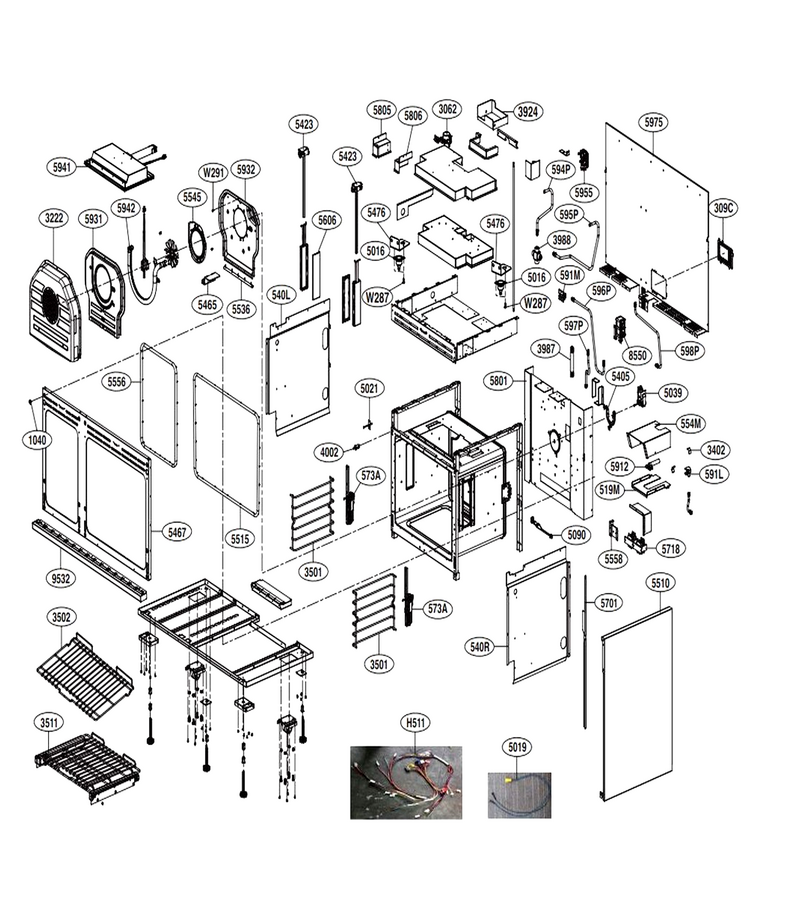

30" Cavity Parts

...
...
H511
Harness,single L-G-EAD64487803
...
W287
Screw,customized L-G-FAB30162501
...
W291
Screw L-G-1SZZW2A004E
...
309C
Cover,rear L-G-MCK69646703
...
519M
Cover,vent L-G-MCK69989301
...
540L
Insulator L-G-MEV66252503
...
540R
Insulator L-G-MEV66252504
...
554M
Vent L-G-MJZ62661701
...
573A
Damper Assembly L-G-ACV74350101
...
591L
Holder,nozzle L-G-MEG64179802
...
591M
Pipe,terminal L-G-MGE65111401
...
594P
Pipe,bending L-G-MGE65233001
...
595P
Pipe,bending L-G-MGE65233101
...
596P
Pipe,bending L-G-MGE65232501
...
597P
Pipe,bending L-G-MGE65232601
...
598P
Pipe,bending L-G-MGE65232401
...
1040
Oven Protector Cap L-G-5006841001A
...
3062
Motor L-G-EAU43957801
...
3222
Heater Cover L-G-MCK68473002
...
3402
Supporter,holder L-G-MJH64994501
...
3501
Shelf L-G-MHL64071801
...
3502
Shelf L-G-MHL64251402
...
3511
Shelf Assembly L-G-AHT74673902
...
3924
Cover,motor L-G-MCK69952301
...
3987
Pipe,fitting L-G-MGE65233401
...
3988
Pipe,connector L-G-MGE65231801
...
4002
Switch L-G-EBF60663403
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5019
Range Wire Harness L-G-EAD61076101
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5039
Range Convection Fan Motor L-G-EAU62343001
...
5090
Jack, Power L-G-EAG43128001
...
5405
Motor Bracket L-G-4810W1N060B
...
5423
Holder Assembly,lamp L-G-AEJ75140101
...
5465
Bracket L-G-MAZ64725501
...
5467
Cover,front L-G-MCK69628602
...
5476
Bracket,idle L-G-MAZ65844801
...
5510
Panel,side L-G-MGC64979302
...
5515
Packing,gasket L-G-MFZ65611702
...
5536
Packing,gasket L-G-MFZ64774502
...
5545
Supporter L-G-MJH63715701
...
5556
Packing,gasket L-G-MFZ65611802
...
5558
Bracket,idle L-G-MAZ65703501
...
5606
Window,led L-G-MKC66140102
...
5701
Barrier L-G-MAL63644101
...
5718
Power Transformer L-G-EBJ42409101
...
5801
Plate,rear L-G-MGJ65563602
...
5805
Cover,led L-G-MCK69708401
...
5806
Cover,led L-G-MCK69708501
...
5912
Holder,nozzle L-G-MEG65218801
...
5931
Case L-G-MBN63824201
...
5932
Case L-G-MBN63824301
...
5941
Burner Assembly L-G-ABF74089801
...
5942
Burner Assembly L-G-ABF73469901
...
5955
Governor L-G-MDW61961101
...
5975
Cover,rear L-G-MCK69646902
...
8550
Valve L-G-MJX62571702
...
9532
Decor,front L-G-MCR67246701
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
