LG SKSGR360S.ASTESGN

Model: SKSGR360S.ASTESGN

Save Part Not Listed?
product name

Main

...
...
W291
Screw L-G-1SZZW2A004E
...
5080
Range Oven Meat Probe Sensor L-G-EBD51431001
...
8511
Bracket,idle L-G-MAZ65844601
...
8531
Bracket,idle L-G-MAZ65783801
...
8532
Decor,guard L-G-MCR66986401
...
9384
Nozzle Accessory Assembly L-G-AAA75946020
...
9504
Accessory Assembly L-G-AAA77169702
...
9506
Accessory Assembly L-G-AAA74970602

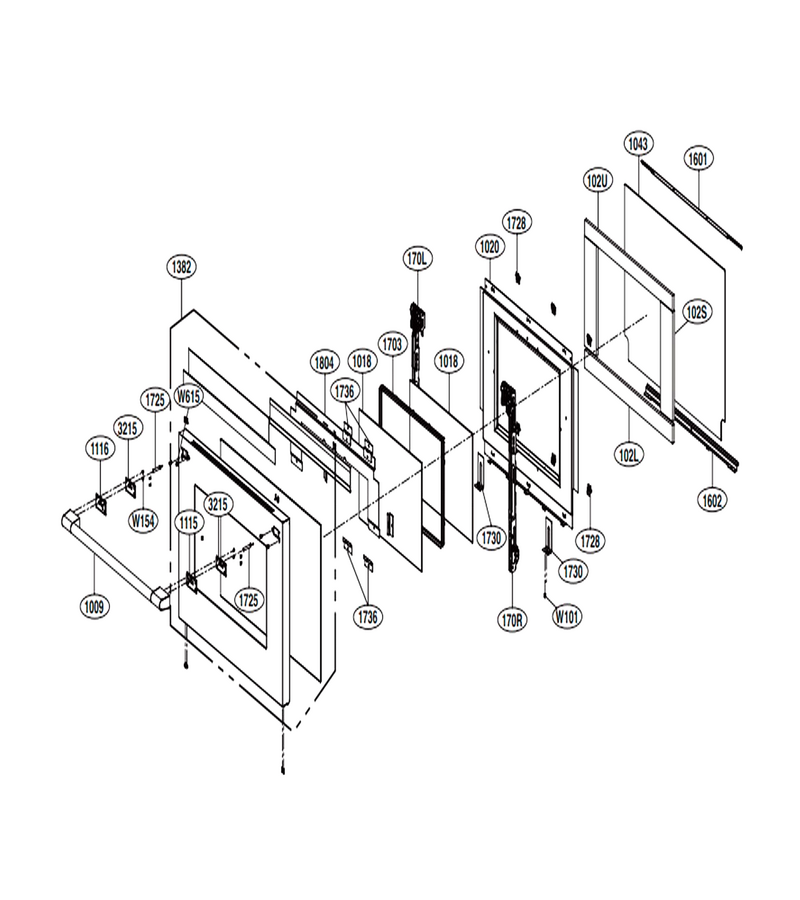

Door Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W154
Screw,machine L-G-1MFC0402416
...
W615
Machine Screw L-G-1MFC0503016
...
102L
Insulator L-G-MEV66271303
...
102S
Insulator L-G-MEV66271302
...
102U
Insulator L-G-MEV66271301
...
170L
Hinge Assembly L-G-AEH74876309
...
170R
Hinge Assembly L-G-AEH74876310
...
1009
Handle,door L-G-MEB63654002
...
1018
Range Oven Door Inner Glass L-G-4890W1N005A
...
1020
Cover,inner L-G-MCK69746901
...
1043
Window,glass L-G-MKC66399504
...
1115
Decor L-G-MCR65828401
...
1116
Decor L-G-MCR65828402
...
1382
Parts Assembly L-G-AGM76049701
...
1601
Holder,display L-G-MEG65279202
...
1602
Holder,display L-G-MEG65279302
...
1703
Bracket,mount L-G-MAZ65804301
...
1725
Damper Assembly L-G-ACV73910001
...
1728
Spring,contact L-G-MHY64663901
...
1730
Cover,bracket L-G-MCK69746502
...
1736
Bracket,idle L-G-MAZ65804501
...
1804
Plate,shield L-G-MGJ65830101
...
3215
Packing,gasket L-G-MFZ64812601

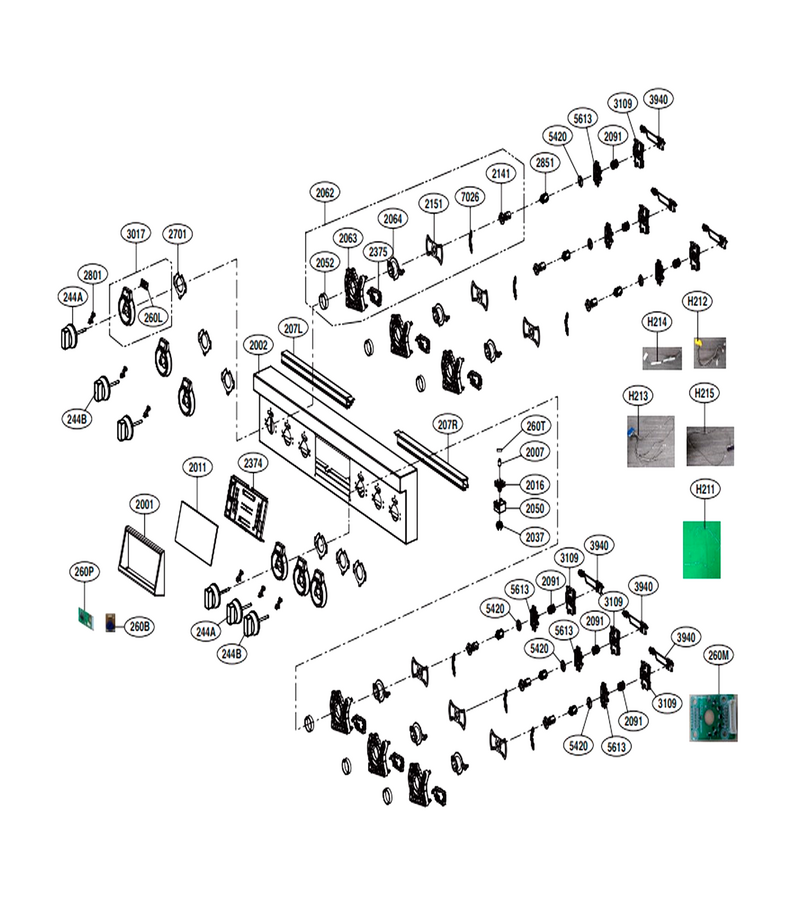

Controller Parts

...
...
H211
Single Harness L-G-EAD64568604
...
H212
Harness,single L-G-EAD64565302
...
H213
Harness,single L-G-EAD64565310
...
H214
Harness,single L-G-EAD64565315
...
H215
Harness,single L-G-EAD64565308
...
207L
Bracket Assembly L-G-ABA76569005
...
207R
Bracket Assembly L-G-ABA76569006
...
244A
Knob Assembly L-G-AEZ74953401
...
244B
Knob Assembly L-G-AEZ74953402
...
260B
Sub,pcb Assm L-G-EBR76332902
...
260L
Pcb Assembly,option L-G-EBR84439601
...
260M
Pcb Assembly,option L-G-EBR84439701
...
260P
Pcb Assembly,option L-G-EBR84439901
...
260T
Pcb Assembly,option L-G-EBR84764001
...
2001
Cover,display L-G-MCK69593402
...
2002
Control Panel L-G-MGC64799709
...
2007
Button L-G-5020W1N003A
...
2011
Window Assembly L-G-AJX74385101
...
2016
Button Assembly L-G-502181N001A
...
2037
Supporter,led L-G-MJH64734601
...
2050
Supporter,pcb L-G-MJH64734701
...
2052
Ring,guide L-G-MGZ64347001
...
2062
Guide Assembly,selector L-G-AEC74957401
...
2063
Holder Assembly L-G-AEJ75180501
...
2064
Holder Assembly L-G-AEJ75180401
...
2091
Spring,coil L-G-MHY64864201
...
2141
Supporter,holder L-G-MJH64794101
...
2151
Frame,fixing L-G-MDQ65336301
...
2374
Supporter Assembly,pcb L-G-AJJ75678710
...
2375
Supporter Assembly,pcb L-G-AJJ75518601
...
2701
Plate,guide L-G-MGJ65663002
...
2801
Locker,guard Ring L-G-MFG64238601
...
2851
Shaft Assembly L-G-AHR73829701
...
3017
Ring Assembly L-G-AHH73129101
...
3109
Supporter,holder L-G-MJH64793701
...
3940
Switch Assembly L-G-EBF63434701
...
5420
Holder Assembly L-G-AEJ75180301
...
5613
Supporter,pcb L-G-MJH64793801
...
7026
Spring,coil L-G-MHY64864001

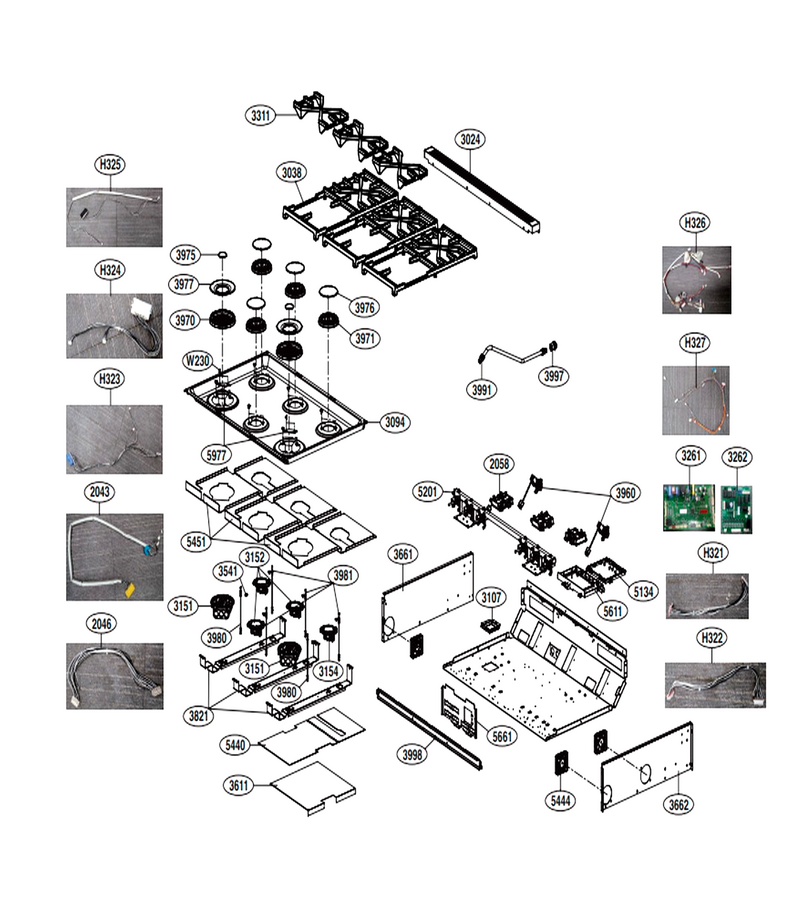

Cooktop Parts I

...
...
H321
Harness,single L-G-EAD60833515
...
H322
Harness,single L-G-EAD64565316
...
H323
Harness,single L-G-EAD64565303
...
H324
Harness,single L-G-EAD60833516
...
H325
Harness,single L-G-EAD64565307
...
H326
Single Harness L-G-EAD64488010
...
H327
Single Harness L-G-EAD64488011
...
W230
Screw L-G-1TPL0402018
...
2043
Harness,single L-G-EAD64565309
...
2046
Harness,single L-G-EAD63009007
...
2058
Transformer,power L-G-EBJ63450301
...
3024
Grille,vent L-G-MDX64371904
...
3038
Grille Assembly L-G-AEB75304604
...
3094
Top Plate L-G-MGJ67220402
...
3107
Insulator L-G-MEV66191401
...
3151
Burner Assembly L-G-ABF74049701
...
3152
Burner Assembly L-G-ABF74049702
...
3154
Burner Assembly L-G-ABF74049705
...
3261
Main Pcb Assembly L-G-EBR84439315
...
3262
Pcb Assembly,sub L-G-EBR89757902
...
3311
Grille L-G-MDX64372004
...
3541
Fixing Holder L-G-MEG64739001
...
3611
Cover,safety L-G-MCK69967601
...
3661
Plate,mount L-G-MGJ65842301
...
3662
Plate,mount L-G-MGJ65842202
...
3821
Bracket,mount L-G-MAZ65723601
...
3960
Valve Assembly,gas L-G-AJU75072401
...
3970
Burner L-G-MBE62162902
...
3971
Burner L-G-MBE62183001
...
3975
Cap,burner L-G-MBL67297301
...
3976
Cap,burner L-G-MBL67297401
...
3977
Cap,burner L-G-MBL67316901
...
3980
Assembly Cable L-G-EAD64245603
...
3981
Assembly Cable L-G-EAD64245604
...
3991
Bending Pipe L-G-MGE66149401
...
3997
Pipe,connector L-G-MGE64936001
...
3998
Bracket,mount L-G-MAZ65723501
...
5134
Supporter,pcb L-G-MJH64494201
...
5201
Metal Pipe Assembly L-G-AGR30042501
...
5440
Insulator L-G-MEV66810701
...
5444
Fan Assembly,blower L-G-ADP74734001
...
5451
Insulator L-G-MEV66191301
...
5611
Pcb Support L-G-MJH41754001
...
5661
Insulator L-G-MEV66470901
...
5977
Nozzle Cover L-G-MCK71496701

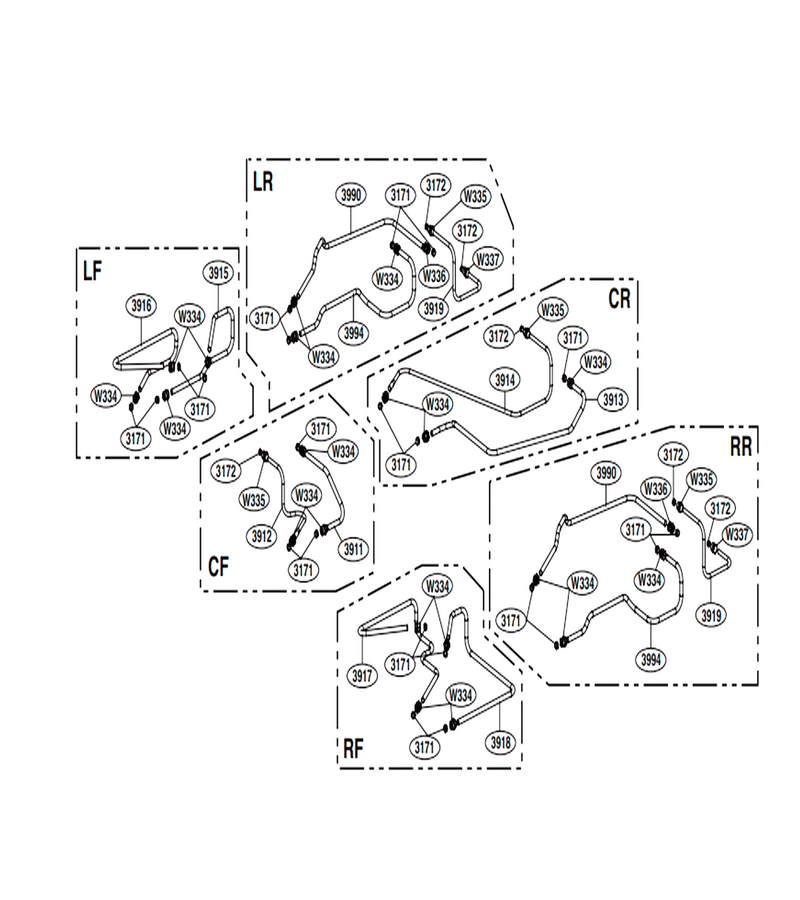

Cooktop Parts Ii

...
...
W334
Customized Nut L-G-FAD32310601
...
W335
Customized Nut L-G-FAD32310602
...
W336
Customized Nut L-G-FAD32310603
...
W337
Customized Nut L-G-FAD32310604
...
3171
Connector Ring L-G-MGZ63906901
...
3172
Connector Ring L-G-MGZ63906902
...
3911
Bending Pipe L-G-MGE66149101
...
3912
Bending Pipe L-G-MGE66149301
...
3913
Pipe,bending L-G-MGE65932101
...
3914
Bending Pipe L-G-MGE66149201
...
3915
Pipe,bending L-G-MGE64932301
...
3916
Pipe,bending L-G-MGE64932401
...
3917
Pipe,bending L-G-MGE64933001
...
3918
Pipe,bending L-G-MGE64932901
...
3919
Pipe,bending L-G-MGE64933301
...
3990
Pipe,bending L-G-MGE64933201
...
3994
Pipe,bending L-G-MGE64933101

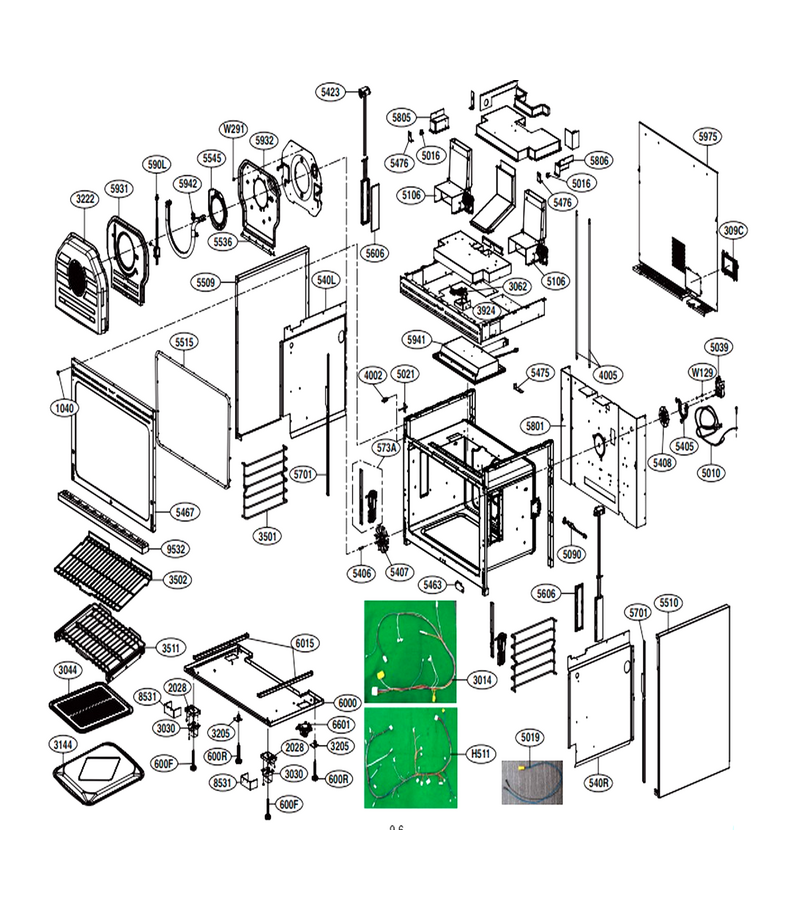

Cavity Parts

...
...
H511
Harness,single L-G-EAD64487803
...
W129
Nut L-G-1NHA0400018
...
W291
Screw L-G-1SZZW2A004E
...
309C
Cover,rear L-G-MCK69646703
...
540L
Insulator L-G-MEV66252503
...
540R
Insulator L-G-MEV66252504
...
573A
Damper Assembly L-G-ACV74350101
...
590L
Range Oven Burner Igniter L-G-MEE61841401
...
600F
Foot L-G-MDP63806702
...
600R
Foot L-G-MDP63806701
...
1040
Oven Protector Cap L-G-5006841001A
...
2028
Idle Bracket L-G-MAZ66327001
...
3014
Harness,single L-G-EAD64487903
...
3030
Bracket Assembly L-G-ABA30038201
...
3044
Tray,metal L-G-MJS61849903
...
3062
Motor L-G-EAU43957801
...
3144
Tray,metal L-G-MJS61850003
...
3205
Bracket Assembly L-G-ABA76368302
...
3222
Heater Cover L-G-MCK68473004
...
3501
Shelf L-G-MHL64071801
...
3502
Shelf L-G-MHL64251401
...
3511
Shelf Assembly L-G-AHT74673901
...
3924
Cover,motor L-G-MCK69952301
...
4002
Switch L-G-EBF60663403
...
4005
Bar L-G-MAK64227201
...
5010
Power Cord Assembly L-G-EAD60700408
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5019
Range Wire Harness L-G-EAD61076101
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5039
Range Convection Fan Motor L-G-EAU62343001
...
5090
Jack, Power L-G-EAG43128001
...
5106
Duct Assembly L-G-ADJ74852903
...
5405
Motor Bracket L-G-4810W1N060B
...
5406
Ring L-G-MGZ63607001
...
5407
Convection Fan L-G-MDG62882901
...
5408
Fan Blade L-G-3B72559A
...
5423
Holder Assembly,lamp L-G-AEJ75140101
...
5463
Bracket L-G-MAZ61859501
...
5467
Cover,front L-G-MCK69628302
...
5475
Bracket,idle L-G-MAZ65844901
...
5476
Bracket,idle L-G-MAZ65844801
...
5509
Panel,side L-G-MGC64879002
...
5510
Panel,side L-G-MGC64879102
...
5515
Packing,gasket L-G-MFZ65551602
...
5536
Packing,gasket L-G-MFZ64774502
...
5545
Supporter L-G-MJH63715701
...
5606
Window,led L-G-MKC66140103
...
5701
Barrier L-G-MAL63644101
...
5801
Cover,insulator L-G-MCK69592602
...
5805
Cover,led L-G-MCK69708401
...
5806
Cover,led L-G-MCK69708501
...
5931
Case L-G-MBN63824201
...
5932
Case L-G-MBN63824301
...
5941
Burner Assembly L-G-ABF74089801
...
5942
Burner Assembly L-G-ABF73469901
...
5975
Cover,rear L-G-MCK69646702
...
6000
Plate,base L-G-MGJ65642402
...
6015
Bracket,idle L-G-MAZ65705901
...
6601
Wheel Assembly L-G-AJW73450401
...
8531
Bracket,idle L-G-MAZ65783801
...
9532
Decor,front L-G-MCR66887501

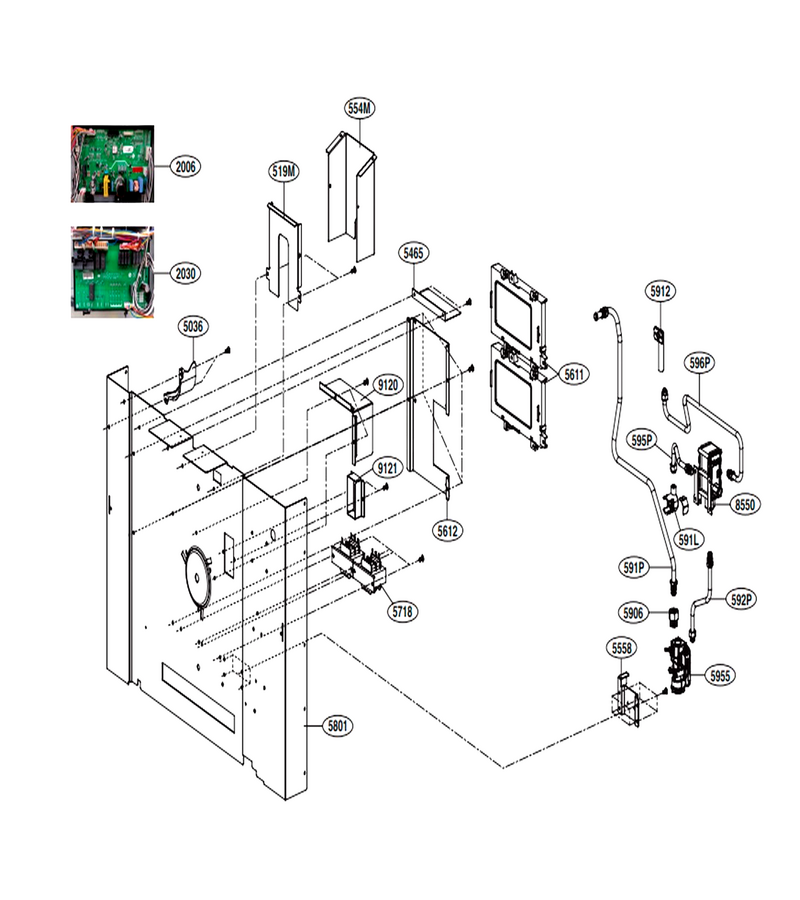

Rear Plate

...
...
519M
Cover,vent L-G-MCK69989301
...
554M
Vent L-G-MJZ62661701
...
591L
Holder,nozzle L-G-MEG64179802
...
591P
Bending Pipe L-G-MGE65251501
...
592P
Bending Pipe L-G-MGE66152701
...
595P
Bending Pipe L-G-MGE65251701
...
596P
Bending Pipe L-G-MGE65252201
...
2006
Main Pcb Assembly L-G-EBR84438912
...
2030
Pcb Assembly,option L-G-EBR84439104
...
5036
Oven Lamp Cover L-G-MCK65824301
...
5465
Bracket L-G-MAZ64725501
...
5558
Bracket,idle L-G-MAZ65703501
...
5611
Pcb Support L-G-MJH41754001
...
5612
Supporter,pcb L-G-MJH65153301
...
5718
Power Transformer L-G-EBJ42409101
...
5801
Cover,insulator L-G-MCK69592602
...
5906
Pipe,connector L-G-MGE65033501
...
5912
Holder,nozzle L-G-MEG65218801
...
5955
Governor L-G-MDW61961101
...
8550
Valve L-G-MJX62571702
...
9120
Bracket,idle L-G-MAZ66306401
...
9121
Bracket,idle L-G-MAZ66306301
