product name

LG SKSGR360GS.ASTESGN

Model: SKSGR360GS.ASTESGN

Save Part Not Listed?
product name

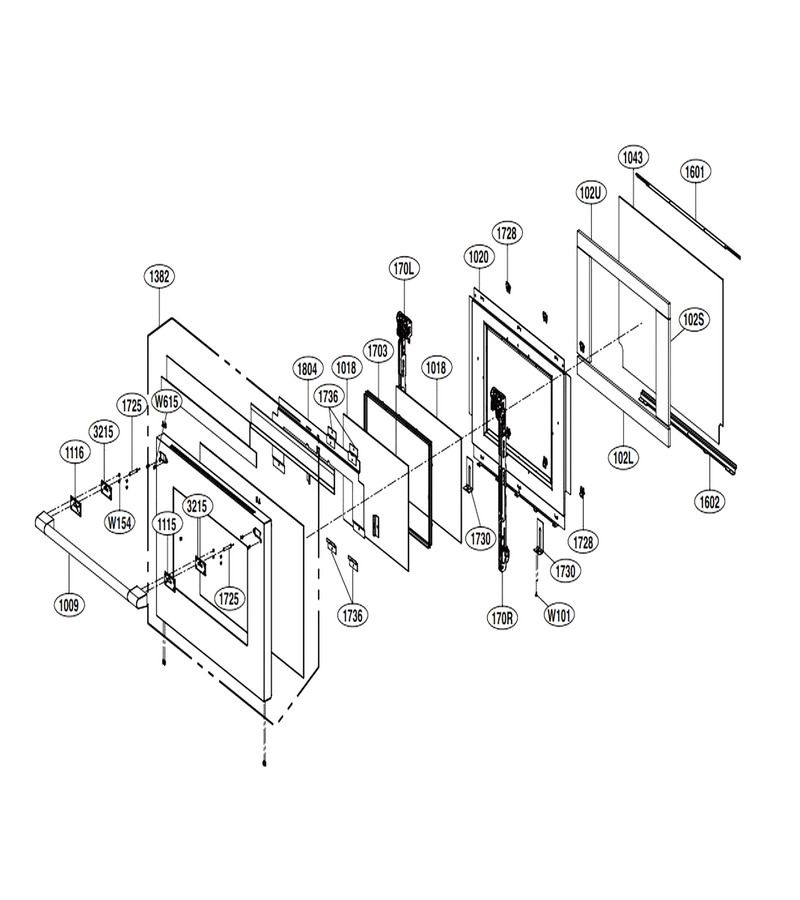

Door Parts

...
...
W154
Screw,machine L-G-1MFC0402416
...
102L
Insulator L-G-MEV66271303
...
102S
Insulator L-G-MEV66271302
...
102U
Insulator L-G-MEV66271301
...
170L
Hinge Assembly L-G-AEH74876309
...
170R
Hinge Assembly L-G-AEH74876310
...
1009
Handle,door L-G-MEB63654002
...
1018
Range Oven Door Inner Glass L-G-4890W1N005A
...
1020
Cover,inner L-G-MCK69746901
...
1043
Window,glass L-G-MKC66399504
...
1115
Decor L-G-MCR65828401
...
1116
Decor L-G-MCR65828402
...
1382
Parts Assembly L-G-AGM76049701
...
1601
Holder,display L-G-MEG65279202
...
1602
Holder,display L-G-MEG65279302
...
1703
Bracket,mount L-G-MAZ65804301
...
1725
Damper Assembly L-G-ACV73910001
...
1728
Spring,contact L-G-MHY64663901
...
1730
Cover,bracket L-G-MCK69746502
...
1736
Bracket,idle L-G-MAZ65804501
...
1804
Plate,shield L-G-MGJ65830101
...
3215
Packing,gasket L-G-MFZ64812601

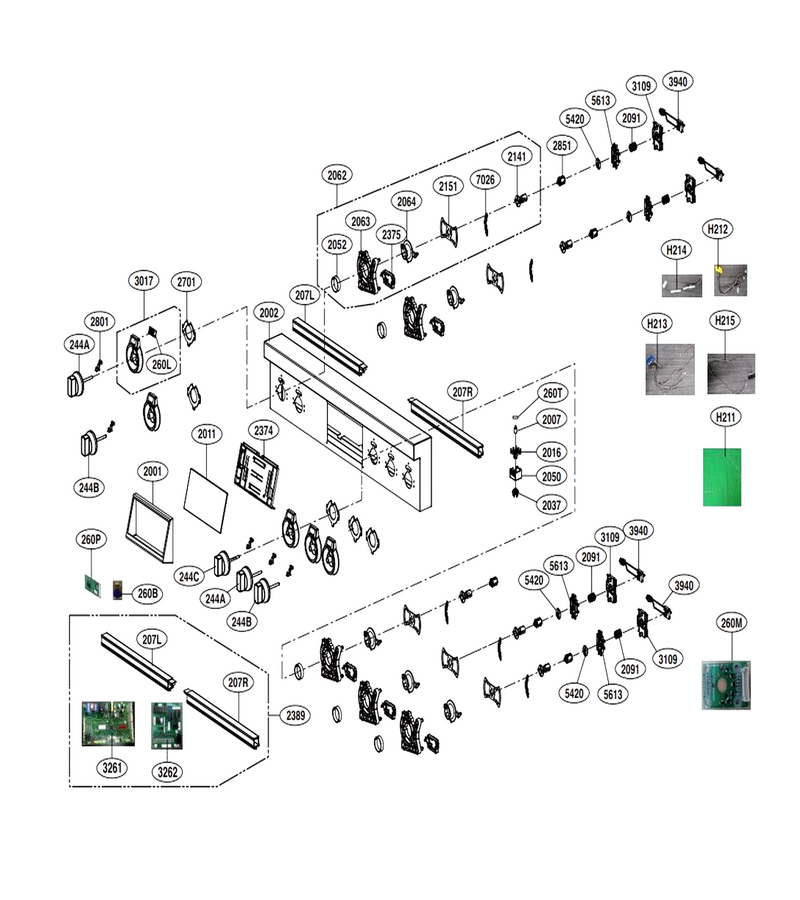

Controller Parts

...
...
H211
Harness,single L-G-EAD64568602
...
H212
Harness,single L-G-EAD64565302
...
H213
Harness,single L-G-EAD64565310
...
H214
Harness,single L-G-EAD64565306
...
H215
Harness,single L-G-EAD64565308
...
207L
Bracket Assembly L-G-ABA76569005
...
207R
Bracket Assembly L-G-ABA76569006
...
244A
Knob Assembly L-G-AEZ74953401
...
244B
Knob Assembly L-G-AEZ74953402
...
244C
Knob Assembly L-G-AEZ74953407
...
260B
Sub,pcb Assm L-G-EBR76332902
...
260L
Pcb Assembly,option L-G-EBR84439601
...
260M
Pcb Assembly,option L-G-EBR84439701
...
260P
Pcb Assembly,option L-G-EBR84439901
...
260T
Pcb Assembly,option L-G-EBR84764001
...
2001
Cover,display L-G-MCK69593402
...
2002
Panel,control L-G-MGC64799702
...
2007
Button L-G-5020W1N003A
...
2011
Window Assembly L-G-AJX74385101
...
2016
Button Assembly L-G-502181N001A
...
2037
Supporter,led L-G-MJH64734601
...
2050
Supporter,pcb L-G-MJH64734701
...
2052
Ring,guide L-G-MGZ64347001
...
2062
Guide Assembly,selector L-G-AEC74957401
...
2063
Holder Assembly L-G-AEJ75180501
...
2064
Holder Assembly L-G-AEJ75180401
...
2091
Spring,coil L-G-MHY64864201
...
2141
Supporter,holder L-G-MJH64794101
...
2151
Frame,fixing L-G-MDQ65336301
...
2374
Supporter Assembly,pcb L-G-AJJ75678704
...
2375
Supporter Assembly,pcb L-G-AJJ75518601
...
2389
Parts Assembly L-G-AGM76989705
...
2701
Plate,guide L-G-MGJ65663002
...
2801
Locker,guard Ring L-G-MFG64238601
...
2851
Shaft Assembly L-G-AHR73829701
...
3017
Ring Assembly L-G-AHH73129101
...
3109
Supporter,holder L-G-MJH64793701
...
3261
Pcb Assembly,main L-G-EBR84439310
...
3262
Pcb Assembly,sub L-G-EBR89757902
...
3940
Switch Assembly L-G-EBF63434701
...
5420
Holder Assembly L-G-AEJ75180301
...
5613
Supporter,pcb L-G-MJH64793801
...
7026
Spring,coil L-G-MHY64864001

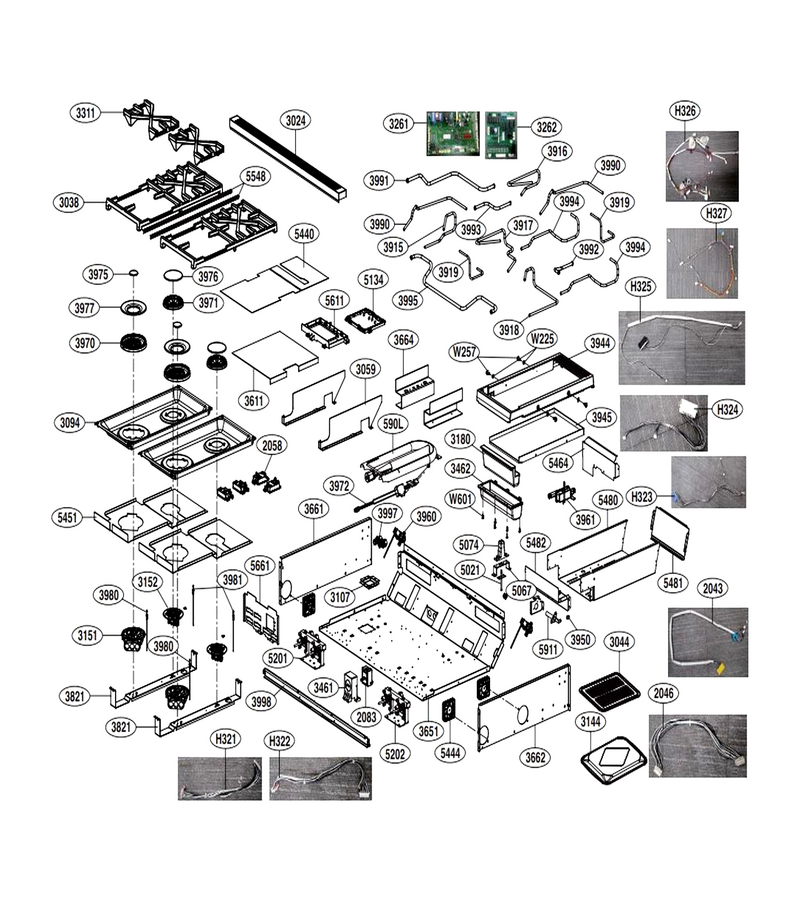

Cooktop Parts

...
...
H321
Harness,single L-G-EAD60833515
...
H322
Harness,single L-G-EAD60833516
...
H323
Harness,single L-G-EAD64565303
...
H324
Harness,single L-G-EAD64565305
...
H325
Harness,single L-G-EAD64565307
...
H326
Harness,single L-G-EAD64488001
...
H327
Harness,single L-G-EAD64488002
...
T501
Thermistor,ntc L-G-EBG63245701
...
W225
Washer L-G-1WZZW3Z003B
...
W257
Screw,customized L-G-1SZZW5N001R
...
W601
Screw,customized L-G-3E55114A
...
507L
Hinge Assembly L-G-AEH75456301
...
507R
Hinge Assembly L-G-AEH75456401
...
590L
Heater,plain L-G-MEE61841403
...
1005
Door Assembly,full L-G-ADC76105501
...
1383
Parts Assembly L-G-AGM76989701
...
2043
Harness,single L-G-EAD64565309
...
2046
Harness,single L-G-EAD63009007
...
2058
Transformer,power L-G-EBJ63450301
...
2083
Switch,rotary L-G-EBF63054502
...
3030
Pipe,bending L-G-MGE65932201
...
3038
Grille Assembly L-G-AEB75304603
...
3044
Tray,metal L-G-MJS61849903
...
3059
Barrier L-G-MAL63623801
...
3094
Plate,top L-G-MGJ65539902
...
3099
Bracket,idle L-G-MAZ65723301
...
3107
Insulator L-G-MEV66191401
...
3144
Tray,metal L-G-MJS61850003
...
3151
Burner Assembly L-G-ABF74049701
...
3152
Burner Assembly L-G-ABF74049702
...
3180
Cover Assembly,body L-G-ACQ89962501
...
3205
Bracket Assembly L-G-ABA76368302
...
3311
Grille L-G-MDX64372003
...
3461
Housing,case L-G-MEK64026701
...
3462
Housing,case L-G-MEK64086503
...
3611
Cover,safety L-G-MCK69967601
...
3651
Plate,base L-G-MGJ65601902
...
3661
Plate,mount L-G-MGJ65842301
...
3662
Plate,mount L-G-MGJ65842202
...
3664
Bracket,idle L-G-MAZ66003401
...
3821
Bracket,mount L-G-MAZ65723601
...
3915
Pipe,bending L-G-MGE64932301
...
3916
Pipe,bending L-G-MGE64932401
...
3917
Pipe,bending L-G-MGE64933001
...
3918
Pipe,bending L-G-MGE64932901
...
3919
Pipe,bending L-G-MGE64933301
...
3924
Cover,motor L-G-MCK69952301
...
3944
Tray,metal L-G-MJS64271803
...
3945
Grille Assembly L-G-AEB75384501
...
3947
Tray,metal L-G-MJS64371801
...
3950
Nozzle L-G-MFV61841414
...
3960
Valve Assembly,gas L-G-AJU75072401
...
3961
Valve Assembly,gas L-G-AJU75112401
...
3970
Burner L-G-MBE62162901
...
3971
Burner L-G-MBE62183001
...
3972
Burner L-G-MBE62182901
...
3975
Cap,burner L-G-MBL67297301
...
3976
Cap,burner L-G-MBL67297401
...
3977
Cap,burner L-G-MBL67316901
...
3980
Cable,assembly L-G-EAD64245601
...
3981
Cable,assembly L-G-EAD64245602
...
3990
Pipe,bending L-G-MGE64933201
...
3991
Pipe,bending L-G-MGE65251801
...
3992
Pipe,bending L-G-MGE64950901
...
3993
Pipe,bending L-G-MGE65252001
...
3994
Pipe,bending L-G-MGE64933101
...
3995
Pipe,bending L-G-MGE64951101
...
3997
Pipe,connector L-G-MGE64936001
...
3998
Bracket,mount L-G-MAZ65723501
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5067
Bracket,?m L-G-4810W3G135A
...
5074
Cover,sensor L-G-MCK69706501
...
5118
Dishwasher Thermostat L-G-6930W1A003K
...
5134
Supporter,pcb L-G-MJH64494201
...
5201
Pipe Assembly,metal L-G-AGR76015901
...
5202
Pipe Assembly,metal L-G-AGR76016301
...
5444
Fan Assembly,blower L-G-ADP74734001
...
5451
Insulator L-G-MEV66191301
...
5464
Bracket,pipe L-G-MAZ65705301
...
5480
Case,body L-G-MBN64805602
...
5481
Case,body L-G-MBN65283701
...
5482
Case,body L-G-MBN65283901
...
5549
Bracket,idle L-G-MAZ65723801

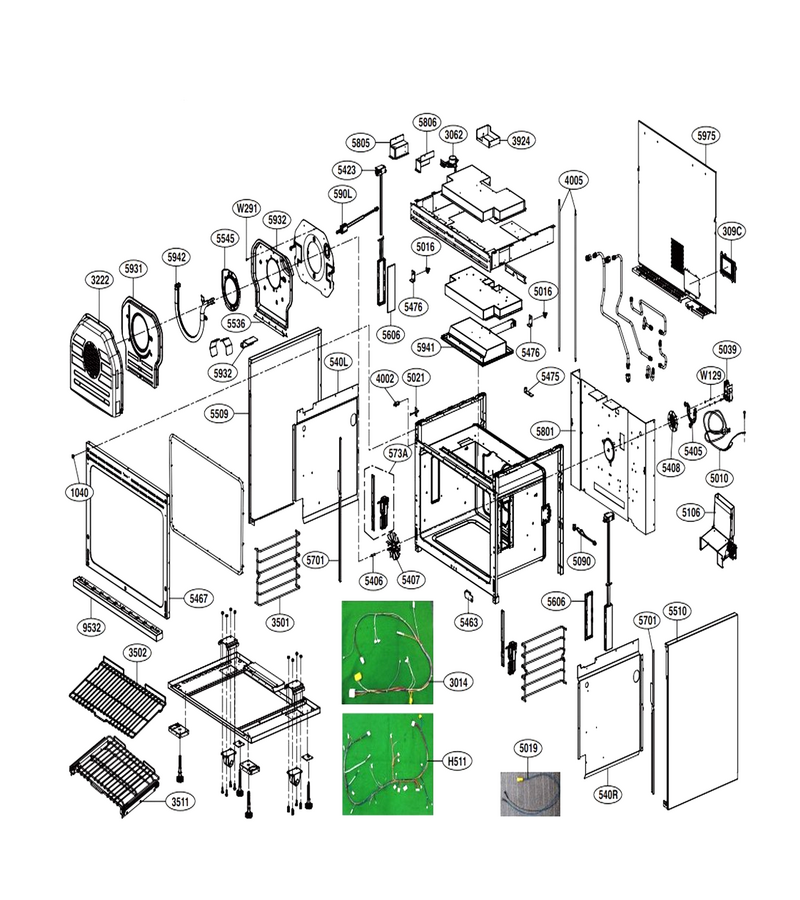

Cavity Parts

...
...
H511
Harness,single L-G-EAD64487803
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W124
Washer L-G-1WSD0400032
...
W129
Nut L-G-1NHA0400018
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W278
Nut,common L-G-4H00947C
...
W291
Screw L-G-1SZZW2A004E
...
W307
Washer,common L-G-FAF30029401
...
W308
Nut,common L-G-FAD30029501
...
W320
Screw,machine L-G-FAB30029603
...
W338
Nut,customized L-G-FAD30790906
...
309C
Cover,rear L-G-MCK69646703
...
309D
Cover,rear L-G-MCK69646704
...
540L
Insulator L-G-MEV66252503
...
540R
Insulator L-G-MEV66252504
...
573A
Damper Assembly L-G-ACV74350101
...
600F
Foot L-G-MDP63806702
...
600R
Foot L-G-MDP63806701
...
1040
Oven Protector Cap L-G-5006841001A
...
2006
Pcb Assembly,main L-G-EBR84438902
...
2030
Pcb Assembly,option L-G-EBR84439104
...
2032
Reflector L-G-MGW64609001
...
3013
Cover,rear L-G-MCK69646701
...
3014
Harness,single L-G-EAD64487801
...
3022
Heater Assembly L-G-AEG74229801
...
3024
Grille,vent L-G-MDX64371904
...
3030
Bracket Assembly L-G-ABA76368202
...
3055
Decor,front L-G-MCR66887501
...
3062
Motor L-G-EAU43957801
...
3063
Cover,rear L-G-MCK69957801
...
3204
Supporter L-G-4980W1N005B
...
3205
Bracket Assembly L-G-ABA76368301
...
3208
Bracket L-G-MAZ64764301
...
3212
Cover,heater L-G-MCK69708702
...
3222
Heater Cover L-G-MCK68473002
...
3501
Shelf L-G-MHL64071802
...
3502
Shelf L-G-MHL64251401
...
3511
Shelf Assembly L-G-AHT74673901
...
3731
Tank Assembly,water L-G-AJL74692001
...
3733
Housing Assembly,water L-G-AEN74551401
...
4002
Switch L-G-EBF60663403
...
4005
Bar L-G-MAK64227201
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5019
Range Wire Harness L-G-EAD61076101
...
5020
Microwave Thermal Cut-Off L-G-6930W1A003R
...
5039
Range Convection Fan Motor L-G-EAU62343001
...
5080
Range Oven Meat Probe Sensor L-G-EBD51431001
...
5090
Jack, Power L-G-EAG43128001
...
5091
Bracket,mount L-G-MAZ65647001
...
5095
Cover,hole L-G-MCK69050901
...
5106
Duct Assembly L-G-ADJ74852903
...
5150
Guide,air L-G-MEA65230901
...
5203
Pipe Assembly,metal L-G-AGR75975901
...
5204
Pipe Assembly,metal L-G-AGR75975801
...
5401
Cover,heater L-G-MCK68473108
...
5405
Motor Bracket L-G-4810W1N060B
...
5406
Ring L-G-MGZ63607001
...
5407
Convection Fan L-G-MDG62882901
...
5408
Fan Blade L-G-3B72559A
...
5410
Insulator L-G-MEV66191101
...
5423
Holder Assembly,lamp L-G-AEJ75140101
...
5440
Insulator L-G-MEV66810701
...
5442
Chamber L-G-MBR62321602
...
5460
Bracket,mount L-G-MAZ65647101
...
5461
Bracket,mount L-G-MAZ65647201
...
5463
Bracket L-G-MAZ61859501
...
5467
Cover,front L-G-MCK69628302
...
5475
Bracket,idle L-G-MAZ65844901
...
5476
Bracket,idle L-G-MAZ65844801
...
5478
Case,body L-G-MBN65222901
...
5506
Bracket,heater L-G-MAZ64548501
...
5508
Connector L-G-EAG32629301
...
5509
Panel,side L-G-MGC64879002
...
5510
Panel,side L-G-MGC64879102
...
5513
Heater,sheath L-G-MEE62306504
...
5514
Heater,sheath L-G-MEE41716502
...
5515
Packing,gasket L-G-MFZ65551602
...
5518
Bracket Assembly L-G-ABA76689301
...
5521
Heater,sheath L-G-MEE62865003
...
5536
Packing,gasket L-G-MFZ64774502
...
5545
Supporter L-G-MJH63715701
...
5606
Window,led L-G-MKC66140102
...
5661
Insulator L-G-MEV66470901
...
5700
Barrier L-G-MAL63643901
...
5701
Barrier L-G-MAL63644101
...
5751
Pump,water L-G-MGQ61841507
...
5752
Pump,water L-G-MGQ61841505
...
5761
Case,lower L-G-MBN65223001
...
5805
Cover,led L-G-MCK69708401
...
5806
Cover,led L-G-MCK69708501
...
5911
Nozzle Holder L-G-MEG62479803
...
5931
Case L-G-MBN63824201
...
5932
Case L-G-MBN63824301
...
5941
Burner Assembly L-G-ABF74089801
...
5942
Burner Assembly L-G-ABF73469901
...
5951
Cover,heater L-G-MCK70046001
...
5975
Cover,rear L-G-MCK69646702
...
5976
Cover,rear L-G-MCK69646801
...
6000
Plate,base L-G-MGJ65642401
...
6015
Bracket,idle L-G-MAZ65705901
...
6601
Wheel Assembly L-G-AJW73450401

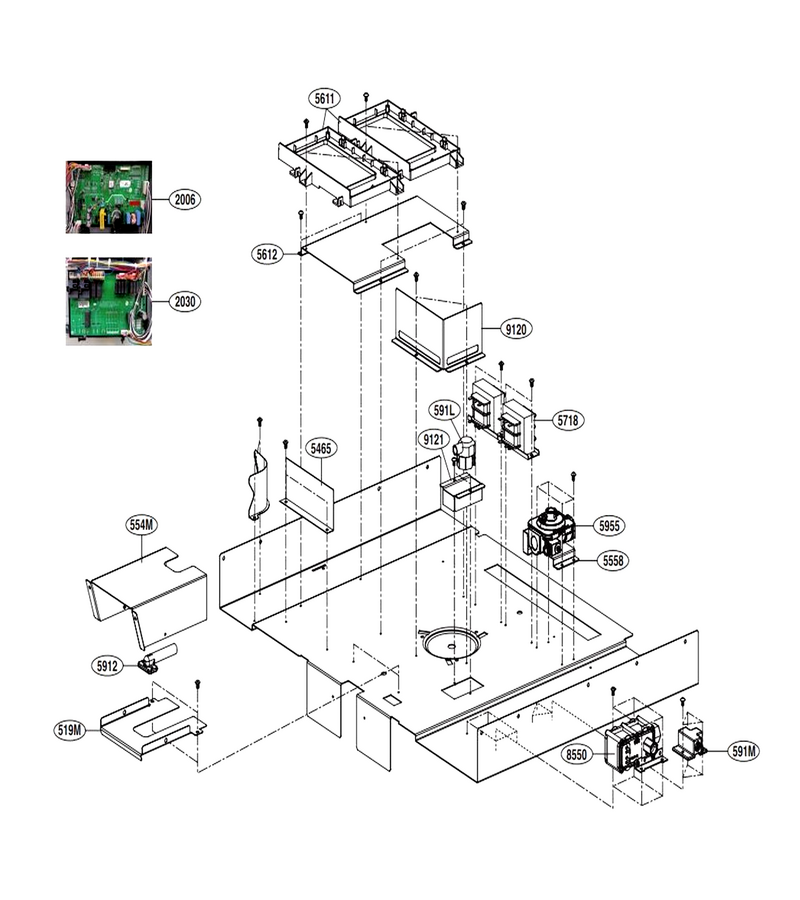

Rear Plate

...
...
W287
Screw,customized L-G-FAB30162501
...
W339
Nut,customized L-G-FAD32951101
...
519M
Cover,vent L-G-MCK69989301
...
554M
Vent L-G-MJZ62661701
...
591L
Holder,nozzle L-G-MEG64179802
...
591M
Pipe,terminal L-G-MGE65111401
...
5409
Insulator L-G-5012W1N016D
...
5465
Bracket L-G-MAZ64725501
...
5558
Bracket,idle L-G-MAZ65703501
...
5599
Supporter L-G-MJH63756701
...
5611
Pcb Support L-G-MJH41754001
...
5612
Supporter,pcb L-G-MJH65153301
...
5718
Power Transformer L-G-EBJ42409101
...
5801
Cover,insulator L-G-MCK69592601
...
5906
Pipe,connector L-G-MGE65033501
...
5912
Holder,nozzle L-G-MEG65218801
...
5955
Governor L-G-MDW61961101
...
8010
Tank,water L-G-MJM63524701

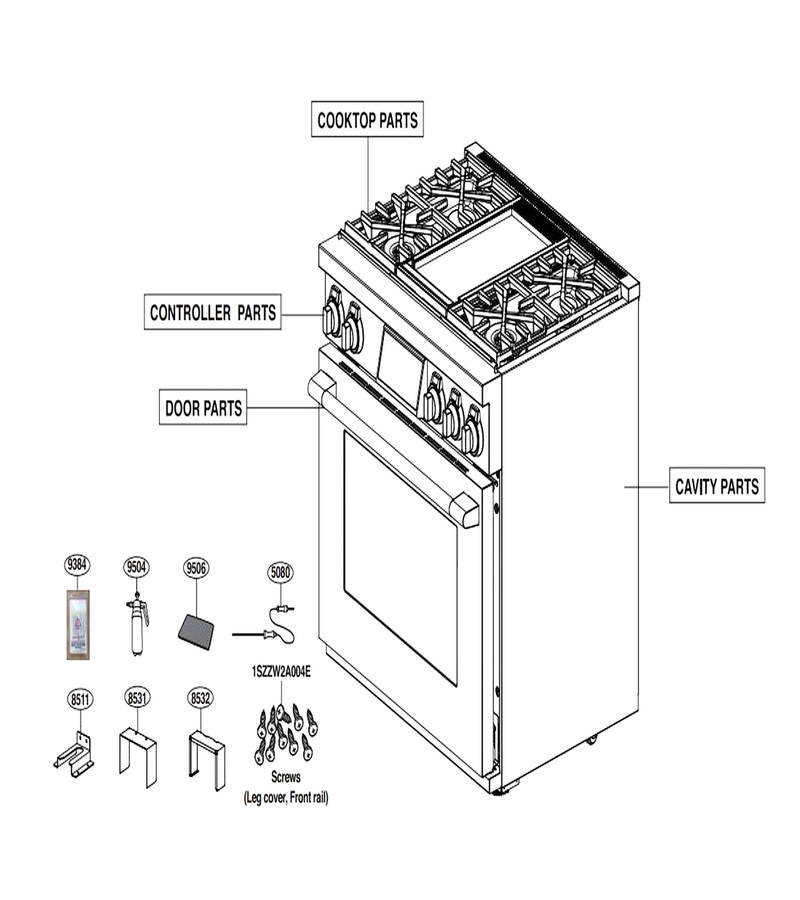

Main

...
...
5080
Range Oven Meat Probe Sensor L-G-EBD51431001
...
8511
Bracket,idle L-G-MAZ65844601
...
8531
Bracket,idle L-G-MAZ65783801
...
8532
Decor,guard L-G-MCR66986401
...
9384
Accessory Assembly,nozzle L-G-AAA75946013
...
9504
Accessory Assembly L-G-AAA77169702
...
9506
Accessory Assembly L-G-AAA74970602
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
