LG SKSDW2401S.ASTESNA

Model: SKSDW2401S.ASTESNA

Save Part Not Listed?
product name

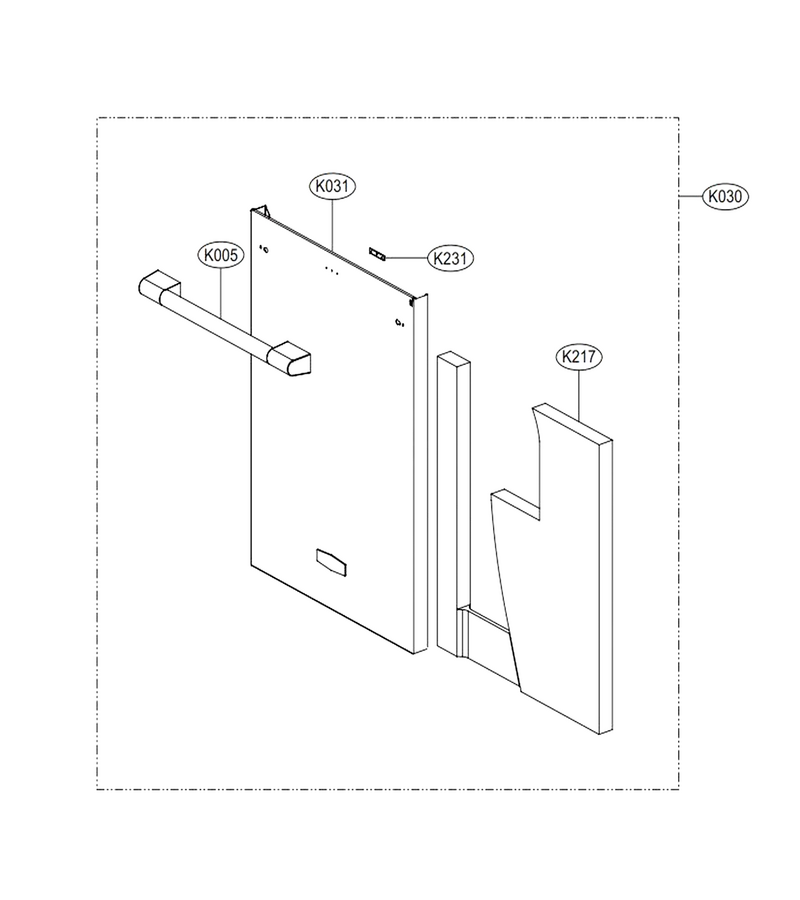

Front Cover Assembly

...
...
K005
Handle Assembly L-G-AED74352702
...
K030
Cover Assembly,front L-G-ACQ88048211
...
K031
Parts Assembly L-G-AGM75570313
...
K217
Damper Assembly L-G-ACV74030102
...
K222
Name Plate,pet L-G-MFT62466403
...
K231
Window Assembly L-G-AJX74284901

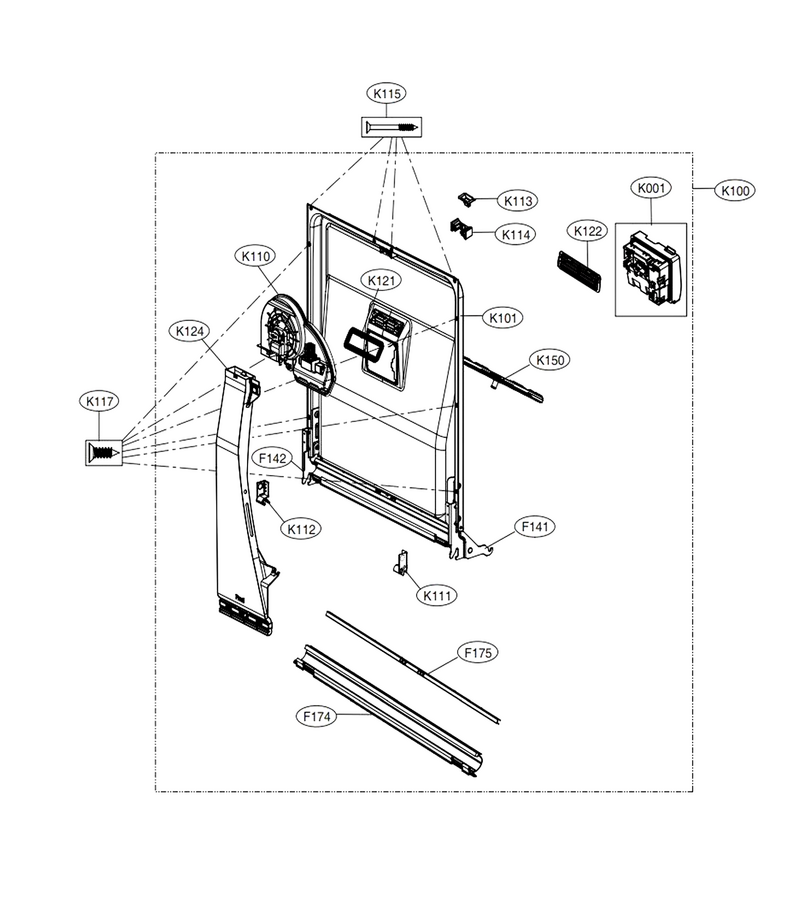

Door Liner Assembly

...
...
F141
Hinge L-G-MEF63061903
...
F142
Hinge L-G-MEF63061904
...
F174
Gasket L-G-MDS65210403
...
F175
Frame L-G-MDQ64476402
...
K001
Dishwasher Detergent Dispenser Assembly L-G-AGM75469801
...
K100
Door Liner Assembly L-G-ADE73849707
...
K101
Door Liner Assembly L-G-ADE73969704
...
K110
Vent Motor L-G-ABT73009401
...
K111
Holder L-G-MEG64439201
...
K112
Holder L-G-MEG64439202
...
K113
Locker,lock L-G-MFG63958701
...
K114
Lock Holder L-G-MEG64458801
...
K115
Screw,customized L-G-1SZZED3001G
...
K117
Screw,customized L-G-1SZZED3003G
...
K121
Gasket L-G-MDS65210501
...
K122
Dishwasher Blower Cover L-G-MCK68785601
...
K124
Duct Assembly L-G-ADJ74312101
...
K150
Nozzle Assembly,steam L-G-AGB73952502

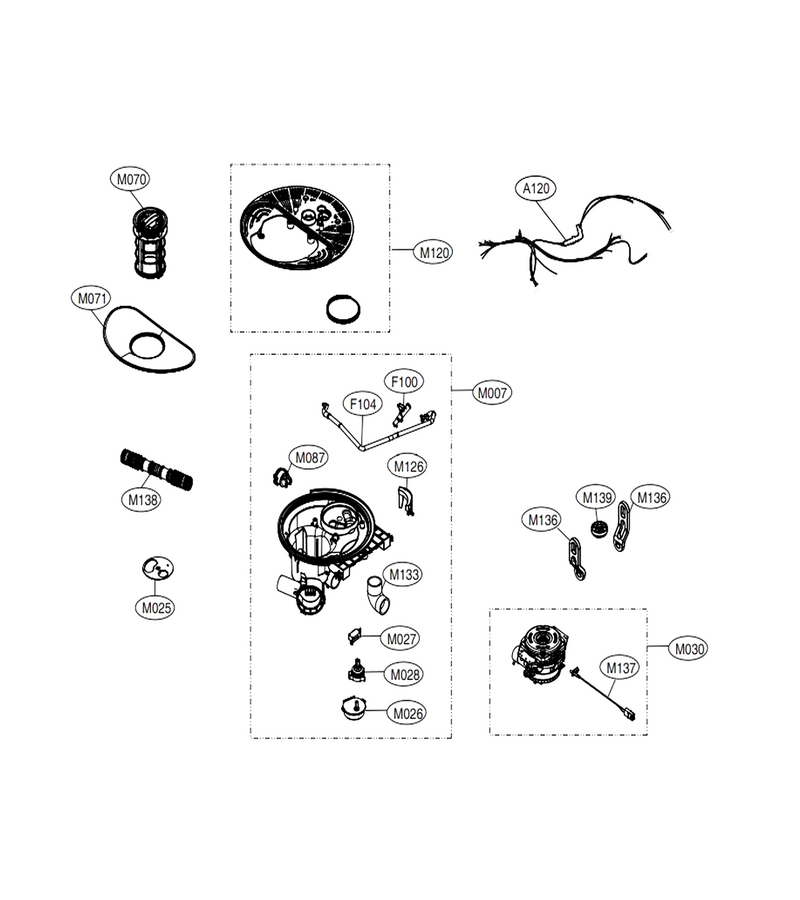

Sump Assembly

...
...
A120
Harness,multi L-G-EAD63647009
...
A195
Parts Assembly L-G-AGM76889601
...
F100
Case Assembly L-G-ABQ76120501
...
F104
Hose,inlet L-G-MEJ63424801
...
M007
Parts Assembly L-G-AGM75469203
...
M025
Check Valve L-G-MJX63511301
...
M026
Dishwasher Diverter Motor L-G-4681ED3001D
...
M027
Dishwasher Diverter Position Switch L-G-3W40025C
...
M028
Shaft Assembly L-G-AHR73669801
...
M030
Casing Assembly,pump L-G-ABT72989205
...
M050
Case Assembly L-G-ABQ75742501
...
M070
Filter Assembly,mesh L-G-ADQ74693702
...
M071
Filter L-G-MDJ64544301
...
M120
Cover Assembly,lower L-G-ACQ88920602
...
M126
Water Guide L-G-MEA64230001
...
M133
Hose Connector L-G-MEJ63424701
...
M136
Holder L-G-MEG64398801
...
M137
Connector Assembly L-G-ACJ74110102
...
M138
Drain Hose Assembly L-G-AEM74512901
...
M139
Holder L-G-MEG64398901

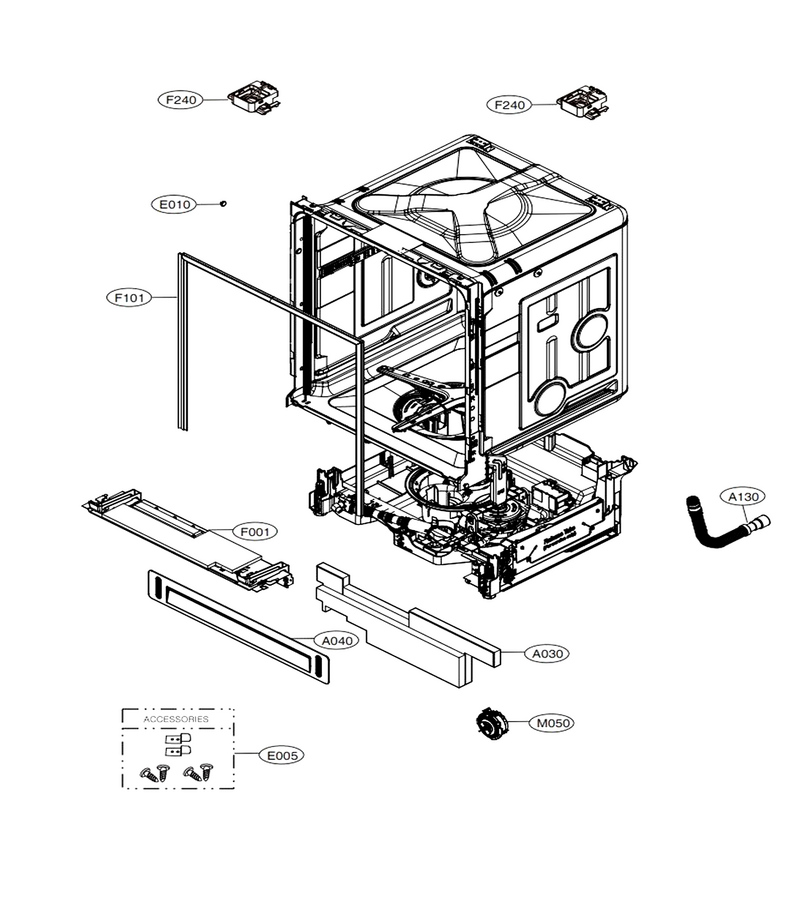

Main

...
...
A030
Damper Assembly L-G-ACV34326904
...
A040
Cover Assembly,lower L-G-ACQ90777001
...
A130
Hose Assembly L-G-AEM74333101
...
E005
Assembly Accessory L-G-5001DD4001C
...
E010
Bush L-G-4830ED4001B
...
F001
Lower Frame L-G-MDQ64457601
...
F101
Packing L-G-3920DD3002D
...
F240
Lamp,led L-G-EAQ61400805
...
M050
Case Assembly L-G-ABQ75742501

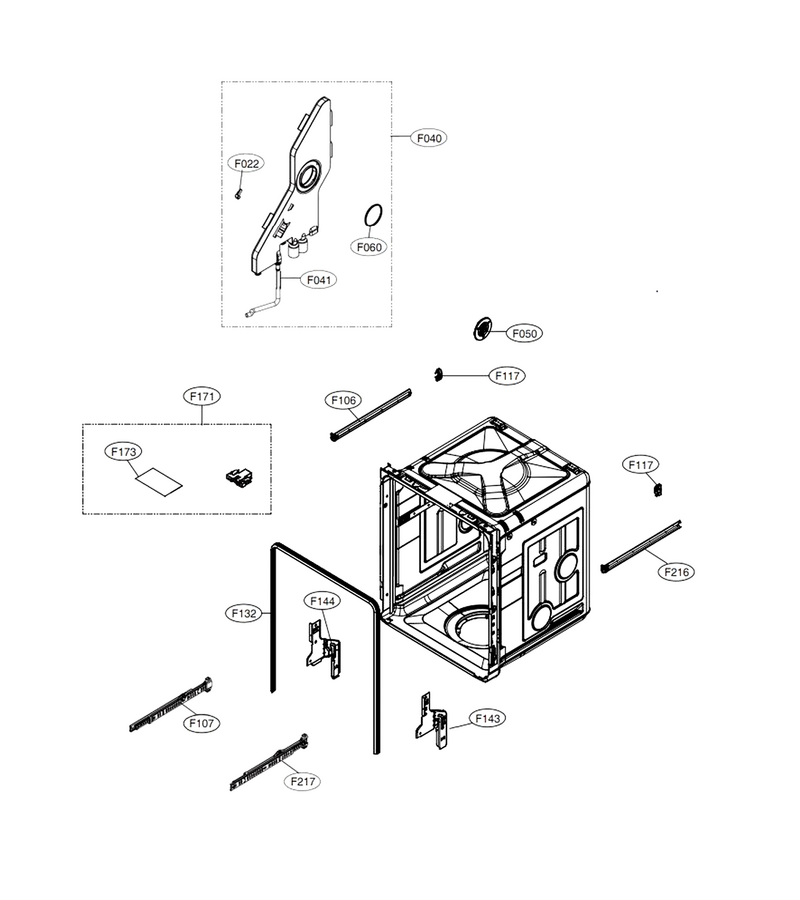

Tub Assembly

...
...
F022
Sensor Assembly L-G-EBD62065301
...
F040
Air Assembly L-G-AEC74337401
...
F041
Inlet Hose L-G-MEJ63444901
...
F050
Cap Cover L-G-MBL66496901
...
F060
Gasket L-G-MDS65210201
...
F106
Parts Assembly L-G-AGM75550001
...
F107
Rail Assembly L-G-AHC73575003
...
F117
Stopper,roller L-G-4620ED3001C
...
F132
Packing L-G-3920DD3005F
...
F143
Supporter,hinge L-G-MJH63533303
...
F144
Supporter,hinge L-G-MJH63533304
...
F171
Parts Assembly L-G-AGM76209501
...
F173
Cover,safety L-G-MCK69283003
...
F216
Parts Assembly L-G-AGM75549901
...
F217
Rail Assembly L-G-AHC73575004

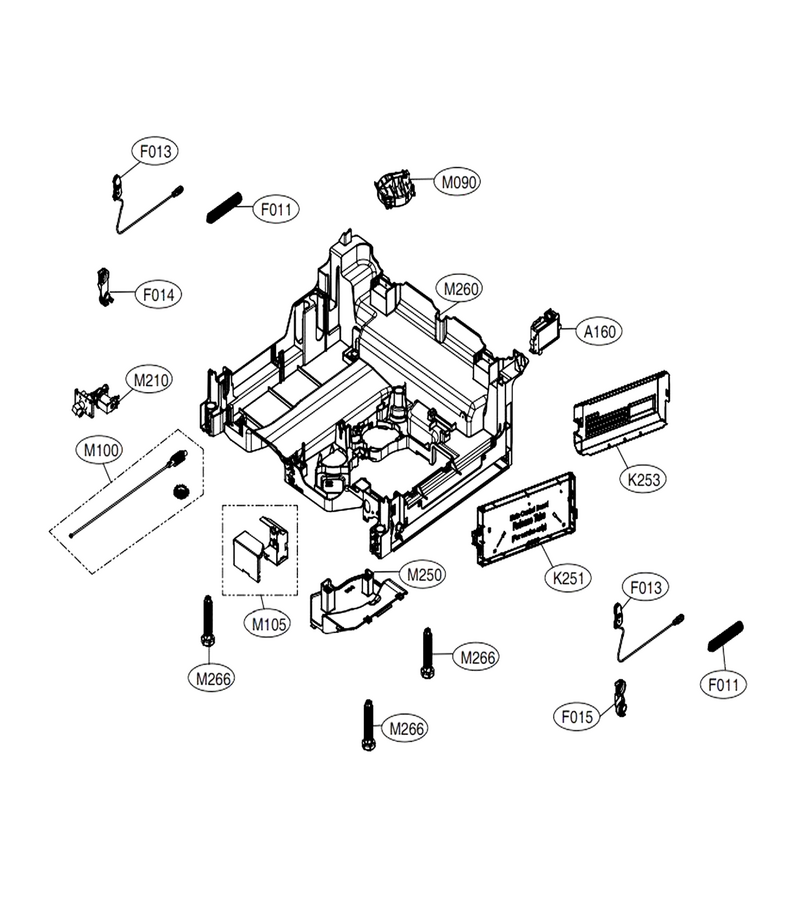

Base Assembly

...
...
A160
Filter Assembly L-G-EAM60991316
...
F011
Spring,hinge L-G-MHY63963805
...
F013
Connector Assembly L-G-ACJ73790102
...
F014
Roller L-G-MHA63252802
...
F015
Roller L-G-MHA63252801
...
K251
Pcb Assembly,main L-G-EBR86473401
...
K253
Cover,protect L-G-MCK70272301
...
K254
Parts Assembly L-G-AGM76429501
...
M087
Case Assembly L-G-ABQ75742401
...
M090
Dishwasher Flood Switch L-G-6601ER2001A
...
M100
Parts Assembly L-G-AGM75510001
...
M105
Dishwasher Terminal Block Cover L-G-AGM72573101
...
M210
Dishwasher Water Inlet Valve L-G-5221DD1001E
...
M250
Cabinet Base L-G-MAM63444201
...
M260
Base,cabinet L-G-MAM63444102

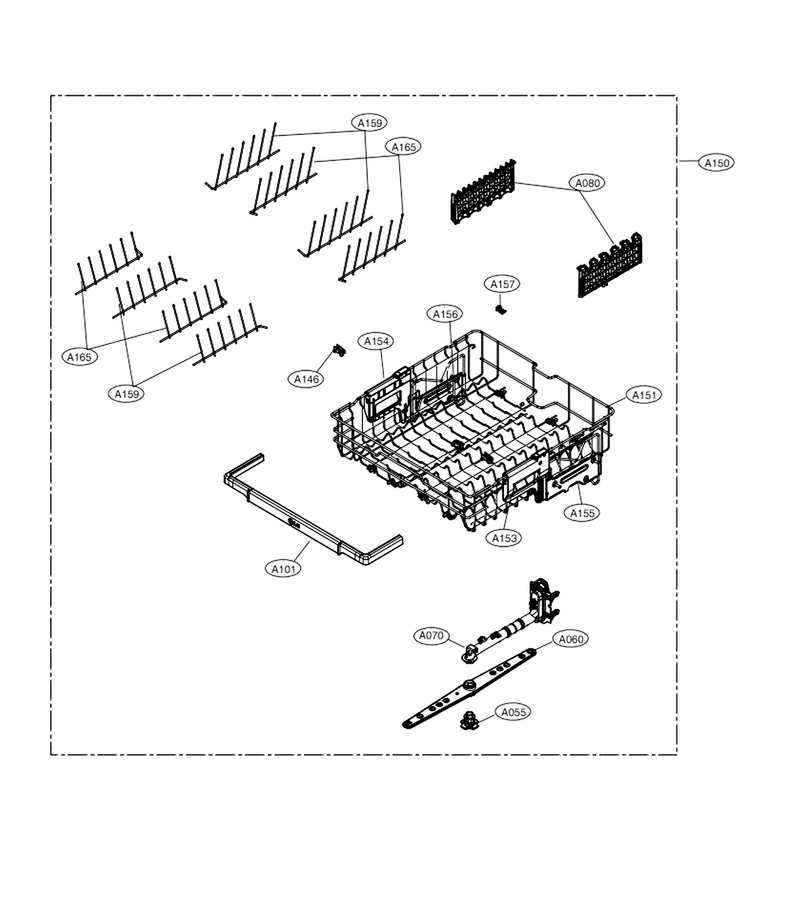

Upper Rack Assembly

...
...
A055
Shaft,nozzle L-G-4370ED3007C
...
A060
Nozzle Assembly L-G-5249DD1001E
...
A070
Guide Assembly L-G-AEC74357402
...
A110
Basket Assembly,spoon L-G-AAP74471302
...
A146
Holder L-G-MEG64438801
...
A150
Rack Assembly L-G-AHB73249205
...
A151
Rack L-G-MGR62762101
...
A153
Parts Assembly L-G-AGM75509502
...
A154
Parts Assembly L-G-AGM75509602
...
A155
Roller Assembly L-G-AHJ73610002
...
A156
Roller Assembly L-G-AHJ73609902
...
A157
Holder L-G-MEG64438902
...
A165
Rack L-G-MGR62762702

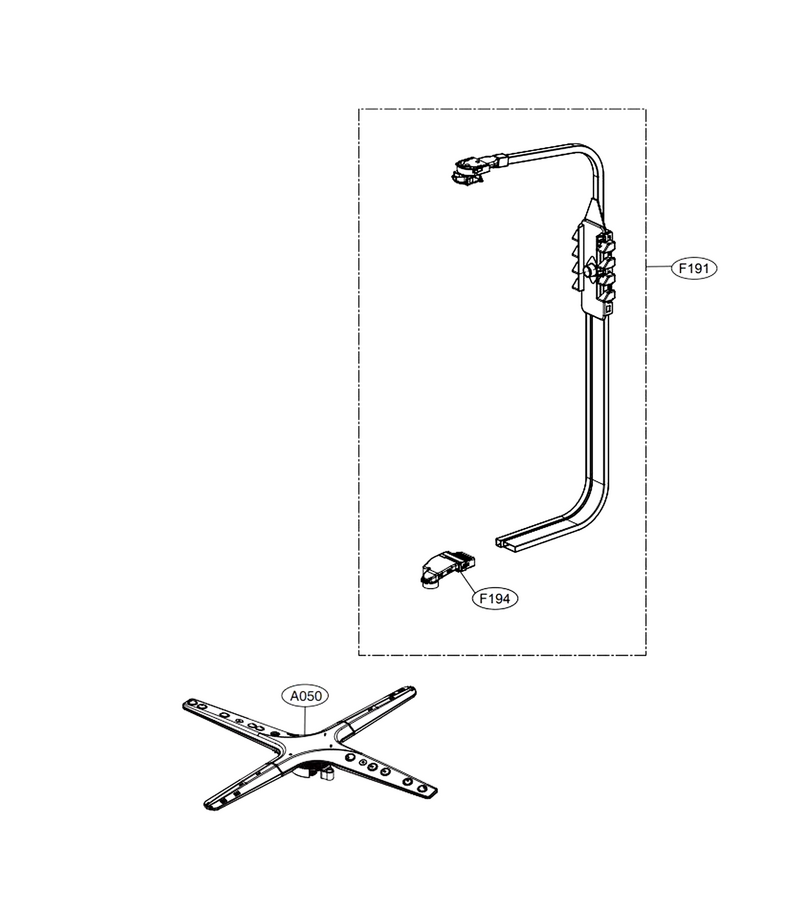

Water Guide Assembly

...
...
A050
Nozzle Assembly L-G-AGB73932402
...
F191
Guide Assembly L-G-AEC75117407
...
F194
Parts Assembly L-G-AGM30000201

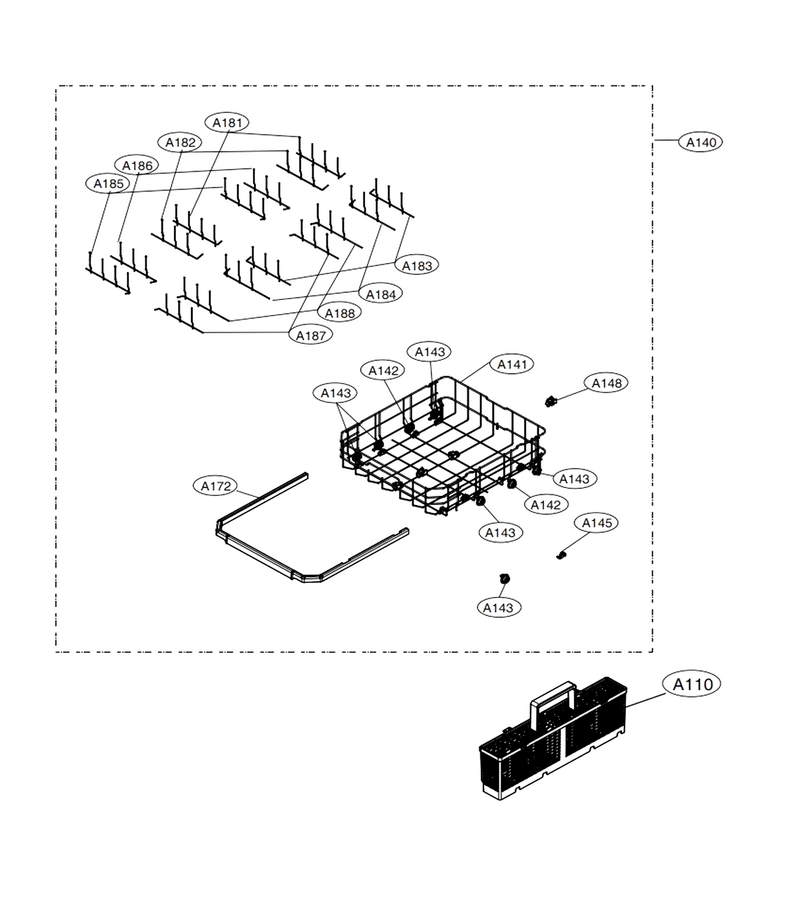

Lower Rack Assembly

...
...
A140
Rack Assembly L-G-AHB73249108
...
A141
Rack L-G-MGR62762001
...
A142
Roller Assembly L-G-4581DD3003C
...
A143
Roller Assembly L-G-4581DD3003D
...
A145
Holder L-G-MEG64438701
...
A148
Holder L-G-MEG64438601
...
A172
Handle Assembly L-G-AED74332703
...
A181
Rack L-G-MGR62482001
...
A182
Rack L-G-MGR62482002
...
A183
Rack L-G-MGR62482003
...
A184
Rack L-G-MGR62482004
...
A185
Rack L-G-MGR62482005
...
A186
Rack L-G-MGR62482006
...
A187
Rack L-G-MGR62482007
...
A188
Rack L-G-MGR62482008

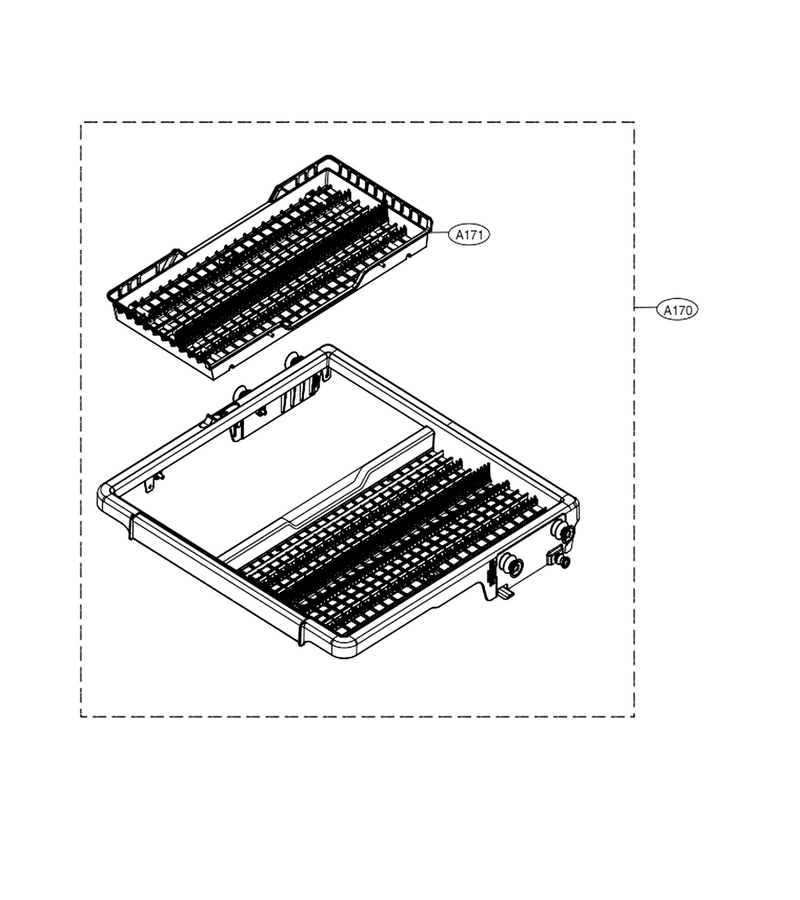

3rd Rack Assembly

...
...
A170
Rack Assembly L-G-AHB73129403
...
A171
Tray L-G-MJS63631802

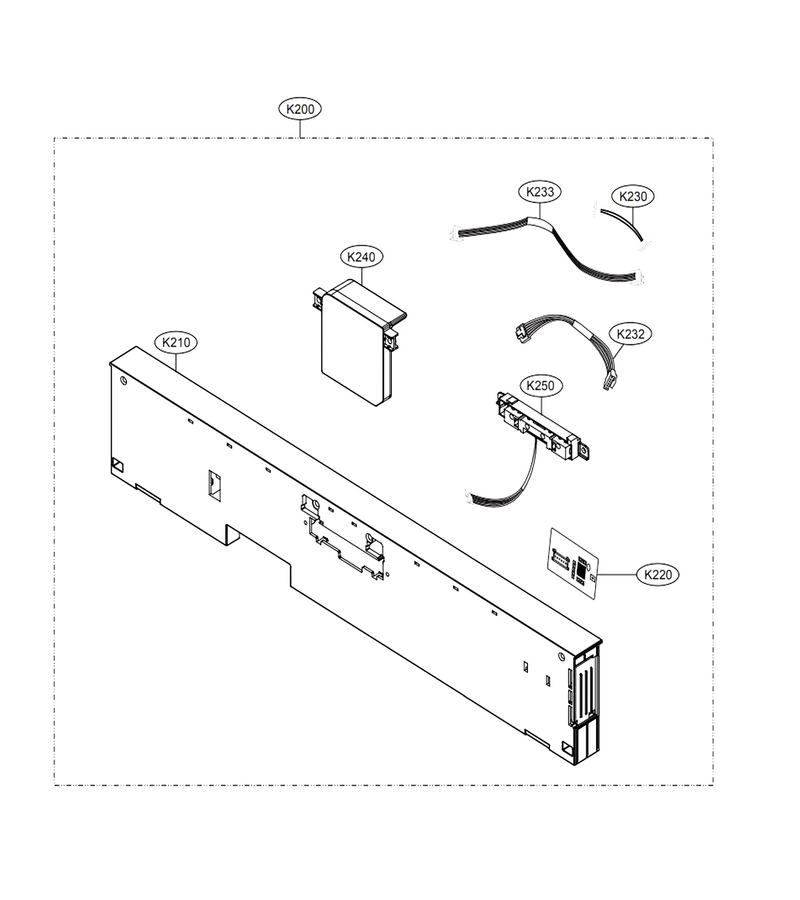

Panel Assembly

...
...
K200
Panel Assembly,control L-G-AGL75675213
...
K210
Parts Assembly L-G-AGM75469929
...
K220
Pcb Assembly,module L-G-EBR82056913
...
K230
Harness,single L-G-EAD63707507
...
K232
Harness,single L-G-EAD63707508
...
K233
Harness,single L-G-EAD63707510
...
K240
Pcb Assembly,display L-G-EBR85054304
...
K250
Pcb Assembly,sub L-G-EBR33469708
