LG SKSCW241RP.ASWCNA0

Model: SKSCW241RP.ASWCNA0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

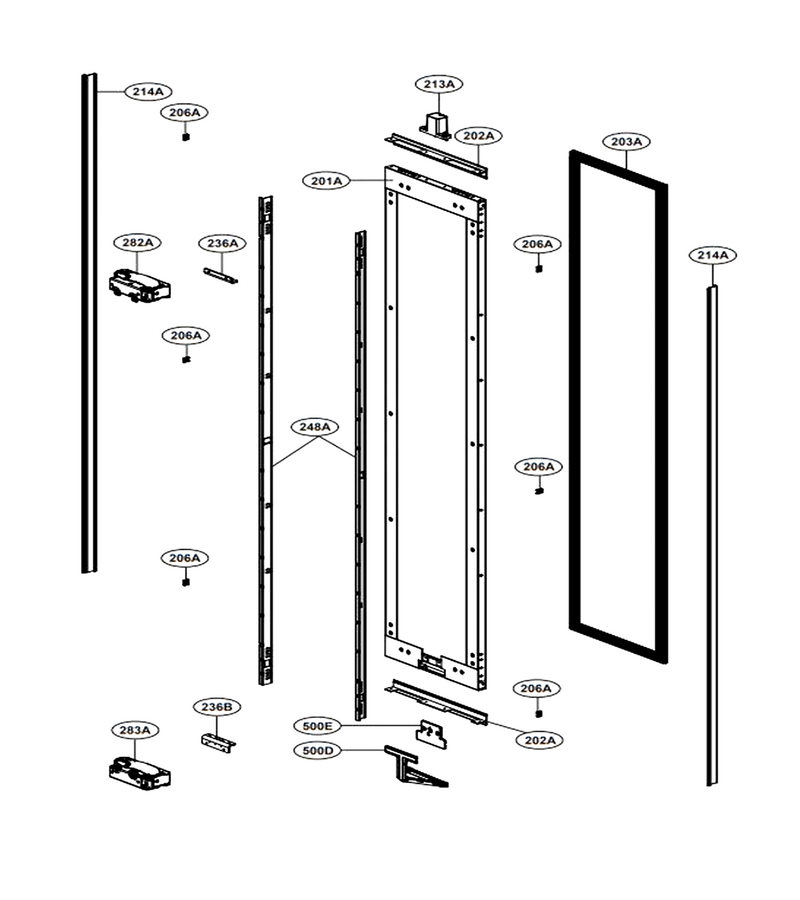

Door Part

...
...
201A
Door Foam Assembly L-G-ADD75955901
...
202A
Cap,decor Freezer L-G-MBL67557003
...
203A
Gasket Assembly,door L-G-ADX73490606
...
206A
Holder,rail L-G-MEG65500901
...
213A
Cap,cover L-G-MBL67516901
...
214A
Decor,door L-G-MCR67186401
...
236A
Hinge,lower L-G-MEF64261902
...
236B
Hinge,lower L-G-MEF64261903
...
248A
Connector,rail L-G-MCD64166801
...
282A
Hinge Assembly L-G-AEH75496601
...
283A
Hinge Assembly L-G-AEH75496602
...
500D
Guide Assembly L-G-AEC75417401
...
500E
Cover Assembly,pcb L-G-ACQ90731601

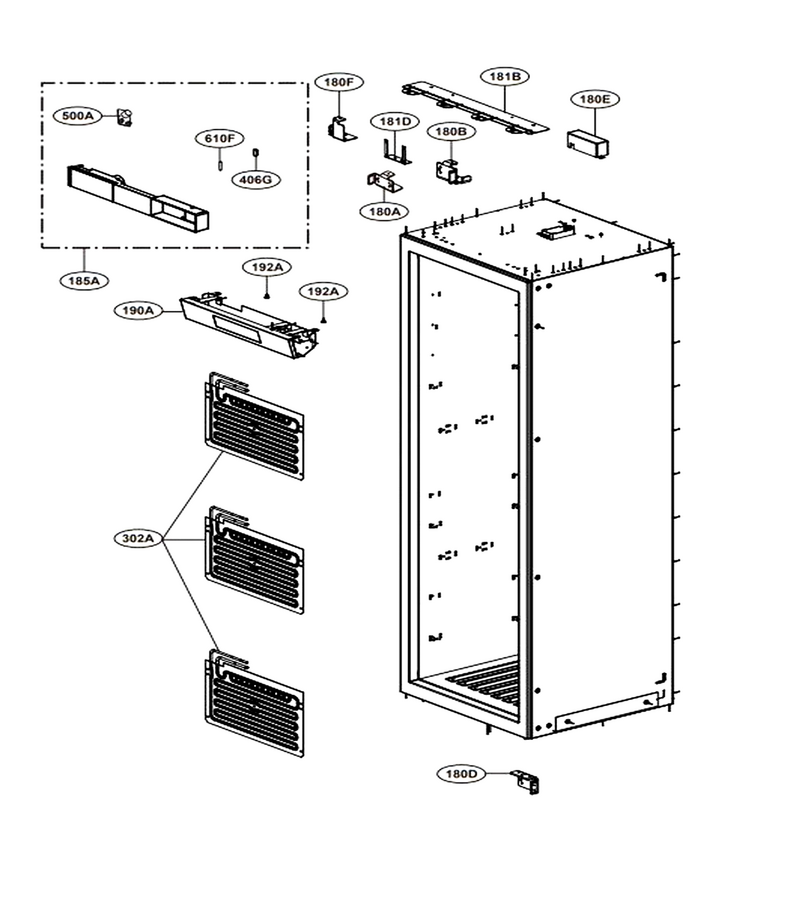

Case Part

...
...
180A
Bracket,hinge L-G-MAZ66006603
...
180B
Bracket,hinge L-G-MAZ66006604
...
180D
Bracket,hinge L-G-MAZ66006704
...
180E
Cover,top L-G-MCK69990702
...
180F
Bracket,cover L-G-MAZ66347803
...
181B
Decor,case L-G-MCR67408301
...
181D
Bracket,cover L-G-MAZ66006402
...
185A
Cover Assembly,front L-G-ACQ90088410
...
190A
Case Assembly,display L-G-ABQ76363010
...
192A
Refrigerator Shelf Support L-G-4931JA3005B
...
302A
Evaporator Assembly L-G-ADL76161001
...
500A
Refrigerator Dispenser Control Board L-G-EBR64730408
...
610F
Refrigerator Temperature Sensor L-G-EBD60925804

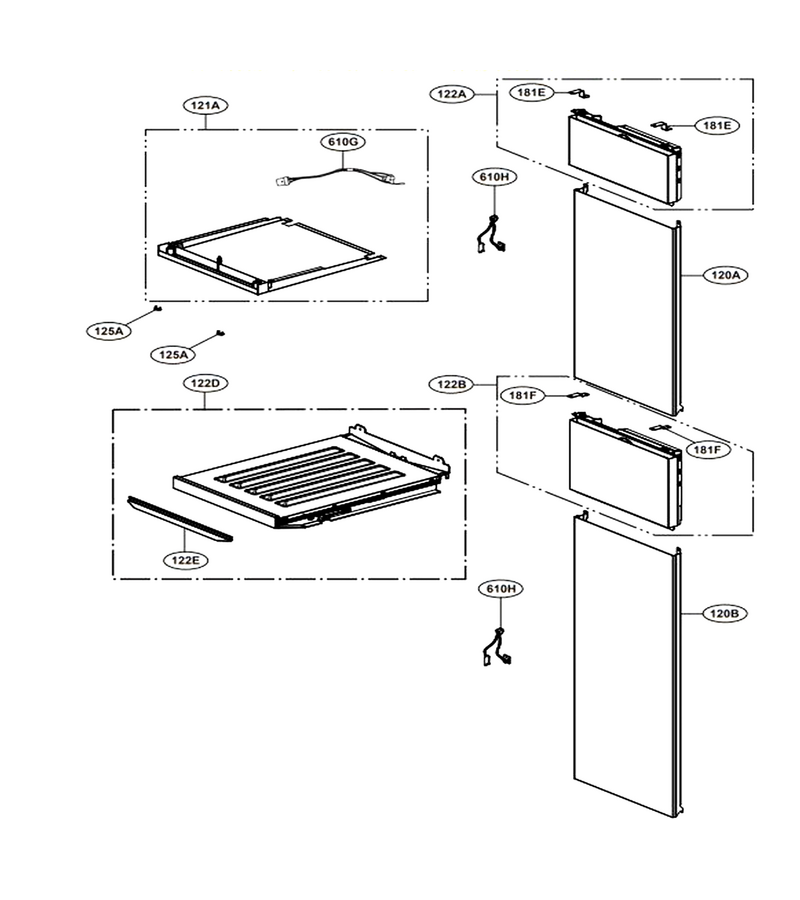

Perform Part 1

...
...
120A
Duct Assembly,multi L-G-ADJ75312103
...
120B
Duct Assembly,multi L-G-ADJ75312104
...
121A
Duct Assembly,connector L-G-ADJ75252102
...
122A
Grille Assembly,fan L-G-AEB75784703
...
122B
Grille Assembly,fan L-G-AEB75784704
...
122D
Barrier Assembly,insulation L-G-AAM74991202
...
122E
Gasket,plate(front) L-G-MDS66730902
...
125A
Cap,duct L-G-5006JA3123B
...
181E
Holder,bracket L-G-MEG65899501
...
181F
Holder,bracket L-G-MEG65899502
...
610G
Harness Assembly L-G-EAD61105410
...
610H
Sensor Assembly L-G-EBD61246736

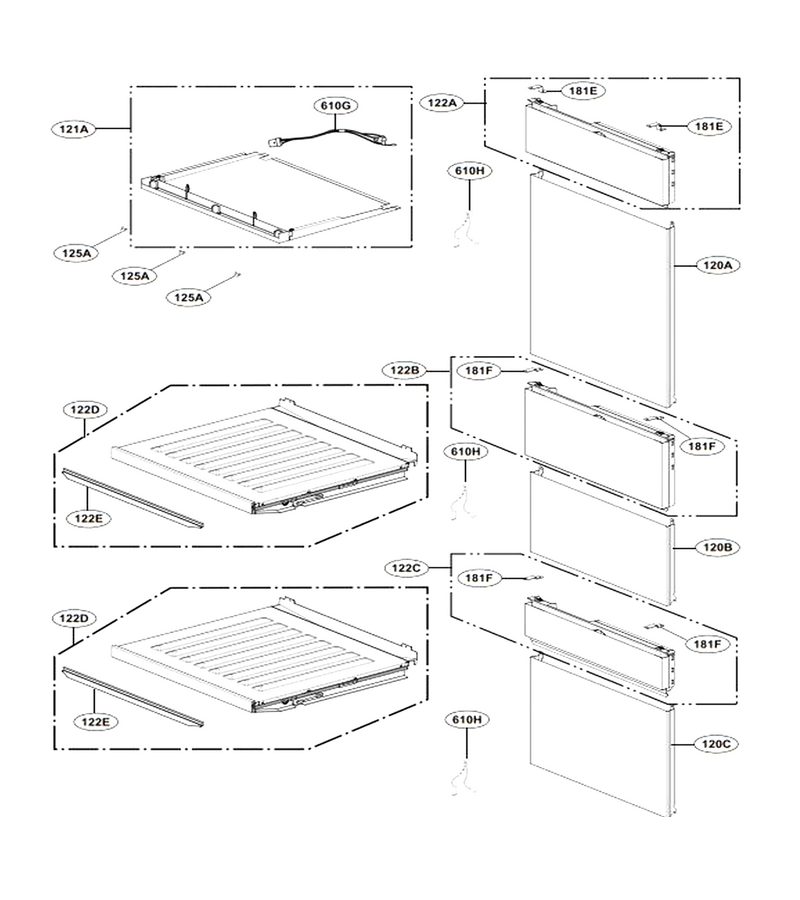

Perform Part 2

...
...
120A
Duct Assembly,multi L-G-ADJ75312103
...
120B
Duct Assembly,multi L-G-ADJ75312104
...
120C
Duct Assembly,multi L-G-ADJ75312105
...
121A
Duct Assembly,connector L-G-ADJ75252102
...
122A
Grille Assembly,fan L-G-AEB75784703
...
122B
Grille Assembly,fan L-G-AEB75784704
...
122C
Grille Assembly,fan L-G-AEB75784705
...
122D
Barrier Assembly,insulation L-G-AAM74991202
...
122E
Gasket,plate(front) L-G-MDS66730902
...
125A
Cap,duct L-G-5006JA3123B
...
181E
Holder,bracket L-G-MEG65899501
...
181F
Holder,bracket L-G-MEG65899502
...
610G
Harness Assembly L-G-EAD61105410
...
610H
Sensor Assembly L-G-EBD61246736

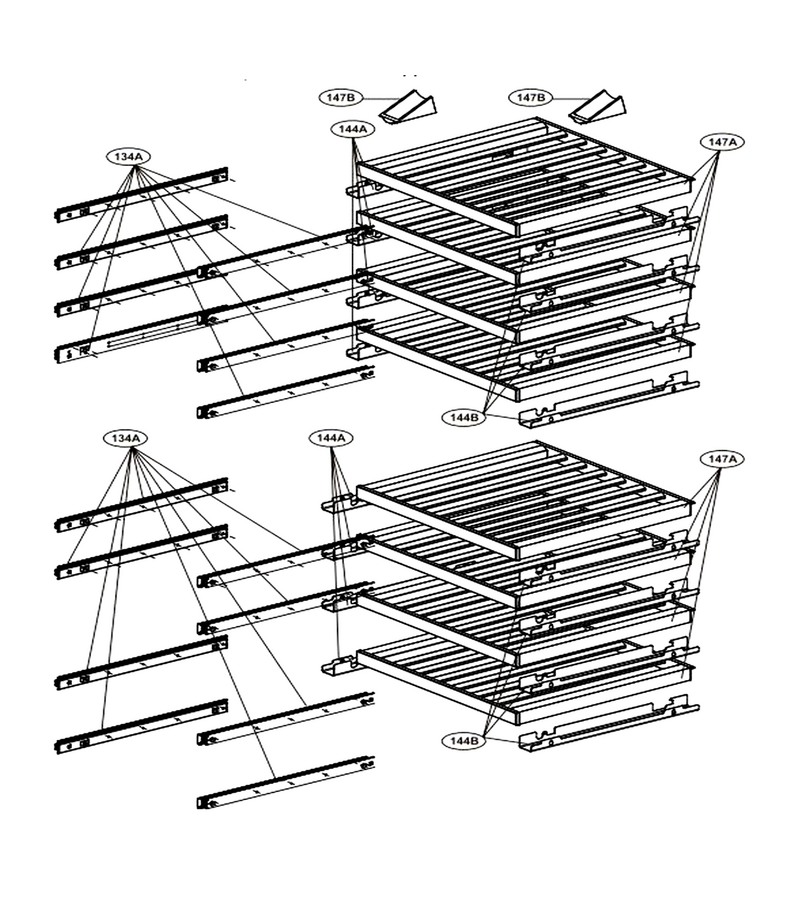

Movable Part 1

...
...
134A
Rail,slide L-G-MGT62884701
...
144A
Holder,rail L-G-MEG65919101
...
144B
Holder,rail L-G-MEG65919102
...
147A
Shelf Assembly,refrigerator L-G-AHT75034004
...
147B
Rack L-G-MGR62802004

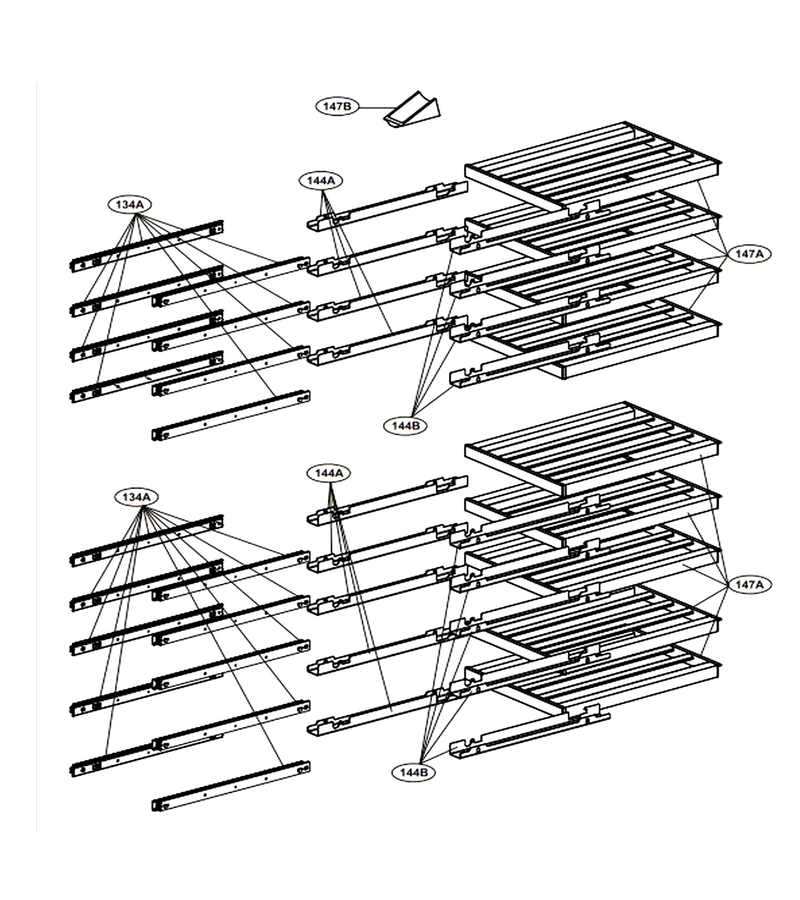

Movable Part 2

...
...
134A
Rail,slide L-G-MGT62884701
...
144A
Holder,rail L-G-MEG65919101
...
144B
Holder,rail L-G-MEG65919102
...
147A
Shelf Assembly,refrigerator L-G-AHT75034004
...
147B
Rack L-G-MGR62802004

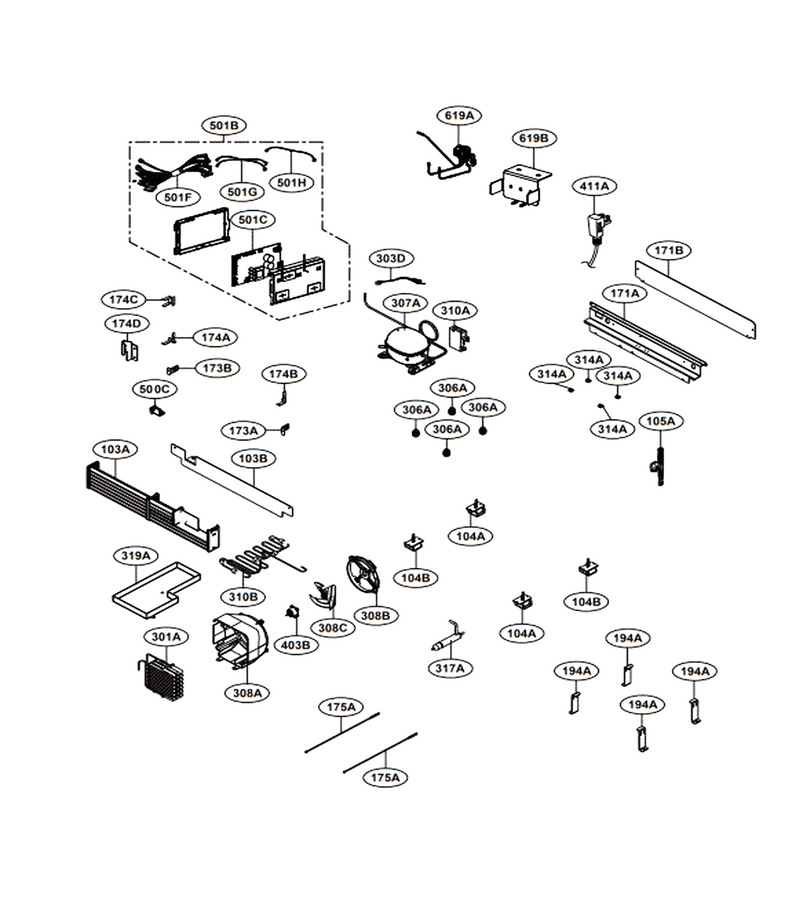

Machine Room Part

...
...
103A
Cover Assembly L-G-ACQ90062006
...
103B
Cover,front L-G-MCK69990804
...
104A
Leg Assembly,adjust L-G-AFC73849602
...
104B
Leg Assembly,adjust L-G-AFC73849603
...
105A
Refrigerator Drain Tube Assembly L-G-5251JA3004E
...
171A
Cover,machinery(rear) L-G-MCK69951703
...
171B
Cover,machinery(rear) L-G-MCK69951803
...
173A
Bracket,cover L-G-MAZ65987701
...
173B
Bracket,cover L-G-MAZ65987702
...
174A
Bracket,cover L-G-MAZ65987801
...
174B
Bracket,cover L-G-MAZ65987802
...
174C
Bracket,cover L-G-MAZ65987804
...
174D
Bracket,door L-G-MAZ66164902
...
175A
Bar L-G-MAK64307001
...
194A
Bracket,case L-G-MAZ66087401
...
301A
Condenser Assembly,wire L-G-ACG75684401
...
303D
Harness Assembly L-G-EAD62428617
...
306A
Refrigerator Compressor Sound Damper L-G-MCQ66921101
...
307A
Compressor,set Assembly L-G-TCA37071508
...
308A
Guide,fan L-G-MEA65210001
...
308B
Guide,fan L-G-MEA62131001
...
308C
Fan Assembly L-G-ADP73273401
...
310B
Pipe,joint L-G-MGE64935001
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
317A
Drier Assembly L-G-ADH73590306
...
319A
Tray,drip L-G-MJS64351801
...
403B
Motor,dc L-G-EAU63103304
...
411A
Power Cord Assembly L-G-EAD64489305
...
500C
Case Assembly,pcb L-G-ABQ75762301
...
501B
Case Assembly,pcb L-G-ABQ76363513
...
501C
Pcb Assembly,main L-G-EBR86702501
...
501F
Harness Assembly L-G-EAD64325709
...
501G
Harness Assembly L-G-EAD64490804
...
501H
Harness Assembly L-G-EAD64490801
...
619A
Valve Assembly,gas L-G-AJU75332501
...
619B
Bracket,valve L-G-MAZ66583201

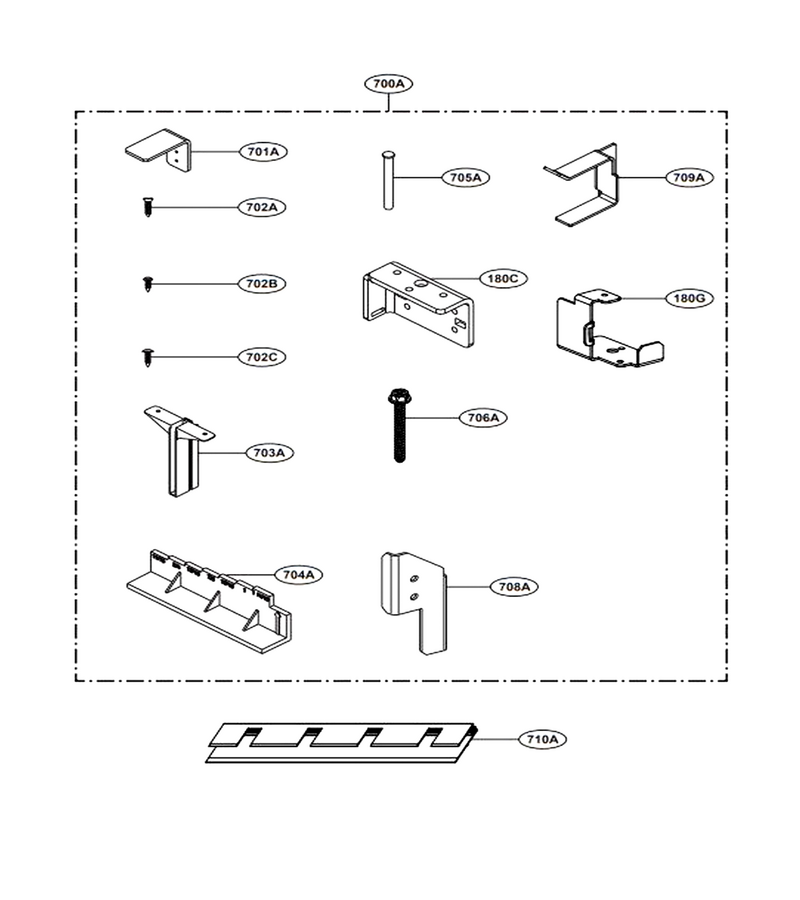

Installation Part

...
...
180C
Bracket,hinge L-G-MAZ66006703
...
180G
Bracket,cover L-G-MAZ66347804
...
700A
Package Assembly,installation L-G-AGF76410841
...
701A
Bracket,case L-G-MAZ66103201
...
702A
Screw,tapping L-G-FAB33900101
...
702B
Screw,tapping L-G-FAB33900001
...
702C
Screw,tapping L-G-FAB33900002
...
703A
Guide,air L-G-MEA65170401
...
704A
Decor,side L-G-MCR67248401
...
705A
Pin,customized L-G-FAC30827503
...
706A
Screw L-G-1SZZW1N003A
...
708A
Bracket,door L-G-MAZ66164901
...
709A
Bracket,cover L-G-MAZ65987803
