product name

LG SKSCV3002S.ASTLSGN

Model: SKSCV3002S.ASTLSGN

Save Part Not Listed?
product name

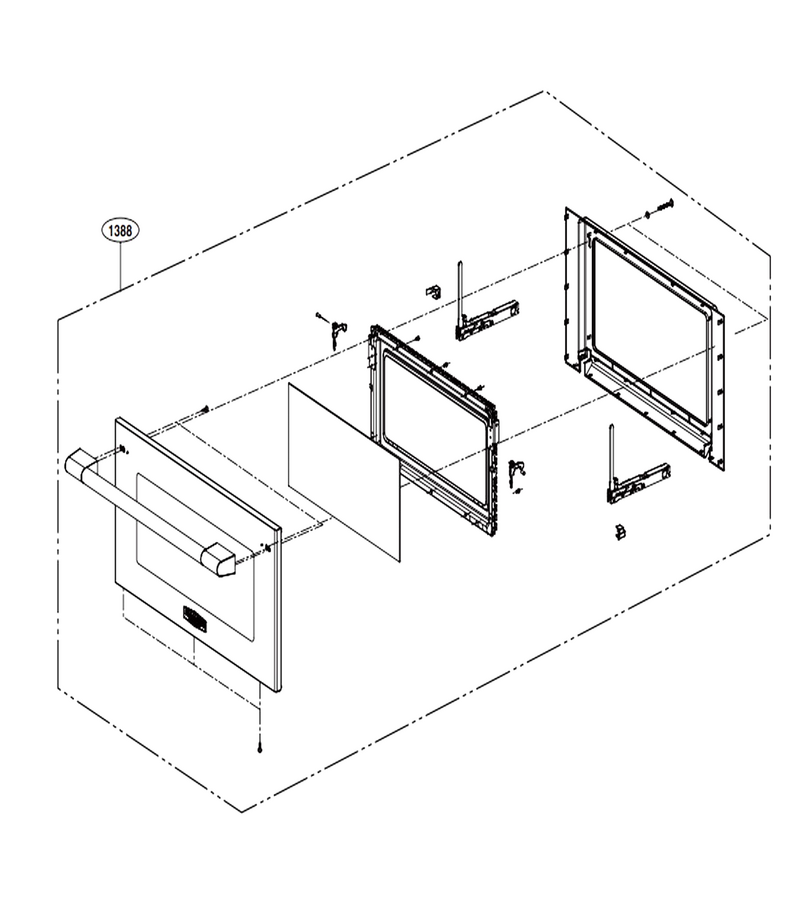

Upper Door Parts

...
...
1388
Full Door Assembly L-G-ADC35801917

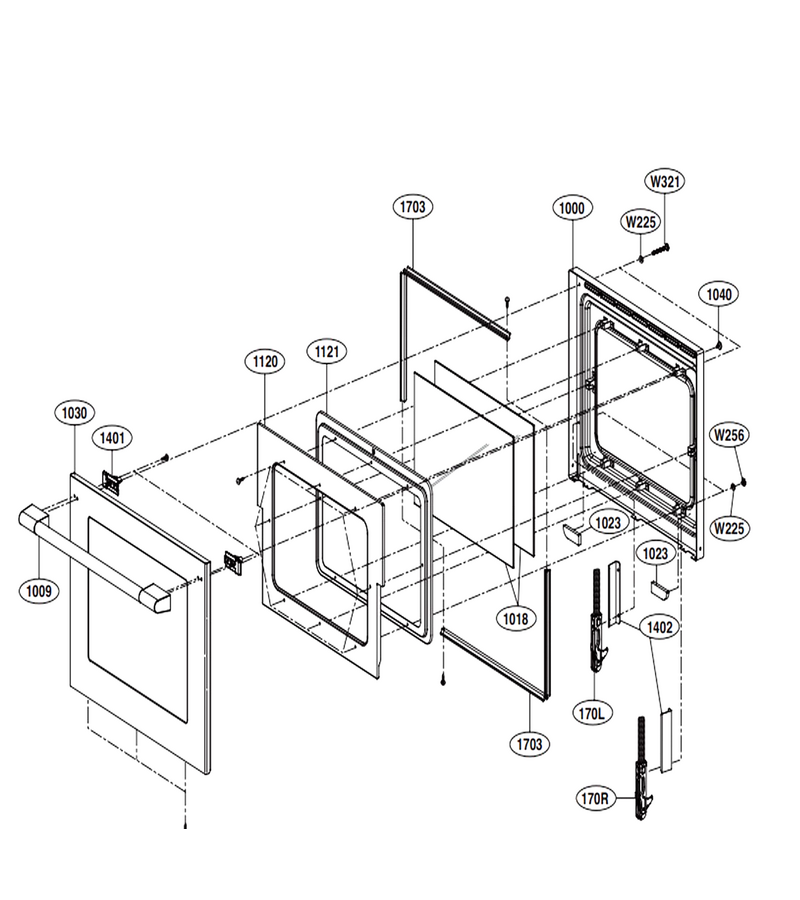

Lower Door Parts

...
...
W225
Washer L-G-1WZZW3Z003B
...
W256
Screw L-G-1SZZW5N001F
...
W321
Screw L-G-1SZZW5N001D
...
170L
Hinge Assembly L-G-AEH75637202
...
170R
Hinge Assembly L-G-AEH75637204
...
1000
Frame Assembly,door L-G-ADV34868803
...
1009
Handle,door L-G-MEB63614002
...
1018
Range Oven Door Inner Glass L-G-4890W1N005A
...
1023
Insulator L-G-MEV63330702
...
1030
Front Cover Assembly L-G-ACQ91598002
...
1040
Oven Protector Cap L-G-5006841001A
...
1120
Inner Cover L-G-MCK40417601
...
1121
Inner Cover L-G-MCK47161201
...
1401
Supporter,handle L-G-MJH65513101
...
1402
Supporter L-G-MJH55321601
...
1703
Wall Oven Door Glass Frame L-G-MAZ55266201

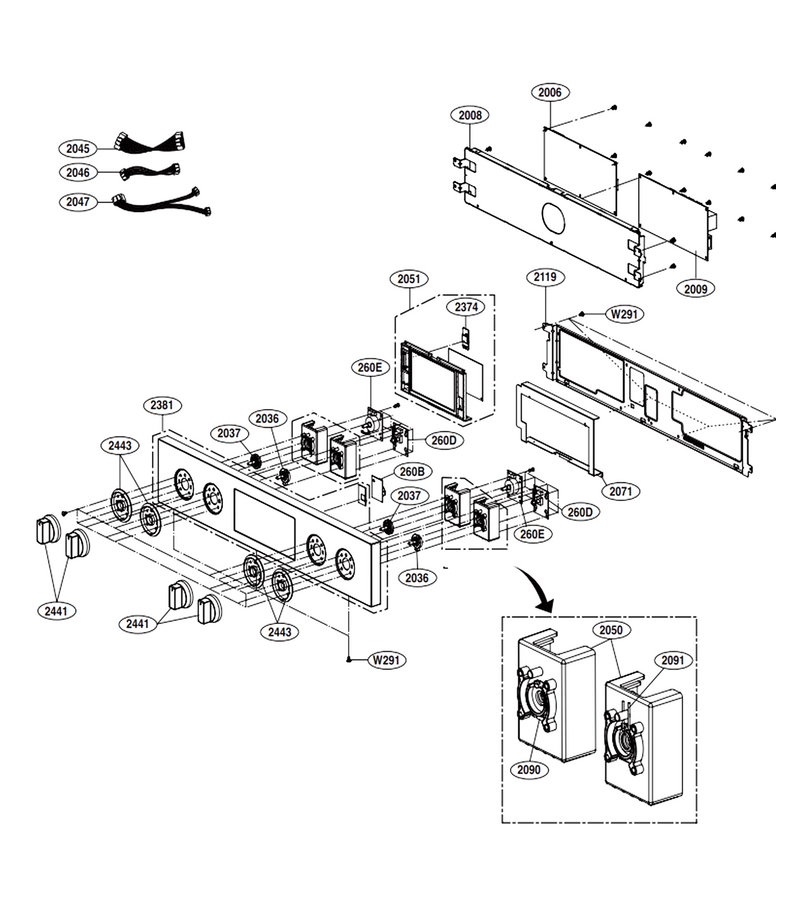

Controller Parts

...
...
W291
Screw L-G-1SZZW2A004E
...
260B
Sub,pcb Assm L-G-EBR76332902
...
260D
Pcb Assembly,sub L-G-EBR80595801
...
260E
Pcb Assembly,option L-G-EBR80327002
...
2006
Main Pcb Assembly L-G-EBR85707902
...
2008
Bracket,control Panel L-G-MAZ66329001
...
2009
Main Pcb Assembly L-G-EBR85708002
...
2036
Supporter L-G-MJH63756901
...
2037
Supporter L-G-MJH63756902
...
2045
Single Harness L-G-EAD62349807
...
2046
Single Harness L-G-EAD62349839
...
2047
Harness,single L-G-EAD62349810
...
2051
Pcb Supporter Assembly L-G-AJJ75678711
...
2071
Mount Bracket L-G-MAZ67171602
...
2091
Spring,coil L-G-MHY64023901
...
2119
Bracket,control Panel L-G-MAZ41753503
...
2374
Wifi Pcb Assembly L-G-EBR86322701
...
2381
Parts Assembly L-G-AGM75009023
...
2441
Knob Assembly L-G-AEZ74113401
...
2443
Control Knob L-G-MEY63473803

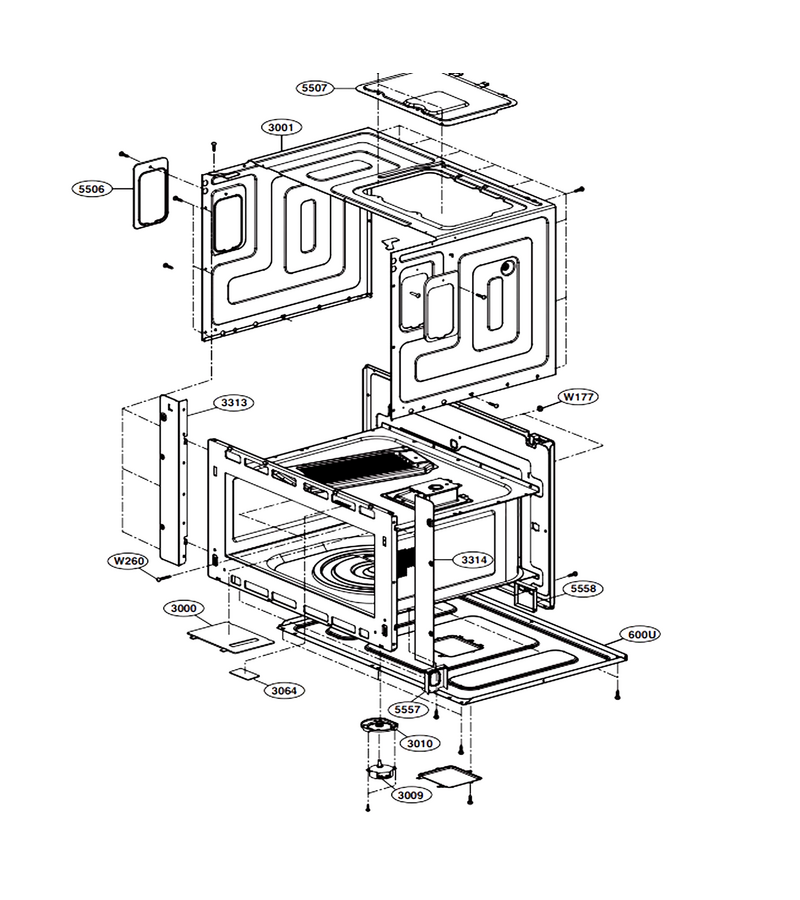

Upper Cavity Parts

...
...
W177
Drawer Nut L-G-4B71028B
...
W260
Screw,machine L-G-1MTC0402832
...
3000
Cover,insulator L-G-3052W1M020A
...
3001
Flat Case L-G-3112W0F050G
...
3009
Microwave Turntable Motor L-G-6549W1S018C
...
3010
Plate L-G-4960W3A003D
...
3064
Tape,sealing L-G-3536W1A001Q
...
3313
Decor,side L-G-MCR67448901
...
3314
Decor,side L-G-MCR67448801
...
5506
Part Bracket L-G-EBZ63660857
...
5507
Bracket Assembly L-G-ABA75148402
...
5557
Bracket,part L-G-EBZ63660854
...
5558
Bracket,part L-G-EBZ63660855

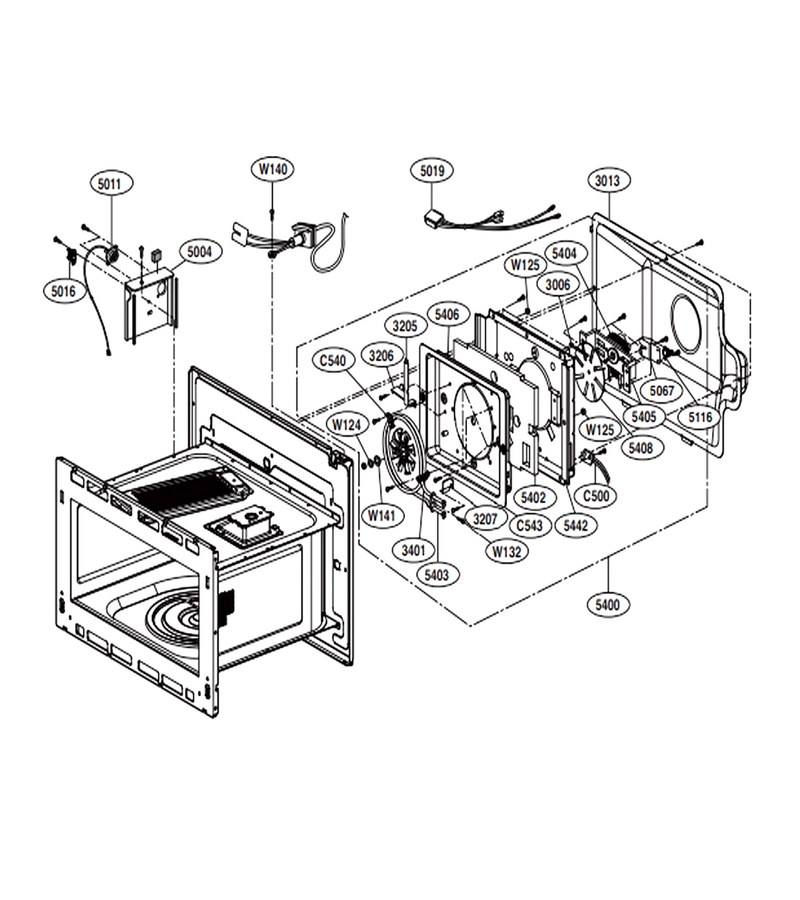

Interior Parts (i)

...
...
C500
Thermistor,ntc L-G-6322W1A001B
...
C540
Fan,part L-G-EBZ63660865
...
C543
Chamber L-G-3504W1A006B
...
W124
Washer L-G-1WSD0400032
...
W125
Drawer Nut L-G-4B71028B
...
W132
Screw L-G-1MTC0402432
...
W140
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
W141
Washer L-G-1WPL0500032
...
3006
Lug (circ) L-G-4B72510F
...
3013
Cover,rear L-G-3550W0A120C
...
3205
Bracket,heater L-G-4810W1A345B
...
3206
Bracket,heater L-G-4810W1A346B
...
3207
Bracket,heater,part L-G-EBZ63660851
...
3401
Supporter,part L-G-EBZ63898531
...
5004
Guide,air L-G-5264W1A032B
...
5011
Sensor Assembly L-G-6501W1A013A
...
5016
Thermostat L-G-6930W1A003Q
...
5019
Harness,single L-G-6877W2A002U
...
5067
Bracket,?m L-G-4810W3G135A
...
5116
Thermostat L-G-6930W1A003Z
...
5400
Chamber Assembly L-G-3505W1A007F
...
5402
Insulator L-G-5290W1A017A
...
5403
Heater,sheath,part L-G-EBZ63660845
...
5404
Motor, Ac Circulation L-G-2B72066Y
...
5405
Bracket,motor L-G-MAZ66388901
...
5406
Ring L-G-MGZ63607001
...
5408
Fan Blade L-G-3B72559A
...
5442
Chamber L-G-3504W1A007B

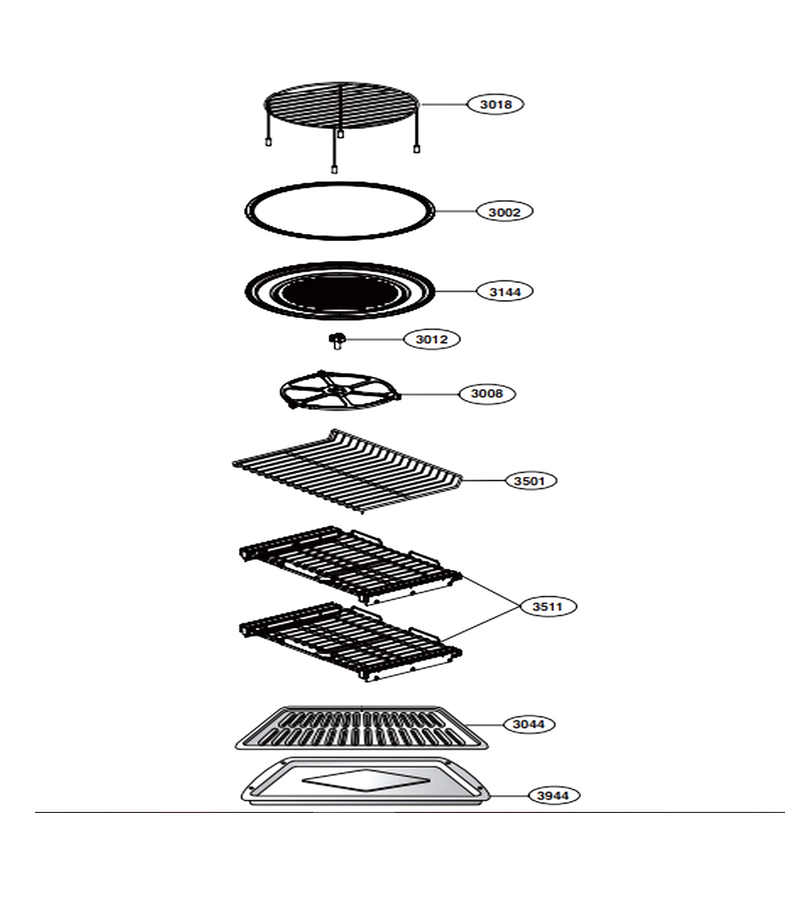

Interior Parts (ii)

...
...
3002
Microwave Turntable Tray L-G-3390W1A017A
...
3008
Turntable Assembly L-G-5889W1A017B
...
3012
Shaft,turntable L-G-4371W1A001B
...
3018
Shelf L-G-5026W1A078B
...
3044
Tray,metal L-G-MJS61849903
...
3144
Tray,metal L-G-3390W1A043C
...
3501
Wall Oven Rack L-G-MHL49207701
...
3511
Assembly Accessory L-G-AHT54382601
...
3944
Tray,metal L-G-MJS61850003

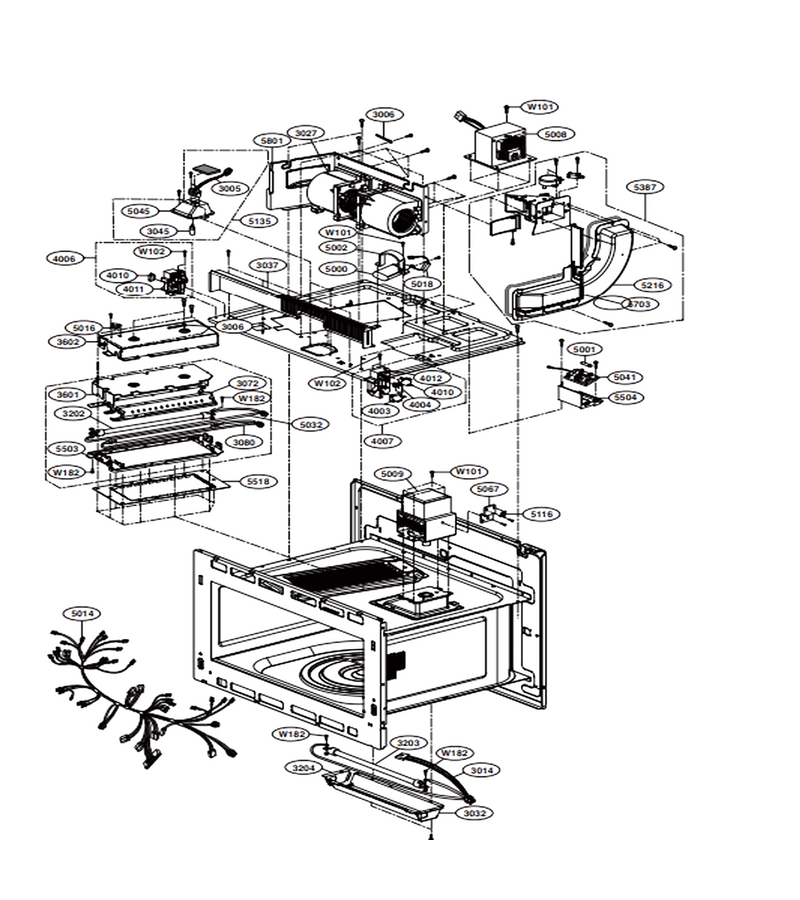

Insulator Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W182
Screw L-G-4000W4A001A
...
3005
Holder Assembly L-G-4931W1A009E
...
3006
Lug (circ) L-G-4B72510F
...
3014
Harness,single L-G-6877W1A605G
...
3027
Motor, Ac Blower L-G-6549W1V010J
...
3032
Reflector L-G-3034W2A007H
...
3037
Supporter L-G-3740W1A024F
...
3045
Lamp,halogen L-G-6912A40002J
...
3072
Reflector,part L-G-EBZ63660875
...
3080
Heater,halogen L-G-5300W2H004M
...
3202
Heater,miraclon L-G-5300W2A006W
...
3203
Heater,miraclon L-G-5300W2A006Y
...
3204
Bracket,heater L-G-4810W1A369B
...
3601
Cover,heater L-G-3550W1A306B
...
3602
Cover,heater L-G-3550W1A307B
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W1A006C
...
4006
Holder Assembly,locker L-G-3501W1A029H
...
4007
Holder Assembly,locker L-G-3501W1A028H
...
4010
Switch,micro L-G-6600W1K001D
...
4011
Holder,locker L-G-3500W1A022B
...
4012
Holder,locker L-G-3500W1A023B
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5001
Fuse,drawing L-G-3B74133Q
...
5002
Bracket,capacitor L-G-4810WRC002F
...
5014
Harness,multi L-G-EAD64845301
...
5016
Thermostat L-G-6930W1A003Q
...
5018
Microwave High-Voltage Diode L-G-6021W3B001V
...
5032
Harness,single L-G-6877W1A604C
...
5041
Filter Assembly L-G-EAM62952105
...
5045
Cover,lamp L-G-3550W1A348C
...
5067
Bracket,?m L-G-4810W3G135A
...
5116
Thermostat L-G-6930W1A003Z
...
5135
Reflector Assembly L-G-3035W1A010D
...
5216
Duct L-G-5208W1A047B
...
5387
Duct Assembly L-G-5209W1A024C
...
5503
Supporter L-G-4980W1A027C
...
5504
Supporter L-G-4980W1A111E
...
5518
Bracket,idle L-G-4810W1A361B
...
5703
Barrier L-G-4790W1A013D
...
5801
Plate,guide L-G-4960W0A002C

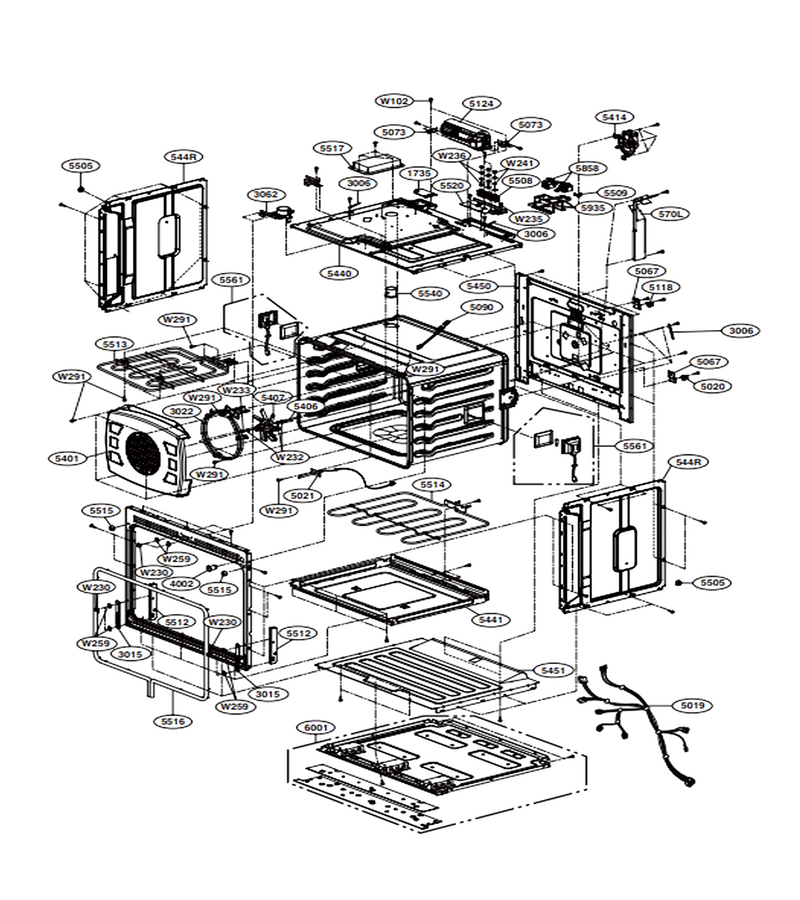

Lower Cavity Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W235
Screw L-G-1ATF0502610
...
W236
Washer,common L-G-4H00056C
...
W241
Nut L-G-1NZZW1N002A
...
W259
Washer L-G-1WZZW3Z003C
...
W291
Screw L-G-1SZZW2A004E
...
544R
Insulator L-G-MEV42726401
...
570L
Barrier L-G-MAL48432602
...
3006
Lug (circ) L-G-4B72510F
...
3015
Bracket,hinge L-G-MAZ64603204
...
3022
Heater,sheath L-G-MEE61925405
...
3062
Motor L-G-EAU43957801
...
4002
Switch L-G-EBF60663403
...
5019
Harness,single L-G-6877W2A002U
...
5020
Thermostat L-G-EBG51439304
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5067
Bracket,?m L-G-4810W3G135A
...
5073
Motor Bracket L-G-MAZ40417401
...
5090
Jack, Power L-G-EAG43128001
...
5118
Dishwasher Thermostat L-G-6930W1A003K
...
5124
Fan Assembly L-G-5901W1E002G
...
5401
Cover,heater L-G-MCK68473102
...
5406
Ring L-G-MGZ63607001
...
5407
Fan L-G-5900W1N004B
...
5414
Motor Housing L-G-4681W1N002B
...
5440
Insulator L-G-MEV40416110
...
5441
Chamber L-G-MBR40415301
...
5450
Insulator L-G-MEV40415801
...
5451
Insulator L-G-MEV40415401
...
5505
Supporter L-G-4980W1N013A
...
5508
Terminal L-G-6640000045A
...
5509
Hose Connector L-G-MCD64466901
...
5512
Hinge Bracket L-G-MAZ48427301
...
5513
Heater,sheath L-G-MEE41716802
...
5514
Heater Sheath L-G-MEE41716501
...
5515
Packing Gasket L-G-MFZ54382601
...
5516
Packing Gasket L-G-MFZ40418402
...
5517
Vent Assembly L-G-AJV56083902
...
5520
Terminal Block L-G-MAV62761901
...
5540
Duct Assembly L-G-ADJ52698705
...
5561
Lamp,halogen L-G-EAQ43128703
...
5858
Pump L-G-MGQ62341901
...
5935
Tube L-G-MJU65727804
...
6001
Accessory Assembly L-G-AAA74970602

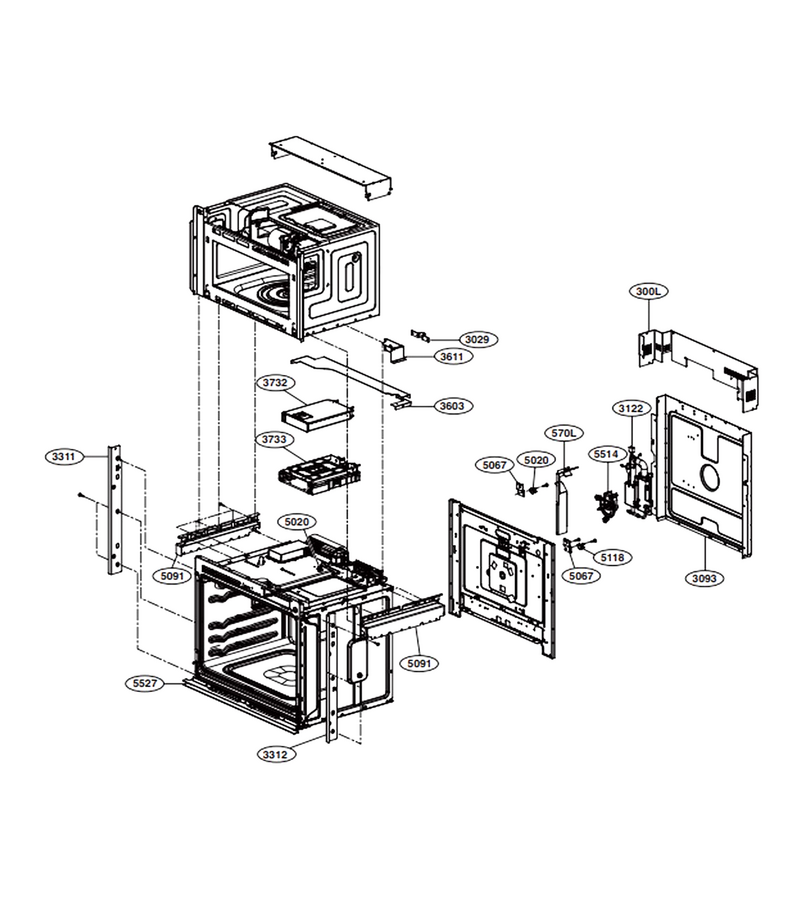

Assembly

...
...
300L
Cover,insulator L-G-MCK70231701
...
570L
Barrier L-G-MAL48432602
...
3029
Mounting Bracket L-G-MAZ47162501
...
3093
Rear Cover L-G-MCK40420101
...
3122
Heater Assembly L-G-AEG74450004
...
3311
Grille L-G-MDX40418806
...
3312
Grille L-G-MDX40418606
...
3603
Cover,top L-G-MCK70231401
...
3611
Cover,safety L-G-MCK70231501
...
3732
Water Tank Assembly L-G-AJL74692007
...
3733
Water Housing Assembly L-G-AEN74551403
...
5020
Thermostat L-G-EBG51439304
...
5067
Bracket,misc L-G-4810W1A180A
...
5091
Bracket,mount L-G-MAZ66270501
...
5118
Dishwasher Thermostat L-G-6930W1A003K
...
5514
Heater,sheath L-G-MEE41716502
...
5527
Vent L-G-MJZ63081802

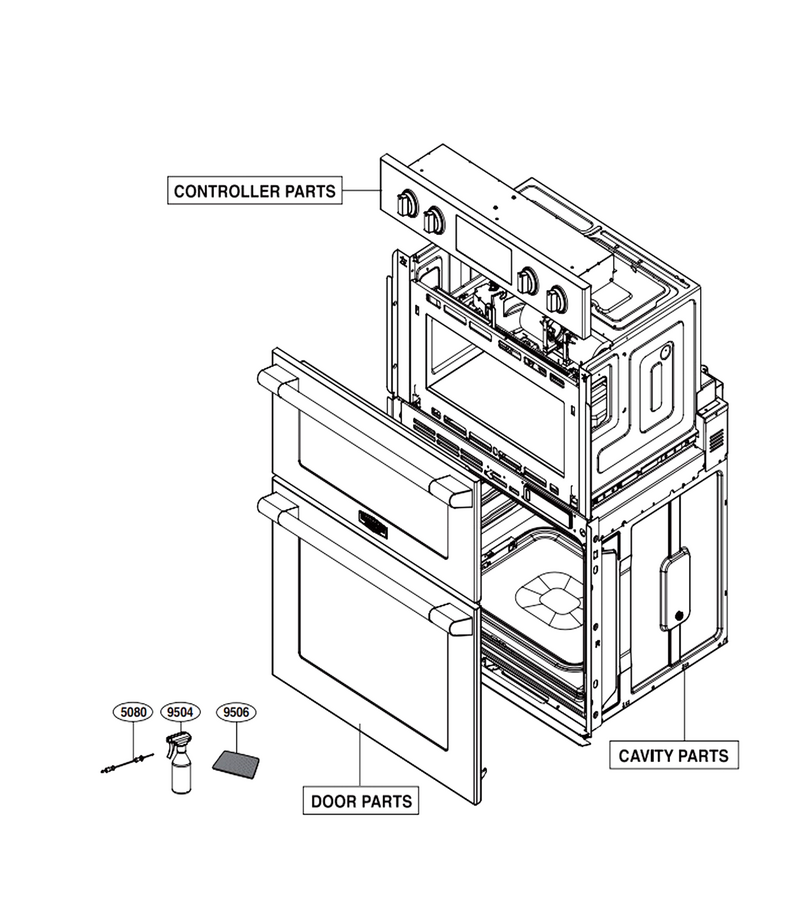

Main

...
...
5080
Range Oven Meat Probe Sensor L-G-EBD51431001
...
9504
Accessory Assembly L-G-AAA77169702
...
9506
Assembly Accessory L-G-AAA74970601
