LG SCB2000CWW.AWHLGEU

Model: SCB2000CWW.AWHLGEU

Save Part Not Listed?
product name

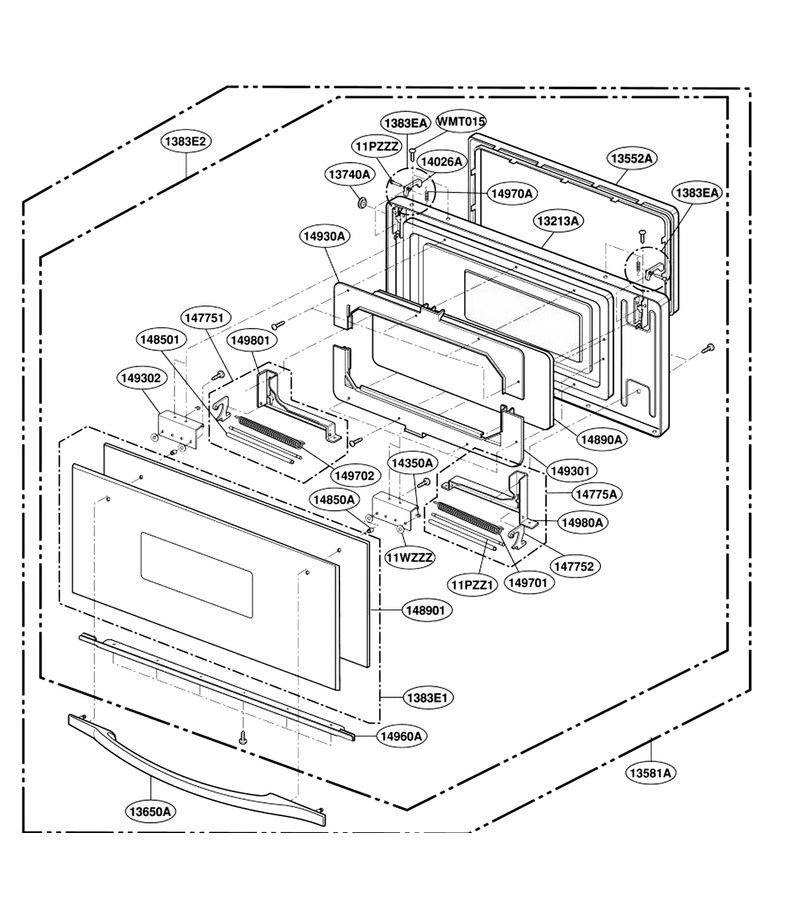

Door Parts

...
...
11WZZZ
Washer,customized L-G-1WZZW3Z008B
...
1383EA
Parts Assembly L-G-383EW2A001B
...
13213A
Frame Assembly,door L-G-3213W0A004C
...
13552A
Cover,choke L-G-3552W1A043A
...
13581A
Door Assembly L-G-3581W0A005A
...
13650A
Handle,door L-G-3650W1A038A
...
13740A
Supporter L-G-3740W3A002A
...
14350A
Ring L-G-4350W3A018A
...
14775A
Hinge Assembly L-G-4775W2A001A
...
14850A
Damper L-G-4850W3A006B
...
14930A
Supporter L-G-4930W1A002A
...
14960A
Plate L-G-4960W1A006B
...
147751
Hinge Assembly L-G-4775W2A002A
...
148901
Glass L-G-4890W1A009A
...
149301
Supporter L-G-4930W1A002B
...
149302
Holder L-G-4930W3A018B

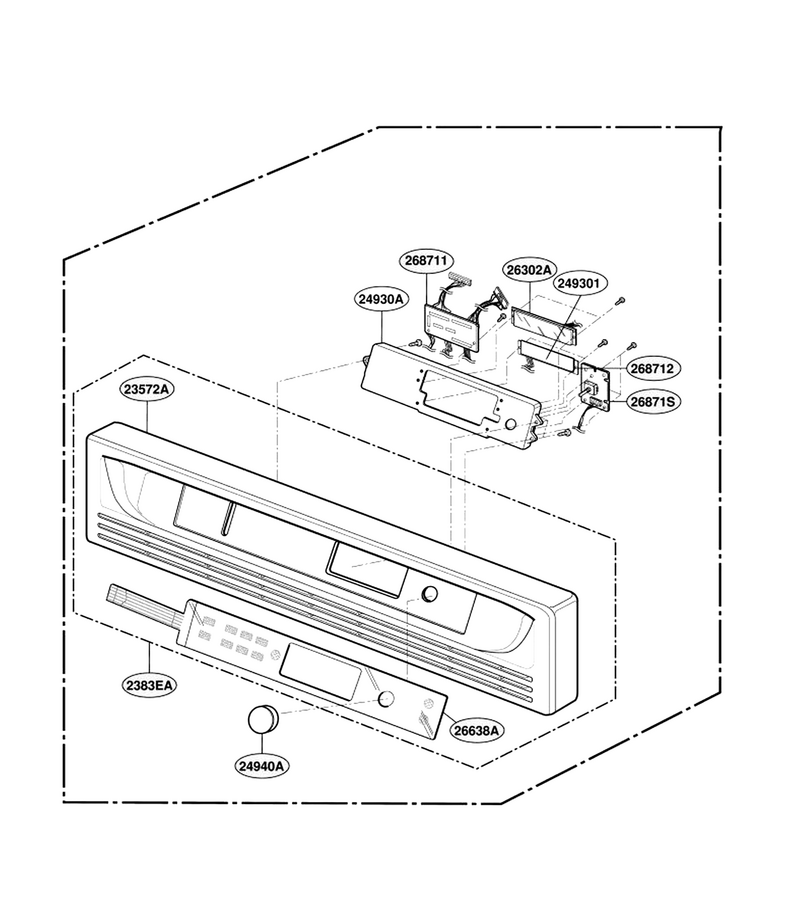

Controller Parts

...
...
2383EA
Parts Assembly L-G-383EW1A013A
...
23572A
Control Panel L-G-3572W0A192A
...
24930A
Holder,[led,lcd Digitron Holder] L-G-4930W1A003A
...
24940A
Knob L-G-4940W3A012A
...
26302A
Vfd L-G-6302W5A011C
...
26638A
Membrane L-G-6638W1A013A
...
26871S
Pcb Assembly,sub L-G-6871W2S189A
...
249301
Holder,display L-G-4930W3A021A
...
268711
Pcb Assembly,sub L-G-6871W2S190A
...
268712
Pcb Assembly,sub L-G-6871W2S188A

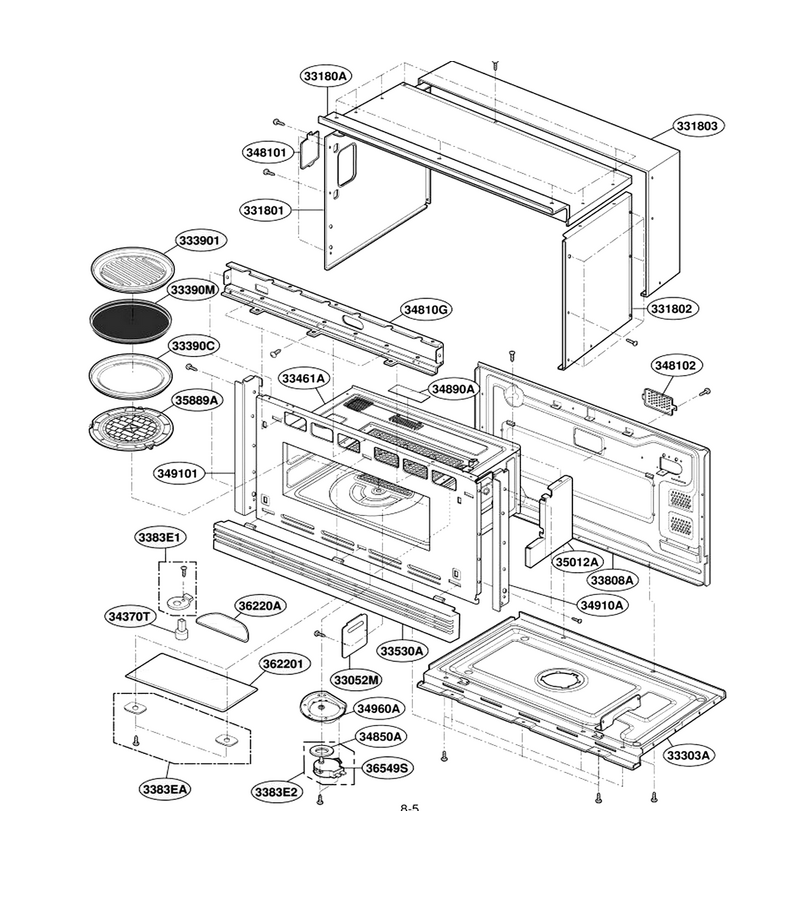

Oven Cavity Parts

...
...
3383EA
Parts Assembly L-G-383EW3A004A
...
33052M
Cover,insulator L-G-3052W3M020A
...
33180A
Case L-G-3180W0A001A
...
33390M
Tray,metal L-G-3390W2M005B
...
33390C
Tray,ceramic L-G-3390W1C001A
...
33530A
Grille,vent L-G-3530W1A011A
...
34370T
Shaft,turntable L-G-4370W3T011A
...
34850A
Gasket L-G-4350W4A007J
...
34910A
Grille L-G-4918W1A007C
...
35889A
Turntable Assembly L-G-5889W2A016A
...
36220A
Filter,ceramic L-G-6220W3A001A
...
36549S
Motor, Ac Synchronous L-G-6549W1S008A
...
331801
Case L-G-3180W1A002A
...
331802
Case L-G-3180W1A001A
...
331803
Case L-G-3180W0A002A
...
333901
Tray,metal L-G-3390W2M005D
...
348101
Bracket,idle L-G-4810W3G141B
...
348102
Bracket,idle L-G-4810W3G141A
...
349101
Grille L-G-4918W1A008C
...
362201
Filter,ceramic L-G-6220W2A001A

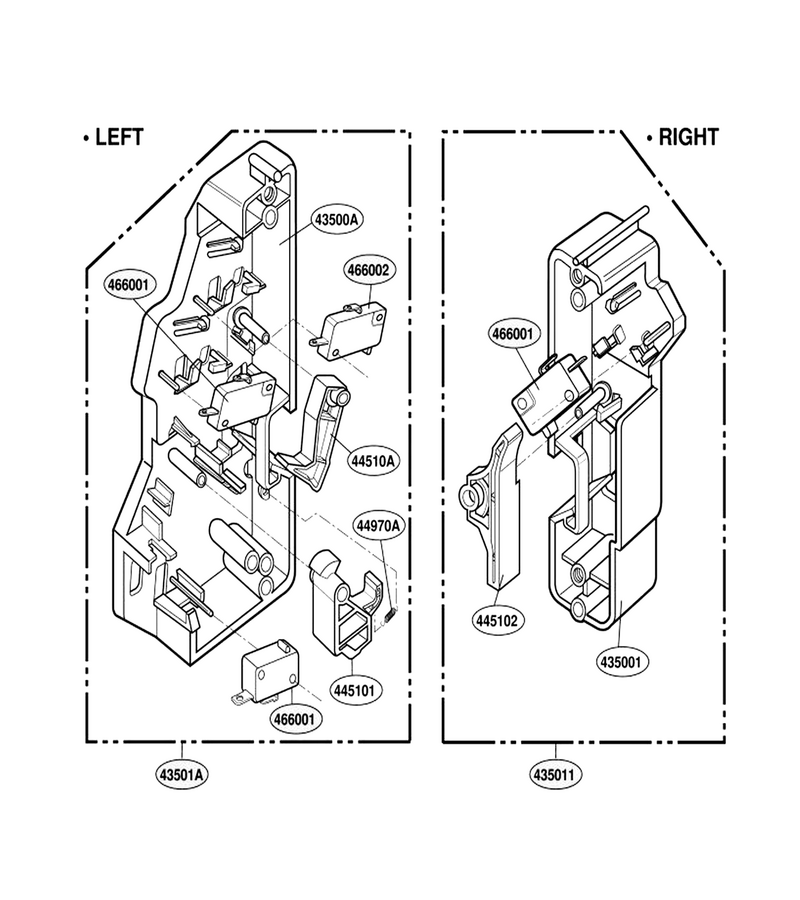

Latch Board Parts

...
...
43501A
Holder Assembly,locker L-G-3501W1A022A
...
435011
Holder Assembly,locker L-G-3501W1A021A
...
466001
Switch,micro L-G-6600W1K001D
...
466002
Microwave Door Interlock Switch L-G-6600W1K001C

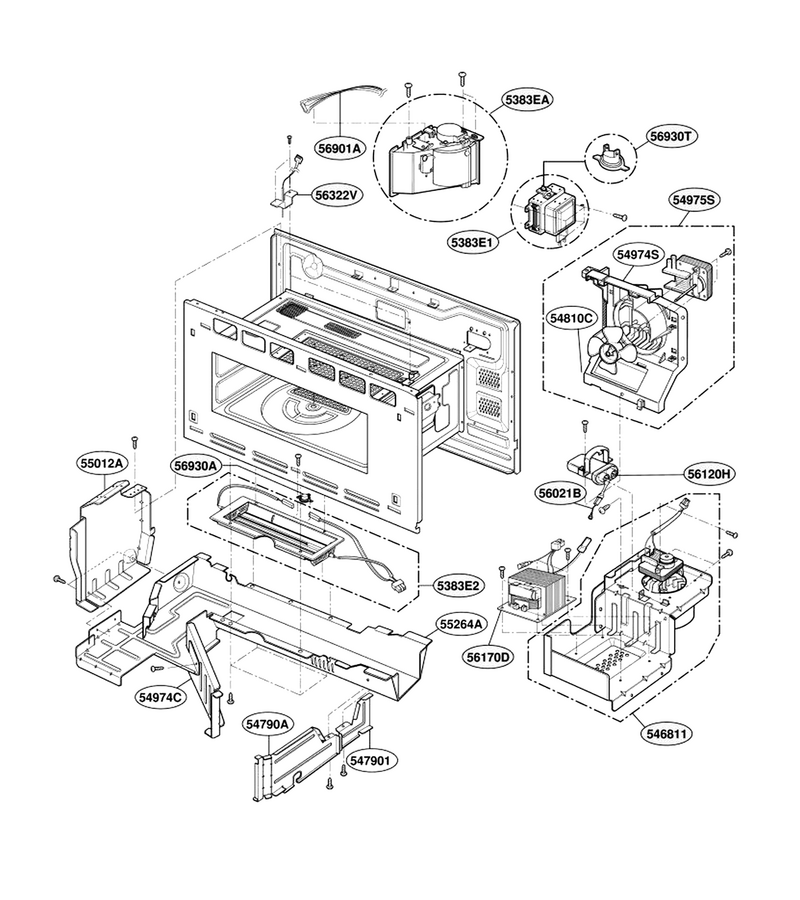

Interior Parts (i)

...
...
5383EA
Parts Assembly L-G-383EW1A006B
...
54975S
Guide Assembly,suction L-G-4975W1S063B
...
56021B
Cable,assembly L-G-6021W3B001L
...
56120H
Capacitor,high Voltage L-G-6120W3H003H
...
56170D
Transformer,high Voltage L-G-6170W1D002F
...
56322V
Thermistor,ntc L-G-2B72827K
...
56901A
Fuse Assembly L-G-6901W3A003A
...
56930A
Thermostat L-G-6930W3A001B
...
546811
Ac Motor Assembly L-G-4681W1A003A

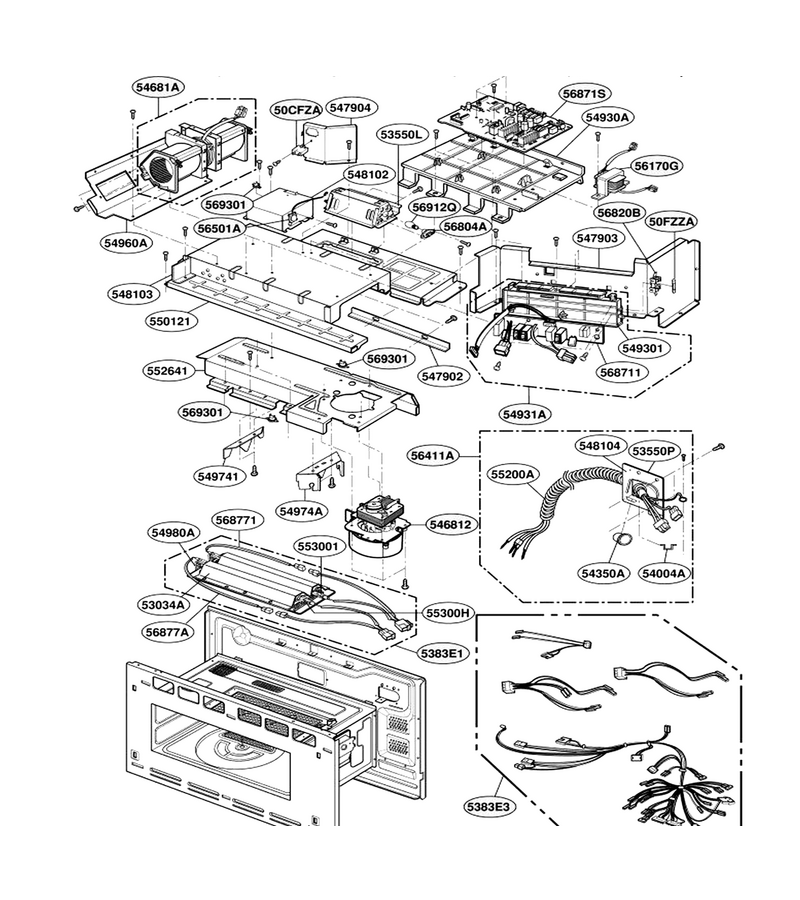

Interior Parts (ii)

...
...
50CFZA
Capacitor,film,box L-G-3B72440A
...
50FZZA
Fuse[all] L-G-3B74133K
...
54681A
Motor,unclassified L-G-4681W1A002B
...
54931A
Holder Assembly L-G-4931W2A001A
...
56501A
Sensor Assembly L-G-6501W1A004B
...
56804A
Microwave Light Socket L-G-6804W2A001A
...
56912Q
Microwave Light Bulb L-G-6912W3Q001A
...
546812
Fan Assembly L-G-4681W2A002B
...
569301
Thermostat L-G-6930W1A002F
