LG RFS12SW2A.ASTESUB

Model: RFS12SW2A.ASTESUB

Save Part Not Listed?
product name

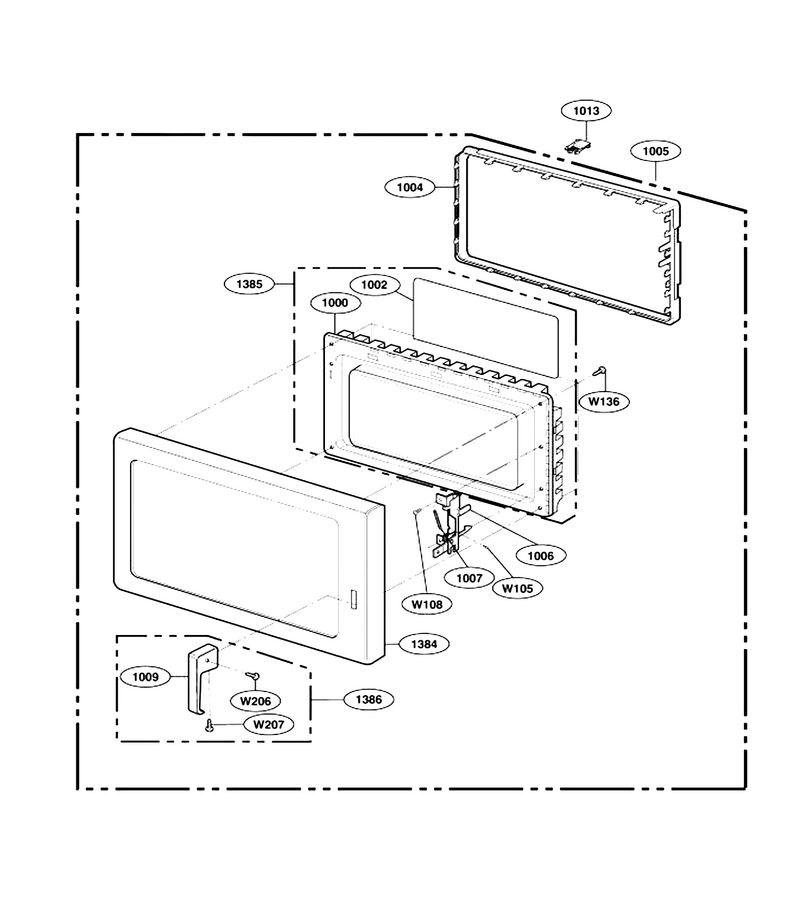

Door Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W206
Drawing Screw L-G-4000W4A001E
...
W108
Microwave Screw L-G-1TTL0402418
...
W136
Screw L-G-1TPL0302418
...
1000
Frame Assembly,door L-G-3213W0A011B
...
1002
Tape,sealing L-G-3536W1A007D
...
1004
Cover,choke L-G-3552W0A010B
...
1005
Door Assembly L-G-3581W1A417N
...
1006
Locker L-G-4026W1A035A
...
1007
Spring L-G-4970W1A015A
...
1009
Handle,door L-G-3650W1A078A
...
1013
Cap,choke Cover L-G-5006W1A007A
...
1384
Parts Assembly L-G-383EW5A159D
...
1385
Parts Assembly L-G-383EW5A236A
...
1386
Parts Assembly L-G-383EW5A266A

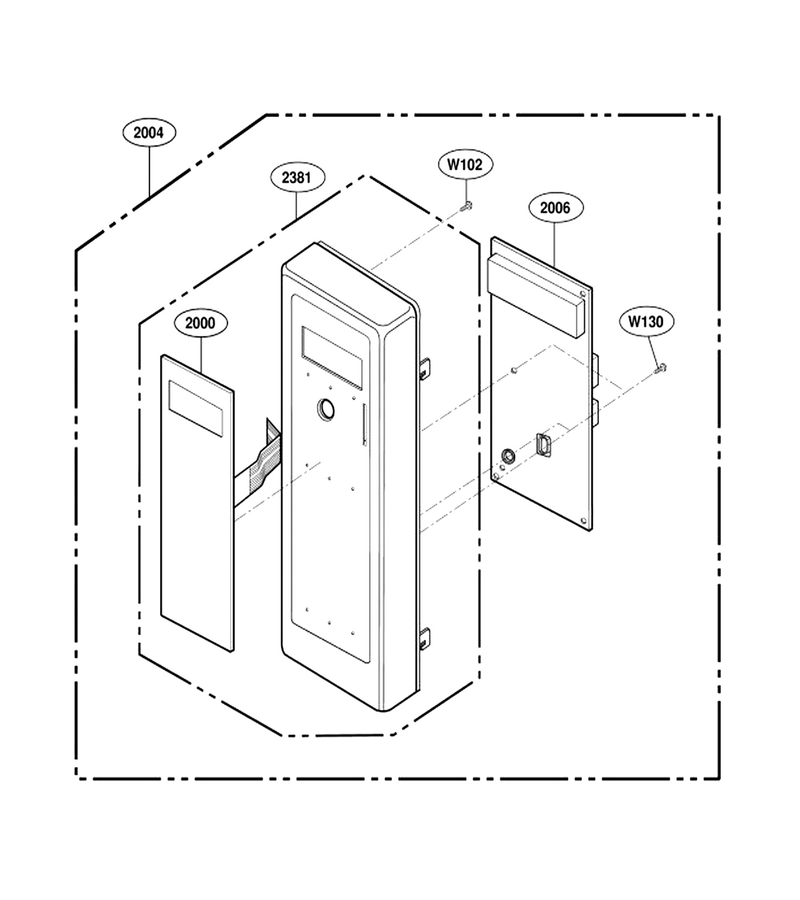

Control Panel Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W130
Microwave Screw L-G-1TPL0402618
...
2000
Membrane L-G-3506W1A538A
...
2004
Controller Assembly,keypad L-G-4781W1M348P
...
2006
Pcb Assembly,sub L-G-6871W1S219N
...
2381
Parts Assembly L-G-383EW5A159V

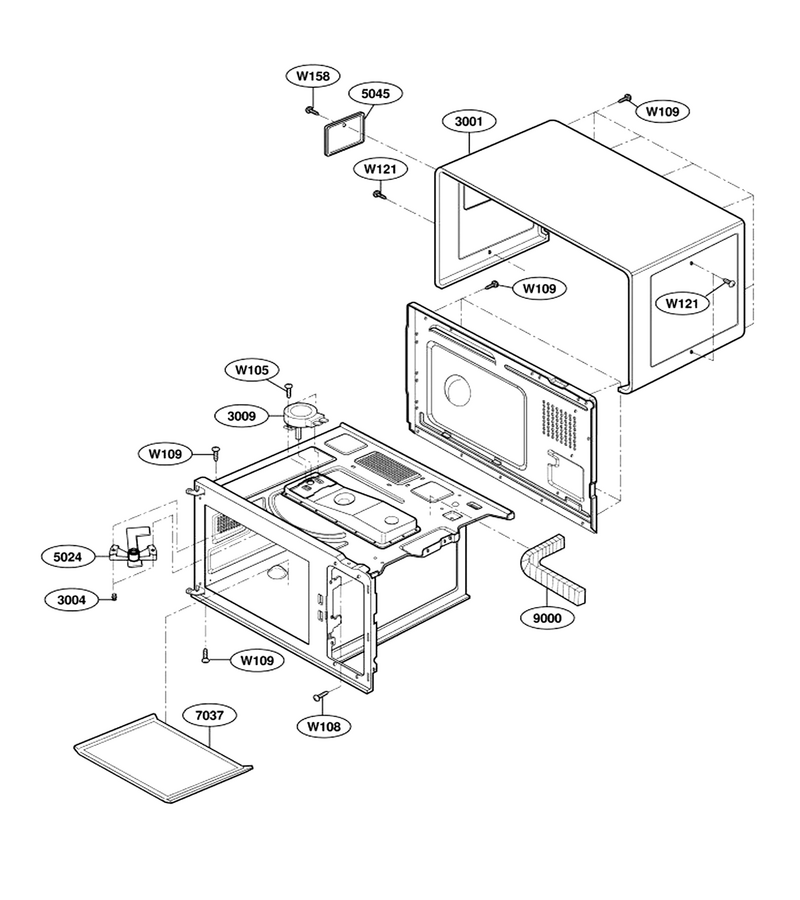

Oven Cavity Parts

...
...
W158
Screw L-G-1TCL0402622
...
W121
Microwave Screw L-G-1TTL0402422
...
W108
Microwave Screw L-G-1TTL0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
3001
Case,flat L-G-3112W0F024A
...
3004
Connector Assembly L-G-4051W1A001A
...
3009
Motor, Ac Synchronous L-G-2B72754J
...
5024
Fan Assembly L-G-5901W1A001C
...
5045
Cover,lamp L-G-3550W1A236A
...
7037
Tray Assembly L-G-3390W1A020B
...
9000
Damper L-G-4850W2A004H

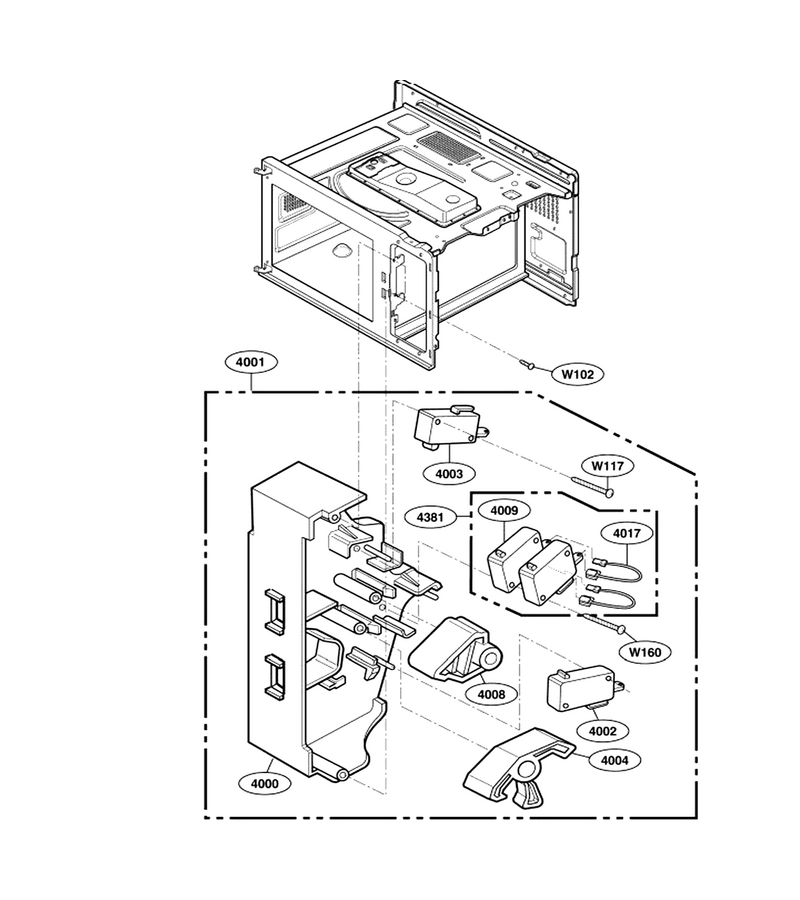

Latch Board Parts (ii)

...
...
W160
Screw,tapping L-G-1TPL0303718
...
W117
3.0x16mm Tap L-G-1TPL0303118
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-3500W1A026A
...
4001
Holder Assembly,locker L-G-3501W1A034J
...
4002
Switch,micro L-G-6600W1K001K
...
4003
Switch,micro L-G-6600W1K001F
...
4004
Lever L-G-4510W1A008A
...
4008
Lever L-G-4510W1A021A
...
4009
Switch,micro L-G-6600W1K001G
...
4017
Harness,single L-G-EAD60864301
...
4381
Parts Assembly L-G-AGM72925501

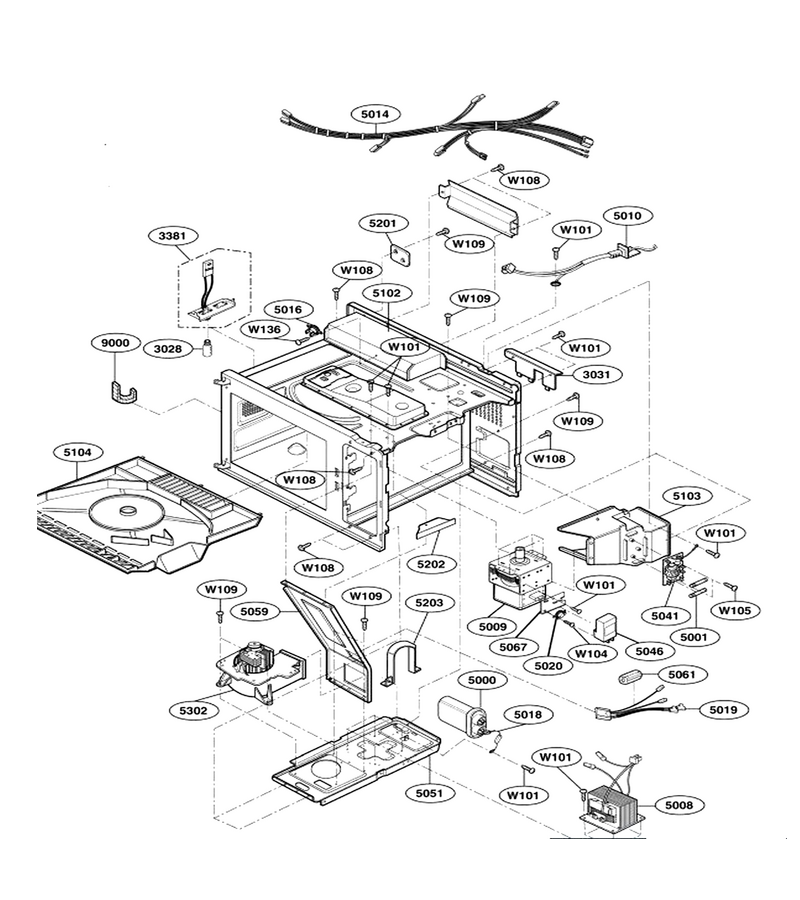

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W104
Screw L-G-1TPL0302018
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W136
Screw L-G-1TPL0302418
...
3028
Lamp,incandescent L-G-6912W1Z002C
...
3031
Cover,power Cord L-G-3550W1A221A
...
3381
Parts Assembly L-G-383EW5A159F
...
5000
Capacitor,high Voltage L-G-0CZZW1H007D
...
5001
Fuse,time Delay L-G-3B70856T
...
5008
Transformer,high Voltage L-G-6170W1D087D
...
5009
Microwave Magnetron L-G-6324W1A001E
...
5010
Power Cord Assembly L-G-6411W1A030E
...
5014
Harness,single L-G-6877W1A496A
...
5016
Thermostat L-G-3B72543Q
...
5018
Cable,assembly L-G-6021W3B001L
...
5019
Harness,single L-G-6877W1A499A
...
5020
Thermostat L-G-3B70068H
...
5041
Filter,ac Line L-G-6201W1A009C
...
5046
Filter Assembly L-G-6201W2A019G
...
5051
Parts Assembly L-G-383EW5A264A
...
5059
Parts Assembly L-G-383EW5A263A
...
5061
Filter Assembly L-G-6200W5A001A
...
5067
Bracket,thermostat L-G-4B74584A
...
5102
Duct L-G-5208W1A019A
...
5103
Duct L-G-5208W0A015A
...
5104
Duct L-G-5208W1A020B
...
5201
Bracket,idle L-G-4810W1A208A
...
5202
Bracket,idle L-G-4810W1A206A
...
5203
Bracket,capacitor L-G-4810W3C005A
...
5302
Fan Module L-G-4681W2A002C
...
9000
Damper L-G-4850W2A004H

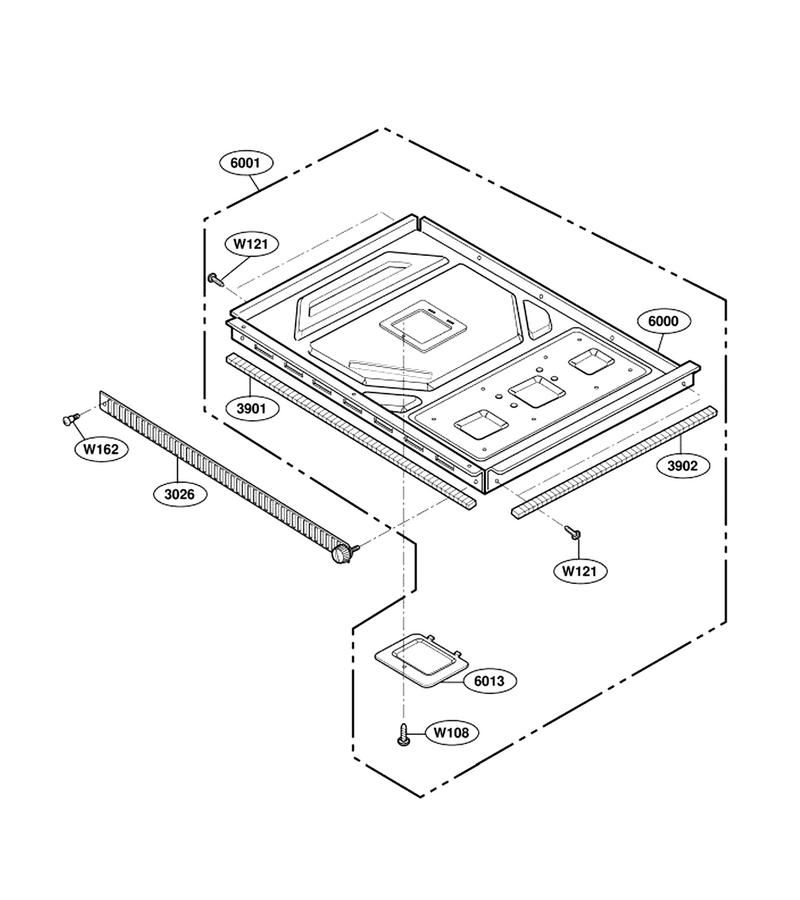

Base Plate Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
W121
Microwave Screw L-G-1TTL0402422
...
W162
Screw,customized L-G-4000W3A001D
...
3026
Filter,grease L-G-5230W1A006B
...
3901
Gasket L-G-4986W1A002A
...
3902
Gasket L-G-4986W1A002B
...
6000
Plate,base L-G-3302W0A042A
...
6001
Plate Assembly,base L-G-3303W0A028B
...
6013
Cover,base L-G-3550W1A220A
