LG RC7055AH1Z.ABWQCZK

Model: RC7055AH1Z.ABWQCZK

Save Part Not Listed?
product name

Popular Parts

Popular Parts

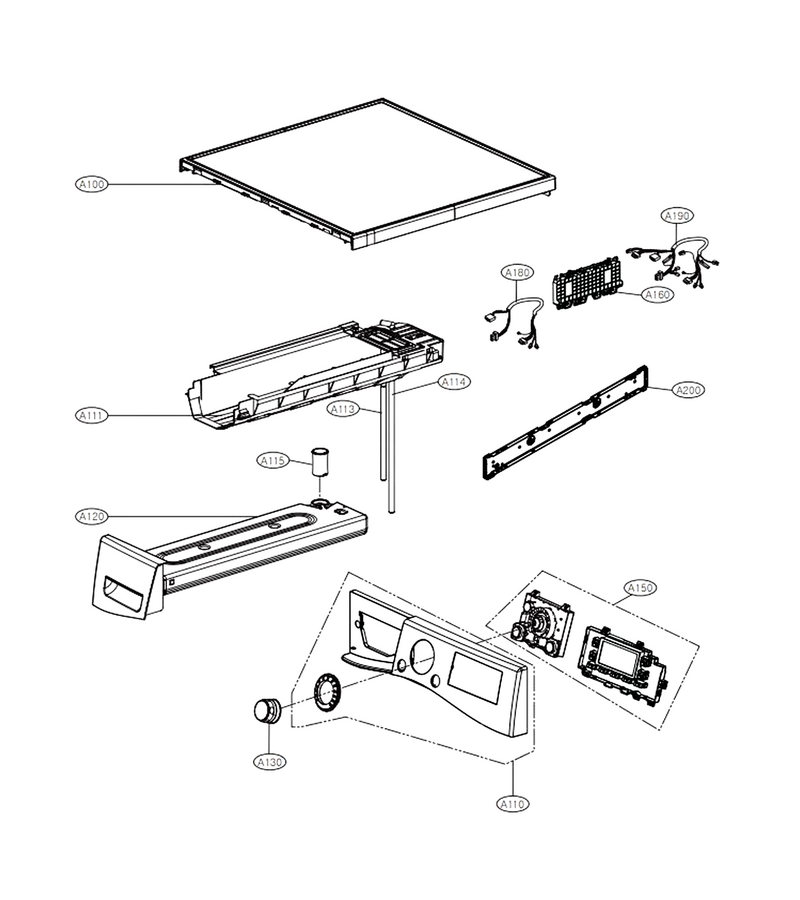

Control Panel & Top Plate Assembly

...
...
A100
Plate Asy,to L-G-3457ER1008G
...
A200
Top Frame L-G-3210EL1003A
...
A190
Harness,multi L-G-EAD61856909
...
A180
Harness,multi L-G-EAD61856803
...
A160
Pcb Assembly,main L-G-EBR75794107
...
A150
Pcb Assembly,display L-G-EBR79348804
...
A130
Knob Assembly L-G-AEZ33665708
...
A115
Guide,water L-G-MEA48495201
...
A114
Hose,pump L-G-5214EL3001E
...
A113
Hose L-G-MEJ54140801
...
A111
Dispenser Assembly L-G-ACZ55947004
...
A110
Panel Assembly,control L-G-AGL74134033
...
A120
Panel Assembly,drawer L-G-AGL74254717

Cabinet Cover & Door Assembly

...
...
B128
Damper L-G-MCQ68667101
...
B130
Dryer Door Switch L-G-EBF61496101
...
B139
Harness,single L-G-EAD61857101
...
B150
Locker Assembly L-G-4027EL2002E
...
B160
Bracket L-G-4810ER3017A
...
B180
Multi Harness L-G-6601EA2001N
...
B200
Lamp,led L-G-EAQ61322101
...
B210
Frame Assembly L-G-ADV72991402
...
B211
Drawer Nut L-G-4020FA3041B
...
B213
Magnet,ndfeb L-G-5016EA4002F
...
B214
Screw L-G-4000FD4191C
...
B216
Parts Assembly L-G-383EEL9001M
...
B217
Holder Assembly L-G-AEJ34755201
...
B140
Cover,cabinet L-G-MCK48434304
...
B126
Filter Assembly,lint L-G-ADQ74514703
...
B100
Door Assembly L-G-ADC66426701
...
B101
Frame,door(outer) L-G-MDQ48463301
...
B102
Frame,cover(front) L-G-MDQ48463601
...
B103
Locker,hook L-G-MFG50007301
...
B106
Gasket L-G-MDS48436401
...
B107
Hinge L-G-MEF48336901
...
B109
Holder L-G-MEG38266501
...
B120
Cover Assembly,front L-G-ACQ55944013
...
B121
Parts Assembly L-G-383EEL3003J
...
B124
Damper L-G-MCQ51447802
...
B127
Roller Assembly L-G-4581EL3001J
...
B125
Tub Cover L-G-MCK48335301

Base & Motor Assembly

...
...
C253
Packing L-G-MFZ62861801
...
C290
Cover,blower L-G-MCK65208201
...
C291
Capacitor,film,box L-G-6121EL2001F
...
C310
Cover Assembly,base L-G-ACQ85641501
...
C311
Nozzle,upper L-G-MFV61964701
...
C252
Parts Assembly L-G-383EEL3003C
...
C312
Capacitor,film,box L-G-6121EL2001M
...
C313
Valve Assembly,convert L-G-AJU73292501
...
C314
Cover,base L-G-MCK65208401
...
C315
Cover,base L-G-MCK66868703
...
C316
Hose,pump L-G-5214EL3001J
...
C317
Hose,pump L-G-5214EL3001H
...
C318
Hose,pump L-G-MEJ62366401
...
C319
Hose,pump L-G-MEJ62366502
...
C350
Cover,base L-G-MCK67262901
...
C360
Nut L-G-1NZZEL4002A
...
C361
Nut L-G-1NZZEL4002B
...
C365
Thermistor L-G-EBG60806203
...
C600
Base Assembly,cabinet L-G-AAN73349718
...
C144
Damper L-G-MCQ51446801
...
C250
Pump Assembly,drain L-G-AHA73153902
...
A112
Connector Hood L-G-4932EL3001A
...
C120
Cover,lower L-G-MCK66384701
...
C140
Base,cabinet L-G-MAM62125402
...
C142
Dryer Leveling Leg L-G-4779EA3001B
...
C145
Compressor Set,china L-G-TBZ37342210
...
C146
Harness,single L-G-EAD61857207
...
C147
Motor Assembly,dc,cooling L-G-EAU61663201
...
C148
Packing L-G-3920ER3002A
...
C160
Holder L-G-4930EL3015A
...
C165
Supporter Motor L-G-MJH48344101
...
C180
Impeller,blower L-G-MER61881601
...
C200
Motor Assembly,ac L-G-EAU54170602
...
C230
Damper L-G-4850EL3002A
...
C240
Slider L-G-4276EL3002A
...
C241
Dryer Drive Belt L-G-4400EL1001D
...
C251
Motor Assembly,dc,pump L-G-EAU62043403
...
C150
Coil Spring L-G-4970EL3003E

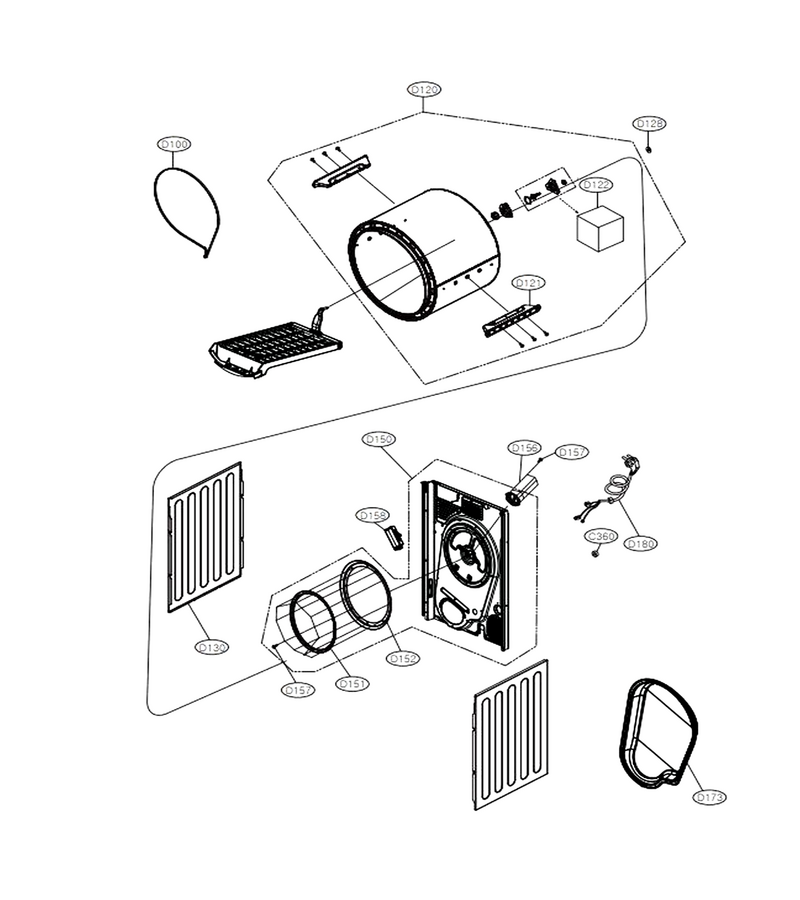

Back Cover & Drum Assembly

...
...
D173
Duct Assembly L-G-ADJ67809101
...
D158
Dishwasher Noise Filter L-G-6201EC1006L
...
D157
Screw L-G-1SZZEL3002A
...
D156
Supporter Hood L-G-4980EL4001A
...
D152
Packing Assembly L-G-3921EL1001A
...
D151
Holder L-G-4930EL1002A
...
D150
Cover Assembly,rear L-G-ACQ55947108
...
D130
Cabinet L-G-3090EL1001A
...
D128
Washer L-G-1WZZEL3001A
...
D122
Parts Assembly L-G-383EEL3003A
...
D121
Lifter L-G-4432EL1003A
...
D100
Belt L-G-4400EL1001C
...
C360
Nut L-G-1NZZEL4002A
