LG PRHR043A.ANCXLUS

Model: PRHR043A.ANCXLUS

Save Part Not Listed?
product name

Main

...
...
W4004A
Clip L-G-4H01050A
...
W4810A
Bracket L-G-MAZ67164501
...
W4810B
Bracket L-G-MAZ66089603
...
W4810C
Bracket L-G-MAZ67164201
...
W48603
Clamp,cord L-G-4860AR4166A
...
W54100
Insulator L-G-MEV63871605
...
W6640A
Connector,terminal Block L-G-EAG38884444
...
W6640B
Connector,terminal Block L-G-EAG38884446
...
55211FA
Tube Assembly,solenoide L-G-5211A22061D
...
55211FB
Solenoide Tube Assembly L-G-AJR76383601
...
55211G
Expansion Tube Assembly L-G-AJR76344501
...
130401
Single Base L-G-MAM65824001
...
135500B
Cover L-G-MCK71145502
...
135500A
Cover L-G-MCK71145601
...
135510
Cover Assembly,control L-G-ACQ91543302
...
137213A
Panel Assembly,side L-G-AGL74553006
...
137213B
Panel Assembly,side L-G-AGL74553005
...
149900
Hanger L-G-4990A20002J
...
249951
Case Assembly,control(indoor) L-G-ABQ74960405
...
263230
Thermistor Assembly,ntc L-G-EBG61107307
...
268711C
Pcb Assembly,display L-G-EBR80882202
...
268711B
Pcb Assembly,sub L-G-EBR80820302
...
268711A
Pcb Assembly,sub L-G-EBR82017101
...
561410I
Solenoid L-G-EBE60659013
...
661400A
Coil,expansion L-G-EAP63107102
...
661400B
Coil,expansion L-G-EAP63107105
...
661400C
Coil,expansion L-G-EAP63107110
...
661400D
Coil,expansion L-G-EAP63107111
...
661400E
Expansion Coil Assembly L-G-EAP64267606
...
661400F
Expansion Coil Assembly L-G-EAP64267607
...
661400G
Expansion Coil Assembly L-G-EAP64267608
...
661400H
Expansion Coil Assembly L-G-EAP64267609
...
661400J
Coil,expansion L-G-EAP63107113

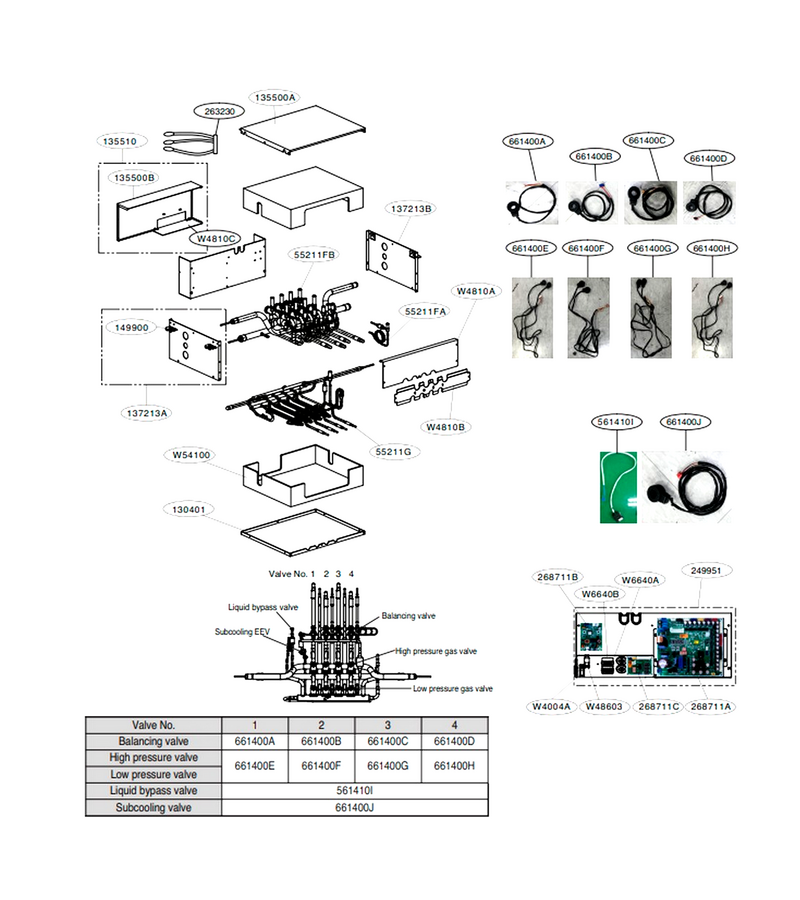

Schematic Image Zoomed
