product name

LG P-L103AV.AIVESJA

Model: P-L103AV.AIVESJA

Save Part Not Listed?
product name

Main

...
...
WTP005
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
WTP015
Microwave Screw L-G-1TPL0402618
...
WTP018
Screw L-G-1TPL0402818
...
WTT018
Screw,tapping L-G-1TTL0302418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
11PZZ1
Pin,customized L-G-1PZZW3J001A
...
11PZZ2
Pin,customized L-G-1PZZW3Z002A
...
13300J
Plate,heater(top) L-G-3300W1J001B
...
13650J
Handle,rotator L-G-3650W1J002A
...
13651J
Handle Assembly L-G-3651W1J001D
...
13850J
Label,cooking Guide L-G-3850W1D043A
...
13920J
Packing,gasket L-G-3920W2J004B
...
14000J
Screw,customized L-G-4000W3A001B
...
14031J
Pin,customized L-G-4031W3J001A
...
14350J
Ring L-G-4350W1J001B
...
14370J
Shaft,hinge L-G-4370W3Z003A
...
14980J
Supporter L-G-4980W3J002B
...
15016J
Magnet L-G-5016W3J001A
...
15221J
Valve Assembly L-G-5221W1J001B
...
15301J
Heater Assembly L-G-5301W1J003B
...
16851J
Cable,assembly L-G-6851W3J001A
...
23110J
Case,upper L-G-3110W0J001H
...
23111J
Case Assembly L-G-3111W1J002R
...
23300J
Plate,side Heater L-G-3300W2J001A
...
23550J
Cover,hinge L-G-3550W2J001H
...
23790J
Window,display L-G-3790W3J001B
...
24810J
Bracket,idle L-G-4810W3J003A
...
24970J
Spring L-G-4970W4A004C
...
25020J
Button L-G-5020W1J002A
...
25022J
Pad L-G-5022W2J005M
...
33040J
Base,work Coil L-G-3040W0J002B
...
33041J
Base Assembly L-G-3041W0J001C
...
34974J
Guide,air L-G-4974W1J004A
...
35012J
Insulator L-G-5012W2A026C
...
35301J
Heater Assembly L-G-5301W1J004B
...
36501J
Sensor Assembly L-G-6501W3A008A
...
36549J
Motor,dc L-G-6549W3F001E
...
36861J
Single Harness L-G-6861W1J003A
...
36901J
Fuse Assembly L-G-6901W1J001A
...
43040J
Base,pcb L-G-3040W1J001A
...
43110J
Case,lower L-G-3110W0J002H
...
43111J
Case Assembly L-G-3111W1J003G
...
43300J
Plate,shield L-G-3300W1J002A
...
43550J
Cover,top L-G-3550W3J005A
...
45020J
Button L-G-5020W2J009A
...
46411J
Power Cord Assembly L-G-6411W1J004A
...
53890J
Box,color L-G-3890W3C070A
...
55306J
Oven L-G-5306W1J001E
...
135501
Cover,top L-G-3550W0J004H
...
135502
Cover,top L-G-3550W2J002N
...
135503
Cover,inner L-G-3550W0J003D
...
135504
Cap,idle L-G-3550W3J001A
...
135505
Deco,handle L-G-3550W3J004F
...
135511
Cover Assembly,top Cover L-G-3551W1J004G
...
149701
Spring L-G-4970W2J001C
...
149702
Spring L-G-4970W2J001D
...
149703
Spring L-G-4970W3J004A
...
149704
Spring L-G-4970W4A019C
...
150221
Pad L-G-5022W1J004N
...
150222
Pad L-G-5022W1J004P
...
538281
Manual,owners L-G-3828W5J0033
...
538282
Manual,[service] L-G-3828W5S2012

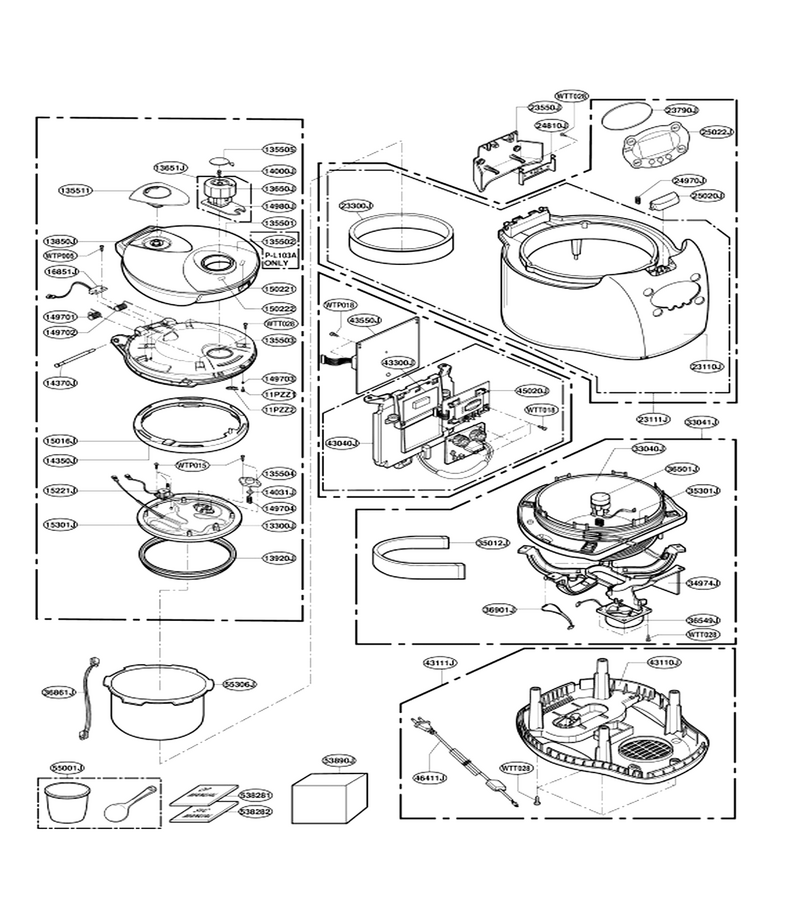

Schematic Image Zoomed
