product name

LG NN-S723BL.KBKEMAT

Model: NN-S723BL.KBKEMAT

Save Part Not Listed?
product name

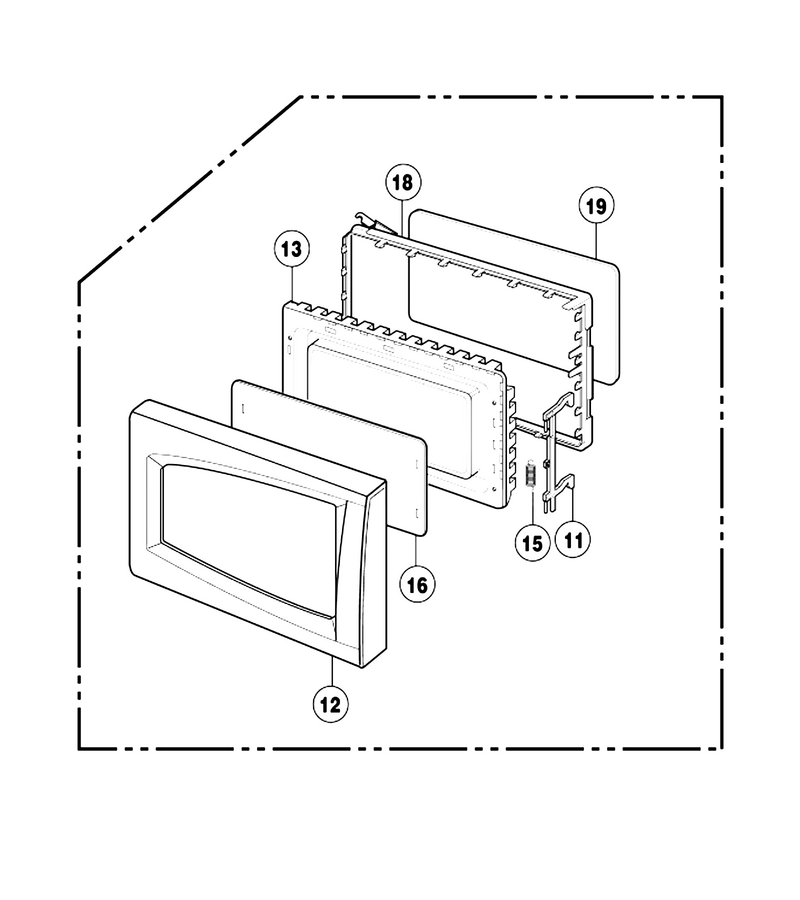

Door Parts

...
...
11
Latch Head L-G-4026W1A031A
...
12
Panel,door L-G-3720W1D110B
...
13
Frame Assembly,door L-G-3213W0A006D
...
15
Spring L-G-4970WRA001D
...
16
Window,screen L-G-3352W1A141A
...
18
Cover,choke L-G-3552W0A006B
...
19
Tape,sealing L-G-3536W1A005A

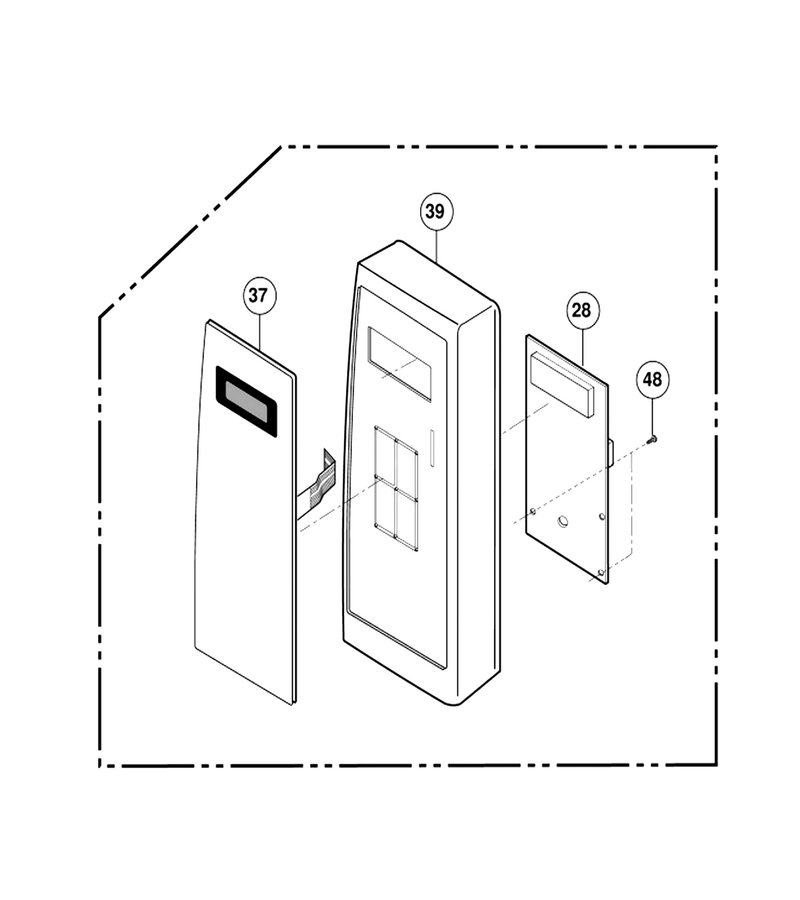

Controller Parts

...
...
28
Pcb Assembly,sub L-G-6871W1S100Q
...
37
Membrane L-G-3506W1A160C
...
39
Panel,control L-G-3720W1C014A
...
48
Microwave Screw L-G-1TTL0402818

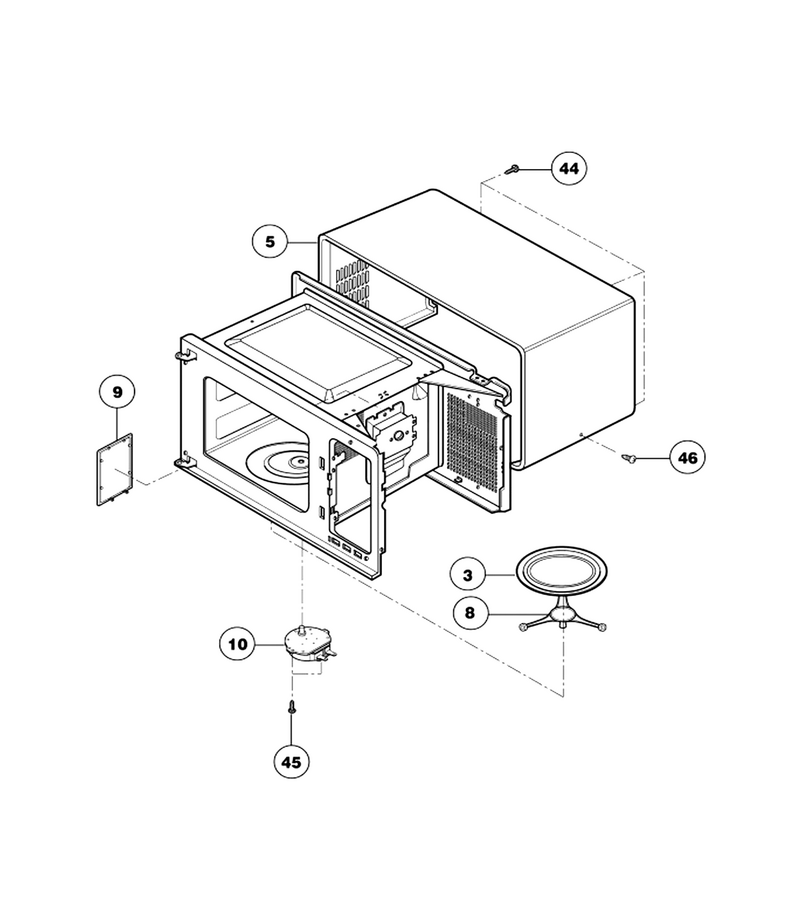

Oven Cavity Parts

...
...
3
Microwave Glass Turntable Tray L-G-3390W1A012B
...
5
Case,u Bending L-G-3112W1U036C
...
8
Microwave Turntable Tray Support L-G-5889W1A003B
...
9
Canopy L-G-3052W2A021A
...
10
Microwave Turntable Motor L-G-6549W1S011B
...
44
Screw L-G-1SZZW2A002A
...
45
Microwave Screw L-G-1TPL0402418
...
46
Microwave Screw L-G-1TTG0402422

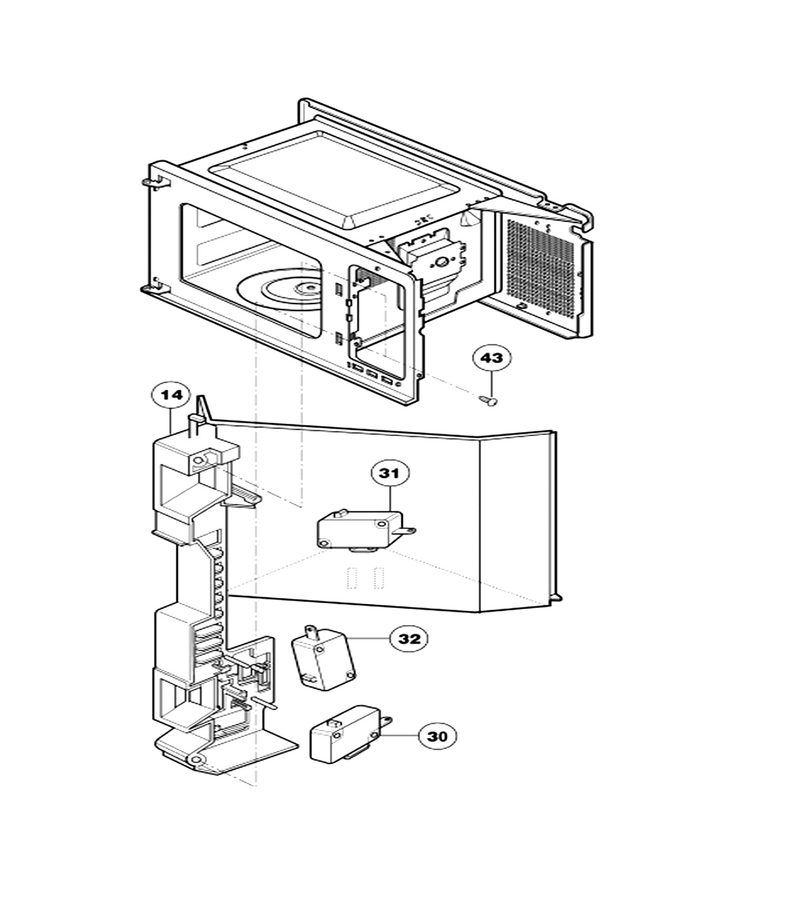

Latch Board Parts

...
...
14
Holder,locker L-G-3500W0A004A
...
30
Switch,micro L-G-3B73362M
...
31
Switch,micro L-G-6600W1K001D
...
32
Microwave Door Interlock Switch L-G-6600W1K001C
...
43
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C

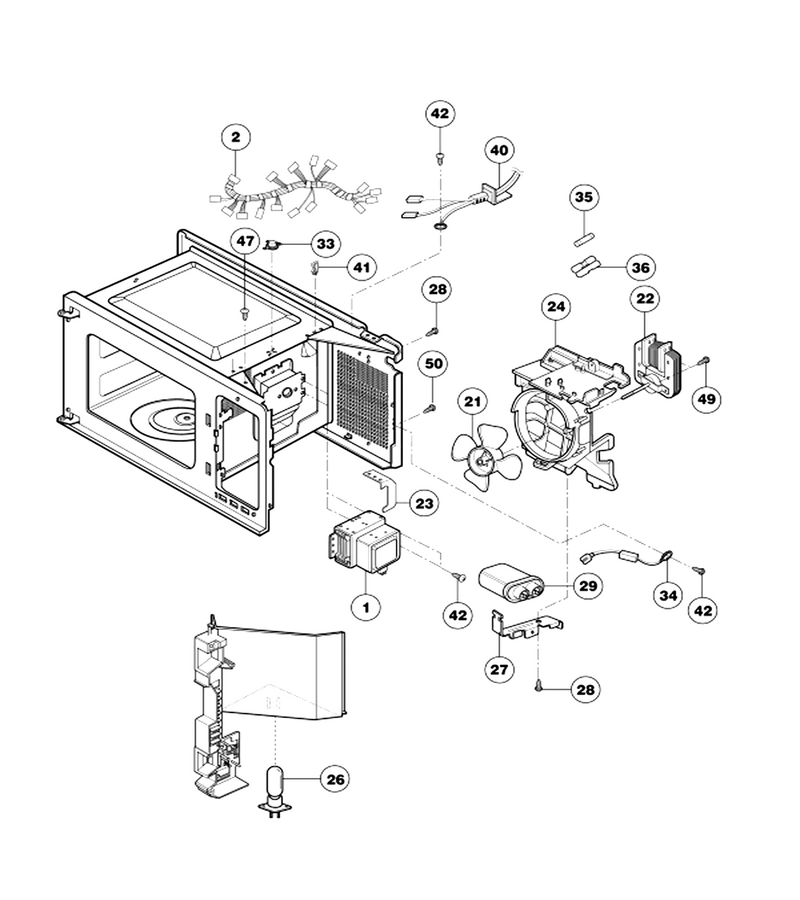

Interior Parts

...
...
1
Microwave Magnetron L-G-6324W1A001A
...
2
Harness,single L-G-6877W1A187S
...
21
Microwave Cooling Fan Blade L-G-5900W1A007B
...
22
Motor,ac Fan L-G-6549W1F009C
...
23
Insulator L-G-5012W3A020C
...
24
Guide L-G-4974W0A003B
...
26
Microwave Light Bulb L-G-6912W3B002L
...
27
Bracket L-G-4810W4C003B
...
28
Pcb Assembly,sub L-G-6871W1S100Q
...
29
Microwave High-Voltage Capacitor L-G-0CZZW1H005A
...
33
Microwave Thermostat L-G-6930W1A003A
...
34
Cable,assembly L-G-6021W3B001N
...
35
Fuse[all] L-G-3B74133K
...
36
Cap Fuse L-G-5006WRA002D
...
40
Power Cord L-G-6411W1A002H
...
41
Holder L-G-4930W3B029A
...
42
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
47
Microwave Screw L-G-1TTL0402418
...
49
Microwave Tapping Screw L-G-1TTL0403818

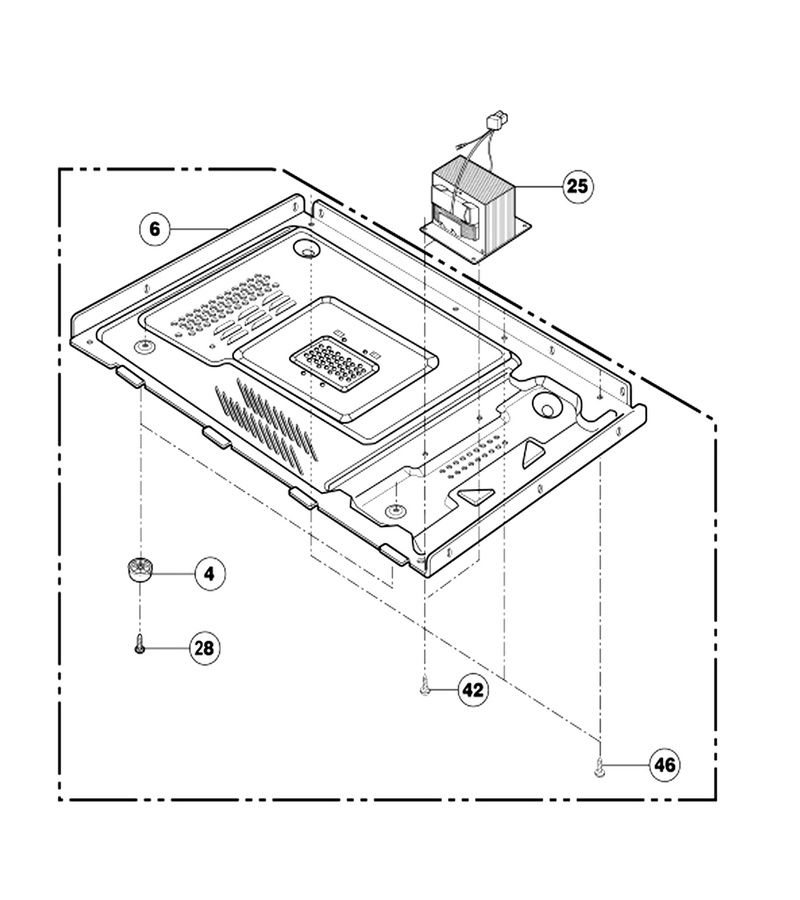

Base Plate Parts

...
...
4
Microwave Foot (white) L-G-5006W3A019A
...
6
Plate,base L-G-3302W0A035B
...
25
Transformer,high Voltage L-G-6170W1D077C
...
28
Pcb Assembly,sub L-G-6871W1S100Q
...
42
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
46
Microwave Screw L-G-1TTG0402422
