LG NN-S431WL.KMWEMAT

Model: NN-S431WL.KMWEMAT

Save Part Not Listed?
product name

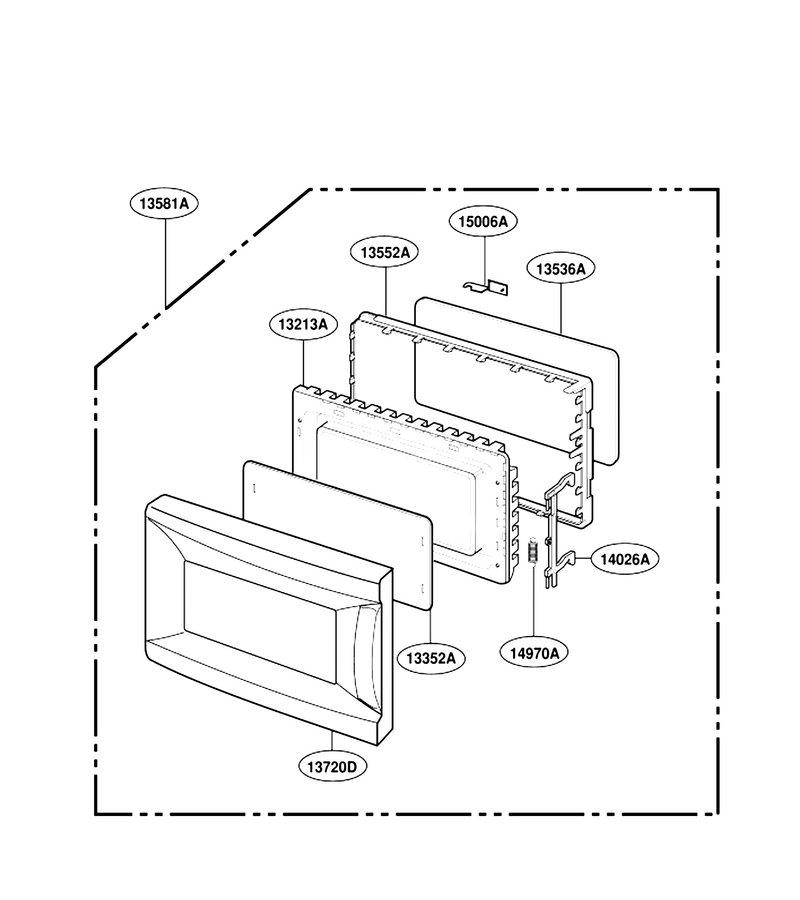

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A034C
...
13352A
Window,screen L-G-3352W2A046A
...
13536A
Seal Tape L-G-3536WRA001N
...
13552A
Cover,choke L-G-3552W1A047A
...
13581A
Door Assembly L-G-3581W1A283A
...
13720D
Panel,door L-G-3720W0D199A
...
14026A
Locker L-G-4026W1A014A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Transformer L-G-5006W3A012A

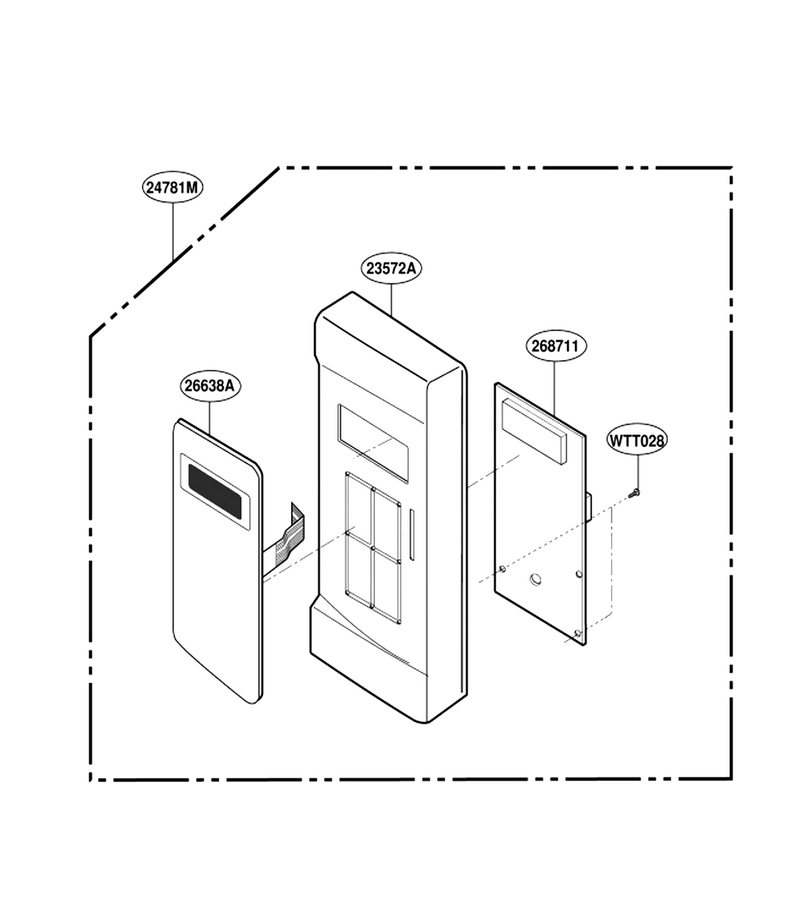

Controller Parts

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
23572A
Panel,control L-G-3572W0A242A
...
24781M
Controller Assy,[micom] L-G-4781W1M268A
...
26638A
Membrane L-G-6638W1A070A

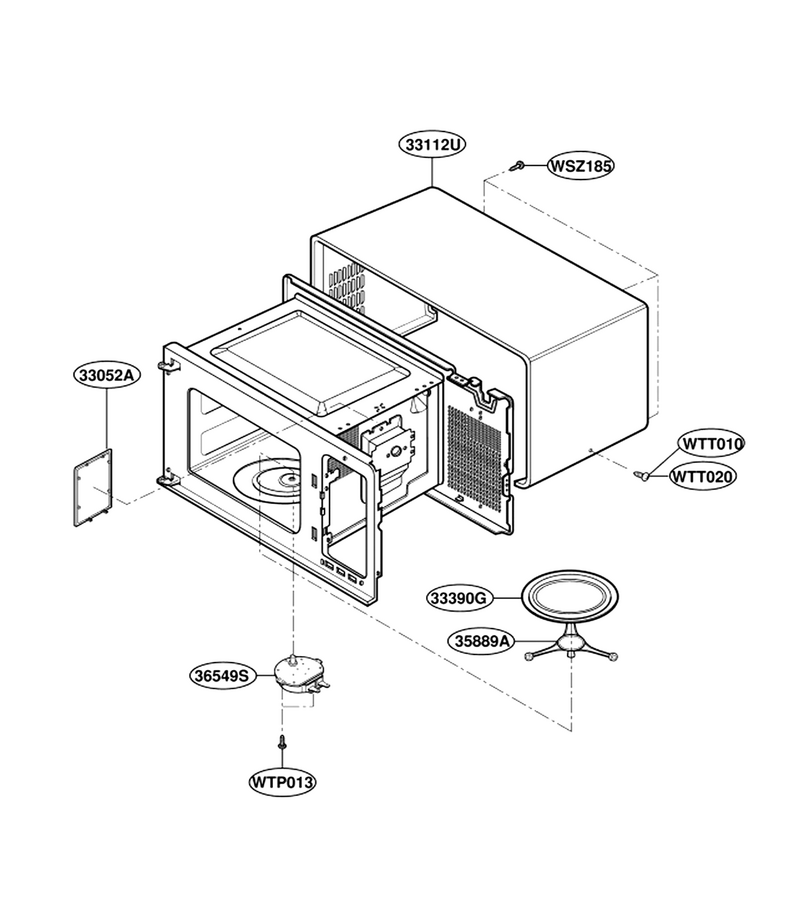

Oven Cavity Parts

...
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTP013
Microwave Screw L-G-1TPL0402418
...
33052A
Canopy L-G-3052W2A021A
...
33112U
Out Case L-G-3112W0U024R
...
33390G
Tray,glass L-G-3390W1G003A
...
35889A
Turntable Assembly L-G-5889W2A014A
...
36549S
Microwave Turntable Motor L-G-6549W1S011A

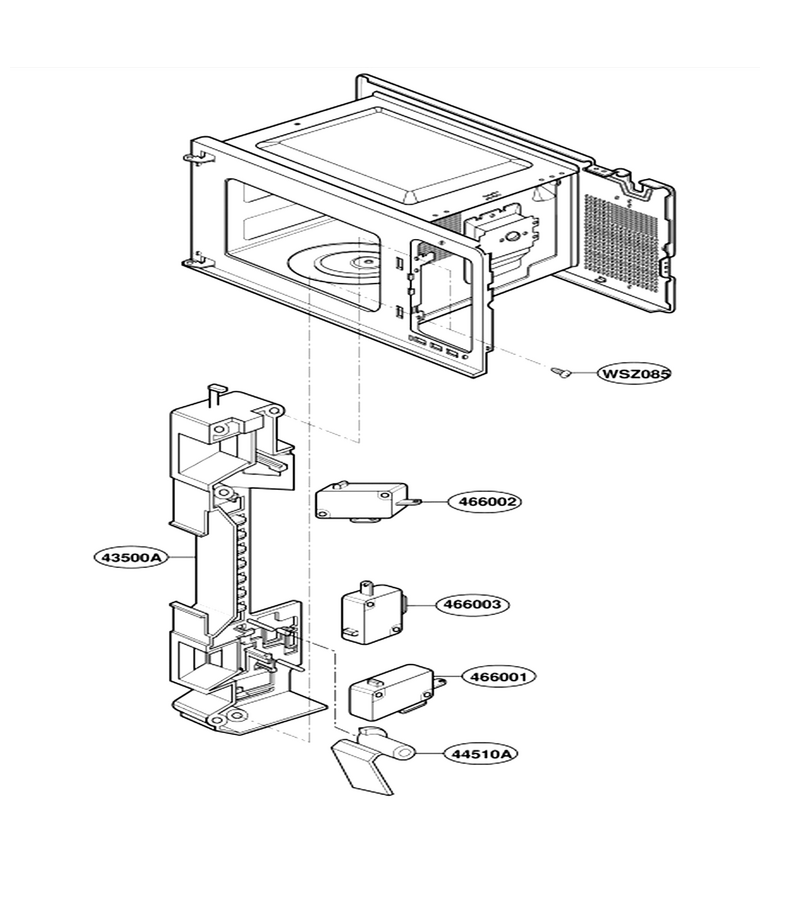

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Latch Board L-G-3500W1A010A
...
44510A
Lever L-G-4510W3A012A
...
466001
Switch,micro L-G-3B73362M
...
466002
Switch,micro L-G-6600W1K003D
...
466003
Switch,micro L-G-6600W1K003C

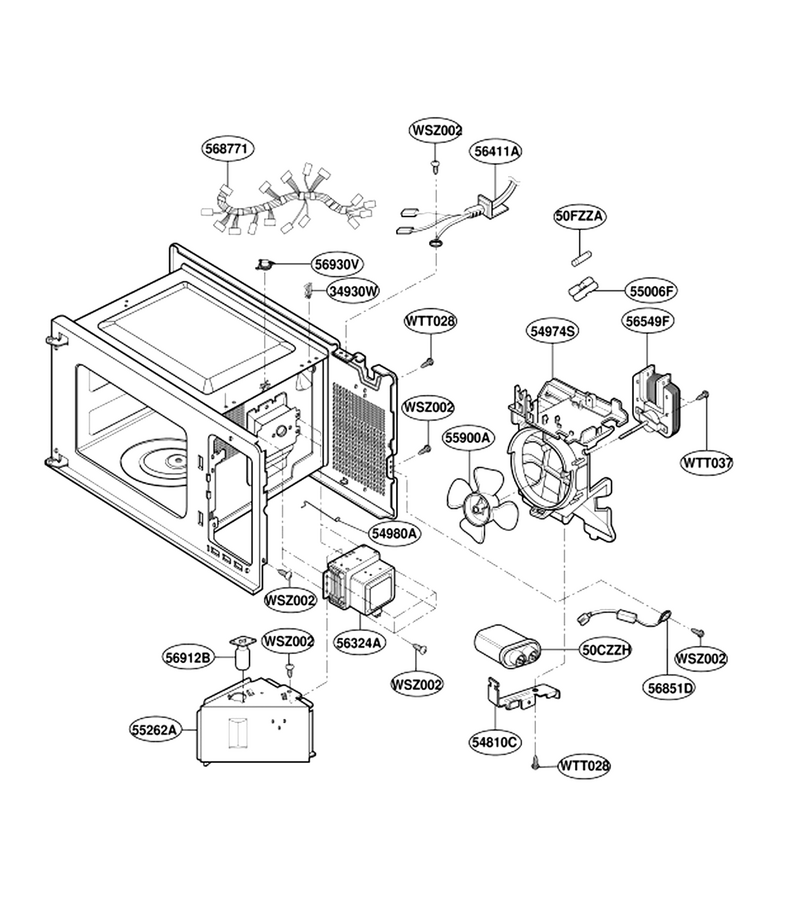

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50CZZH
Capacitor,high Voltage L-G-0CZZW1H001P
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4930W3B029A
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Stirrer Cover L-G-4974W1S048B
...
54980A
Supporter L-G-4980W3A038A
...
55006F
Fuse Cap L-G-5006WRA002A
...
55262A
Fan Bracket L-G-5262W2A037C
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord L-G-6411W1A002H
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56851D
Cable,assembly L-G-6021W3B001N
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930WRT002F
...
568771
Harness,single L-G-6877W1A359A

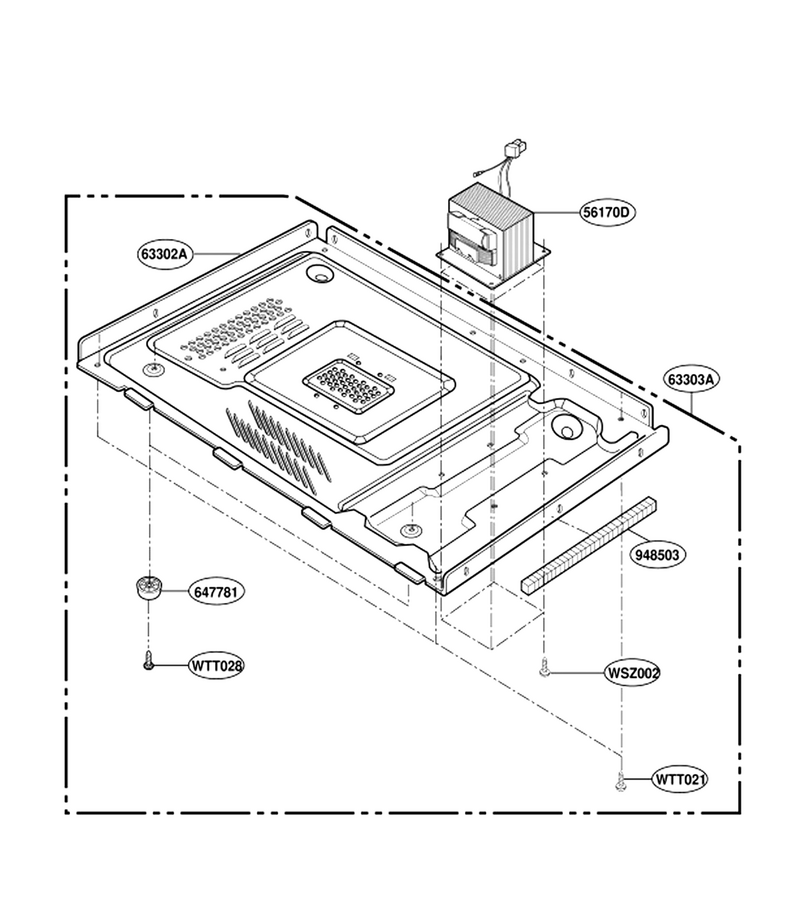

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
56170D
Transformer,high Voltage L-G-6170W1D054B
...
63302A
Single Lge L-G-3302W0A025A
...
63303A
Base Plate L-G-3303W0A013B
...
647781
Leg L-G-4778W3A002A
...
948503
Cushion L-G-3B72244G
