LG NN-S251WL.AWHEMAT

Model: NN-S251WL.AWHEMAT

Save Part Not Listed?
product name

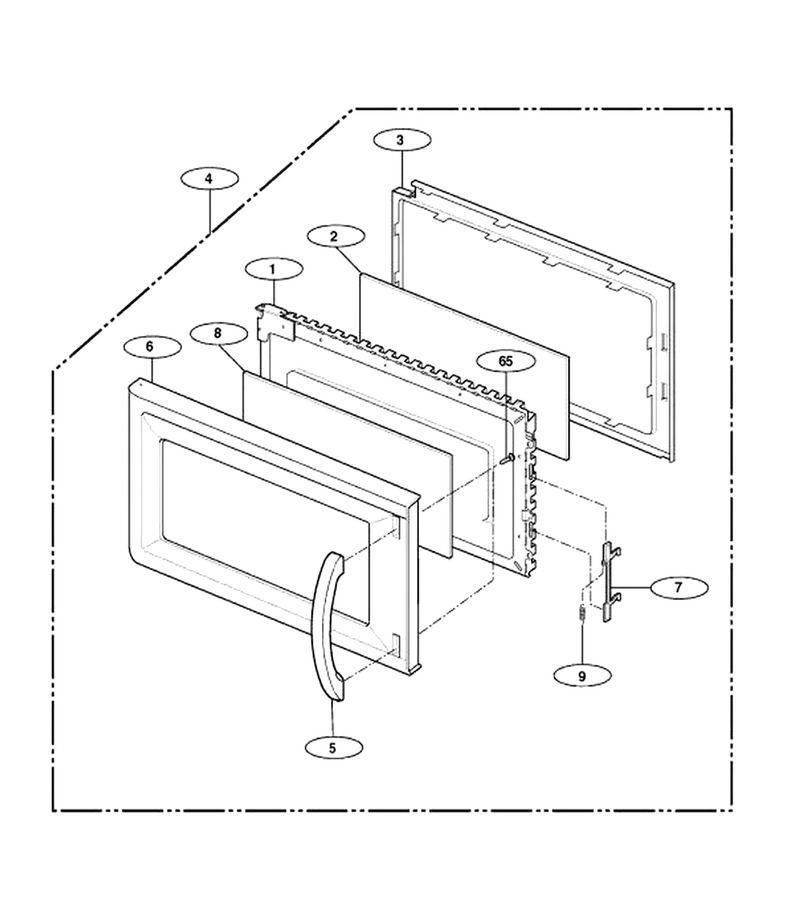

Door Parts

...
...
1
Oven Door Frame L-G-3213W1A035C
...
2
Microwave Door Film L-G-3536WRA001R
...
3
Microwave/hood Cover L-G-3552W1A032B
...
4
Door Assembly L-G-3581W1A284A
...
5
Handle,mwo L-G-3650W1A026A
...
6
Panel,door L-G-3720W0D197A
...
7
Locker L-G-4026W1A013A
...
8
Window,glass L-G-4890W1D042Y
...
65
Microwave Screw L-G-1TTL0402818

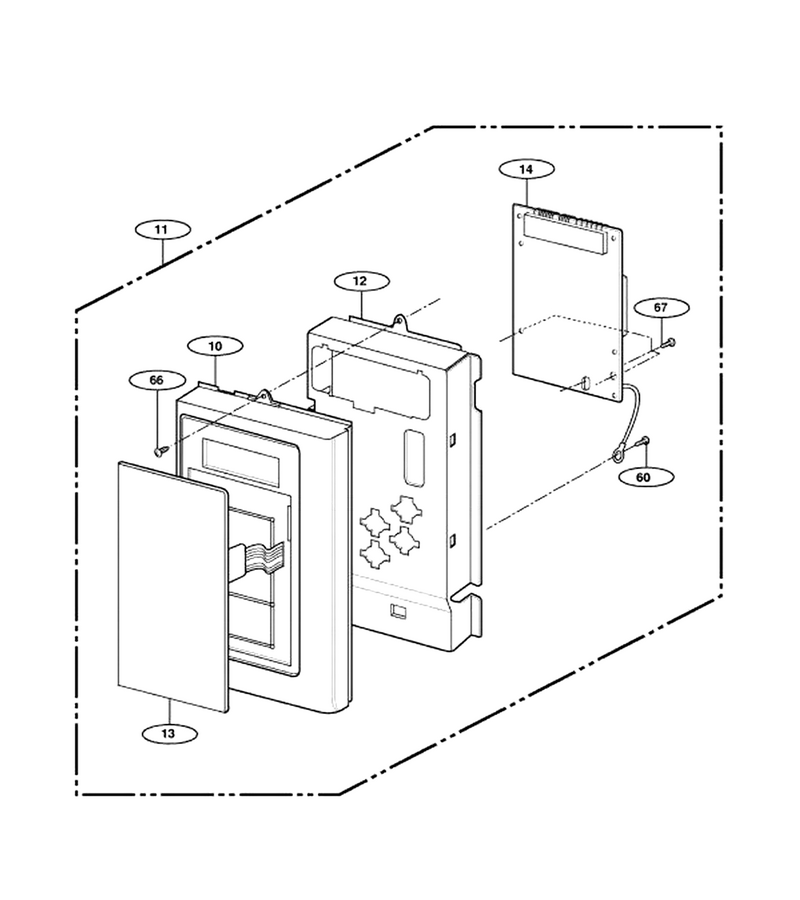

Escutcheon Base Assembly

...
...
10
Panel,control L-G-3572W1A175A
...
11
Controller Assembly,keypad L-G-4781W1M270A
...
12
Bracket L-G-4810W1A017A
...
13
Membrane L-G-6638W1A089A
...
14
Pcb Assembly,sub L-G-6871W1S045C
...
60
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
66
Screw L-G-1TTL0402822
...
67
Screw L-G-1TPL0402818

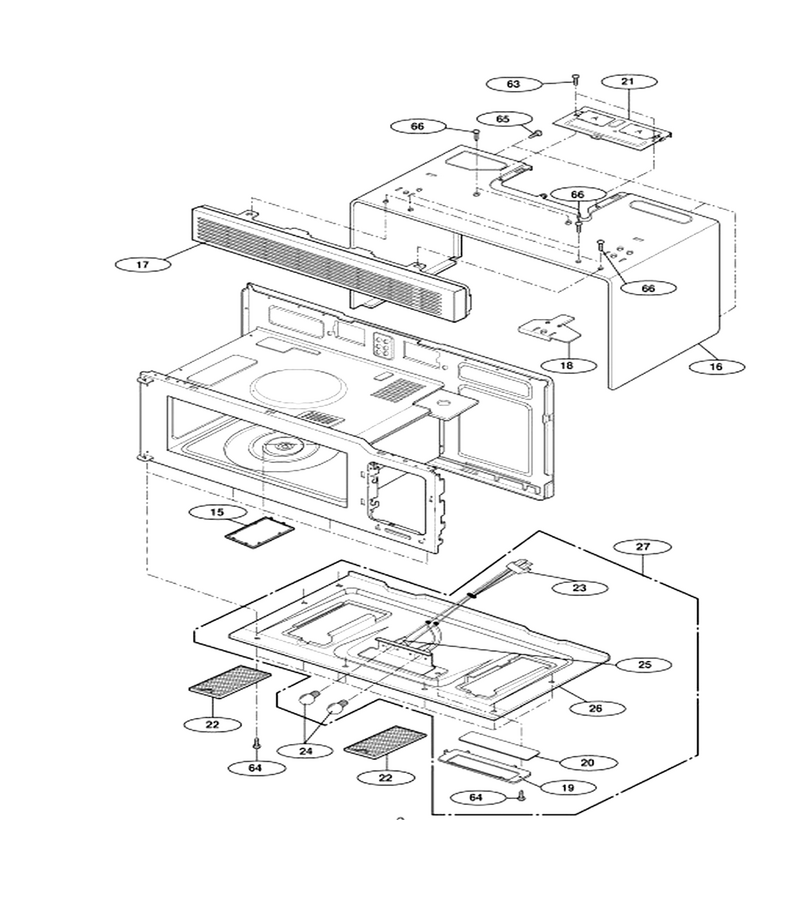

Oven Cavity Parts

...
...
15
Canopy L-G-3052W3A016A
...
16
Cabinet Cover L-G-3112W1U026A
...
17
Grille,vent L-G-3530W0A019A
...
18
Microwave Wall Mounting Plate L-G-4810W3G062A
...
19
Microwave Light Lens Bracket L-G-4810W3G100A
...
20
Oven Glass L-G-4890W4A001B
...
21
Microwave Vent Duct Cover L-G-4960W1A004A
...
22
Microwave Grease Filter L-G-2B72705B
...
23
Harness,single L-G-6877W1A340B
...
24
Microwave Light Bulb L-G-6912W3Q001A
...
25
Microwave Light Socket L-G-6804W3A001A
...
26
Plate,base L-G-3302W0A013L
...
27
Plate Assembly,base L-G-3303W1A041R
...
63
Microwave Screw L-G-1TTL0402418
...
64
Microwave Screw L-G-1TTL0402422
...
65
Microwave Screw L-G-1TTL0402818
...
66
Screw L-G-1TTL0402822

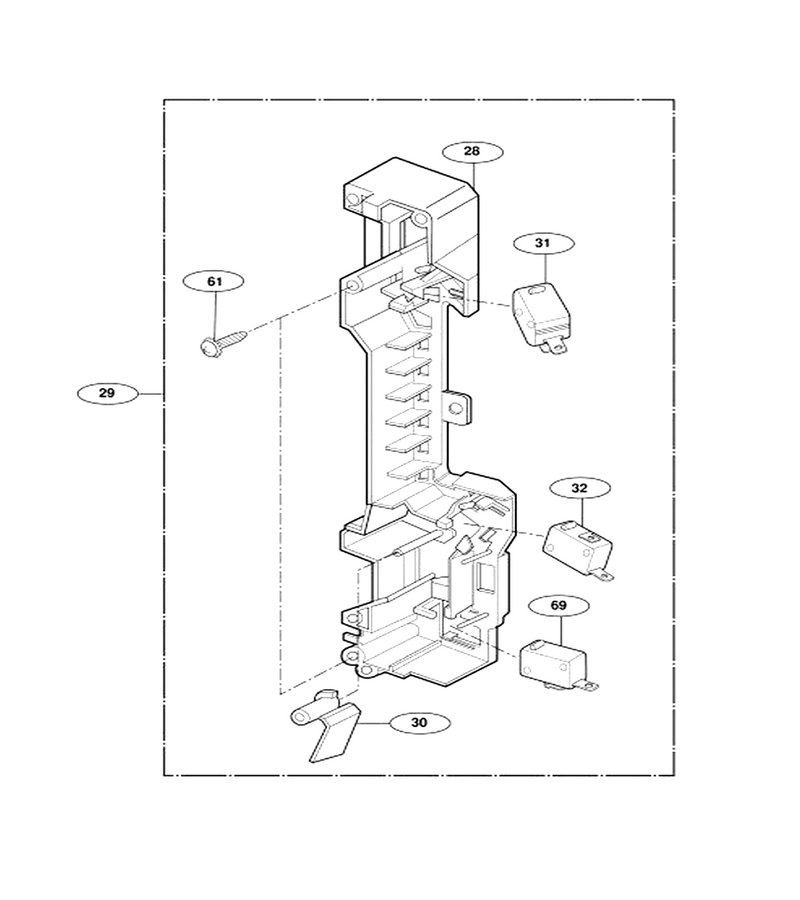

Door Hook Parts

...
...
28
Microwave Door Latch Holder L-G-3500W1A013A
...
30
Lever L-G-4510W4A005A
...
31
Microwave Micro Switch L-G-3B73362F
...
32
Switch Micro L-G-3B73361E
...
61
Screw L-G-4B70188B
...
69
Switch,micro L-G-3B73362M

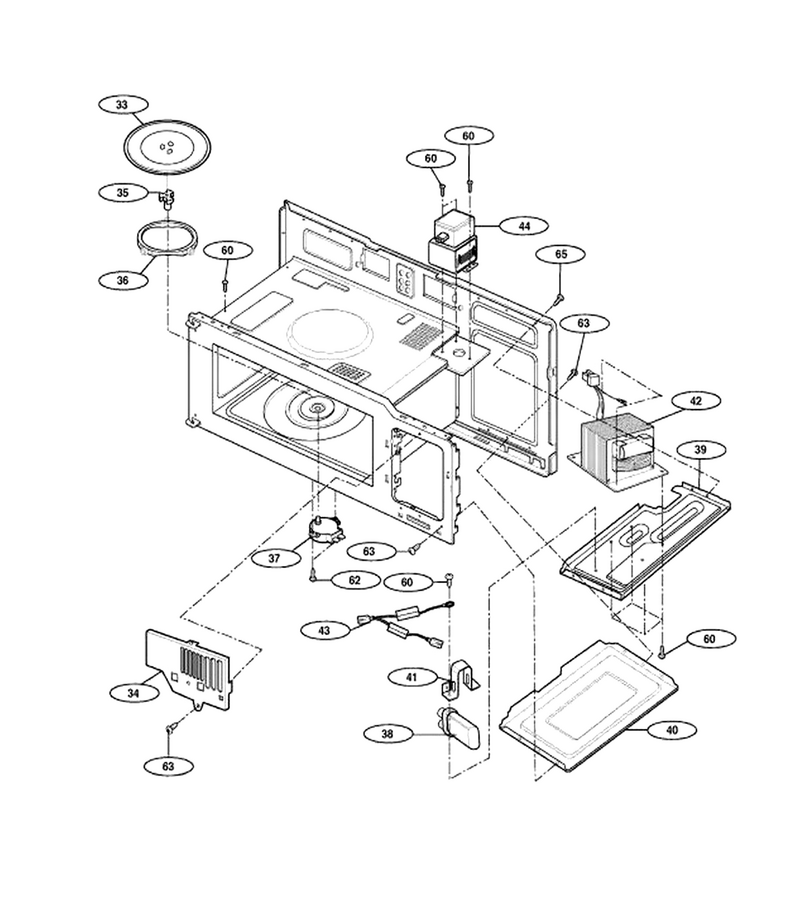

Interior Parts (i)

...
...
33
Microwave Glass Turntable Tray L-G-1B71961F
...
34
Protector L-G-3740W1A005A
...
35
Shaft L-G-3B72373D
...
36
Ring Assembly L-G-5889W2A012A
...
37
Microwave Turntable Motor L-G-2B72754E
...
38
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
39
Plate L-G-3300W1A052A
...
40
Plate L-G-3300W1A003A
...
41
Bracket L-G-4810W3C002A
...
42
Microwave High-Voltage Transforme L-G-6170W1D051A
...
43
Cable,assembly L-G-6851W1A001A
...
44
Microwave Magnetron L-G-2B71732B
...
60
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
62
Microwave Screw L-G-1TPL0402418
...
63
Microwave Screw L-G-1TTL0402418
...
65
Microwave Screw L-G-1TTL0402818

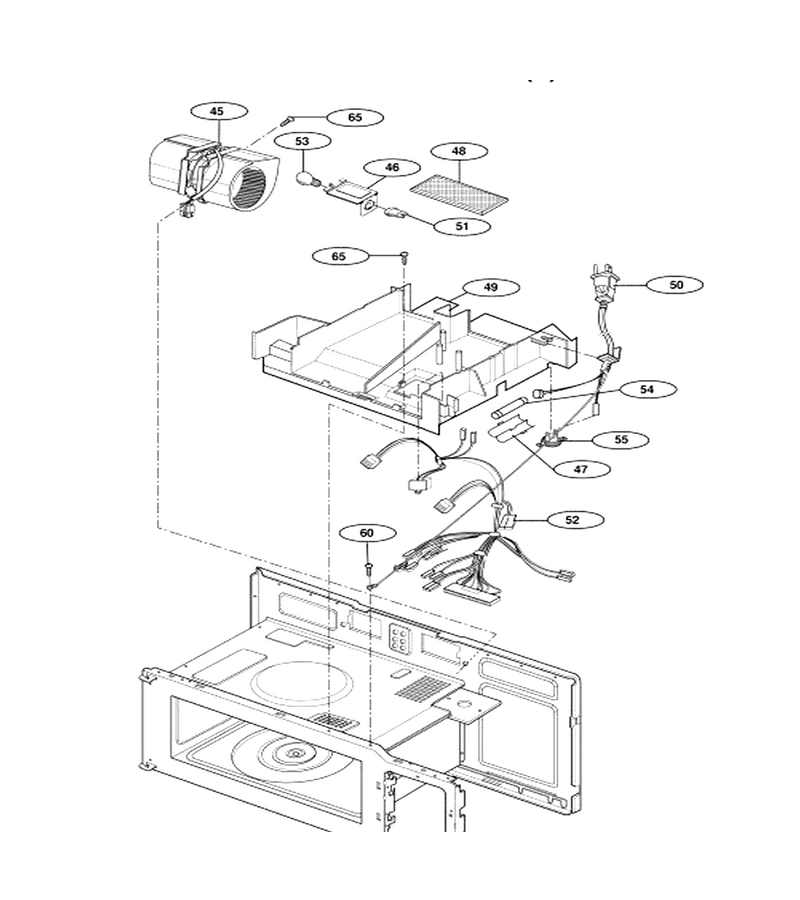

Interior Parts (ii)

...
...
45
Motor, Ac Ventilation L-G-6549W1V006F
...
46
Oven Cover L-G-3550W3A082A
...
47
Fuse Cap L-G-5006WRA002A
...
48
Microwave Charcoal Filter L-G-2B72706D
...
49
Duct L-G-5208W0A005A
...
50
Ac Power Cord Assembly L-G-6411W1A010F
...
51
Microwave Light Socket L-G-6804W3A001A
...
52
Single Harness L-G-6877W1A365A
...
53
Microwave Light Bulb L-G-3B70067A
...
54
Fuse[all] L-G-3B74133K
...
60
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
65
Microwave Screw L-G-1TTL0402818

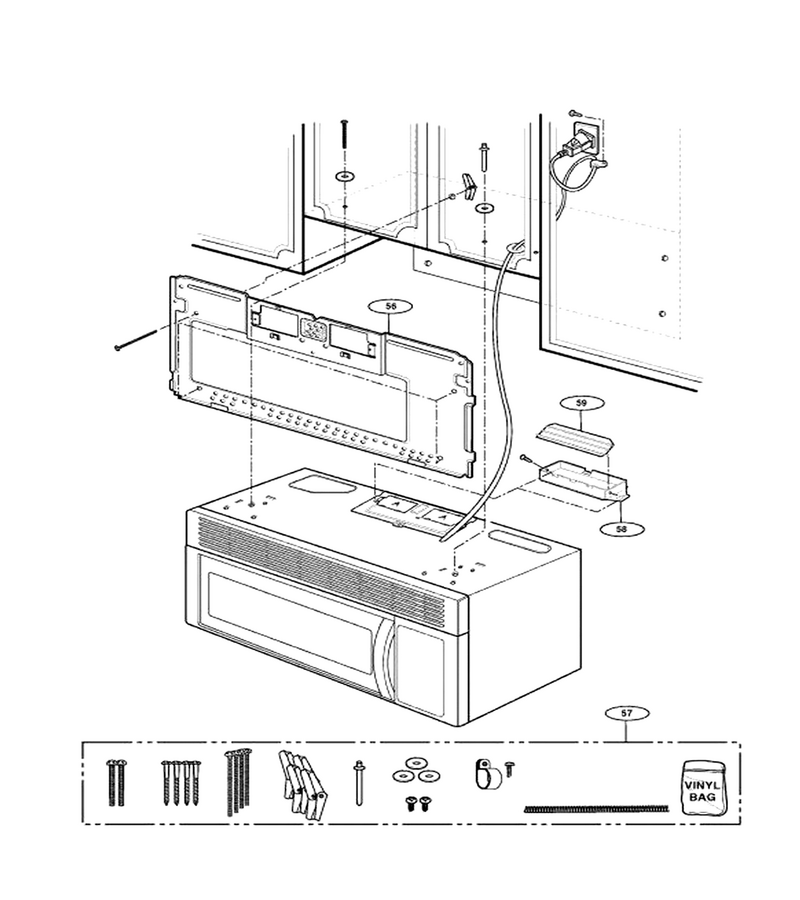

Installation Parts

...
...
56
Mounting Plate L-G-3300W0M003A
...
57
Microwave Hardware Assembly Kit L-G-2B72771A
...
58
Microwave Exhaust Damper Bracket L-G-3B72144A
...
59
Microwave Vent Damper Door L-G-3B71432A
