LG MW36Y3J.AWHBFRD

Model: MW36Y3J.AWHBFRD

Save Part Not Listed?
product name

Indoor Unit

...
...
W54100A
Insulator L-G-MEV64338313
...
W54100B
Insulator L-G-MEV64338314
...
W54100C
Insulator L-G-MEV64338309
...
35211B
Tube Assembly,tubing L-G-AJR74146003
...
131410
Chassis Assembly L-G-ABW73692405
...
135090
Decor Assembly L-G-ACW73978002
...
135316
Grille Assembly,front(indoor) L-G-AEB73884517
...
135511
Cover Assembly,control(indoor) L-G-ACQ86010903
...
135516
Cover Assembly,motor L-G-ACQ86252501
...
147581
Louver,horizontal L-G-MFH62503701
...
149303
Holder,tubing L-G-MEG56994601
...
149304
Holder,evaporator L-G-MEG63259601
...
152302
Filter,air L-G-MDJ63604401
...
237202
Panel,front L-G-MGC63039001
...
249951
Case Assembly,control(indoor) L-G-ABQ74104614
...
267110
Remote Controller Assembly L-G-AKB73975603
...
342800
Bearing L-G-4280A20004M
...
346810
Motor, Dc Indoor L-G-EAU62023302
...
352150
Hose Assembly,drain L-G-AEM73493402
...
354210
Evaporator Assembly,first L-G-ADL73861301
...
359011
Fan Assembly,cross Flow L-G-ADP73673402
...
733010
Plate Assembly, Installation L-G-3301A10014A

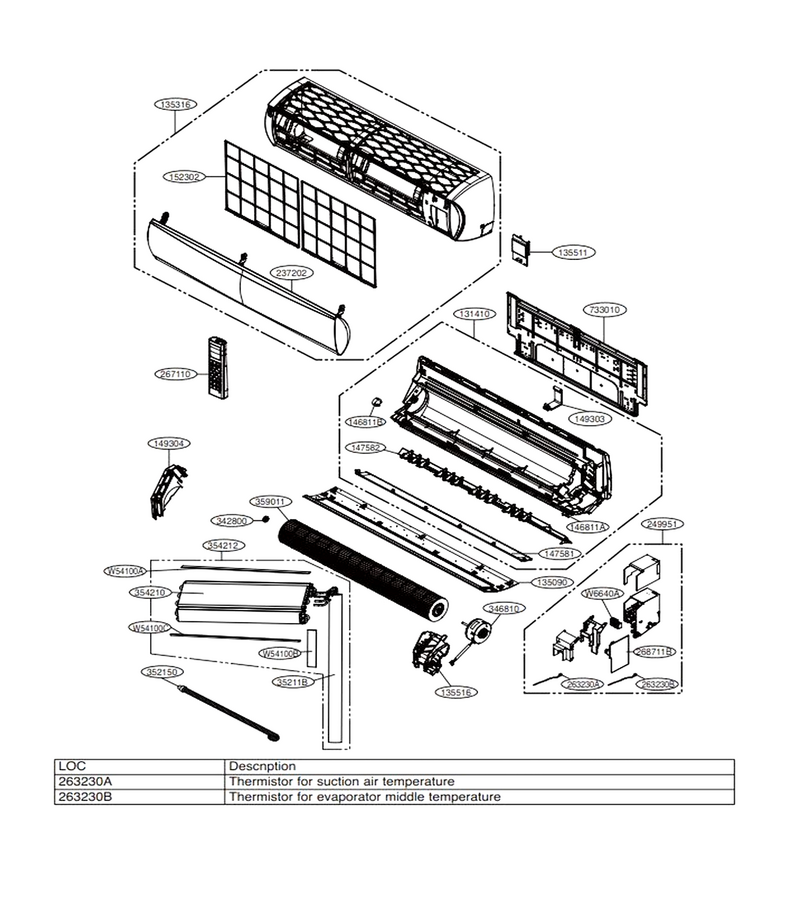

Schematic Image Zoomed
