product name

LG MV1608BB.CBKELGB

Model: MV1608BB.CBKELGB

Save Part Not Listed?
product name

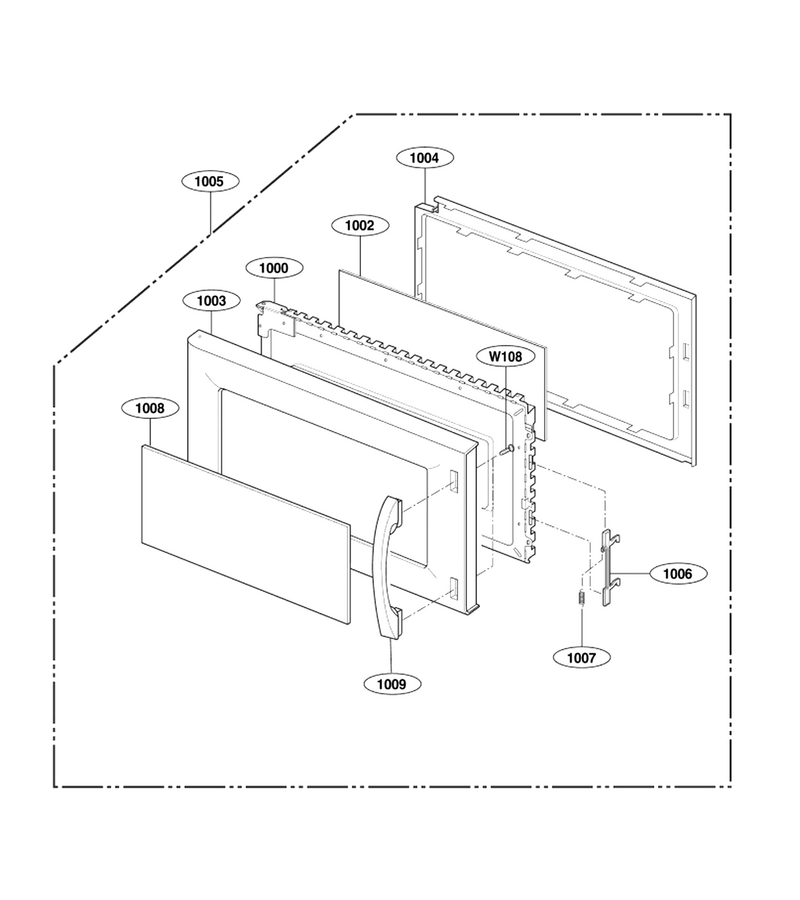

Door Parts (i)

...
...
W108
Microwave Screw L-G-1TTL0402818
...
1000
Microwave Door Inner Frame L-G-3213W1A049F
...
1002
Microwave Door Film L-G-3536W1A012B
...
1003
Door Panel L-G-3720W0D311N
...
1004
Cover,choke L-G-3552W1A032J
...
1005
Door Assembly L-G-3581W1A388Q
...
1006
Microwave Door Latch Hook L-G-4026W2A019C
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1008
Inner Glasse L-G-4890W1A044C
...
1009
Door Handle L-G-MEB47173602

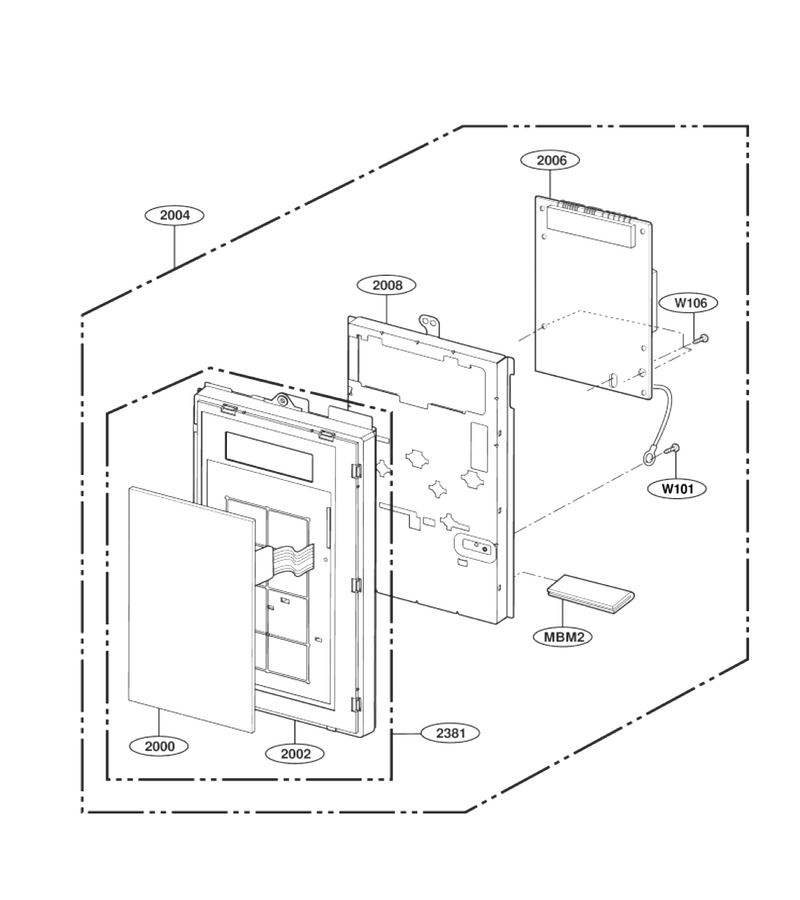

Controller Parts (i)

...
...
MBM2
Technical Card L-G-MBM00607005
...
W106
Screw L-G-1TPL0402818
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
2000
Membrane L-G-MFM56876802
...
2002
Control Panel L-G-3720W1C016B
...
2004
Keypad Controller Assembly L-G-4781W1M336Y
...
2006
Sub Pcb L-G-6871W1A497B
...
2008
Bracket L-G-4810W1A148C
...
2381
Part Assembly L-G-AGM67064602

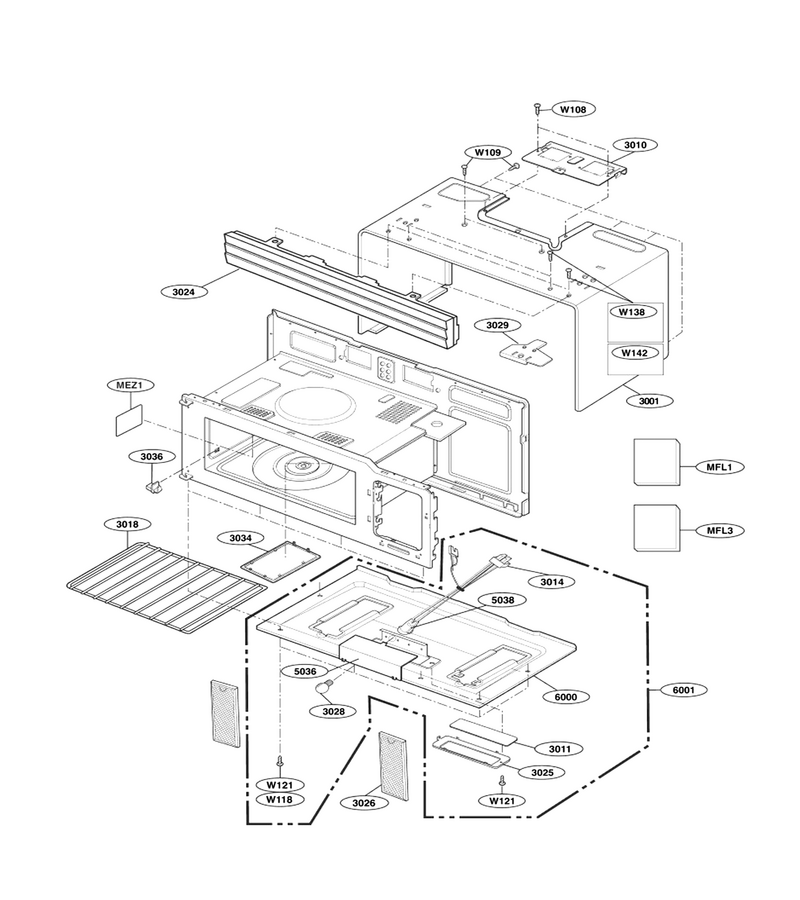

Oven Cavity Parts

...
...
W142
Screw L-G-1TTL0402816
...
W118
Microwave Screw L-G-1TTG0402422
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
3001
Flat Case L-G-3112W0U052N
...
3010
Mount L-G-4960W1A022A
...
3011
Glass L-G-4890W1A045A
...
3024
Microwave Vent Grille (black) L-G-MDX47173502
...
3025
Microwave Light Lens Bracke L-G-4810W1A150C
...
3026
Microwave Grease Filter L-G-5230W1A012C
...
3028
Microwave Light Bulb L-G-6912W1Z004B
...
3029
Microwave Installation Bracket L-G-4810W1A149A
...
5036
Lamp Cover L-G-3550W3A095C
...
5038
Microwave Light Socket L-G-6620G00007A
...
6000
Base L-G-3302W0A047M
...
6001
Microwave Base Plate Assembly L-G-3303W1A072N

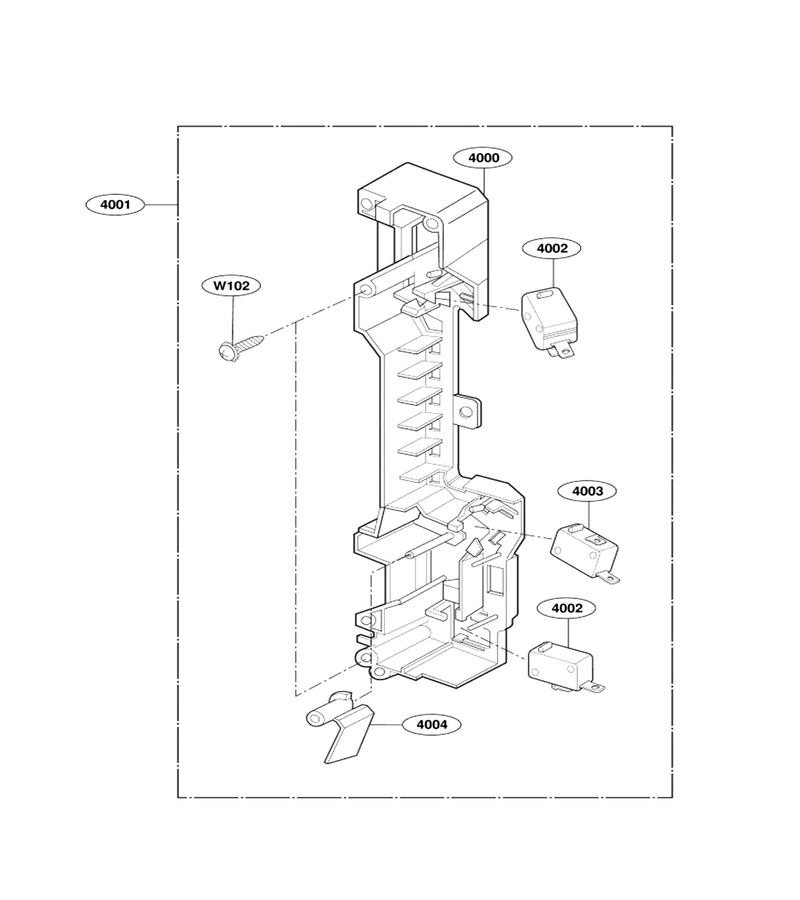

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Latch Body L-G-3500W1A028B
...
4001
Microwave Door Latch Housing And Interlock Swit.. L-G-3501W1A019D
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W3A012C

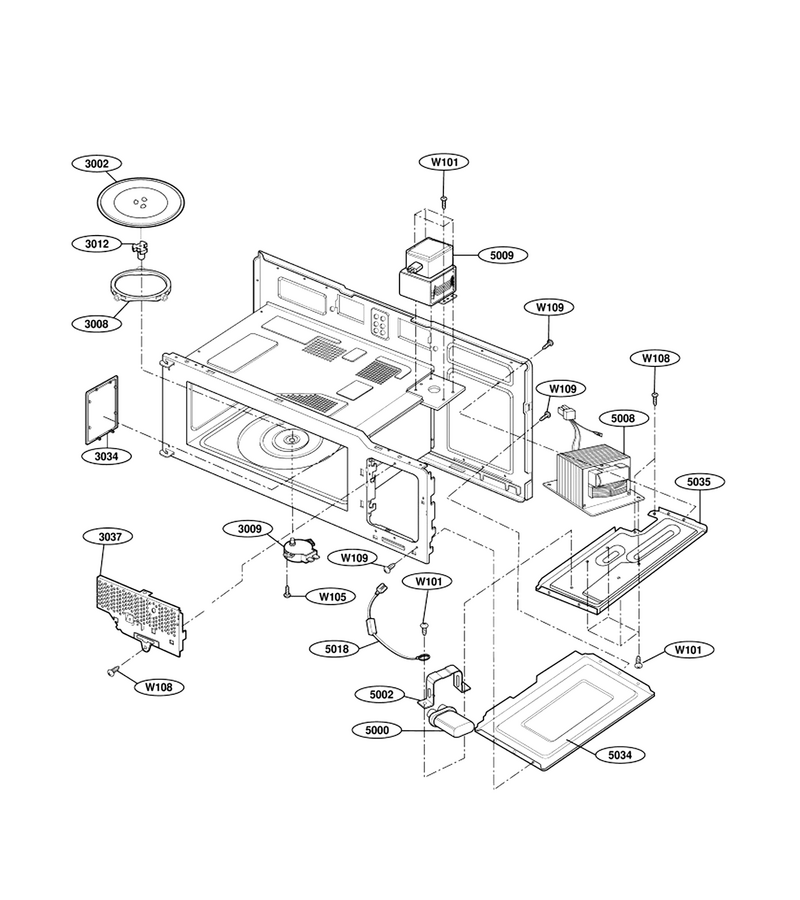

Interior Parts (i)

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W108
Microwave Screw L-G-1TTL0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
3002
Microwave Glass Turntable Tray L-G-1B71961H
...
3008
Microwave Turntable Tray Support L-G-5889W2A012F
...
3009
Microwave Turntable Motor L-G-6549W1S013K
...
3012
Microwave Turntable Motor Couple L-G-4370W1A006B
...
3034
Canopy Resistor L-G-3052W1A002A
...
3037
Protector L-G-3740W1A005E
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket L-G-4810W1A313A
...
5008
Microwave High-Voltage Transformer L-G-6170W1D052R
...
5009
Microwave Magnetron L-G-2B71165R
...
5018
Microwave High-Voltage Diode L-G-6851W1A002B
...
5034
Plate L-G-3300W1A046C
...
5035
Plate L-G-3300W1A045C

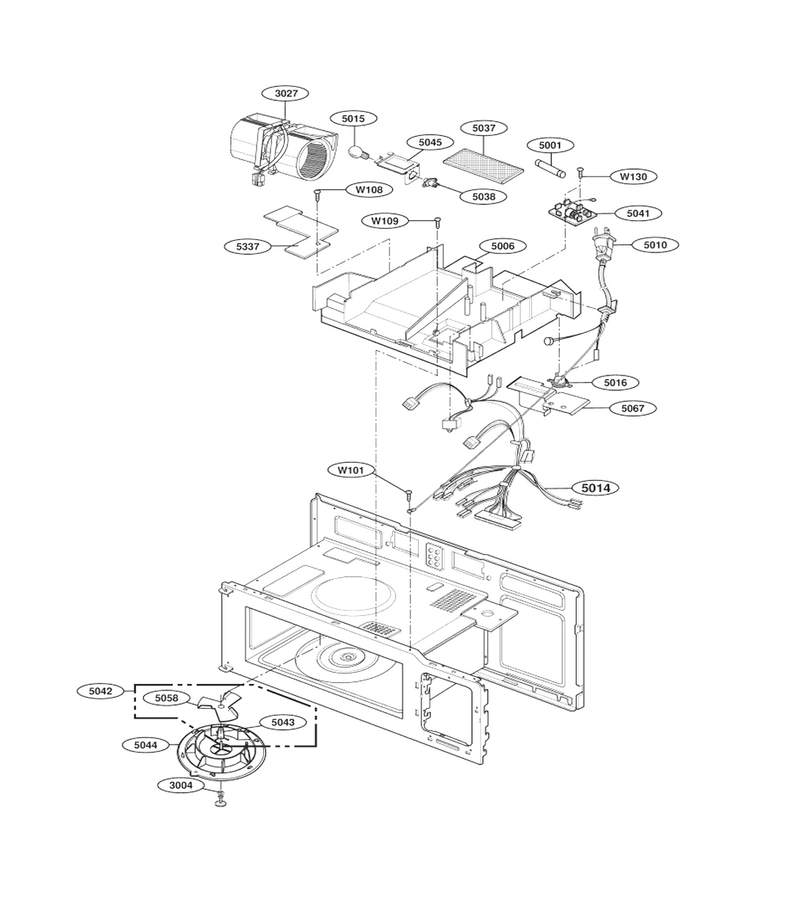

Interior Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W130
Microwave Screw L-G-1TPL0402618
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3027
Motor L-G-6549W1V006P
...
5001
Fuse,drawing L-G-3B74133Q
...
5006
Duct L-G-5208W0A006C
...
5010
Microwave Power Cord L-G-6411W1A019M
...
5014
Microwave Wire Harness L-G-6877W1A597X
...
5015
Microwave Light Bulb L-G-6912W1Z004A
...
5016
Microwave Thermostat L-G-6930W1A003E
...
5038
Microwave Light Socket L-G-6620G00007A
...
5041
Microwave Noise Filter L-G-EAM35001801
...
5042
Microwave Stirrer Fan Blade L-G-5893W3A002D
...
5043
Holder L-G-4930W1A068A
...
5044
Microwave Stirrer Fan Cover L-G-3550W1A126B
...
5045
Microwave Light Socket Bracket L-G-3550W1A189A
...
5058
Microwave Stirrer Fan Blade L-G-5892W1A003A
...
5067
Bracket L-G-4810W1A305B
...
5337
Protector L-G-3740W1A011B

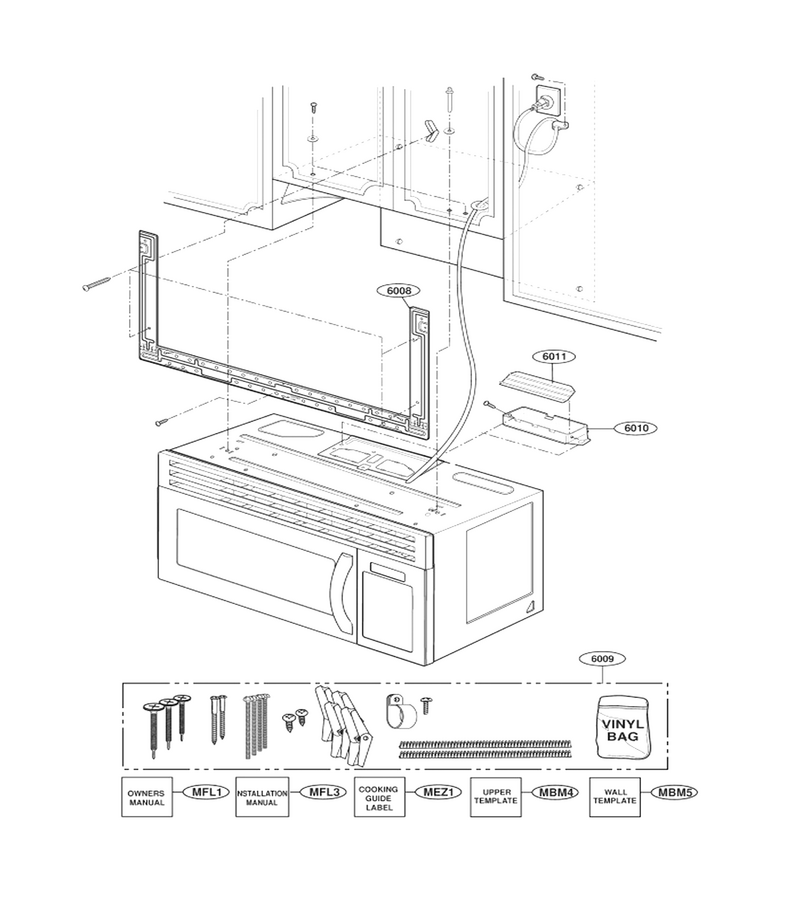

Installation Parts

...
...
MBM4
Template L-G-4922W5A057B
...
MBM5
Microwave Wall Mounting Template L-G-4922W5A060B
...
MEZ1
Label L-G-3850W1D141A
...
MFL1
(mfl3) Manual,installation L-G-3828W5U0514
...
MFL3
Owner's Manual L-G-MFL06317603
...
6008
Microwave Mounting Plate L-G-3300W0A030A
...
6009
Microwave Installation Hardware Kit L-G-3861W1A043A
...
6010
Bracket,misc L-G-4810W1A151A
...
6011
Damper L-G-4900W1A001B
