LG MV1501W.CW1EGSE

Model: MV1501W.CW1EGSE

Save Part Not Listed?
product name

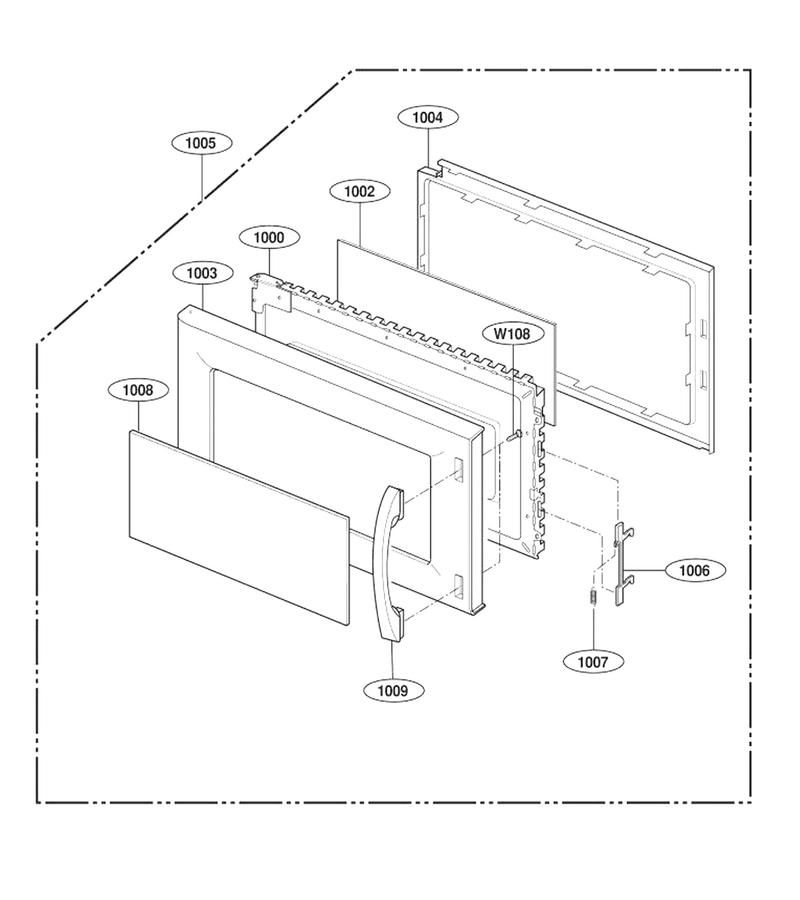

Door Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
1000
Microwave Door Inner Frame L-G-3213W1A049F
...
1002
Microwave Door Film L-G-3536WRA001R
...
1003
Microwave/hood Door Panel L-G-3720W0D311A
...
1004
Cover,choke L-G-3552W1A032J
...
1005
Door Assembly L-G-3581W1A388A
...
1006
Microwave Door Latch L-G-4026W2A019A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Microwave/hood Window L-G-4890W1A044B
...
1009
Microwave Door Handle (white) L-G-3650W1A100A

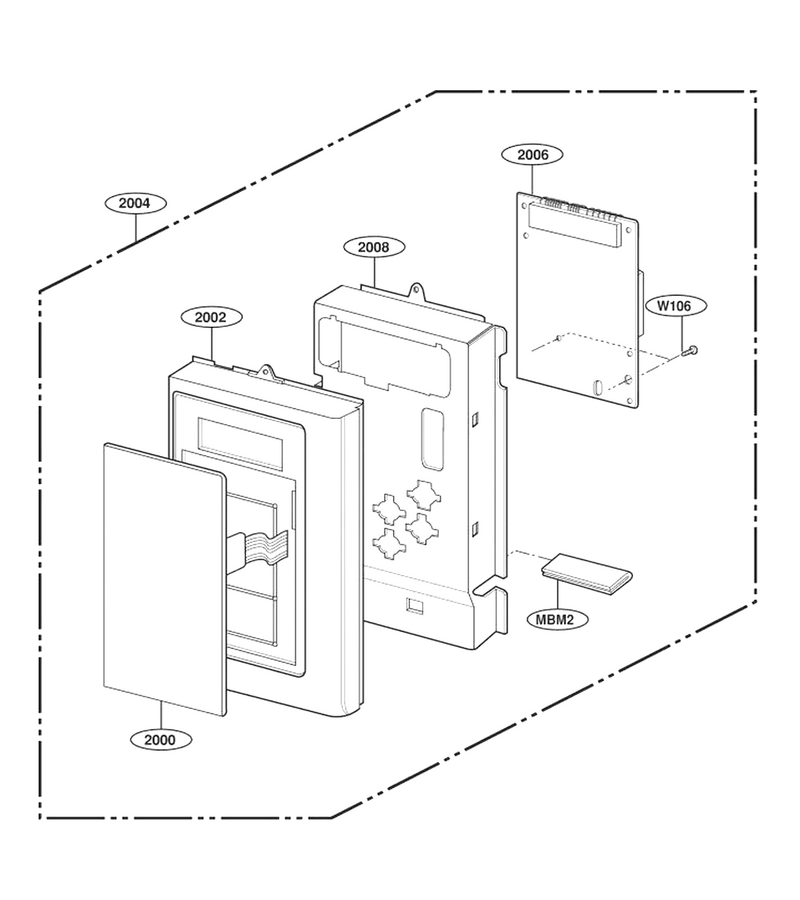

Controller Parts

...
...
W106
Screw L-G-1TPL0402818
...
MBM2
Technical Card L-G-3840W1T012H
...
2000
Key L-G-3506W1A132A
...
2002
Microwave/hood Control Panel L-G-3720W1C016A
...
2004
Controller L-G-4781W1M427Q
...
2006
Board L-G-6871W1S045E
...
2008
Bracket L-G-4810W1A148C

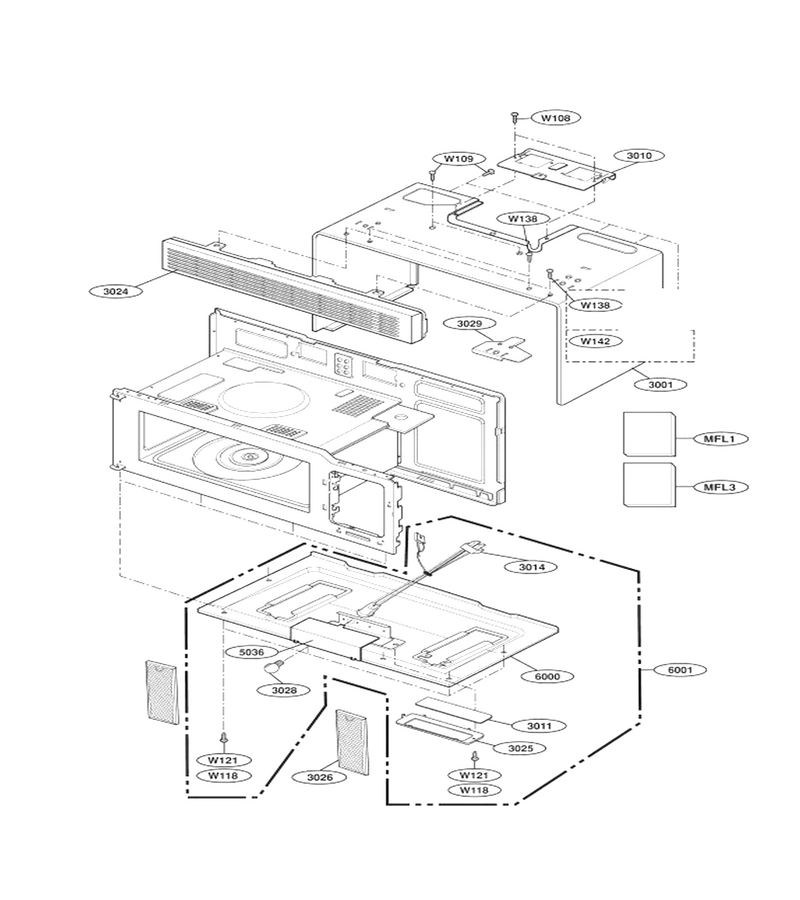

Oven Cavity Parts

...
...
W121
Microwave Screw L-G-1TTL0402422
...
W118
Microwave Screw L-G-1TTG0402422
...
W109
Microwave Screw L-G-1TTL0402818
...
W108
Microwave Screw L-G-1TTL0402418
...
MFL1
Part L-G-3828W5A3202
...
MFL3
Installation Manual L-G-MFL37193001
...
3001
Case, U Bend L-G-3112W0U052U
...
3010
Plate L-G-4960W1A022B
...
3011
Glass L-G-4890W1A045A
...
3014
Harness L-G-6877W1A476A
...
3024
Microwave Vent Grille L-G-3530W0A038A
...
3025
Microwave Light Lens Bracke L-G-4810W1A150C
...
3026
Microwave Grease Filter L-G-5230W1A012C
...
3028
Microwave Light Bulb L-G-6912W1Z004B
...
3029
Microwave Installation Bracket L-G-4810W1A149A
...
5036
Oven Cover L-G-3550W1A190C
...
6000
Base Plate L-G-3302W0A047A
...
6001
Base Plate L-G-3303W1A061A

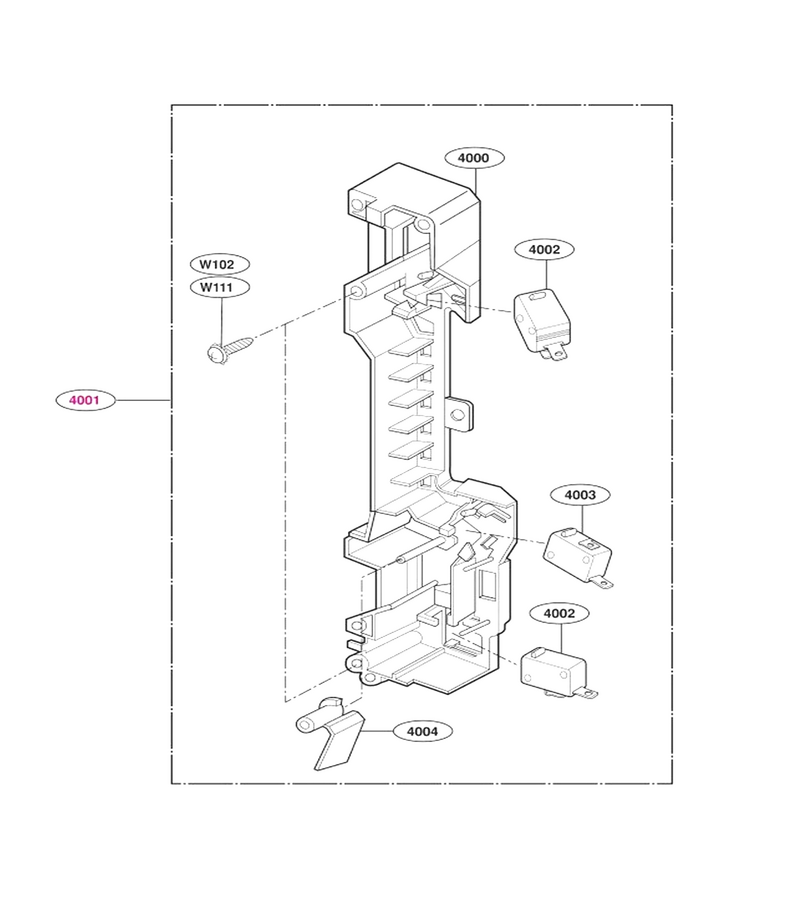

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W111
Screw L-G-4B70188B
...
4000
Microwave Latch Body L-G-3500W1A028B
...
4001
Microwave Latch Body Assembly L-G-3501W1A019C
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W3A012B

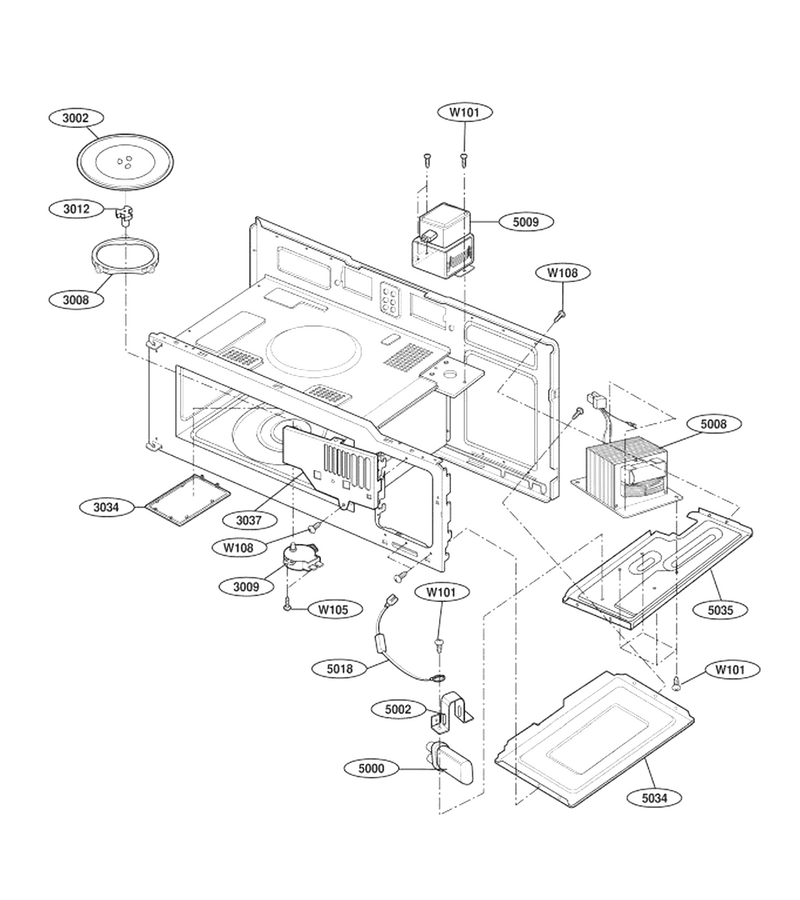

Interior Parts I

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
3002
Microwave Glass Turntable Tray L-G-1B71961H
...
3008
Microwave Turntable Tray Support L-G-5889W1A010B
...
3009
Microwave Turntable Motor L-G-6549W1S017G
...
3012
Microwave Turntable Motor L-G-4370W1A011A
...
3034
Canopy L-G-3052W1A003A
...
3037
Supporter L-G-3740W1A014A
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket,capacitor L-G-4810W1A141A
...
5008
Microwave High-Voltage Transformer L-G-6170W1D052U
...
5009
Microwave Magnetron L-G-6324W1A001A
...
5018
Microwave High-Voltage Diode L-G-6851W1A002B
...
5034
Bottom Plate L-G-3300W1A046A
...
5035
Bottom Plate L-G-3300W1A045B

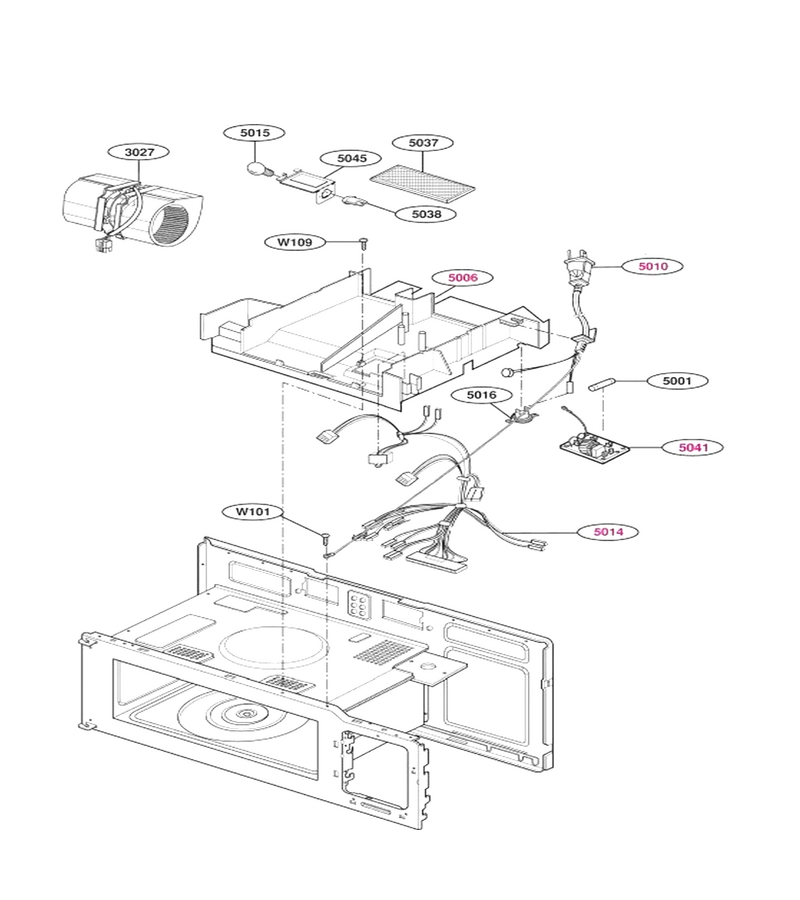

Interior Parts Ii

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
3027
Motor L-G-6549W1V008A
...
5001
Fuse,drawing L-G-3B74133Q
...
5006
Duct L-G-5208W0A010A
...
5010
Ac Cord Assembly L-G-6411W1A010Z
...
5014
Microwave Wire Harness L-G-6877W1A475C
...
5015
Microwave Light Bulb L-G-6912W1Z004A
...
5016
Microwave Thermostat L-G-6930W1A003E
...
5037
Microwave Charcoal Filter L-G-5230W1A011C
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5041
Microwave Noise Filter L-G-EAM35001801
...
5045
Microwave Light Socket Bracket L-G-3550W1A189A

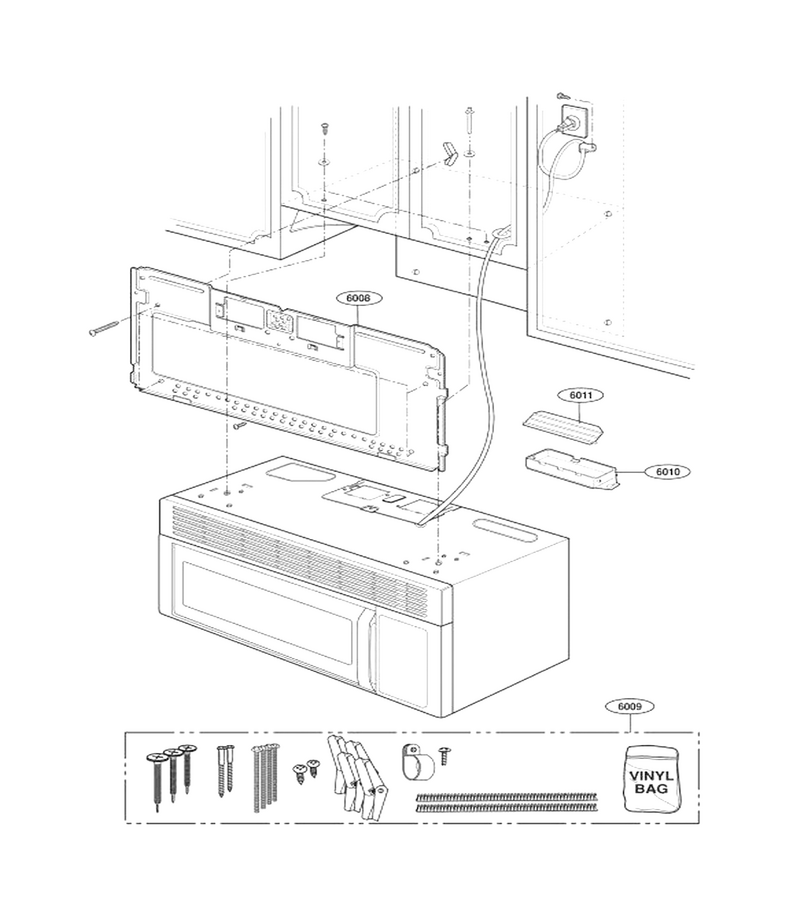

Installation Parts

...
...
6008
Microwave Mounting Plate L-G-3300W0A030A
...
6009
Microwave Installation Hardware Kit L-G-3861W1A043A
...
6010
Bracket,misc L-G-4810W1A151A
...
6011
Damper L-G-4900W1A001B
