product name

LG MV1501BQ.KBSEGSE

Model: MV1501BQ.KBSEGSE

Save Part Not Listed?
product name

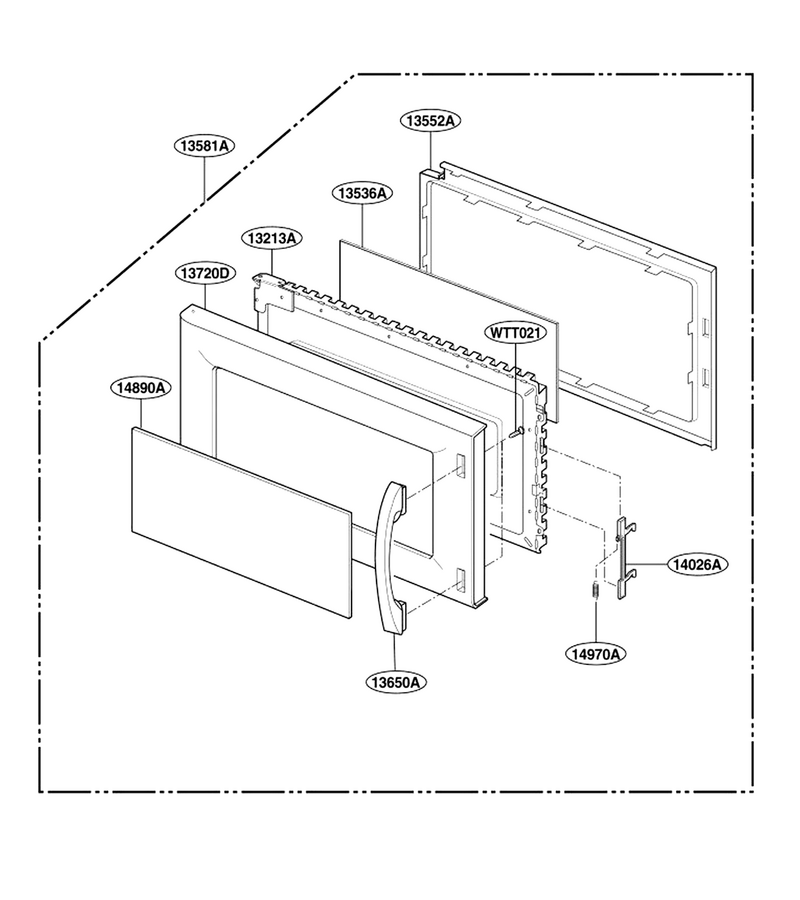

Door Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
13213A
Frame Assembly,door L-G-3213W1A049A
...
13536A
Microwave Door Film L-G-3536WRA001R
...
13552A
Cover,choke L-G-3552W1A063A
...
13581A
Door Assembly L-G-3581W1A388C
...
13650A
Handle,door L-G-3650W1A100C
...
13720D
Panel,door L-G-3720W0D311C
...
14026A
Microwave Door Latch L-G-4026W2A019A
...
14890A
Microwave Door Glass L-G-4890W1A044A
...
14970A
Spring L-G-4970WRA001B

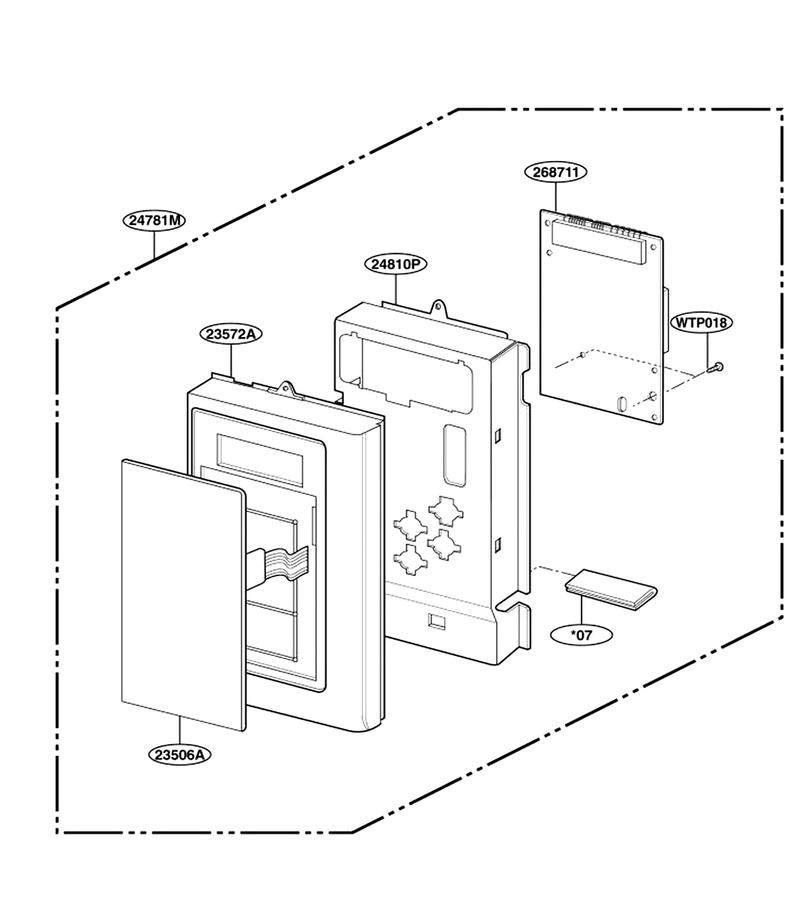

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
*07
Part L-G-3840W1T012A
...
23506A
Membrane L-G-3506W1A132C
...
23572A
Panel,control L-G-3720W1C016C
...
24781M
Controller Assembly,keypad L-G-4781W1M336C
...
24810P
Bracket,control Panel L-G-4810W1A148A
...
268711
Board L-G-6871W1S045E

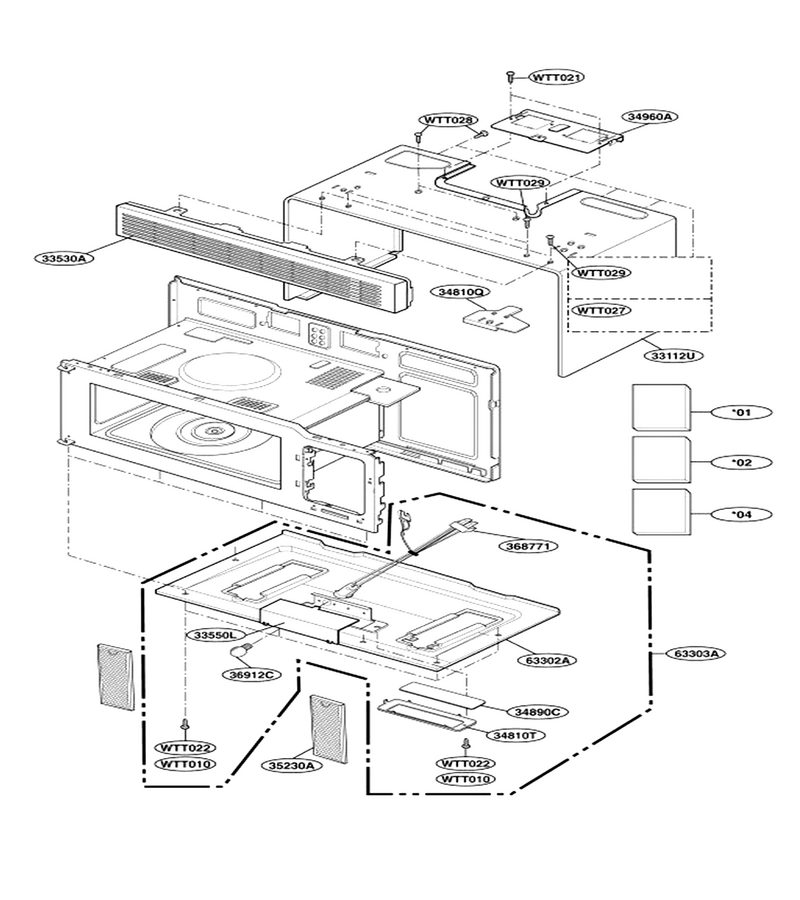

Oven Cavity Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT029
Screw L-G-1TTL0402822
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT022
Microwave Screw L-G-1TTL0402422
...
*04
(*04) Manual,installation L-G-3828W5U0249
...
*02
Manual,service L-G-3828W5S1998
...
*01
Part L-G-3828W5A3202
...
33112U
Case,u Bending L-G-3112W0U052C
...
33530A
Grille,vent L-G-3530W0A038C
...
33550L
Cover,lamp L-G-3550W1A190A
...
34810Q
Microwave Installation Bracket L-G-4810W1A149A
...
34810T
Bracket,lamp L-G-4810W1A150A
...
34890C
Glass L-G-4890W1A045A
...
34960A
Plate L-G-4960W1A021A
...
35230A
Microwave Grease Filter L-G-2B72705B
...
36912C
Lamp,incandescent L-G-6912W3Q001C
...
63302A
Base Plate L-G-3302W0A047A
...
63303A
Base Plate L-G-3303W1A061A
...
368771
Harness L-G-6877W1A476A

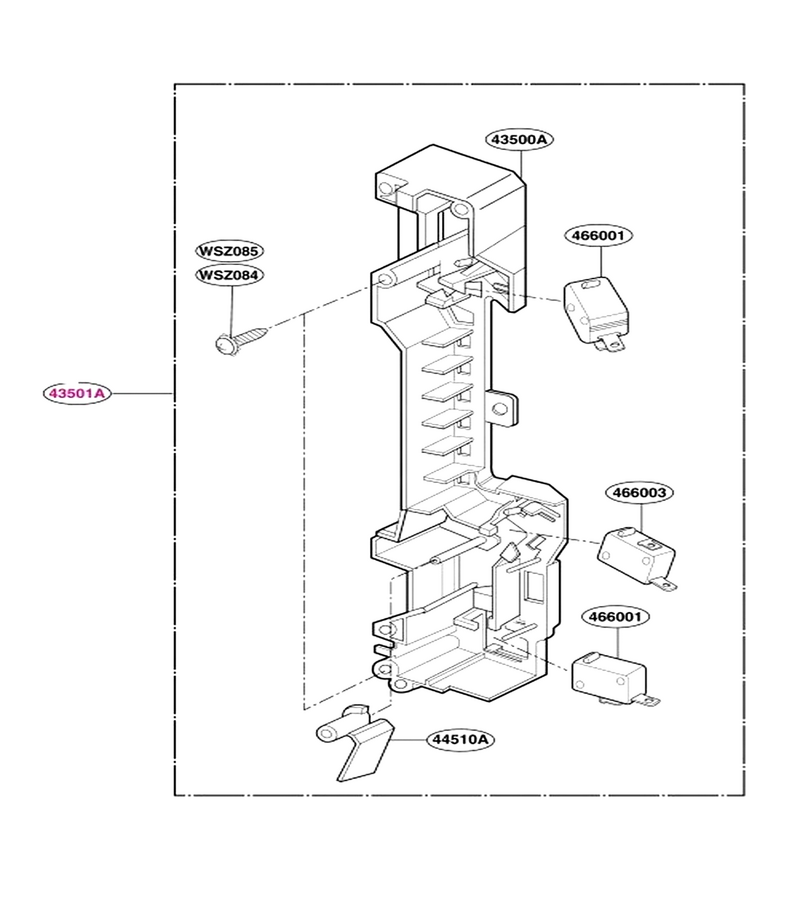

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Holder,locker L-G-3500W1A028A
...
44510A
Lever L-G-4510W3A012B
...
466001
Switch,micro L-G-6600W1K003D
...
466003
Switch,micro L-G-6600W1K003C

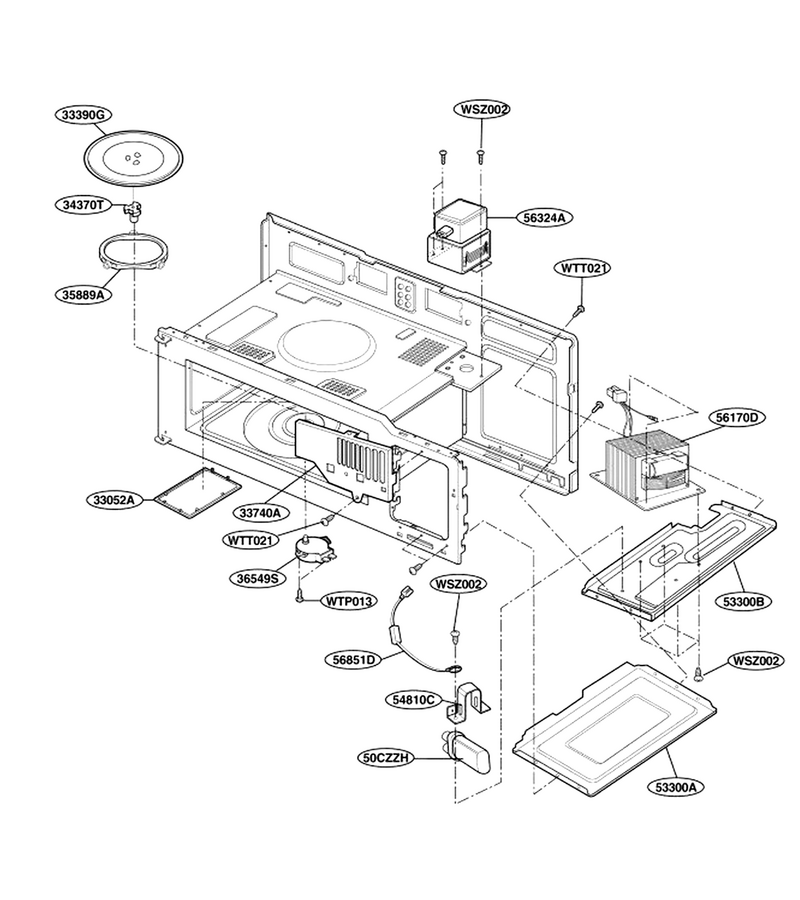

Interior Parts I

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTP013
Microwave Screw L-G-1TPL0402418
...
50CZZH
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
33052A
Canopy L-G-3052W1A003A
...
33390G
Microwave Glass Turntable Tray L-G-1B71961E
...
33740A
Supporter L-G-3740W1A014A
...
34370T
Microwave Turntable Motor L-G-4370W1A011A
...
35889A
Microwave Turntable Tray Support L-G-5889W1A010B
...
36549S
Microwave Turntable Motor L-G-6549W1S017G
...
54810C
Bracket,capacitor L-G-4810W1A141A
...
56170D
Microwave High-Voltage Transformer L-G-6170W1D052B
...
56324A
Microwave Magnetron L-G-6324W1A001A
...
56851D
Cable,assembly L-G-6021W3B001G

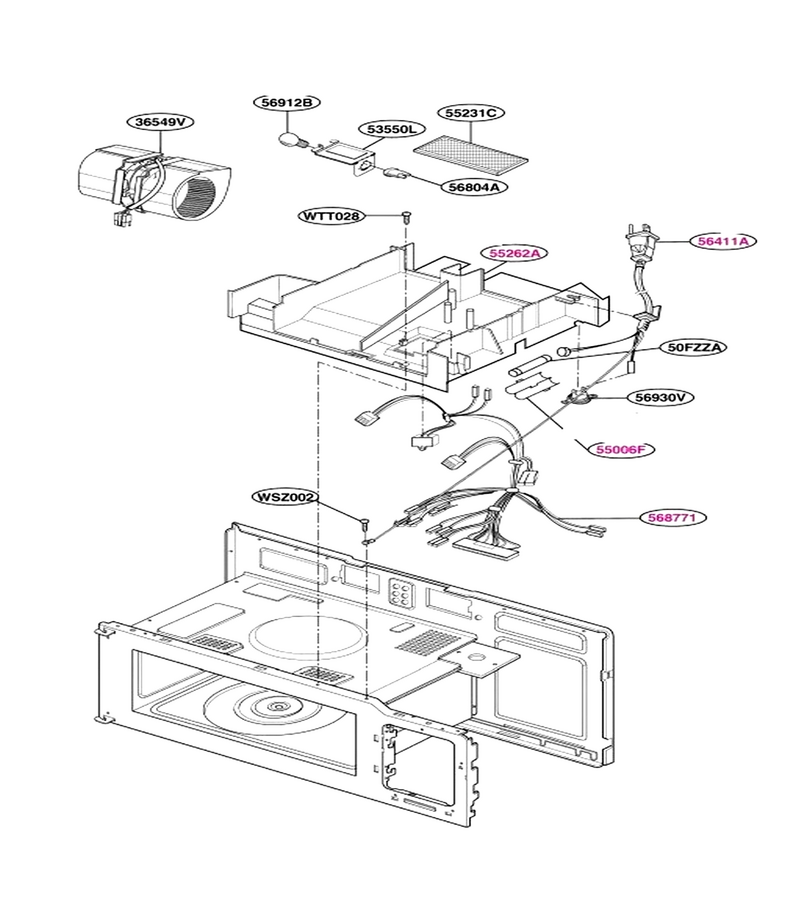

Interior Parts (ii I)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50FZZA
Fuse[all] L-G-3B74133K
...
53550L
Microwave Light Socket Bracket L-G-3550W1A189A
...
55006F
Cap Fuse L-G-5006WRA002D
...
55231C
Microwave Charcoal Filter L-G-2B72706D
...
55262A
Duct L-G-5208W0A010A
...
56411A
Power Cord Assembly L-G-6411W1A010P
...
56804A
Microwave Light Socket L-G-6804W3A001A
...
56912B
Microwave Light Bulb L-G-3B70067A
...
56930V
Microwave Thermostat L-G-6930W1A003E
...
568771
Harness L-G-6877W1A475A

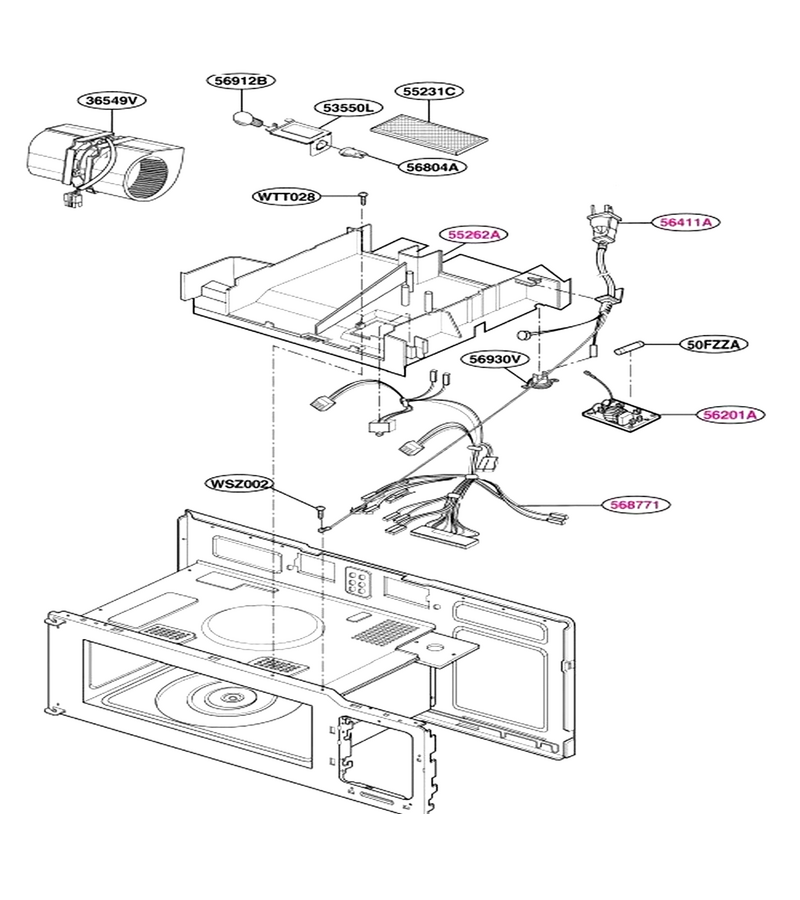

Interior Parts (ii Ii)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50FZZA
Fuse[all] L-G-3B74133K
...
53550L
Microwave Light Socket Bracket L-G-3550W1A189A
...
55231C
Microwave Charcoal Filter L-G-2B72706D
...
55262A
Duct L-G-5208W0A010A
...
56411A
Power Cord Assembly L-G-6411W1A010P
...
56804A
Microwave Light Socket L-G-6804W3A001A
...
56912B
Microwave Light Bulb L-G-3B70067A
...
56930V
Microwave Thermostat L-G-6930W1A003E
...
568771
Harness L-G-6877W1A475A

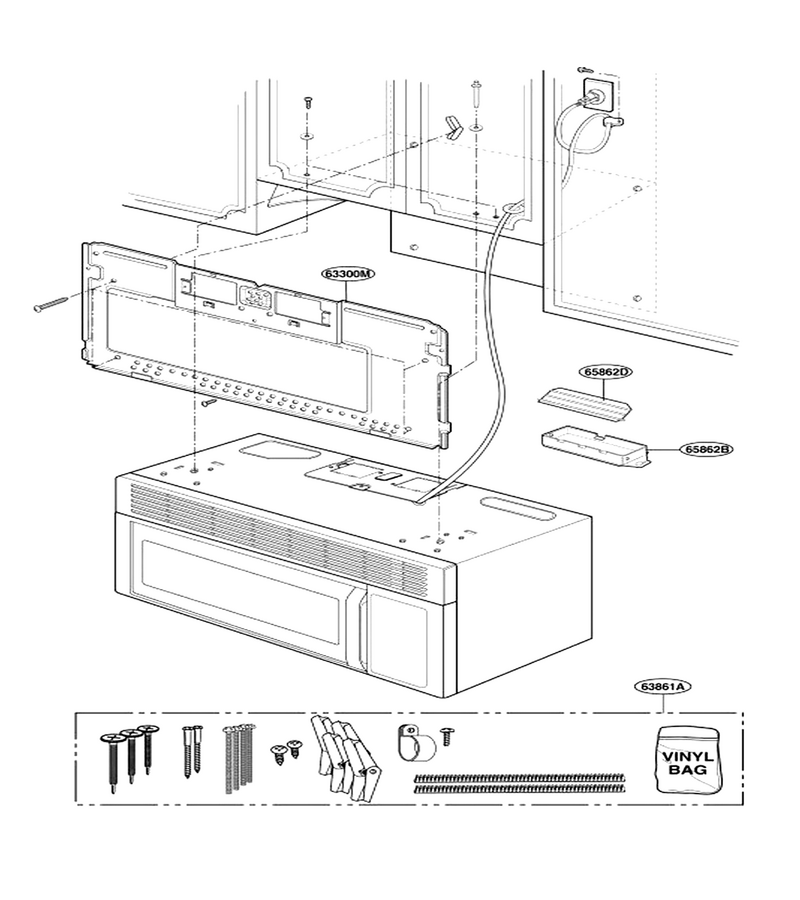

Installation Parts

...
...
63300M
Microwave Mounting Plate L-G-3300W0A018A
...
63861A
Microwave Installation Hardware Kit L-G-3861W1A043A
...
65862B
Bracket,misc L-G-4810W1A151A
...
65862D
Damper L-G-4900W1A001A
