LG MV1501BQ.AB8EGSE

Model: MV1501BQ.AB8EGSE

Save Part Not Listed?
product name

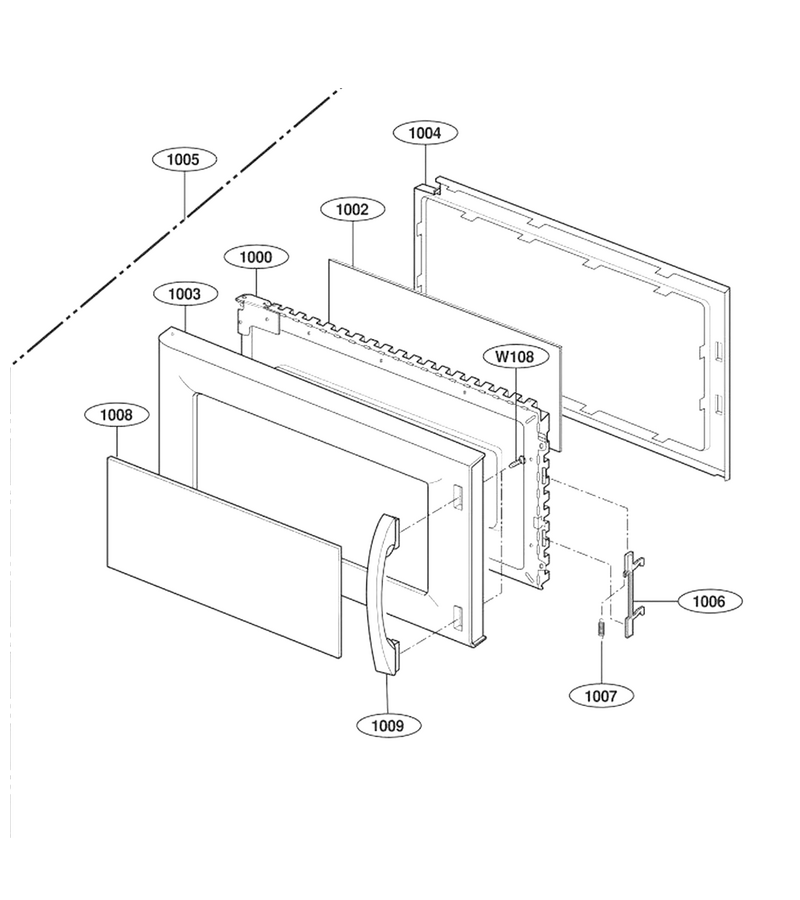

Door Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
1000
Microwave Door Inner Frame L-G-3213W1A035D
...
1002
Microwave Door Film L-G-3536WRA001R
...
1003
Panel,door L-G-3720W0D193L
...
1004
Microwave/hood Cover L-G-3552W1A032B
...
1005
Door Assembly L-G-3581W1A280N
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A054A
...
1009
Handle,door L-G-3650W1A058C

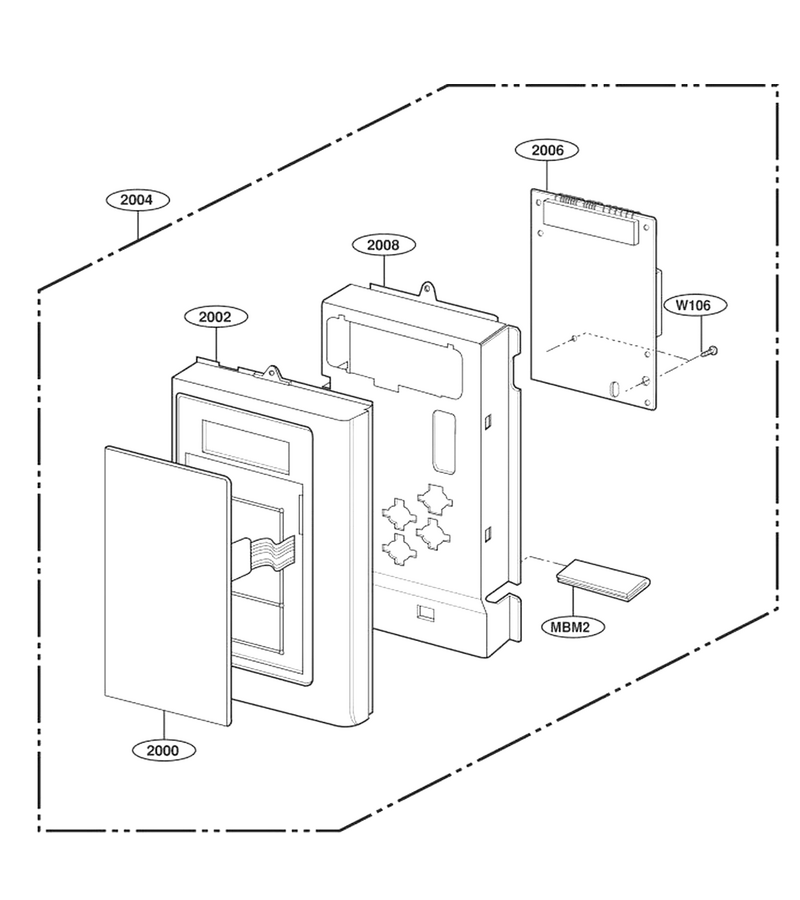

Controller Parts

...
...
W106
Screw L-G-1TPL0402818
...
MBM2
Card,technical L-G-3840W3T001N
...
2000
Membrane L-G-3506W1A132C
...
2002
Panel,control L-G-3572W1A174C
...
2004
Controller Assembly,keypad L-G-4781W1M339D
...
2006
Board L-G-6871W1S045B
...
2008
Bracket L-G-4810W1A017A

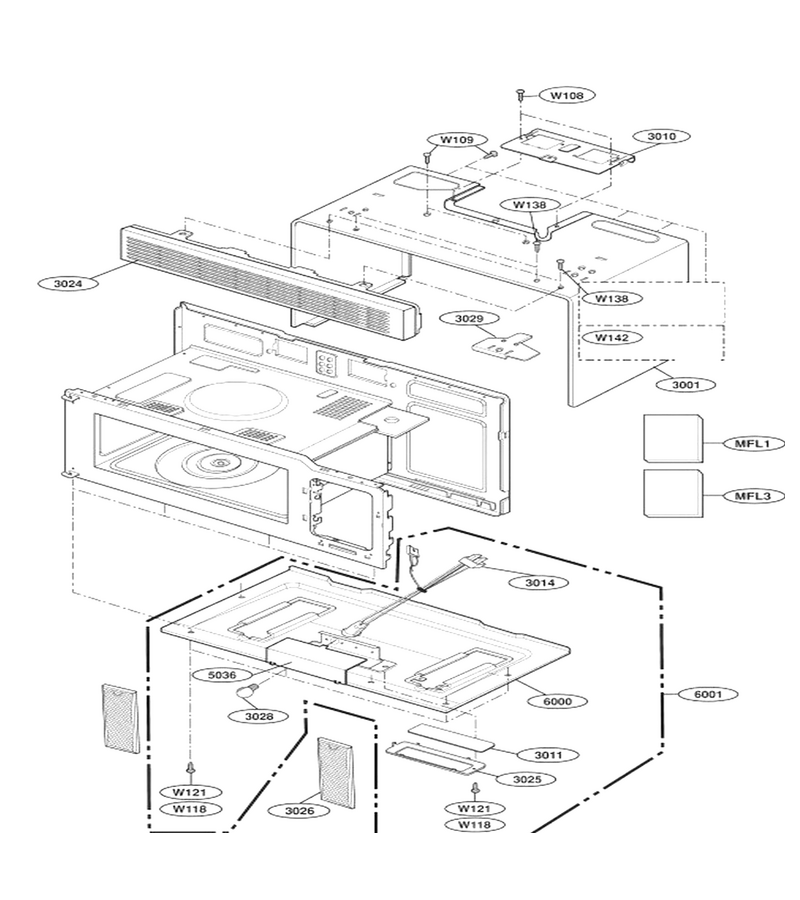

Oven Cavity Parts

...
...
W121
Microwave Screw L-G-1TTL0402422
...
W109
Microwave Screw L-G-1TTL0402818
...
MFL3
Manual,installation L-G-3828W5U0154
...
MFL1
Manual,owners L-G-3828W5A2142
...
W108
Microwave Screw L-G-1TTL0402418
...
3001
Flat Case L-G-3112W1F042F
...
3010
Microwave Vent Duct Cover L-G-4960W1A004B
...
3011
Oven Glass L-G-4890W4A001B
...
3014
Microwave Wire Harness L-G-6877W1A340A
...
3024
Grille,vent L-G-3530W0A018C
...
3025
Microwave Light Lens Bracket L-G-4810W3G100A
...
3026
Microwave Grease Filter L-G-2B72705B
...
3028
Microwave Light Bulb L-G-6912W3Q001A
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
5036
Cover L-G-3550W3A095A
...
6000
Base Plate L-G-3302W0A013H
...
6001
Base Plate L-G-3303W1A041N

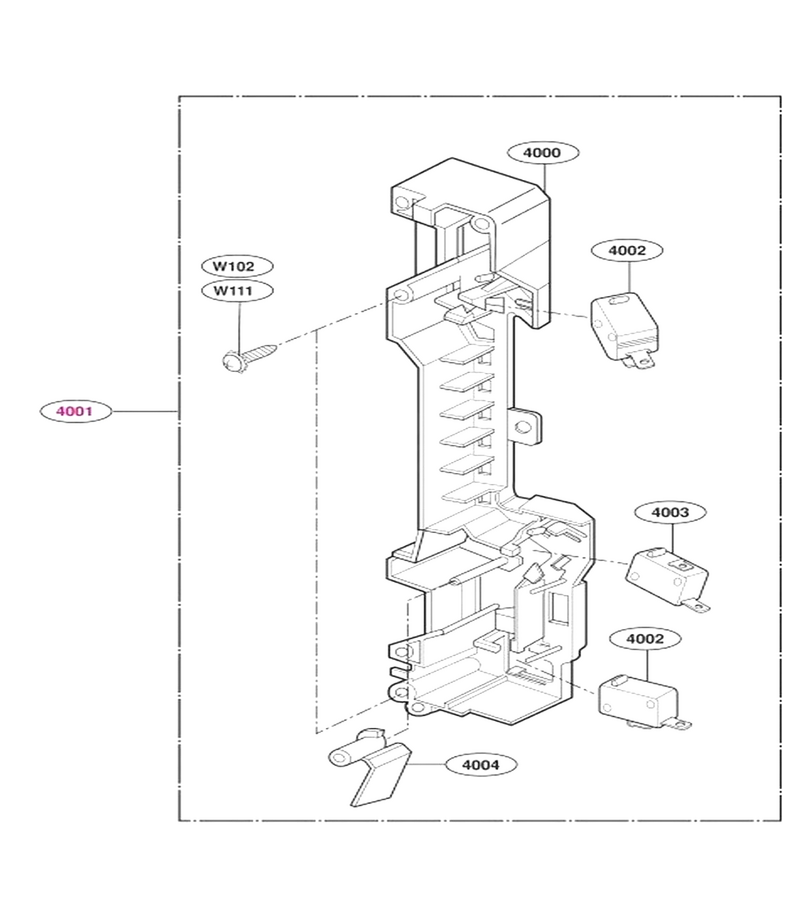

Latch Board Parts

...
...
W111
Screw L-G-4B70188B
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Microwave Latch Body Assembly L-G-3501W1A019C
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-3B73361D
...
4004
Lever L-G-4510W4A005A

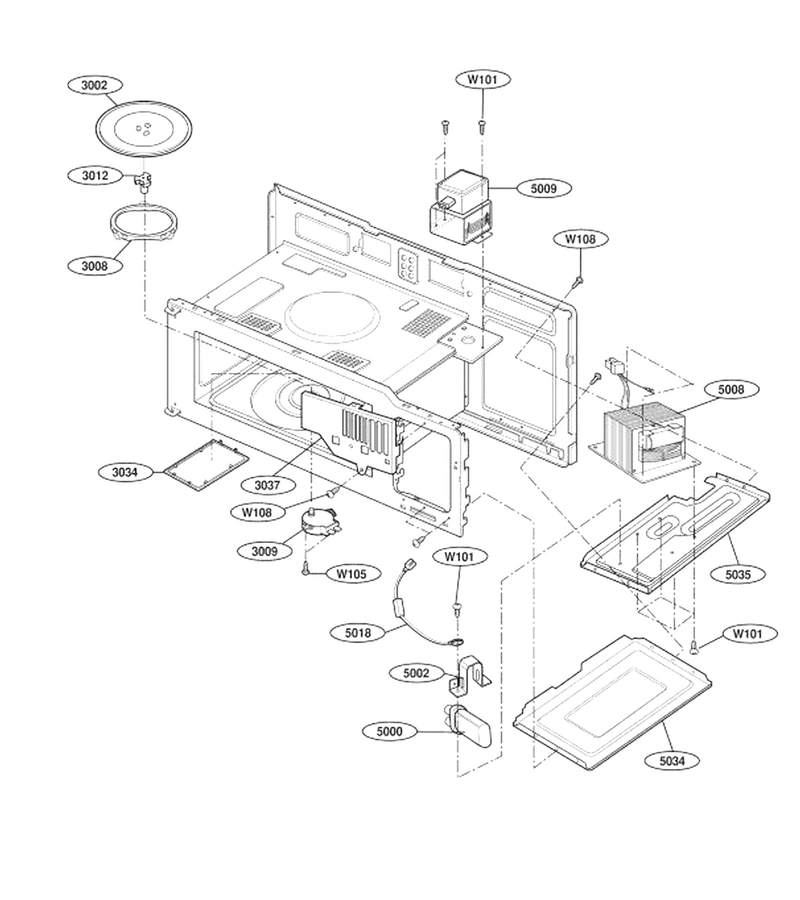

Interior Parts I

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
3002
Microwave Glass Turntable Tray L-G-1B71961E
...
3008
Turntable Assembly L-G-5889W2A012C
...
3009
Microwave Turntable Motor L-G-2B72754E
...
3012
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
3034
Canopy L-G-3052W3A016A
...
3037
Protector L-G-3740W1A005A
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket L-G-4810W3C002A
...
5008
Microwave High-Voltage Transforme L-G-6170W1D051A
...
5009
Microwave Magnetron L-G-6324W1A001A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001A
...
5034
Plate L-G-3300W1A003A
...
5035
Plate L-G-3300W1A052A

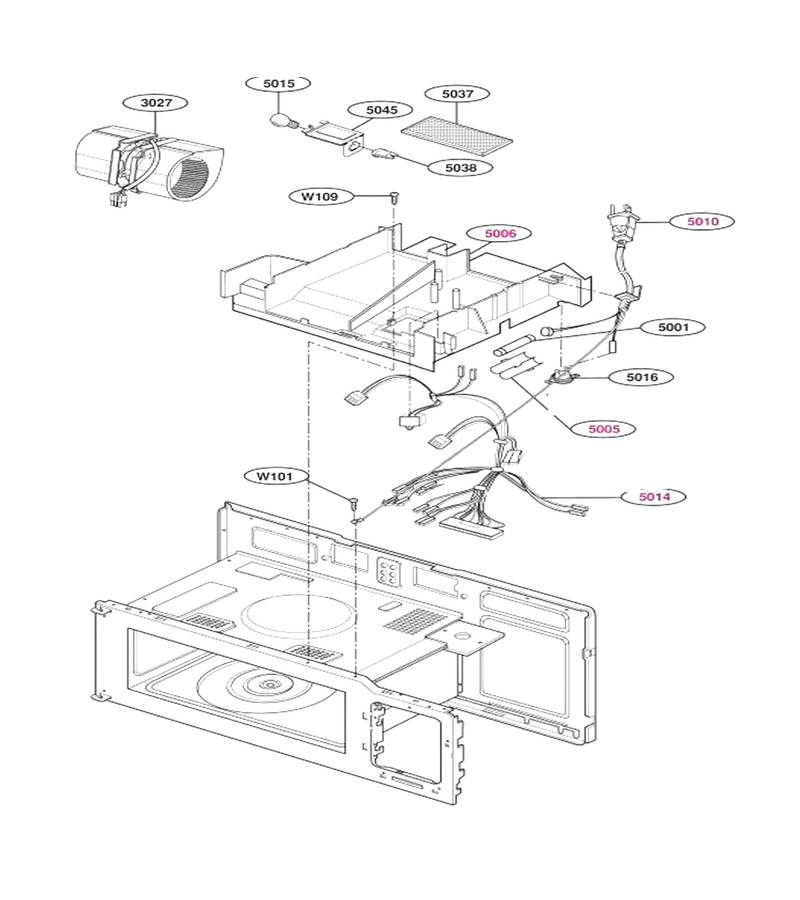

Interior Parts Ii

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
3027
Microwave Vent Motor Assembly L-G-6549W1V006C
...
5001
Fuse[all] L-G-3B74133K
...
5005
Fuse Cap L-G-5006WRA002A
...
5006
Duct L-G-5208W0A005A
...
5010
Ac Power Cord Assembly L-G-6411W1A010F
...
5014
Harness L-G-6877W1A327A
...
5015
Microwave Light Bulb L-G-3B70067A
...
5016
Microwave Thermostat L-G-6930W1A003E
...
5037
Microwave Charcoal Filter L-G-2B72706D
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5045
Oven Cover L-G-3550W3A082A

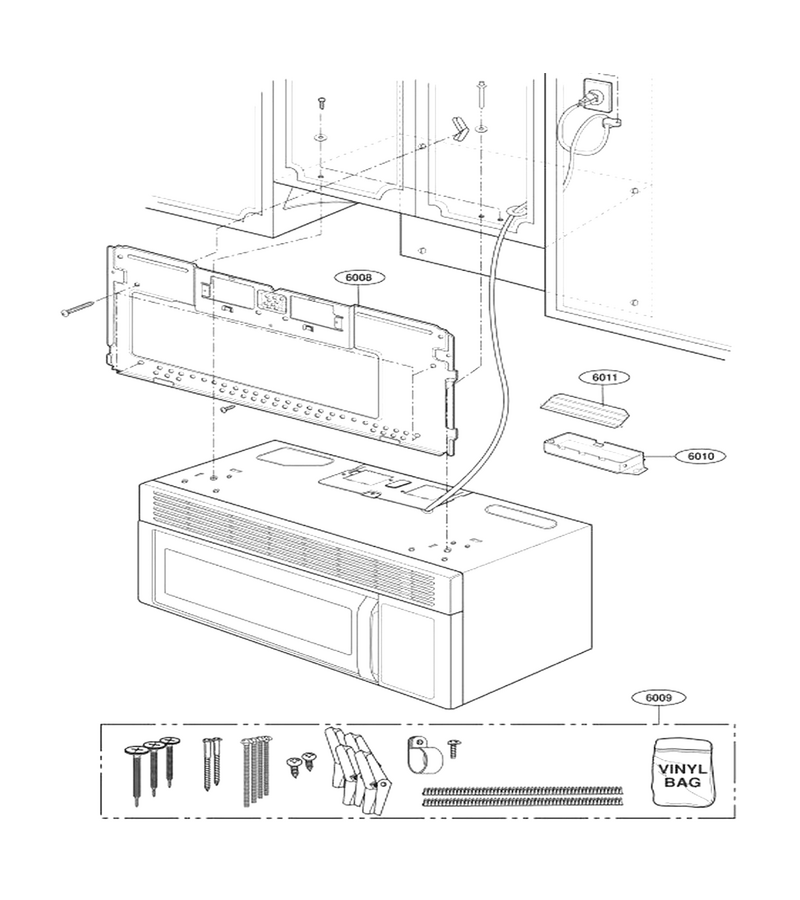

Installation Parts

...
...
6008
Mounting Plate L-G-3300W0M003A
...
6009
Microwave Hardware Assembly Kit L-G-2B72771A
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
