product name

LG MV-1515W.WHEGSE

Model: MV-1515W.WHEGSE

Save Part Not Listed?

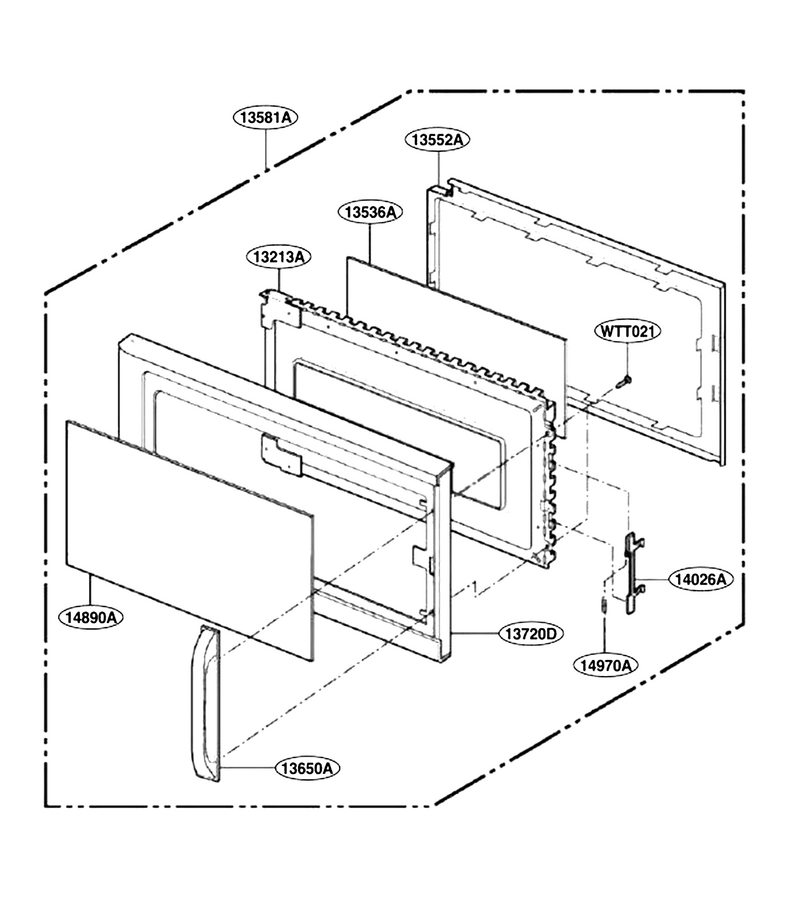

product name

Door Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
13213A
Oven Door Frame L-G-3213W1A035C
...
13536A
Microwave Door Film L-G-3536WRA001R
...
13552A
Microwave/hood Cover L-G-3552W1A032B
...
13581A
Door Assembly L-G-3581W1A160C
...
13650A
Handle,mwo L-G-3650W1A026A
...
13720D
Door Panel L-G-3720W0D107A
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14890A
Out Door Glass L-G-4890W1D042A
...
14970A
Microwave Door Latch Spring L-G-4970WRA001E

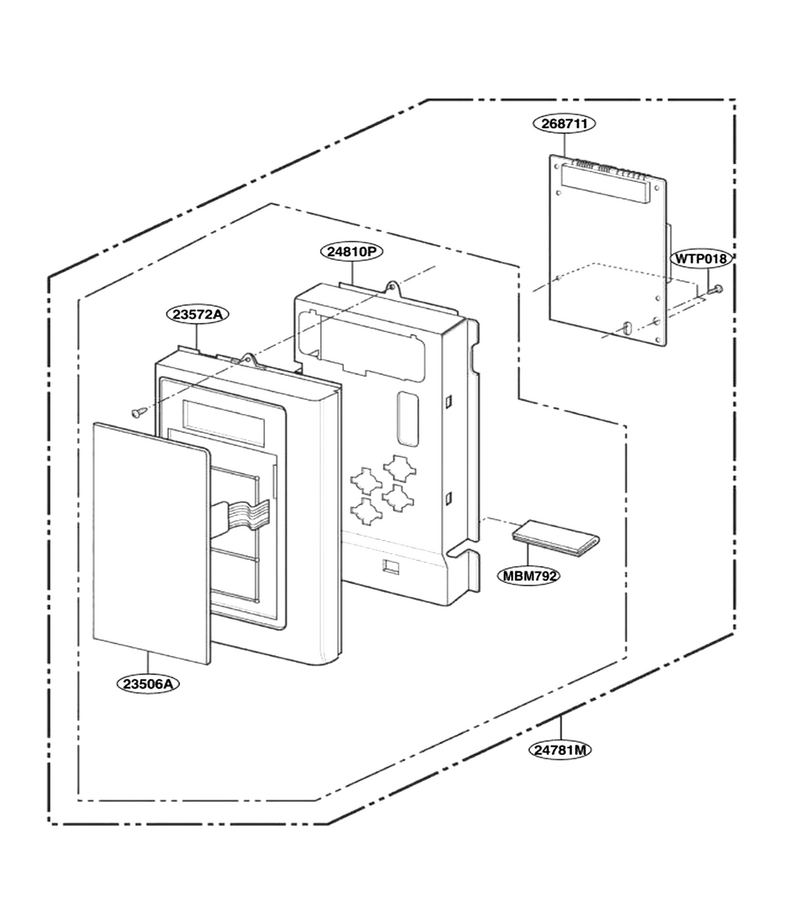

Controller Parts

...
...
MBM792
Card,technical L-G-3858W3T015L
...
WTP018
Screw L-G-1TPL0402818
...
23506A
Touch Pad L-G-6638W2A219A
...
23572A
Control Panel L-G-3572W1A141A
...
24781M
Control L-G-4781W1M129C
...
24810P
"bracket,mw" L-G-4810W1G061A
...
268711
Part L-G-6871W2S143A

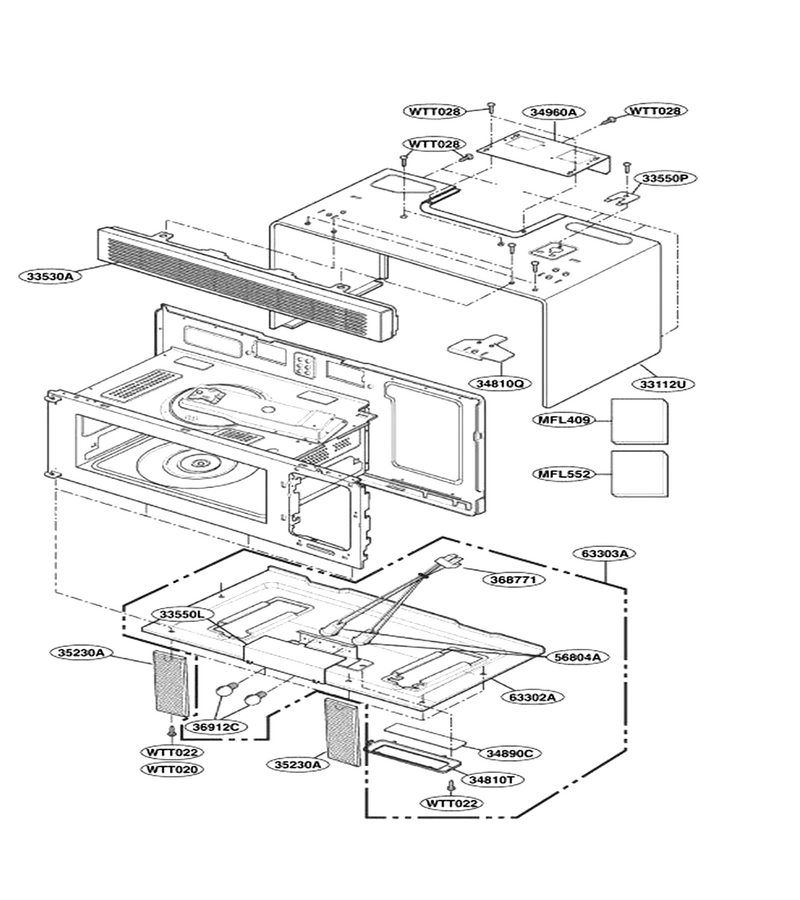

Oven Cavity Parts

...
...
MFL409
Manual,installation L-G-3828W5U0036
...
MFL552
Manual,owners L-G-3828W5A1041
...
WTT022
Microwave Screw L-G-1TTL0402422
...
33112U
Outside Cabinet L-G-3112W1U016E
...
33530A
Microwave Vent Grille L-G-3530W0A003A
...
33550P
Microwave Power Cord Cover L-G-3550W3A084A
...
33550L
Cover L-G-3550W3A095A
...
34810Q
Microwave Wall Mounting Plate L-G-4810W3G062A
...
34810T
Microwave Light Lens Bracket L-G-4810W3G100A
...
34890C
Oven Glass L-G-4890W4A001B
...
34960A
Microwave Mounting Plate L-G-4960W2G022B
...
35230A
Microwave Grease Filter L-G-2B72705B
...
36912C
Microwave Light Bulb L-G-6912W3Q001A
...
56804A
Microwave Light Socket L-G-6804W3A001A
...
63303A
Plate Assembly,base L-G-3303W1A041C
...
368771
Lead Wire L-G-6877W3S001A

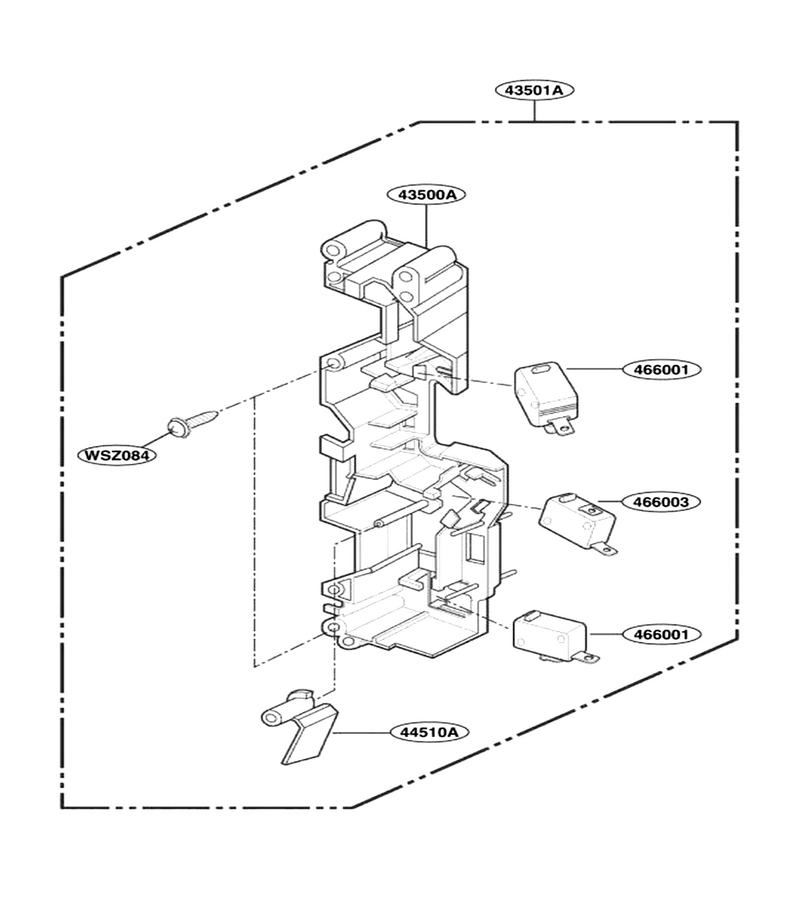

Latch Board Parts

...
...
WSZ084
Screw L-G-4B70188B
...
43500A
Microwave Door Latch Holder L-G-3500W1A013A
...
43501A
Microwave Latch Body Assembly L-G-3501W1A019C
...
44510A
Lever L-G-4510W4A005A
...
466001
Microwave Micro Switch L-G-6600W1K004C
...
466003
Microwave Door Interlock Switch L-G-6600W1K004B

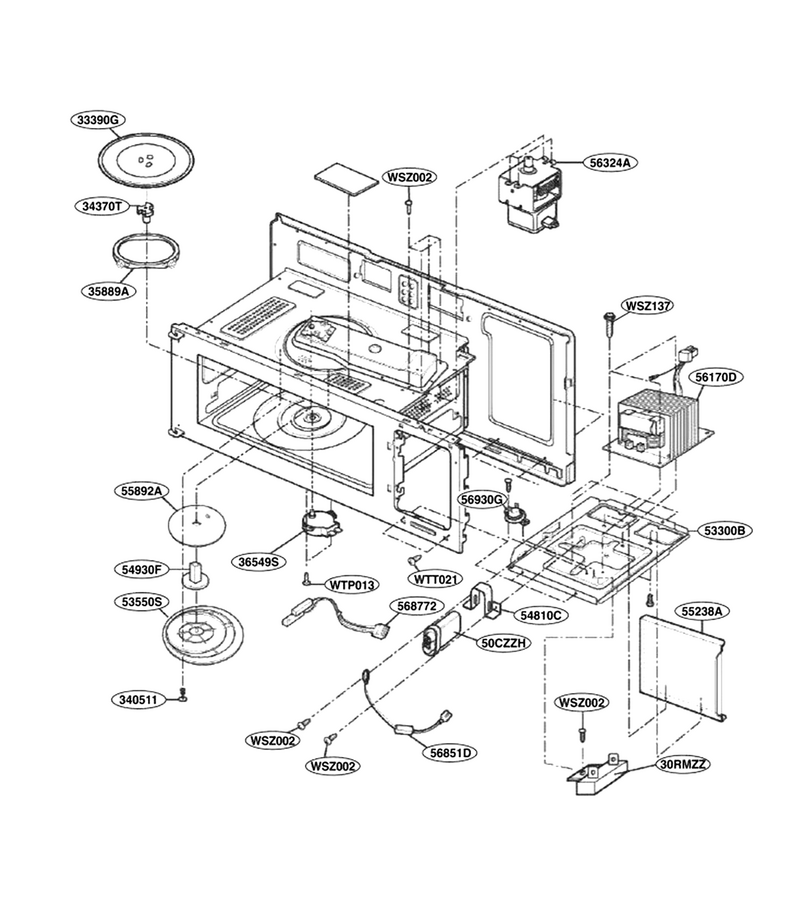

Interior Parts (i)

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WSZ137
Screw L-G-4B73763A
...
WSZ002
Microwave High-Voltage Diode L-G-6021W3B001M
...
30RMZZ
Resistor Cement L-G-3B72552D
...
50CZZH
Capacitor,high Voltage L-G-6120WRH001G
...
33390G
Microwave Glass Turntable Tray L-G-1B71961E
...
34370T
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
35889A
Ring Assembly L-G-5889W2A012A
...
36549S
Motor, Ac Synchronous L-G-6549WRS001N
...
53300B
Plate L-G-3300W1G081A
...
53550S
Stirrer Cover L-G-3550W1A077A
...
54810C
Bracket L-G-4810W3C002A
...
54930F
Fuse Cap L-G-5006WRA002A
...
55238A
Air Guide L-G-4974W1G038A
...
55892A
Fan L-G-5892W3A004A
...
56170D
Transformer L-G-6170W1D002B
...
56324A
Magnetron L-G-6324W1A001D
...
56851D
Ac Power Cord Assembly L-G-6411W1A014N
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
568772
Connector L-G-6877W2S002C

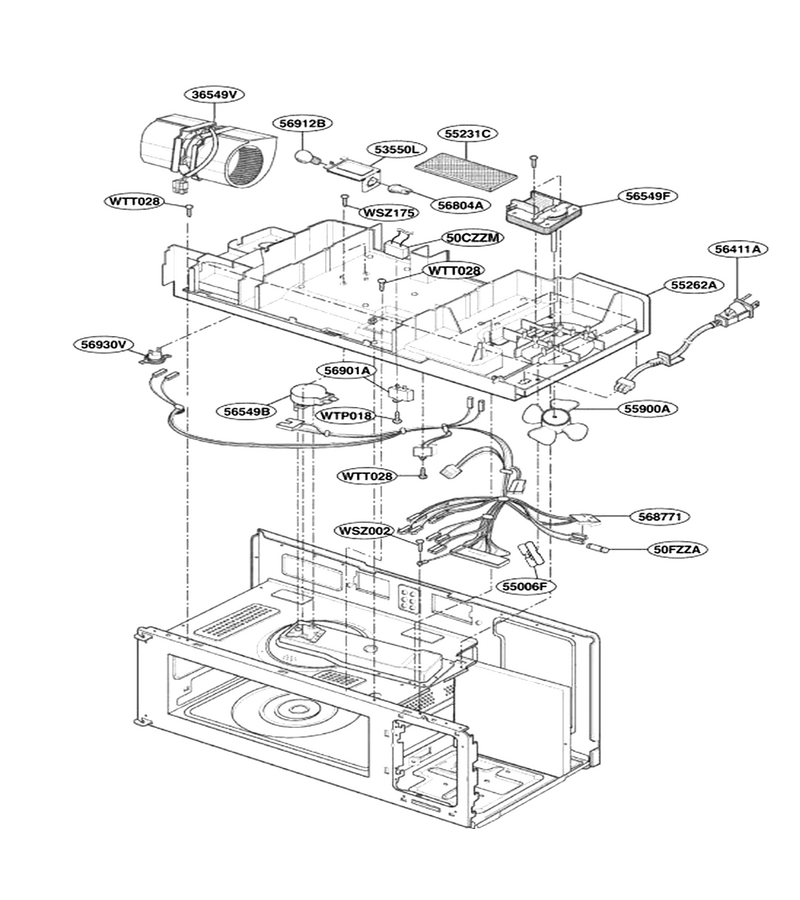

Interior Parts (ii)

...
...
WTP018
Screw L-G-1TPL0402818
...
WSZ175
Special Screw L-G-4E55432A
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50CZZM
Capacitor L-G-3B72440D
...
50FZZA
Fuse[all] L-G-3B74133K
...
36549V
Circulating Motor L-G-6549W1V001J
...
53550L
Oven Cover L-G-3550W3A082A
...
55006F
Fuse Cap L-G-5006WRA002A
...
55231C
Microwave/hood Charcoal Filter Assembly L-G-2B72706C
...
55262A
Air Duct,m L-G-5262W0A008A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56411A
Power Cord L-G-6411W2A002E
...
56549B
Motor, Ac Synchronous L-G-6549WRS001K
...
56549F
Motor L-G-6549W2F016D
...
56804A
Microwave Light Socket L-G-6804W3A001A
...
56901A
Microwave High-Voltage Diode L-G-6021W3B001M
...
56912B
Microwave Light Bulb L-G-3B70067A
...
56930V
Thermostat L-G-6930W1A003M
...
568771
Lead Wire L-G-6877W1A129A

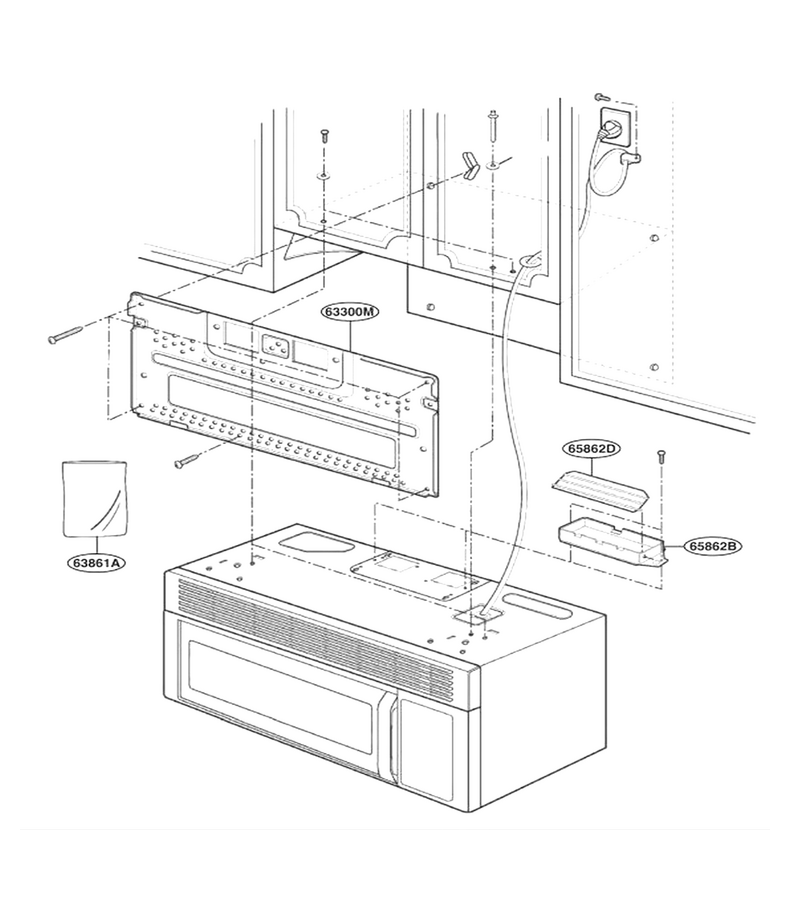

Installation Parts

...
...
63300M
Plate L-G-3300W0G039A
...
63861A
Microwave Hardware Assembly Kit L-G-2B72771A
...
65862B
Microwave Exhaust Damper Bracket L-G-3B72144A
...
65862D
Microwave Vent Damper Door L-G-3B71432A
