product name

LG MV-1304W.WHEGSE

Model: MV-1304W.WHEGSE

Save Part Not Listed?
product name

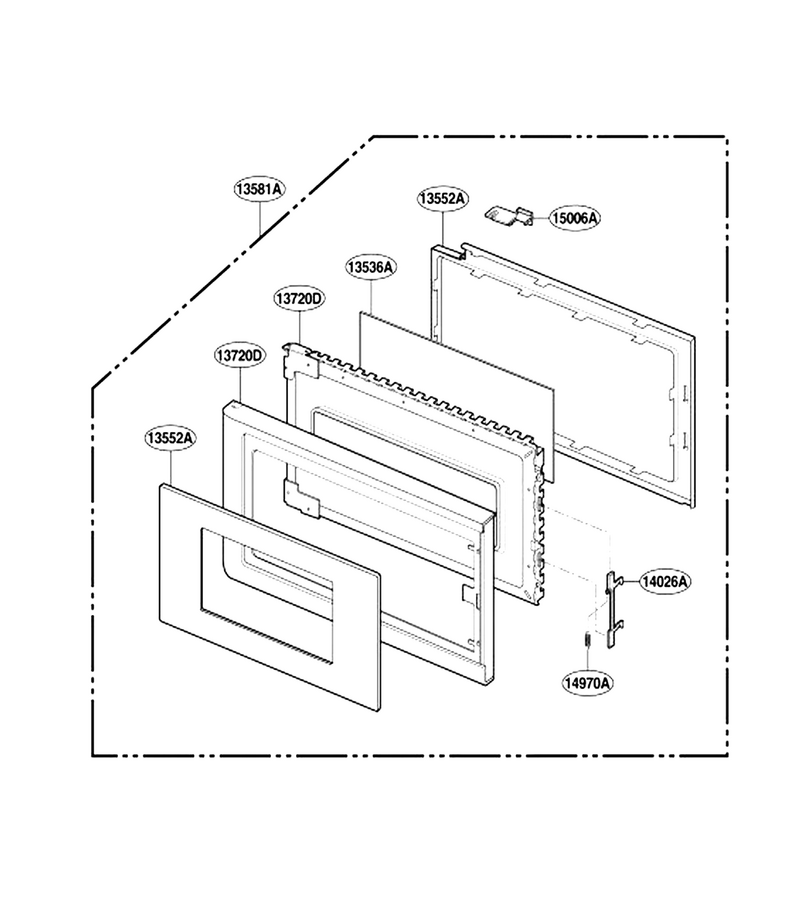

Door Parts

...
...
13536A
Seal Tape L-G-3536WRA001M
...
13552A
Cover L-G-3552W1A028A
...
13581A
Door Assembly L-G-3581W1A220C
...
13720D
Door Panel L-G-3720W0D156A
...
14026A
Latch L-G-4026W2A012A
...
14970A
Spring L-G-4970WRA001C
...
15006A
Cap L-G-5006W3A010A

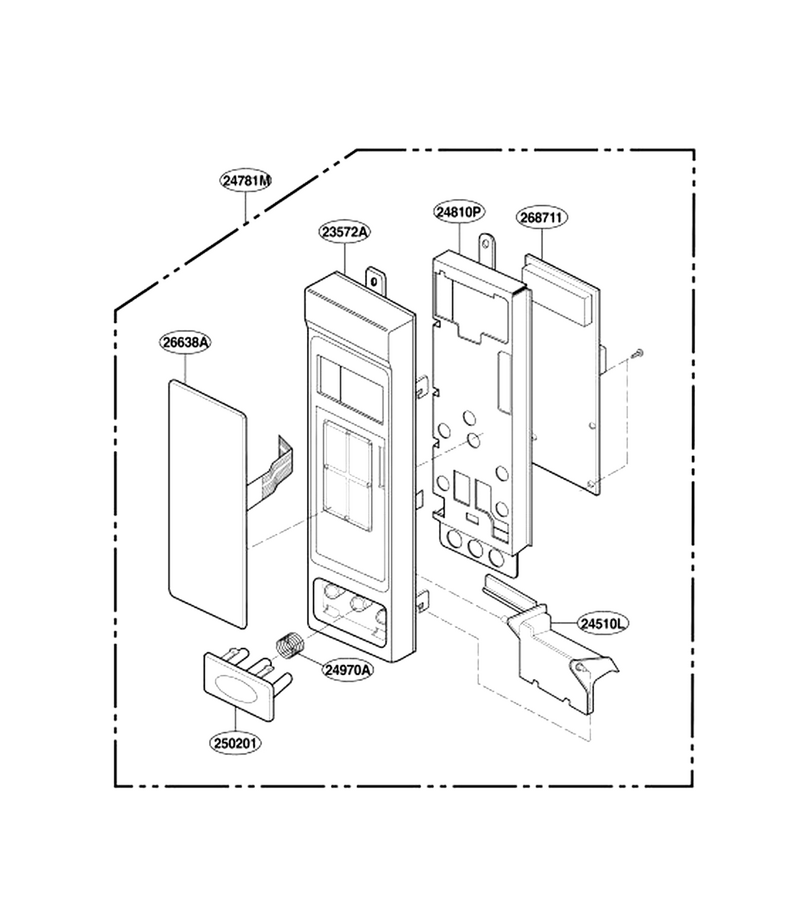

Controller Parts

...
...
23572A
Control Panel L-G-3572W0A182A
...
24510L
Lever L-G-4510W3L002A
...
24781M
Controller Assembly,keypad L-G-4781W1M221C
...
24810P
Control Panel Bracket L-G-4810W1P004A
...
24970A
Microwave Door Release Button Spring L-G-4B72023A
...
26638A
Membrane L-G-6638W2A377A
...
250201
Push Button L-G-5020W2A134A
...
268711
Microwave Electronic Control Board L-G-6871W2S152A

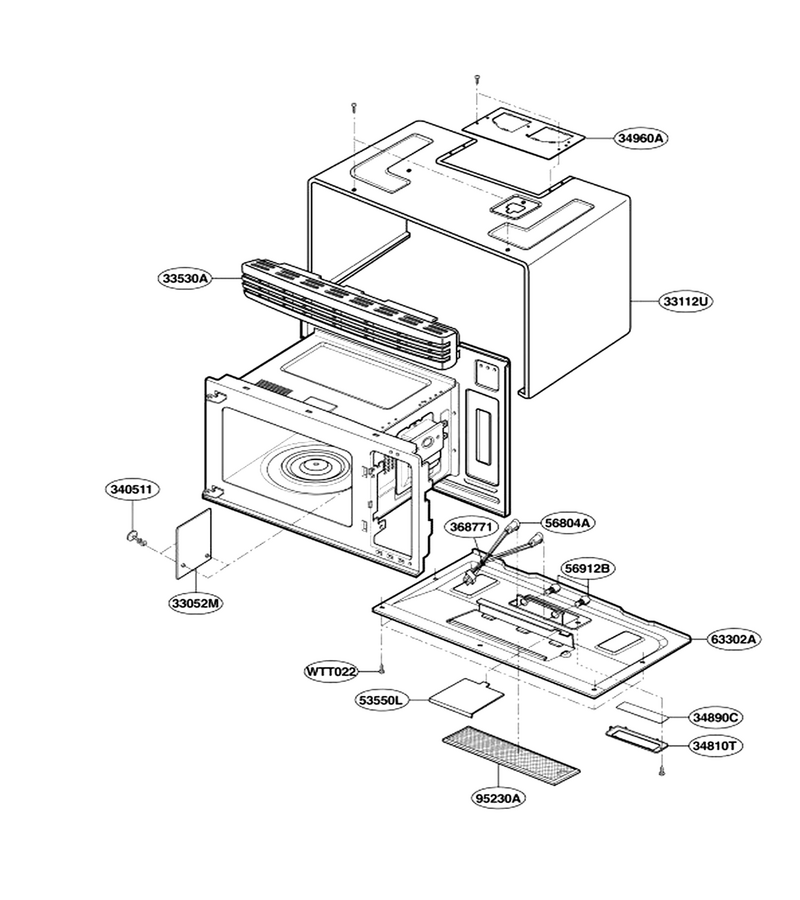

Oven Cavity Parts

...
...
WTT022
Microwave Screw L-G-1TTL0402422
...
33112U
Case,u Bending L-G-3112W0U037D
...
33530A
Grille,vent L-G-3530W0A013A
...
34810T
Microwave Light Lens Bracket L-G-4810W3G100A
...
34890C
Window,glass L-G-4890W4A001G
...
34960A
Mount L-G-4960W2G022A
...
53550L
Lamp Cover L-G-3550W3L002A
...
56804A
Microwave Light Socket L-G-6804W3A001A
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
63302A
Base Plate L-G-3302W0A023B
...
95230A
Microwave Grease Filter L-G-5230W2A001A
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
368771
Single Harness L-G-6877W2A003A

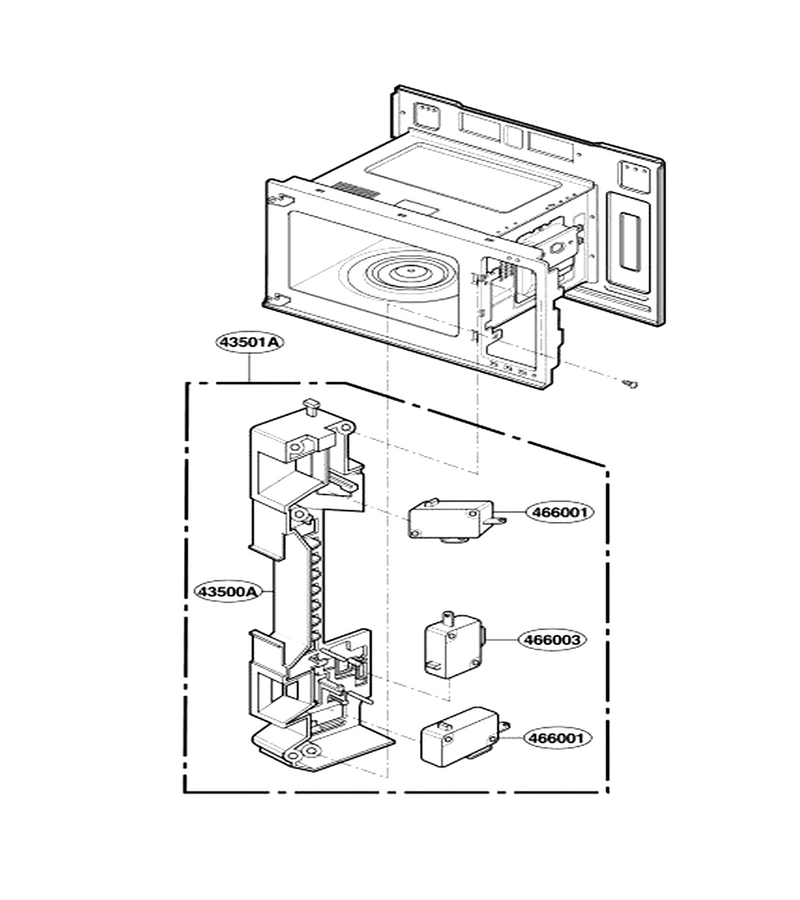

Latch Board Parts

...
...
43500A
Latch Board L-G-3500W1A008A
...
43501A
Microwave Door Latch Housing And Interlock Swit... L-G-3501W1A003U
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

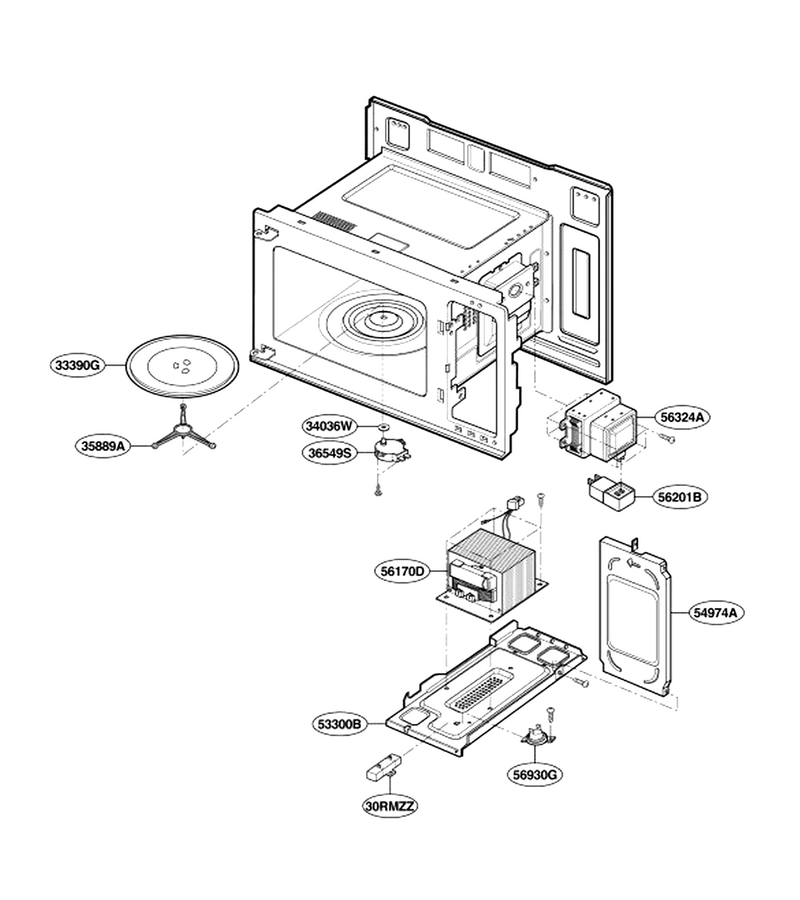

Interior Parts I

...
...
30RMZZ
Resistor Cement L-G-3B72552D
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G004A
...
34036W
Water Seal L-G-4036W3W001A
...
35889A
Microwave Turntable Tray Support L-G-5889W2A011A
...
36549S
Microwave Turntable Motor L-G-2B72754K
...
53300B
Bottom Plate L-G-3300W1B003A
...
54974A
Air Guide L-G-4974W1C001A
...
56170D
Transformer,high Voltage L-G-6170W1D002E
...
56201B
Choke Filter L-G-6201W2A019A
...
56324A
Magnetron L-G-2B71165K
...
56930G
Dishwasher Thermostat L-G-3B70068V

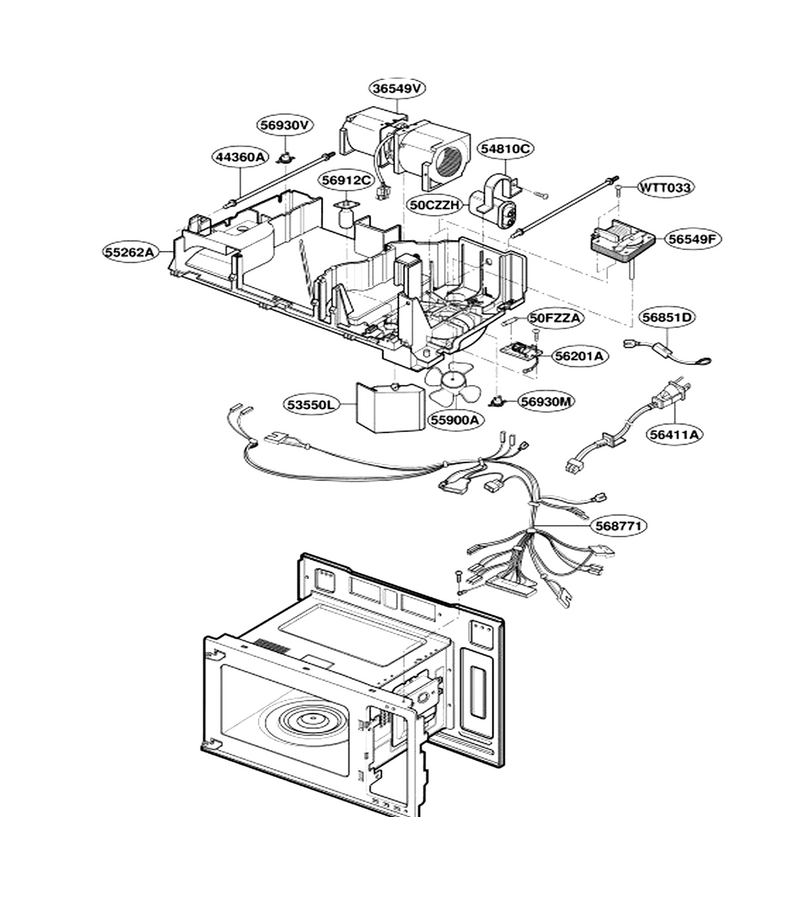

Interior Parts Ii

...
...
50FZZA
Fuse[all] L-G-3B74133K
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H002G
...
44360A
Rod L-G-4B73423A
...
54810C
Bracket L-G-4810W3C002A
...
55262A
Air Duct L-G-5262W0A010A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56201A
Microwave Noise Filter L-G-2B72130F
...
56411A
Ac Cord Assy L-G-6411W1A014H
...
56549F
Motor L-G-6549W2F016D
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56930M
Thermostat L-G-6930W1A002F
...
56930V
Thermostat L-G-6930WRT001C
...
568771
Single Harness L-G-6877W1A253B

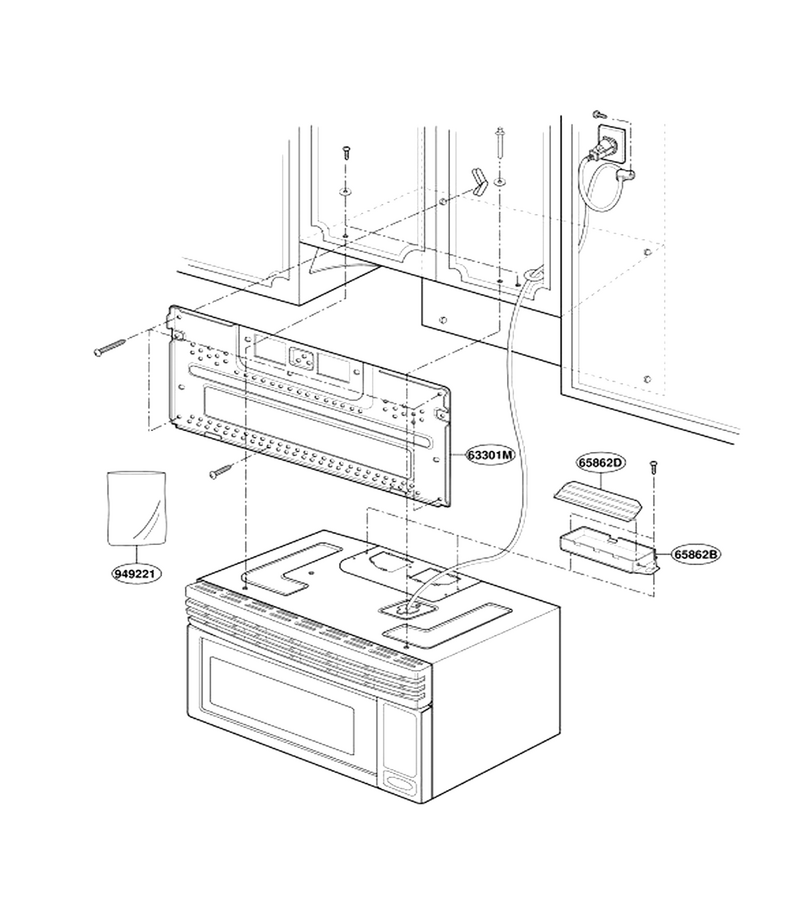

Installation Parts

...
...
63301M
Mounting Plate Assembly L-G-3301W1A023A
...
65862B
Microwave Exhaust Damper Bracket L-G-3B72144A
...
65862D
Microwave Vent Damper Door L-G-3B71432A
