product name

LG MV-1155W.WHEGSE

Model: MV-1155W.WHEGSE

Save Part Not Listed?
product name

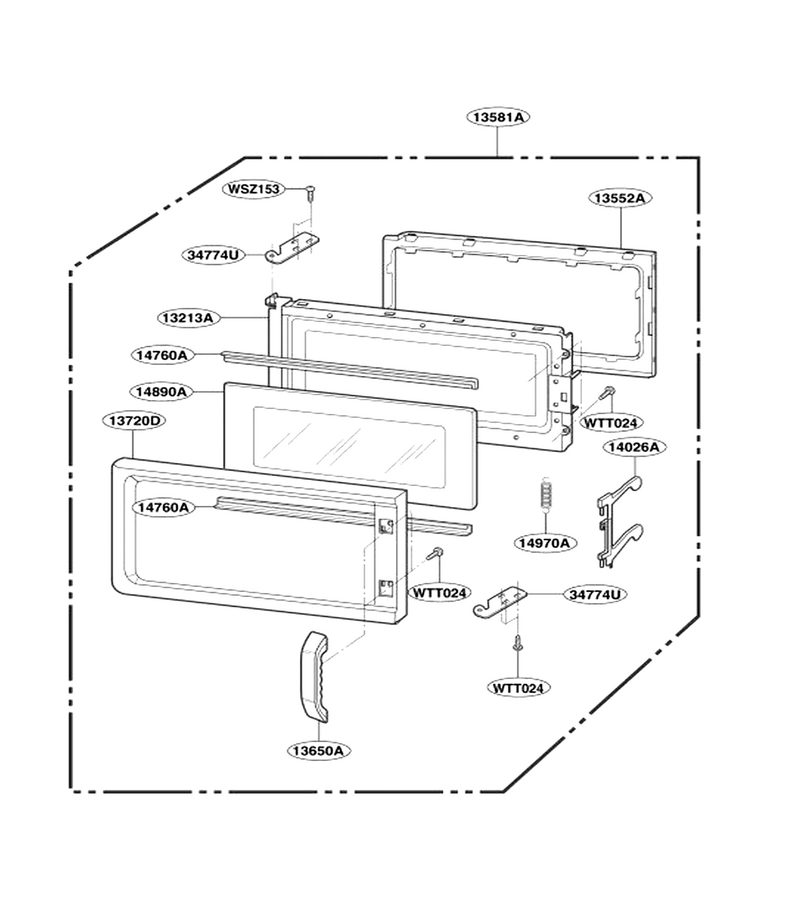

Door Parts

...
...
WSZ153
Screw,customized L-G-4B75265A
...
WTT024
Microwave Screw L-G-1TTL0402618
...
13213A
Frame Assembly,door L-G-3213W1A006A
...
13552A
Cover,choke L-G-3552W1A004D
...
13581A
Door Assembly L-G-3581W1A063F
...
13650A
Handle,door L-G-3650W2A008A
...
13720D
Panel,door L-G-3720W0D032A
...
14026A
Latch All L-G-4026W3A003B
...
14760A
Baffle L-G-4760W2A011A
...
14890A
Glass L-G-4890W1D041K
...
14970A
Microwave Door Latch Spring L-G-4970WRA001E
...
34774U
Bracket,hinge L-G-4774W4P003A

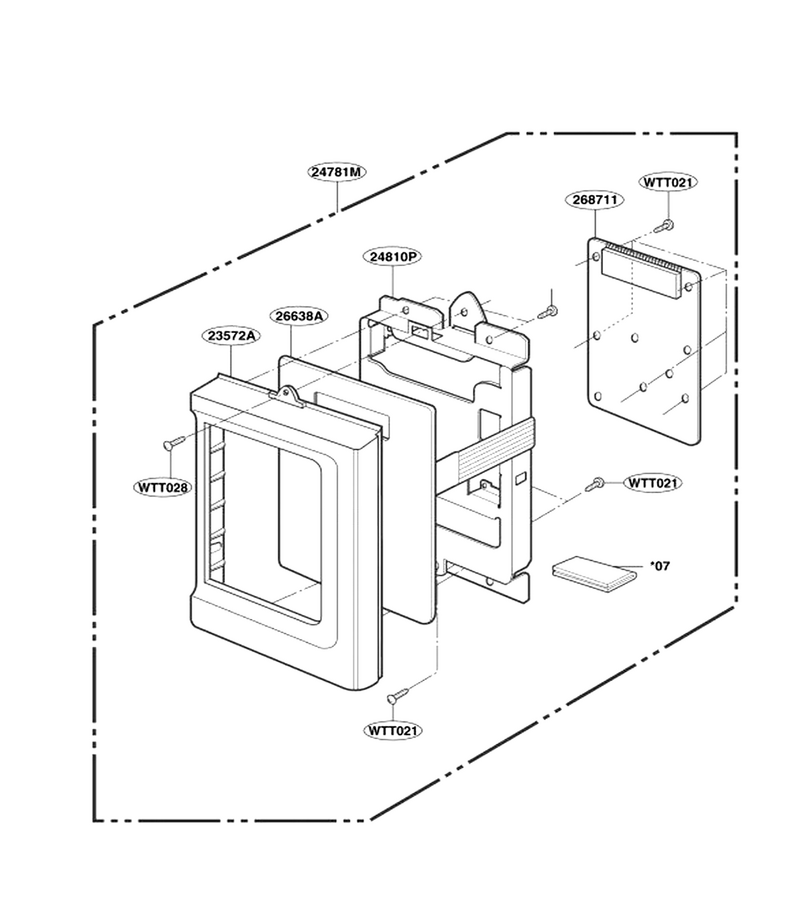

Controller Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
23572A
Panel,control L-G-3572W1A051A
...
24781M
Controller Assembly,keypad L-G-4781W1M033U
...
24810P
Bracket,idle L-G-4810W1G058B
...
26638A
Membrane L-G-6638W1A005B
...
268711
Pcb Assembly,sub L-G-5247W1YS40Z

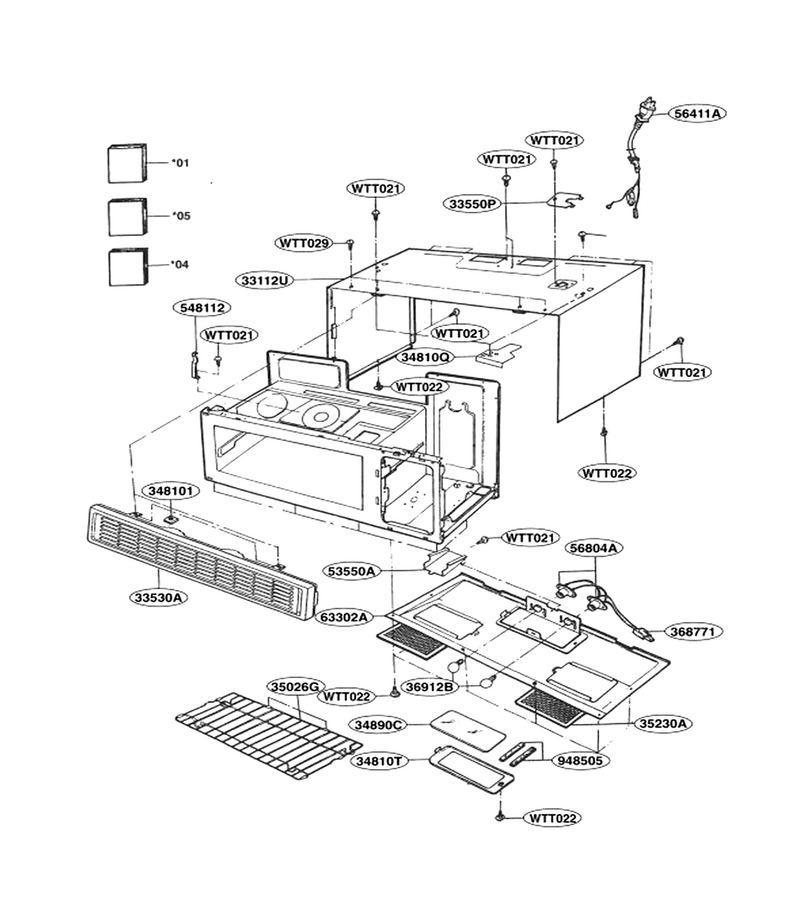

Oven Cavity Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT022
Microwave Screw L-G-1TTL0402422
...
WTT029
Screw L-G-1TTL0402822
...
33112U
Case,u Bending L-G-3112W1U004E
...
33530A
Grille,vent L-G-3530W1A006G
...
33550P
Cover,power Cord L-G-3550W4A025A
...
34810Q
Microwave Wall Mounting Plate L-G-4810W3G062A
...
35026G
Shelf L-G-5026W1A006C
...
35230A
Microwave Grease Filter L-G-2B72705B
...
36912B
Microwave Light Bulb L-G-3B70067A
...
53550A
Cover,inner L-G-3550W3A020A
...
56411A
Power Cord Assembly L-G-6411W2A001B
...
56804A
Socket,lamp L-G-3B71048D
...
348101
Bracket L-G-4810W4G044A
...
948505
Insulator L-G-4B73230A

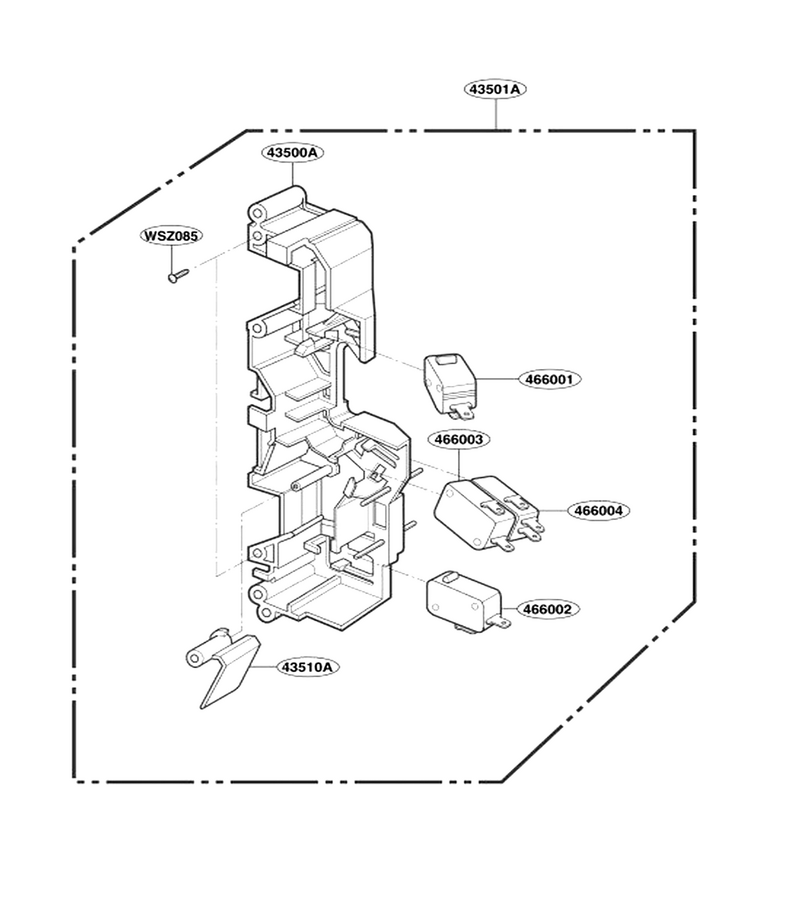

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Board L-G-3500W1A002A
...
43501A
Holder Assembly,locker L-G-3501W2A002A
...
466001
Microwave Micro Switch L-G-3B73362F
...
466002
Switch,micro L-G-3B73362A
...
466003
Switch Micro L-G-3B73361E
...
466004
Switch,micro L-G-3B73360C

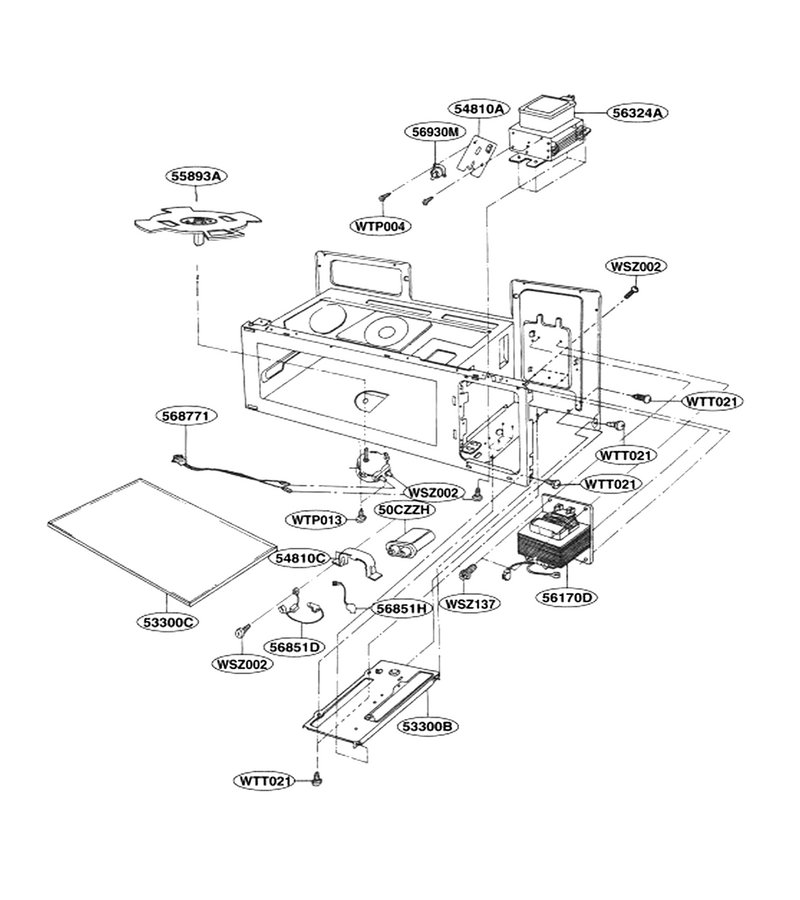

Interior Parts I

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ137
Screw L-G-4B73763A
...
WTP004
Screw L-G-1TPL0302418
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
50CZZH
Capacitor L-G-0CZZW1H002F
...
53300B
Plate,bottom L-G-3300W1G018A
...
53300C
Tray Assembly L-G-2B71919A
...
54810C
Bracket L-G-4810WRC002A
...
55893A
Fan Assembly L-G-5893W3A001B
...
56170D
Transformer,high Voltage L-G-6010W2H030A
...
56324A
Magnetron L-G-2B71165E
...
56851D
Cable,assembly L-G-3B73348S
...
56851H
Cable,assembly L-G-3B73347J
...
56930M
Microwave Thermal Cut-Off L-G-6930W1A002C
...
568771
Harness,single L-G-6877W3A004B

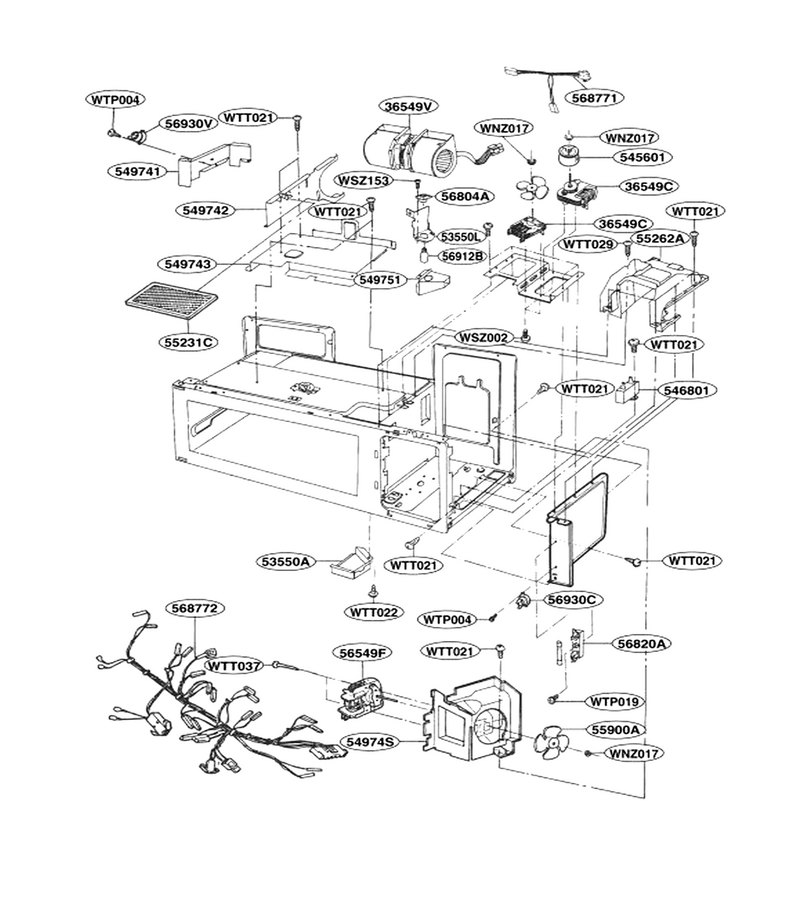

Interior Parts Ii

...
...
WNZ017
Nut,common L-G-4B74694B
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTP004
Screw L-G-1TPL0302418
...
WTP019
Screw,tapping L-G-1TPL0403118
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT022
Microwave Screw L-G-1TTL0402422
...
53550A
Cover,inner L-G-3550W3A020A
...
53550L
Cover,lamp L-G-3550W3A040A
...
54974S
Guide,suction L-G-4974W0S008A
...
55231C
Microwave/hood Charcoal Filter Assembly L-G-2B72706C
...
55262A
Duct L-G-5262W1A015A
...
55900A
Blower Fan L-G-2B72279B
...
56549F
Motor,ac Fan L-G-6549W2F005A
...
56820A
Fuse Holder L-G-4930W3B005A
...
56930V
Dishwasher Thermostat L-G-3B70068V
...
545601
Pulley L-G-4560W3A002A
...
546801
Capacitor,film,box L-G-3B72440A
...
549741
Guide Assembly,chamber L-G-4974W2G028B
...
549742
Guide,air L-G-4974W1G025A
...
549743
Guide,air L-G-4974W1G026A
...
568771
Harness,single L-G-6877W3A004B
...
568772
Harness,single L-G-6877W1A001A

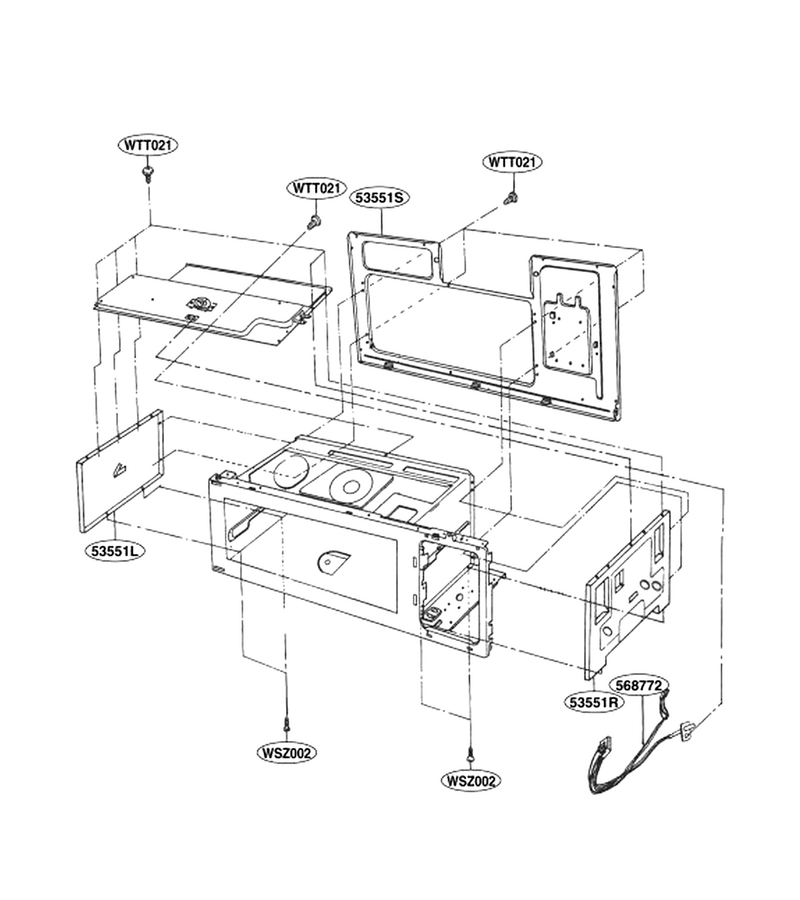

Interior Parts Iii

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
53551L
Cover,back L-G-3550W2A039A
...
53551R
Cover,rear L-G-3550W2A038A
...
53551S
Cover Assembly,heater L-G-3551W0A008A
...
568772
Harness,single L-G-6877W1A001A

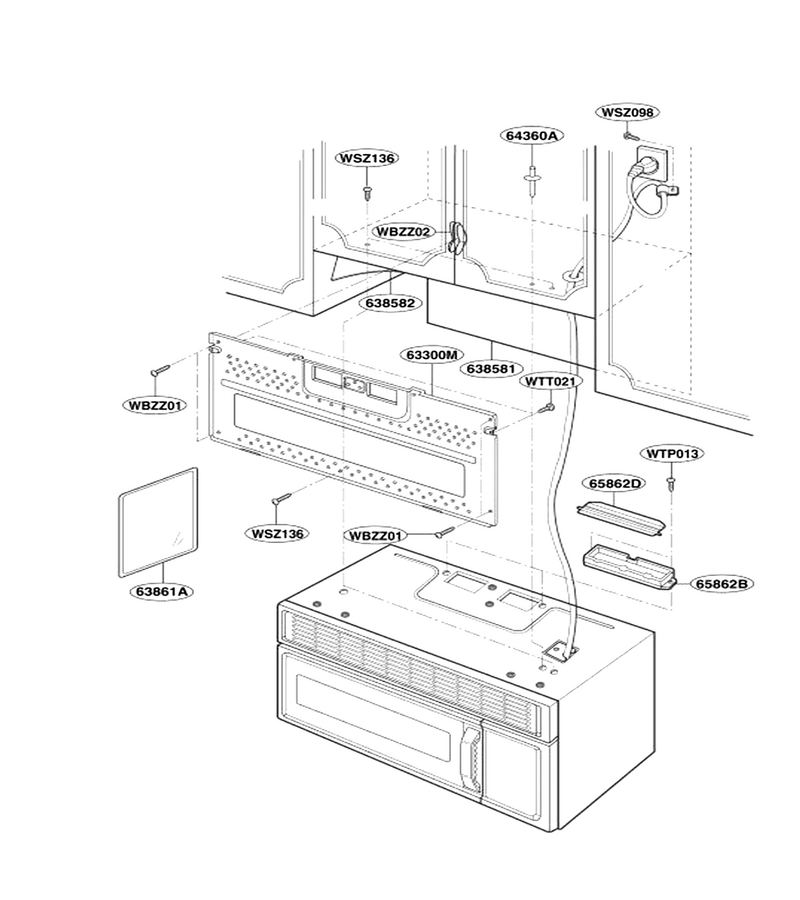

Installation Parts

...
...
WBZZ01
Bolt L-G-4B72059B
...
WBZZ02
Microwave Mounting Bolt L-G-4B72059C
...
WSZ098
Thread-Forming Screw, 8-Pack L-G-4B70637B
...
WSZ136
Screw L-G-4B73243A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
63300M
Plate,mount L-G-3300W0G039D
...
63861A
Microwave Hardware Assembly Kit L-G-2B72771A
...
65862B
Microwave Exhaust Damper Bracket L-G-3B72144A
...
65862D
Microwave Vent Damper Door L-G-3B71432A
...
638581
Template L-G-3858W5A013B
...
638582
Bag,sheet L-G-3858W5A014B

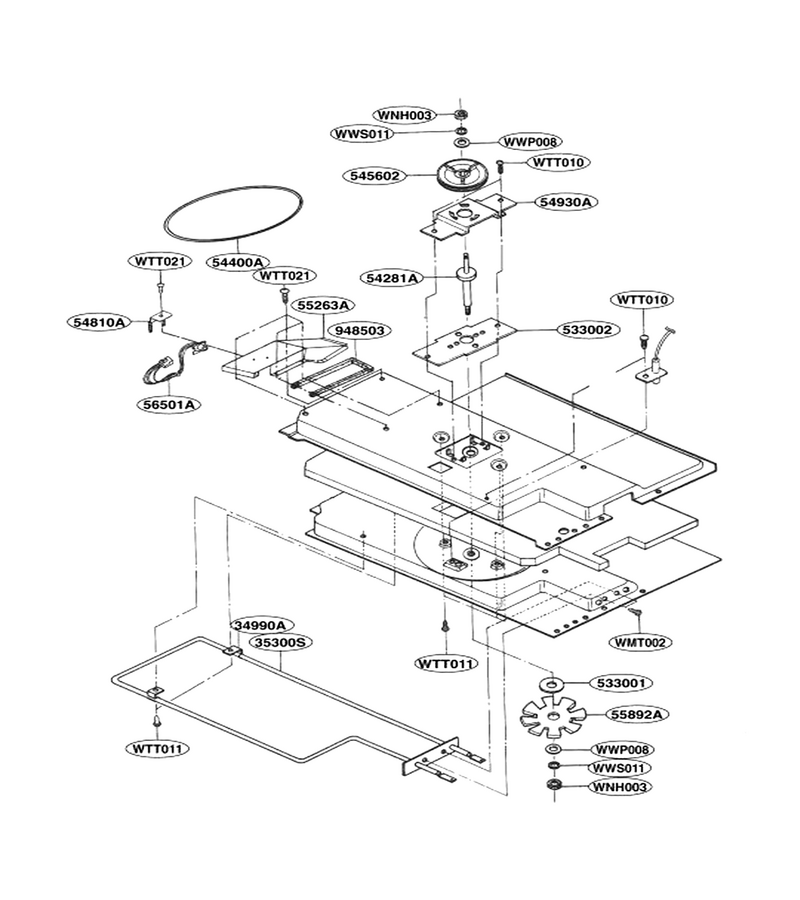

Plate Chamber Assy Parts

...
...
WMT002
Screw L-G-1MTC0402432
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTT011
Microwave Tapping Screw L-G-1TTG0402632
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WWP008
Washer L-G-1WPL0500032
...
34990A
Supporter L-G-4990W4A004A
...
35300S
Heater,sheath L-G-5300W1S001A
...
54281A
Bearing L-G-4281W3A003A
...
54400A
Belt L-G-4400W3A001A
...
54930A
Holder,bearing L-G-4281W4A001A
...
55263A
Duct Assembly L-G-5263W2A012A
...
55892A
Fan L-G-5900W3A004A
...
56501A
Sensor Assembly L-G-6501W3A004F
...
533001
Chamber L-G-3300W4G038A
...
533002
Bracket,idle L-G-4281W4A002A
...
545602
Pulley L-G-4560W3A001A
...
948503
Damper L-G-3B72244M
