LG MT4110SKB.KB1EWRP

Model: MT4110SKB.KB1EWRP

Save Part Not Listed?
product name

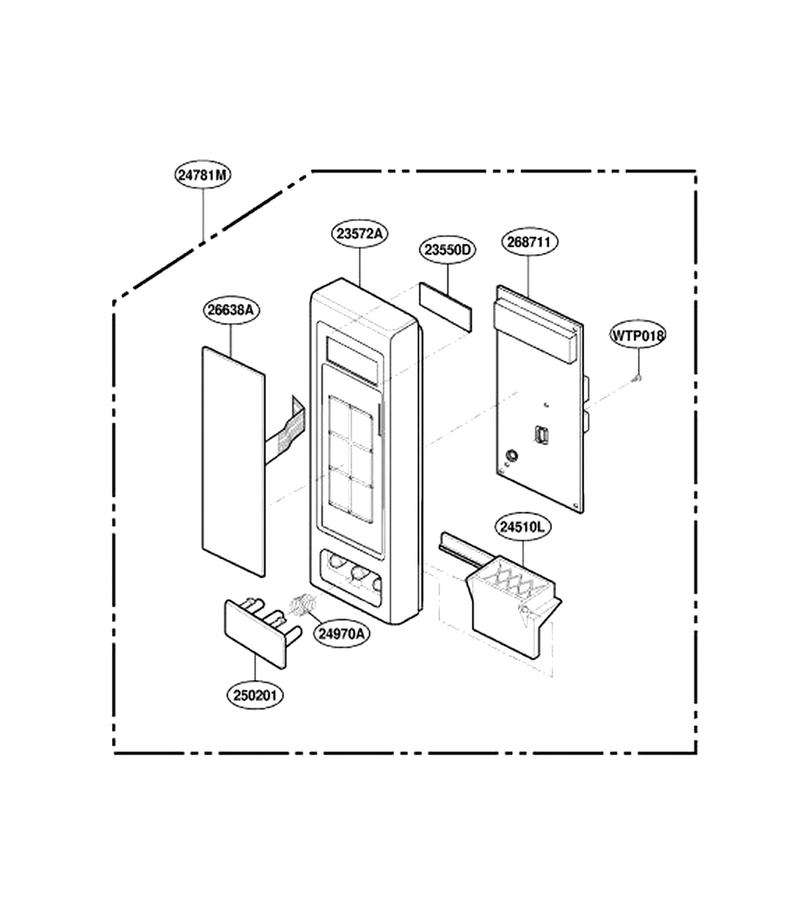

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Panel,control L-G-3572W0A227A
...
24510L
Lever L-G-4510W3L003A
...
24781M
Controller Assembly,keypad L-G-4781W1M266K
...
24970A
Microwave Door Release Button Spring L-G-4B72023B
...
26638A
Membrane L-G-6638W1A058A
...
250201
Button L-G-5020W2A160A
...
268711
Pcb Assembly,sub L-G-6871W1S082H

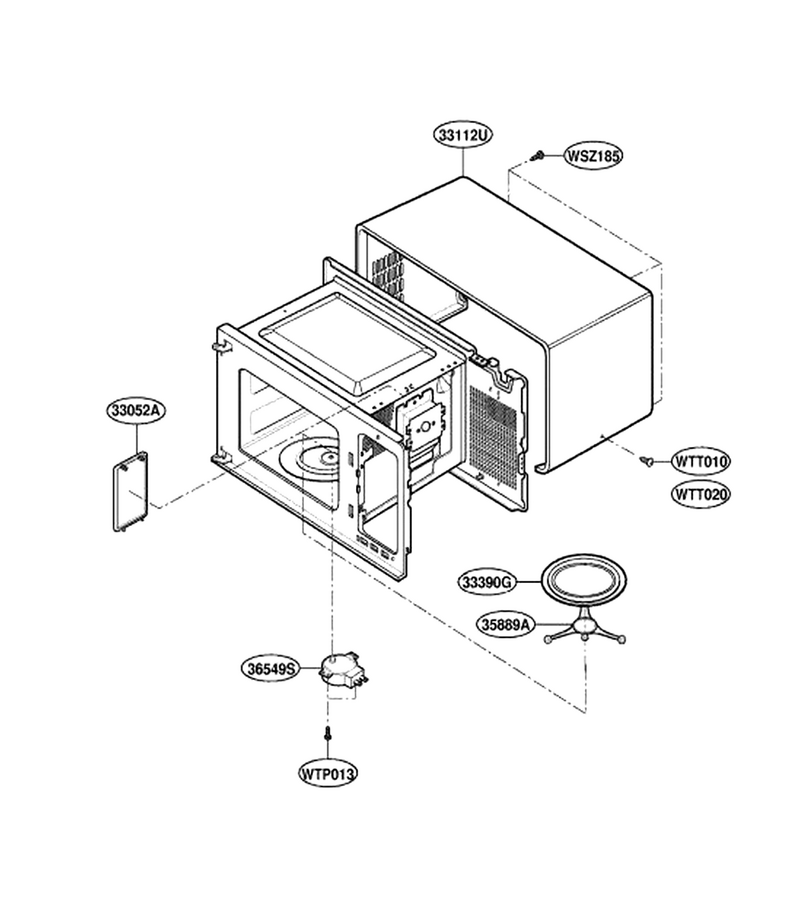

Oven Cavity Parts

...
...
WTT020
Screw L-G-1TTL0402416
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WSZ185
Screw L-G-1SZZW2A002A
...
33052A
Canopy L-G-3052W2A021A
...
33112U
Case,u Bending L-G-3112W1U028A
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G003G
...
35889A
Turntable Assembly L-G-5889W2A014A
...
36549S
Microwave Turntable Motor L-G-6549W1S011G

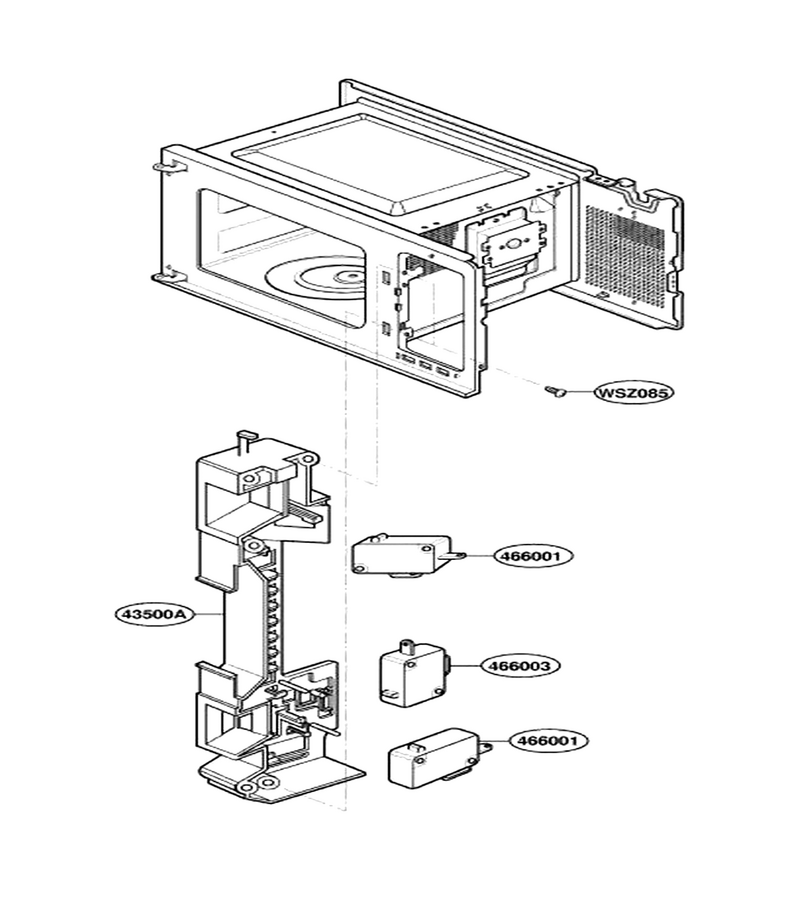

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Board L-G-3500W1A018A
...
466001
Switch,micro L-G-6600W1K003D
...
466003
Switch,micro L-G-6600W1K003C

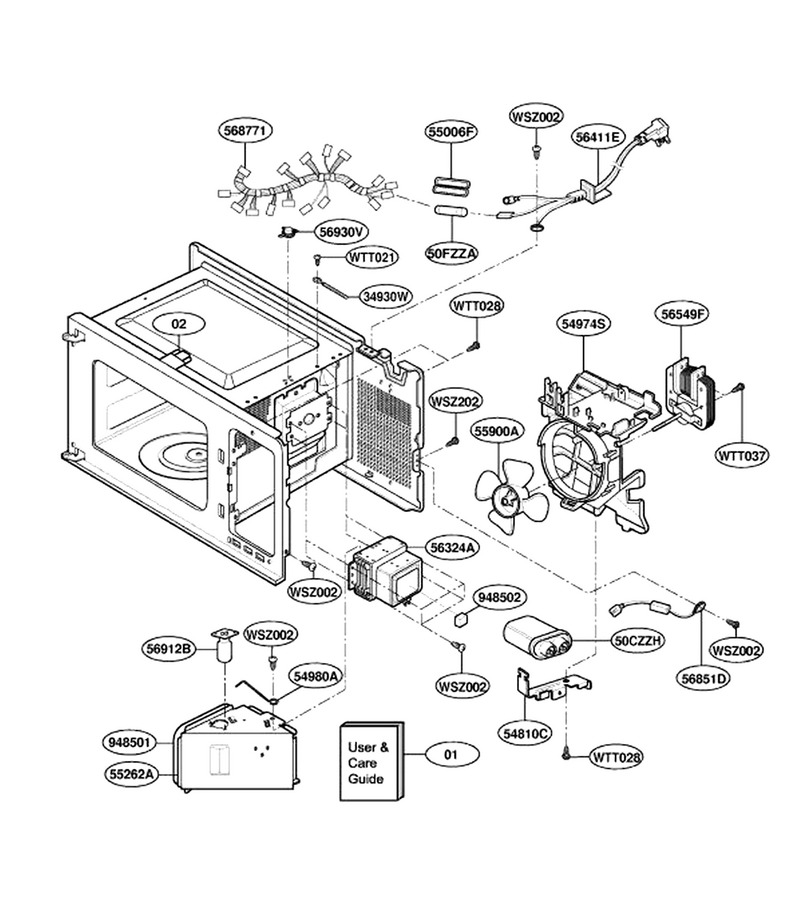

Interior Parts

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
WTT021
Microwave Screw L-G-1TTL0402418
...
*01
Manual,owners L-G-3828W5A3316
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50CZZH
Capacitor,high Voltage L-G-0CZZW1H001P
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4930W3B029A
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Stirrer Cover L-G-4974W1S048B
...
54980A
Supporter L-G-4980W3A038A
...
55006F
Cap Fuse L-G-5006WRA002D
...
55262A
Fan Bracket L-G-5262W2A037C
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411E
Parts Assembly L-G-383EW5A110A
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56851D
Cable,assembly L-G-6021W3B001N
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930WRT002F
...
568771
Harness,single L-G-6877W1A359A
...
948501
Cushion L-G-3B72244T
...
948502
Cushion L-G-3B72244C

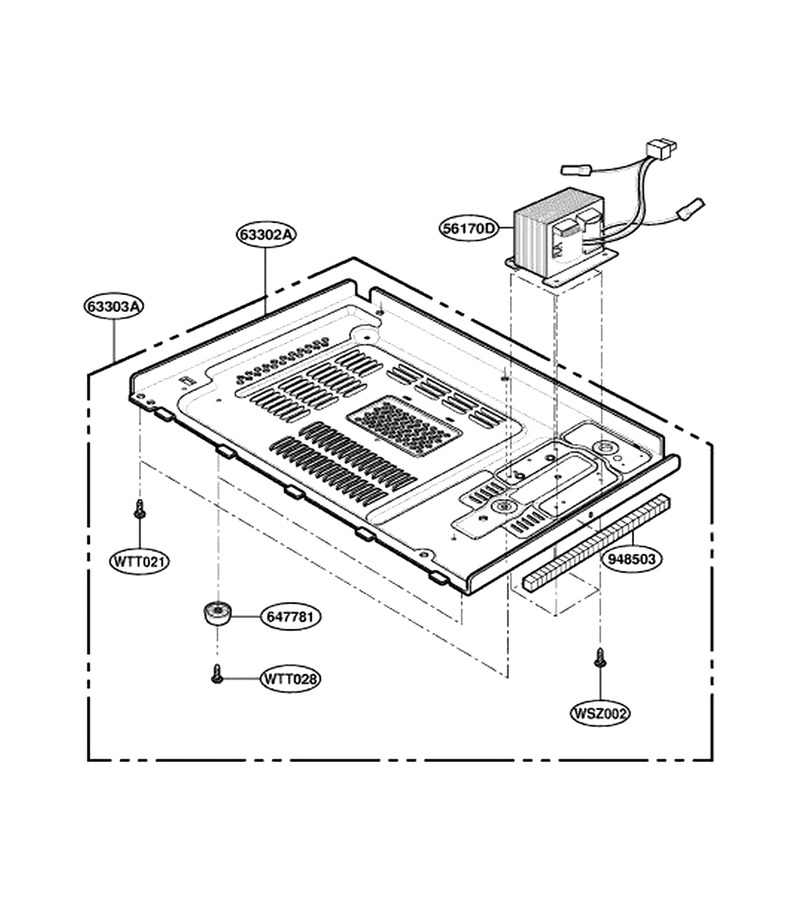

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
56170D
Transformer L-G-6170W1D023L
...
63302A
Single Lge L-G-3302W0A025A
...
63303A
Base Plate L-G-3303W0A013B
...
647781
Leg L-G-4778W3A002A
...
948503
Cushion L-G-3B72244G
