LG MT4078SKB.CBKEWRP

Model: MT4078SKB.CBKEWRP

Save Part Not Listed?
product name

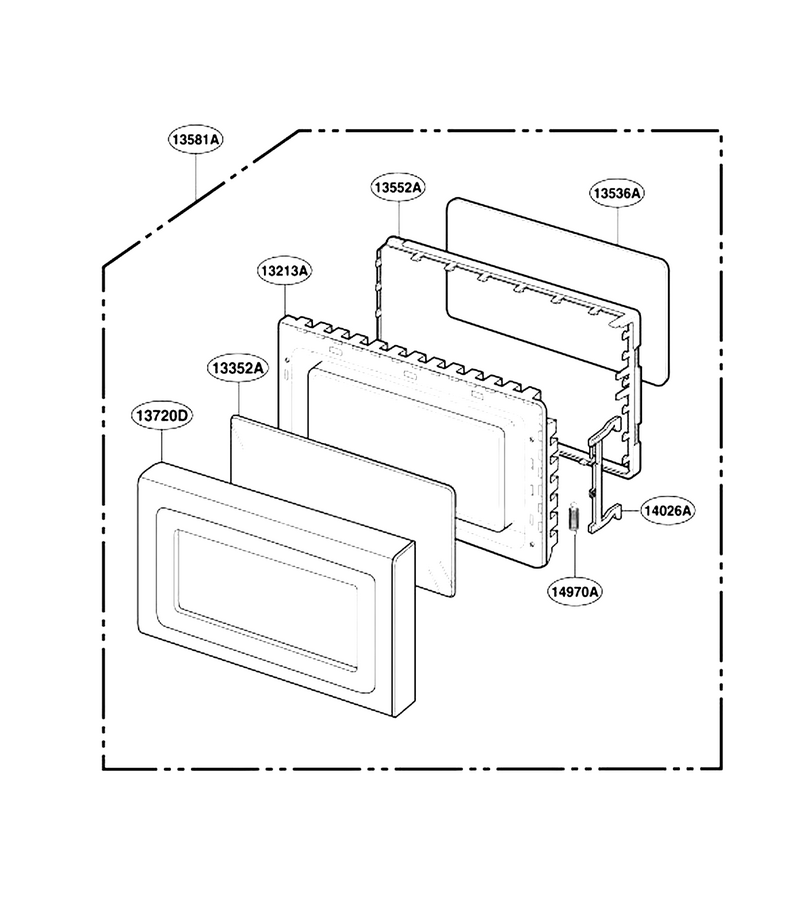

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A033Q
...
13352A
Window,screen L-G-3352W2A039P
...
13536A
Tape,sealing L-G-3536WRA001X
...
13552A
Cover,choke L-G-3552W1A027C
...
13581A
Door Assembly L-G-3581W1A118X
...
13720D
Panel,door L-G-3720W1D095T
...
14026A
Locker L-G-4026W2A014A
...
14970A
Spring L-G-4970WRA001B

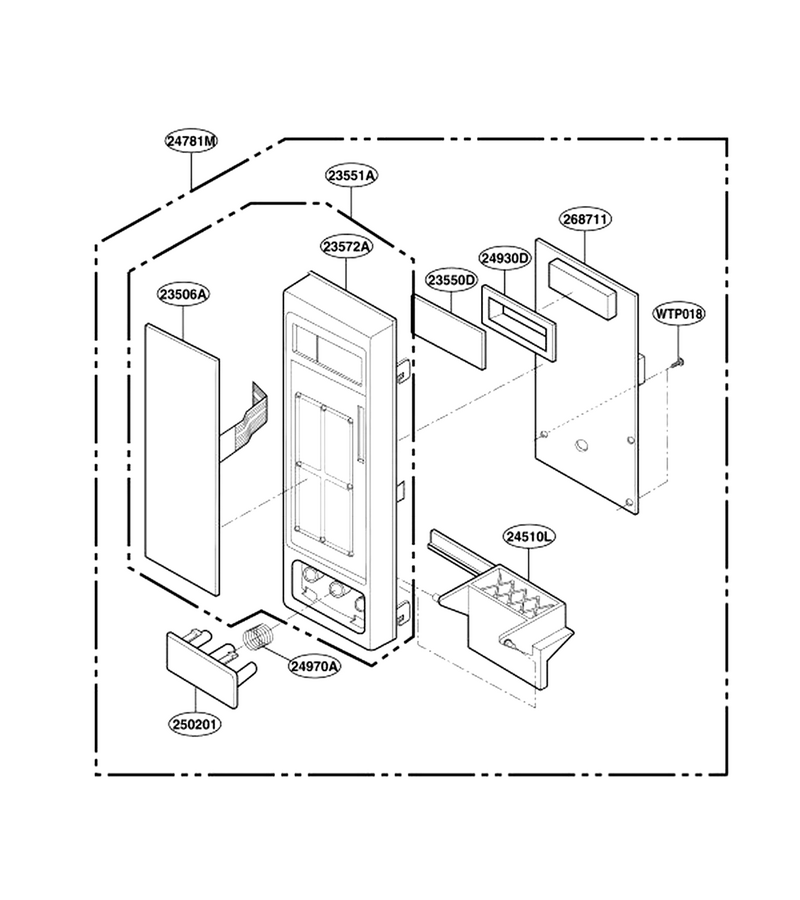

Control Panel Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23506A
Membrane L-G-6638W1A059B
...
23550D
Cover L-G-3550W4A029L
...
23551A
Parts Assembly L-G-383EW5A236G
...
23572A
Panel,control L-G-3572W1A116B
...
24510L
Lever L-G-4510W3L003A
...
24781M
Controller Assembly,keypad L-G-4781W1M096S
...
24930D
Display Holder L-G-4930W3B028B
...
24970A
Microwave Door Release Button Spring L-G-4B72023B
...
250201
Button L-G-5020W3G099B
...
268711
Pcb Assembly,sub L-G-6871W2S110J

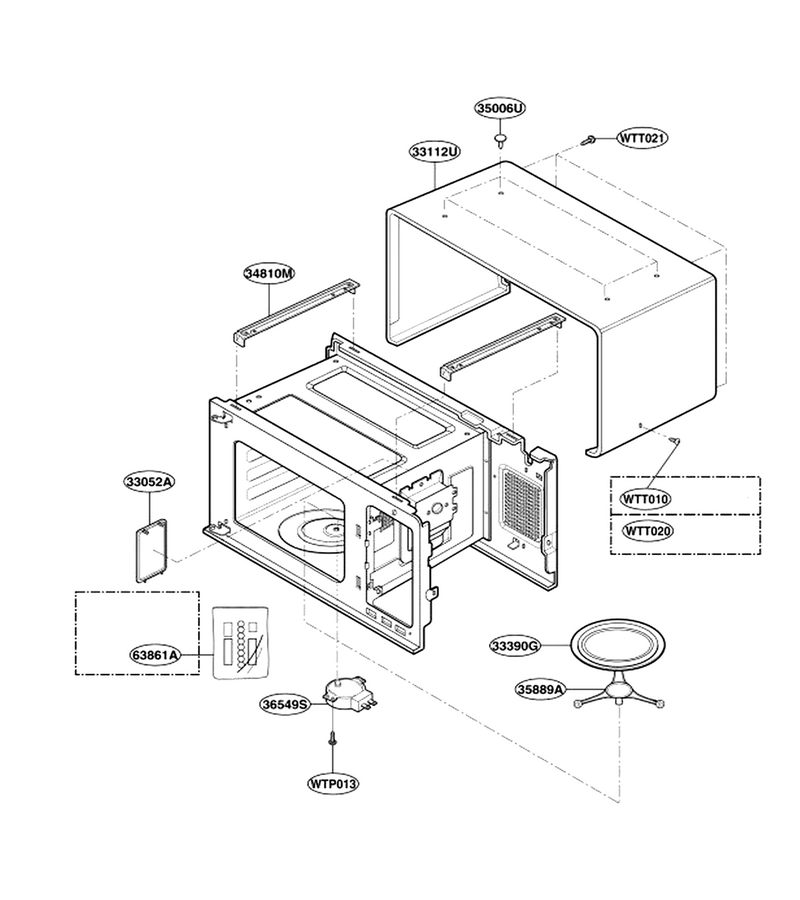

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT020
Screw L-G-1TTL0402416
...
WTT021
Microwave Screw L-G-1TTL0402418
...
33052A
Canopy L-G-3052W2A021A
...
33112U
Case,u Bending L-G-3112W2U005K
...
33390G
Tray,glass L-G-3390W1G005D
...
34810M
Bracket,idle L-G-4810W2G045B
...
35006U
Cap,under Cabinet L-G-4B74749F
...
35889A
Turntable Assembly L-G-5889W2A013A
...
36549S
Microwave Turntable Motor L-G-6549W1S011B
...
63861A
Kit Assembly L-G-3861W3A001Q

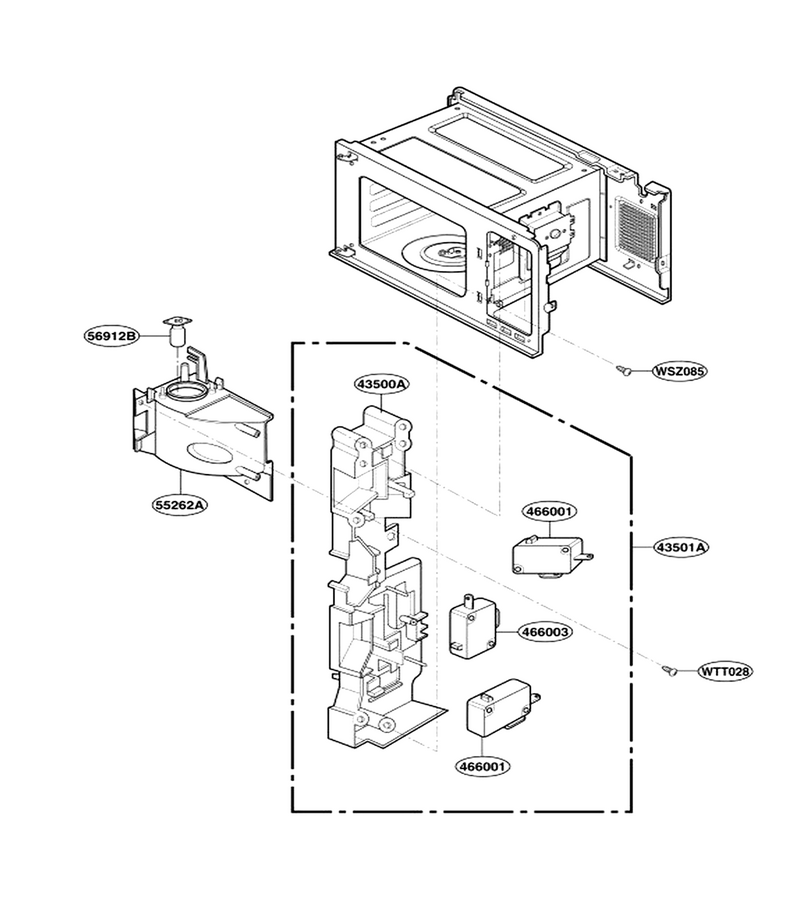

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WTT028
Microwave Screw L-G-1TTL0402818
...
43500A
Holder,locker L-G-3500W1A017A
...
55262A
Duct L-G-5262W2A044A
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
466001
Switch,micro L-G-6600W1K001D
...
466003
Switch,micro L-G-6600W1K003C

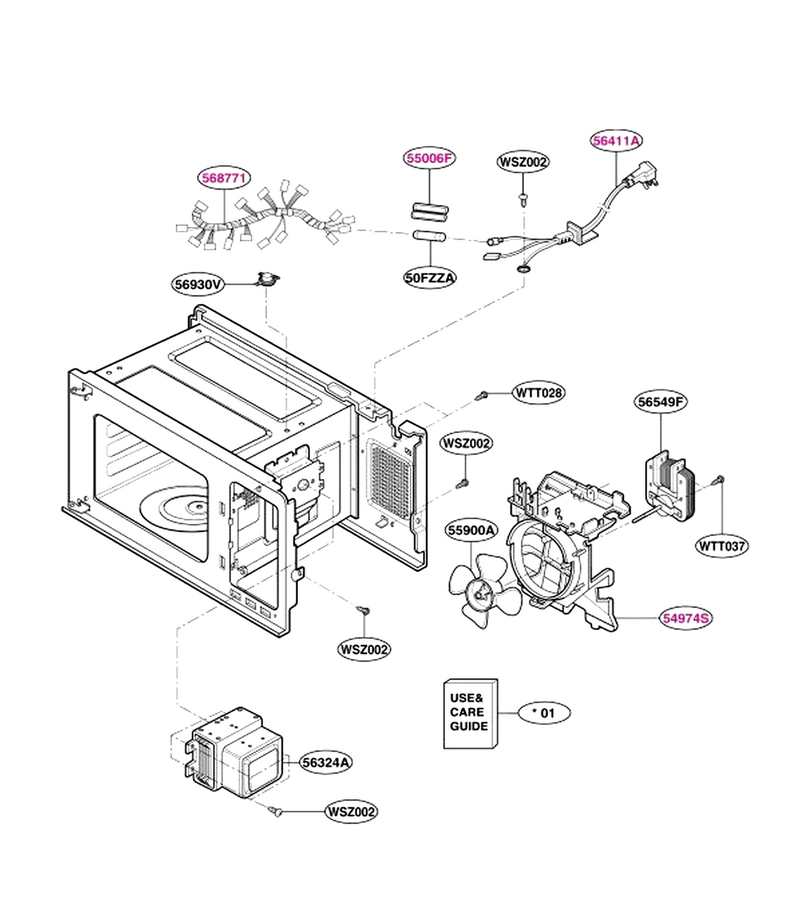

Interior Parts (i)

...
...
*01
Manual,owners L-G-3828W5A1886
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50FZZA
Fuse,time Delay L-G-3B74133P
...
54974S
Guide,suction L-G-4974W1S056A
...
55006F
Cap Fuse L-G-5006WRA002D
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-3B71077E
...
56411A
Power Cord Assembly L-G-6411W1A012A
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56930V
Thermostat L-G-6930W3A001C
...
568771
Harness,single L-G-6877W1A227A

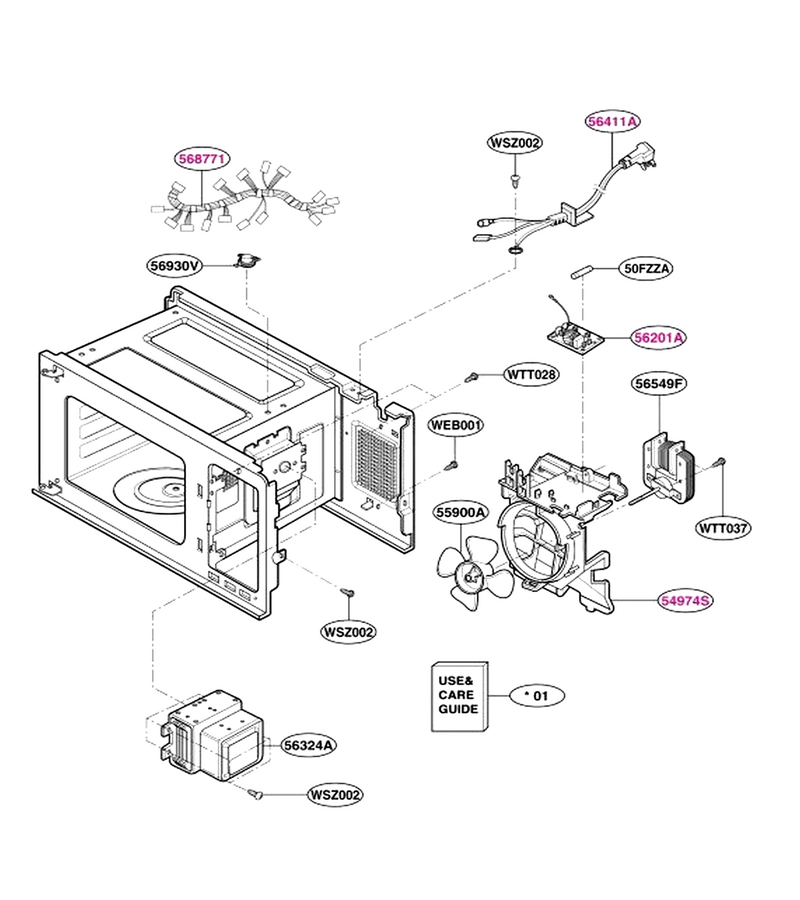

Interior Parts (ii)

...
...
*01
Manual,owners L-G-3828W5A1886
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50FZZA
Fuse,time Delay L-G-3B74133P
...
54974S
Guide,suction L-G-4974W1S056A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-3B71077E
...
56411A
Power Cord Assembly L-G-6411W1A012A
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56930V
Thermostat L-G-6930W3A001C
...
568771
Harness,single L-G-6877W1A227A

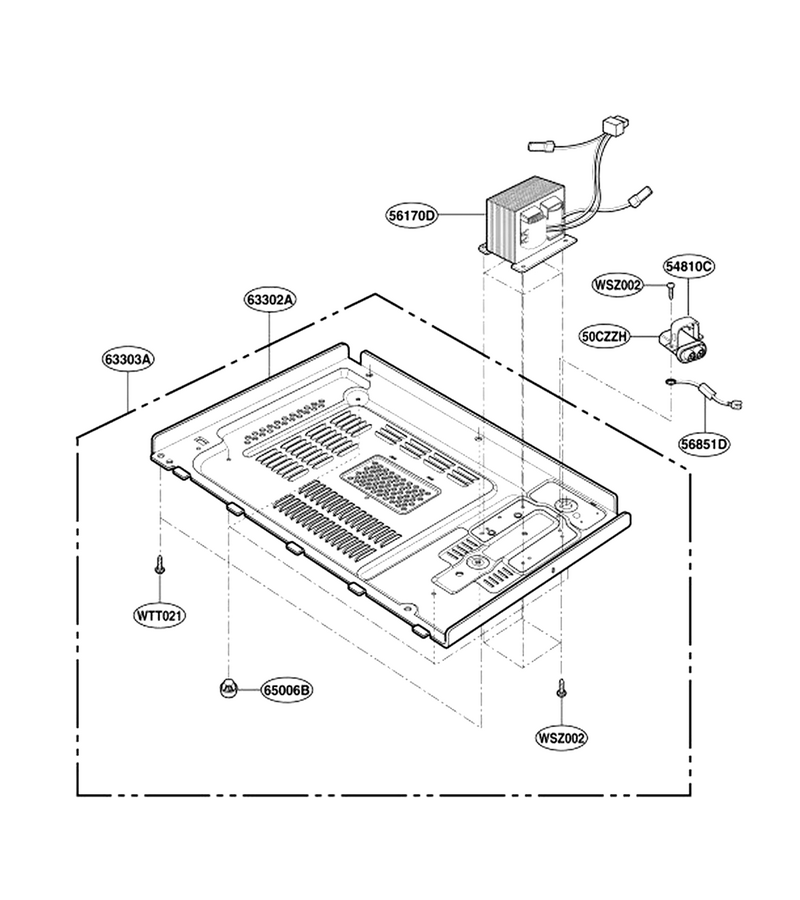

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
50CZZH
Capacitor,high Voltage L-G-0CZZW1H001L
...
54810C
Bracket,capacitor L-G-4810W3C003A
...
56170D
Transformer,high Voltage L-G-6170W1D030B
...
56851D
Cable,assembly L-G-6021W3B001N
...
63302A
Plate,base L-G-3302W0A019B
...
63303A
Plate Assembly,base L-G-3303W1A044B
...
65006B
Microwave Foot (white) L-G-5006W3A019A
