LG MT2145SJQ.MWEWRP

Model: MT2145SJQ.MWEWRP

Save Part Not Listed?
product name

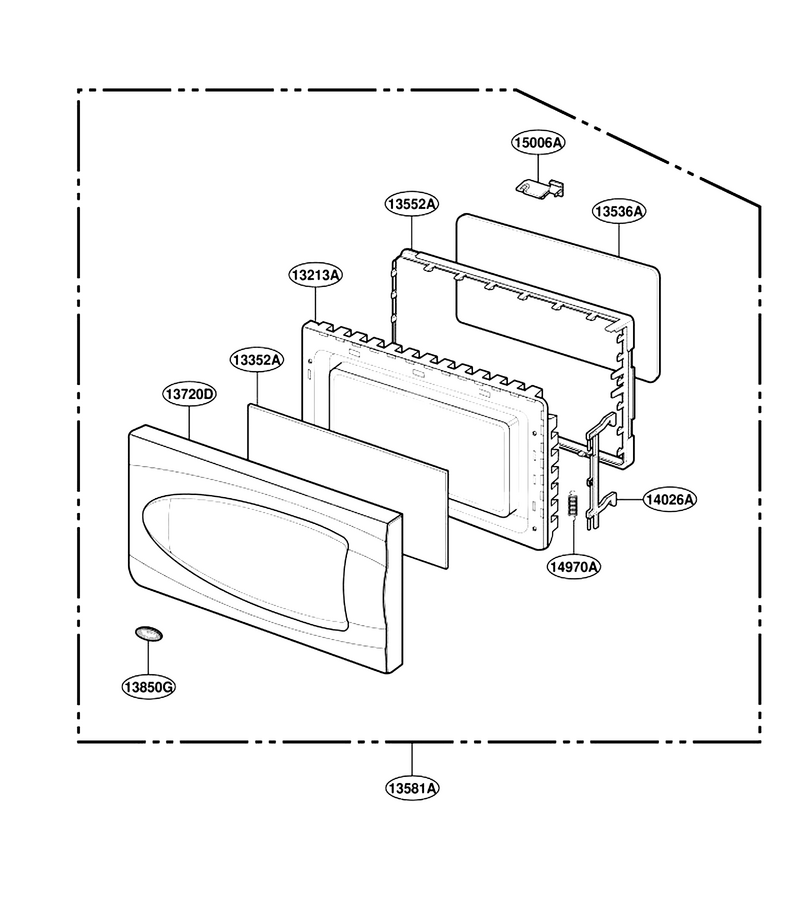

Door Parts

...
...
13213A
Door Frame L-G-3213W1A031B
...
13352A
Screw L-G-3352W2A047A
...
13536A
Seal Tape L-G-3536WRA001M
...
13552A
Cover L-G-3552W1A028A
...
13581A
Door Assy L-G-3581W1A188C
...
13720D
Panel,door L-G-3720W0D124A
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Cap L-G-5006W3A010A

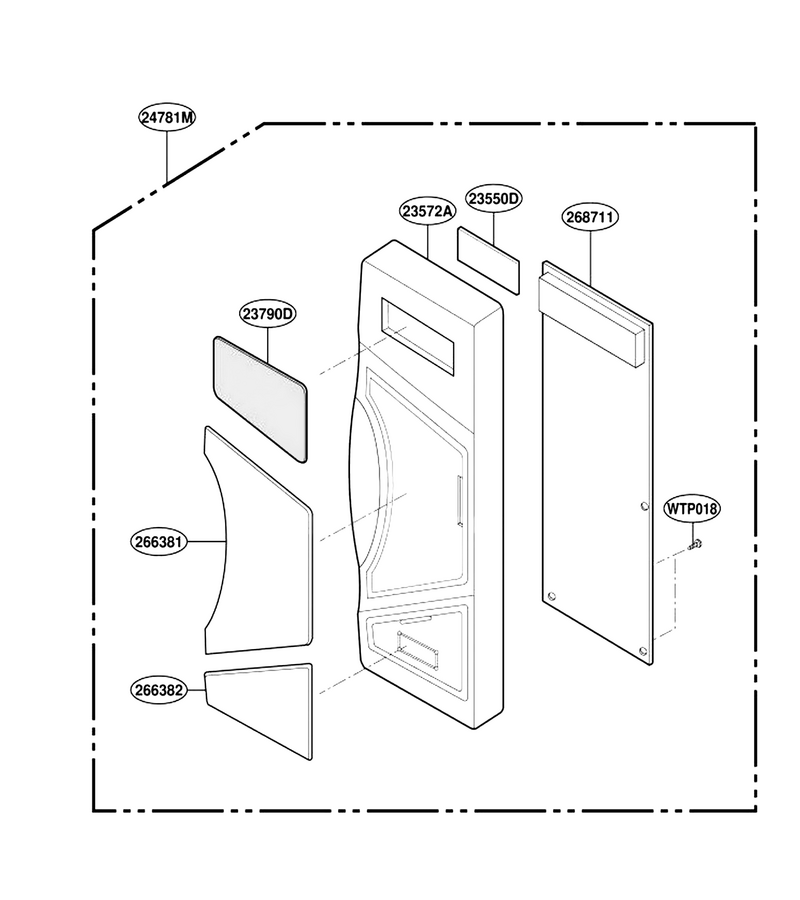

Control Panel Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Panel,control L-G-3572W0A186A
...
23790D
Window,display L-G-3790W2D020A
...
24781M
Controller Assy,[micom] L-G-4781W1M238A
...
266381
Membrane L-G-6638W2A348B
...
266382
Membrane L-G-6638W2A355B
...
268711
Pcb Assembly,sub L-G-6871W2S194H

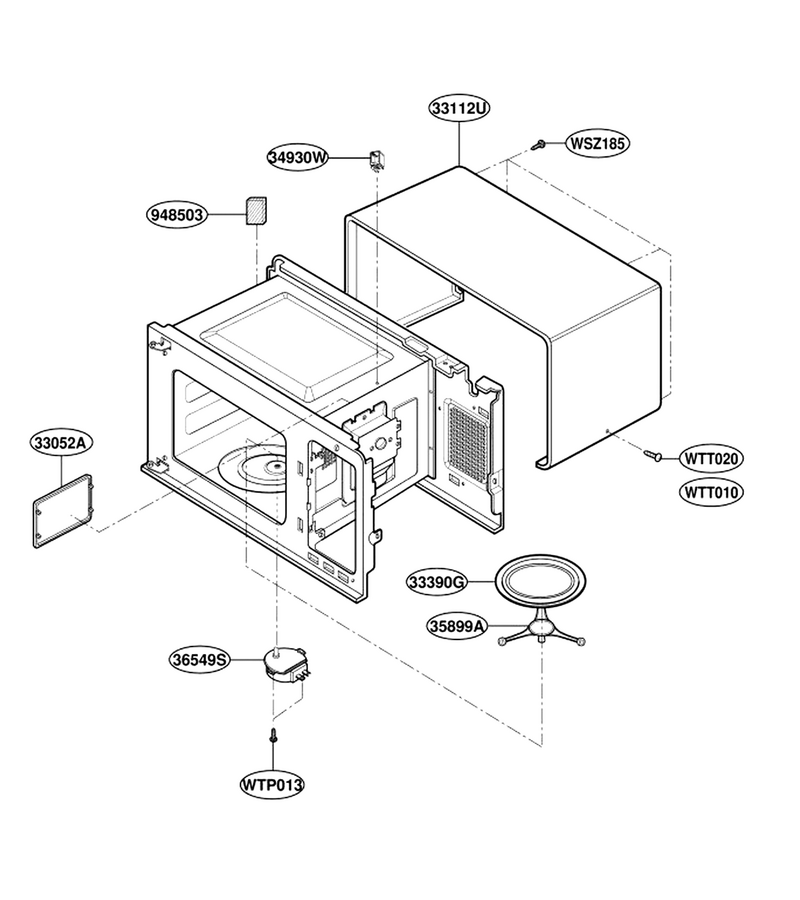

Oven Cavity Parts

...
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Screw L-G-1TTL0402416
...
33052A
Canopy L-G-3052W3A015A
...
33112U
Case,u Bending L-G-3112W0U006U
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G004A
...
34930W
Holder L-G-4930W3B029A
...
36549S
Microwave Turntable Motor L-G-6549W1S011A
...
948503
Cushion L-G-3B72244C

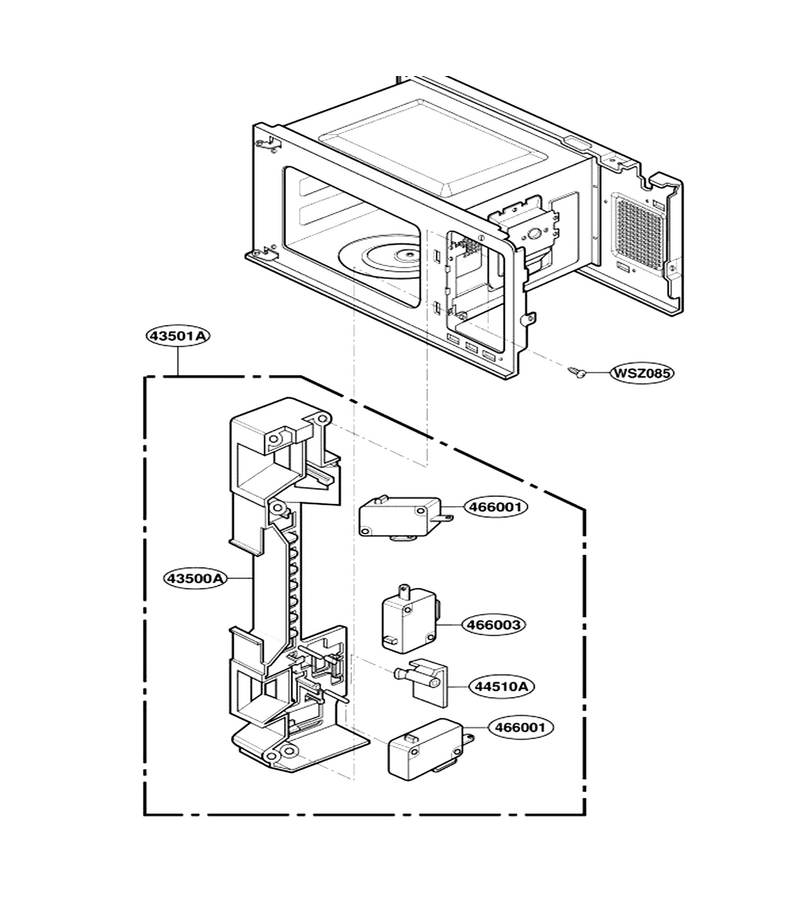

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Body L-G-3500W1A005A
...
43501A
Latch Board L-G-3501W1A016F
...
44510A
Lever L-G-4510W4A005A
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

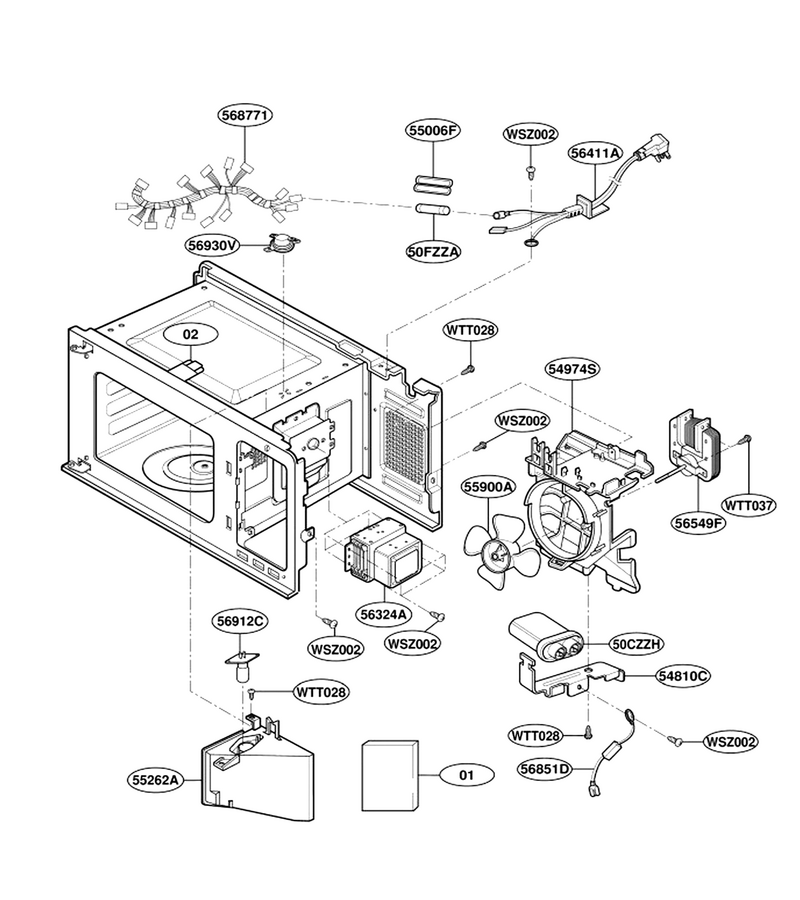

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H002J
...
50FZZA
Fuse[all] L-G-3B74133K
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide L-G-4974W1S010A
...
55006F
Fuse Cap L-G-5006WRA002A
...
55262A
Duct L-G-5262W2A043B
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord Assembly L-G-6411W1A018F
...
56549F
Motor L-G-6549W1F001E
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56930V
Microwave Thermostat L-G-6930W1A001J

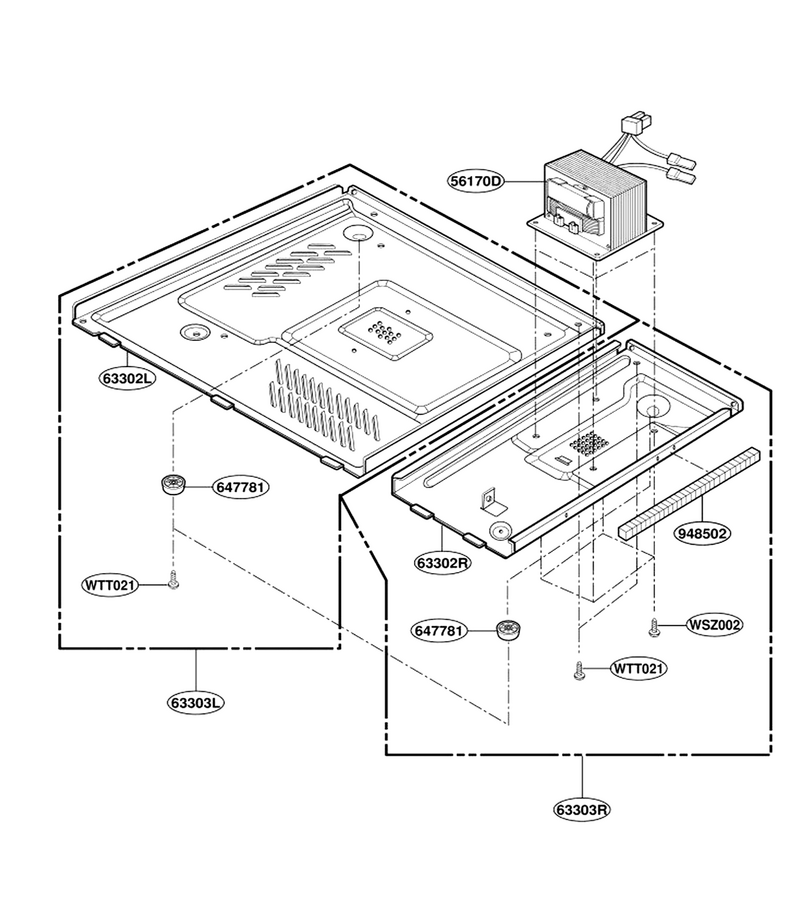

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Microwave High-Voltage Transformer L-G-6170W1D023B
...
63302L
Base Plate L-G-3302W1A034A
...
63302R
(63302r) Part L-G-3302W1A033F
...
63303L
Base Plate L-G-3303W1A026A
...
63303R
(63303l) Plate Assembly,base L-G-3303W2A003G
...
647781
Foot L-G-4B73900A
...
948502
Cushion L-G-3B72244G

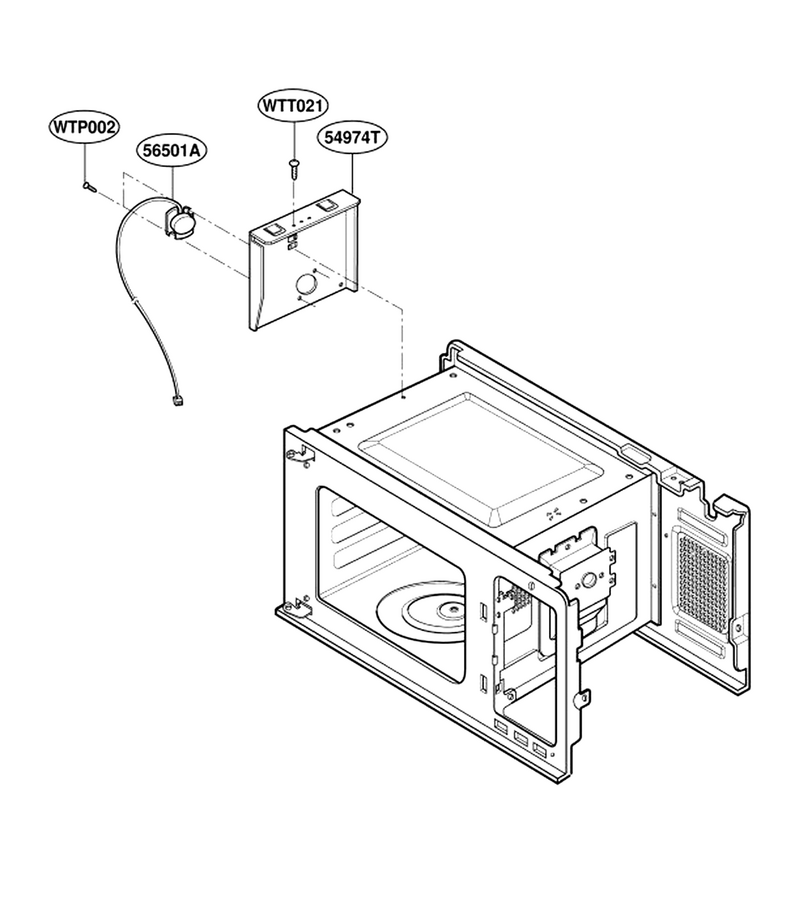

Sensor Parts

...
...
WTP002
Screw L-G-1TPL0302018
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Bracket,sensor L-G-5208W1A004B
