product name

LG MT1078SGB.SGEWRP

Model: MT1078SGB.SGEWRP

Save Part Not Listed?
product name

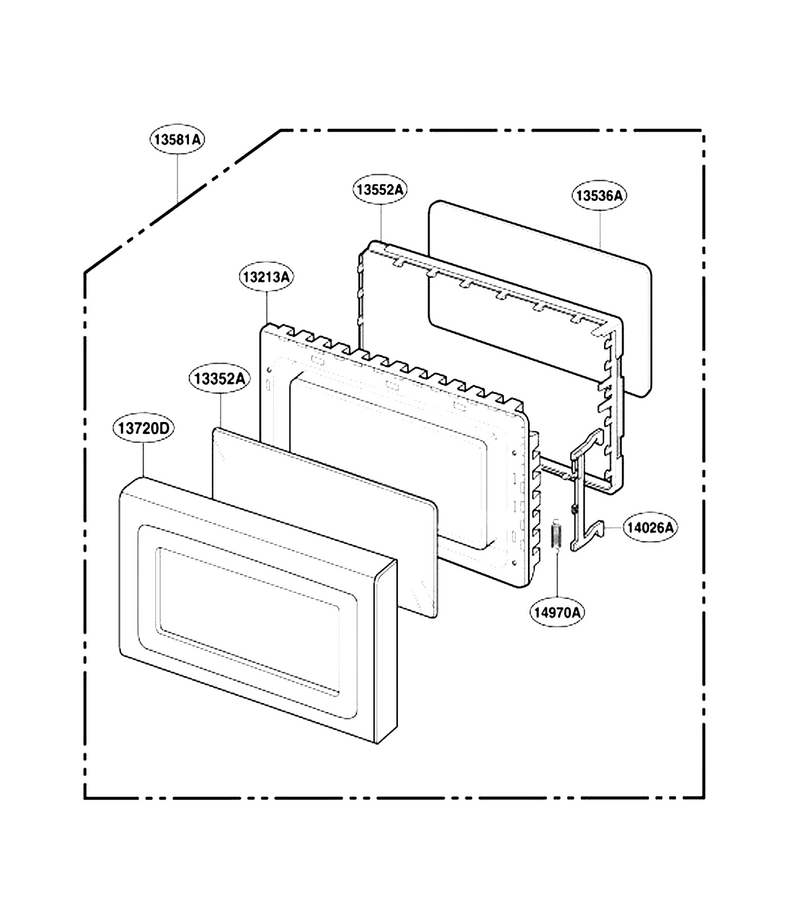

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A032H
...
13352A
Window,screen L-G-3352W1A101D
...
13536A
Seal Tape L-G-3536WRA001N
...
13552A
Cover,choke L-G-3552W1A029A
...
13581A
Door Assembly L-G-3581W1A186Q
...
13720D
Panel,door L-G-3720W0D133P
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14970A
Spring L-G-4970WRA001B

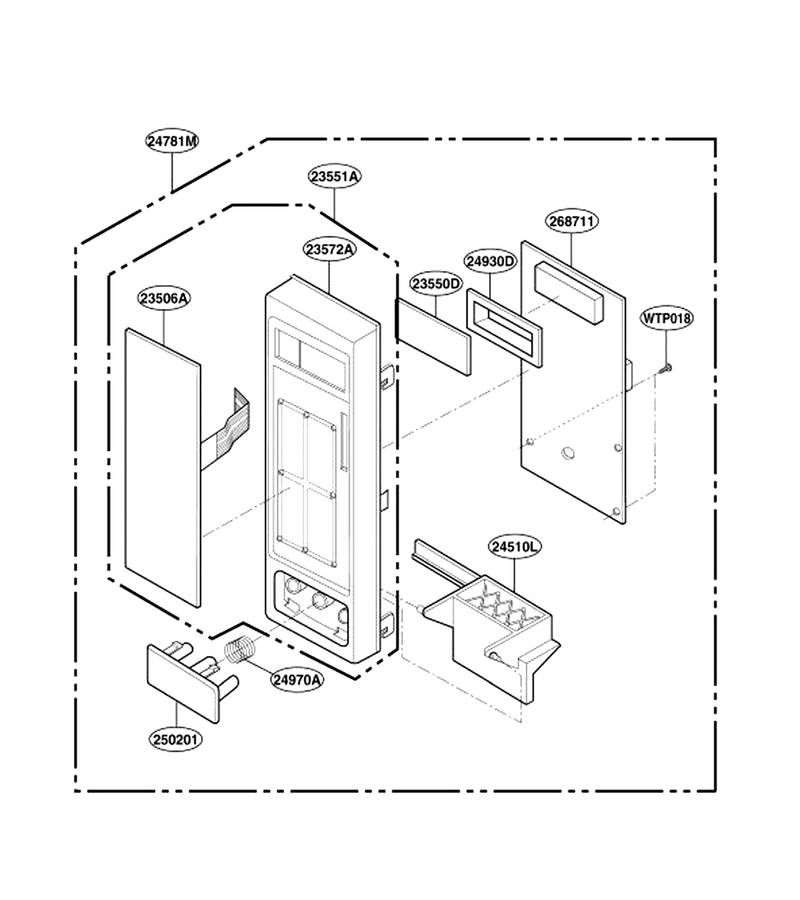

Control Panel Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Panel,control L-G-3572W1A110B
...
24510L
Lever L-G-4510W3L002A
...
24781M
Controller Assy,[micom] L-G-4781W1M142C
...
24930D
Holder,display L-G-4930W3B027B
...
24970A
Microwave Door Release Button Spring L-G-4B72023A
...
250201
Button L-G-5020W3G098B
...
268711
Pcb Assembly,sub L-G-6871W2S110B

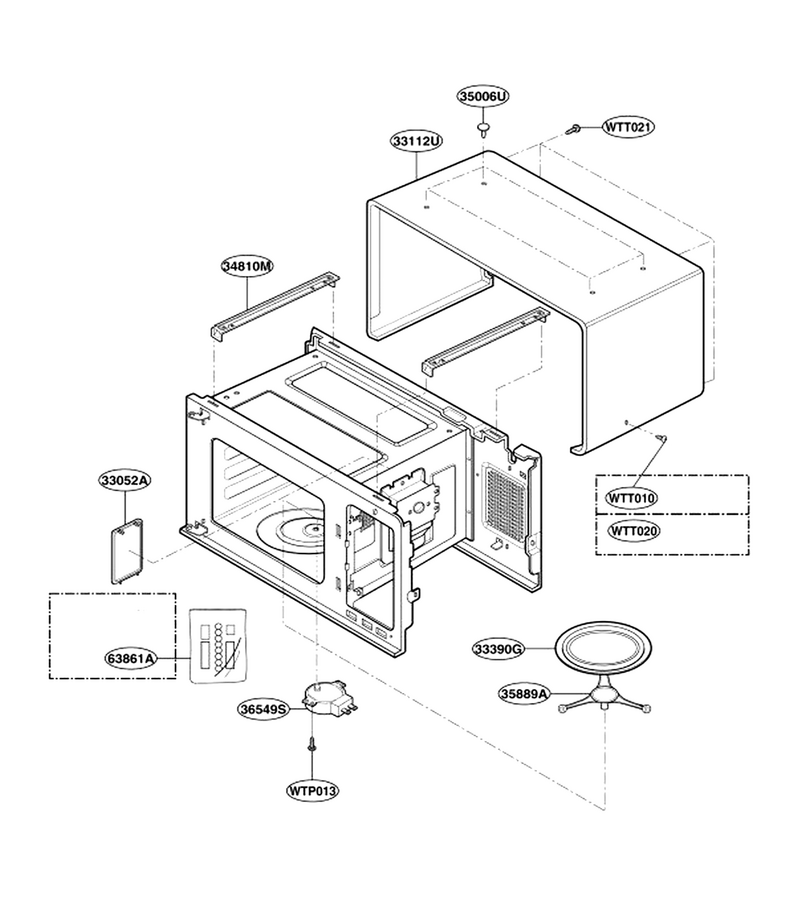

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTT020
Screw L-G-1TTL0402416
...
WTT021
Microwave Screw L-G-1TTL0402418
...
33112U
Case,u Bending L-G-3112W0U034T
...
33390G
Tray,glass L-G-3390W1G010A
...
35006U
Cap,under Cabinet L-G-4B74749F
...
35889A
Microwave Turntable Tray Support L-G-5889W2A005J
...
36549S

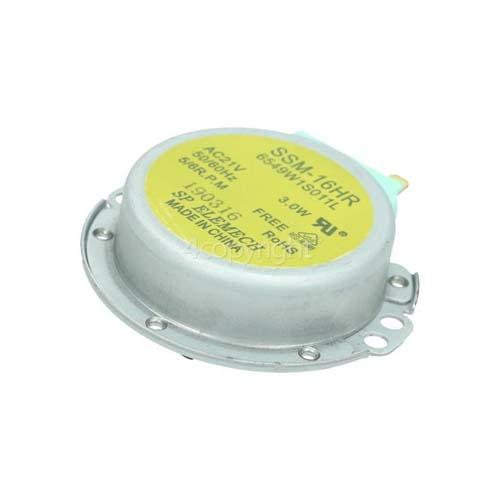

Motor, Ac Synchronous L-G-6549W1S011L

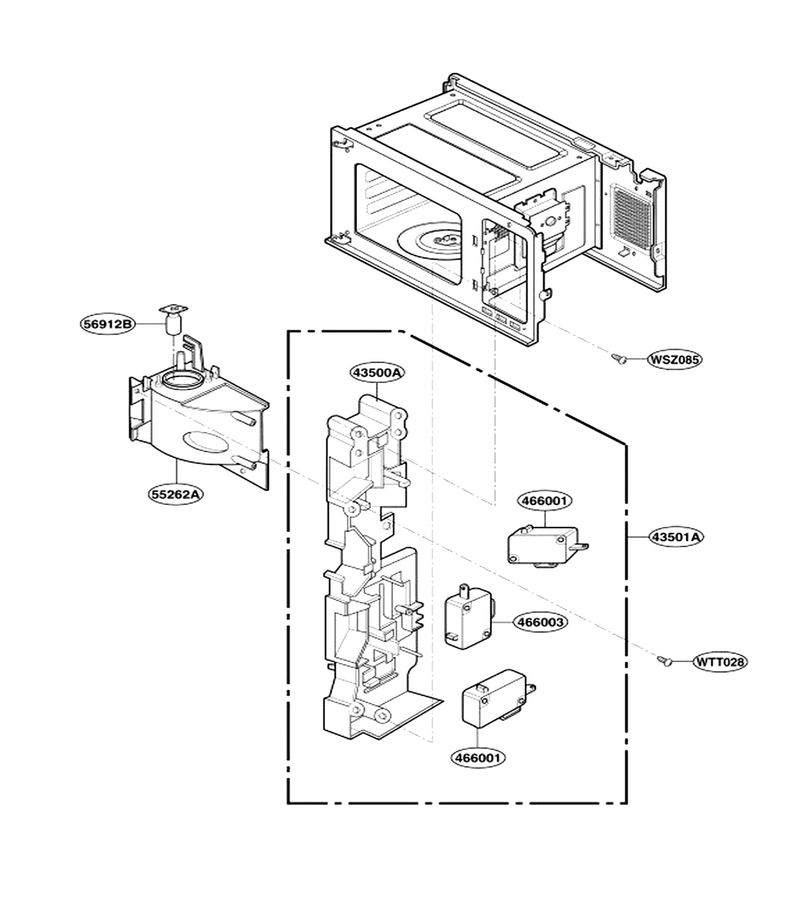

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WTT028
Microwave Screw L-G-1TTL0402818
...
43500A
Microwave Door Latch Holder L-G-3500W1A013A
...
43501A
Latch Assembly L-G-3501W1A016M
...
55262A
Duct L-G-5262W2A041A
...
56912B
Lamp,incandescent L-G-6912W3B002A
...
466001
Microwave Micro Switch L-G-6600W1K004C
...
466003
Microwave Door Interlock Switch L-G-6600W1K004B

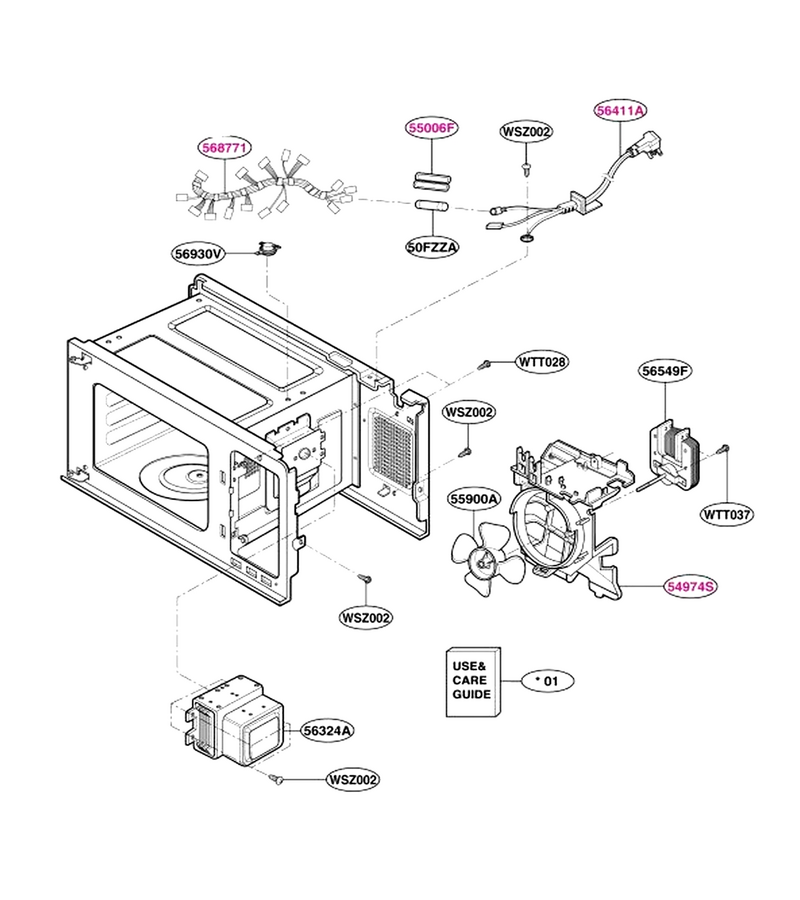

Interior Parts (i)

...
...
*01
Manual,owners L-G-3828W5A1725
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50FZZA
Fuse[all] L-G-3B74133K
...
54974S
Guide L-G-4974W1S010A
...
55006F
Fuse Cap L-G-5006WRA002A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56324A
Microwave Magnetron L-G-2B71732F
...
56411A
Ac Power Cord Assembly L-G-6411W1A002L
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56930V
Microwave Thermostat L-G-6930W1A001J
...
568771
Harness,single L-G-6877W1A300F

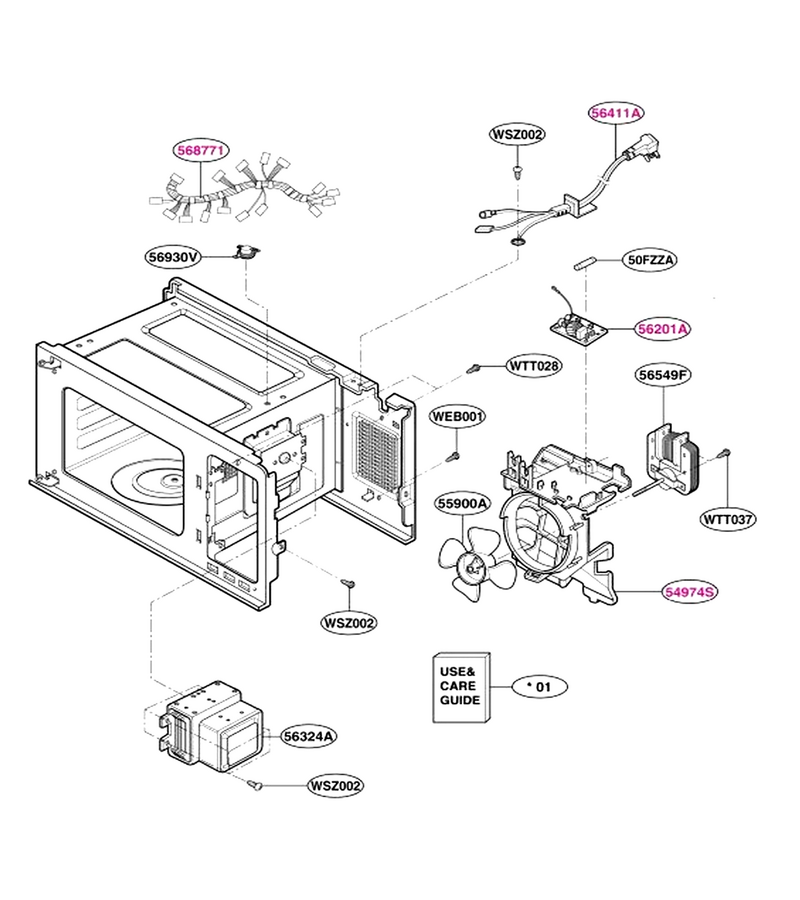

Interior Parts (ii)

...
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
*01
Manual,owners L-G-3828W5A1725
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50FZZA
Fuse[all] L-G-3B74133K
...
54974S
Guide L-G-4974W1S010A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56324A
Microwave Magnetron L-G-2B71732F
...
56411A
Ac Power Cord Assembly L-G-6411W1A002L
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56930V
Microwave Thermostat L-G-6930W1A001J
...
568771
Harness,single L-G-6877W1A300F

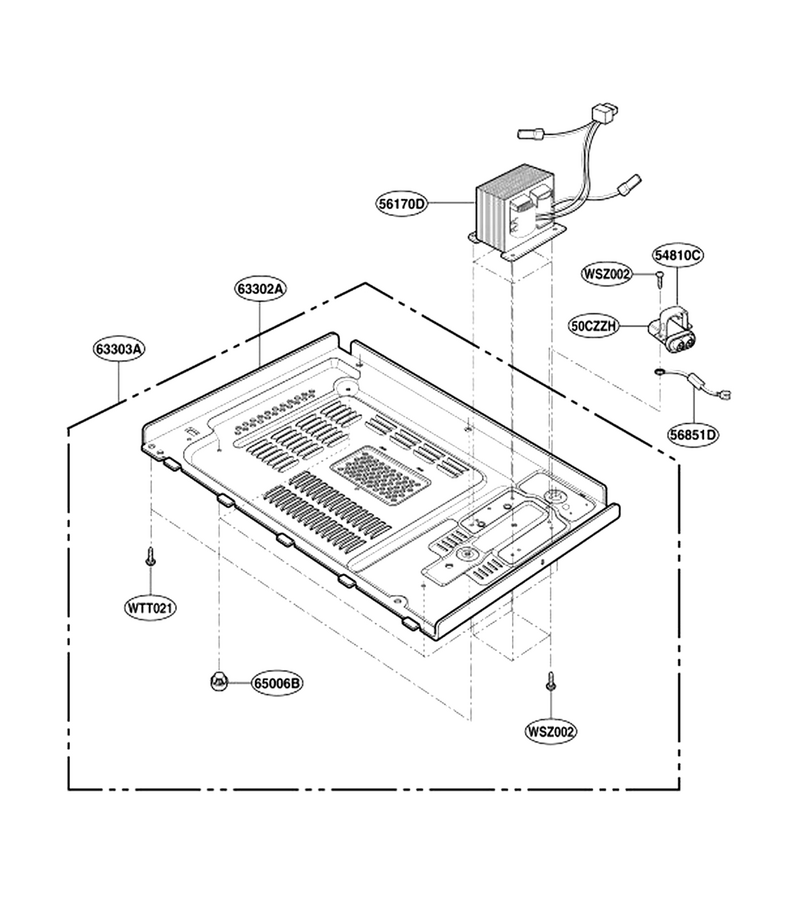

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
50CZZH
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
54810C
Bracket L-G-4810W4C003A
...
56170D
Transformer L-G-6170W1D075B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
63302A
Plate,base L-G-3302W1A053B
...
63303A
Plate Assembly,base L-G-3303W1A013H
