LG MS2042DB.CBK9NAG

Model: MS2042DB.CBK9NAG

Save Part Not Listed?
product name

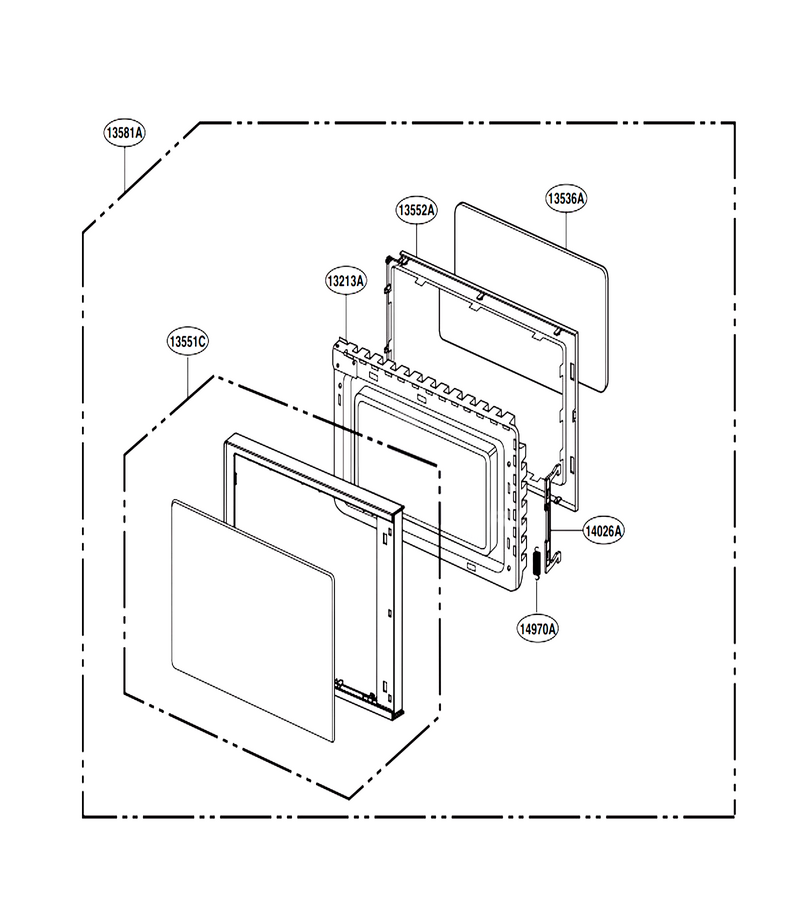

Door Parts

...
...
13213A
Frame Assembly,door L-G-ADV74285903
...
13551C
Door Assembly,sub L-G-ADC74905716
...
13552A
Cover,choke L-G-MCK66975701
...
13581A
Door Assembly,full L-G-ADC73886818

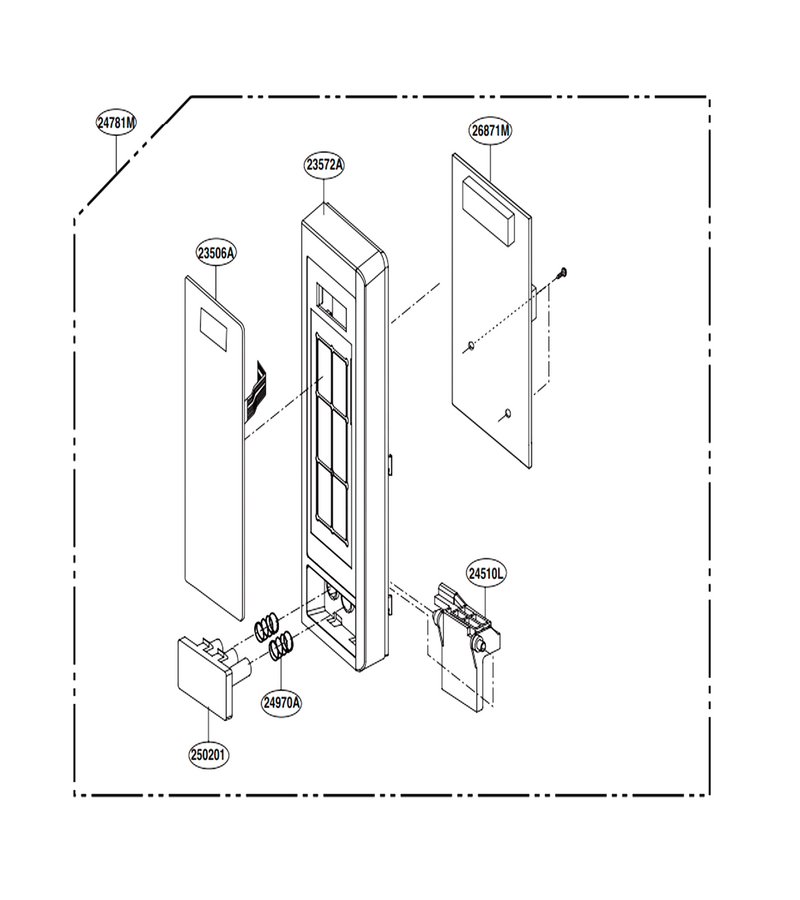

Control Panel Parts

...
...
23506A
Membrane L-G-MFM62956807
...
23572A
Panel,control L-G-MGC62901803
...
24510L
Lever L-G-4510W1A017A
...
24781M
Keypad Controller Assembly L-G-ACM73759383
...
24970A
Microwave Door Release Button Spring L-G-4B72023B
...
26871M
Pcb Assembly L-G-EBR80142828
...
250201
Button,release L-G-MBG64586203

Oven Cavity Parts

...
...
33112U
U Bending Case L-G-3112W0U070K

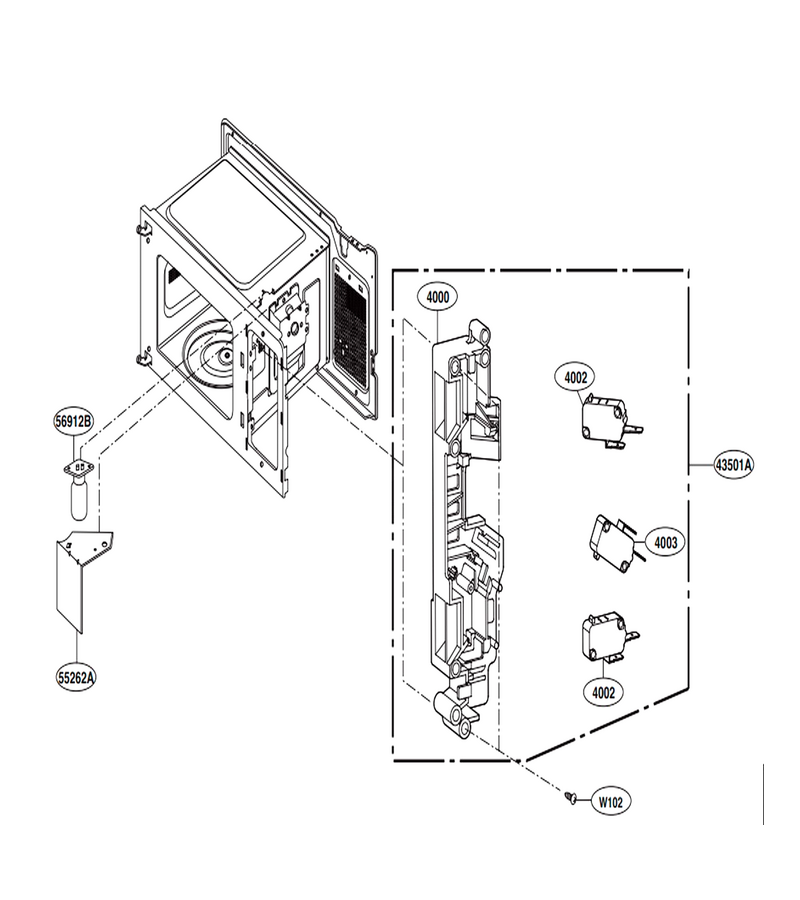

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-3500W1A036A
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
56912B
Cable,assembly L-G-6912W3B002D

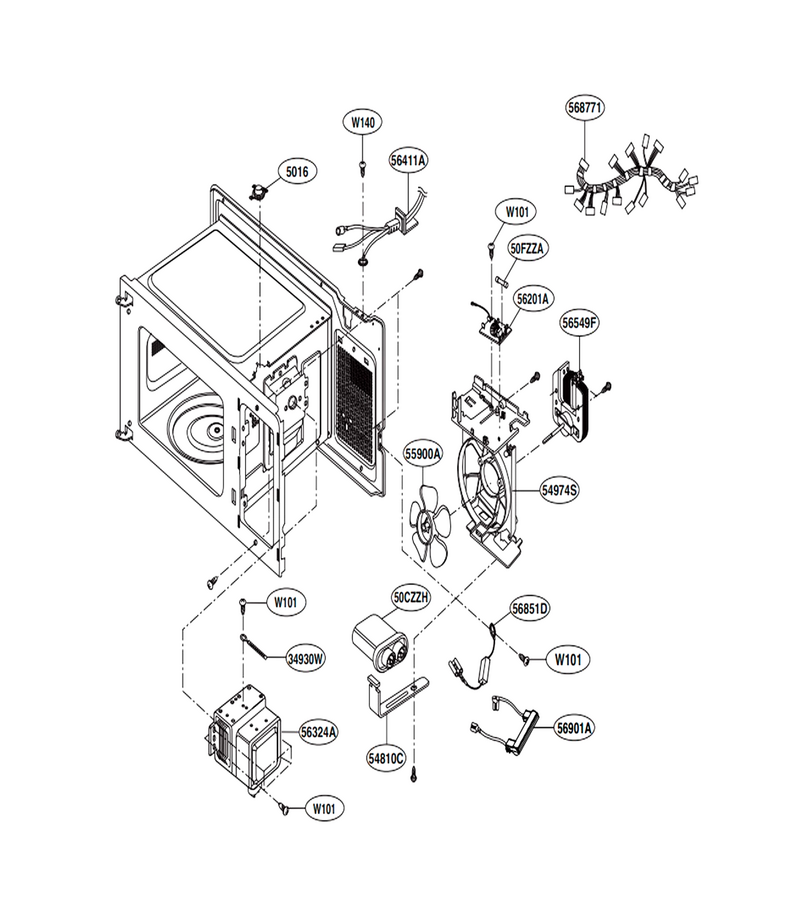

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W140
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
50CZZH
High Voltage Capacitor L-G-EAE62927701
...
50FZZA
Fuse,time Delay L-G-3B74133S
...
5016
Thermostat L-G-6930W1A004N
...
34930W
Lug (circ) L-G-4B72510F
...
54810C
Bracket,capacitor L-G-4810W3C003A
...
56201A
Ac Line Filter L-G-EAM35001886
...
56411A
Power Cord Assembly L-G-EAD62088303
...
56549F
Ac Fan Motor L-G-EAU42744412
...
56851D
Microwave Diode L-G-6851W1A002A
...
56901A
Fuse Assembly L-G-EAF36358311
...
568771
Harness,single L-G-6877W1A553M

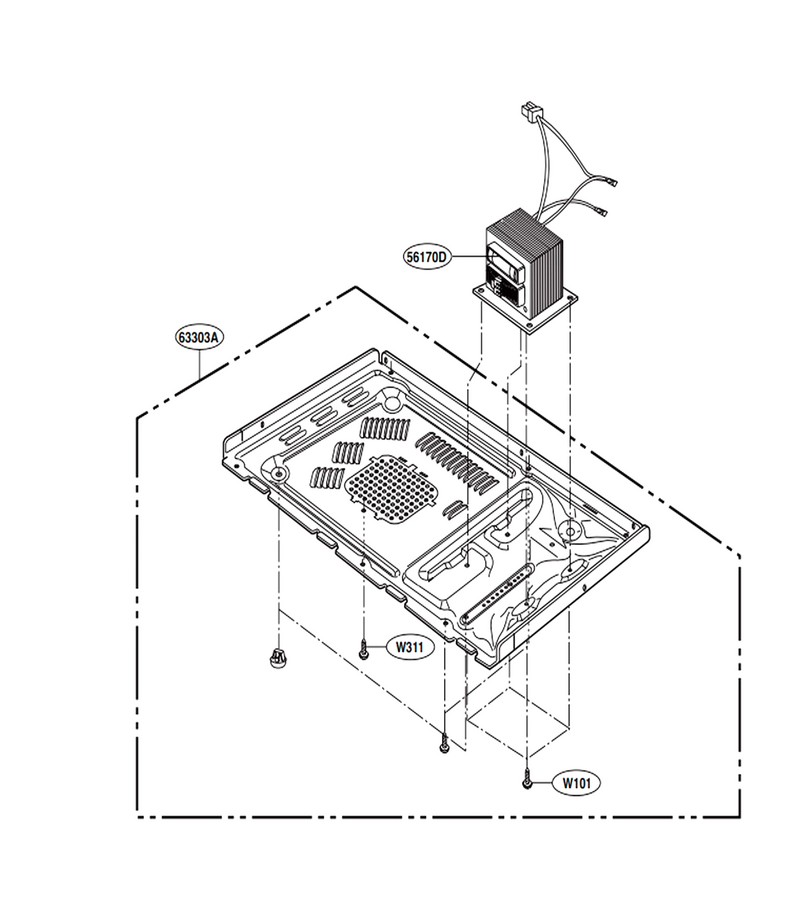

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
56170D
High Voltage Transformer L-G-EBJ39739220
