LG MS-113YE.MWEGSC

Model: MS-113YE.MWEGSC

Save Part Not Listed?
product name

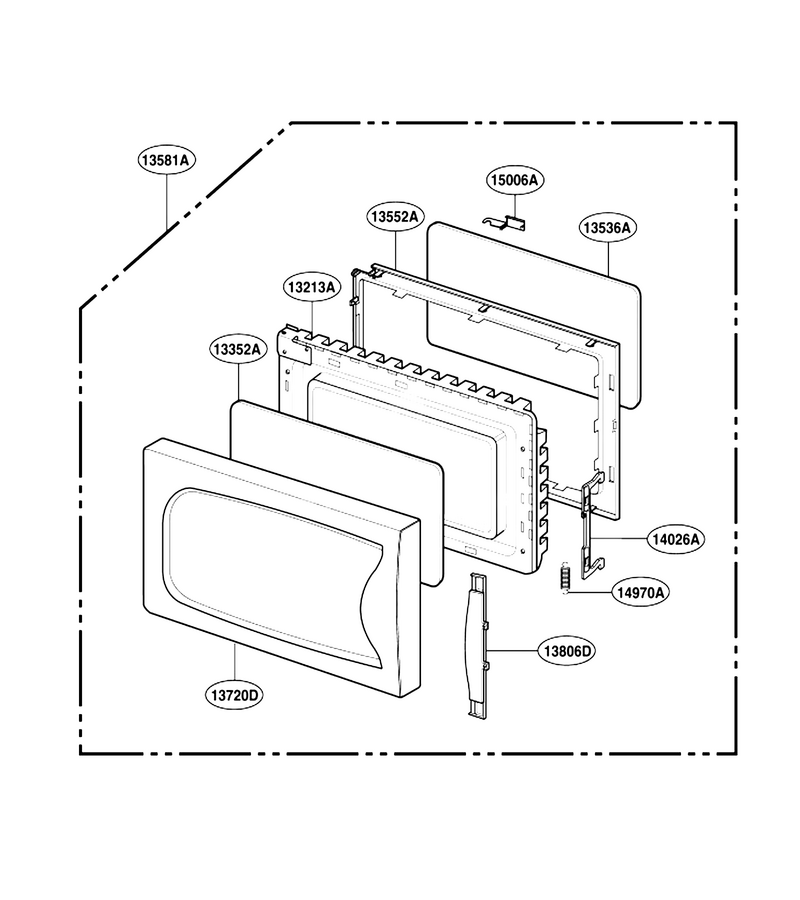

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A028H
...
13352A
Window,screen L-G-3352W2A049A
...
13536A
Tape,sealing L-G-3536WRA001L
...
13552A
Cover,choke L-G-3552W1A037A
...
13581A
Door Assy L-G-3581W1A192C
...
13720D
Panel,[door] L-G-3720W0D131C
...
13806D
Decor,door L-G-3806W2A007A
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Transformer L-G-5006W3A017A

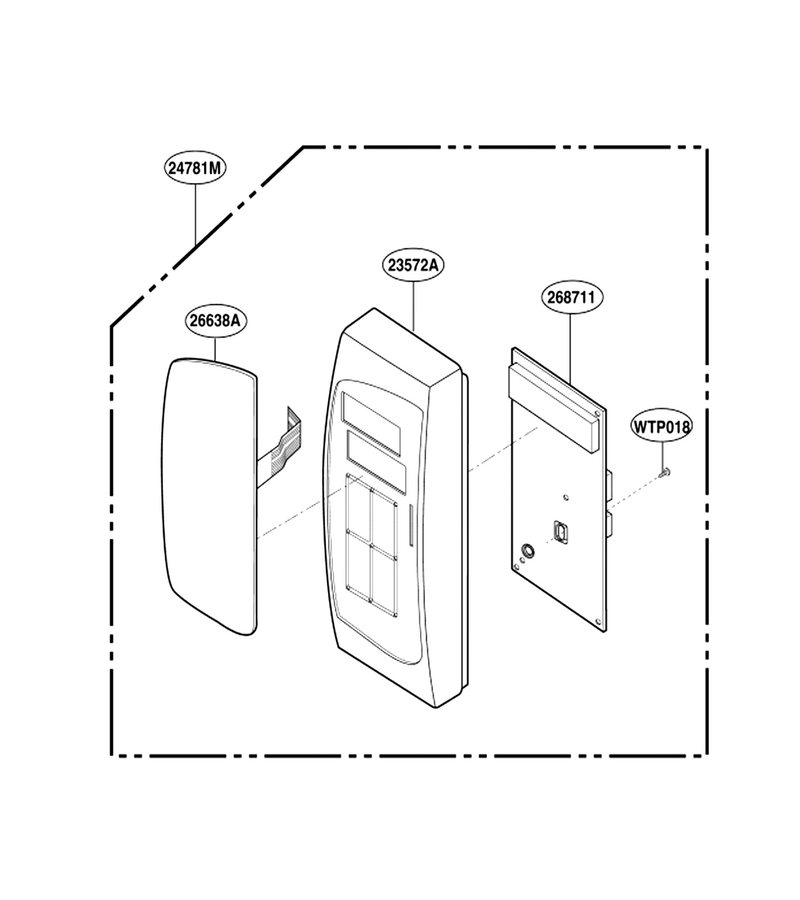

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23572A
Panel,control L-G-3572W0A150A
...
24781M
Controller Assembly,keypad L-G-4781W1M198C
...
26638A
Key Membrane L-G-6638W2A245C
...
268711
Pcb Assembly,sub L-G-6871W2S062C

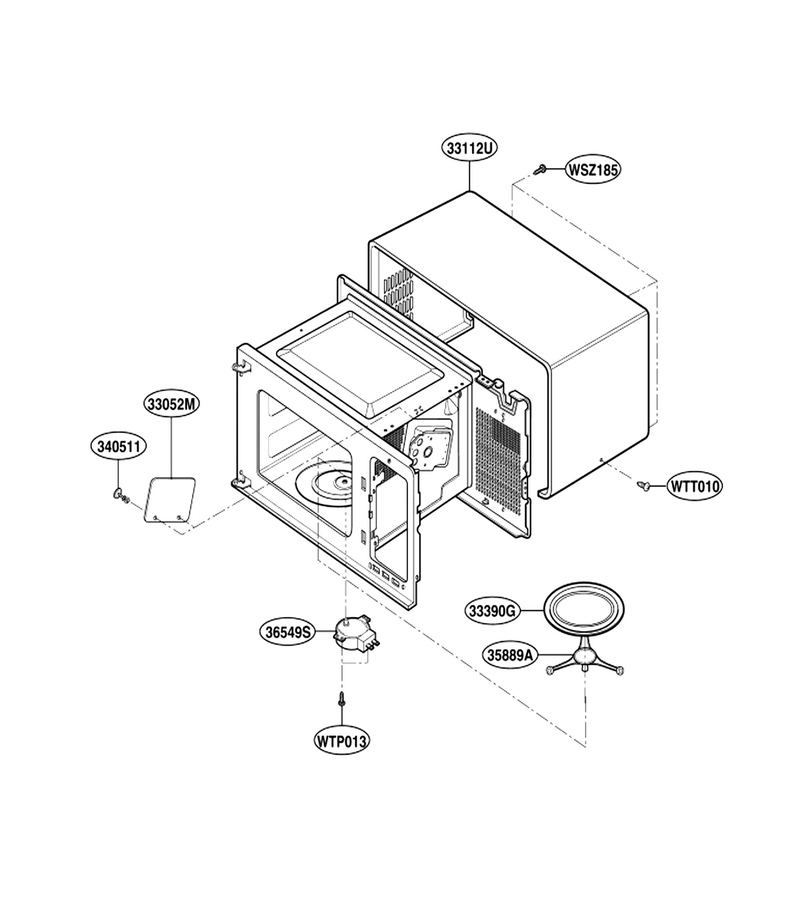

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
33052M
Cover,insulator L-G-3052W3M011C
...
33112U
Case,u Bending L-G-3112W1U019N
...
33390G
Tray,glass L-G-3390W1G003A
...
35889A
Microwave Turntable Tray Support L-G-5889W2A011A
...
36549S
Motor, Ac Synchronous L-G-6549W1S011C
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A

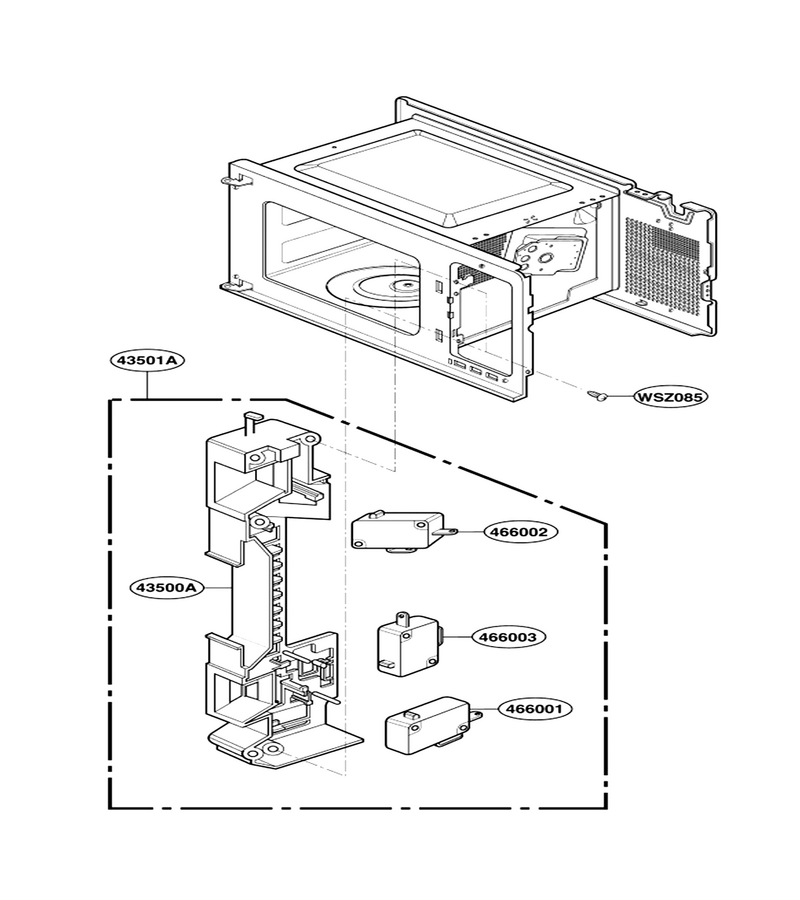

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Body L-G-3500W1A005A
...
43501A
Latch Board L-G-3501W1A016F
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

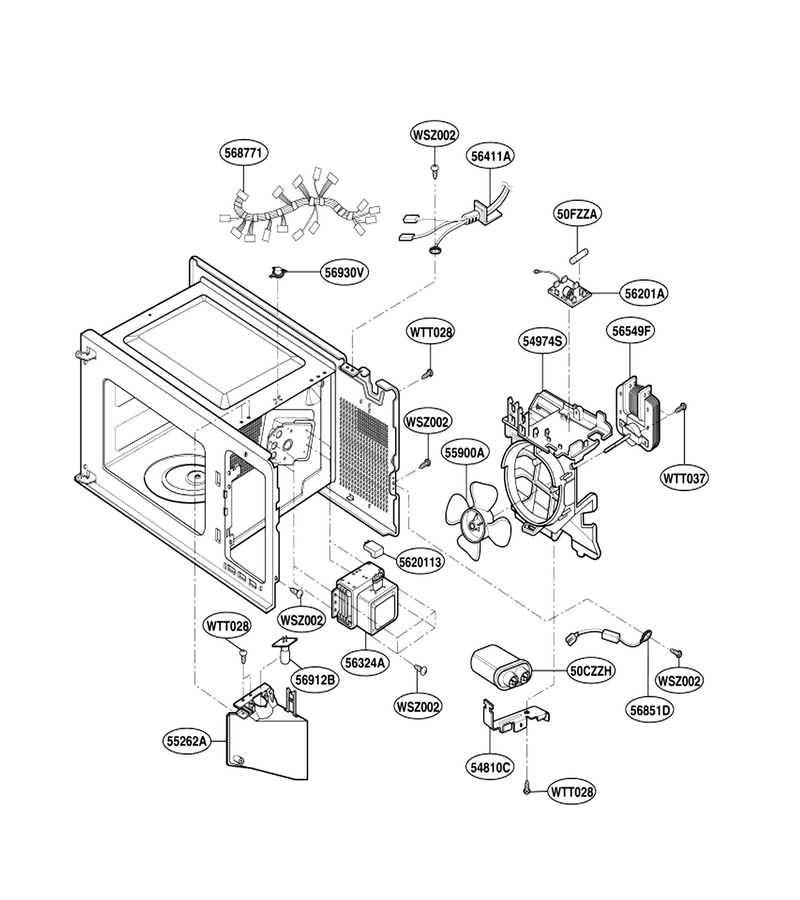

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50FZZA
Fuse[all] L-G-3B74133K
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H003H
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide L-G-4974W1S010A
...
55262A
Duct L-G-5262W2A041C
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56201A
Microwave Noise Filter L-G-2B72130F
...
56324A
Microwave Magnetron L-G-6324W1A001A
...
56411A
Power Cord Assembly L-G-6411W1A019G
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
56930V
Microwave Thermostat L-G-6930W1A001J
...
568771
Connector Assembly L-G-6877W1A181A
