LG MR48DEY3JM.AWGBFRD

Model: MR48DEY3JM.AWGBFRD

Save Part Not Listed?
product name

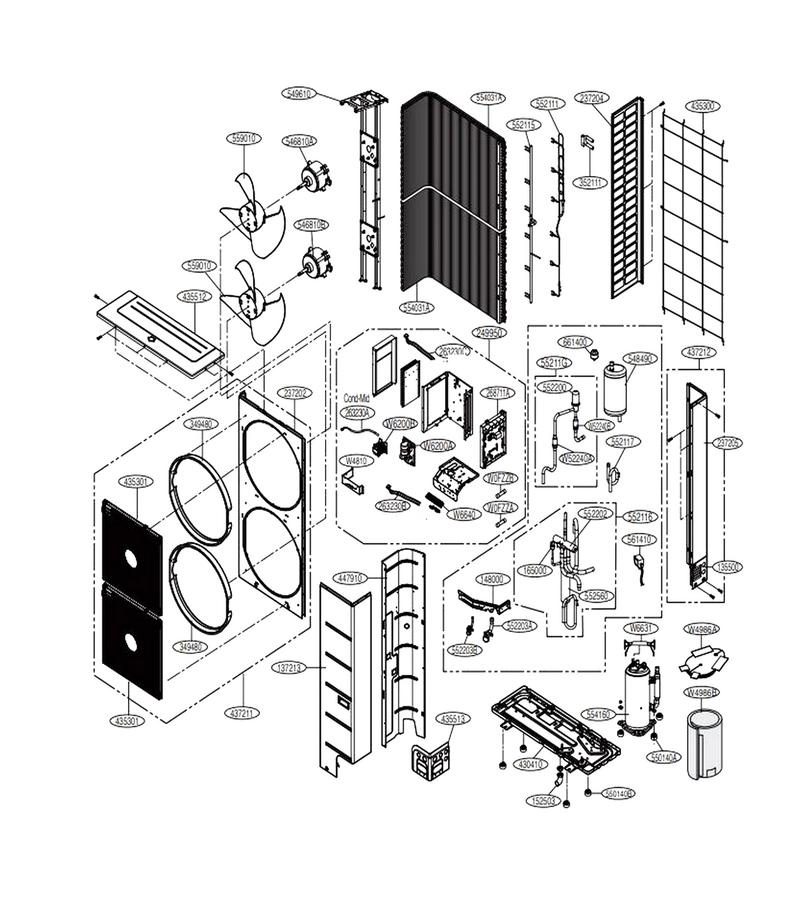

Main

...
...
W0FZZB
Fuse,time Delay L-G-0FT5001B511
...
W52240A
Strainer L-G-3H03659M
...
W52240B
Strainer L-G-3H03659C
...
W6200A
Pcb Assembly,filter L-G-EBR81792401
...
W6200B
Filter,line Noise L-G-EAM60751501
...
W6631
Harness,multi L-G-EAD63768930
...
55211G
Tube Assembly,expansion L-G-AJR36388606
...
135500
Cover L-G-MCK39626220
...
137213
Panel Assembly,side L-G-AGL76513024
...
148000
Supporter L-G-MJH39544901
...
152503
Nipple,drain L-G-4H01010A
...
237202
Panel,front L-G-MGC39426114
...
237204
Panel,side L-G-MGC39426015
...
237205
Panel,rear L-G-MGC39613728
...
263230A
Thermistor Assembly,ntc L-G-EBG61106542
...
263230B
Thermistor Assembly,ntc L-G-EBG61107109
...
263230C
Thermistor Assembly,ntc L-G-EBG61107014
...
349480
Orifice L-G-4948A20011G
...
435300
Grille,rear L-G-MDX40922509
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131820
...
435513
Cover Assembly,tubing L-G-ACQ34583416
...
437211
Panel Assembly,front(outdoor) L-G-AGL34578711
...
437212
Panel Assembly,rear(outdoor) L-G-AGL76512811
...
447910
Barrier Assembly,outdoor L-G-AAM35646423
...
546810A
Motor Assembly,dc,outdoor L-G-4681A20172Q
...
546810B
Motor Assembly,dc L-G-4681A20172R
...
548490
Accumulator Assembly L-G-AAB73250401
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA34168813
...
550140A
Damper,rubber L-G-MCQ68888201
...
552111
Tube Assembly,capillary L-G-AJR73326705
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR73326605
...
552116
Tube Assembly,reverse L-G-AJR73944513
...
552117
Tube Assembly,suction(outdoor) L-G-AJR36388510
...
554160
Compressor Set,korea L-G-TBZ37955101
...
559010
Fan,propeller L-G-MDG62002901
...
661400
Coil,expansion L-G-EAP62228706
