LG MMV6178AAQ.AB6EMTG

Model: MMV6178AAQ.AB6EMTG

Save Part Not Listed?
product name

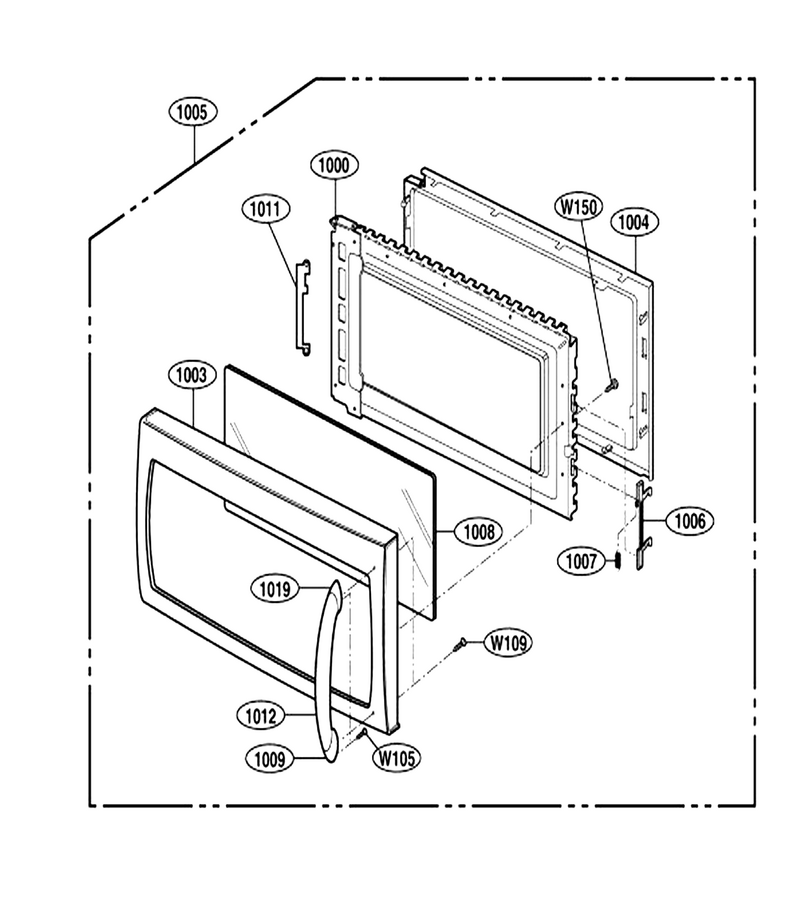

Door Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
1000
Frame Assembly,door L-G-3213W0A003H
...
1003
Panel,door L-G-3720W0D355C
...
1004
Microwave Door Inner Frame L-G-3552W0A001B
...
1005
Door Assembly L-G-3581W1A451C
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A057C
...
1009
Handle,door L-G-3650W1A133C
...
1011
Baffle L-G-4760W1A016A
...
1012
Handle,door L-G-3650W1A131C
...
1019
Handle,door L-G-3650W1A132C

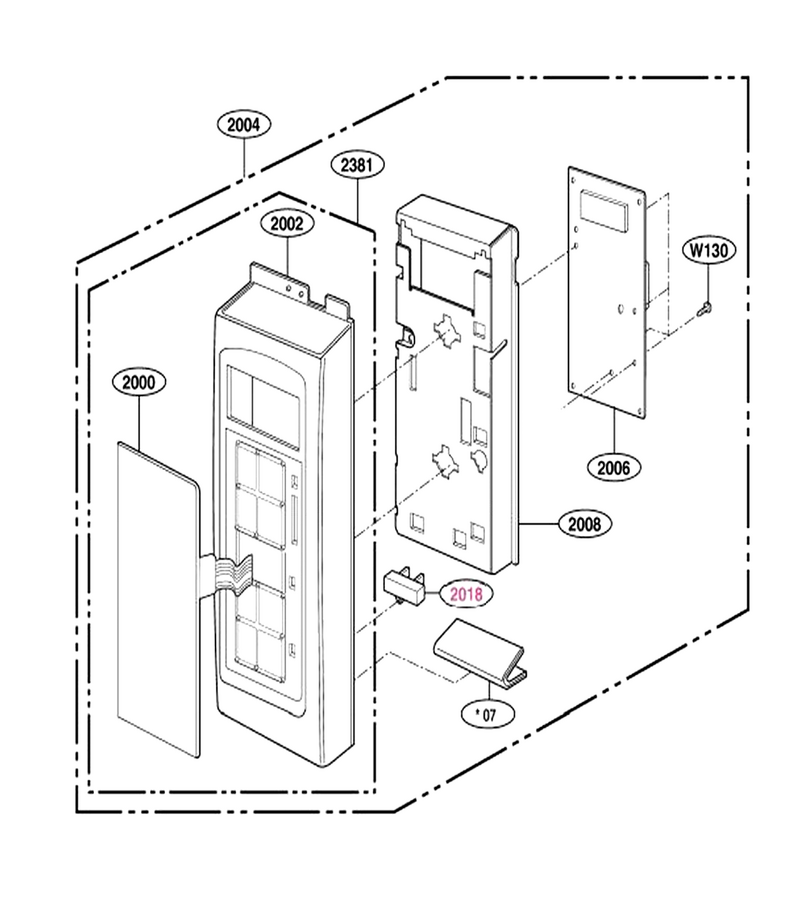

Controller Parts

...
...
*07
Card,technical L-G-3840W1T144A
...
W130
Microwave Screw L-G-1TPL0402618
...
2000
Membrane L-G-3506W1A568C
...
2002
Panel,control L-G-3720W0C213C
...
2004
Controller Assembly,keypad L-G-4781W1M383K
...
2006
Pcb Assembly,sub L-G-6871W1S329A
...
2008
Bracket,control Panel L-G-4810W1A300A
...
2018
Microwave High-Voltage Capacitor L-G-0CZZW1M001C
...
2381
Parts Assembly L-G-383EW5A211F

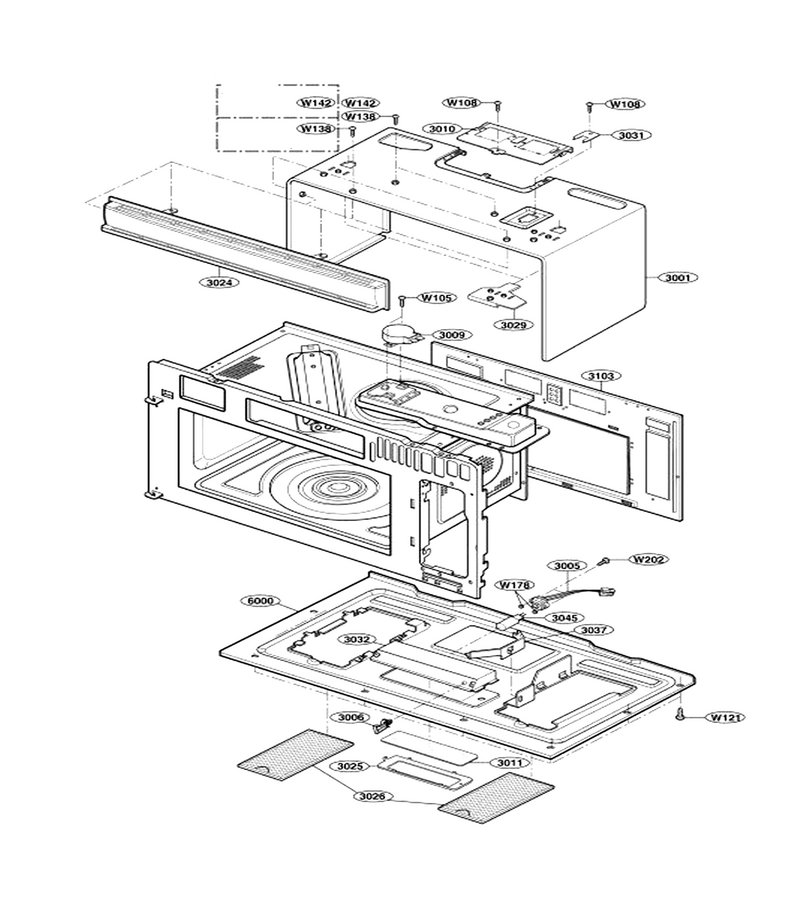

Oven Cavity Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W121
Microwave Screw L-G-1TTL0402422
...
W138
Screw L-G-1TTL0402822
...
W178
Hex Nut L-G-1NHA0300018
...
3001
Case,u Bending L-G-3112W1U023K
...
3006
Holder L-G-4B72944B
...
3009
Motor L-G-6549W1S002G
...
3010
Plate L-G-4960W1A008E
...
3011
Window,glass L-G-4890W4A001H
...
3024
Grille,vent L-G-3530W0A043C
...
3026
Filter,grease L-G-2B72705C
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3045
Microwave Light Bulb L-G-6912A40002D
...
6000
Plate,base L-G-3302W0A054B

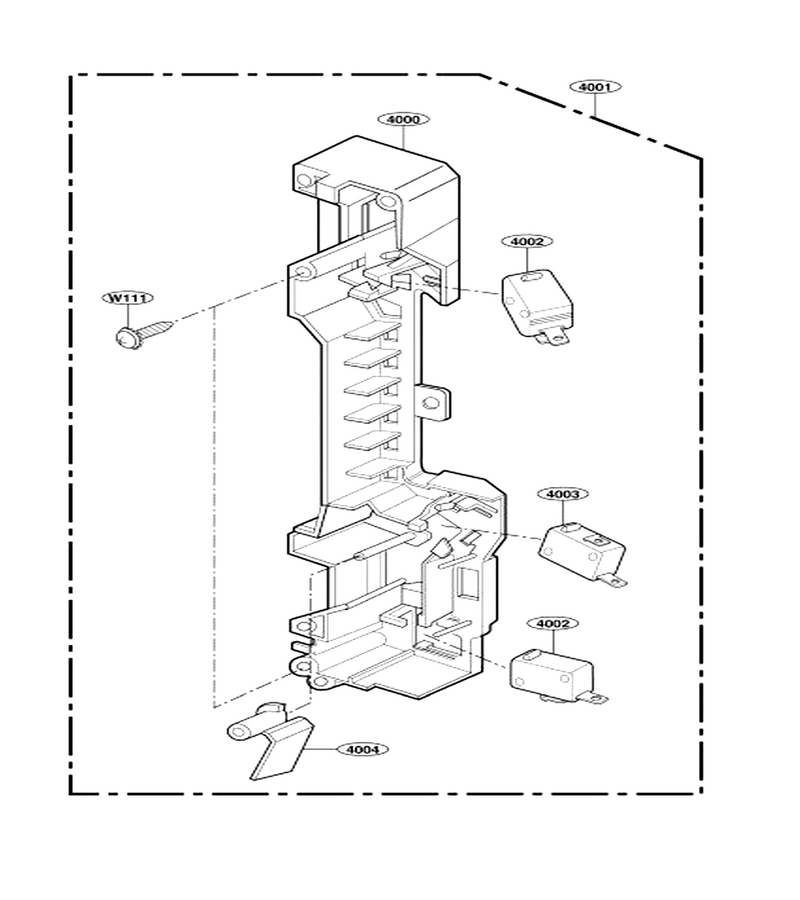

Latch Board Parts

...
...
W111
Screw L-G-4B70188B
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Microwave Latch Body Assembly L-G-3501W1A019C
...
4002
Microwave Micro Switch L-G-3B73362F
...
4003
Switch Micro L-G-3B73361E
...
4004
Lever L-G-4510W4A005A

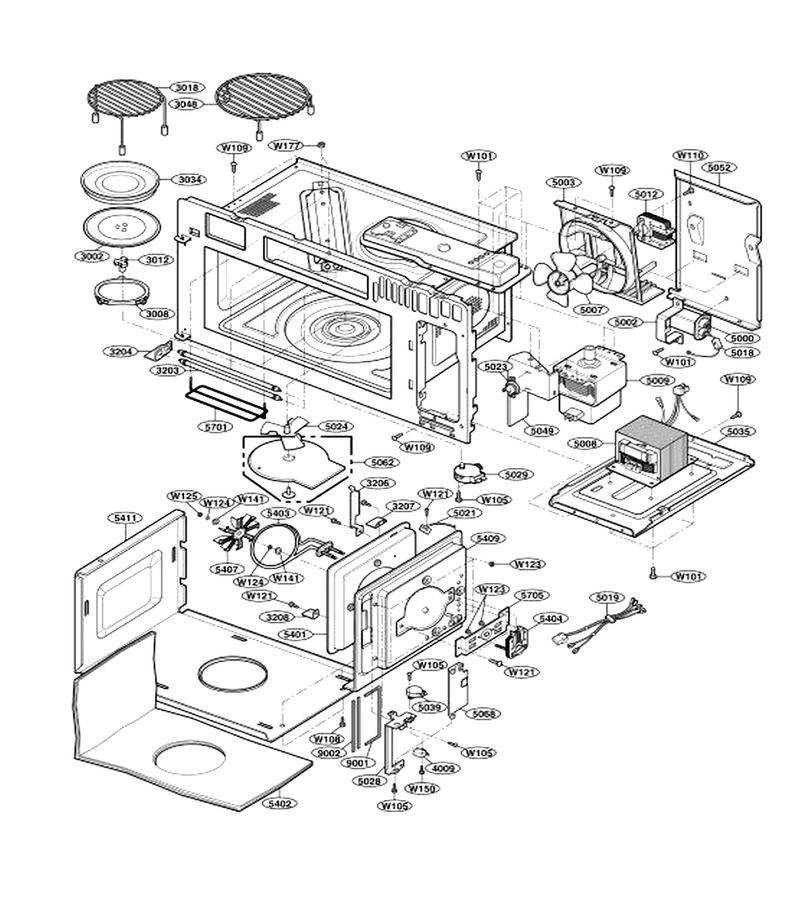

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W121
Microwave Screw L-G-1TTL0402422
...
W123
Nut L-G-1NHA0400018
...
W124
Washer L-G-1WSD0400032
...
W141
Washer L-G-1WPL0500032
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
W177
Drawer Nut L-G-4B71028B
...
3002
Tray,glass L-G-3390W1A019B
...
3008
Microwave Turntable Tray Support L-G-5889W2A012D
...
3018
Shelf L-G-5026W1A058D
...
3034
Microwave Turntable Tray L-G-3390W2P002F
...
3048
Shelf L-G-3B71492Z
...
3203
Heater,miraclon L-G-5300W1A003E
...
3204
Bracket,heater L-G-4810W1A299A
...
4009
Microwave Door Interlock Switch L-G-6600W1K004B
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket L-G-4810WRC002A
...
5003
Guide,suction L-G-4974W1A032A
...
5007
Fan L-G-2B72279A
...
5008
Transformer,high Voltage L-G-6170W1D052H
...
5012
Motor,ac Fan L-G-6549W1F009F
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5021
Microwave Thermistor L-G-6322W2A001A
...
5023
Thermostat L-G-6930W1A002E
...
5029
Microwave Turntable Motor L-G-6549W1S013D
...
5039
Circulating Motor L-G-6549WRS001P
...
5407
Fan Blade L-G-5900W3A004B
...
5701
Barrier L-G-4790W1A011A

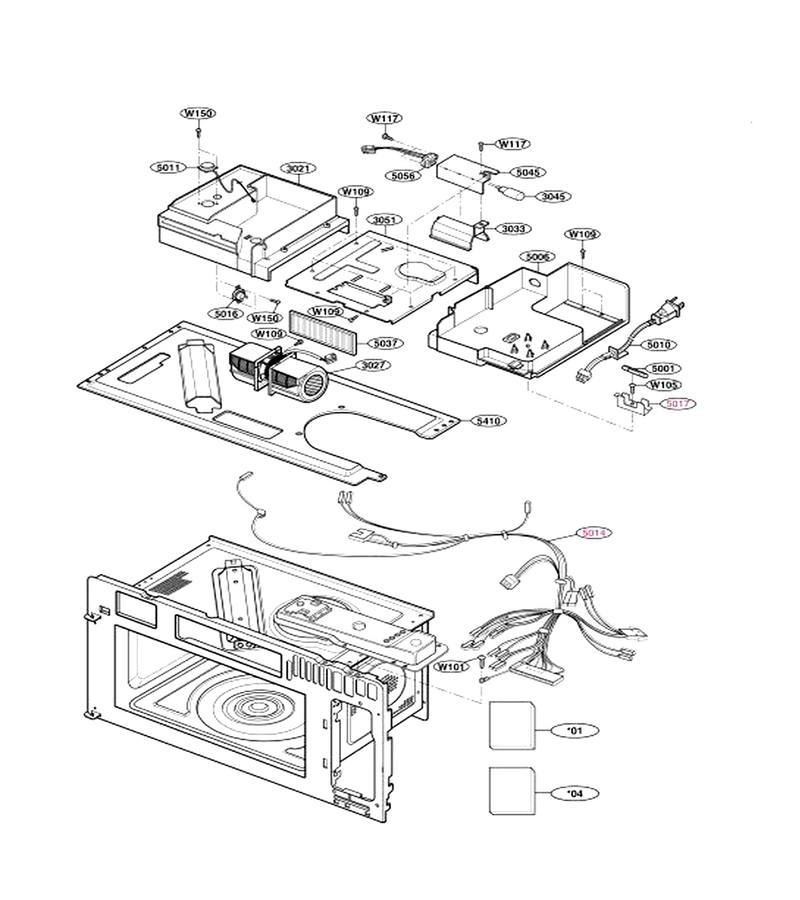

Interior Parts (ii-I)

...
...
*01
Manual,owners L-G-3828W5A4207
...
*04
Manual,installation L-G-3828W5U0363
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W117
3.0x16mm Tap L-G-1TPL0303118
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
3027
Motor, Ac Ventilation L-G-6549W1V006H
...
3033
Reflector L-G-3034W1A004A
...
3045
Microwave Light Bulb L-G-6912A40002D
...
5001
Fuse[all] L-G-3B74133K
...
5010
Ac Cord Assembly L-G-6411W1A014T
...
5011
Sensor Assembly L-G-6501W1A013A
...
5014
Harness,single L-G-6877W1A543C
...
5016
Microwave Thermal Cut-Off L-G-6930W1A003R
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5045
Cover,lamp L-G-3550W1A264A
...
5056
Holder Assembly L-G-4931W1A009E

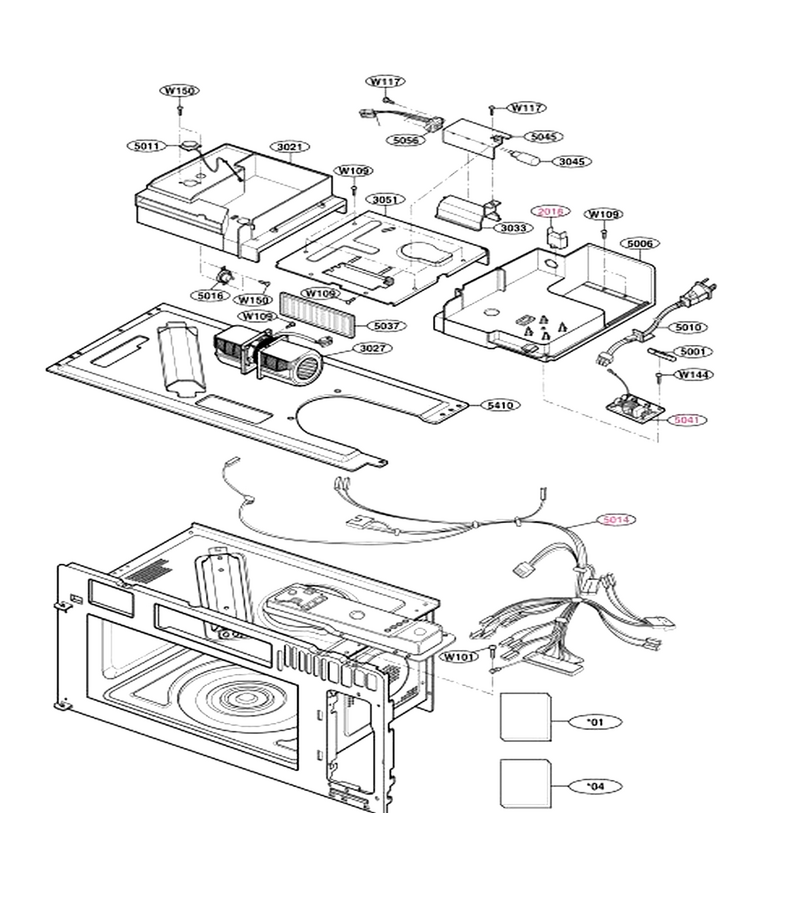

Interior Parts (ii-Ii)

...
...
*01
Manual,owners L-G-3828W5A4207
...
*04
Manual,installation L-G-3828W5U0363
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W117
3.0x16mm Tap L-G-1TPL0303118
...
W144
Microwave Screw L-G-1TTL0402618
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
2018
Microwave High-Voltage Capacitor L-G-0CZZW1M001C
...
3027
Motor, Ac Ventilation L-G-6549W1V006H
...
3033
Reflector L-G-3034W1A004A
...
3045
Microwave Light Bulb L-G-6912A40002D
...
5001
Fuse[all] L-G-3B74133K
...
5010
Ac Cord Assembly L-G-6411W1A014T
...
5011
Sensor Assembly L-G-6501W1A013A
...
5014
Harness,single L-G-6877W1A543C
...
5016
Microwave Thermal Cut-Off L-G-6930W1A003R
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5041
Microwave Noise Filter L-G-2B72130F
...
5045
Cover,lamp L-G-3550W1A264A
...
5056
Holder Assembly L-G-4931W1A009E

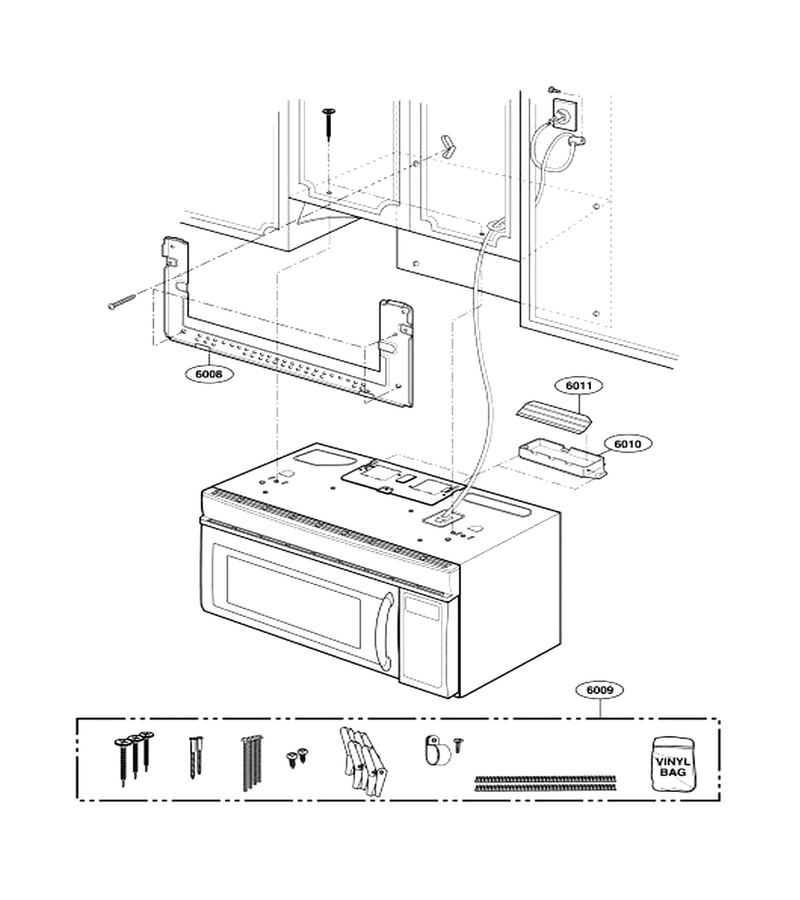

Installation Parts

...
...
6008
Microwave Mounting Plate L-G-3301W0A003A
...
6009
Microwave Installation Hardware Kit L-G-2B72771H
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A

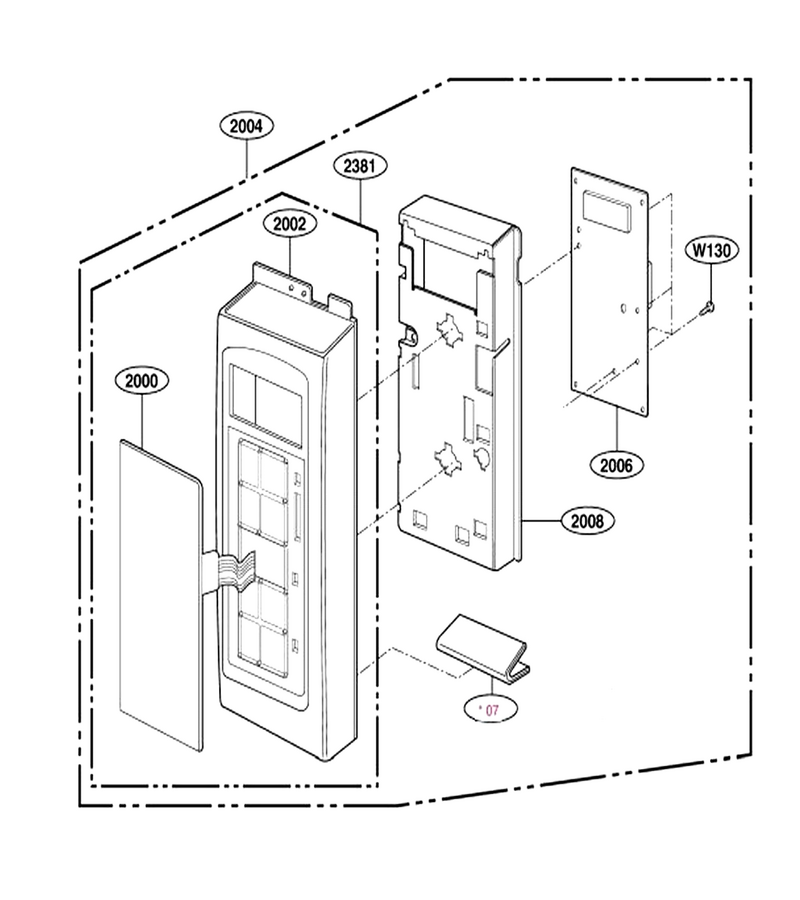

Controller Parts 2

...
...
*07
Card,technical L-G-3840W1T144A
...
W130
Microwave Screw L-G-1TPL0402618
...
2000
Membrane L-G-3506W1A568C
...
2002
Panel,control L-G-3720W0C213C
...
2004
Controller Assembly,keypad L-G-4781W1M383K
...
2006
Pcb Assembly,sub L-G-6871W1S329A
...
2008
Bracket,control Panel L-G-4810W1A300A
...
2381
Parts Assembly L-G-383EW5A211F
