product name

LG MMV5207AAW.AW1EMTG

Model: MMV5207AAW.AW1EMTG

Save Part Not Listed?
product name

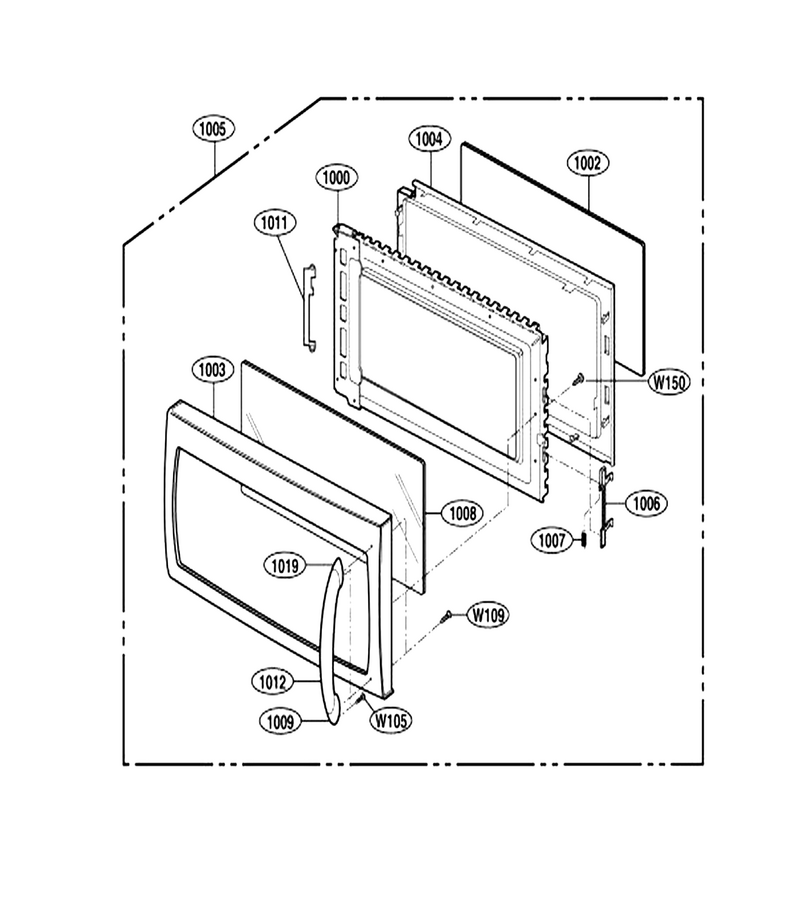

Door Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
1000
Microwave Door Inner Frame L-G-3213W0A003D
...
1002
Seal Tape L-G-3536W1A006D
...
1003
Panel,door L-G-3720W0D355A
...
1004
Microwave Door Inner Frame L-G-3552W0A001B
...
1005
Door Assembly L-G-3581W1A451G
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A057A
...
1009
Handle,door L-G-3650W1A133B
...
1011
Baffle L-G-4760W1A016A
...
1012
Handle,door L-G-3650W1A131A
...
1019
Handle,door L-G-3650W1A132B

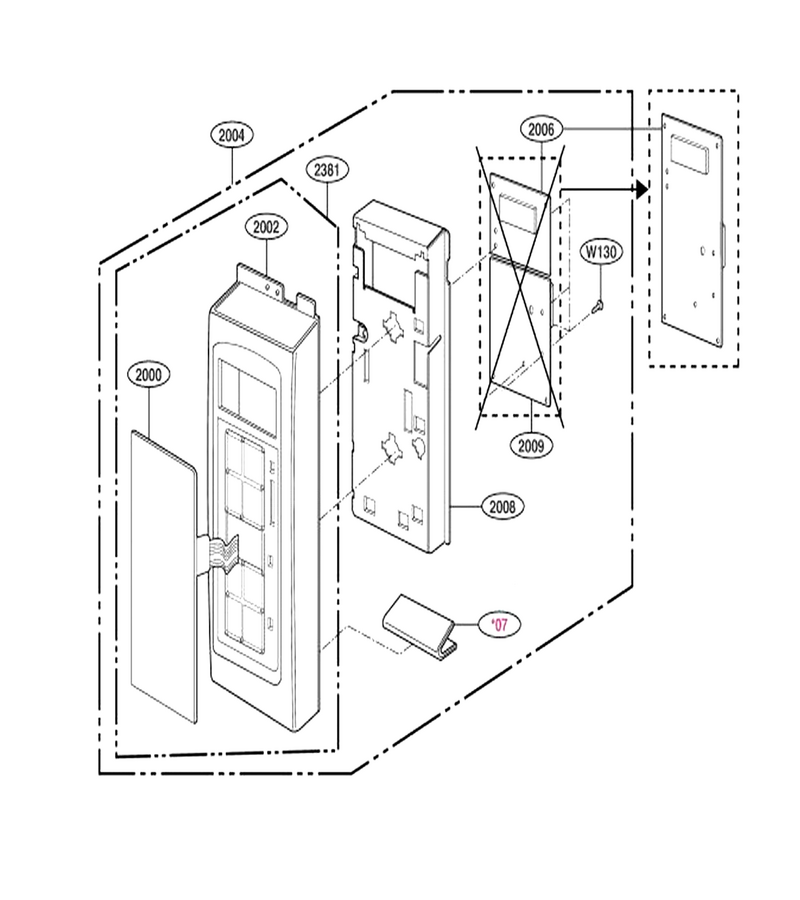

Controller Parts

...
...
W130
Microwave Screw L-G-1TPL0402618
...
2000
Membrane L-G-3506W1A579A
...
2002
Panel,control L-G-3720W0C213A
...
2004
Controller Assembly,keypad L-G-4781W1M383M
...
2006
Pcb Assembly,sub L-G-6871W1A419A
...
2008
Bracket,control Panel L-G-4810W1A300A
...
2381
Parts Assembly L-G-383EW5A211G

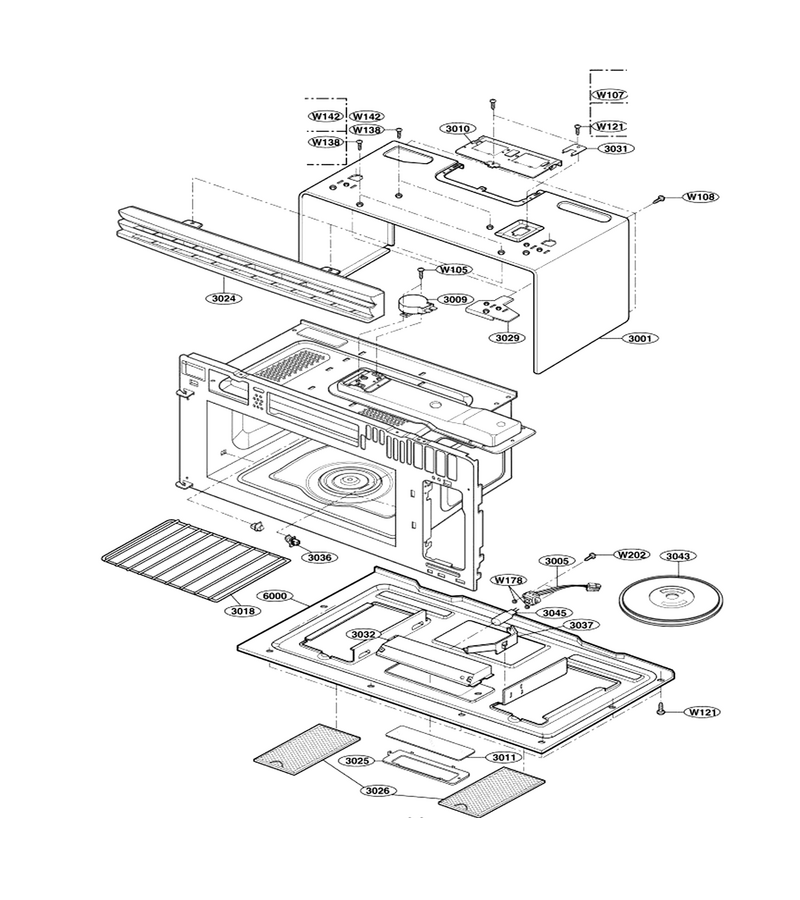

Oven Cavity Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W142
Plate,base L-G-3302W0A054B
...
W178
Screw L-G-1MPC0303118
...
W202
Hex Nut L-G-1NHA0300018
...
3001
Out Case L-G-3112W1U023F
...
3010
Microwave Vent Duct Cover L-G-4960W1A008A
...
3011
Window,glass L-G-4890W4A001H
...
3018
Microwave Cooking Rack L-G-5026W1A052C
...
3024
Grille,vent L-G-3530W0A044A
...
3026
Filter,grease L-G-2B72705C
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3036
Holder L-G-4930W1A026A
...
3043
Tray L-G-3390W1A023B
...
3045
Microwave Light Bulb L-G-6912A40002D
...
6000
Microwave Screw L-G-1TTL0402422

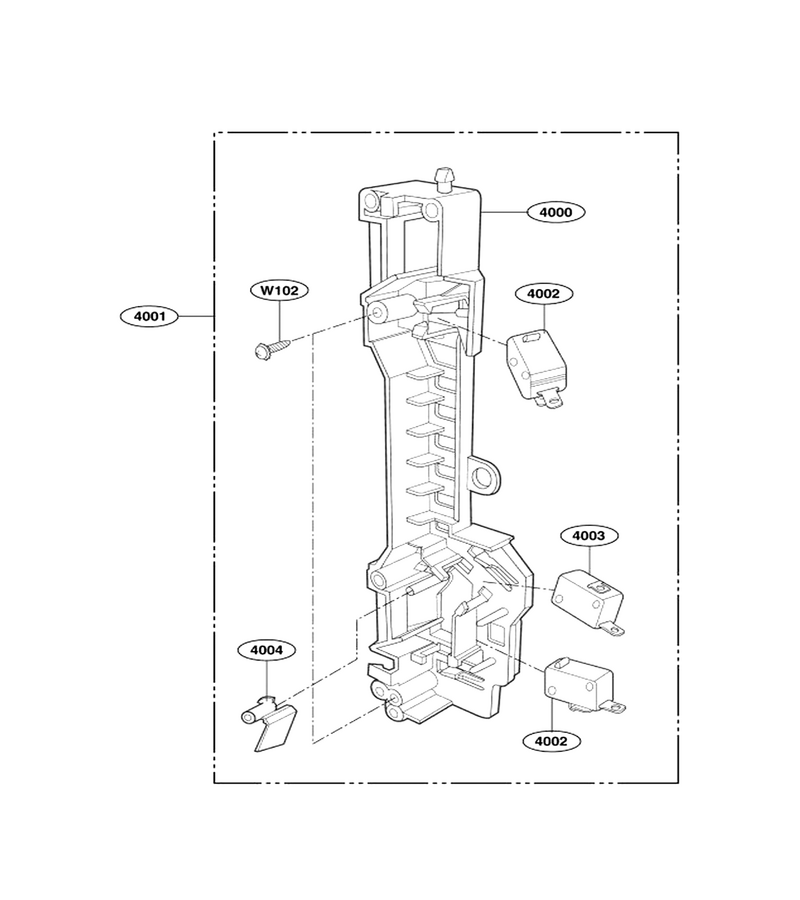

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Latch Assembly L-G-3501W1A016M
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
4004
Lever L-G-4510W4A005A

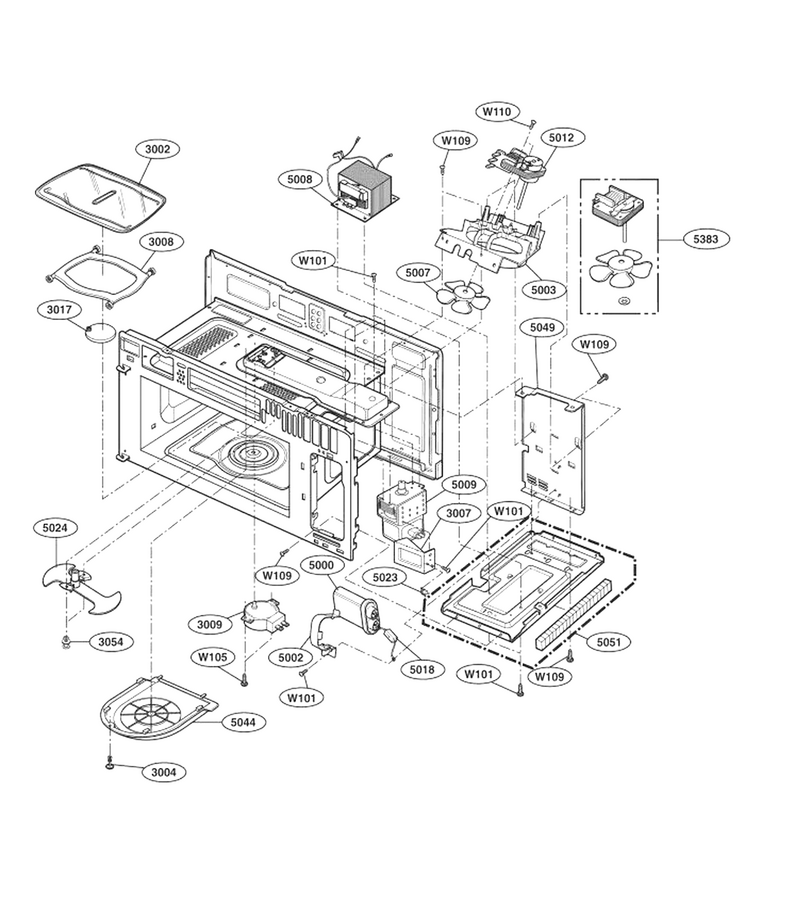

Interior Parts I

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
3002
Glass Tray L-G-3390W0A001A
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3007
Air Guide L-G-4974W1A038A
...
3008
Microwave Turntable Ring L-G-5889W1A007A
...
3009
Microwave Turntable Motor L-G-6549W1S013D
...
3017
Ring Assembly L-G-4351W1A001C
...
3054
Microwave Stirrer Fan Cover Clip L-G-4051W3A001C
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004C
...
5002
Bracket L-G-4810WRC002A
...
5003
Microwave/hood Guide L-G-4974W1A035A
...
5007
Fan L-G-5900W1A027B
...
5008
Microwave High-Voltage Transformer L-G-6170W1D100C
...
5009
Microwave Magnetron L-G-6324W1A001E
...
5012
Circulating Motor L-G-6549W1F009H
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5023
Dishwasher Thermostat L-G-6930W1A003K
...
5024
Microwave Stirrer Fan Blade L-G-5901W1A002A
...
5044
Microwave/hood Cover L-G-3550W1A169A
...
5049
Guide L-G-4974W1A037A
...
5051
Plate Assembly L-G-3301W1A045B
...
5383
Parts Assembly L-G-383E81A010A

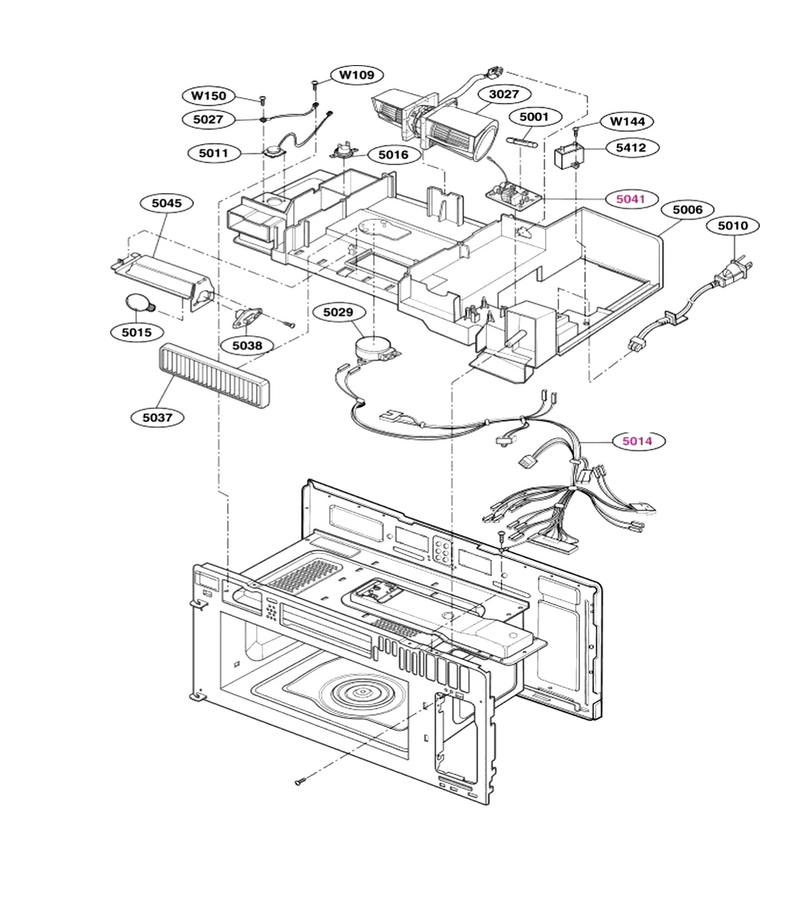

Interior Parts (ii - I)

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W144
Microwave Screw L-G-1TTL0402618
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
3027
Motor, Ac Ventilation L-G-6549W1V008F
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A019A
...
5010
Ac Cord Assembly L-G-6411W1A014X
...
5011
Sensor Assembly L-G-6501W1A013A
...
5014
Harness,single L-G-6877W1A579A
...
5015
Microwave Light Bulb L-G-3B70067A
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5027
Ground Wire L-G-3B72342Q
...
5029
Motor L-G-6549W1S002G
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Socket(circ),lamp L-G-6620G00007B
...
5045
Microwave Light Lens Bracket L-G-3550W1A171A
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

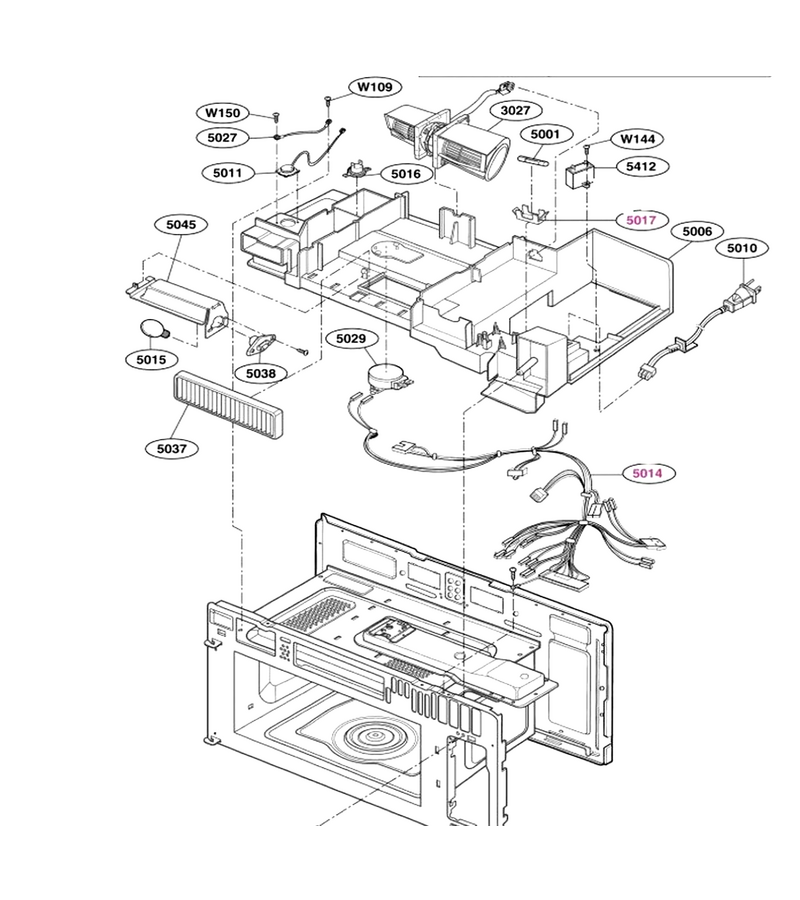

Interior Parts (ii - Ii)

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W144
Microwave Screw L-G-1TTL0402618
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
3027
Motor, Ac Ventilation L-G-6549W1V008F
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A019A
...
5010
Ac Cord Assembly L-G-6411W1A014T
...
5011
Sensor Assembly L-G-6501W1A013A
...
5014
Harness,single L-G-6877W1A579A
...
5015
Microwave Light Bulb L-G-3B70067A
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5027
Ground Wire L-G-3B72342Q
...
5029
Motor L-G-6549W1S002G
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Microwave Light Socket L-G-6804W2A001A
...
5045
Microwave Light Lens Bracket L-G-3550W1A171A
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

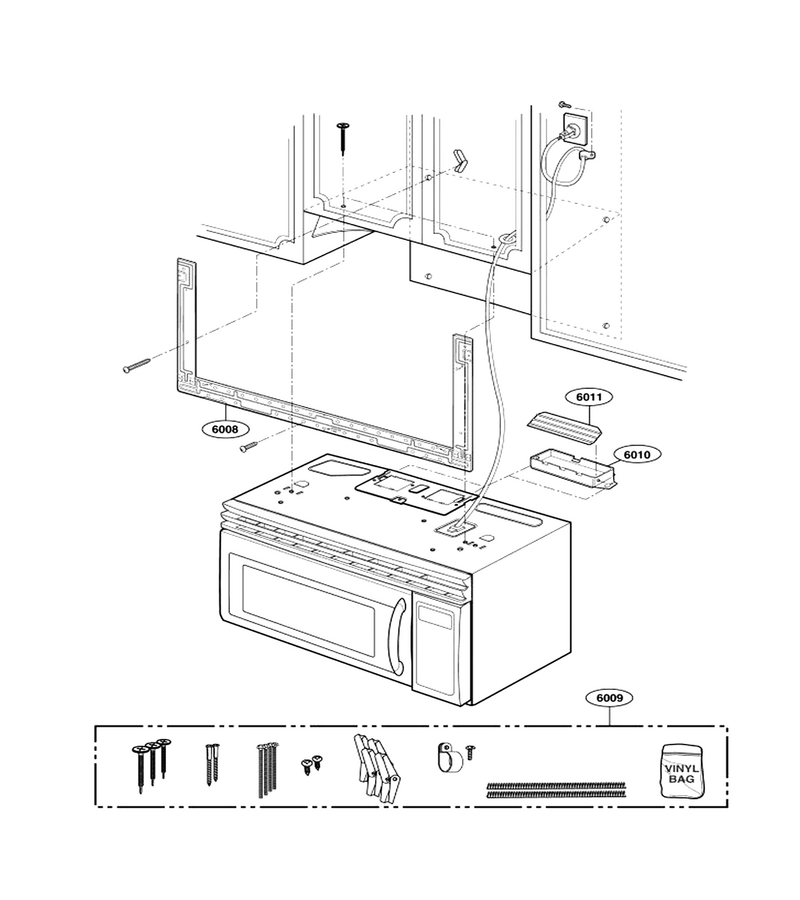

Installation Parts

...
...
6008
Microwave Mounting Plate L-G-3301W0A003A
...
6009
Microwave Installation Hardware Kit L-G-2B72771H
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
