LG MMV5165AAW.CW1EMTG

Model: MMV5165AAW.CW1EMTG

Save Part Not Listed?
product name

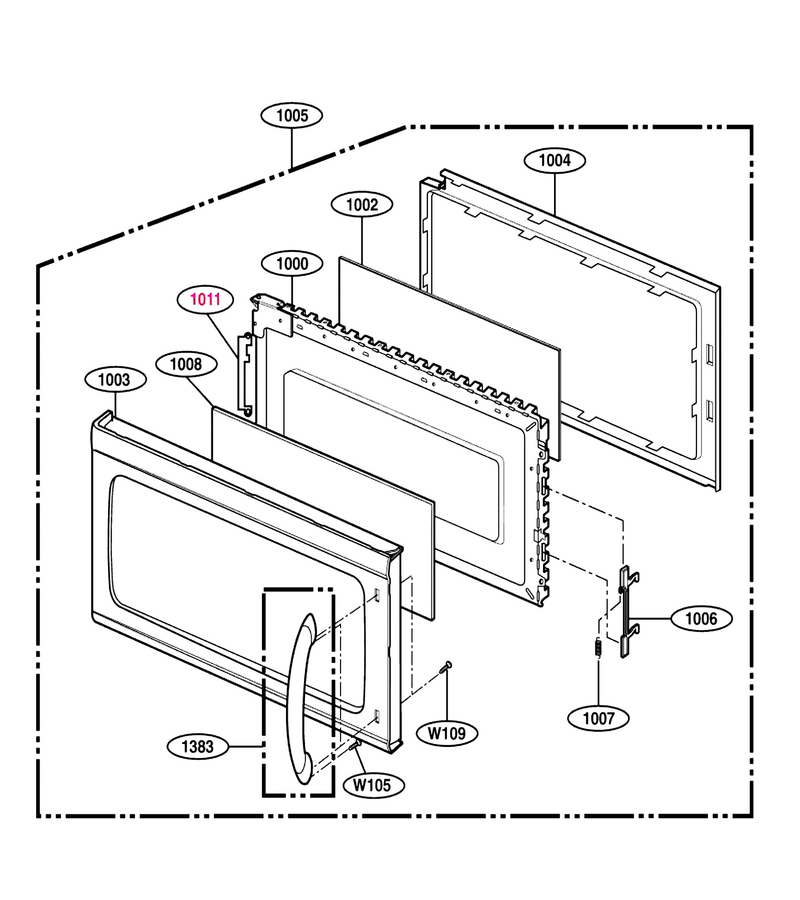

Door Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
1000
Microwave Door Inner Frame L-G-3213W1A049F
...
1002
Microwave Door Film L-G-3536W1A012B
...
1003
Panel,door L-G-3720W0D360D
...
1004
Microwave/hood Cover L-G-3552W1A032E
...
1005
Door Assembly L-G-3581W1A456K
...
1006
Microwave Door Latch L-G-4026W2A019A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A039L
...
1011
Baffle L-G-4760W1A017B
...
1383
Handle Assembly L-G-3651W1A023A

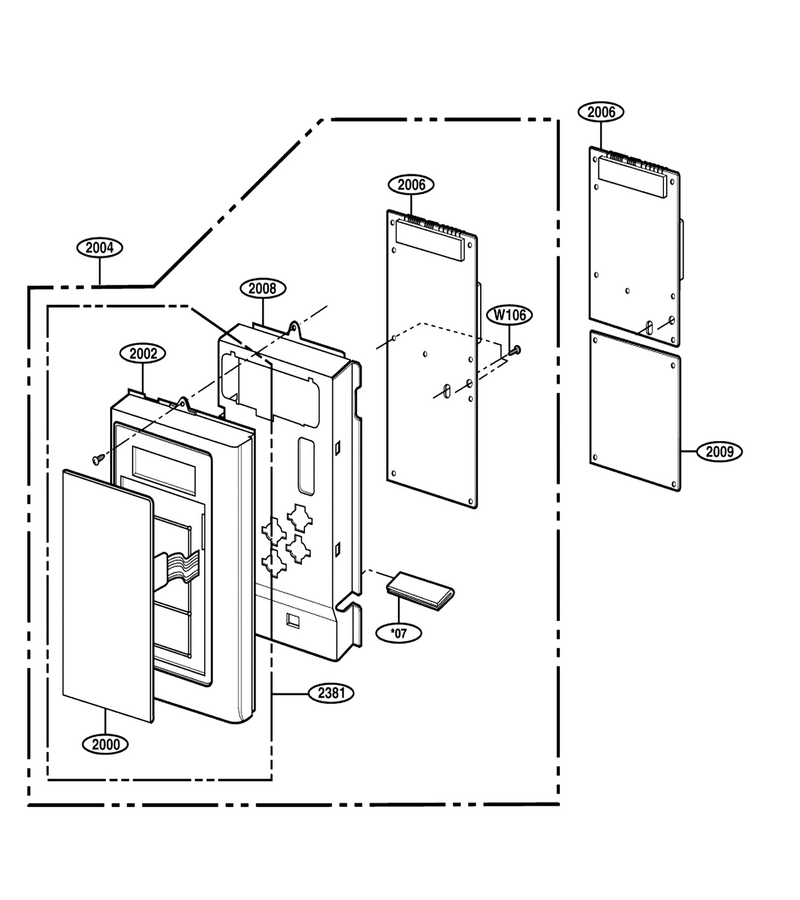

Controller Parts

...
...
*07
Card,technical L-G-3840W1T018C
...
W106
Screw L-G-1TPL0402818
...
2000
Membrane L-G-3506W1A612A
...
2002
Panel,control L-G-3720W0C223D
...
2004
Controller Assembly,keypad L-G-4781W1M428D
...
2006
Microwave/hood Control Board L-G-6871W1A418A
...
2008
Bracket,control Panel L-G-4810W1A293B
...
2381
Parts Assembly L-G-383EW5A212N

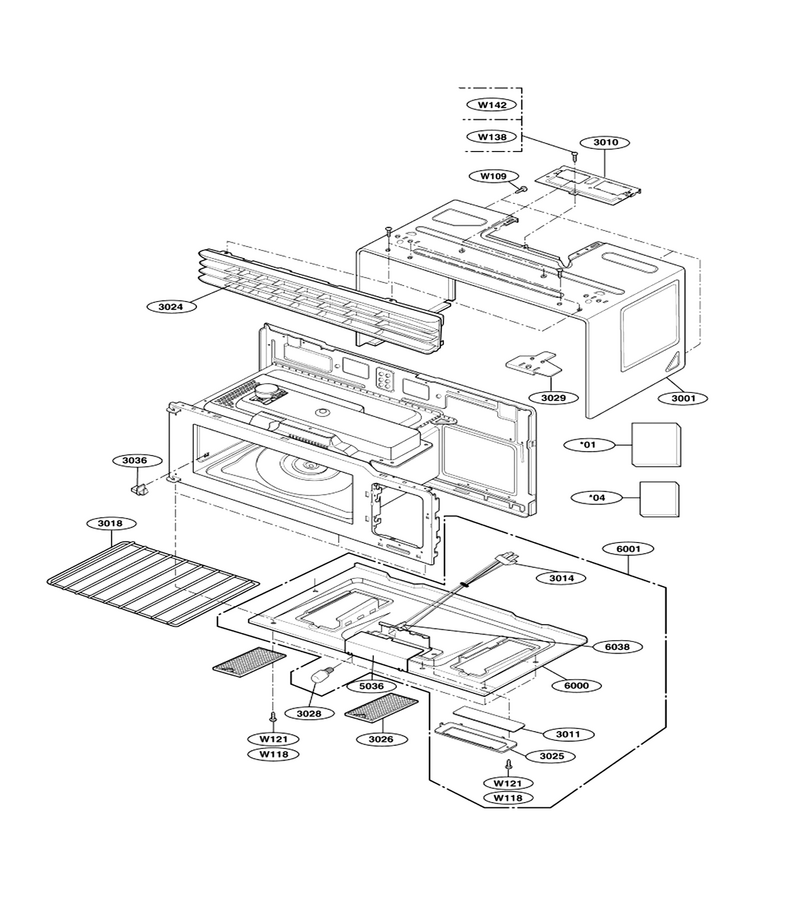

Oven Cavity Parts

...
...
*01
Manual,owners L-G-3828W5A8143
...
*04
Manual,installation L-G-3828W5U0431
...
W109
Microwave Screw L-G-1TTL0402818
...
W118
Microwave Screw L-G-1TTG0402422
...
W138
Screw L-G-1TTL0402822
...
3001
Case L-G-3112W0U052M
...
3010
Mount L-G-4960W1A022A
...
3011
Glass L-G-4890W1A045A
...
3014
Microwave Wire Harness L-G-6877W1A002A
...
3018
Microwave Metal Rack L-G-5026W1A074E
...
3024
Grille,vent L-G-3530W0A030E
...
3025
Microwave Light Lens Bracke L-G-4810W1A150C
...
3026
Filter(mech),grease L-G-5230W1A012B
...
3028
Microwave Light Bulb L-G-6912W1Z004B
...
3029
Microwave Installation Bracket L-G-4810W1A149A
...
3036
Microwave Cooking Rack Support L-G-4930W1A069A
...
6000
Base Plate L-G-3302W0A047A
...
6001
Base Plate L-G-3303W1A072G
...
6038
Microwave Light Socket L-G-6804W3A001A

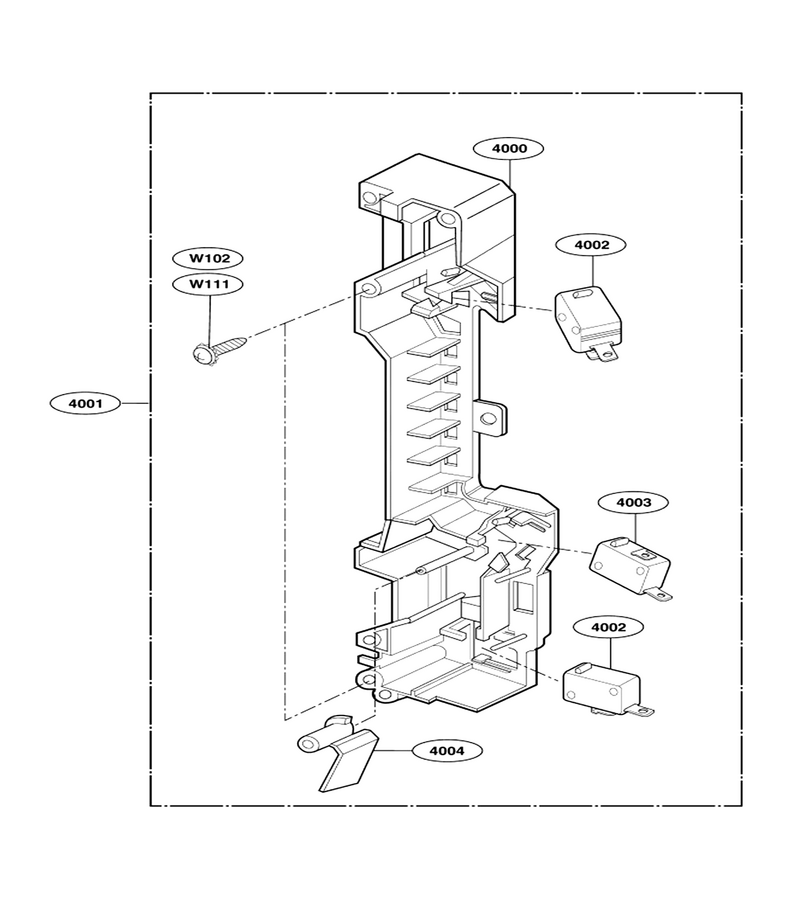

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Microwave Latch Body L-G-3500W1A028B
...
4001
Microwave Door Latch Housing And Interlock Swit.. L-G-3501W1A019D
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
4004
Lever L-G-4510W3A012C

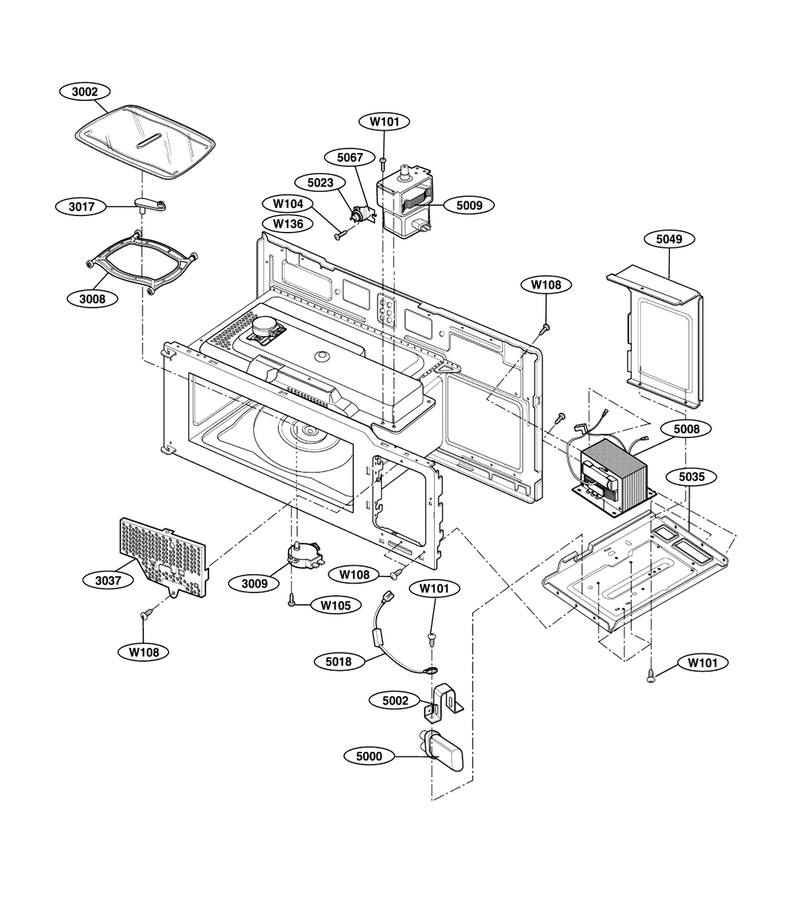

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W136
Screw L-G-1TPL0302418
...
3002
Microwave Glass Cooking Tray L-G-3390W0A001B
...
3008
Ring Assembly L-G-5889W1A013B
...
3009
Motor(circ),synchronous L-G-6549W1S013H
...
3017
Microwave Turntable Motor Coupler L-G-4351W1A002C
...
3037
Protector L-G-3740W1A021B
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket,capacitor L-G-4810W1A141A
...
5008
Transformer L-G-6170W1D109B
...
5009
Magnetron L-G-6324W1A001M
...
5018
Microwave High-Voltage Diode L-G-6021W3B001V
...
5023
Dishwasher Thermostat L-G-6930W1A003K
...
5035
Plate L-G-3300W1A035D
...
5049
Air Guide L-G-4974W1A036D
...
5067
Bracket,misc L-G-4810W1A180A

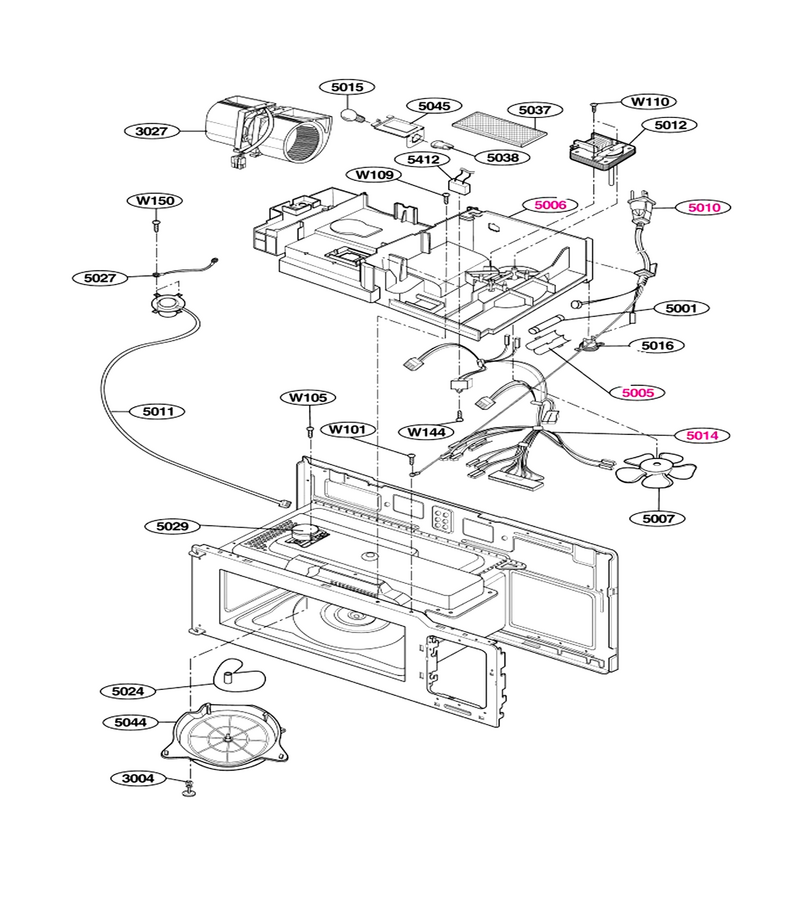

Interior Parts (ii-I)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W144
Microwave Screw L-G-1TTL0402618
...
3004
Microwave Stirrer Fan Cover Clip L-G-4051W3A001C
...
5001
Fuse,drawing L-G-3B74133Q
...
5006
Duct L-G-5208W0A020C
...
5007
Fan L-G-2B72125C
...
5010
Power Cord L-G-6411W1A019N
...
5011
Sensor Assembly L-G-6501W1A013A
...
5012
Fan Motor L-G-6549W1F001Z
...
5015
Microwave Light Bulb L-G-6912W1Z004B
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5024
Fan Assembly L-G-5901W1A002E
...
5027
Microwave Wire Harness L-G-6877W1A003B
...
5029
Microwave Stirrer Fan Motor L-G-6549W1S002J
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Socket(circ),lamp L-G-6620G00007B
...
5044
Microwave/hood Cover L-G-3550W1A276B
...
5045
Microwave Light Socket Bracket L-G-3550W1A189A
...
5412
Capacitor L-G-3B72440D

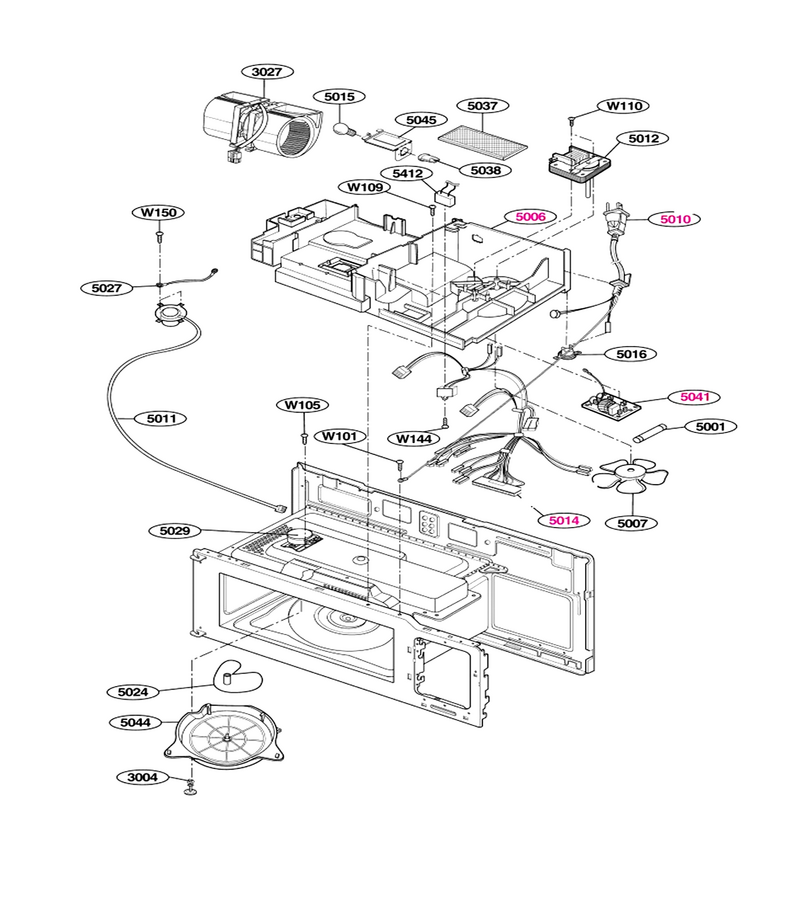

Interior Parts (ii-Ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W144
Microwave Screw L-G-1TTL0402618
...
3004
Microwave Stirrer Fan Cover Clip L-G-4051W3A001C
...
3027
Microwave/hood Blower Motor L-G-6549W1V011B
...
5001
Fuse,drawing L-G-3B74133Q
...
5006
Duct L-G-5208W0A020C
...
5007
Fan L-G-2B72125C
...
5010
Power Cord L-G-6411W1A019N
...
5011
Sensor Assembly L-G-6501W1A013A
...
5012
Fan Motor L-G-6549W1F001Z
...
5014
Multi Harness L-G-6877W1A599B
...
5015
Microwave Light Bulb L-G-6912W1Z004B
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5024
Fan Assembly L-G-5901W1A002E
...
5027
Microwave Wire Harness L-G-6877W1A003B
...
5029
Microwave Stirrer Fan Motor L-G-6549W1S002J
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Socket(circ),lamp L-G-6620G00007B
...
5041
Microwave Noise Filter L-G-2B72130F
...
5044
Microwave/hood Cover L-G-3550W1A276B
...
5045
Microwave Light Socket Bracket L-G-3550W1A189A
...
5412
Capacitor L-G-3B72440D

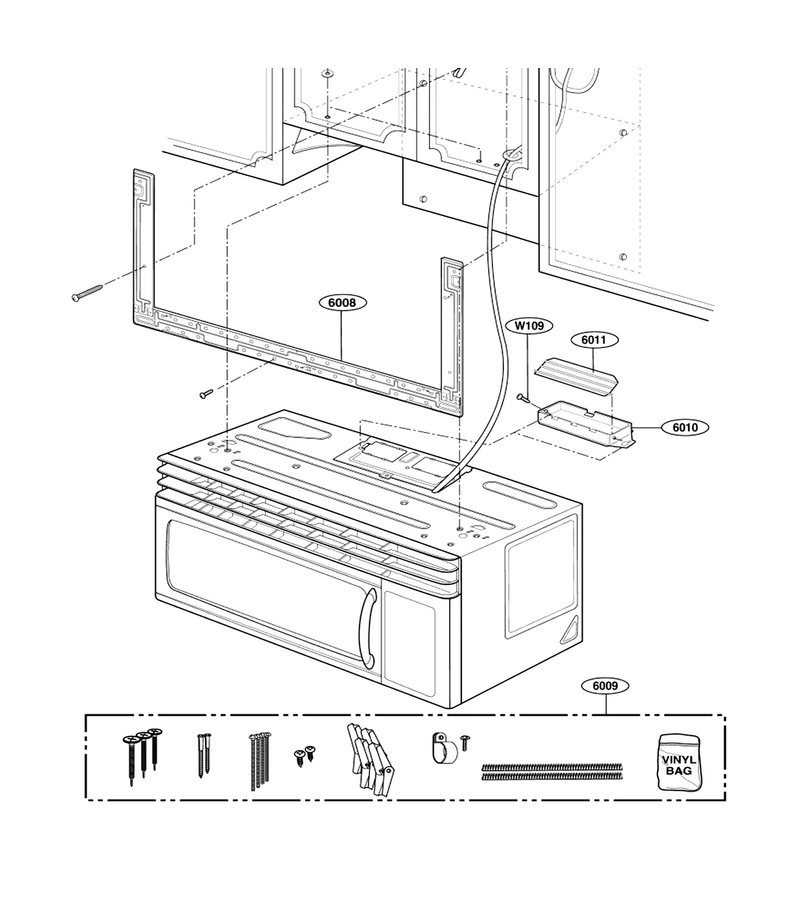

Installation Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
6008
Microwave Mounting Plate L-G-3300W0A030A
...
6009
Microwave Installation Hardware Kit L-G-3861W1A043C
...
6010
Bracket,misc L-G-4810W1A151A
...
6011
Damper L-G-4900W1A001B
