LG MMV5165AAQ.ABSEMTG

Model: MMV5165AAQ.ABSEMTG

Save Part Not Listed?
product name

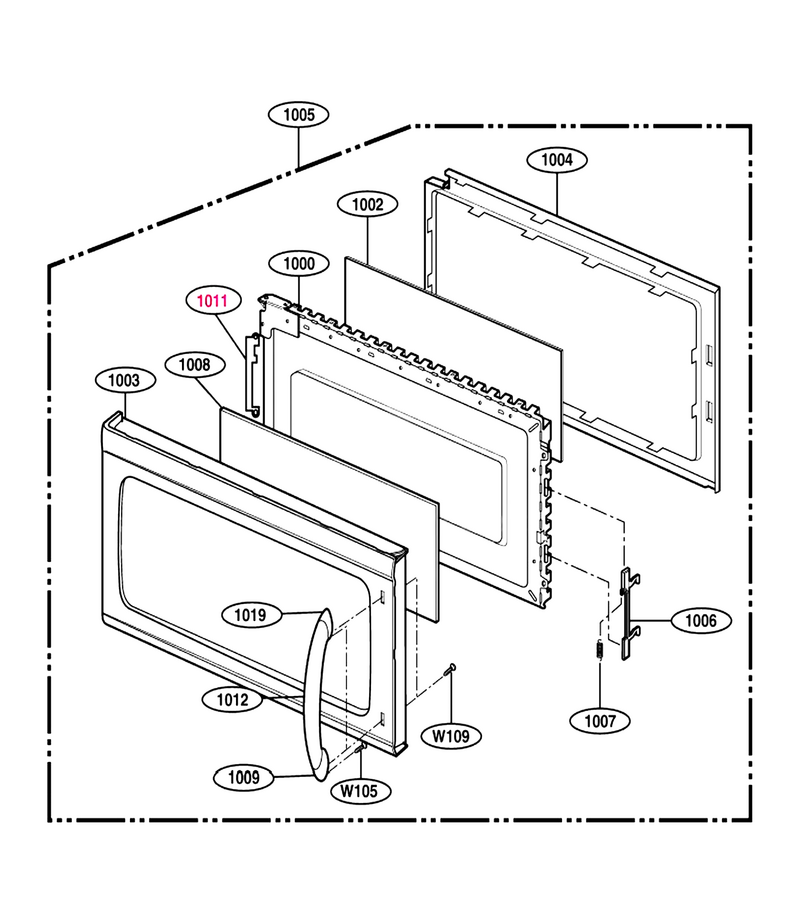

Door Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
1000
Microwave Door Inner Frame L-G-3213W1A035D
...
1002
Microwave Door Film L-G-3536WRA001R
...
1003
Panel,door L-G-3720W0D360C
...
1004
Microwave/hood Cover L-G-3552W1A032B
...
1005
Door Assembly L-G-3581W1A456F
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Spring L-G-4970WRA001F
...
1008
Window,glass L-G-4890W1A039N
...
1009
Handle,door L-G-3650W1A133C
...
1011
Baffle L-G-4760W1A017A
...
1012
Handle,door L-G-3650W1A131C
...
1019
Handle,door L-G-3650W1A132C

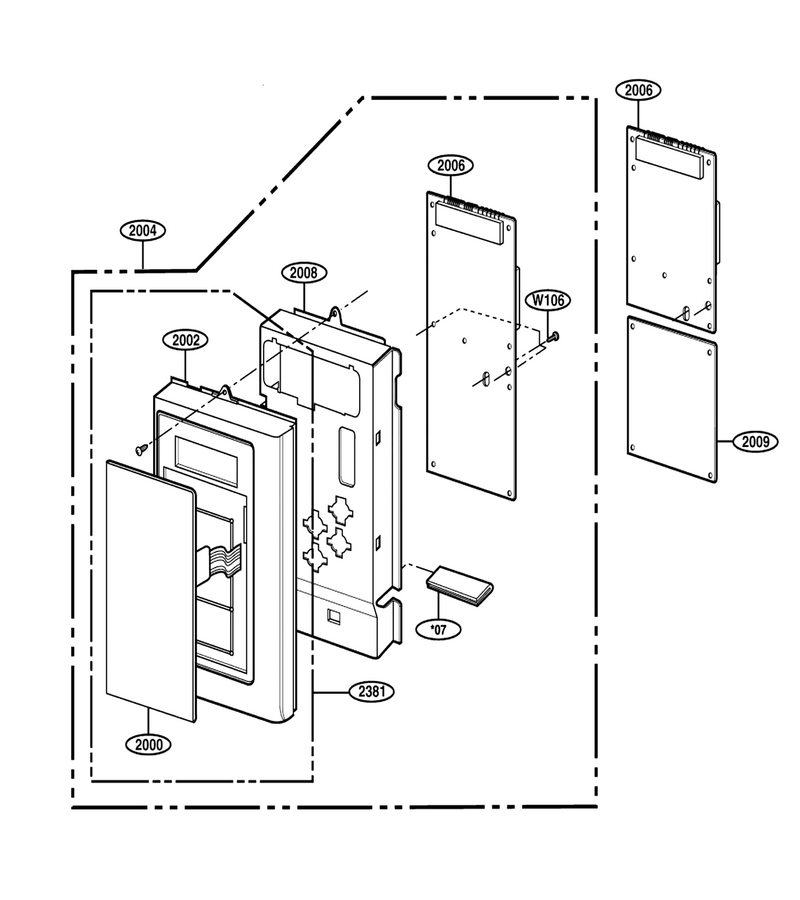

Controller Parts

...
...
*07
Card,technical L-G-3840W1T018A
...
W106
Screw L-G-1TPL0402818
...
2000
Membrane L-G-3506W1A612C
...
2002
Panel,control L-G-3720W0C223C
...
2004
Controller Assembly,keypad L-G-4781W1M376F
...
2006
Pcb Assembly,sub L-G-6871W1S350A
...
2008
Bracket,control Panel L-G-4810W1A293A
...
2009
Pcb Assembly,sub L-G-6871W1S349J
...
2381
Parts Assembly L-G-383EW5A212C

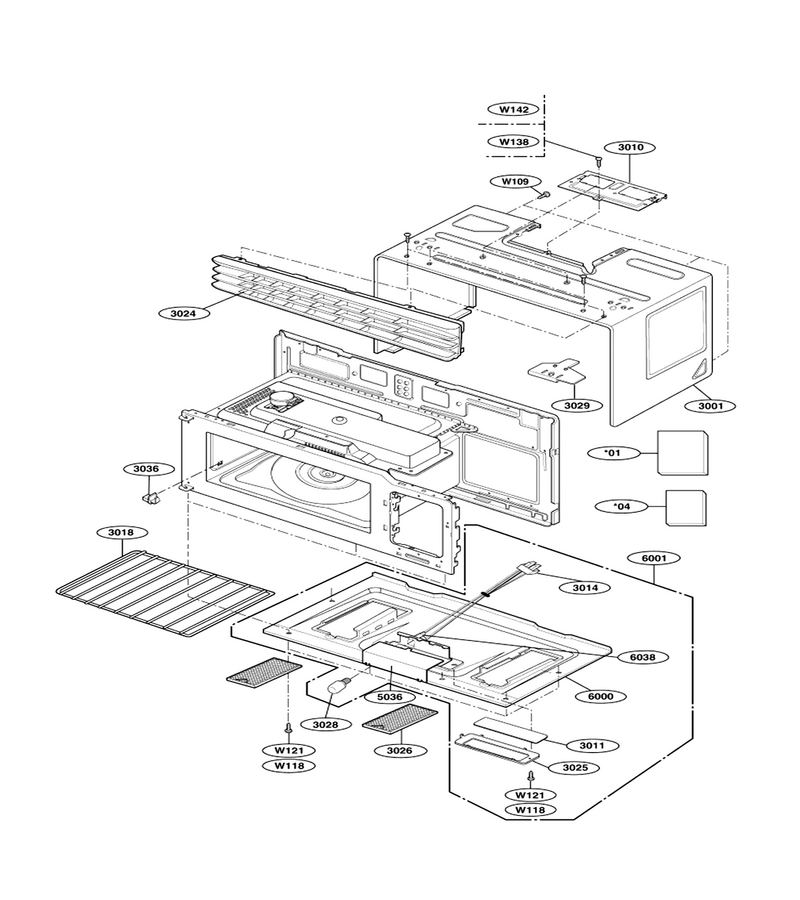

Oven Cavity Parts

...
...
*01
Manual,owners L-G-3828W5A4204
...
*04
Manual,installation L-G-3828W5U0363
...
W109
Microwave Screw L-G-1TTL0402818
...
W121
Microwave Screw L-G-1TTL0402422
...
W138
Screw L-G-1TTL0402822
...
3001
Case,u Bending L-G-3112W1U026Q
...
3010
Microwave Vent Duct Cover L-G-4960W1A008A
...
3011
Window,glass L-G-4890W4A001G
...
3014
Microwave Wire Harness L-G-6877W1A340A
...
3018
Shelf L-G-5026W1A074C
...
3024
Grille,vent L-G-3530W0A030C
...
3025
Microwave Light Lens Bracket L-G-4810W3G100A
...
3026
Filter,grease L-G-2B72705C
...
3028
Microwave Light Bulb L-G-6912W3Q001A
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3036
Holder L-G-4930W1A026A
...
5036
Cover L-G-3550W3A095A
...
6000
Plate,base L-G-3302W0A013P
...
6001
Plate Assembly,base L-G-3303W1A041Z
...
6038
Microwave Light Socket L-G-6804W3A001A

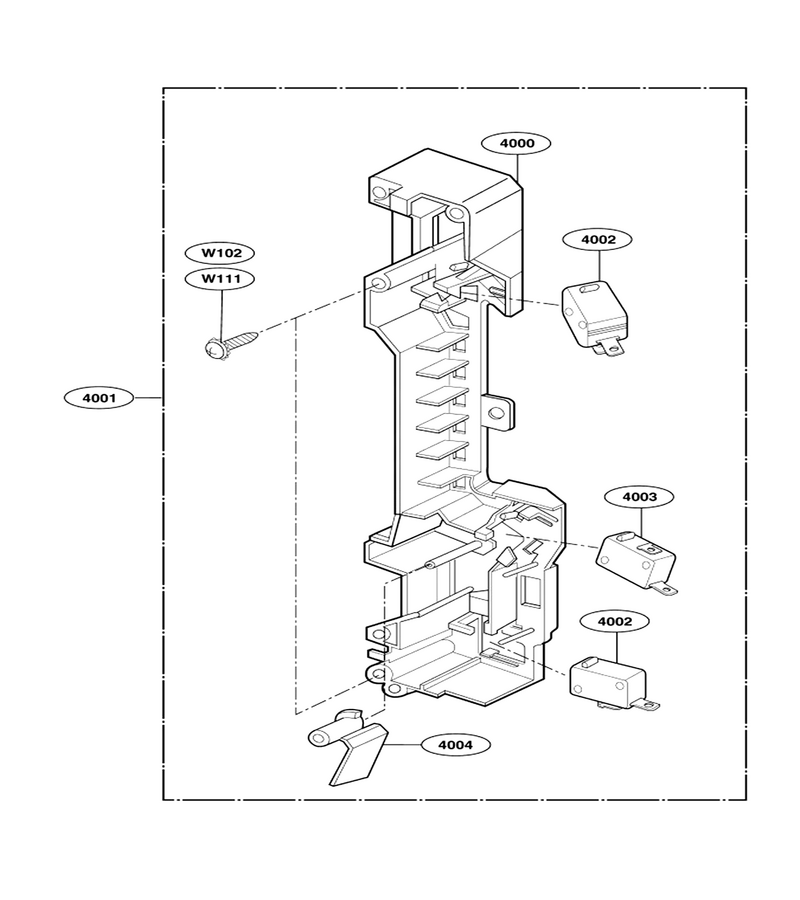

Latch Board Parts

...
...
W111
Screw L-G-4B70188B
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Microwave Latch Body Assembly L-G-3501W1A019C
...
4002
Microwave Micro Switch L-G-3B73362F
...
4003
Switch Micro L-G-3B73361E
...
4004
Lever L-G-4510W4A005A

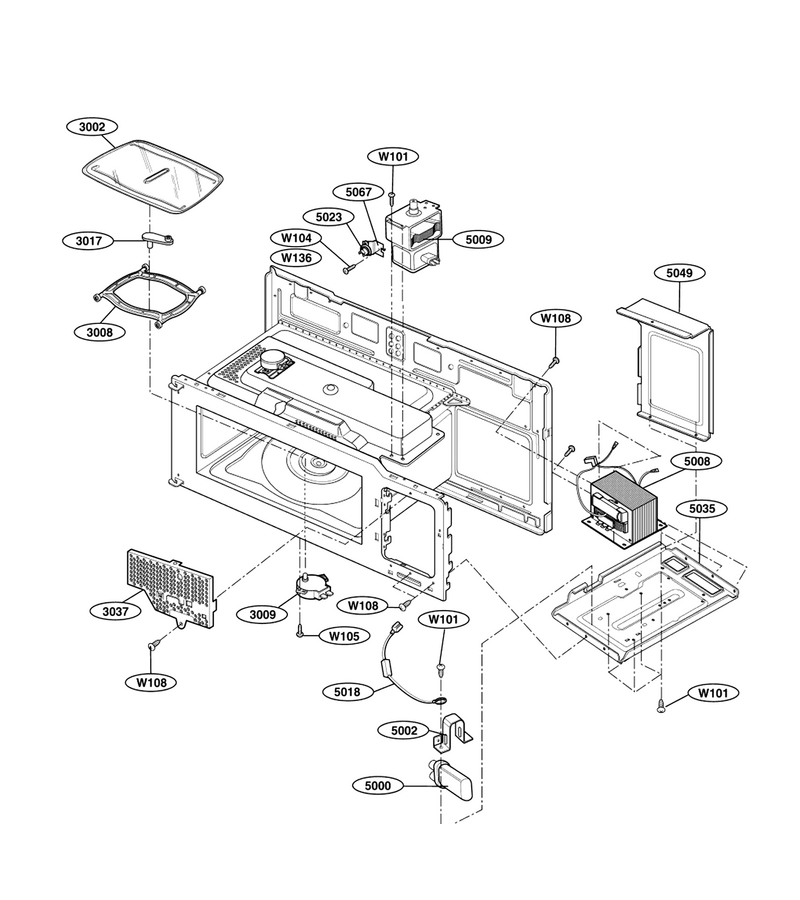

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W104
Screw L-G-1TPL0302018
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
3002
Glass Tray L-G-3390W0A001A
...
3008
Turntable Assembly L-G-5889W1A013A
...
3009
Microwave Turntable Motor L-G-6549W1S013D
...
3017
Ring Assembly L-G-4351W1A002B
...
3037
Supporter Assembly L-G-3741W1A003A
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket L-G-4810W3C002A
...
5008
Transformer,high Voltage L-G-6170W1D023Y
...
5009
Magnetron L-G-6324W1A001J
...
5018
Microwave High-Voltage Diode L-G-6021W3B001M
...
5023
Dishwasher Thermostat L-G-6930W1A003K
...
5035
Plate,bottom L-G-3300W1A035B
...
5049
Guide,air L-G-4974W1A036B
...
5067
Bracket,thermostat L-G-4B74584A

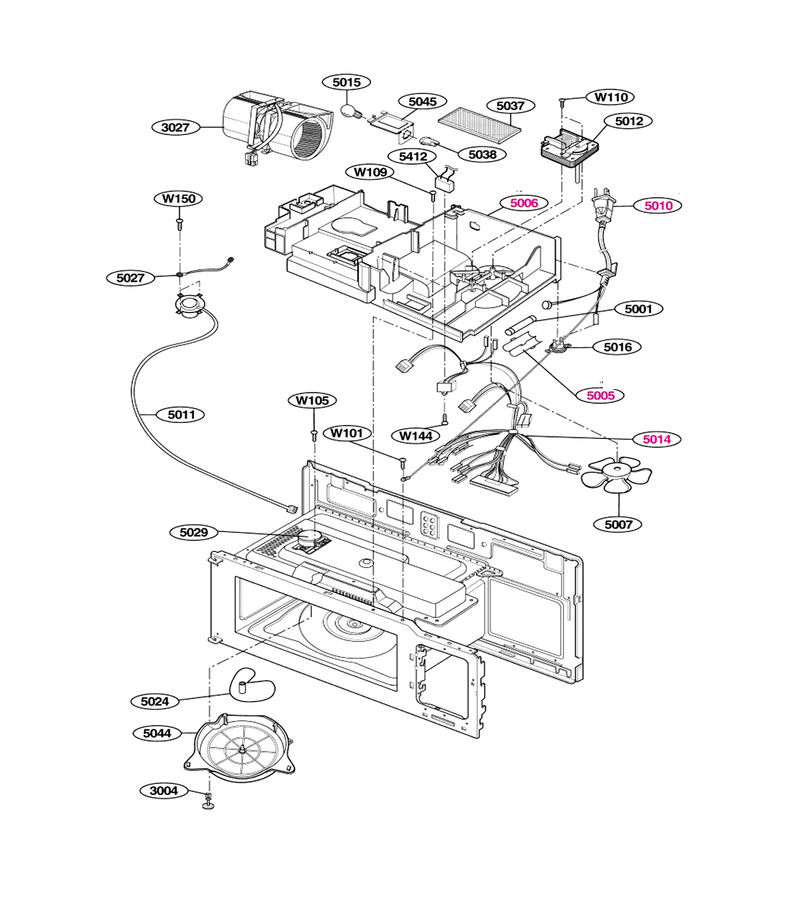

Interior Parts (ii-I)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W144
Microwave Screw L-G-1TTL0402618
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
3004
Microwave Stirrer Fan Cover Clip L-G-4051W3A001C
...
3027
Microwave/hood Blower Motor L-G-6549W1V011A
...
5001
Fuse[all] L-G-3B74133K
...
5005
Fuse Cap L-G-5006WRA002A
...
5006
Duct L-G-5208W0A020A
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5010
Ac Cord Assembly L-G-6411W1A014T
...
5011
Sensor Assembly L-G-6501W1A013A
...
5012
Motor,unclassified L-G-6549W1F001Y
...
5014
Single Harness L-G-6877W1A570B
...
5015
Microwave Light Bulb L-G-6912W3Q001A
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5024
Fan Assembly L-G-5901W1A002C
...
5027
Ground Wire L-G-3B72342Q
...
5029
Motor L-G-6549W1S002G
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Socket(circ),lamp L-G-6620G00007B
...
5044
Cover,stirrer Fan L-G-3550W1A276A
...
5045
Oven Cover L-G-3550W3A082A
...
5412
Guide,air L-G-4974W1A036B

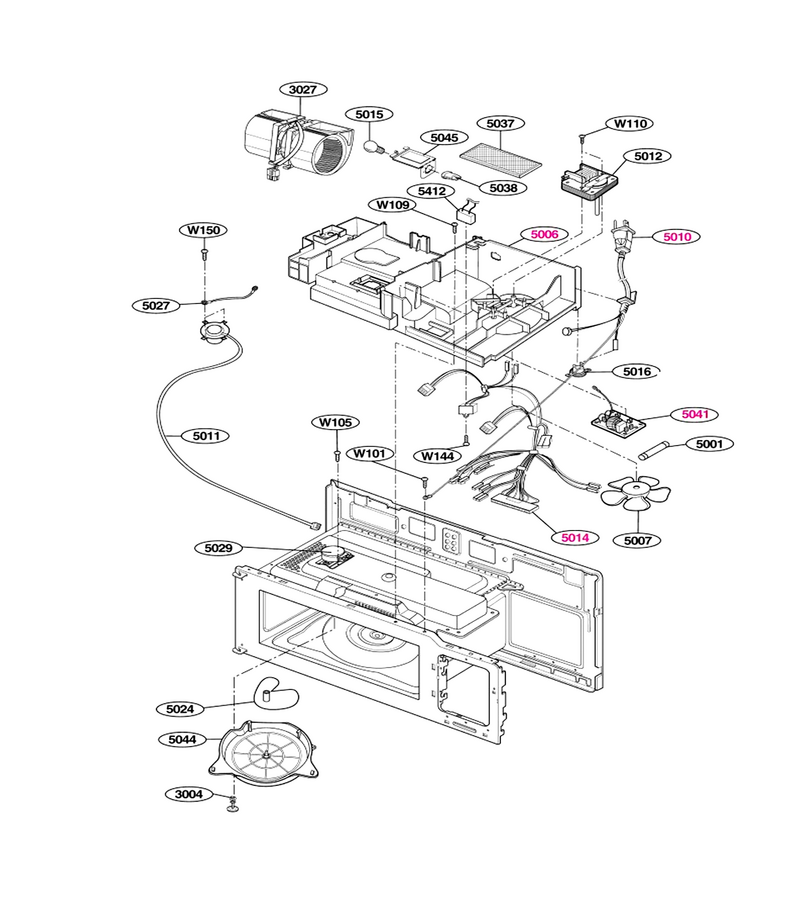

Interior Parts (ii-Ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W144
Microwave Screw L-G-1TTL0402618
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
3004
Microwave Stirrer Fan Cover Clip L-G-4051W3A001C
...
3027
Microwave/hood Blower Motor L-G-6549W1V011A
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A020A
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5010
Ac Cord Assembly L-G-6411W1A014T
...
5011
Sensor Assembly L-G-6501W1A013A
...
5012
Motor,unclassified L-G-6549W1F001Y
...
5014
Single Harness L-G-6877W1A570B
...
5015
Microwave Light Bulb L-G-6912W3Q001A
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5024
Fan Assembly L-G-5901W1A002C
...
5027
Ground Wire L-G-3B72342Q
...
5029
Motor L-G-6549W1S002G
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Socket(circ),lamp L-G-6620G00007B
...
5044
Cover,stirrer Fan L-G-3550W1A276A
...
5045
Oven Cover L-G-3550W3A082A
...
5412
Capacitor L-G-3B72440D

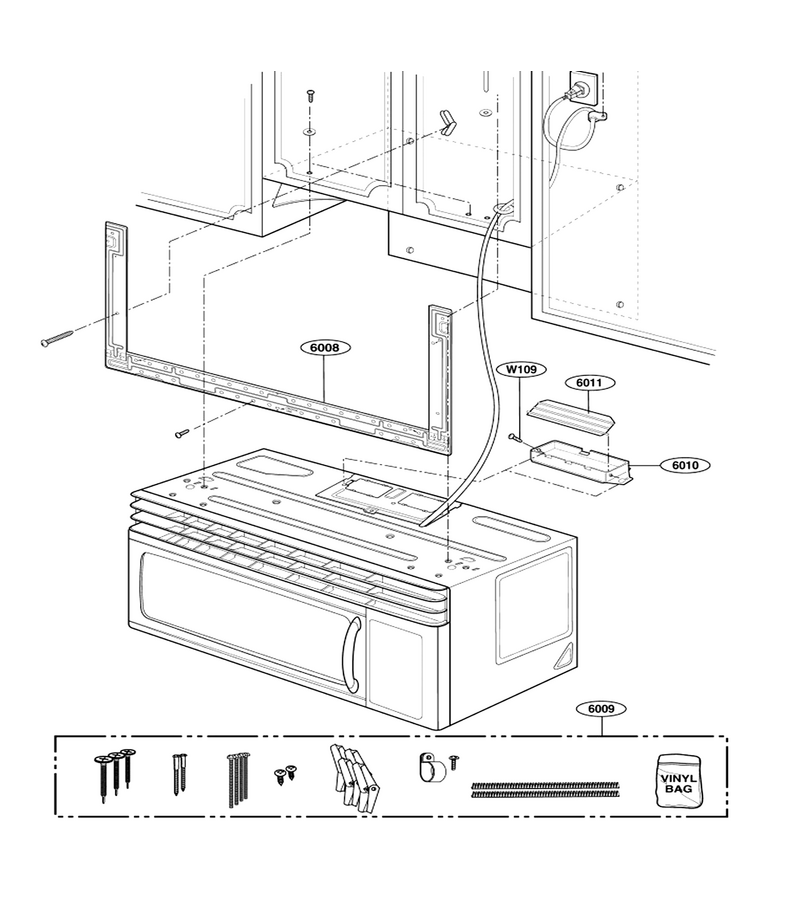

Installation Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
6008
Microwave Mounting Plate L-G-3301W0A003A
...
6009
Microwave Installation Hardware Kit L-G-2B72771G
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
