LG MH7130XEZ-3.A3EWRP

Model: MH7130XEZ-3.A3EWRP

Save Part Not Listed?
product name

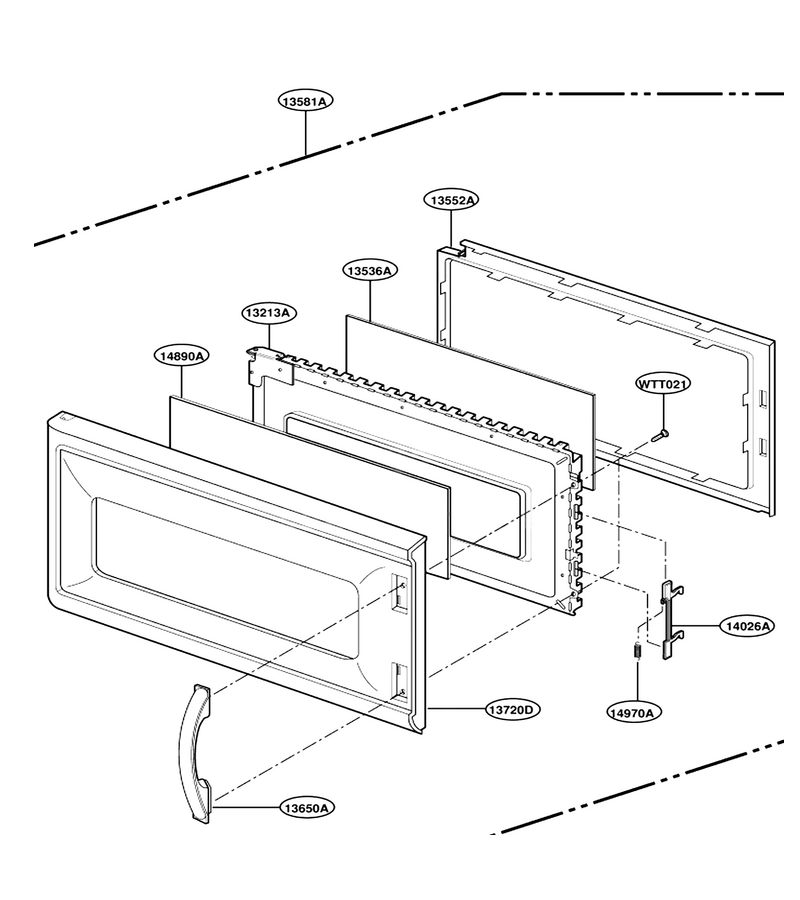

Door Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
13581A
Door Assy L-G-3581W1A181J

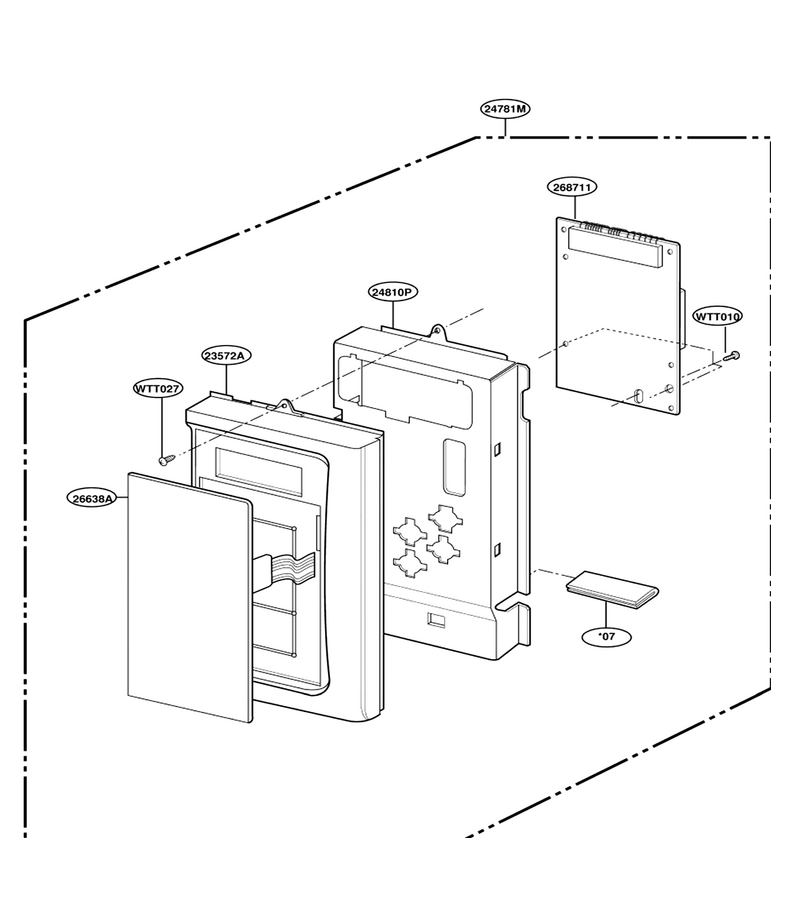

Controller Parts

...
...
WTT027
Screw L-G-1TTL0402816
...
*07
Card,technical L-G-3858W3T002W
...
23572A
Panel,control L-G-3572W1A113C
...
24781M
Controller Assy,[micom] L-G-4781W1M092C
...
24810P
Bracket L-G-4810W1G059A
...
26638A
Membrane L-G-6638W2A048C

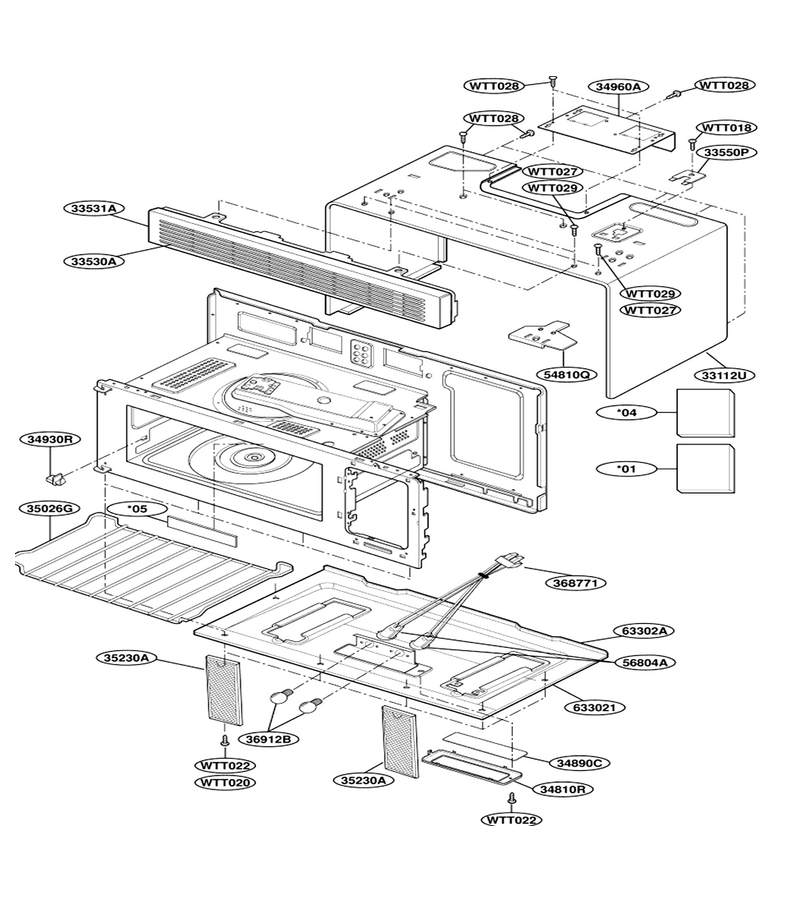

Oven Cavity Parts

...
...
*05
Label,[cooking Guide] L-G-3850W3A291A
...
WTT029
Screw L-G-1TTL0402822
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT027
Screw L-G-1TTL0402816
...
WTT022
Microwave Screw L-G-1TTL0402422
...
*04
Manual,installation L-G-3828W5U0006
...
*01
Manual,[owners]mwo L-G-3828W5A0611
...
33112U
Case,u Bending L-G-3112W1U013C
...
33530A
Grille,vent L-G-3530W0A001C
...
33550P
Microwave Power Cord Cover L-G-3550W3A084A
...
34890C
Window,glass L-G-4890W4A001G
...
34930R
Holder L-G-3B71271E
...
34960A
Plate L-G-4960W2G023A
...
35026G
Shelf L-G-3750W1A002C
...
56804A
Microwave Light Socket L-G-6804W3A001A
...
63302A
Base Plate L-G-3302W0A011A
...
368771
Lead Wire L-G-6877W3S001A

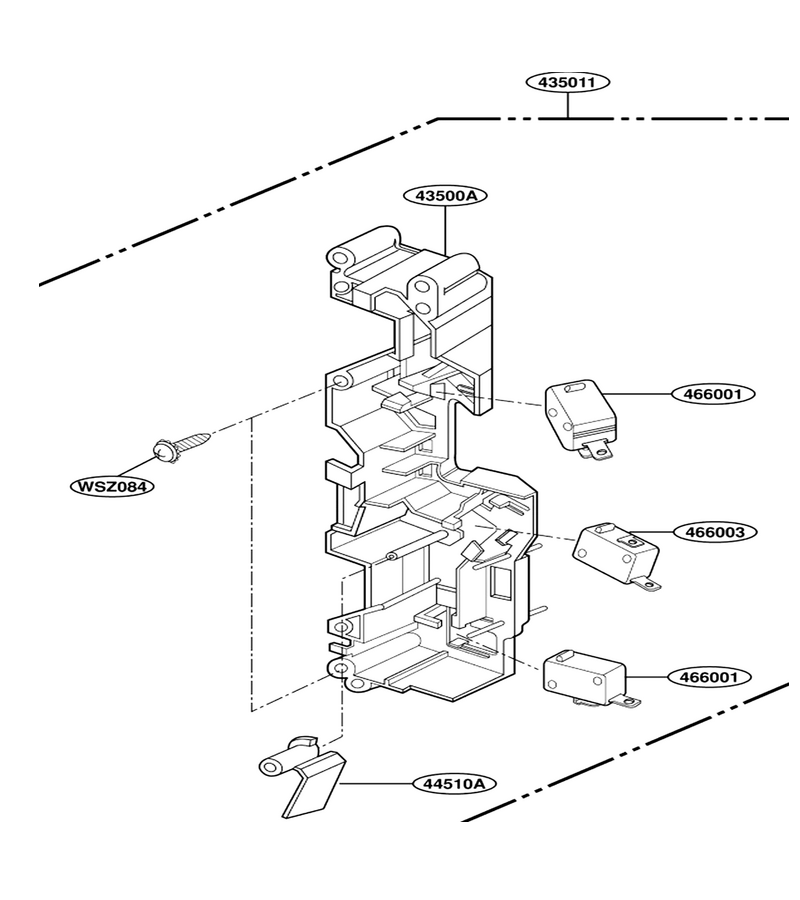

Latch Board Parts

...
...
43500A
Board L-G-3500W1A002A
...
44510A
Lever L-G-4510W4A005A
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

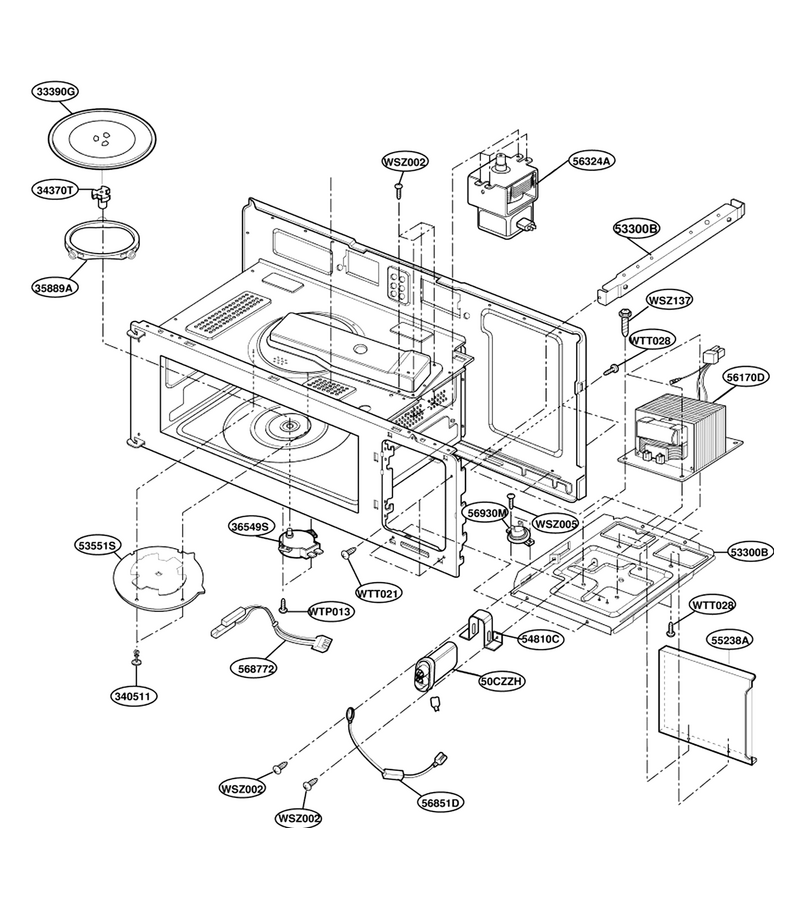

Interior Parts (i)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ137
Screw L-G-4B73763A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Capacitor L-G-0CZZW1H002F
...
33390G
Microwave Glass Turntable Tray L-G-1B71961E
...
34370T
Shaft L-G-3B72373D
...
35889A
Ring Assembly L-G-5889W2A012A
...
36549S
Motor, Ac Synchronous L-G-6549WRS001N
...
53551S
Cover Assembly,heater L-G-3551W2A013A
...
54810C
Bracket L-G-4810W3C002A
...
56170D
Transformer L-G-6170W1D003D
...
56324A
Magnetron L-G-2B71165K
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56930M
Dishwasher Thermostat L-G-3B70068V
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
568772
Connector L-G-6877W2S002C

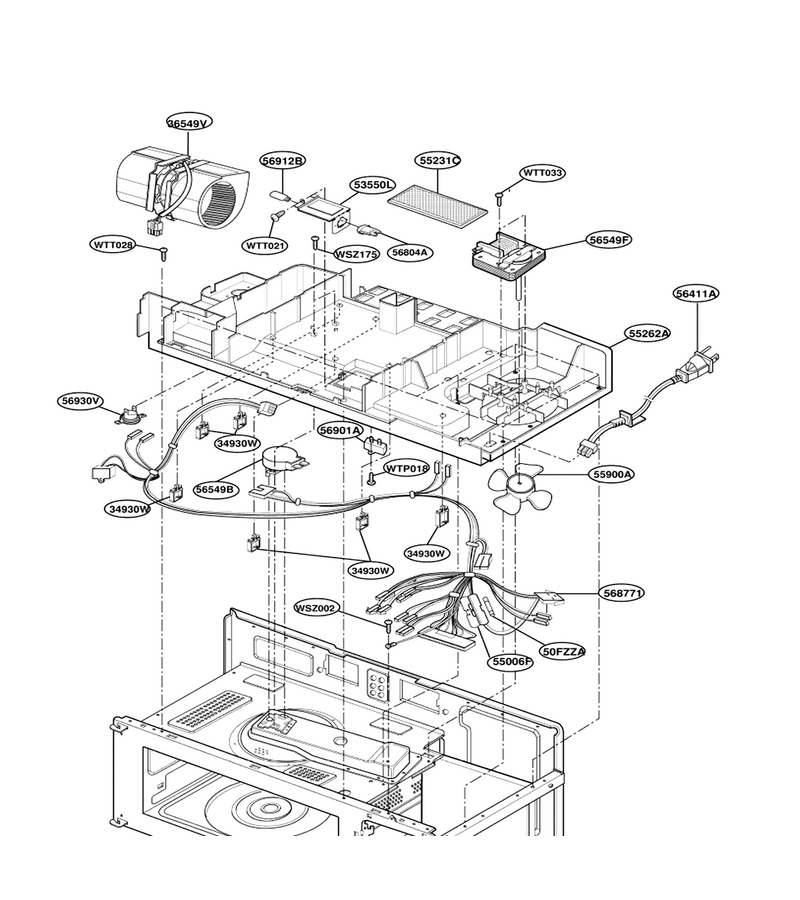

Interior Parts (ii)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ175
Special Screw L-G-4E55432A
...
WTP018
Screw L-G-1TPL0402818
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT033
Screw L-G-1TTL0403318
...
50FZZA
Fuse[all] L-G-3B74133K
...
36549V
Motor, Ac Drum L-G-6549W1V001D
...
53550L
Oven Cover L-G-3550W3A082A
...
55231C
Microwave/hood Charcoal Filter Assembly L-G-2B72706C
...
55262A
Duct L-G-5208W0A002A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56411A
Power Cord L-G-6411W2A002E
...
56549F
Motor L-G-6549W2F016D
...
56804A
Microwave Light Socket L-G-6804W3A001A
...
56912B
Lamp L-G-3B70067E
...
56930V
Microwave Thermostat L-G-6930WRT003C
...
568771
Single Harness L-G-6877W1S023B

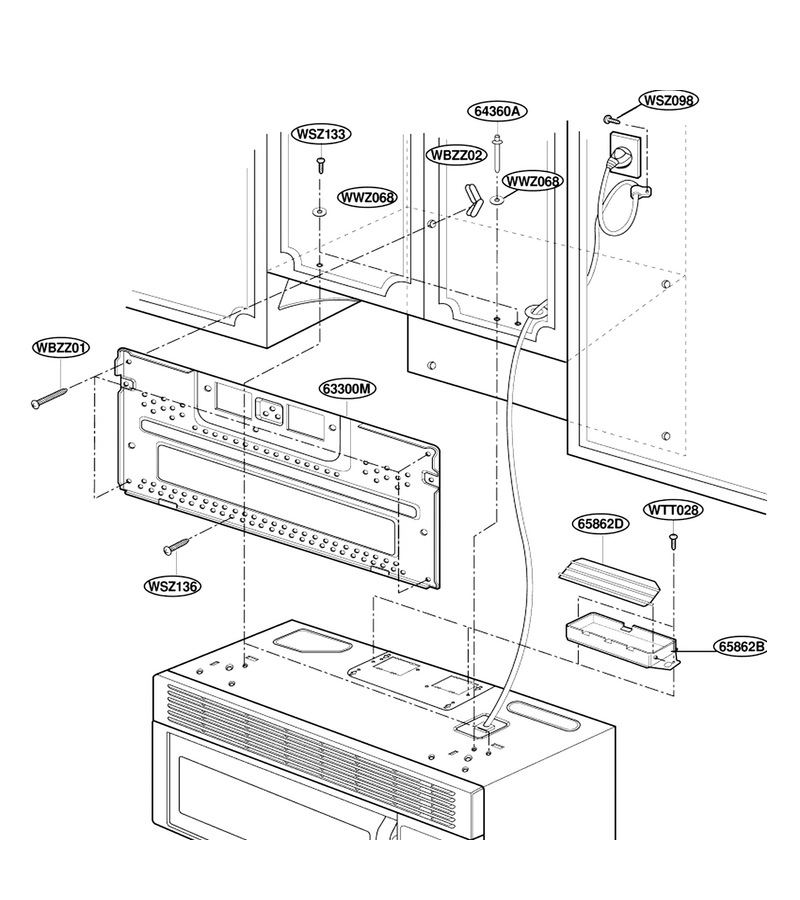

Installation Parts

...
...
WSZ098
Thread-Forming Screw, 8-Pack L-G-4B70637B
...
WSZ133
Screw L-G-4B73234A
...
WSZ136
Screw L-G-4B73243A
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WWZ068
Washer L-G-4B73055A
...
63300M
Plate L-G-3300W0G039A
...
65862D
Microwave Vent Damper Door L-G-3B71432A
