LG MH6150XHT-0.BSEWRP

Model: MH6150XHT-0.BSEWRP

Save Part Not Listed?
product name

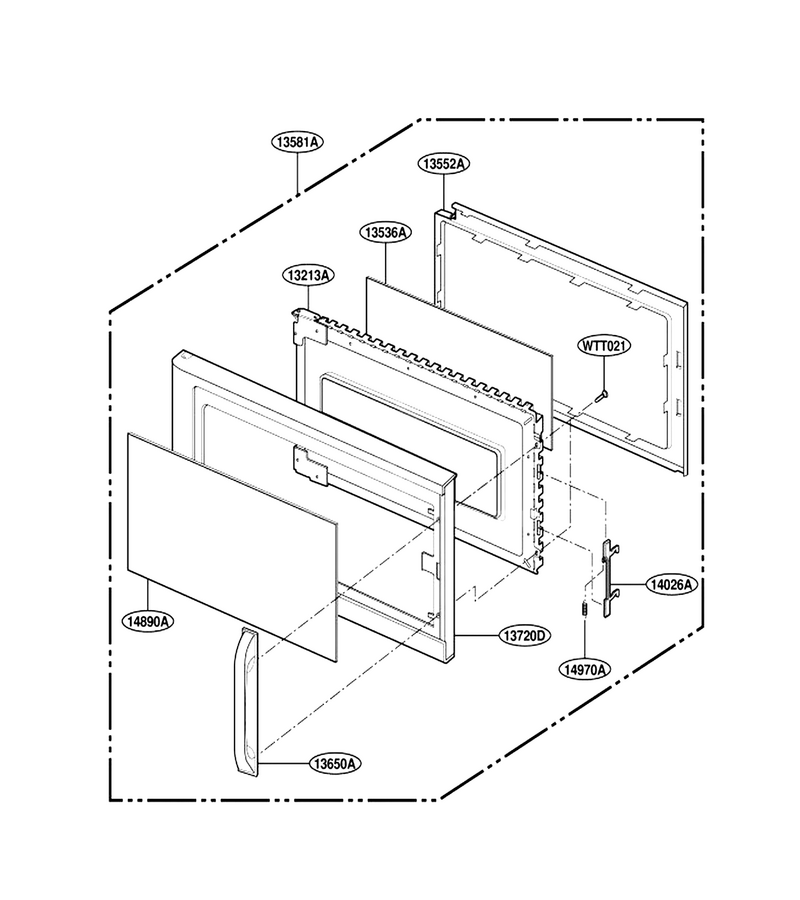

Door Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
13213A
Frame Assembly,door L-G-3213W1A035L
...
13536A
Microwave Door Film L-G-3536WRA001R
...
13552A
Cover,choke L-G-3552W1A032D
...
13581A
Door Assembly L-G-3581W1A205F
...
13650A
Handle,door L-G-3650W1A033C
...
13720D
Panel,door L-G-3720W0D144F
...
14026A
Latch,all L-G-4026W2A015B
...
14890A
Door Screen L-G-4890W1A021J
...
14970A
Microwave Door Latch Spring L-G-4970WRA001E

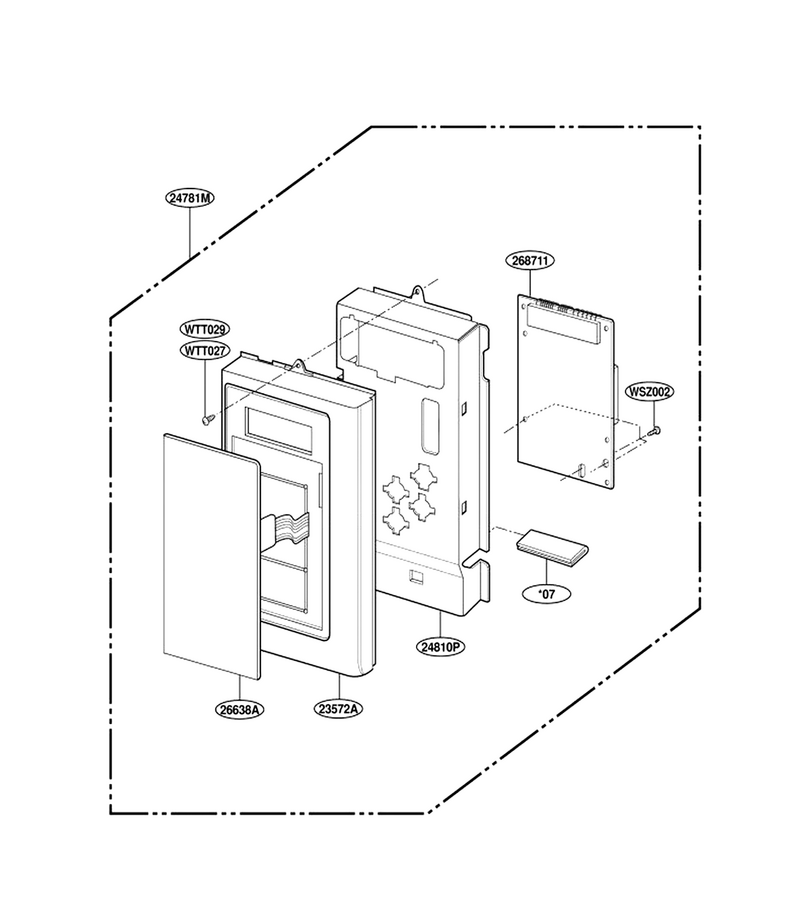

Controller Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT029
Screw L-G-1TTL0402822
...
7
Card,[technical] L-G-3858W3T015V
...
23572A
Panel,control L-G-3572W1A159C
...
24781M
Controller Assembly,keypad L-G-4781W1M208F
...
24810P
"bracket,mw" L-G-4810W1G061A
...
26638A
Membrane L-G-6638W2A295C
...
268711
Pcb Assembly,sub L-G-6871W2S090F

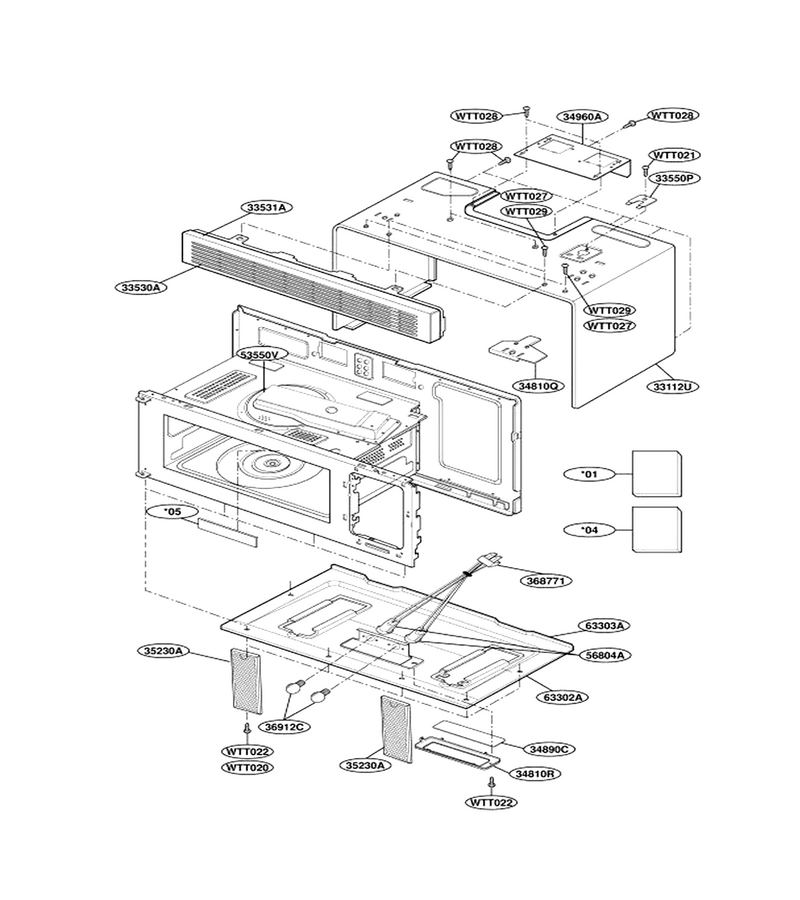

Oven Cavity Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT022
Microwave Screw L-G-1TTL0402422
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT029
Screw L-G-1TTL0402822
...
1
Manual,owners L-G-3828W5A1240
...
4
Manual,installation L-G-3828W5U0045
...
5
Label,[cooking Guide] L-G-3850W3D032A
...
33112U
Case,u Bending L-G-3112W1U016D
...
33530A
Grille,[vent Grill] L-G-3530W0A005C
...
33531A
Grille Assembly L-G-3531W1A007C
...
33550P
Microwave Power Cord Cover L-G-3550W3A084A
...
34810Q
Microwave Wall Mounting Plate L-G-4810W3G062A
...
34890C
Oven Glass L-G-4890W4A001B
...
34960A
Mount L-G-4960W2G022A
...
35230A
Microwave Grease Filter L-G-2B72705B
...
36912C
Microwave Light Bulb L-G-6912W3Q001A
...
53550V
Cover,vent L-G-3550W2A094A
...
56804A
Microwave Light Socket L-G-6804W3A001A
...
63303A
Base Plate Assy L-G-3303W1A041K
...
368771
Lead Wire L-G-6877W3S001A

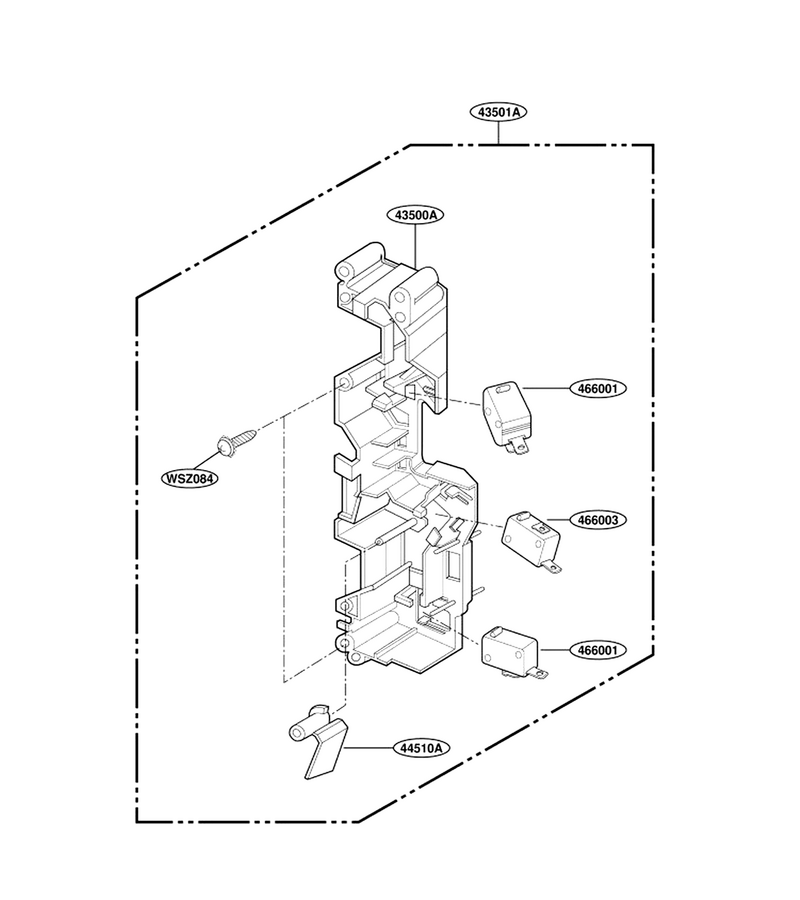

Latch Board Parts

...
...
WSZ084
Screw L-G-4B70188B
...
43500A
Microwave Latch Body L-G-3500W1A005A
...
43501A
Latch Board L-G-3501W1A016F
...
44510A
Lever L-G-4510W4A005A
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

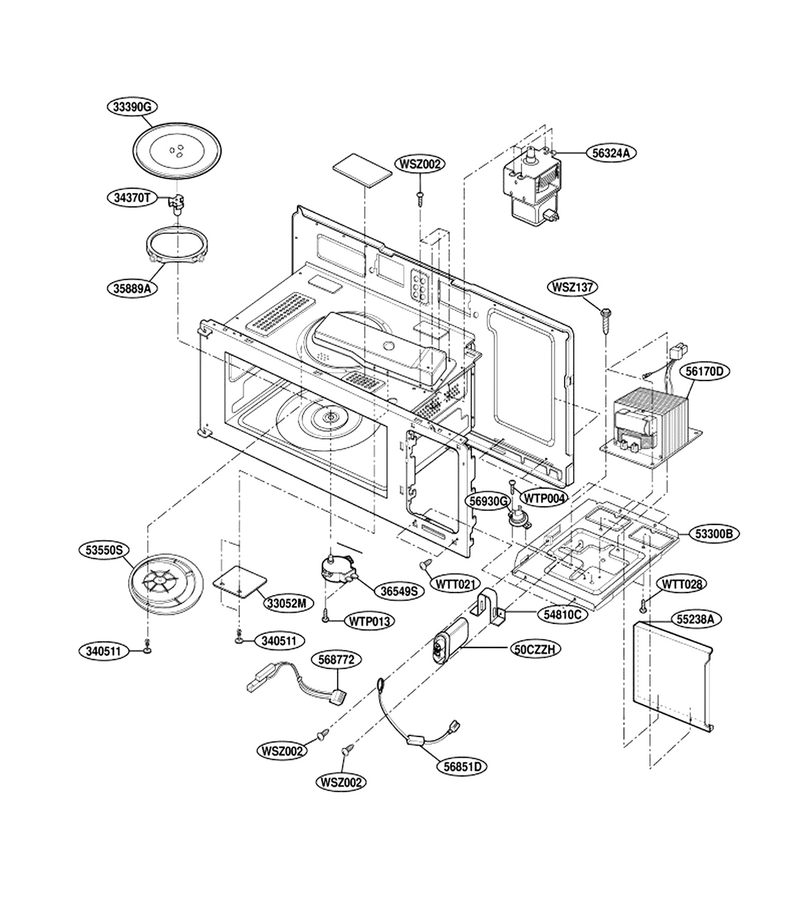

Interior Parts (i)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ137
Screw L-G-4B73763A
...
WTP004
Screw L-G-1TPL0302418
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H002H
...
33052M
Cover,insulator L-G-3052W3M016A
...
33390G
Microwave Glass Turntable Tray L-G-1B71961E
...
34370T
Shaft L-G-3B72373D
...
35889A
Ring Assembly L-G-5889W2A012A
...
36549S
Motor, Ac Synchronous L-G-6549WRS001N
...
53300B
Plate L-G-3300W1G081A
...
53550S
Stirrer Cover L-G-3550W1A077A
...
54810C
Bracket L-G-4810W3C002A
...
55238A
Air Guide L-G-4974W1G038A
...
56170D
Transformer,high Voltage L-G-6170W1D003C
...
56324A
Magnetron L-G-6324W1A001D
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
568772
Connector L-G-6877W2S002C

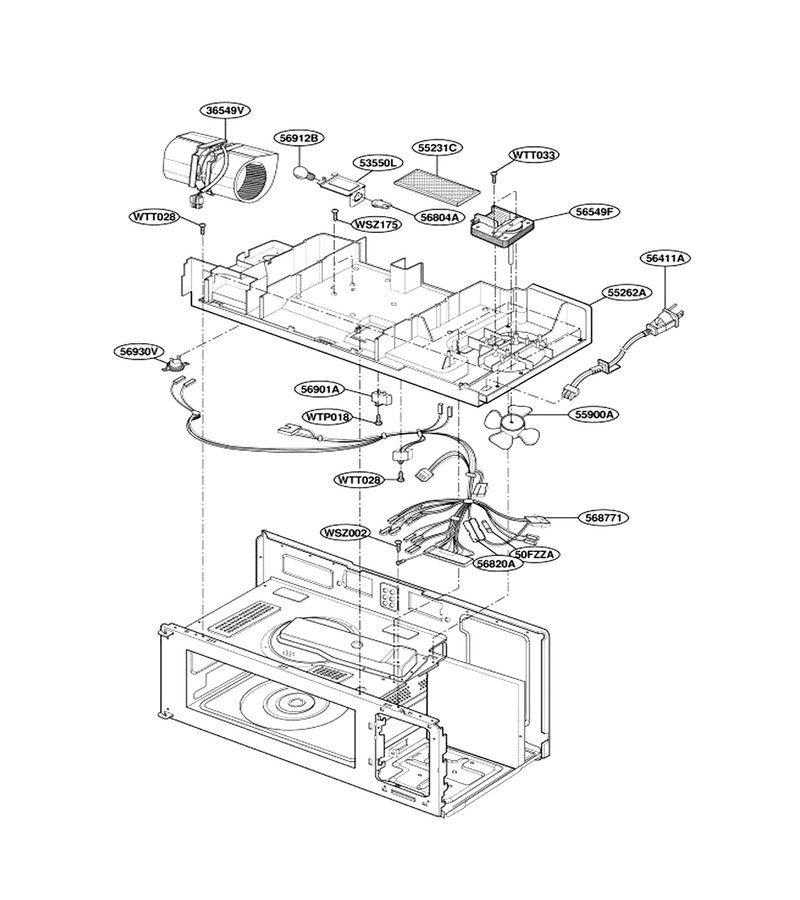

Interior Parts (ii)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ175
Special Screw L-G-4E55432A
...
WTP018
Screw L-G-1TPL0402818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT033
Screw L-G-1TTL0403318
...
50FZZA
Fuse[all] L-G-3B74133K
...
36549V
Motor, Ac Ventilation L-G-6549W1V001M
...
53550L
Oven Cover L-G-3550W3A082A
...
55231C
Microwave/hood Charcoal Filter Assembly L-G-2B72706C
...
55262A
Duct L-G-5262W0A008B
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56411A
Power Cord Assembly L-G-6411W2A002Q
...
56549F
Motor L-G-6549W2F016D
...
56804A
Microwave Light Socket L-G-6804W3A001A
...
56820A
Holder L-G-4930W3B025B
...
56901A
Fuse L-G-3B72974C
...
56912B
Lamp,incandescent L-G-3B70067F
...
56930V
Microwave Thermostat L-G-6930WRT003C
...
568771
Connector Assembly L-G-6877W1A230C

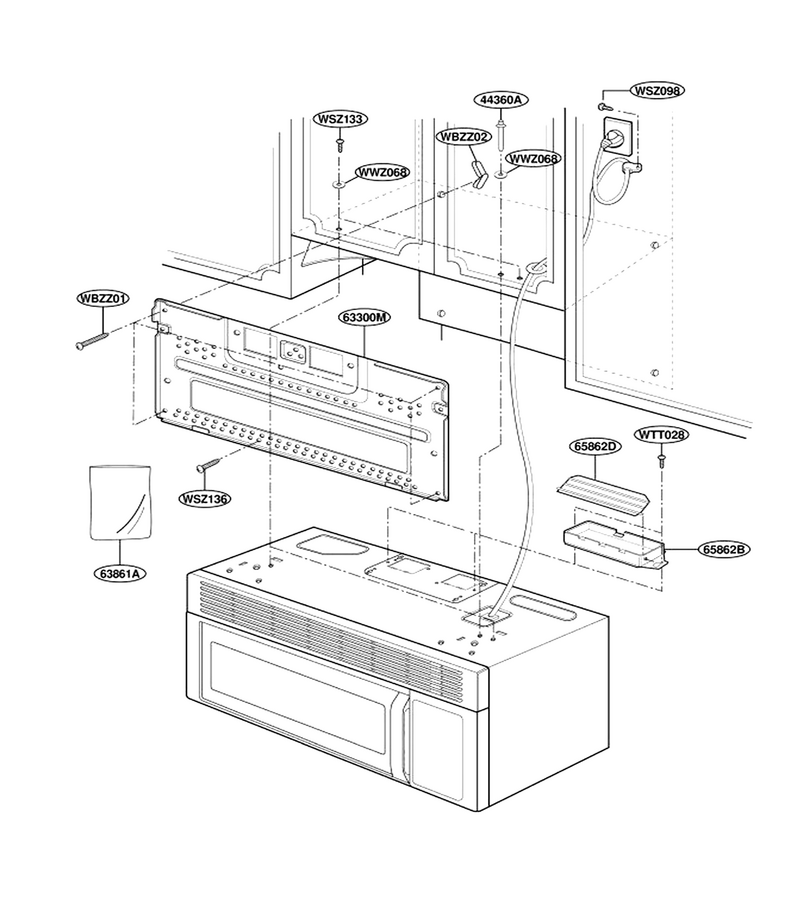

Installation Parts

...
...
WBZZ01
Bolt L-G-4B72059B
...
WBZZ02
Microwave Mounting Bolt L-G-4B72059C
...
WSZ098
Thread-Forming Screw, 8-Pack L-G-4B70637B
...
WSZ133
Screw L-G-4B73234A
...
WSZ136
Screw L-G-4B73243A
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WWZ068
Washer L-G-4B73055A
...
44360A
Safety Rod L-G-4360W4A001A
...
63300M
Plate L-G-3300W0G039A
...
63861A
Microwave Hardware Assembly Kit L-G-2B72771A
...
65862B
Microwave Exhaust Damper Bracket L-G-3B72144A
...
65862D
Microwave Exhaust Damper Bracket L-G-3B72144A
