product name

LG MH1596CIR.CSSELEC

Model: MH1596CIR.CSSELEC

Save Part Not Listed?
product name

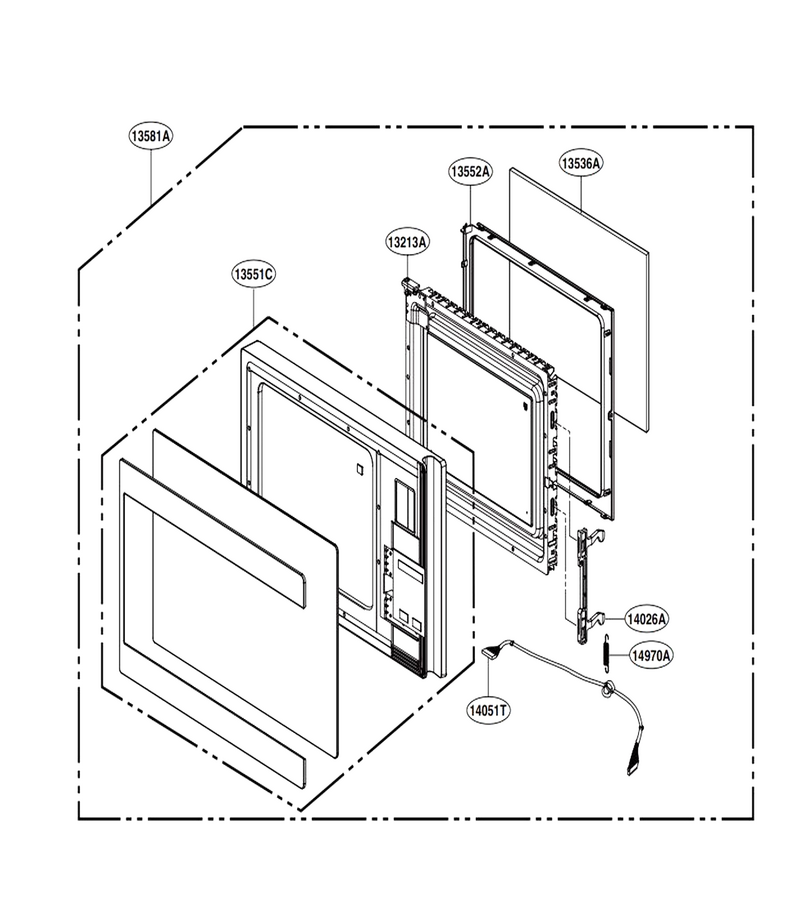

Door Parts

...
...
13213A
Frame Assembly,door L-G-ADV76207502
...
13536A
Tape,sealing L-G-MJN69967101
...
13551C
Door Assembly,sub L-G-ADC75586502
...
13552A
Cover,choke L-G-MCK69565201
...
13581A
Door Assembly,full L-G-ADC75586602
...
14026A
Locker L-G-MFG63839001
...
14051T
Harness,single L-G-EAD63729202
...
14970A
Microwave Door Latch Spring L-G-4970WRA001E

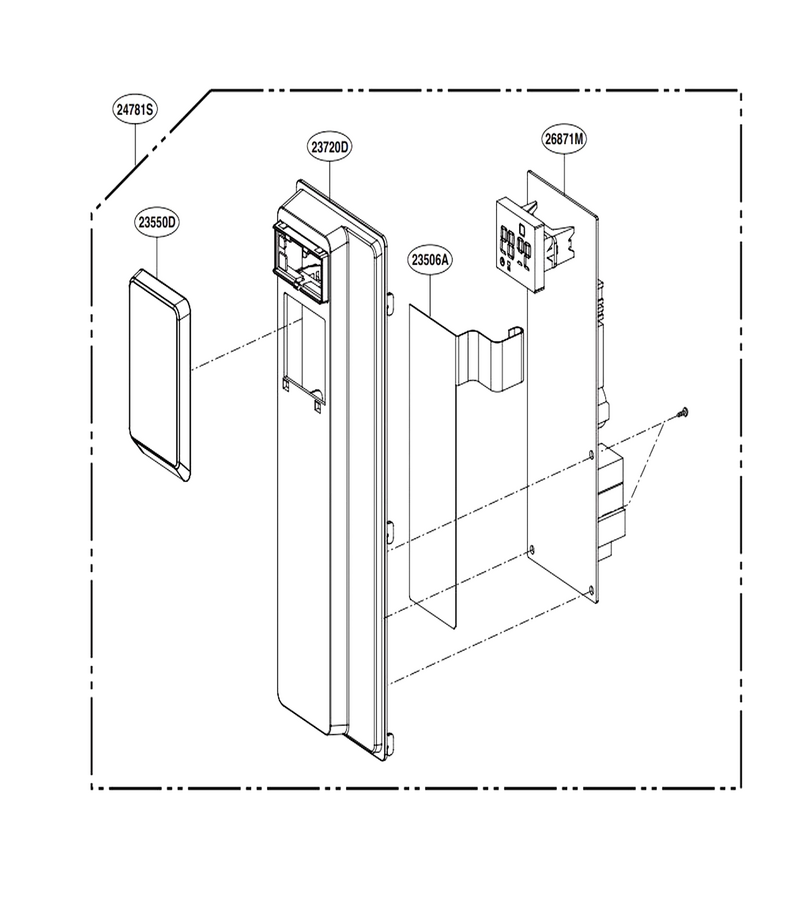

Control Panel Parts

...
...
23506A
Membrane L-G-MFM63876903
...
23550D
Cover,display L-G-MCK68990601
...
23720D
Panel,control L-G-MGC64361505
...
24781S
Controller Assembly,touch L-G-ACM74818831
...
26871M
Pcb Assembly,main L-G-EBR80969651

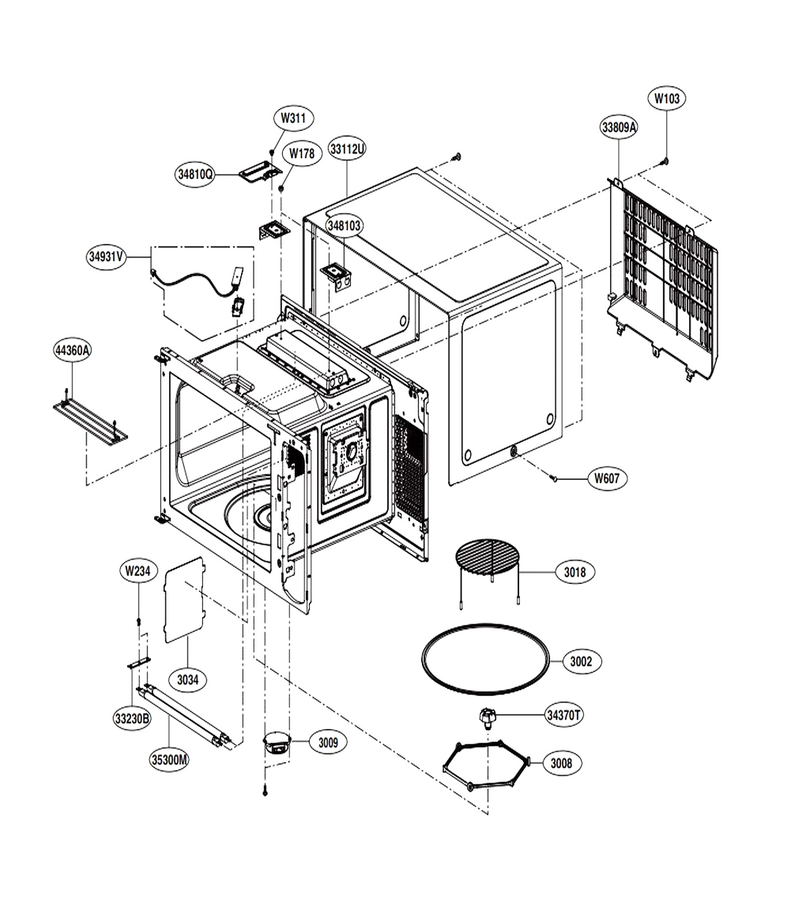

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
W607
Screw,customized L-G-FAB33360002
...
W234
Drawing Screw L-G-4000W4A001E
...
W178
Hex Nut L-G-1NHA0300018
...
3008
Turntable Assembly L-G-AJS73129204
...
3009
Motor, Ac Synchronous L-G-6549W1S011E
...
3018
Shelf L-G-MHL63611603
...
3034
Cover,insulator L-G-MCK69074904
...
33112U
Case,u Bending L-G-MBN64566306
...
33230B
Connector,bar L-G-MCD63627201
...
33809A
Cover,rear L-G-MCK69029201
...
34370T
Microwave Turntable Motor Couple L-G-4370W1A006B
...
34810Q
Bracket,mount L-G-MAZ65189401
...
34931V
Holder Assembly,lamp L-G-AEJ74859402
...
35300M
Heater,miraclon L-G-MEE56971112
...
44360A
Bar L-G-MAK38087102
...
348103
Bracket,heater L-G-MAZ65130101

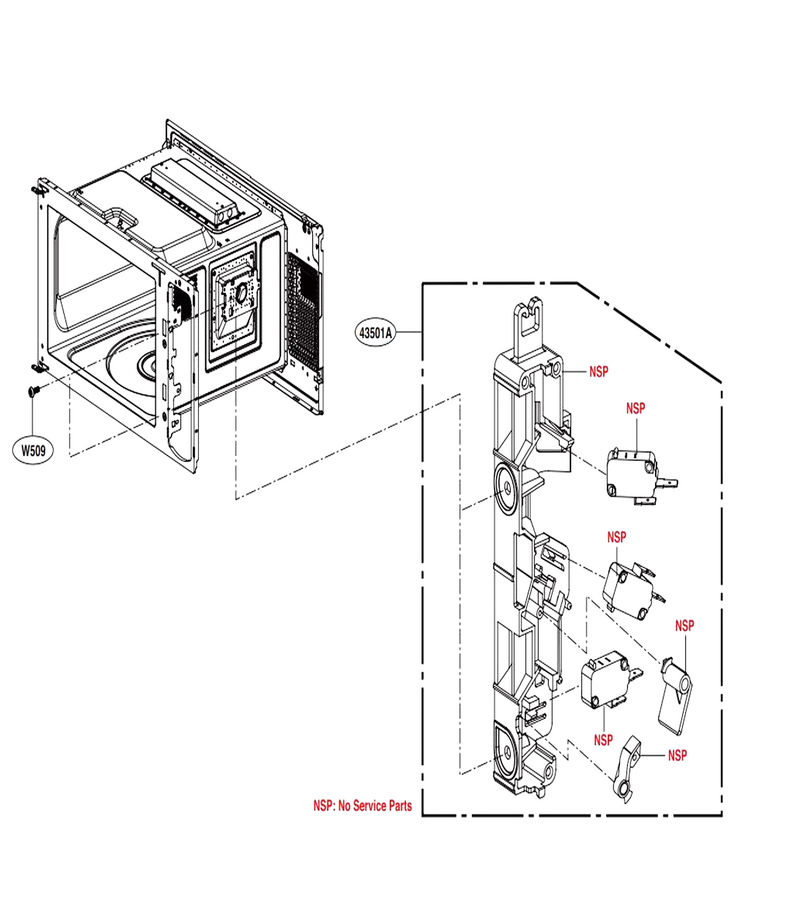

Latch Board Parts

...
...
W509
Screw,customized L-G-FAB33219701
...
43501A
Holder Assembly,locker L-G-AEJ74780002

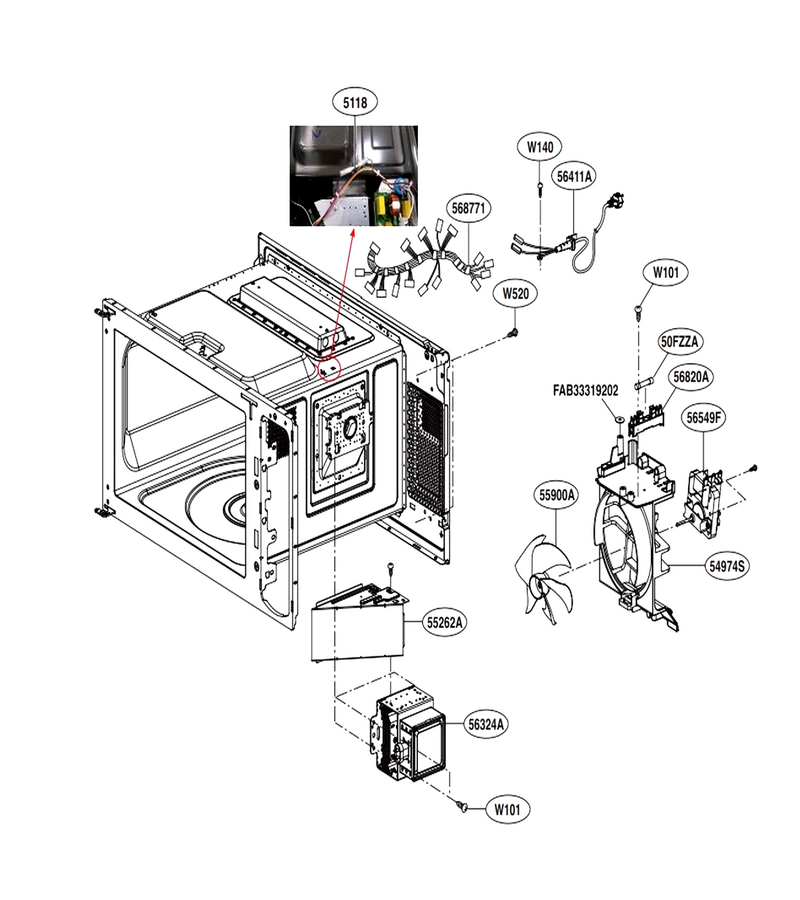

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W140
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
W520
Screw,tapping L-G-FAB33439001
...
50FZZA
Fuse,drawing L-G-3B74133Q
...
5118
Thermostat L-G-6930W1A004P
...
54974S
Guide,suction L-G-MEA64470604
...
55262A
Duct L-G-MCZ63931901
...
55900A
Fan,propeller L-G-MDG63082802
...
56324A
Magnetron L-G-EAS61382907
...
56411A
Power Cord Assembly L-G-EAD62027818
...
56549F
Motor L-G-EAU42744404
...
56820A
Fuse Holder L-G-4930W3B025E
...
568771
Harness,single L-G-EAD63945801

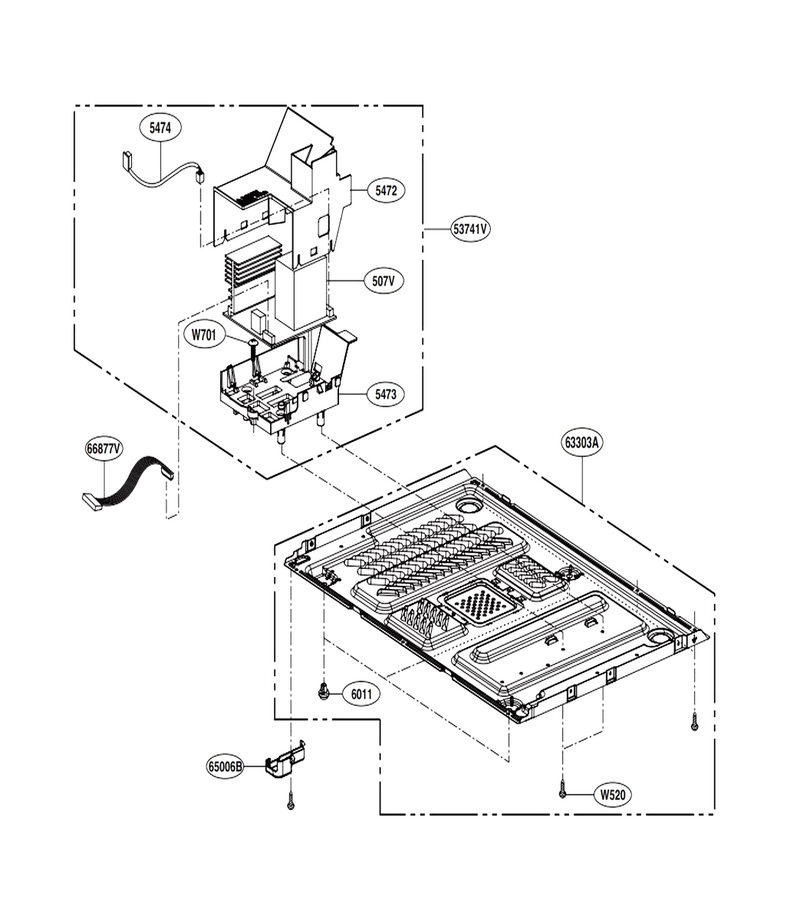

Base Plate Parts

...
...
W520
Screw,tapping L-G-FAB33439001
...
507V
Pcb Assembly,inverter L-G-EBR82899405
...
5472
Guide,air L-G-MEA64431003
...
5473
Supporter L-G-MJH64235103
...
5474
Harness,single L-G-EAD63789209
...
6011
Foot Assembly L-G-ADU73009001
...
63303A
Plate Assembly,base L-G-AGU75510205
...
65006B
Cap L-G-MBL67000901
...
66877V
Harness,single L-G-EAD63729207
