LG MBBS.CSBEBSH

Model: MBBS.CSBEBSH

Save Part Not Listed?
product name

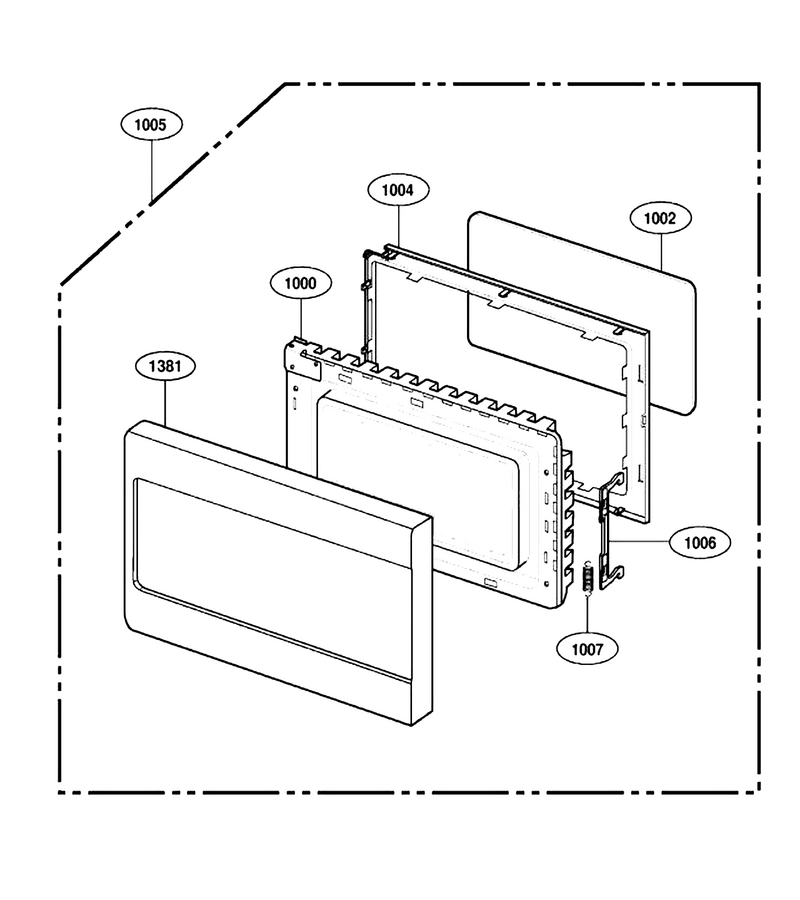

Door Parts

...
...
1000
Microwave Door Frame L-G-3213W0A001L
...
1002
Seal Tape L-G-3536W1A009A
...
1004
Microwave Choke Cover L-G-3552W1A035B
...
1005
Door Assembly L-G-3581W1A452H
...
1006
Spring L-G-4970WRA001B
...
1007
Latch L-G-4026W2A016A
...
1381
Panel Assembly,door L-G-3721W1A011H

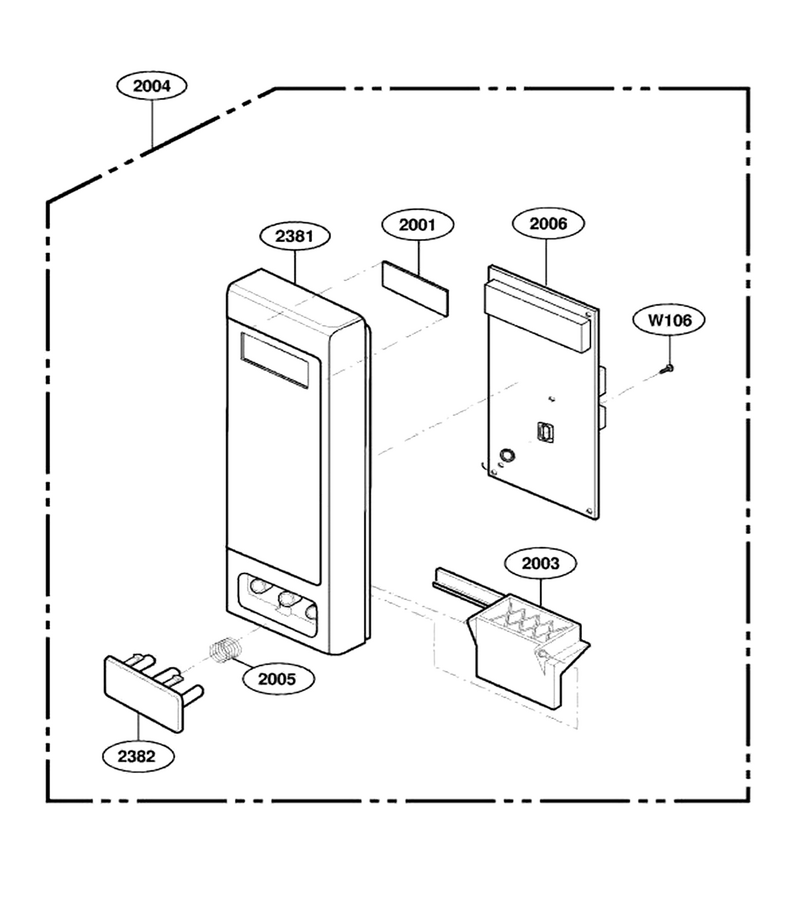

Control Panel Parts

...
...
W106
Screw L-G-1TPL0402818
...
2001
Cover L-G-3550W4A029L
...
2003
Lever L-G-4510W3L003A
...
2004
Controller Assembly,keypad L-G-4781W1M372C
...
2005
Microwave Door Release Button Spring L-G-4B72023B
...
2006
Pcb Assembly,sub L-G-6871W1S068W
...
2381
Parts Assembly L-G-383EW5A199C
...
2382
Parts Assembly L-G-383EW5A200C

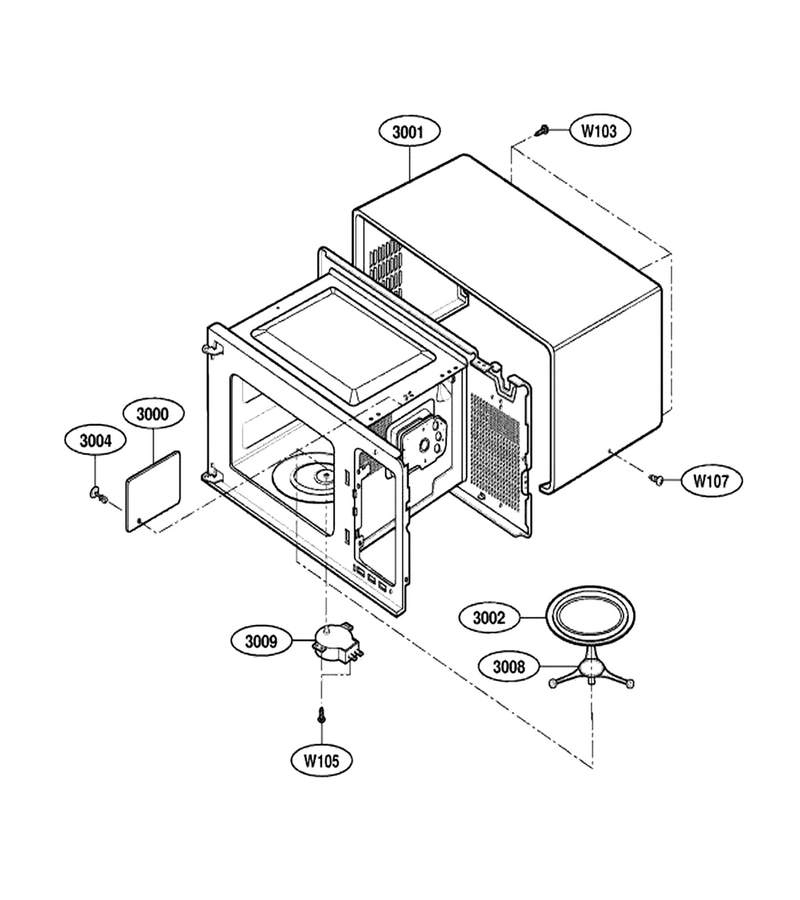

Oven Cavity Parts

...
...
W105
Microwave Screw L-G-1TPL0402418
...
W107
Screw L-G-1TTL0402416
...
W103
Screw L-G-1SZZW2A002A
...
3000
Canopy L-G-3052W3M011F
...
3001
Case,u Bending L-G-3112W0U072E
...
3002
Tray,glass L-G-3390W1G009D
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3008
Turntable Assembly L-G-5889W2A014A
...
3009
Microwave Turntable Motor L-G-6549W1S011B

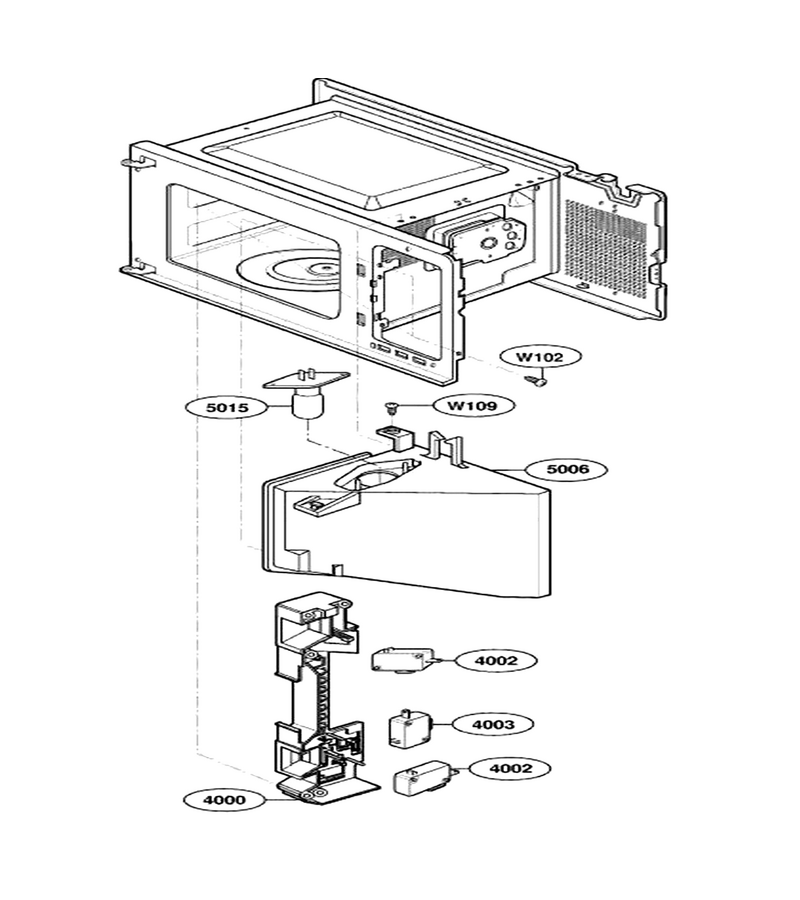

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W109
Microwave Screw L-G-1TTL0402818
...
4000
Microwave Latch Board L-G-3500W1A018A
...
4002
Switch,micro L-G-6600W1K003D
...
4003
Switch,micro L-G-6600W1K003C
...
5006
Duct L-G-5208W1A034B
...
5015
Microwave Light Bulb L-G-6912W3B002L

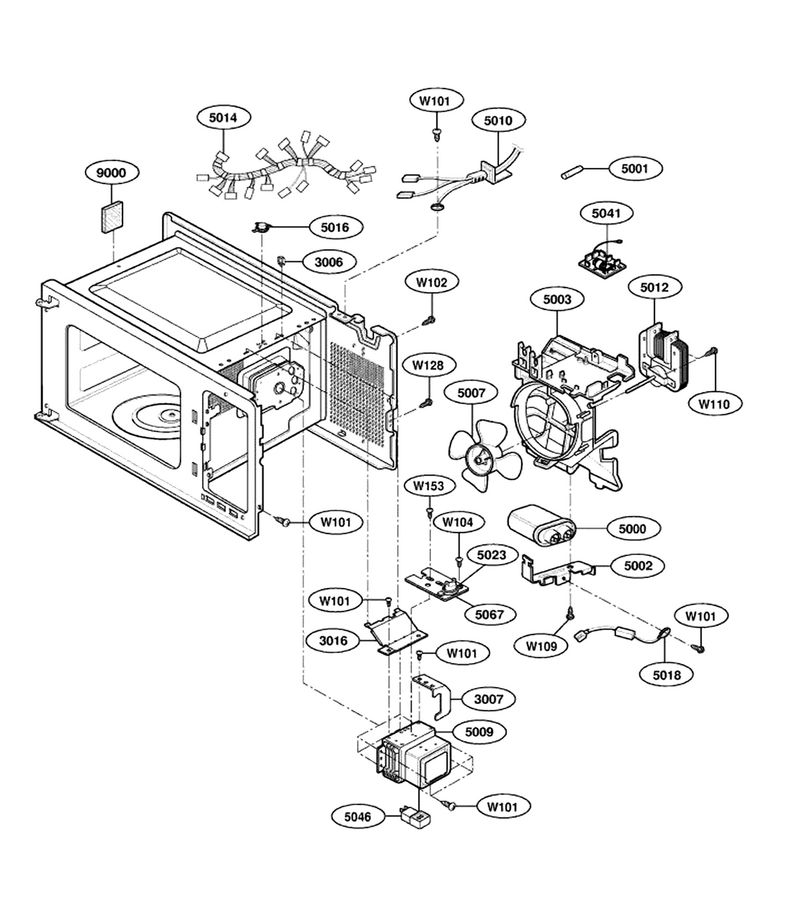

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W109
Microwave Screw L-G-1TTL0402818
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
3006
Holder L-G-4B72944B
...
3007
Insulator L-G-5012W3A020C
...
3016
Bracket,idle L-G-4810W2G052B
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H004C
...
5001
Fuse,drawing L-G-3B74133Q
...
5002
Bracket L-G-4810W4C003B
...
5003
Stirrer Cover L-G-4974W1S048B
...
5007
Fan,propeller L-G-5900W1A025A
...
5009
Magnetron L-G-6324W1A001L
...
5010
Power Cord Assembly L-G-6411W1A033K
...
5012
Microwave Cooling Fan Motor L-G-6549W1F005P
...
5014
Harness,single L-G-6877W1A540C
...
5016
Microwave Thermostat L-G-6930W1A003B
...
5018
Microwave High-Voltage Diode L-G-6021W3B001V
...
5023
Thermostat L-G-6930W1A003G
...
5041
Microwave Noise Filter L-G-2B72130F
...
5046
Filter Assembly L-G-6201W2A019B
...
5067
Bracket,misc L-G-4810W1A180A
...
9000
Cushion L-G-3B72244C

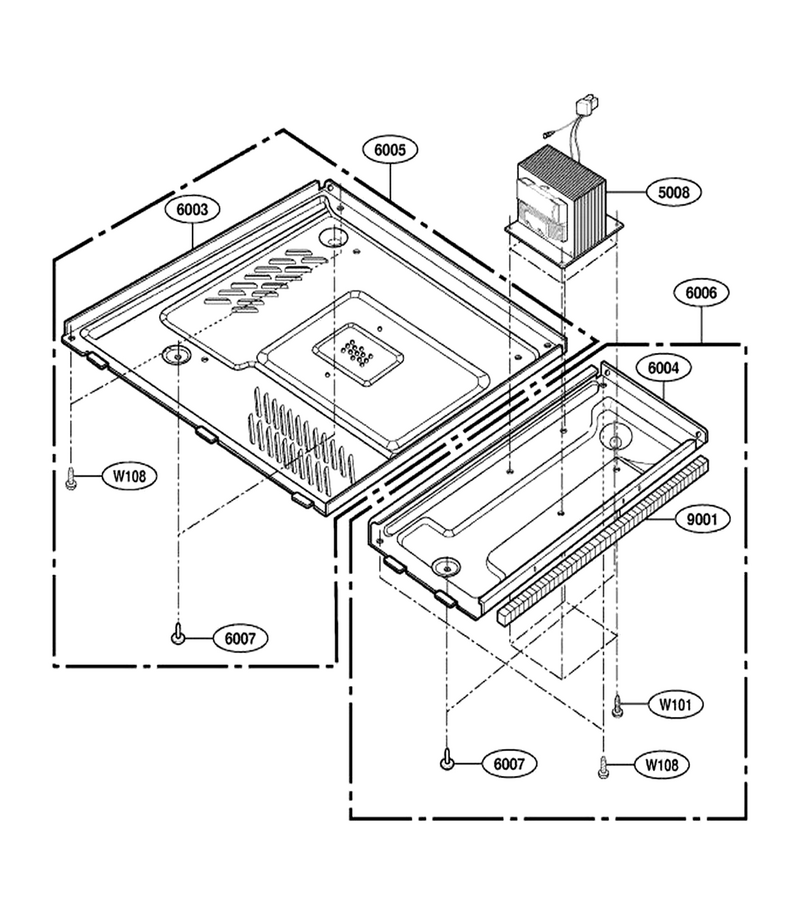

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
5008
Transformer L-G-6170W1D023K
...
6003
Base Plate L-G-3302W0A014B
...
6004
Base Plate L-G-3302W1A046F
...
6005
Plate Assembly L-G-3303W0A010C
...
6006
Plate Assembly L-G-3303W1A040F
...
6007
Microwave Foot (white) L-G-5006W3A019A

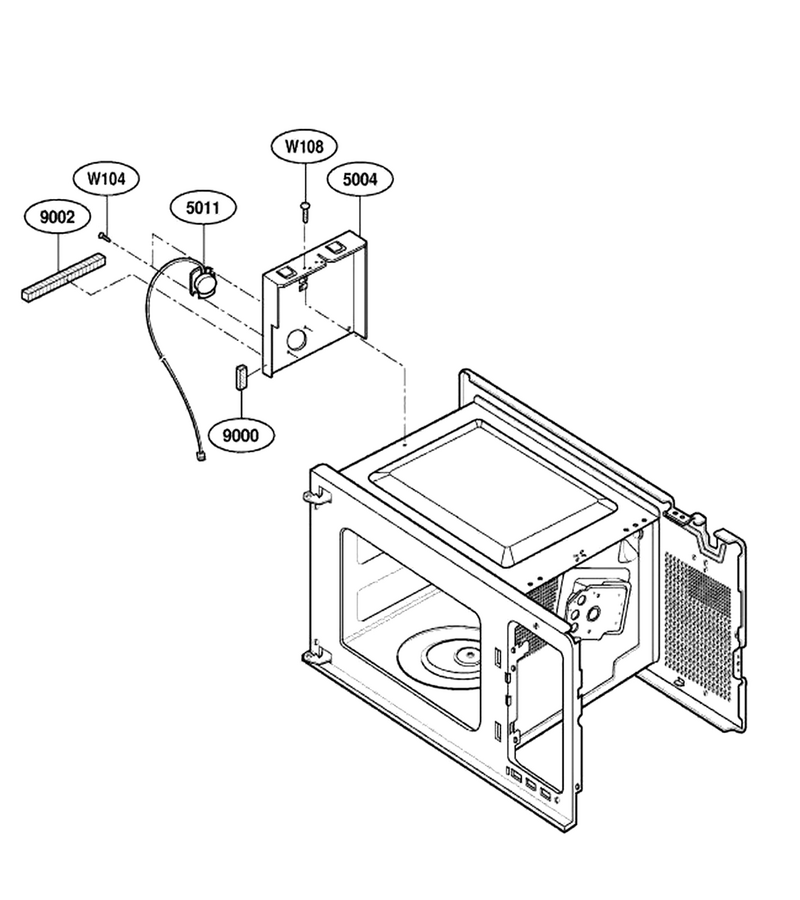

Sensor Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
5004
Bracket,sensor L-G-4810W1A254A
...
5011
Microwave Humidity Sensor L-G-6501W1A006A
...
9000
Cushion L-G-3B72244C
