LG MB-3917H.HMWQBNX

Model: MB-3917H.HMWQBNX

Save Part Not Listed?
product name

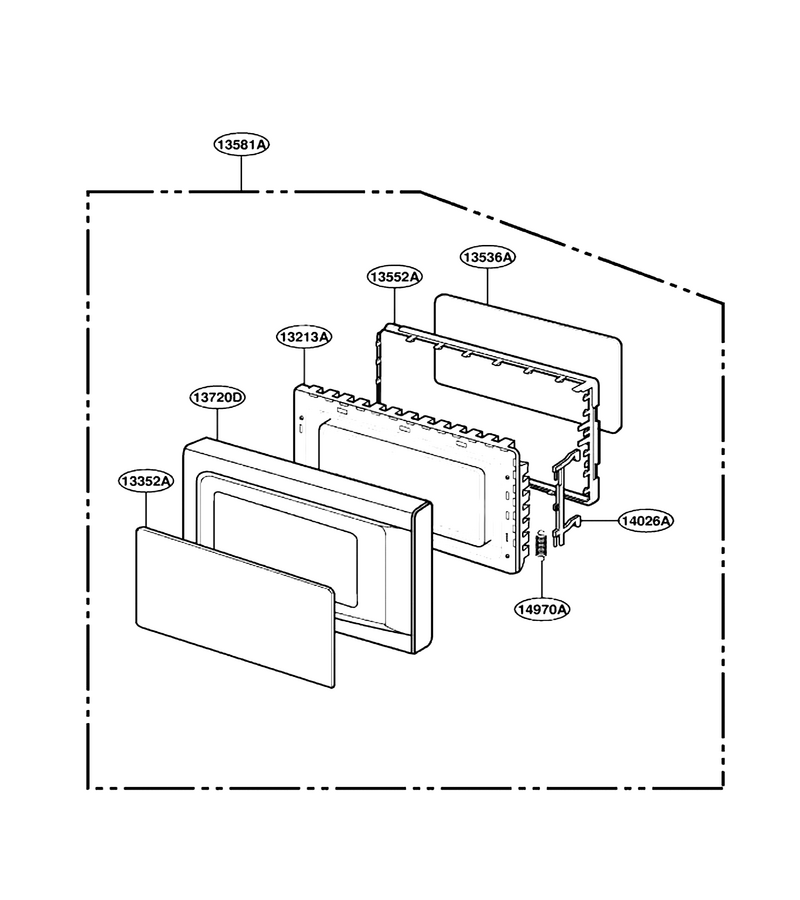

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A027G
...
13352A
Window,screen L-G-3352W2A040U
...
13536A
Tape,sealing L-G-3536WRA001S
...
13552A
Cover,choke L-G-3552W1A023A
...
13581A
Door Assembly L-G-3581W1A200F
...
13720D
Panel,door L-G-3720W2D026Q
...
14026A
Locker L-G-4026W2A011A
...
14970A
Spring L-G-4970WRA001C

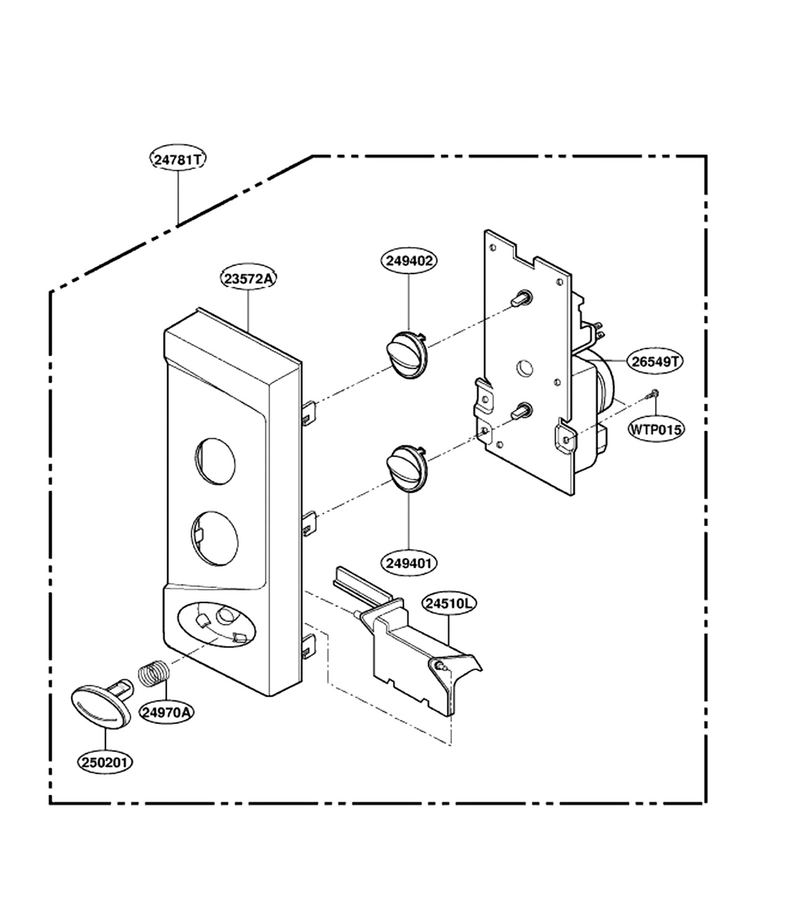

Control Panel Parts

...
...
WTP015
Microwave Screw L-G-1TPL0402618
...
23572A
Panel,control L-G-3572W2A001V
...
24781T
Controller Assembly,mechanical L-G-4781W1T065W
...
24970A
Microwave Door Release Button Spring L-G-4B72023A
...
26549T
Module,timer L-G-6549W2T008A
...
249401
Knob L-G-4940W2G001A
...
249402
Knob L-G-4940W2G002A
...
250201
Button L-G-5020W2G096D

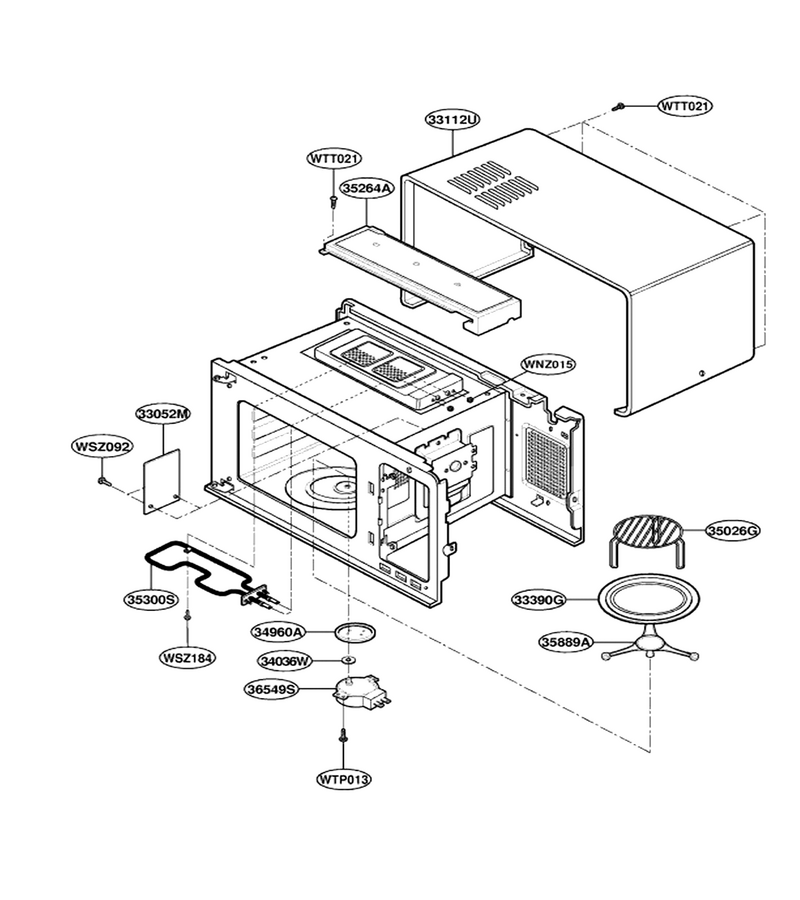

Oven Cavity Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WSZ092
Draw Screw L-G-4B70572B
...
WNZ015
Drawer Nut L-G-4B71028B
...
33052M
Cover,insulator L-G-3052WRA005B
...
33112U
Case,u Bending L-G-3112W0U025Y
...
33390G
Tray,glass L-G-3390W2G002A
...
34036W
Water Seal L-G-4036W3W001A
...
34960A
Plate L-G-4960W3G005A
...
35026G
Shelf L-G-3750W2A003C
...
35264A
Guide,air L-G-5264W1A012A
...
35300S
Heater,sheath L-G-5300W1S004P
...
35889A
Turntable Assembly L-G-5889W2A009A
...
36549S
Motor, Ac Synchronous L-G-6549W1S002B

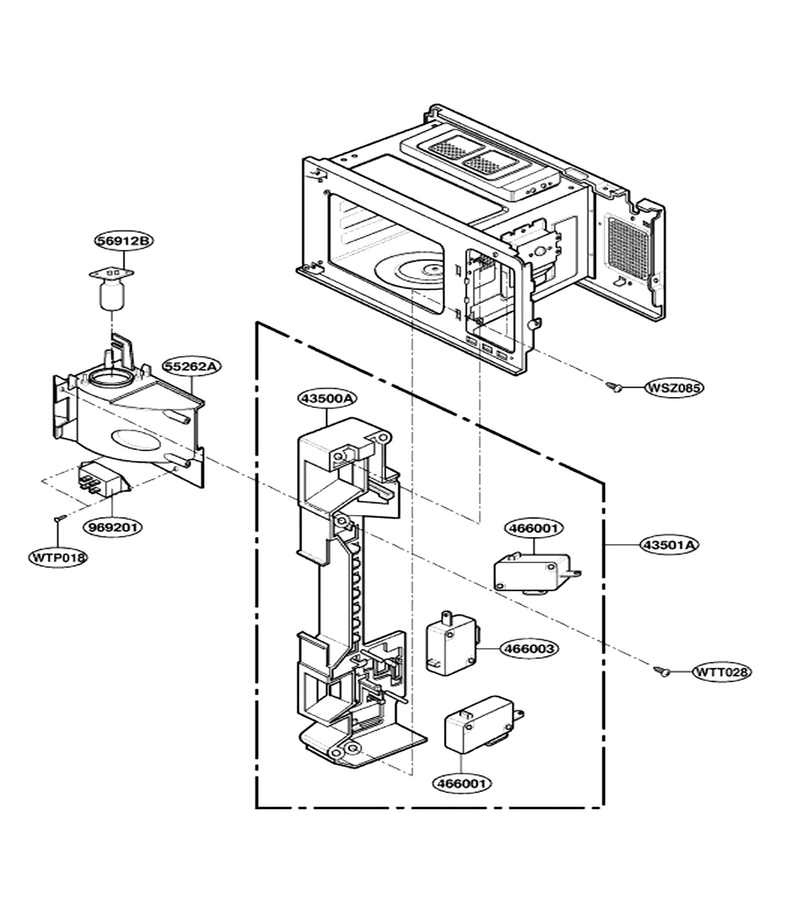

Latch Board Parts

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WTP018
Screw L-G-1TPL0402818
...
43500A
Holder,locker L-G-3500WRA001A
...
43501A
Holder Assembly,locker L-G-3501WRA001E
...
55262A
Duct L-G-5262W2A042A
...
56912B
Cable,assembly L-G-6912W3B002D
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E
...
969201
Relay,contact L-G-6920W3A001A

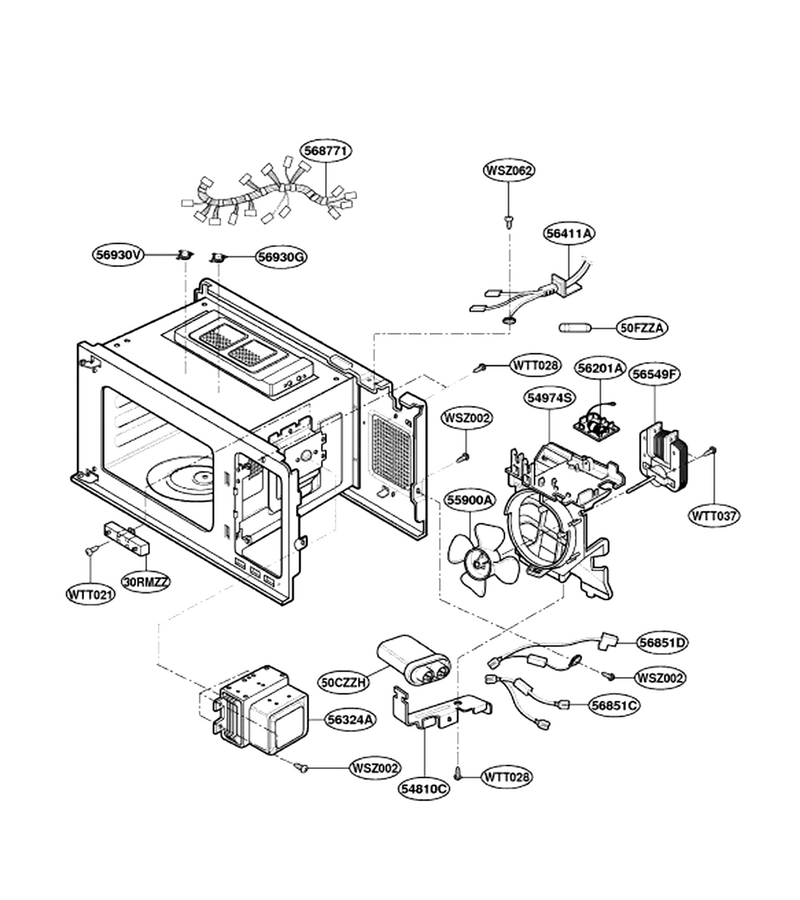

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ062
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
30RMZZ
Resistor,cement L-G-3B71807A
...
50FZZA
Fuse,time Delay L-G-3B70856K
...
50CZZH
Capacitor,high Voltage L-G-0CZZW1H001E
...
54620A
Clamp,cord L-G-4930W4B006A
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide,suction L-G-4974W1S016A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56411A
Power Cord Assembly L-G-6411W2C001A
...
56549F
Motor,ac Fan L-G-6549W1F005A
...
56851D
Cable,assembly L-G-3B73348B
...
56851C
Cable,assembly L-G-3B74428D
...
568771
Connector Assembly L-G-6877W1A194D

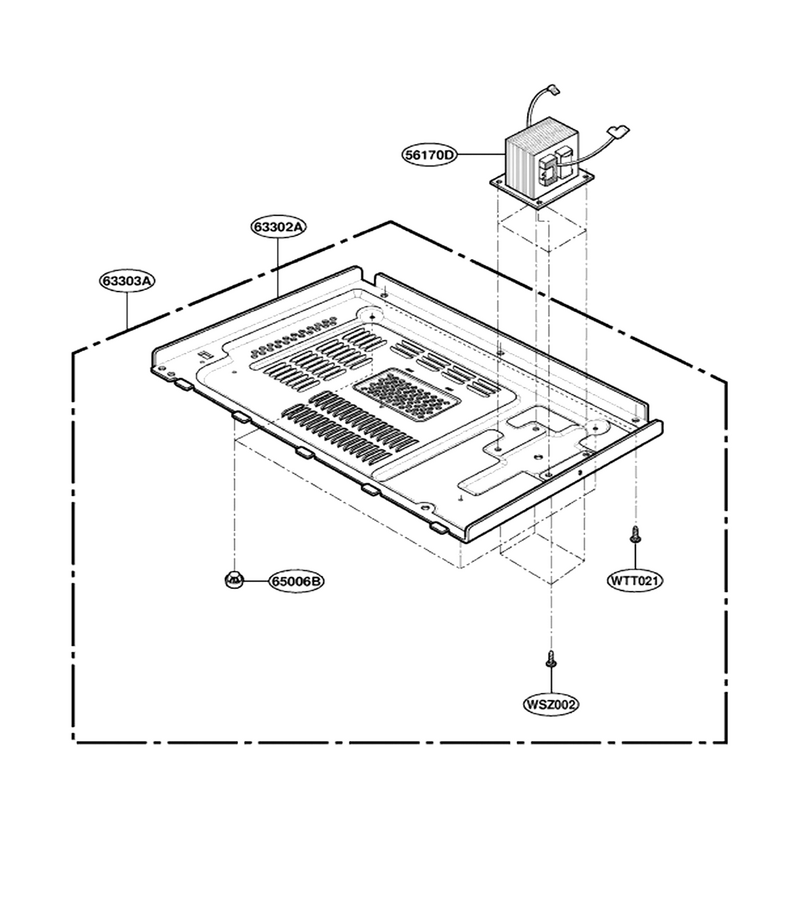

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer,high Voltage L-G-6010W2H097A
...
63302A
Plate,base L-G-3302W0A017A
...
63303A
Plate Assembly,base L-G-3303W1A042A
...
65006B
Cap L-G-5006W3A016B
