LG MAK7553W 01.CW1EGSE

Model: MAK7553W 01.CW1EGSE

Save Part Not Listed?
product name

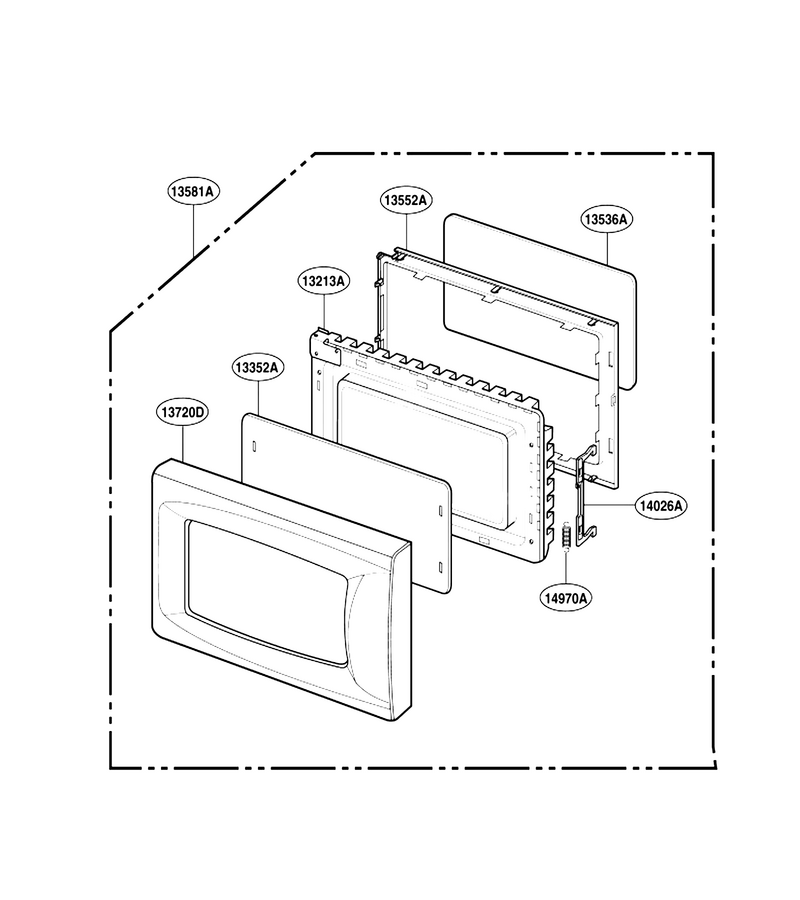

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A053B
...
13352A
Window,screen L-G-3352W1A152B
...
13536A
Tape,sealing L-G-3536W1A010A
...
13552A
Cover,choke L-G-3552W1A064A
...
13581A
Door Assembly L-G-3581W1A441A
...
13720D
Panel,door L-G-3720W0D348A
...
14026A
Latch L-G-4026W1A036A
...
14970A
Spring L-G-4970WRA001B

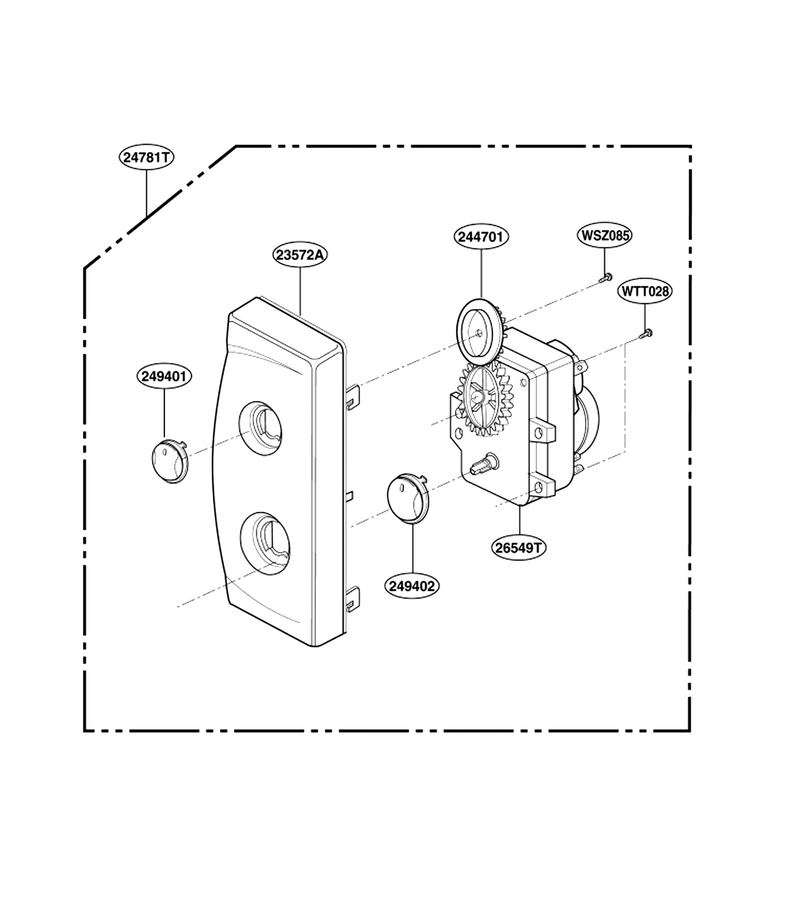

Controller Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WTT028
Microwave Screw L-G-1TTL0402818
...
23572A
Panel,control L-G-3720W0C220F
...
24781T
Controller Assembly,mechanical L-G-4781W1T129G
...
26549T
Module,timer L-G-6549W1T025A
...
244701
Gear L-G-4470W1A001A
...
249401
Knob L-G-4940W1A125A
...
249402
Knob L-G-4940W1A124A

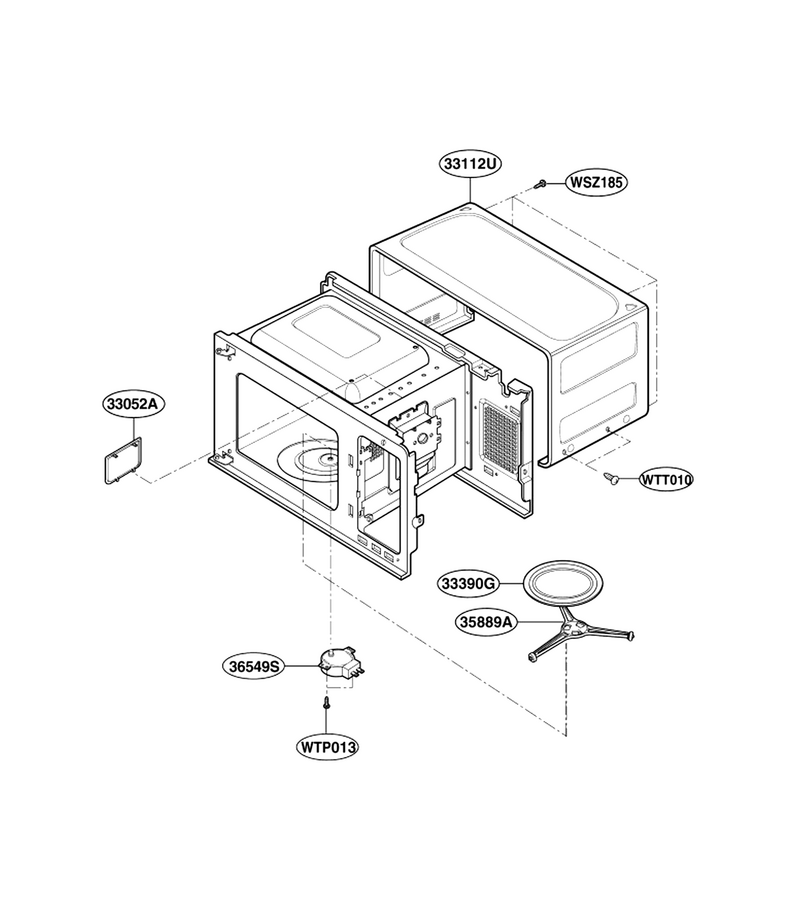

Oven Cavity Parts

...
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
33052A
Cover,resin L-G-3052W1A006A
...
33112U
Case,flat L-G-3112W0F040C
...
33390G
Tray,glass L-G-3390W1A035A
...
35889A
Turntable Assembly L-G-5889W1A012B
...
36549S
Motor, Ac Synchronous L-G-6549W1S021B

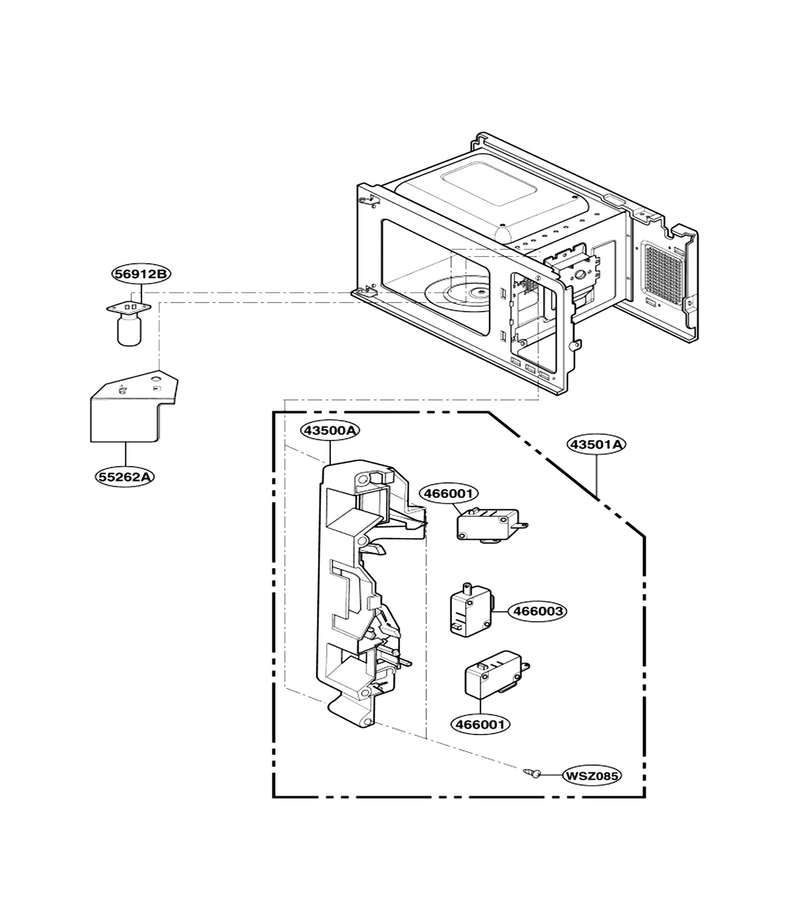

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Holder,locker L-G-3500W1A034A
...
43501A
Holder Assembly,locker L-G-3501W1A042A
...
55262A
Duct L-G-5208W1A030A
...
56912B
Lamp,incandescent L-G-6912W3B002K
...
466001
Switch,micro L-G-6600W1K001D
...
466003
Microwave Door Interlock Switch L-G-6600W1K001C

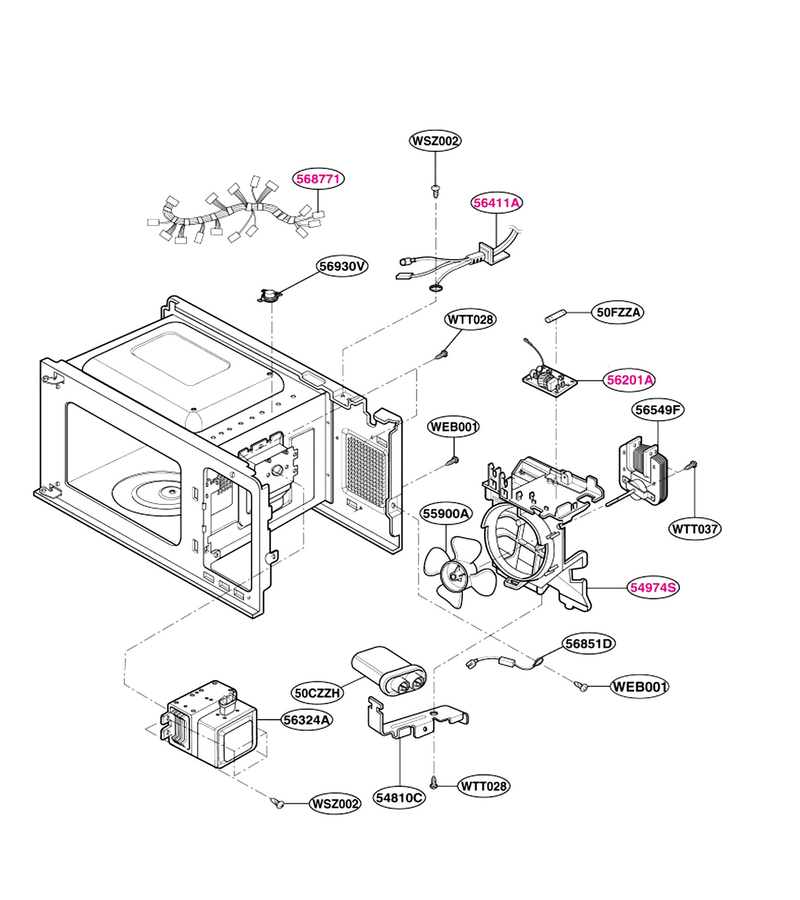

Interior Parts 1

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WEB001
Screw L-G-1EBF0402494
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50CZZH
Capacitor,high Voltage L-G-0CZZW1H004M
...
50FZZA
Fuse,time Delay L-G-3B74133S
...
54810C
Bracket,capacitor L-G-4810W1A253A
...
54974S
Guide,suction L-G-4974W1A030A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-6324W1A006A
...
56411A
Power Cord Assembly L-G-6411W1A036H
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005P
...
56851D
Microwave Diode L-G-6851W1A002A
...
56930V
Thermostat L-G-6930W3A001T
...
568771
Harness,single L-G-6877W1A533C

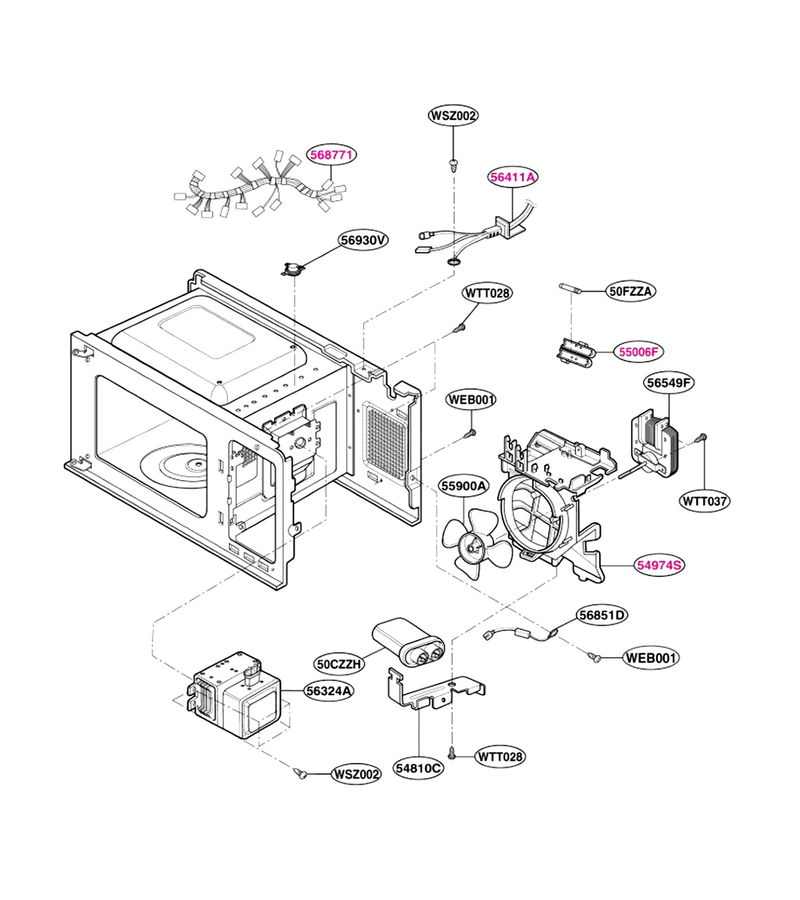

Interior Parts 2

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WEB001
Screw L-G-1EBF0402494
...
50CZZH
Capacitor,high Voltage L-G-0CZZW1H004M
...
50FZZA
Fuse,time Delay L-G-3B74133S
...
54810C
Bracket,capacitor L-G-4810W1A253A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-6324W1A006A
...
56411A
Power Cord Assembly L-G-6411W1A036H
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005P
...
56851D
Microwave Diode L-G-6851W1A002A
...
56930V
Thermostat L-G-6930W3A001T
...
568771
Harness,single L-G-6877W1A533C

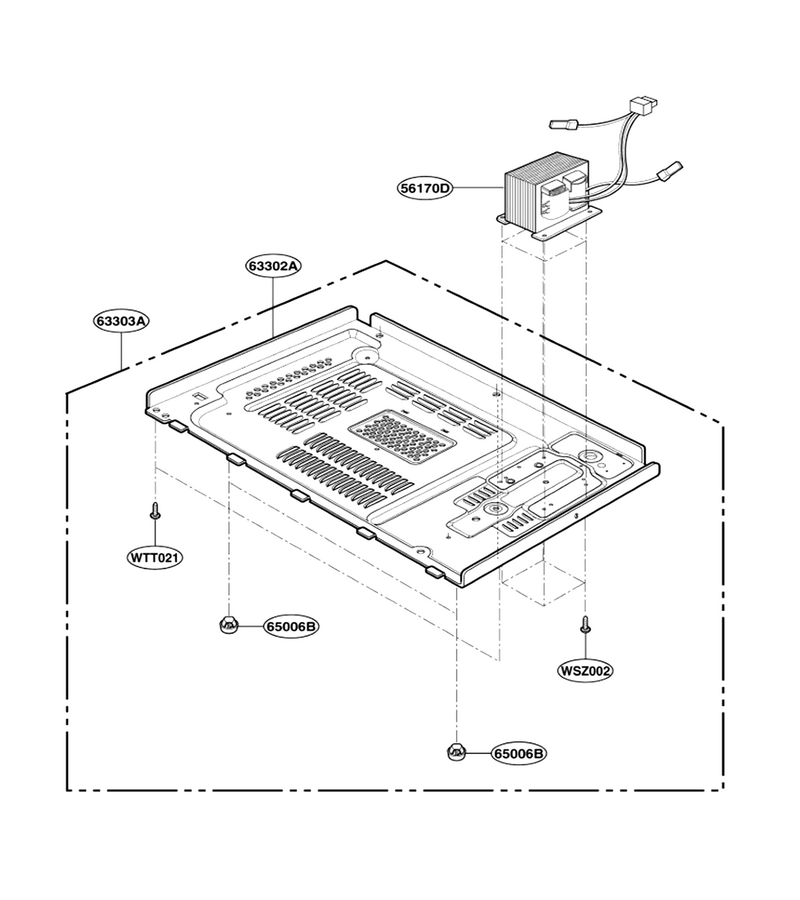

Base Plate Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer,high Voltage L-G-6170W1D091A
...
63302A
Plate,base L-G-3302W0A052A
...
63303A
Plate Assembly,base L-G-3303W1A067A
...
65006B
Microwave Foot (white) L-G-5006W3A019A
